Fisher & Paykel ActiveSmart E372B User manual

Installation instructions
Please follow the installation steps below to ensure your appliance operates correctly.
Power
• The appliance must be installed so the plug is accessible.
• To ensure that the appliance is not accidentally switched off, connect your refrigerator to its own power point. Do
not plug in any other appliance at this power point or use extension cords and double adaptors, as the combined
weight of both power cords can pull the double adaptor from a wall outlet socket.
• For power requirements, refer to the information on the serial plate located at the front bottom right-hand side of
the refrigerator when the door is open.
• It is essential that the appliance is properly grounded (earthed).
Location
• Your refrigerator should not be located in direct sunlight or next to any heat generating appliance such as a
cooktop, oven or dishwasher.
Ice & Water and Automatic Ice models
• Your Ice & Water and Automatic Ice refrigerator must be installed by an authorised plumber or Fisher & Paykel
trained and supported service technician as incorrect plumbing can lead to water leaks.
• Fisher & Paykel Appliances does not accept responsibility for damage (including water damage) caused by
faulty installation or plumbing.
Product and cabinetry dimensions
If integrating your refrigerator, please follow installation instructions provided with the integration kits.
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
1

Freezer door models (E372B, RF372B, E402B, RF402B, E442B, RF442B, E522B,
RF522B)(Ice & Water, Automatic Ice and non-Ice & Water models)
Flush with refrigerator chassis — full door rotation
Flush with refrigerator door — full door rotation
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
2

Flush with refrigerator door — 90° door rotation
Product Dimensions
Property (mm) E372B / RF372B E402B /
RF402B
E442B /
RF442B
522B /
RF522B
A. Overall height of product 1625 1725 1725 1725
B. Overall width of product 635 635 680 790
C. Overall depth of product (excludes
handle, includes evaporator) N/A 695 695 695
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
3

Cabinetry Dimensions (including minimum clearances)
Property (mm) E372B / RF372B E402B /
RF402B
E442B /
RF442B
522B /
RF522B
D. Inside height of cavity 1645 1735 1735 1735
Flush with refrigerator chassis — full door rotation
E. Inside width 675 675 720 830
F. Inside depth 620 620 620 620
Flush with refrigerator door — full door rotation
G. Inside width 790 790 835 945
H. Inside depth flush to
door n/a 695 695 695
Flush with refrigerator door — 90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
I. Inside width 745 745 790 900
J. Inside depth flush to
door N/A 695 695 695
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
4

Minimum Clearances
Property (mm) E372B / RF372B E402B /
RF402B
E442B /
RF442B
522B /
RF522B
K. Side clearance 20 20 20 20
L. Side clearance — hinge side flush with
door — full rotation 135 135 135 135
M. Side clearance — hinge side 1 with
door — 90° rotation 90 90 90 90
N. Rear clearance (incl. evaporator tray) 30 30 30 30
O. Vent — around top of cupboard
(optional) 50 50 50 50
P. Top clearance — above refrigerator
cabinet 50 50 50 50
Q. Door clearance — hinge side flush with
chassis — full rotation 520 520 555 645
R. Door clearance — hinge side flush with
door — full rotation 405 405 440 530
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
5

Connecting water (Ice & Water and Automatic Ice
models)
Contents of filter kit
1. 1 x 4m long x Ø6mm (1/4”) tubing
2. 1 x 200mm (8”) short Ø6mm (1/4”) tubing
3. 1 x pressure reducing valve (PRV)
4. 1 x double sided foam
5. 2 x locking keys
6. 1 x water filter cartridge and head
7. 1 x tap connection — 15mm (1/2”) BSP
• It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. If the PRV is not
fitted to the connection line, the Ice & Water features may not function in some
circumstances.
• The water connection to your Ice & Water refrigerator must be installed by an authorised
plumber or Fisher & Paykel trained and supported service technician.
• The water connection instructions below are intended only for the professional installer.
• The new tubings supplied with the refrigerator are to be used, old tubings from old water and
ice connections should not be used.
• Replacement parts are available through Customer Care or online at www.fisherpaykel.com
(this service is available to selected markets only).
INSTALLATION PRECAUTIONS/WARNING
• DO NOT use with water that is microbiologically unsafe or of unknown quality without adequate disinfection
before or after the system.
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
6

connect to potable water supply only.
• DO NOT install on line pressure above 119psi (827kPa) or below 22psi (150kPa).
• DO NOT use on hot water supply 38°C max.
• DO NOT cut any length of tube shorter than 200mm.
• DO NOT install near electrical wires or water pipes that will be in the path of drilling when selecting the location
of filter system.
• DO NOT mount filter in such a position so that it will be struck by other items, such as wastebaskets, etc.
• DO NOT install the filter or any water tubing in direct sunlight as prolonged exposure to light can weaken plastic
components.
• DO NOT install in a location that is susceptible to freezing temperatures as damage to the housing could occur.
• DO NOT screw filter to the refrigerator.
• DO NOT install the filter or any water tubing in high temperature areas eg in a ceiling cavity.
• AVOID contamination of pipes during installation.
• DO NOT use copper tubing. The plastic tubing supplied should always be used.
• DO NOT continuously dispense water for longer than 2 minutes.
Installation instructions:
1. Ensure the refrigerator is NOT plugged into a power supply.
2. Locate a cold water supply/feed only suitable for a water
connection. Tee and tap fitting is not supplied.
3. Connect the 200mm (8”) tubing to the outlet of the PRV (blue collet)
and the inlet connection of the water filter cartridge as shown in
Diagram 1. Gently pull on both ends to ensure it is locked.
Diagram 1 PRV
connection
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
7

4. Connect the 6mm (1/4”) tubing to the outlet of the water filter
cartridge as shown in Diagram 2. Gently pull to ensure it is
locked.
5. Measure the required length of tubing to run from the PRV to
the water connection point (no less than 250mm).
6. Cut the tubing making sure the ends are square and clean.
Diagram 2 Waterline connection to
refrigerator
7. Connect the tubing to the faucet connection and
the base of the PRV (white collet) and then to the
faucet as shown in Diagram 3. Please note that the
faucet connection supplied should fit most
installation situations.
Diagram 3 Faucet connection
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
8

8. Connect one locking key to each side of the water
filter cartridge in between the cartridge and the
locking collet as shown in Diagram 4.
9. To flush the water filter of any trapped air,
harmless carbon fines and to also check for leaks,
aim the end of the tubing into a bucket, turn
isolating faucet on and run at least 4L of water
through. Once complete, turn isolating faucet off.
10. Locate desired position for water filter noting
carefully the following points:
• It is recommended to fit the water filter in a
vertical orientation with the water filter head at
the top. This will minimise water leakage when
replacing cartridge.
• Ensure the filter is in a convenient location to
access every 6 months for replacement. We
suggest that this location is beside the water
filter supply faucet in a cupboard beside the
refrigerator.
• A minimum clearance of 64mm from the bottom
of the filter cartridge is required to perform
cartridge removal.
• Do not screw water filter to refrigerator. Diagram 4 Locking key
11. Attach double sided foam to the back of the water filter head as shown in Diagram 5.
Write the date to be replaced on the filter (date installed + 6 months). Remove the double
sided foam backing and attach the filter to the desired position, reinforcing the filter with
the screws provided as located in step 10 (refer to the previous page).
Diagram 5
Double sided
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
9

foam attachment
12. Run the 6mm (1/4”) tubing to the back of the
refrigerator ensuring there is enough tubing to pull
the refrigerator out for service.
13. Using the measurement guide shown in Diagram
6, mark out 16mm, on the end of the tubing as
shown in Diagram 7.
14. Insert the tubing marked 16mm into the water
(solenoid) valve up to the marked line as shown in
Diagram 8.
15. Pull gently on tubing to ensure it is locked in as
shown in Diagram 9.
16. The completed installation should look like
Diagram 6.
17. Turn the isolating faucet on and check that all
connections are dry and free of drips.
18. Coil water line tubing behind the refrigerator. Push
your refrigerator into place being careful not to kink
or squash the water line tube running into the
water (solenoid) valve.
19. Read pages 17 – 18 carefully and then turn
refrigerator on.
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
10

• All connections must be checked for
leaks.
• Ensure 6mm (1/4”) tubing is routed
away from sharp objects, sharp corners
(beware of kinking the tube as this will
stop water flow), clear of the
refrigerator rear compartment and not
in a location where it can be kinked or
squashed.
• Ensure all push-fit connections are
firmly pushed into place. The tube
should push in 16mm before reaching
the stop.
• If tubing is removed at any point, re-cut
the end and re-insert. Tubing must be
fully inserted to avoid leaks.

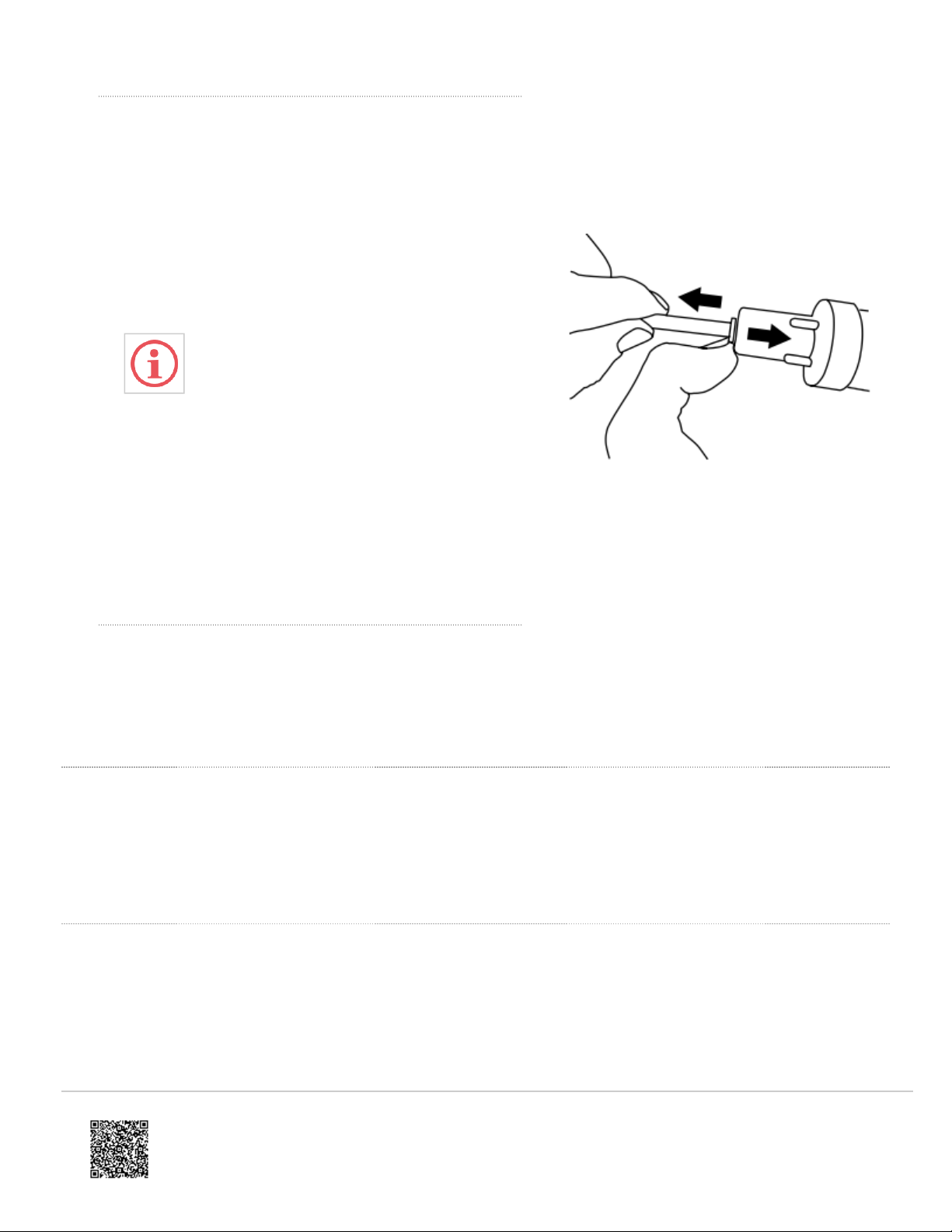

• To remove tube from connection points
first turn off the isolating faucet. Gently
push the dispensing pad a few times
using a glass or container to remove
the static line pressure. Push in the
collet firmly while pulling back on the
tubing at the same time, as shown in
Diagram 10.
Diagram 10
System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction of Asbestos, Atrazine,
Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dichlorobenzene, Toxaphene & Turbidity; against Standard
NSF/ANSI 42 for the reduction of Chlorine Taste and Odour and Nominal Particulate Class I to a capacity of 2,838L
(750gal).
Before you start using the Ice & Water or Automatic Ice function
• Check your refrigerator is switched on.
• Check that the isolation tap has been connected and turned on.
• Allow at least 2 hours for your refrigerator to cool before use.
For Ice & Water models only:
• Run through and discard the first 3L of water from your water dispenser, stopping intermittently to remove
trapped air in the system. Failure to do this will result in excessive dripping from your dispenser.
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
11

There will be a 1 – 2 minute delay while the tank fills until water is dispensed.
For Ice & Water and Automatic Ice models:
• Turn the ice maker on by pressing the
button. The light above the
button will be illuminated when the ice maker is on.
• Press and hold the
,
and
buttons together for 4 seconds and then close the refrigerator compartment door to force an ice maker cycle.
The ice tray will flip twice. Repeat to force another ice maker cycle. The ice tray will flip twice and spill water into
the ice bin. Empty the water, dry and replace the bin. Note that the ice tray will not flip until the refrigerator
compartment door is closed.
• Please discard the first 3 harvests of ice (8 cubes per harvest).
You are now ready to enjoy water and/or ice from your ActiveSmart™ refrigerator.
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
12

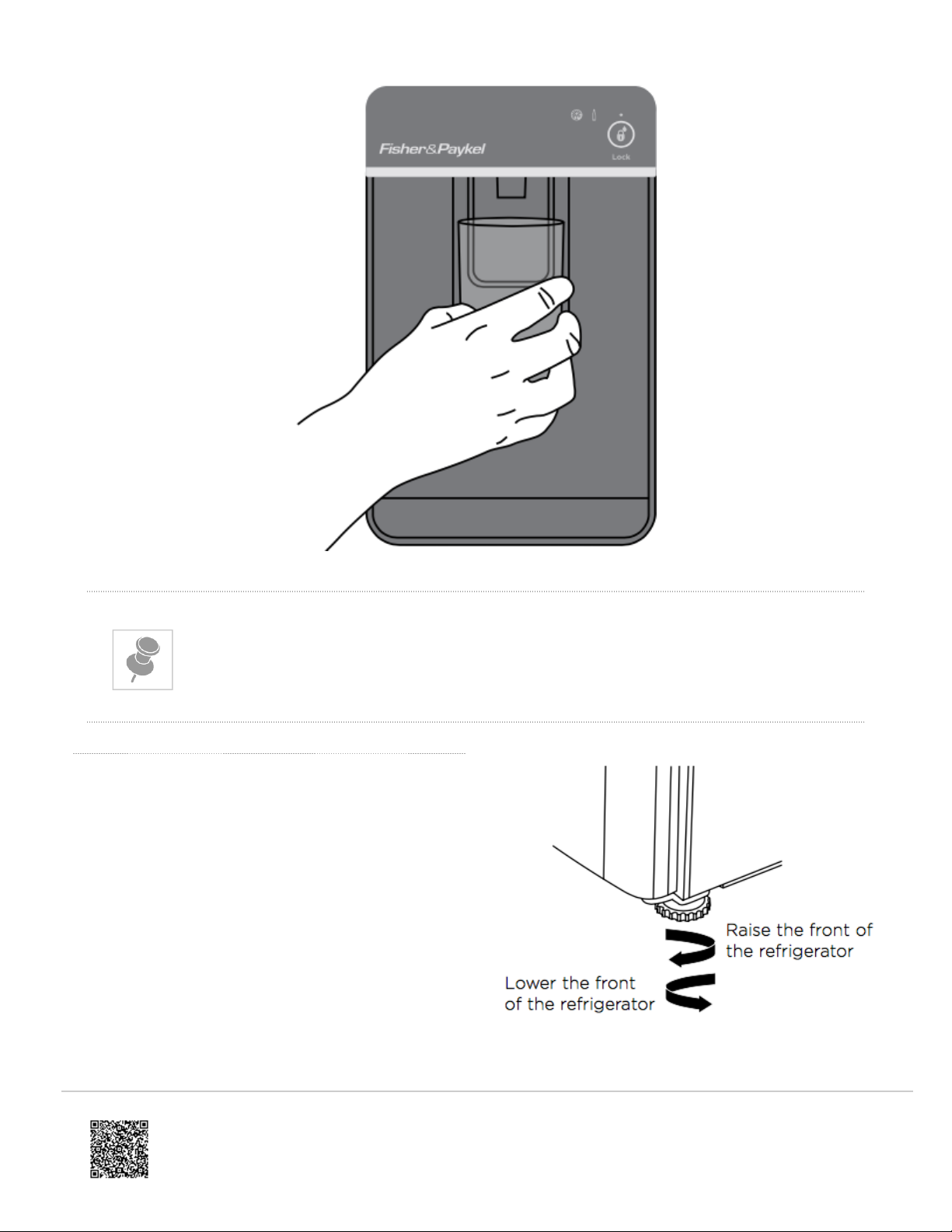

Water dispenser (Ice & Water model only)
Once installation is complete, a few drips may appear out of the dispenser over the next
few days as the remaining trapped air is cleared.
Installation (all models)
Your Fisher & Paykel ActiveSmartTM refrigerator is fitted
with front and rear rollers, designed for moving the
product in the forwards and backwards direction.
Avoid moving the product in a sideways direction as this
may damage the rollers or the floor covering/surface.
A. Your refrigerator will arrive with the front feet
wound up making moving the product into its final
location a simple task.
B. Roll the refrigerator into its final position making
sure there is the correct air gap between the Refrigerator feet
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
13

product and surrounding cabinetry. See minimum
clearance in cabinetry dimensions table.
C. Adjust the front feet down until the refrigerator is
leaning backward with the front approximately
10mm higher than the back. This will ensure a
good door closing action.
(Non French door models only)
D. Aligning your refrigerator with cabinetry.
• Align the sides of the refrigerator with the
cabinetry by adjusting the hinge side front foot.
• Adjust the handle side foot until it touches the
floor and takes a small amount of weight.
• Once the refrigerator is in place and aligned with
cupboards/alcove gently push on the front top
and check if the product is rocking or stable.
Uneven door alignment
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
14

Levelling of refrigerator doors (French door models only)
• For uneven surfaces, front feet can be used to align the 2 doors.
• If left hand door is too low, then unscrew the left hand foot to lift up the
cabinet until the two doors top edges are aligned.
• If right hand door is too low, then adjust the right hand foot in the same
way.
Even door alignment
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
15

What to do if your product is unstable
A. Gently push the refrigerator back until the rear rollers
contact the floor.
• Measure the gap under the front foot, which has come
off the floor.
• Obtain some solid packing material (hardwood, plastic,
etc) which fits firmly into the gap under the foot.
Do not use metallic materials that
may corrode, stain and/or
damage floor coverings.
B. Wind both front feet up and roll the product out of
position.
• Place the packing material in the location diagonally
opposite the front roller that lifts off the floor.
• Make sure the packing material stays in place when
the product is pushed back into position.
• Ideally, the packing material is large enough to rest
against the back wall so as to prevent it from moving
when the cabinet is pushed into position. Unstable refrigerator
3. Roll the refrigerator back into position and adjust front feet as per step 6 C. (Check alignment and door closing
action are satisfactory).
• Make small adjustments to front feet where necessary.
• Check that the product is stable (all 4 feet are on the floor). If not, repeat 8 A and 8 B.
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
16

Before placing food in the fresh food or freezer compartments
• Remove all internal packaging. Ensure that all transit clips are removed from the refrigerator. These are small
rubber stoppers located at the back of the shelves.
• Clean the inside of the appliance with a mix of warm water and a small amount of liquid detergent, and a soft
cloth to remove manufacturing and transportation dust.
• Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each compartment to cool to the
appropriate temperature.
• The appliance may have an odour on its initial operation, but this will go when the refrigerator and freezer have
cooled sufficiently.
Energy efficiency
For the most energy efficient use of your appliance:
• Ensure your refrigerator has adequate ventilation.
• Do not cover your appliance with any material that will prevent air from flowing around the cabinet sides.
• Ensure you vacuum around the appliance to remove dust and possible pet hair accumulation. Also keep the
appliance and it’s cabinetry free of dust by wiping down with a dry, lint-free cloth (refer to section ‘Cleaning and
caring for your refrigerator’, ‘Rear compartment cover’).
• Allow good clearances in front of air ducts within the cabinet for maximum cold air distribution.
• Cool hot foods down before placing them in the appliance.
• Do not overfill the compartments.
• Keep door openings to a minimum.
• Select a temperature setting that isn’t too cold.
• Check your door seals for leaks.
https://producthelp.fisherpaykel.com/au/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/790mm/RF522BRPX6/User_G…
Updated: Mon, 27 Apr 2020 00:46:14 GMT
Powered by
17
