Fisher & Paykel 5 Series User manual

TOP LOADER WASHING MACHINE
WL8058G1, WL9058G1, WL1064G1 models
USER GUIDE
NZ AU

3
CONTENTS
Safety and warnings 4
Control panel 6
First use 8
Wash cycles 10
Wash preparation 12
Wash modifiers 14
Favourites 17
Option adjustment mode 18
Saving water, energy and the environment 24
Wi-fi & remote 25
Care and cleaning 26
Before you call for service 28
Fault codes 29
Troubleshooting 30
Manufacturer’s warranty 35
Customer care 37

4
SAFETY AND WARNINGS
!WARNING!
Electrical Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• If you are using an extension cord or a portable
electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does
not come into contact with water or moisture.
READ AND SAVE THIS GUIDE
When using your clothes washer, follow basic precautions, including thefollowing:
General
zThis product has been designed for personal, family or household use. This product is
not designed for any commercial use. Any commercial use will terminate this products
manufacturer’s warranty.
zA damaged power cord must be replaced by a Fisher&Paykel trained and supported
service technician or similarly qualified person in order to avoid a hazard. Do not use
the appliance until it has been repaired to avoid a risk of electric shock.
zDo not operate this machine if it has been damaged during transport. Contact your
Fisher&Paykel dealer or Fisher&Paykel trained and supported service technician.
zThis clothes washer is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge,unless they are supervised or given instructions on how to use the
washerby someone responsible for their safety.
zKeep children away from the washer while it is in operation.
zSupervise children to ensure they do not play with the washer or climb inside thedrum.
zThe washer should only be used for washing and rinsing of textiles where this
isindicated on the care label.
zDo not add petrol, dry-cleaning solvents, or other flammable or explosive substances to
the wash water. These substances give off vapours that could ignite or explode.
zDo not wash articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances as they give off vapours that could ignite or explode.
zThe lid will be locked when is pressed at the start of the cycle for safety reasons.
To unlock the lid and open it during the cycle (not recommended), press . Never
force the lid open.
zDo not touch or operate the machine with wet hands or with bare-feet.
zRead and follow the detergent manufacturers’ instructions carefully. Instructions on
how to use the detergent will be clearly indicated on the pack. Remember to store your
detergents out of the reach of children.

5
SAFETY AND WARNINGS
MODEL CODE MAX CAPACITY* (KG)
WL8058G1 8
WL9058G1 9
WL1064G1 10
*Capacity refers to the maximum dry weight of items the washer can wash at any one time.
(Note: Cycle dependent)
zDo not overload your washing machine beyond its rated capacity.
zDo not wash an electric blanket in your washer unless the care label specifically states
it is safe to do so.
zDo not wash curtains in this washer, as sunlight makes them brittle and they may
disintegrate during washing.
zThe only user-removable parts of the washer are the inlet hose(s), the drain hose, the
dispenser funnels (tops) and lint filters. No other parts are designed to be removed by
anyone other than a Fisher&Paykel trained and supported service technician.
Installation
zFor guidance on how to install your product, please refer to installation instructions
provided with your product.
Water supply requirements:
zInlet water static pressure: Max. 1MPa (145psi), Min. 50kPa (7.3psi).
zInlet water flow rate at tap: Min. 8 litres /min.
zA pressure-reducing valve must be installed if pressure is higher than 1MPa.
zFor optimum wash performance check the supply pressure is within the
recommendedrange.
zNew hose sets provided with the washer should be used to connect the washer to the
water mains. Old hose sets should not be re-used.
zWe recommend the inlet hose(s) are changed every 5 years. WARNING: Failure to do so
may result in a flood and damage to property.
zThe hot water temperature should not exceed 65°C and the cold water temperature
not exceed35°C. Temperatures above these may cause the machine to fault or cause
damage to the machine.
zInstall the machine on a solid and level floor surface ensuring it has at least 20mm
clearance on each side. The washer must not be installed on any textured floor
coverings (eg carpet, rugs).
Disposal
zWhen disposing of the washer, it is recommended that the lid is removed to
avoidchildren getting trapped inside, and that the electrical cable is cut off
close to thewasher.

6
CONTROL PANEL
1 POWER Press to turn the washer ON/OFF.
2 Wash Cycles Turn the dial to select the desired cycle for your load.
3 Remote Press and hold to control washer from the Fisher & Paykel app
when Wi-Fi is enabled.
4 Delay Start Press to delay start time.
5 Display Shows the following:
zThe remaining time in the cycle that is currently running.
zThe estimated completion time of the cycle when the machine
is turned on.
zDelayed start time of wash cycle.
zNotifications if an error is detected or a warning is necessary.
zSecondary option information.
6 Wash progress
indicators
Indicates the current status of the wash cycle.
zAll lights are illuminated at the start of the wash cycle.
zThe light of the current status flashes, and then turns off once
completed.
7 Optimise Wash Press to select SANITISE and/or ECO.
8 Water Level Press to increase or decrease water level.
9 Wash Temp Press to increase or decrease water temperature.
!0 Spin Speed Press to increase or decrease washer spin speed.
!1 Wash Options Press to select SOAK, RINSE+ or WASH +.
!2 START/PAUSE Press to start or pause the selected wash cycle.
!3 Keylock Press and hold for three seconds to disable all buttons on the
control panel. POWER will not be disabled when KEYLOCK is active.
1 2 3 4 57 8 9 !0 !1
6!2
!3

7
Keylock can be used to lock the control panel when not in use. Everything except POWER
will be locked when active. If washer is turned off while KEYLOCK is active, KEYLOCK will
remain active when the washer is turned back on.
will illuminate when the LID LOCK is active.
To unlock the lid at any time during the cycle,
press . In some circumstances, there may
be a delay before the lid can be opened, for
safety reasons.
Do not obstruct the lid lock slot. Do not try
to disable the lid lock.
The lid of your washer will be locked during the wash cycle to ensure safety for you and
your family.
Turn KEYLOCK on:
After starting your selected cycle, press and
hold for 3 seconds. will flash
twice in the display and will illuminate.
Turn KEYLOCK off:
Press and hold for 3 seconds.
If you pause your washer with water in
the drum, AUTO DRAIN will activate after 3
minutes. This will drain the water in the drum
to a safe level.
will be displayed while AUTO DRAIN is
in operation. The cycle can be restarted at
anytime by pressing .
Unsupervised clothes washers filled with water can present a drowning hazard to small
children. In order to minimise any risk of this type of accident, your washer has been pre-
programmed to know when this potential hazard is created and drains the wash water to a
safe level.
SAFETY FEATURES
Keylock
Lid lock
Auto Drain

8
FIRST USE
All controls only require a gentle press to activate. For best results, avoid repeated
interruptions to the cycle, such as pressing , and ensure all items are removed as soon as
the cycle has finished.
1
2
4
3

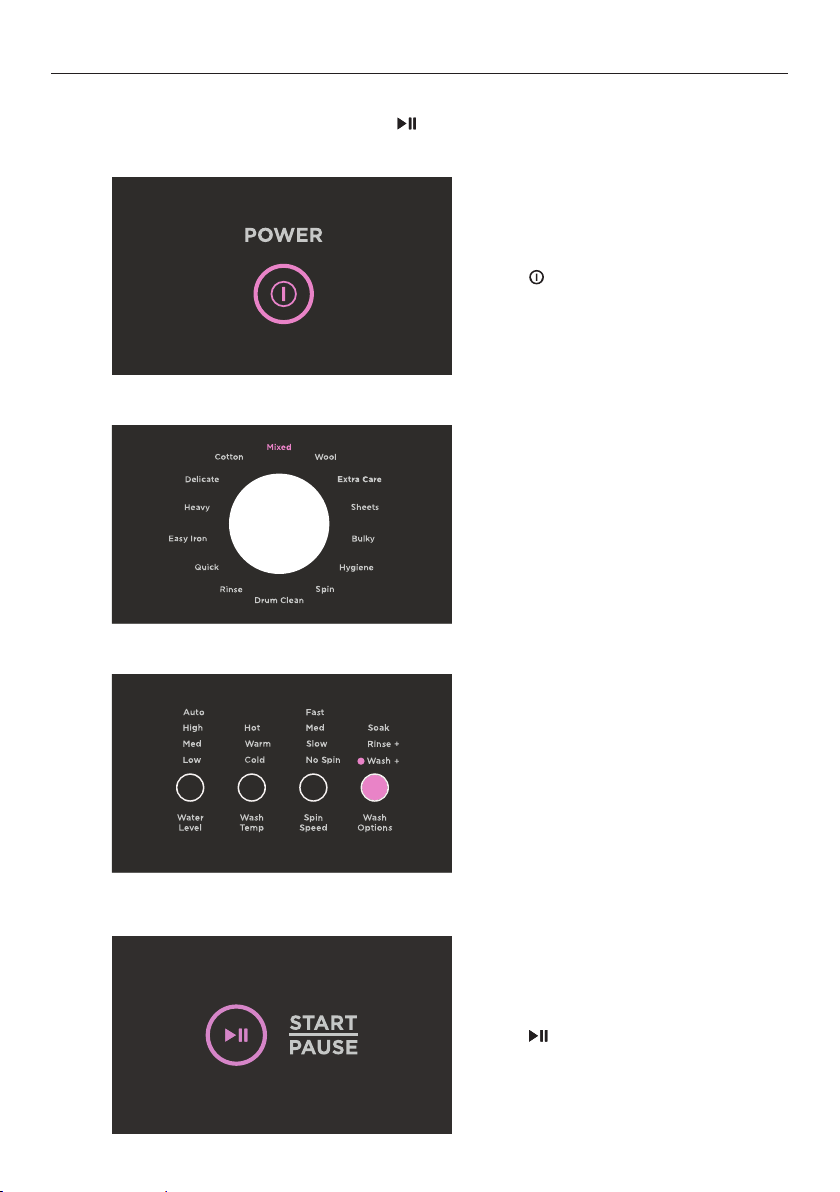

Press to activate your washer.
Select your desired wash cycle using
the dial. The default cycle is MIXED.
Press to begin the cycle.

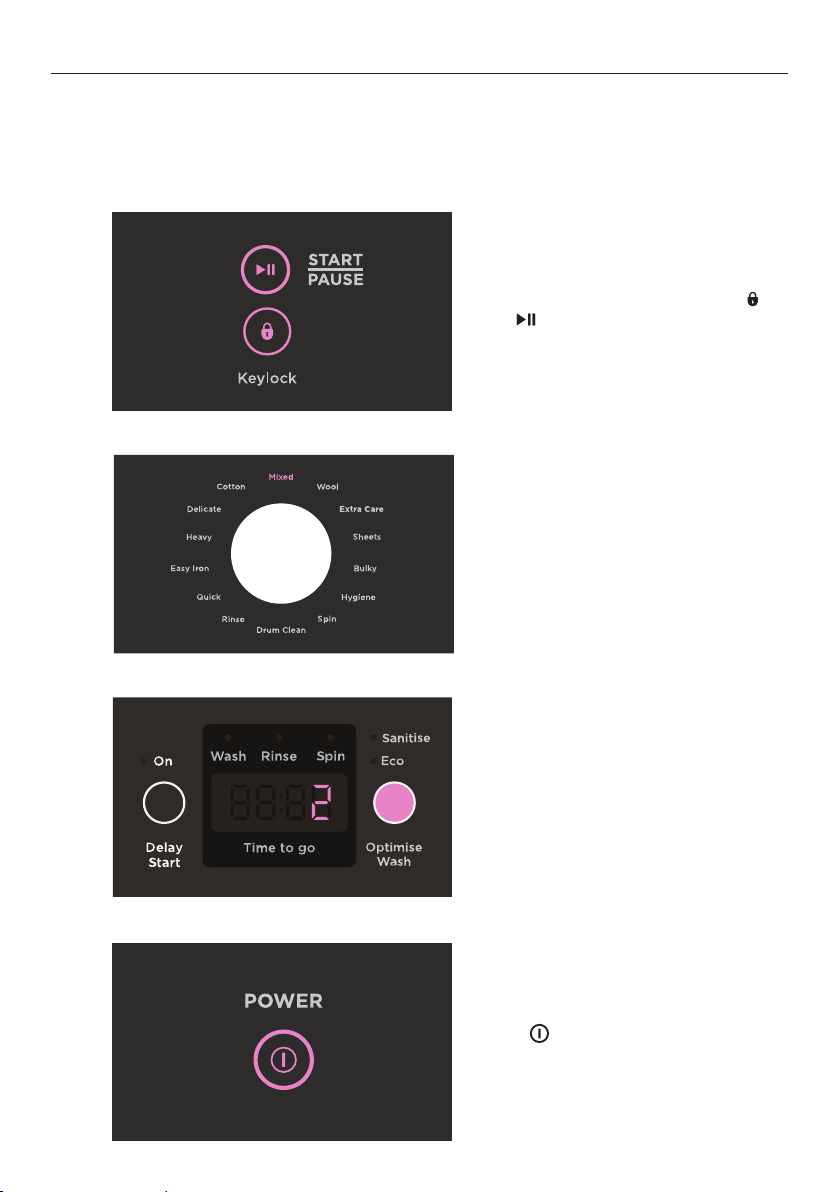

Select wash modifiers. Refer to ‘Wash
Modifiers’ for more details.

9
FIRST USE
1
1
1

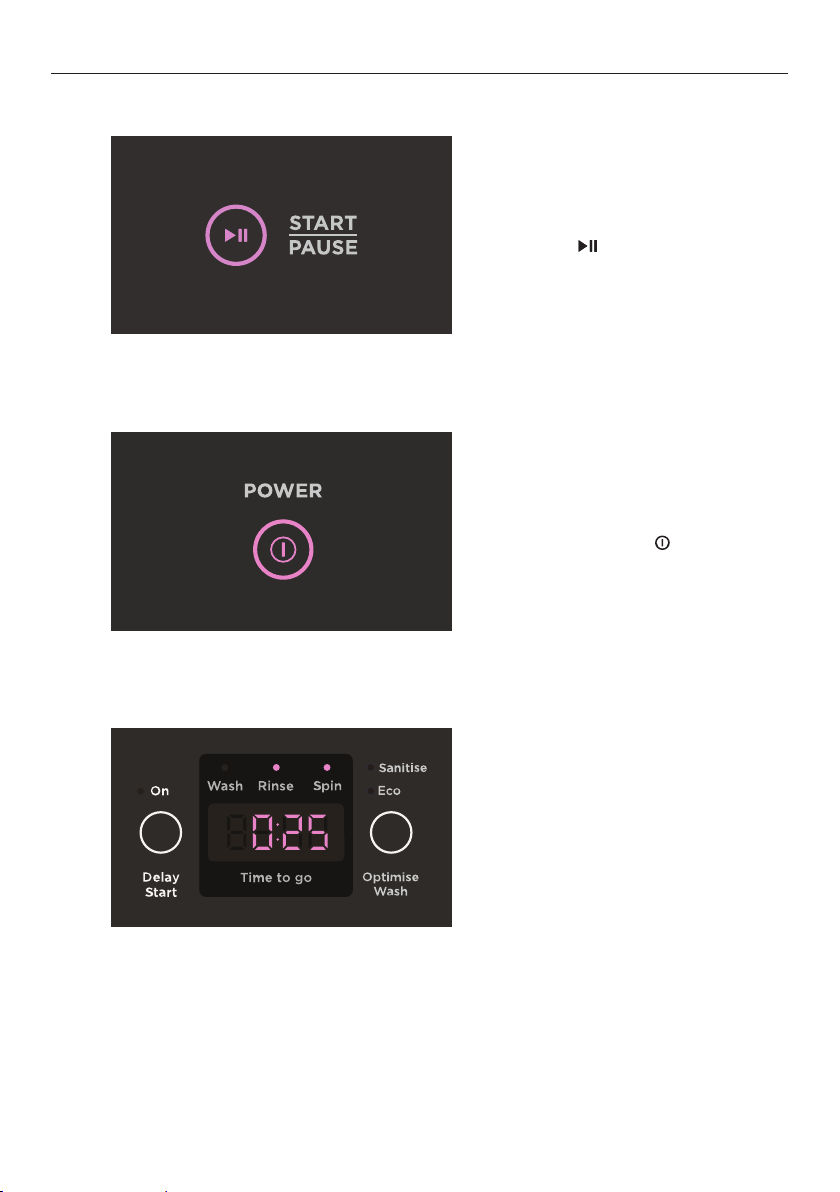

To pause your washer during the
cycle, press .
To cancel a cycle or power the washer
off at any time, press .
During a cycle, the progress indicators
will illuminate to show the stage of
the cycle that is being performed.
Pausing a cycle
Cancelling a cycle
Progress indicators

10
WASH CYCLES
Wash cycle guide
Your washer has a number of wash cycles to suit your needs. Selecting the most
appropriate cycle for each wash load will help ensure you get the best wash result.
CYCLE WASH DESCRIPTION MAX LOAD
(KG) WASH TEMP SPIN SPEED
Mixed A wash for mixed everyday loads
including cottons and blends. 8, 9 or 10 Warm/Cold Fast
Cotton* A cycle for normally soiled cotton
items. 8, 9 or 10 Warm Fast
Delicate A gentle wash with slow spin speed. 3 or 5 Warm / Cold Slow
Heavy A stronger wash for heavily soiled,
durable items. 8, 9 or 10 Warm Fast
Easy Iron Reduced spin speed to minimise
creasing. 4Warm / Cold Medium
(MED)
Quick
Quick wash of around 30 minutes for
smaller lightly soiled loads and brand
new clothes.
4Warm Fast
Wool Extra gentle wash and a medium
spin. 3 or 5 Warm / Cold Medium
(MED)
Sheets A wash tailored to washing bed
linen. 6 or 8 Warm Fast
Bulky A warm, gentle wash with more
water and a slow spin speed. 4Warm Slow
Hygiene A hot concentrated wash with
multiple rinses. 6Hot Fast
Rinse Designed for items that only require
rinsing and spinning. 8, 9 or 10 Cold only Fast
Spin Designed for spinning water out of
wet items. 8, 9 or 10 n/a Fast
Drum clean A hot cycle with a soak to clean the
build up of dirt in the washer. n/a Hot Medium
(MED)

11
*COTTON cycle with ECO, HIGH, WARM and FAST selected is the recommended water and
energy saving cycle for normally soiled everyday washing.
This cycle has a 2-step water fill to achieve the required water level and temperature for the
best cleaning result.
First Fill - Once cycle and wash modifiers are selected and is pressed, both hot and cold
water will flow into the inner drum. It is recommended when using this cycle to dissolve
the detergent in 1 litre of warm water and add straight onto the clothes immediately when
the machine starts. The warm water temperature helps to dissolve detergent quickly. The
washing operation starts at the end of the hot water fill and is followed by a 5-minute
(approximately) soak-agitation session to help the detergent mix completely with the
laundry.
Second Fill - The second fill is in order to reach the selected water level and make the
clothes completely soaked in water to achieve a better wash result.
** You can select a different sub-cycle from the default within EXTRA CARE by using the app.
The cycle selected will become the default extra care cycle for all future cycles, this can be
changed at anytime by using the app.
CYCLE WASH DESCRIPTION MAX LOAD
(KG) WASH TEMP SPIN SPEED
Extra
Care**
Towels
(default) A cycle designed for washing towels. 8, 9 or 10 Warm Fast
Denim A wash with low temperatures to
reduce denim from fading. 3Cold Fast
Sports A wash tailored to washing sports
type clothing. 4Warm / Cold Fast
Outdoor Cycle designed for washing outdoor
wear, like jackets. 4Warm Slow
Synthetic Designed for your everyday
synthetics and poly-cotton blends. 4Warm Fast
WASH CYCLES
Washing bulky items
The BULKY cycle takes special care of bulky items. Bulky garments and bedding wash most
effectively when they can move freely. Ensure that there is sufficient room in the drum for
the load to move during the wash. Washing more than one large bulky item at a time, is not
recommended (e.g. duvet inners).
When washing a single bulky item add a large beach towel to the wash, to ensure the load
is balanced for an effective spin.
Bulky items may include: duvet inners, blankets, throws, sleeping bags, jackets, bedding
underlays and comforters.

12
WASH PREPARATION
Sorting
Sort items according to colour, fabric type, and soil type. Wash fine, delicate fabrics
separately from thick, heavy fabrics. Always separate coloured items from whites, especially
when they are new. Colour run could be an issue if you wash items at highertemperatures.
Some soils, like mud and blood are best washed in cold water. Oilysoils (eg some foods
and marks on shirt collars) are best washed in warm water. Separate out sheets and towels,
wash these separately on the SHEETS and EXTRA CARE (TOWELS) cycles.
The care label will tell you about the fabric of the garment and how it should be washed.
Before you load
zCheck pockets for items that could damage your clothes or get caught in the washer.
zClose zippers, hooks and eyes, and other fastenings (ie fasten the opening of duvet/
doona covers) and remove loose bra wires. All these can damage both your washer
andyour clothes.
zPlace delicate items, such as lingerie, in a mesh laundry bag before placing in the washer.
zPre-treat any stains, taking care not to spray pre-treaters on your washer as they can
cause damage to the plastic surfaces.
Selecting the right detergent
zYour washer is a High Efficiency clothes washer and needs a low sudsing detergent to
prevent over-sudsing problems. This is the same type of detergent Front Loaders use.
zWe recommend the use of liquid detergents in most washing situations to achieve the
best results. This is particularly important when washing dark garments.
zWhen washing woollens, use a wool detergent but use it sparingly as these are usually
very high foaming.
zDo not use soap flakes or granulated soap powders.
How much detergent?
Follow the instructions stated on the back of the detergent packet as a guide to the correct
amount to use. The correct amount of detergent will vary depending on the amount of
soil in your clothes and the size of your load. Jeans and work clothes may need more and
towels usually less.
zIf you have over-foaming problems, reduce your dosage.
zIf your clothes are not clean enough, try using a bit more.

13
WASH PREPARATION
Fabric Softener
If you wish to use fabric softener we recommend:
zUsing it sparingly. Measure it carefully to ensure you do not fill above the ‘Max’ level
of the dispenser.
zUsing a fabric softener that is of a thinner consistency.
zClean the dispenser as soon as the cycle has finished.
zClean your washer regularly using the DRUM CLEAN cycle, refer to ‘Caring
for your washer’.
zCold water washing increases the chance of scrud build-up occurring. We recommend a
warm or hot wash at regular intervals, eg every 5th wash.
Adding the fabric softener
Always follow the manufacturer’s guidance for the
correct dosage. Measure the softener out into the
cap and pour into the fabric softener dispenser. The
softener will remain in the dispenser until the deep
rinse where water flushes it into the drum.
If you fill beyond the ‘Max’ mark, the fabric softener
will dispense into the drum prematurely and may stain
clothes, and also contribute to scrud.
A small volume of water remaining in the dispenser at
the end of the cycle is normal.
Fabric softener should not be added when ECO option is selected or for a RINSE cycle. The
softener will not be dispensed.
Where do I put my detergent?
Place your detergent into the detergent dispenser,
located on the left side of the washer. We recommend
that you measure your detergent first.
You will notice that most of the detergent placed in
the dispenser will fall into the washer. As the washer
fills, the dispenser will be flushed of any residue. The
detergent is then mixed with water at the bottom
of the washer, dissolving and activating it to ensure
optimum wash performance.
DO NOT use your washer to soak items in bleach or sanitiser. If you have soaked items in
a bucket, do not tip the contents of the bucket into your washer. The chemicals in these
products are very corrosive to metal surfaces and can damage your washer. Rinse and
wring items out thoroughly before placing them in your washer.

14
WASH MODIFIERS

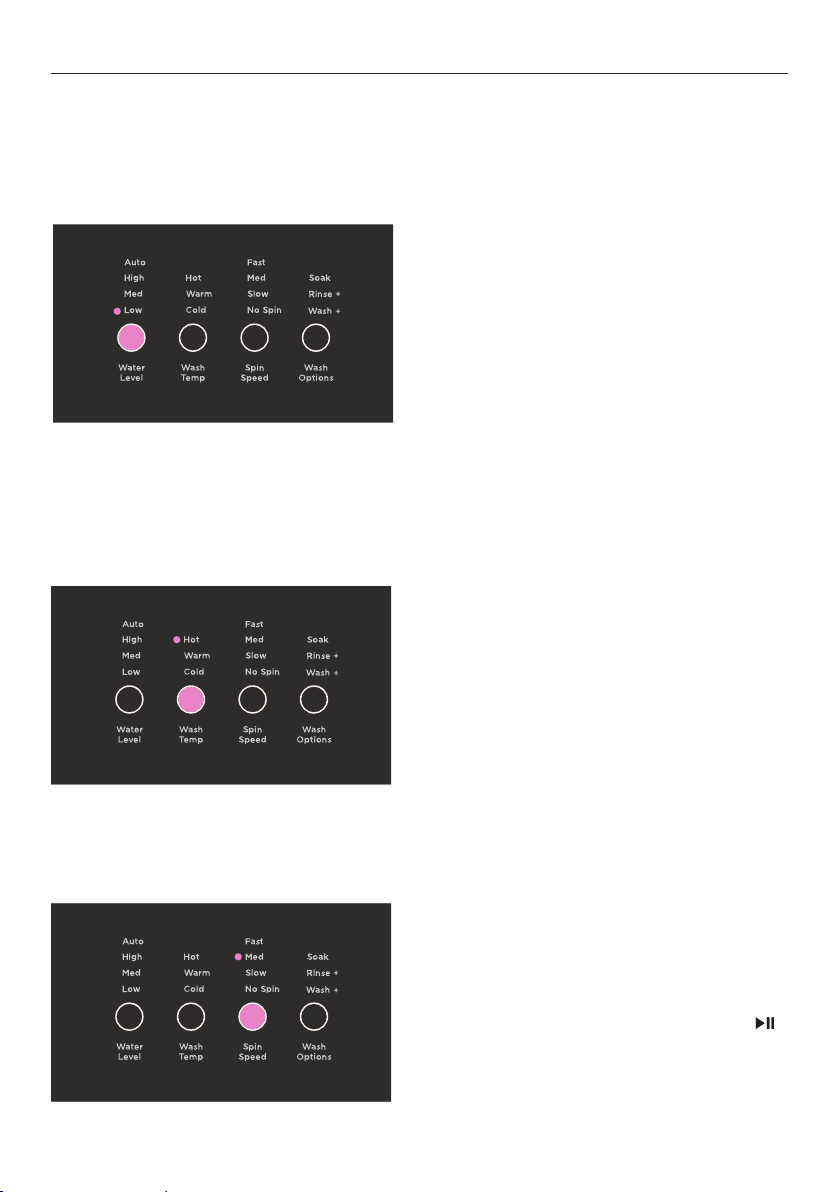

Once you have selected your wash cycle you may wish to change the default wash options.
Press WASH TEMP to increase or decrease the
wash temperature.
Press WATER LEVEL to increase or decrease
the water level.
Water Level
This option allows you to set the water level to LOW,LOW/MEDIUM (MED), MEDIUM (MED),
MEDIUM (MED)/HIGH, HIGH or AUTO.
Wash Temp
Your washer offers 5 wash temperatures, COLD, WARM COLD, WARM, WARM HOT and HOT.
Actual wash temperature settings vary per cycle. Some temperatures are not available on
some cycles.
Spin Speed
Your washer offers three spin speeds: FAST, MEDIUM (MED) and SLOW, plus an additional
NO SPIN option.
Press SPIN SPEED to increase or decrease the
spin speed. NO SPIN will pause the washer
at the end of the rinse, allowing you to
remove items before the final spin. Press
to restart.

15
WASH MODIFIERS
Press WASH OPTIONS to select the desired
wash modifier.
Press OPTIMISE WASH to select the desired
modifiers.
Wash Options
This option allows you to add a combination of RINSE +, WASH + and/or SOAK to your cycle.
Optimise Wash
This option allows you to add ECO and/or SANITISE to your cycle.
WASH MODIFIER MODIFIER DESCRIPTION
Rinse + Adds an additional rinse to the default number of rinses to help remove any
residual detergent or soil.
Wash + Adds a short soak/wash sequence half way through the wash to boost dirt and
stain removal.
Soak Will perform a one hour soak sequence in the middle of the wash phase,
agitating periodically every minute to help remove loosened dirt and stains.
WASH MODIFIER MODIFIER DESCRIPTION
Eco Saves energy and water by reducing the wash temperature and utilising a water-
efficient spray rinse.
Sanitise Uses UV sanitisation during the wash and rinse phase of the cycle to eliminate
bacteria.

16
WASH MODIFIERS
Press DELAY START to cycle through the
delay times. Press to start the countdown.
When DELAY START has begun, the time will
begin counting down.
If DELAY START is paused, the indicator and
remaining time will illuminate solidly.
Delay Start
The DELAY START option can delay the start of the wash cycle between 15 minutes and
12hours. Avoid using DELAY START for damp, non-colourfast items as this may cause dye run
to occur.

17
FAVOURITES
1
2
3
4
Using the dial, select the desired wash
cycle.
Press and hold the desired wash
modifier for 3 seconds. A long tone
will sound and SET will display
onscreen.
Adjust the desired wash modifiers.
Press for 3 seconds to save the
selected settings. A long tone will
sound to confirm setting has been
saved.
Your washer can be programmed to remember your preferred wash modifiers for each
wash cycle.

18
OPTION ADJUSTMENT MODE
To enter Option Adjustment mode:
After using your washer a number of times you may want to personalise some of the
options to suit your wash needs.
There are a number of pre-set options, which can be changed:
zThe wash temperatures, including changing COLD to CONTROLLEDCOLD.
zThe out of balance recovery routine.
zThe number of beeps at the end of the cycle.
zResetting to factory default settings.
1
2
3
With the washer on at the wall, but
off at the display, press and hold
and together for 3 seconds.
oPAd will show on the display.
Use the dial and control panel to
make changes to the pre-set options.
Refer to following sections for more
detail.
Press to save changes and exit
OPTION ADJUSTMENT MODE.

19
OPTION ADJUSTMENT MODE
Wash temperature adjustment
1
2
3
4
With the washer on at the wall, but
off at the display, press and hold
and together for 3 seconds.
oPAd will show on the display.
Select MIXED using the dial and
press WASH TEMP to select the wash
temperature you wish to adjust.
Press OPTIMISE WASH to adjust the
wash temperature between -3 and 4.
0 is the default.
Press to save changes and exit
OPTION ADJUSTMENT MODE.
COLD, WARM COLD, WARM and WARM HOT can be adjusted by increments of 1°C using the
wash temperature adjustment feature. To adjust COLD further refer to ‘Controlled Cold’. HOT
will be set by the hot water supply temperature and cannot be adjusted.

20
OPTION ADJUSTMENT MODE
Controlled Cold
1
2
3
4
With the washer on at the wall, but
off at the display, press and hold
and together for 3 seconds.
oPAd will show on the display.
Select MIXED using the dial, and
press WASH TEMP to select COLD
temperature.
Press OPTIMISE WASH until 00 is
displayed on the screen. Your washer
will now adjust the cold temperature
to approximately 20°C.
Press to save changes and exit
OPTION ADJUSTMENT MODE.
CONTROLLED COLD adds a small amount of hot water to the cold wash to raise the water
temperature to approximately 20°C. This can be effective if your water supply temperature
is very low or if the cold wash performance is not meeting your needs.
