Fisher & Paykel Ecosmart Owner's manual

™
clothes washer use & care
lave-linge utilisation et entretien
lavadora uso y cuidado
420294 Ecosmart cover.qk 11/8/03 10:18 AM Page 2

PLEASE NOTE : To obtain maximum efficiency,the ecosmart machine has the ability
to learn and adapt to the local environment. This may take several wash cycles,
therefore maximum energy efficiency may not be achieved until a number of wash
cycles have been completed. This usually takes about 5 cycles.
ENGLISH Pg 1-25
Refer to page 67 for warranty information and service contacts.
FRANÇAIS Page 27-44
Vous référer à la page 65 pour les renseignements sur la garantie et le
service clientèle.
ESPAÑOL Pág 45-62
Para información acerca de la garantía y datos del servicio de mantenimiento
consulte la página 63.
As an ENERGY STAR®Partner Fisher & Paykel Limited has determined
that this product meets ENERGY STAR®guidelines for energy efficiency.
An easy to use interactive
version of the Use & Care
manual is available online
www.usa.fisherpaykel.com
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 1

1
NOTE:Proof of purchase is required for any warranty claim.
For your records we suggest you attach your proof of purchase here.
1. Operating Instructions
•How to Get Started 2
2. AboutYour Ecosmart
•How your EcosmartWorks 4
•Lid Lock 5
3. Wash Cycles and Options
•TheWash Progress Lights 5
•TheWash Cycles 6
•Wash Options 6
•Softener Rinse 7
•Soak 7
•Time Saver 7
•Water Levels 8
•Spin Hold 9
•Delay Start 9
•Clothes Care Safeguards 9
•Customizing theWash Cycle 10
•Favorite Cycle 10
•Washing Bulky Items 11
•WashingWoollens 11
•ColdWaterWashing 11
4. BeforeYouWash
•Sorting and Loading 12
•Bleach 13
•Fabric Softener 13
•Scrud 13
5. Changing Pre-set Options
•OptionAdjustment Mode 14
•Out of Balance Recovery Routine 16
•AutoWater Fill Level 16
•End of Cycle Beeps 17
•Softener Rinse Options 17
•Volume ofWater used in the
Shower Rinse 17
6. Machine Information
•Care and Cleaning 18
•ProductsThat Might DamageYour
Ecosmart 19
•Ecosmart Sounds and Beeps 19
•Automatic Lint System 19
7. Problem Solving
•Wash Problems 20
•Operating Problems 21
•If your Ecosmart Beeps for Help 22
8. Important Safety Instructions
•Safety Information 23
9. Warranty
•Warranty 67
WARNING
READ ALL SAFETY INFORMATION BEFORE USING
To reduce the risk of fire,electric shock,or injury to persons read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance,pages 23 to 25.
CONTENTS
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 2

OPERATING INSTRUCTIONS
Turn your Ecosmart on by pressing the POWER
button.
Remove the fabric softener dispenser.
If you wish to use bleach:
•Use half the recommended dose of bleach.
•Dilute bleach and pour carefully down the inner
surface of the agitator stem,in-line with the fins.
(Refer to Bleach page 13).
• Select the Softener Rinse Option.This will
ensure that any residual bleach is well cleared
out of your washer.
Place the load evenly around the agitator. (Refer to
Sorting and Loading page 12).
•Follow the instructions on the detergent package.
•Use the mark on the agitator, nearest to the top
of the clothes,as a guide to the correct amount of
detergent to use.
•Pour the detergent down the center of the
agitator stem.
•Replace the fabric softener dispenser, as this stops
articles falling down the center of the agitator.
POWER
BLEACH
LOADING
DETERGENT
2
HOWTO GET STARTED
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 3

•If you wish to use fabric softener, place it in the
dispenser on the top of the agitator.
•Select the Softener Rinse option so that the
softener will be dispensed correctly into the final
rinse. (Refer to fabric softener page 7 and 13).
•Close the lid and press your chosen wash cycle.
•Select the wash temperature and other wash
options. (Refer to pages 6 - 11).
Press START/PAUSE to start the machine.
If you wish to stop your Ecosmart
•Press START/PAUSE.
•Wait until the machine has fully stopped,and the
lid lock light is off,before opening the lid.
FABRIC SOFTENER
3OPERATING INSTRUCTIONS
WASH CYCLE
WASH OPTIONS
START
FOR BEST FABRIC AND COLOR CARE
REMOVE YOUR CLOTHES AS SOON ASTHE CYCLE HAS FINISHED
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 4

ABOUTYOUR ECOSMART

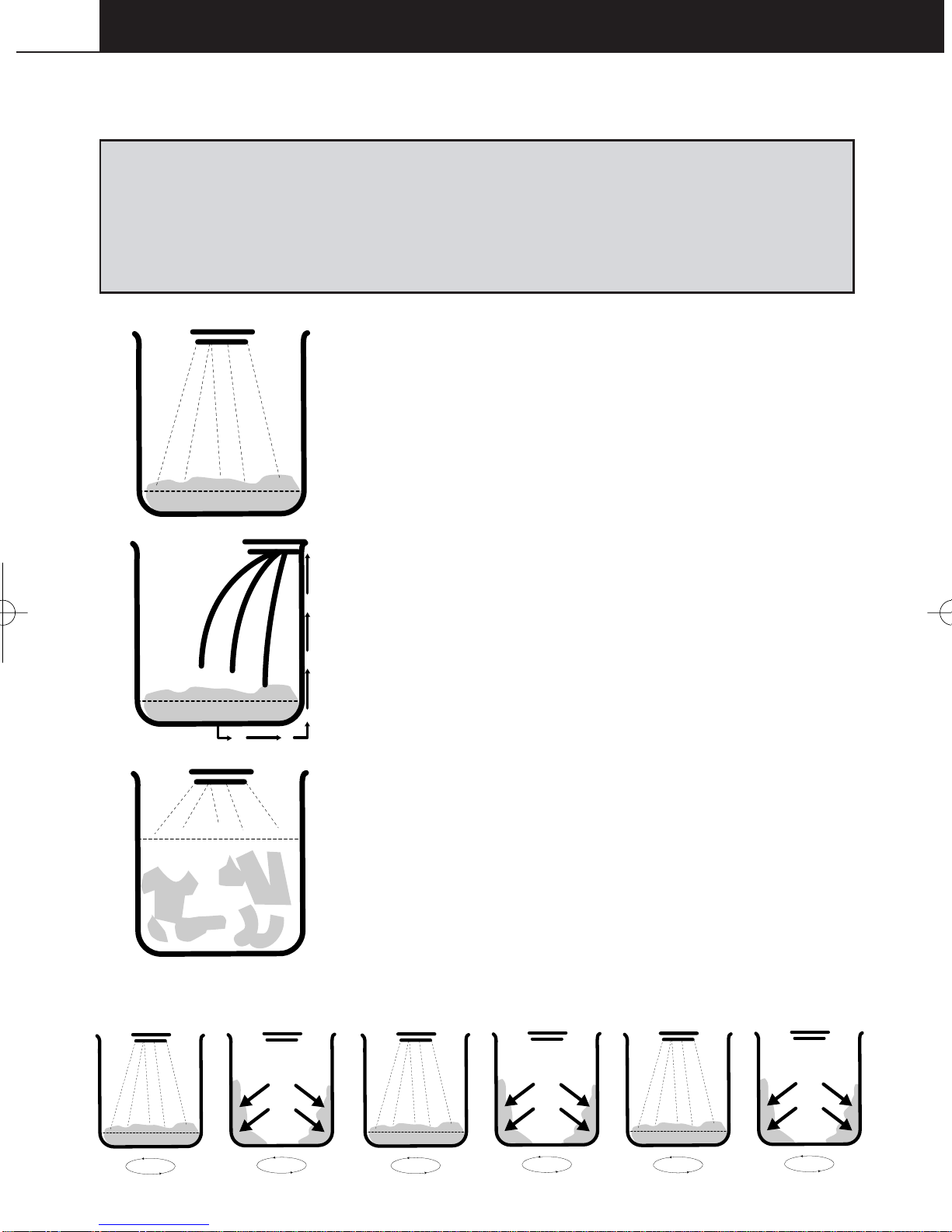

Phase 1 – Eco ActiveWash
FRONT LOADERTYPEWASH
The Ecosmart fills the bowl, at the selected
temperature,with just enough water so that the
clothes are 100% saturated.
This small amount of sudsy water is circulated through
the clothes,up the specially designed portal and back
onto the clothes with a waterfall effect.
The chemical action provided by a small amount of
water, combined with detergent, rapidly targets soil
and stains at fiber level, boosting soil removal and
accelerating the wash process.
Phase 2 –TOP LOADERTYPEWASH
After 4 minutes,your Ecosmart will fill with just
enough cooler water to suspend the soil in solution.
Agitation will then begin,moving soil away from the
clothes. Because of its head-start,the wash requires
less agitation than a conventional top loader wash.
Unique Fisher & Paykel Shower Rinse
4
HOWTHE ECOSMARTWORKS
The Fisher & Paykel Ecosmart's '2 in 1' wash system gives you the best of
both worlds.Using a combination of front loader and top loader wash
systems,the Ecosmart gives exceptional wash results while using up to
50% less hot water*,and,at the same time,taking better care of your
clothes than a conventional top loading washer.
Shower Spin Shower Spin Shower Spin
*CEE,March 2002
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 5

The wash progress lights show all the tasks your
Ecosmart will complete during the wash cycle.
As each task is completed a light goes out,so you
can tell at a glance how far the cycle has to go.
ADVANCINGTHE WASH CYCLE
To shorten the wash time,to rinse and spin only,
or to spin only:
1. Select the wash cycle.
2. PressADVANCE repeatedly until only the right
number of lights remain on.
3. Press START/PAUSE.
Note:The wash consists of two parts. The
first amber light is essential for all washes
except Permanent Press,therefore,you can only
advance through the green lights,not the amber.
Your Ecosmart has a lid lock.This ensures the lid
cannot be opened during hazardous parts of the
cycle,providing added safety for you and your family.
The lid lock light (above the start/pause button)
comes on when the lid is locked to tell you when
you cannot open the lid.
If the lid lock light is flashing the lid lock is in the
process of locking or unlocking (i.e.while the
machine coasts down or start/pause has been
pressed).During this stage the lid still cannot be
lifted.
Keep children away from the machine during
the fill and agitate stage of the cycle, especially
when using hot water, as the lid can be opened
and the machine will not stop.
5WASH CYCLES AND OPTIONS
THEWASH
PROGRESS
LIGHTS
LID LOCK
If the lid is left open,the
machine will be unable to
lock and the cycle will be
halted.The machine will beep
and the lid lock light will flash
until the lid is closed and the
START/PAUSE button is
pressed.
DO NOT put anything down the slot in the top deck of your machine.
DO NOT try to disable the lid lock.
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 6

WASH CYCLES AND OPTIONS
When you press POWER to turn on your Ecosmart,it
will automatically select a:
•REGULAR wash cycle
•WARM wash temperature
•AUTO water level
•FAST spin speed
Each of these wash options can be altered to suit
your wash needs. The following pages explain each of the
wash options and how to use them.
In the following diagrams:
( ) =light is on
( ) =light is off
TO SELECTWASH OPTIONS
1. Select wash cycle.
2. Use the up or down arrows,or the options button,to
select theWash Options you want to use.
3. Press START/PAUSE.
HEAVY DUTY For heavily soiled and heavy duty fabrics.
REGULAR For medium to lightly soiled cottons,linens, work and play
clothes.
DELICATE For lingerie and special-care fabrics with light soil.
WOOLWASHABLES Specially designed for normally soiled knits and machine
washable woollens.
PERMANENT PRESS A more traditional wash for synthetics,blends,and/or
delicate fabrics with normal soil and clothes which
wrinkle easily.
6
EcoActiveWash*
AgitateTime*
Wash Action
WashTemp
Rinse
Spin Speed
SpinTime
Heavy Duty
4 min
12 min
Heavy Duty
warm
cold
shower
rinse
Fast
6 min
Regular
4 min
9 min
Regular
warm
cold
shower
rinse
Fast
6 min
Delicate
4 min
6 min
Delicate
warm/cold
spray rinse
+
cold
deep rinse
Slow
4 min
Wool
Washables
4 min
3 min
Delicate
warm/cold
spray rinse
+
warm/cold
deep rinse
Medium
6 min
Permanent
Press
-
9 min
Regular
warm/cold
spray rinse
+
cold
deep rinse
Slow
2 min
THEWASH CYCLES
WASH OPTIONS
Note:Two lights are used to
show warm/hot and warm/cold
wash temperatures.
* Does not include fill times.
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 7

We recommend the use of softener dryer sheets
because liquid fabric softener has been known to
cause an unpleasant build-up inside washing
machines.(Refer to Scrud page 13).

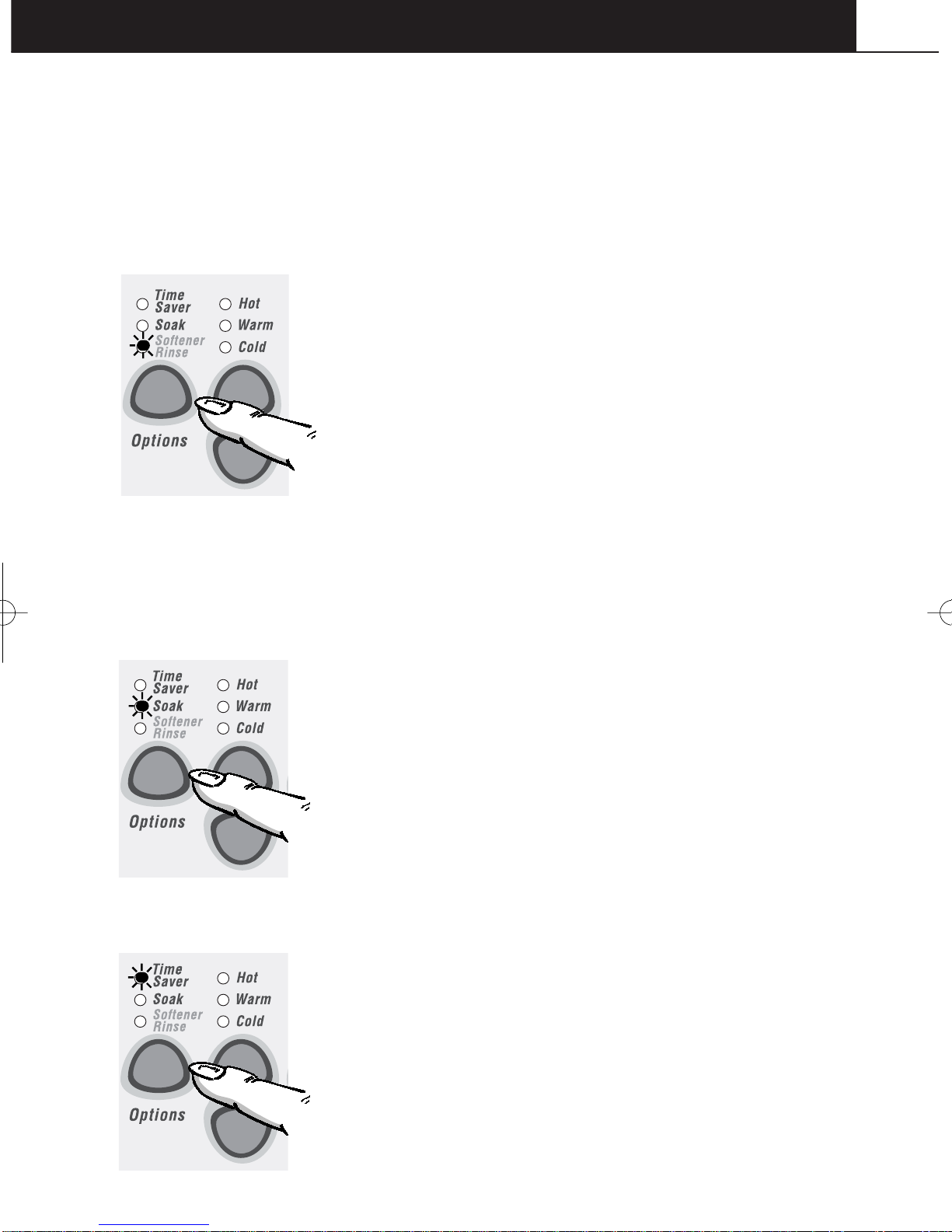

Use the SOFTENER RINSE option:
• If you use liquid fabric softener
• If you use bleach
This option changes the rinse to include a spray and
deep rinse,so that the fabric softener will be
dispensed correctly, and the machine sump will be
thoroughly cleaned of bleach.
Some wash loads are better washed using a cycle
with a deep rinse. For instance,garments that have a
lot of sand or sawdust in them, or garments where
the color still runs. For these loads select the
SOFTENER RINSE option,as this will change the
rinse to include a deep rinse.
When you select SOAK your Ecosmart will stop at
the end of wash and soak for 2 hours before
completing the rinse and spin. During soak your
washer will agitate for a few seconds every minute.
TIME SAVER allows you to shorten the wash cycle
for lightly soiled clothes. Selecting this option reduces
the wash and spin times.
Time Saver can be turned on or off at any time during
the cycle.
7
he
WASH CYCLES AND OPTIONS
SOFTENER RINSE
SOAK
TIME SAVER
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 8

WASH CYCLES AND OPTIONS
AUTO WATER LEVEL
Your Ecosmart can automatically select the
appropriate water level for the load.
1.
Place your clothes in the machine,and press Power.
2. Select wash cycle (select Auto water level if not
automatically selected)
3. Press START/PAUSE
During fill the machine will pause occasionally to
sense the water level. The machine will check if
the water level is correct by using a series of two
different agitate strokes.(This may take over a minute).
If it detects that the water level is not enough, it
will fill with more water and re-check the level.

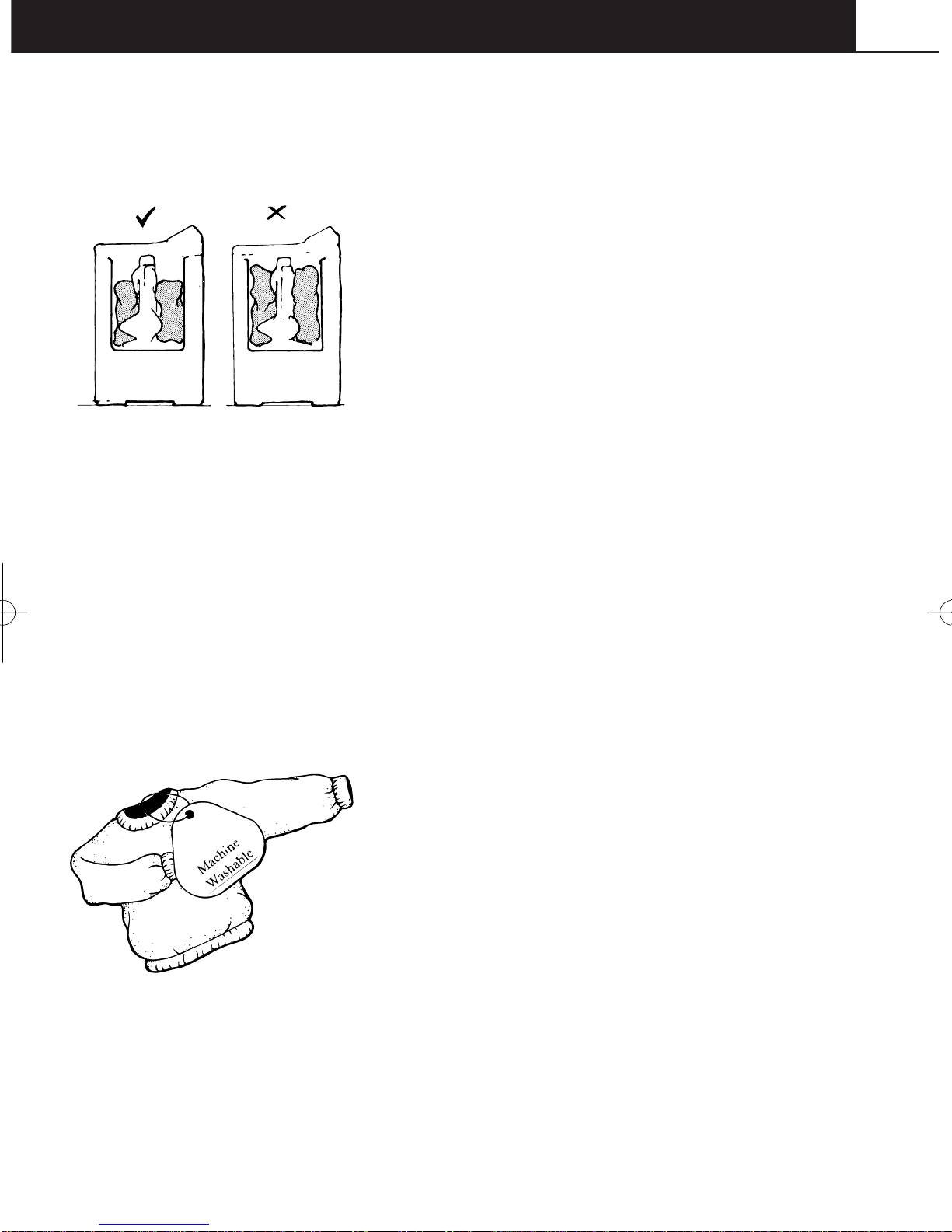

•When washing an unusual load eg.large
bulky garments, pillows, we recommend you
manually select the water level and select
the Delicate cycle.
•Manually select the water level if there is already
water in the machine.
•For a large bulky load, or large single item (eg.
comforter) push the load down after the first fill.
MANUALWATER LEVEL SELECTION
The agitator has five levels marked on its stem that
can be used to help you select the correct water
levels. Select the correct water level by using the
mark nearest to the top of the clothes.
•The levels marked on the agitator do not correspond
exactly to the level of water. They indicate the
level of dry clothes suitable for the water level.
•Your Ecosmart may occasionally add water during
agitation.This is to maintain the water level due to
the release of air trapped in the garments.
•Out of balance loads,tangling or splashover can be
caused by selecting a water level that is too high.
WATER LEVELS
8
High
Med/High
Medium
Med/Low
Low
ACTUAL LEVEL
OFWATER
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 9

SPIN HOLD
9WASH CYCLESAND OPTIONS
Use the SPIN HOLD option to:
•Remove drip dry garments from a mixed load
before the wash goes into spin.
•Minimize creasing that is caused when clothes are
left sitting in the machine at the end of the cycle.
When SPIN HOLD is selected,your Ecosmart will
pause at the end of rinse,beep and the spin light will
flash to tell you that it is waiting for another instruction.
Press START/PAUSE to begin the spin.
Delay Start will delay the start of the wash cycle for
1,3 or 9 hours.
Press DELAY START once for a delay of 1 hour.
Press again for 3 hours,a third time for 9 hours
(and again to return to normal).
•Once you press Delay Start your Ecosmart will
begin the delay period,you do not have to press
Start/Pause.
•Be careful if using Delay Start for non-colorfast
clothes as dyes may run if the clothes are damp.
•Your Ecosmart will not beep at the end of the
cycle if Delay Start is selected.
To avoid accidentally damaging your clothes,there
are a few options that your Ecosmart will not accept.
For example, you cannot select a hot wash on
Delicate, Permanent Press orWool cycles.
CLOTHES CARE
SAFEGUARDS
DELAY START
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 10

WASH CYCLES AND OPTIONS
You can program your Ecosmart to remember the
wash options you prefer for each wash cycle. For
instance,you may want to set the Regular cycle to cold
wash or set Heavy Duty to include a soak.
TO CUSTOMIZE A CYCLE
1. Press the Power Button.
2. Press selected wash cycle button.Hold down for 4
seconds. You will hear two quick beeps and the wash
cycle light will flash.
3. Select your wash options,(eg cold wash,soak).
4. Press the wash cycle button again to store your
customized cycle.
When you are customizing a wash cycle,you can
shorten or lengthen the agitation time.
•To shorten the agitation time,pressADVANCE to
reduce the number of green lights.
•To increase the agitation time keep pressing
ADVANCE until all the green lights are on.(On
Heavy Duty you can only decrease the wash time)
Note: Unlike the Favorite cycle you cannot
customize a wash cycle to start at the rinse or
spin stage.
Favorite cycle lets you design your own wash cycle.
Favorite can be any wash cycle with any of its wash
options,and it can start from any point in the cycle.
TO SETYOUR FAVORITE CYCLE
1. Press the Power Button.
2. Press the FAVORITE cycle button.Hold down for 4
seconds until you hear two quick beeps and the
Favorite light flashes.
3. Select your favorite cycle (eg Regular or Delicate).
4. Select the wash options (eg soak, time saver). Use
Advance if you want part of a cycle (eg spin only).
5. Press FAVORITE again to store your favorite cycle.
Note:Your Ecosmart will remember your favorite
cycle,or any other cycle that has been customized,even
when unplugged from the wall.It is not possible to
program a delayed start into the Favorite cycle.
CUSTOMIZINGTHE
WASH CYCLES
10
FAVORITE CYCLE
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 11

Make sure there is enough room in the machine for
items to move when being washed.Forcing large items
into the machine may result in them being damaged
during washing.
Some items float up during the wash (eg comforters
and pillows).If they sit too high they may touch
stationary parts of the machine during agitate or spin.
To minimize the chance of this happening, bulky items
should be pushed down below the water level
after fill and pushed to sit below the medium
high water level mark on the agitator before
spinning.Select the correct water level
manually. Select a slow spin.
To prevent an out of balance load we
recommend washing these items on the
Delicate cycle. If you wish to re-spin the load at a
faster speed make sure the load is sitting below the
medium high mark before spinning.
TheWool cycle has been designed for products
carrying a MACHINEWASHABLE care claim.The
fibers of these woollens have been treated to prevent
felting when they are machine washed. Most
handknitted garments are not made of machine
washable wool and we recommend that you hand
wash them.
•Check the care label.
•Use a wool detergent
•Use theWOOLWASHABLES cycle.
•Hand washed woollens may be spun in your
Ecosmart.
•To dry woollens lay them flat on a towel and pat
into shape. Dry out of direct sunlight.
•Some wool underlays and sheepskin products can
be washed in a washing machine but may produce
excessive amounts of lint that may cause pump
blockages.
If you always use cold water, we recommend that a
warm permanent press wash be used at regular
intervals, eg every 5th wash.
WASHING BULKY
ITEMS
WASHING
WOOLLENS
COLD WATER
WASHING
11WASH CYCLES AND OPTIONS
Bulky items should sit below the medium
high water level mark.
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 12

BEFOREYOUWASH12
To get the best wash results sort your clothes before
washing.
•COLOR Sort white fabrics from colored fabrics.
•CARE LABELSThe care label will tell you about
the fabric of the garment and how it should be
washed.
•SOIL Sort clothes according to the type and
amount of soil.Some soils suit warmer washes eg
oily soils,while others are best washed in cold
water eg mud,blood.
•LINT Wash lint givers and lint collectors separately.
Where possible,turn lint collectors inside out.
Lint Givers Lint Collectors
Terry cloth Synthetics
Chenille Corduroy
Towels Permanent Press
Socks
•CHECK POCKETS Loose items can damage
both your autowasher and your clothes.
•CLOSE ZIPPERS, HOOKS AND EYESThis is
to make sure that these items do not snag on
other clothes.
•MEND ANYTORN GARMENTS OR
LOOSE BUTTONSTears or holes may become
larger during washing.Remove any loose bra wires
as they can damage your washing machine and/or
dryer.
• PRETREAT ANY STAINS
•MAKE SURETHEWATER LEVEL SUITS
THE LOAD SIZE Ensure that the load does not
extend above the fabric softener dispenser as
splashing may occur.
•FOR A BALANCED LOAD:
–Amixture of small and large items will wash
the best.
–Place unfolded clothes firmly and evenly
around the agitator.
–Do not wrap large items,such as sheets,
around the agitator.
SORTING

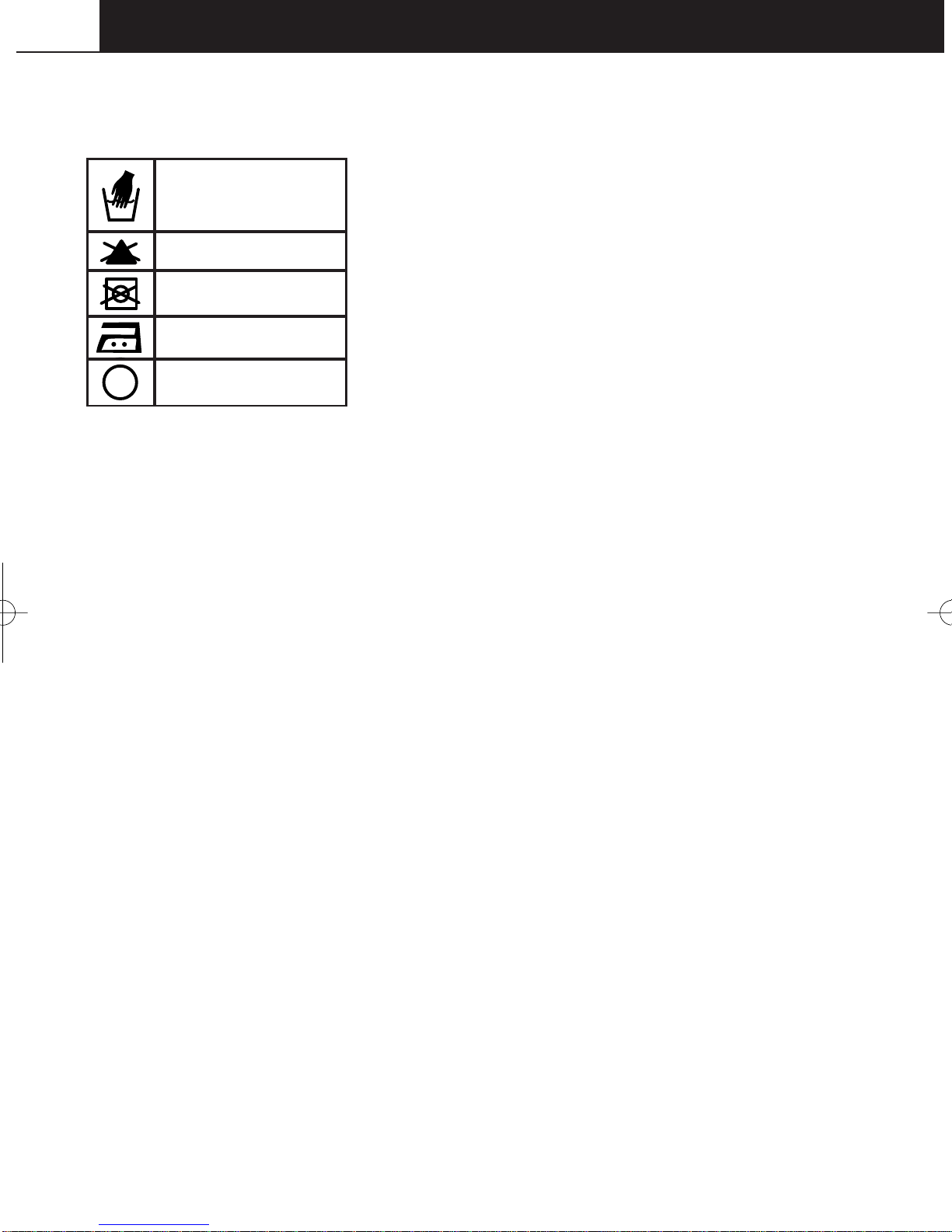

HandWash
Do not bleach
Do not tumble
dry
Medium iron
Dryclean
LOADING
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 13

13BEFOREYOUWASH
Check clothing care labels for special instructions.

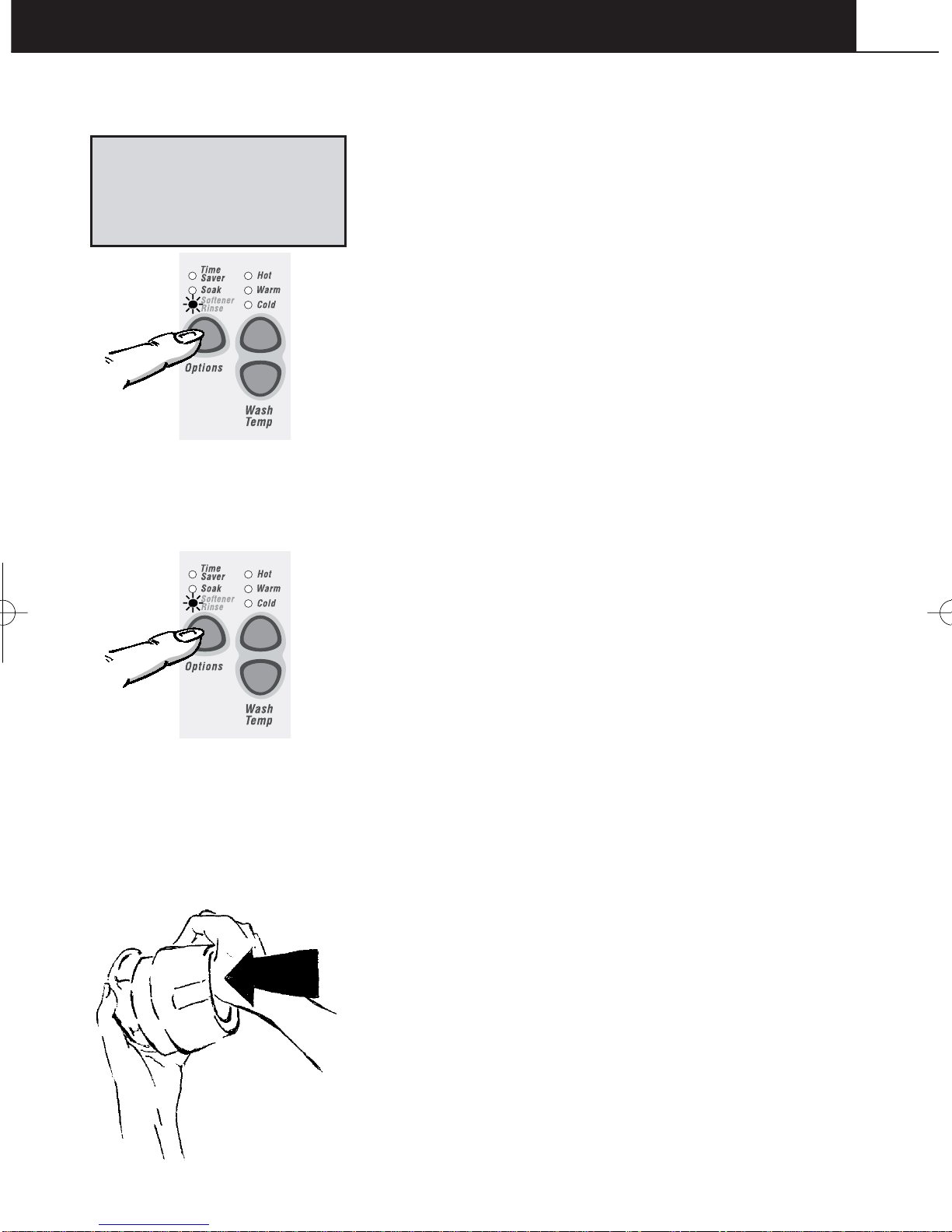

Liquid bleach:
1. Use half the recommended dose of bleach and dilute
with water.
2. Remove the fabric softener dispenser and pour down
the inside edge of the agitator stem,in line with the
fins.Select the SOFTENER RINSE button.This changes
the rinse to thoroughly remove bleach residue.
3. Add detergent and replace the fabric softener
dispenser.
4. For best results,add liquid bleach after the first two
amber wash lights are no longer visible.
Powdered Bleach:
Pour half the recommended dose of powdered bleach
into the agitator with your detergent.
The fabric softener goes into the dispenser on the top
of the agitator. The ring on the dispenser cup is a guide
for the amount of fabric softener to add for a full load.
Smaller loads require less fabric softener.
Softener Rinse
If you wish to use fabric softener when using the
Regular or Heavy Duty cycles you must select the
SOFTENER RINSE option.This changes the rinse
option to include a deep rinse so the fabric softener will
be dispensed correctly.
Scrud is the name given to the waxy build-up that can
occur within any washer when fabric softener comes
into contact with detergent.This build-up is not brought
about by a fault in the machine. If scrud is allowed to
build-up in the machine it can result in stains on your
clothes or an unpleasant smell in your washer.
If you wish to use fabric softener we recommend:
- Using fabric softener sparingly.
-When filling the dispenser, do not splash or overfill.
-
Clean the dispenser as soon as the cycle is finished.
- Clean your machine regularly (refer page 18).
- Cold water washing increases the chance of the build-up
occurring.We recommend that a warm permanent
press wash be used at regular intervals,eg every 5th
wash should be warm.
- Fabric softener of a thinner consistency is less likely to
leave residue on the dispenser and contribute to a
build-up.
BLEACH
TO REMOVE FABRIC SOFTENER
DISPENSER CUP FOR CLEANING
Push cup through
dispenser with thumb
Note: Never pour undiluted,
liquid chlorine bleach directly
onto clothes, into the wash
basket, or into the center of
the agitator.
FABRIC SOFTENER
SCRUD
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 14

CHANGING PRE-SET OPTIONS
After using your Ecosmart you may want to fine
tune some of the options to suit your wash needs.
You can change the following pre-set options:
•the default rinse option
•the amount of water used in the Shower Rinse
•the number of beeps at the end of the cycle
•the Out of Balance recovery routine
•the fill level selected by auto water level
•the controlled cold
To make these changes it is necessary to enter the
“OptionAdjustment Mode”.

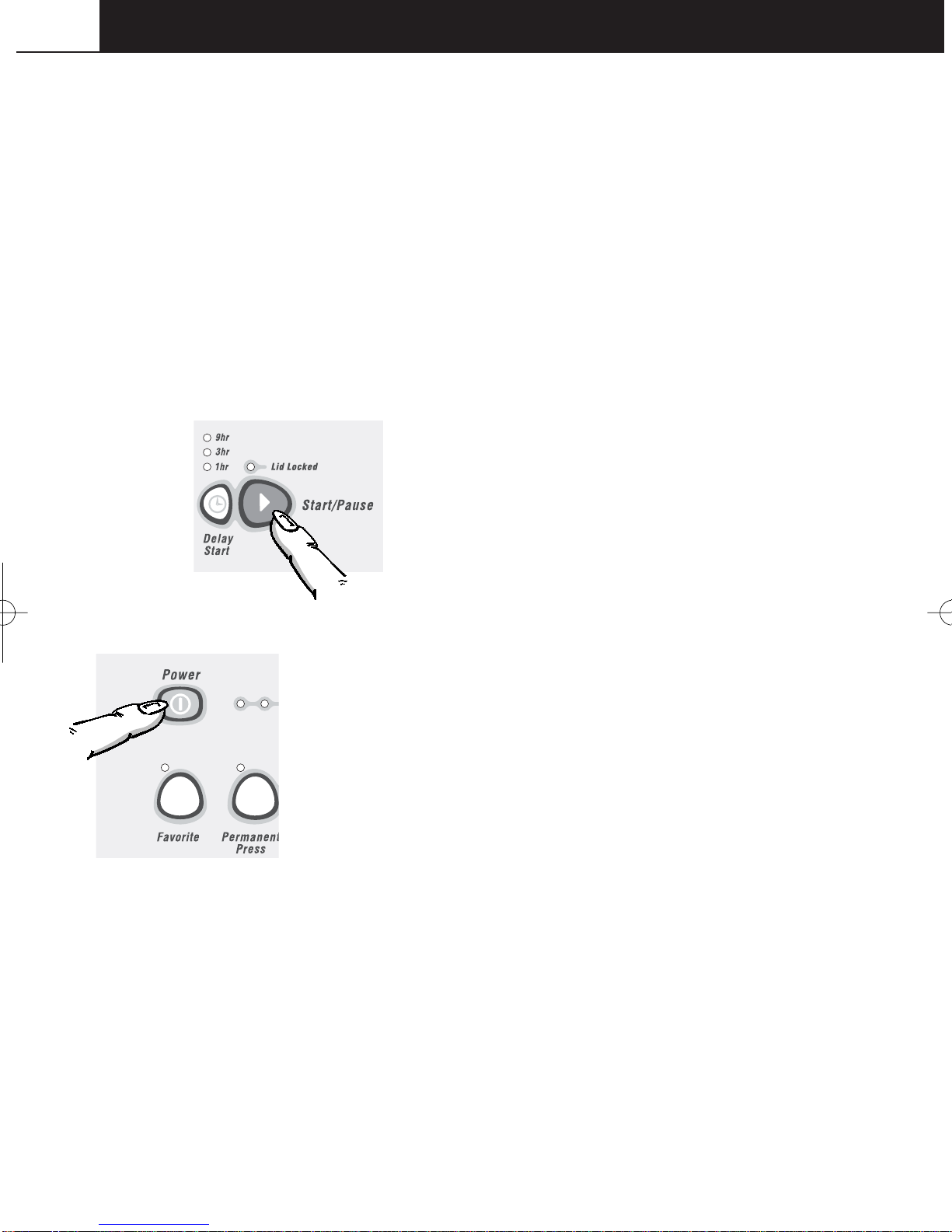

TO ENTER OPTION ADJUSTMENT MODE
1. Plug the machine in, but do not press POWER.
Press START / PAUSE and hold down,then
press POWER.
2. You will hear three quick beeps and the machine
will show an unusual pattern of lights.In this mode
the lights are used to indicate the different options
available. The diagram on page 15 shows how
the lights relate to the options you can
change.
Pages 16 -17 explain the different options in
more detail.
3. Use the buttons on the panel to make your
changes to the pre-set options.
4. Press POWER to return to normal mode.
5. Your Ecosmart will automatically remember
your changes.
6. To make further changes,repeat the above steps.
OPTION
ADJUSTMENT MODE
14
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 15

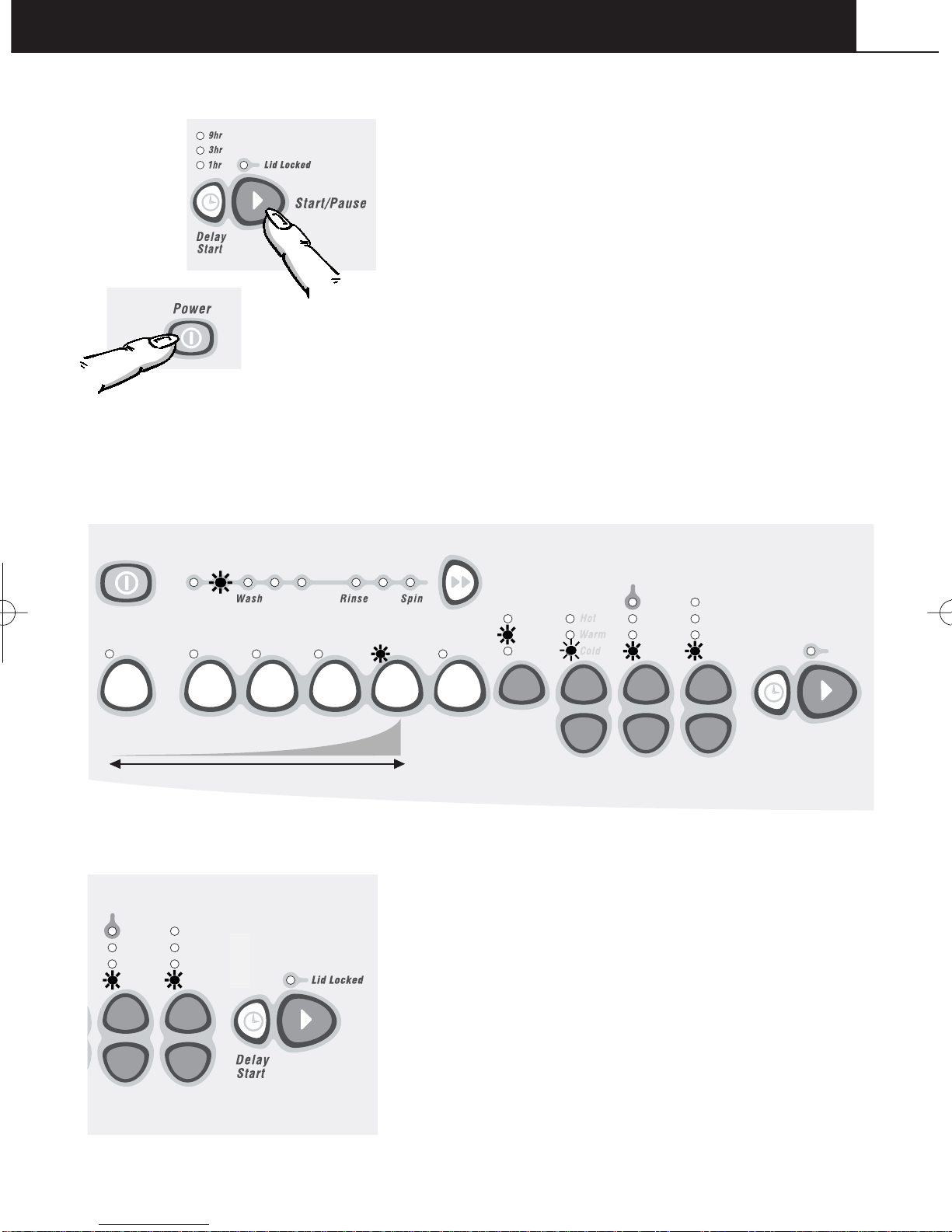

1. Press START / PAUSE and
hold down.Press POWER.
s
3. Use the buttons on the panel
to change the pre-set options.
15CHANGING PRE-SET OPTIONS
2. This diagram below shows how the lights
relate to the options you can change. It also
shows what lights will be on when you first enter
the OptionAdjustment Mode.
LessWater MoreWater
Automatic Water Level Adjustment
Controlled Cold
Out of
Balance
Recovery
Shower
Rinse
Volume
Rinse
Options
Beeps
None
5
15
Standard
More
More
Spray & Deep
2 Deep
Shower
Rinse
Volume
Rinse
Options
Standard
More
More
Spray & Deep
2 Deep
-
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 16

CHANGING PRE-SET OPTIONS
When your Ecosmart is spinning it can sense if the
wash load is out of balance and will stop and re-try
spinning up to 3 times.If the machine still senses an
unbalanced load there are two options the machine
offers.
•Automatic Recovery Option:
Your Ecosmart will try to automatically correct
the out of balance load.It will fill with water and
agitate to redistribute the load before trying to
spin up again.
•Machine Stops Option:
Your Ecosmart will stop, giving a short burst of
beeps every five seconds and the RINSE or SPIN
light will flash.You must redistribute the load more
evenly yourself. (Use this option if you wish to
conserve water.)
1. Enter the Option Adjustment Mode.
2. Use the REGULAR button to select the Out of
Balance Recovery Option you prefer.
3. Press Power to store your selection.
If you are not satisfied with the level that your
Ecosmart fills to onAUTOWATER LEVEL,you can
alter the fill level that Auto will select.
If you feel there is too much water,you can decrease
the fill level that will be selected.
1. Enter the OptionAdjustment Mode.
2. Use the CYCLE buttons to decrease the amount
of water selected.
3. Press POWER to store your selection.
If you feel that there is not enough water for the
load,we recommend that you check by pausing the
machine and pushing the clothes down to see how
much spare water is at the bottom of the wash
basket. Clothes often float and your Ecosmart can
sense the water under the clothes.Failing this,you
might like to select a higher water level manually.
OUT OF BALANCE
RECOVERY ROUTINE
AUTO WATER FILL
LEVEL
16
OUT OF BALANCE
RECOVERY OPTIONS
REGULAR
light on = automatic recovery
REGULAR
light off = machine stops
AUTO WATER LEVEL
ADJUSTMENT
Light on
FAVORITE = less water
PERM.PRESS = less water
WOOL = less water
DELICATE = less water
HEAVY DUTY = factory
setting
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 17

The beeps signaling the end of the cycle can be
increased or decreased.
1. Enter the Option Adjustment Mode.
2. Use the WASH OPTION button to select the
number of beeps you prefer.
3. Press POWER to store your selection.
The normal rinse on the Regular and Heavy Duty cycles is
a Shower Rinse.When you select Softener Rinse on these
cycles the rinse changes to the default rinse. The default
rinse is the rinse option used on theWool,Delicate and
Permanent Press cycles.The default rinse is a spray rinse
followed by a deep rinse.However you can change the
default rinse to two deep rinses.
1. Enter the Option Adjustment Mode.
2. Use the SPIN SPEED buttons to select the rinse
option you prefer.
3. Press POWER to store your selection.
You can increase or decrease the volume of water
added during the shower rinse on the Regular cycle.
1. Enter the Option Adjustment Mode.
2. Use theWATER LEVEL buttons to select the
volume of water you wish to be used in the
shower rinse.
3. Press POWER to store your selection.
END OF CYCLE BEEPS
17CHANGING PRE-SET OPTIONS
NUMBER OF BEEPS
Light on
TIME SAVER = 15 beeps
SOAK = 5 beeps
SOFTENER
RINSE = no beeps
RINSE OPTIONS
1st 2nd
Light on rinse rinse
MED spin deep deep
rinse rinse
SLOW spin - -
HOLD spray deep
rinse rinse
SHOWER RINSEVOLUME
Light on
HIGH = more water
MED = more water
LOW = FACTORY SETTING
CONTROLLED COLD
OPTIONS
Light color
GREEN = controlled cold
AMBER = uncontrolled cold
The Ecosmart is designed for installations that have
both hot and cold water. To ensure optimum
performance even in very cold weather,the cold
water temperature is controlled to 60ºF. However if
for some reason you do not have hot water available
you may need to change to uncontrolled cold in very
cold weather.
Ecosmart leaves the factory with the Controlled
Cold Option set.You can change this by entering the
OptionAdjustment mode and by pressing the
ADVANCE button once.
DEFAULT RINSE OPTION
VOLUME OFWATER
USED INTHE SHOWER
RINSE (REGULAR CYCLE)
CONTROLLED COLD
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 18

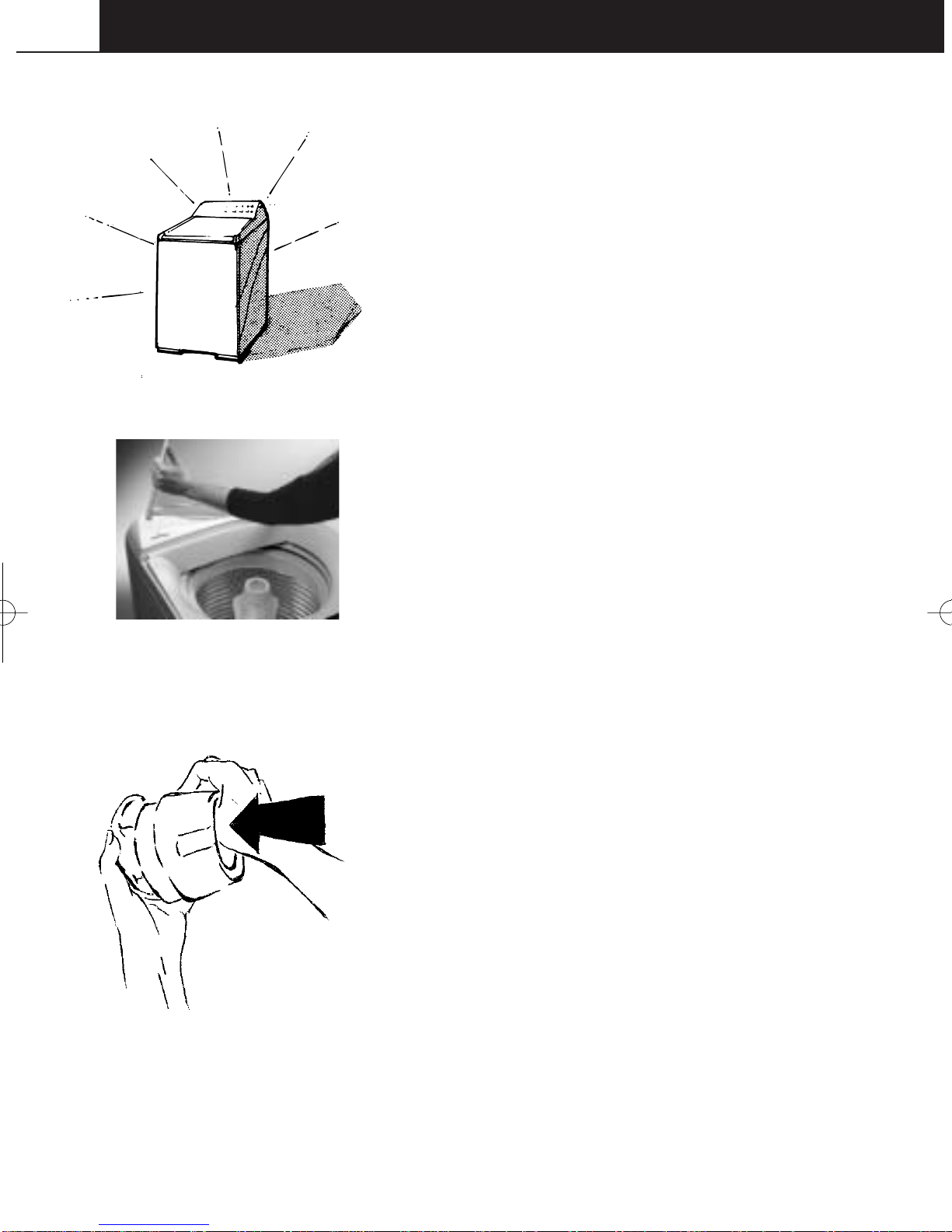

MACHINE INFORMATION
WHENYOU HAVE FINISHED
•Turn off the faucets to prevent any chance of
flooding should a hose burst.
•Unplug the machine from the wall socket.
CLEANINGYOUR ECOSMART
•Clean with a soft damp cloth and wipe dry.Do
not use chemical or scouring cleaners as they
can damage the paint and plastic surfaces.
•You can remove the lid for cleaning.Open the lid
fully,hold one side with one hand and gently tap
the other side with an upward motion.
To replace the lid, hold the lid vertically and align
both hinges before pushing down firmly.
•To remove the agitator for cleaning,unscrew the nut
down the center of the agitator by turning
counter-clockwise.
CAUTION:The agitator must be fully pushed
on to the shaft when refitting.Tighten the nut
firmly by hand. Ensure the agitator is not
loose.
CLEANING THE FABRIC SOFTENER
DISPENSER
When using fabric softener, rinse your dispenser at
the end of each wash,using warm soapy water.
•Separate the cup from the dispenser body by
pushing downwards on the base of the cup.
CLEANING THE INSIDE OFYOUR
ECOSMART
You can program a hot wash into your Favorite cycle
to thoroughly clean your machine.
1. Press POWER button.
2. Press and hold the Favorite cycle button until you
hear two quick beeps and the Favorite light
flashes.
3. Select the Permanent Press cycle.
4. Select a hot wash.
5. Press Favorite again to store the selection.
CARE AND CLEANING
18
TO REMOVE FABRIC SOFTENER
DISPENSER CUP
Push cup through
dispenser with thumb
420294 US Ecosmart.qk 11/8/03 10:14 AM Page 19
