5.5 cu.ft. Undercounter Refrigerator
Isotemp Series
Installation and Operation
329153H01 • Revision A • April 2018

IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in
damage to the unit, injury to operating personnel, and poor equipment performance.
CAUTION All internal adjustments and maintenance must be performed by qualified service personnel.
Material in this manual is for informational purposes only. The contents and the product it describes are
subject to change without notice. Fisher Scientific makes no representations or warranties with respect to
this manual. In no event shall Fisher Scientific be held liable for any damages, direct or incidental, arising
from or related to the use of this manual.
© 2018 Fisher Scientific Inc. All rights reserved.

Contents
Product Specifications ................................................. 1
Models..................................................................... 1
General Specifications and Features......................... 1
Physical Dimensions................................................. 1
Environmental Operating Conditions......................... 2
ENERGY STAR® Certification .................................. 2
Safety Precautions....................................................... 3
System Block Diagram................................................. 4
Unpacking the Isotemp Refrigerator............................. 5
Inspecting for Damage ............................................. 5
Unboxing and Locating ............................................ 5
Identifying all Parts ................................................... 5
Installation.................................................................... 6
Leveling.................................................................... 6
Intended Use............................................................ 6
Providing Ventilation................................................. 6
Power On and Power Cord Guidelines ..................... 6
Uninterruptable Power Supply (UPS) ........................ 7
Operation..................................................................... 8
LED Indicator ........................................................... 8
Preprogrammed Settings ......................................... 8
Preset Alarms/Alerts................................................. 8
Set Point Temperature ............................................. 8
Loading Products for the First Time.......................... 8
Tips for Managing Door Openings............................ 8
Automatic Defrost Cycles......................................... 9

Getting To Know Your Product .................................... 10
Product Exterior - Front............................................ 10
Product Exterior – Rear ............................................ 11
Product Interior ........................................................ 11
Navigating Isotemp 5.5 Cu.Ft. Refrigerator Controls..... 12
System Alerts........................................................... 12
System Alert Values ................................................. 12
Reading the LCD (Temperature) Display................... 12
Access the Main Menu............................................. 12
Maintenance ................................................................ 16
Frequently Asked Questions ........................................ 17
Troubleshooting........................................................... 18
Warranty and Service................................................... 19
Agency Approvals .................................................... 19

5.5 cu.ft. Undercounter Refrigerator Product Specifications | 1
Product Specifications
Models
General Specifications and Features
Physical Dimensions
Model Description
FBG505SA FBG Series Solid Door Refrigerator, NEMA 5-15P
FBG505GA FBG Series Glass Door Refrigerator, NEMA 5-15P
FBG505SD FBG Series Solid Door Refrigerator, NEMA 6-15P
FBG505GD FBG Series Glass Door Refrigerator, NEMA 6-15P
Model Style 5.5 cu.ft. Undercounter Refrigerator
Materials Durable painted steel exterior with easy-to-clean interior aluminum walls
Internal Chamber Capacity 5.5 cu.ft./156 L
Chamber Temperature Uniformity <±3°C/±5.4°F from center air temperature
Cooling System Refrigeration system with single 125W thermoelectric heat pump
Refrigerant R744, non-flammable, zero ozone depleting, low toxicity
Refrigerant Charge Quantity 17 g Max
Refrigerant Pressure Rating 12410 kPa
Insulation CFC-free insulation
Display 1.44" display with capacitive buttons
Power Cord 1.8 meter, NEMA hospital grade plug
Noise Level 43 dBA
Power Input 100-240 VAC 50-60 Hz
Amps 3.9 Amps Max
Net Weight 115 lbs/52 kg (Solid door)
132 lbs/60 kg (Glass door)
Outer Dimensions (W x D x H) 600 mm x 661 mm x 813 mm
23.6" x 26" x 32"

2 | Product Specifications 5.5 cu.ft. Undercounter Refrigerator
Environmental Operating Conditions
ENERGY STAR®Certification
The Isotemp 505 series refrigerator has earned ENERGY STAR®certification in the Laboratory Grade Refrigerator and Freezer
category.
ENERGY STAR is a voluntary government program backed by the U.S. Environmental Protection Agency (EPA) that helps
businesses and individuals save money and protect the climate through superior energy efficiency products. Behind each
ENERGY STAR label is a product that has been independently certified by an EPA-recognized certification body to use less
energy and cause fewer emissions that contribute to climate change. ENERGY STAR and the ENERGY STAR mark are
registered trademarks owned by the U.S. Environmental Protection Agency. For more information about ENERGY STAR,
please visit: https://www.energystar.gov/
Internal Dimensions (W x D x H) 496 mm x 521 mm x 585 mm
19.5" x 20.5" x 23"
ADA Height Compliant Yes
Stability Leveling feet
Ambient Operating Temperature 10°C to 32°C at a set-point of 5°C
Humidity Requirements No more than 65% RH non-condensing. Product approved for indoor use only.
Altitude For operation of up to 2,000m
Pollution Degree 2
Warranty 13 months on all parts and labor, 5 years on thermoelectric heat pumps part

5.5 cu.ft. Undercounter Refrigerator Safety Precautions | 3
Safety Precautions
All electrical appliances present some risk of injury. Your
Isotemp refrigerator is designed to meet safety standards.
Take care to carry and move your refrigerator with caution. Do
not place it where it can fall, be dropped, or where the
electrical connection can be submerged into water or other
liquids.
There are no user-serviceable parts within the Isotemp
5.5 cu.ft./156 L product.
Symbols used in this manual are described as follows:
Electrical Components
Before installing, using or maintaining this product, be sure to
read the manual and product warning labels carefully. Failure
to follow these instructions may cause the product to
malfunction, which could result in injury or damage.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, you are encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and
receiver
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for
help.
Refer to the section Unpacking the Isotemp
Refrigerator section for details on handling and
moving the unit
Used to indicate an electrical shock hazard.
Used when advice is given to prevent malfunction
or injury.
Removal of the top cover for maintenance and
other service should be performed only by factory
authorized personnel.
CAUTION: For Class B - Unintentional
Radiators: This device complies with Part 15 of
the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not
cause harmful interference and (2) this device
must accept any interference received, including
interference that may cause undesired operation.
WARNING: Hazardous voltages are present: To
reduce the risk of electric shock and danger to
personal health, follow the instructions provided
in this manual.
CAUTION:
ICES-003 Class B Notice—Avis
NMB-003, Class B. This Class B digital apparatus
complies with Canadian ICES–003.
Note: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation.
WARNING: Hazardous voltages are present: To
reduce the risk of electric shock DO NOT remove
the rear cover on this product. There are no user
serviceable parts inside. Services should be done
by qualified personnel only.
WARNING: In order satisfy the FCC RF exposure
limit for transmitting devices, a separation
distance of 20 cm should be maintained between
the body and the Isotemp refrigerator while in
operation.

4 | System Block Diagram 5.5 cu.ft. Undercounter Refrigerator
• IEC62133 for secondary battery safety
• UN3090/UN3091 and UN3480/UN3481for Lithium
Battery transport regulations
• Transport regulations based on the following:
International Air Transport Association (IATA),
International Civil Aviation Organization (ICAO),
International Maritime Dangerous Goods (IMDG) Code,
Transport of Dangerous Goods (TDG).
System Block Diagram
CAUTION:
This device complies with Industry
Canada license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may cause
undesired operation of the device.
WARNING: The antenna used for this transmitter
must not be co-located in conjunction with any
other antenna or transmitter.
CAUTION:
Any modifications made to this device
that are not approved by Fisher Scientific may void
the authority granted to you by the FCC to operate
equipment.
CAUTION:
Cells/batteries shall be tested and
pass applicable regulations based on type and use
such as:

5.5 cu.ft. Undercounter Refrigerator Unpacking the Isotemp Refrigerator | 5
Unpacking the Isotemp Refrigerator
Inspecting for Damage
Please take a moment to inspect your new refrigerator for
damages that may have occurred during shipping. For any
damage done to the refrigerator, please contact the delivery
carrier directly.
We have designed intelligent packaging to assist you in
unpacking your Isotemp undercounter refrigerator. Your
Isotemp product was built, inspected, tested, and packaged
with extreme care. Follow the directions provided to unpack
your new product safely and easily.
Unboxing and Locating
We recommend you move the box as close as possible to its
final location before you begin to unpack. This unit is not
provided with handles, therefore it is recommended that 2
people move and remove the refrigerator from the packaging
by lifting at the base of the refrigerator. The packaged unit
weighs nearly 145 pounds (66 kg), so lift it with caution.
Remove the lower packing strap and lift the top cover of the
box to expose the refrigerator for removal and placement. To
remove the bottom foam protectors, carefully tip the unit to
one side and remove the opposite side foam piece (repeat for
other side piece).
Identifying all Parts
Isotemp service line does not resolve packaging
damage issues.

6 | Installation 5.5 cu.ft. Undercounter Refrigerator
Installation
Leveling
Adjust the leveling feet located underneath the refrigerator by
turning clockwise to extend the feet, counter clockwise to
shorten them. It is important that the unit is leveled.
Intended Use
Do not locate or store your refrigerator outdoors. This model
was designed for indoor use only and violation of this will void
the terms of your warranty.
The refrigerators described in this manual are designed for
professional use. These products are intended for use as cold
storage in research use and as a general purpose laboratory
refrigerator, storing samples or inventory at operating
temperatures between 2°C and 10°C.
It is not considered a medical device and has therefore not
been registered with a medical device regulatory body
(e.g. FDA): that is, it has not been evaluated for the storage of
samples for diagnostic use or for samples to be re-introduced
into the body.
This unit is not intended for use in classified hazardous
locations, nor to be used for the storage of flammable or
corrosive inventory.
Providing Ventilation
Your Isotemp undercounter refrigerator is equipped with a
ventilation area just above the door handle. Do not block or
cover the venting area as this can impact the performance of
the refrigerator.
Power On and Power Cord
Guidelines
1. Use only the power cord provided with your Isotemp
undercounter refrigerator.
2. Plug the power cord into the receptacle on the upper rear
of the refrigerator as indicated. Secure the strain relief to
ensure the cord cannot accidentally pull out (as shown
above).
3. Position the refrigerator where you intend to locate it,
taking care to give it the recommended clearance and
plug into a grounded three prong receptacle. This outlet
must be within reach to disconnect power source.
Note: The electrical safety of this product may become
impaired if you choose to disregard this power safety steps
listed above.
The fans on your product will run at variable
speeds. Please refer to the section
Troubleshooting section on how to clean and
troubleshoot the fan for more information.
WARNING: Fan has moving parts, product has
uninsulated live parts and hot parts. Do not
remove the top panel or attempt repairs. For
repairs or operating issues call Customer Care at
866-984-3766 for guidance and instructions.
Do not connect to a GFCI (Ground Fault
Circuit Interrupter) circuit or outlet as it may be
subject to nuisance tripping

5.5 cu.ft. Undercounter Refrigerator Installation | 7
Uninterruptable Power
Supply (UPS)
Your Isotemp refrigerator is compatible for use with a UPS
battery backup. The primary role of any UPS is to provide
short-term power when the input power source fails. If you
use a UPS backup, take care to follow the directions and
precautions accompanying that device.
Be careful not to plug into a wall outlet controlled
by a wall switch to avoid accidentally switching off
the refrigerator. To function properly the
refrigerator must continually receive power.
CAUTION:
Risk of electrical shock. If the cord or
plug becomes damaged, replace with a cord and
plug of the same type and rating.

8 | Operation 5.5 cu.ft. Undercounter Refrigerator
Operation
LED Indicator
When you turn on your refrigerator, verify that the LED
indicator is working. The LED indicator appears on the front
control panel above the battery. The LED indicator illuminates
green when the unit is ON and running (Under normal
operation). It illuminates red if there is a concern such as a low
battery or other alarms.
Preprogrammed Settings
Settings can be customized via the Settings and Alerts
menus.
Temperature Display & Alarm – Temperatures are detected
and displayed in Celsius units to one tenth of a degree. For
example, 5.0°C. Upper and lower thresholds are driven by
internal air sensor.
• Set Point Temperature – The unit preset/default is set at
5.0°C (41°F)
• Upper Threshold Alarm – The unit preset/default is set at
10.0°C
(50.0°F)
• Lower Threshold Alarm – The unit preset/default is set at
2.0°C
(35.6°F)
Preset Alarms/Alerts
The following alarms/alerts are factory preset:
Set Point Temperature
When you first turn on the unit, the fan will run and the
refrigerator will work to reach the default set point
temperature. Once set point is reached, the fan speed will
reduce to conserve energy. The unit will reach air temperature
setting rapidly.
When the unit is first plugged in and powered, the
temperature range alarms are not enabled until the unit
reaches its preset temperature range + an offset of 3°C. If the
set point temperature is 5°C, then the alarms are enabled
when the unit reaches 8°C.
Loading Products for the
First Time
After you power on your refrigerator, monitor the temperature
display on the control panel and do not load until the default
set point is reached. When you load the refrigerator, do not
block air flow around the air sensor.
When loading products previously stored at room
temperature, monitor the temperature display to prevent a
compromise. We suggest you to load room temperature
samples in small increments to help and maintain a stable
temperature.
Tips for Managing Door
Openings
When a refrigerator door is opened, warmer ambient air
enters and causes the interior temperature to fluctuate. To
A power outage/backup battery would result in a
flashing light and audible beep every 5 seconds
until battery is exhausted.

5.5 cu.ft. Undercounter Refrigerator Operation | 9
limit this effect, there are a few simple steps you can follow to
reduce the number of times the door is opened as well as the
duration it is left opened:
• List a detailed inventory of the refrigerator’s contents on a
chart posted outside the unit to reduce the time spent
searching for items when the door is opened.
• Use clearly labeled bins to organize and quickly identify
contents.
• Avoid storing beverages or any non-sample items (like
food) in any unit used for sensitive inventory. Not only is
this a health hazard, it also leads to more frequent
opening of the door.
Note: Isotemp undercounter refrigerators have a visible and
an audible open door alarm that sounds when a door has
been open for more than 1 minute.
Automatic Defrost Cycles
The Isotemp refrigerator will run an automatic defrost cycle to
maintain its performance. The period between defrost cycles
will vary depending on the refrigerator use conditions (ranges
from 6 hrs to 96 hrs). During the defrost cycle you may hear
the fan turning off and on.

10 | Getting To Know Your Product 5.5 cu.ft. Undercounter Refrigerator
Getting To Know Your Product
Product Exterior - Front
Display
The display is located in the center of the upper console and
is the single point-of-use for controlling the refrigerator. The
display is a 1.44” full color TFT-LCD display with capacitive
touch user interface buttons for easy navigation and control.
Backup Battery
Activating the Battery: The included battery is shipped with
a protective tab so that its power doesn’t drain. To activate it
you must remove the tab from its location inside the I/O Dock
panel.
Replacing the Battery:
1. Open the I/O Dock panel
2. Remove and replace the battery with type CR123A or
IEC16340
3. Close the I/O Dock panel
Note: The battery serves to support alerting the user in the
event of a power loss.
Ventilation
The Isotemp refrigeration system is a solid-state system
utilizing fans with moving parts. The functioning of the fans is
integral to heat dissipation. The fans are mounted on the top
of the unit. They will run continuously until the
preprogrammed temperature set point is achieved. After that,
the fans will run at a slower speed when needed to stabilize
temperature.
Door Lock
The 5.5 cu.ft refrigerator uses a mechanical door lock. The
refrigerator ships with two keys taped to the top of the unit.
Turn the key clockwise to unlock and counter-clockwise to
lock.
When replacing the battery, replace only with a
CR123A or IEC16340 type battery.
This battery will not power the refrigeration. You
must ensure uninterrupted power to the
refrigerator and monitoring system at all times.
Do not insert objects into the fan screens to avoid
damaging the unit.

5.5 cu.ft. Undercounter Refrigerator Getting To Know Your Product | 11
Product Exterior – Rear
Access Port
The Access Port (located on the back of the unit) is shipped
sealed with a foam plug that must be removed prior to use.
Additionally, the gray plastic knock-out must be removed.
After inserting your device, we recommend reinserting the
foam plug as snug and flush as possible to insulate against
cooling loss. Putty may also be used to help reseal the area.
Evaporation Tray
The evaporation tray is located on the bottom rear of the unit.
Product Interior
Interior Components
• Air temperature sensor
• External pass-through port
• Adjustable shelving
Adjustable Shelving
Your Isotemp undercounter refrigerator is shipped with wire
ties holding the shelves in place. Remove the wire ties before
using the refrigerator. You may place the shelving wherever
you choose by removing and relocating the support clips.

12 | Navigating Isotemp 5.5 Cu.Ft. Refrigerator Controls 5.5 cu.ft. Undercounter Refrigerator
Navigating Isotemp 5.5 Cu.Ft.
Refrigerator Controls
System Alerts
System Alert Values
Reading the LCD
(Temperature) Display
Access the Main Menu
Color
Display
Back
Select
Scroll Up
Scroll
Down

5.5 cu.ft. Undercounter Refrigerator Navigating Isotemp 5.5 Cu.Ft. Refrigerator Controls | 13
Alarms
Active Alarms
To clear an alarm state, you can touch any blue button to go
to a screen that lists each alarm triggered.
Alarm Log
The Alarm Log screen displays a history of all alarms.
Alarm Settings
The Alarm Settings menu allows you to Select the high and
low temperature alarms. It also lets you choose to activate the
low battery alarm.
Settings
The settings allow you to select the refrigerator set
temperature and the units displayed, Celsius (°C) or
Fahrenheit (°F).

14 | Navigating Isotemp 5.5 Cu.Ft. Refrigerator Controls 5.5 cu.ft. Undercounter Refrigerator
Temperature Set Point
Temperature Set Point is where you can select the desired
unit set point. Using the up and down arrows scroll through
the preset temperature settings. The temperature is set once
the Select button is confirmed. Temperature settings are in
0.5 degree increments whether the display is set to Celsius or
Fahrenheit.
Calibration
This provides the ability to coordinate the results of a third
party external NIST calibrated reference thermometer with the
temp displayed on the refrigerator.
Example: Refrigerator air temperature displays as 3.5°C.
Calibrated reference thermometer reads 3.6°C. Based on this
information the refrigerator is reading 0.1 degree below the
reference temperature. By raising the CALIBRATION to
+0.1°C the refrigerator will now display 3.6°C.
WARNING: Changing the calibration offset will
change the performance of the refrigerator and
cool/warm the unit to reflect the changes made.
Changes should only be made to reflect the
readings from a NIST calibrated thermometer.

5.5 cu.ft. Undercounter Refrigerator Navigating Isotemp 5.5 Cu.Ft. Refrigerator Controls | 15
Model Information
This displays the model number, UI FW version, UI FW date
and TEC FW version of your unit.
System Information
This displays the current settings which includes set
temperature, high/low temp alarms and calibration.

16 | Maintenance 5.5 cu.ft. Undercounter Refrigerator
Maintenance
Suitable products for cleaning interior/exterior:
The interior may be cleaned, when needed, using a mild
detergent and a damp cloth.
Cleaning around ventilation area and precautions:
Periodically inspect and monitor the ventilation area just
above the door for dust accumulation. It may be cleaned with
a duster or vacuum cleaner with a dust attachment.
Note: Do not remove the top cover. Do not attempt to clean
the power supply located below the fan assembly. You could
damage your unit.
Cleaning the Condensate Tray:
The condensate tray is found on the bottom rear of the
exterior cabinet. The bottom shelf can be removed for
periodic cleaning or when excessive moisture or spills effect
the bottom of the unit.
IMPORTANT: Avoid the use of chlorides (clean-
ers with bleach) as well as abrasive cleaners and
scrubbers such as steel wool.
They will degrade the protective coating on the
painted steel (product exterior) and leave it vul-
nerable to rust.
Other manuals for Isotemp Series
1
This manual suits for next models
4
Table of contents
Other Fisher Scientific Refrigerator manuals

Fisher Scientific
Fisher Scientific 13-986-127G User manual

Fisher Scientific

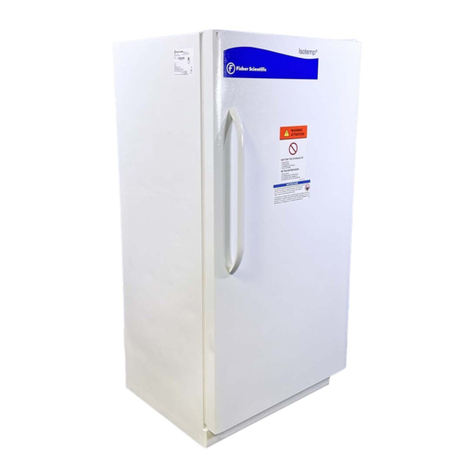

Fisher Scientific 17LREEFSA User manual

Fisher Scientific
Fisher Scientific Isotemp 13-986-153 User manual

Fisher Scientific
Fisher Scientific 10ECEEFSA User manual

Fisher Scientific
Fisher Scientific 13-986-120A User manual

Fisher Scientific
Fisher Scientific 17LREEFSA User manual

Fisher Scientific

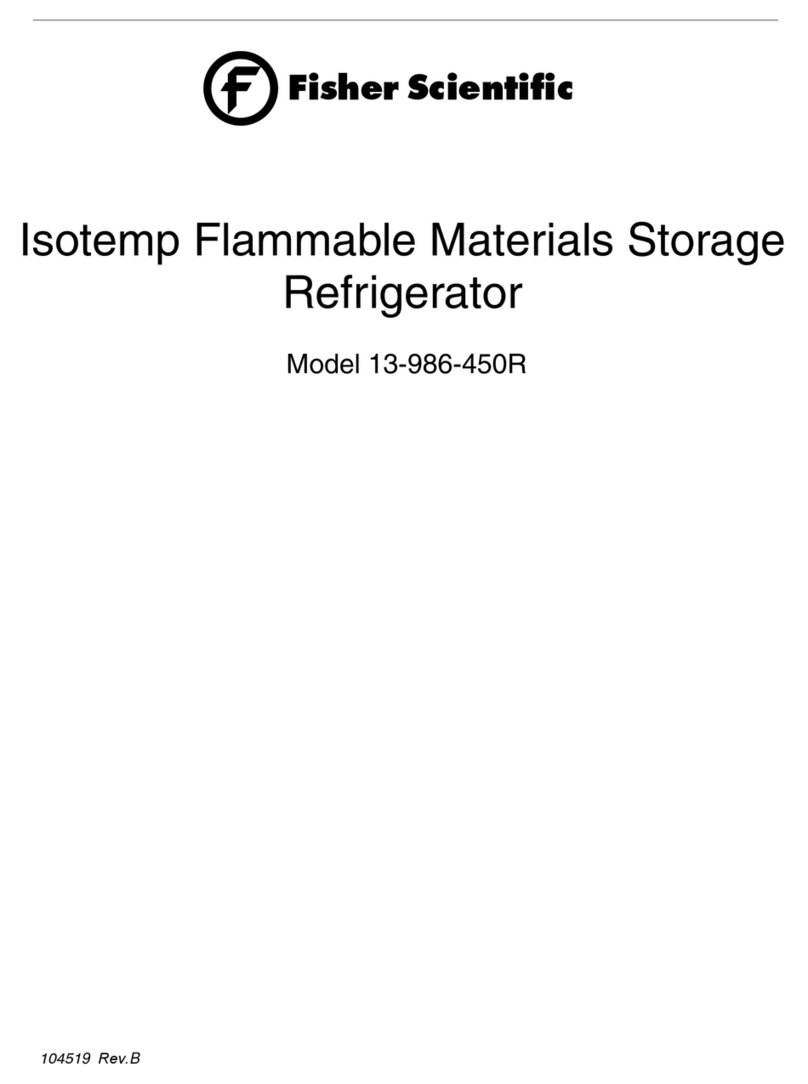

Fisher Scientific 13-986-450R Instruction Manual

Fisher Scientific

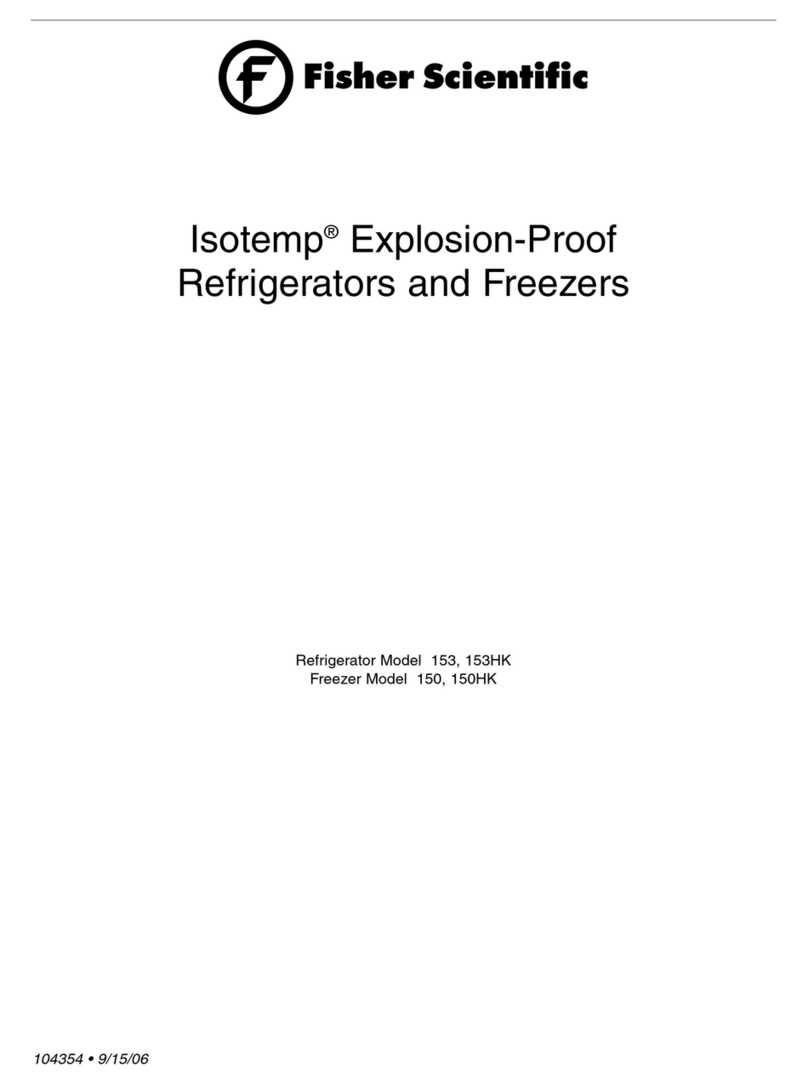

Fisher Scientific Isotemp 153 Original instructions

Fisher Scientific

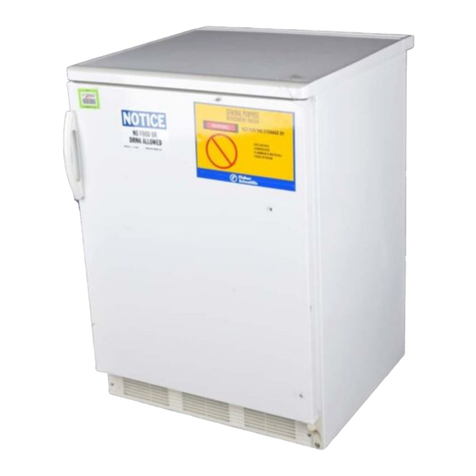

Fisher Scientific ISOTEMP 97-920-1 User manual
