TECHNICAL SERVICE MANUAL
CASSETTE TYPE AIR-CONDITIONER
(Four-way cassette)
FSK-124HF
FSK-184HF
FSK-244HF
FSK-364HF
FSK-484HF
FI-SM-040819

- 1 -
Four-way CassetteAir-conditioner
Table of Contants
Part 1. Product Features 2
Part 2. Specification 3
Part 3. Noise Level 7
Part 4. Velocity ﹠temperature distribution 8
Part 5. Operation Range 9
Part 6. Capacity Table 10
Part 7. Outlines and Dimension 15
Part 8. Electric Control Functions 19
Part 9. Wiring Diagram 26
Part 10. Installation 30
Part 11 Servicing and Maintenance 39
Part 12. Exploded view 41
NOTICE
Specifications are subject to change without notice for further improvement.
All the product information has been carefully checked.

Part 1. Product Features
1) Low operation noise
---Streamline plate ensures quietness
---Creates natural and comfortable environment
2) Efficient cooling
---Equal, fast and wide—range cooling
Four-way airflow
3) The adoption of the most advanced 3- Dimensional Screw fan
---Reduces the air resistance passing through
---Smoothes the air flow
---Makes air speed distribution to the heat exchange uniform
3- Dimensional Screw fan
4) Improvement for easy installation and maintenance
---Little space is required for installation into a shallow ceiling
---Because of the compactness and weight reduction of the main unit and panel, all models can be installed
without a hoist
- 2 -

- 3 -
Part 2. Specification
R407C
Model FSK-124HF FSK-184HF
Power supply Ph-V-Hz 1N,220-240V,50Hz 1N,220-240V,50Hz
Capacity Btu/h 12000 18000
Ca
p
acity kW 3.55 5.3
Input W 1450 2050
Rated current A 6.4 9.8
Cooling
EER 2,45 2,59
Capacity Btu/h 15000 20500
Capacity kW 4.4 6.0
Input W 1350 2150
Rated current A 6.0 10.5
Heating
COP 3,26 2,8
MoistureRemoval L/h 1.2 1.8
Max. input consumption W 1910 2630
Max.current A 9.6 12.5
Startingcurrent A 34 48
Model PG240X2C-4FT PG330X2CS-4KU3
Type Rotary Rotary
Brand TOSHIBA TOSHIBA
Supplier
TOSHIBA
(Guangdong)
TOSHIBA
(Guangdong)
Capacity Btu/h 14600/14800 20150/20300
Input W 1400/1430 1980/2105
Rated current(RLA) A 6.5 9.7/10.3
Locked rotor Amp(LRA) A 29.9/33.0 45
Thermal protector UP3RE0591-T56 UP3SE0391-T39
Capacitor uF 35 40
Compressor
Refrigerant oil ml 480 750
Model YDK45-4F YDK45-4F
Brand WELLING WELLING
Input W 63 63
Capacitor uF 1.5μF/450V 2.5μF/450V
Indoor fan
motor
Speed(hi/lo) r/min 730/630 930/830
Number of rows 2 2
Tubepitch(a)x row pitch(b) mm 21X13.37 21X13.37
Fin spacing mm 1.3 1.3
Fin type (code) Hydrophilic
aluminium
Hydrophilic
aluminium
Tube outside dia.and type mm Ф7.94, innergroove Ф7.94, innergroove
Coil length x height x width mm 1185X210X26.7 1185X210X26.7
Indoor coil
Number of circuits 5 5

- 4 -
Indoor air flow (Hi/Lo) m3/h 680/600 860/760
Indoor noise level (Hi/Lo) dB(A) 38/35 43/40
Dimension (W*H*D)(body) mm 580×254×580 580×254×580
Packing (W*H*D)(body) mm 750x340×750 750x340×750
Dimension (W*H*D)(panel) mm 650x30x650 650x30x650
Packing (W*H*D)(panel) mm 715x115x715 715x115x715
Net/Gross weight(body) kg 21/30 21/30
Indoor unit
Net/Gross weight(panel) kg 3/5 3/5
Model YDK25-6-1 YDK53-6K
Brand WELLING WELLING
Input W 85 130
Capacitor uF 2.5μF/450V 2.5μF/450V
Outdoor fan
motor
Speed r/min 920 750
Number of rows 2 2
Tube pitch(a)x row pitch(b) mm 25.4x22 25.4x22
Fin spacing mm 1.8 1.8
Fin type (code) Hydrophilic Hydrophilic
Tube outside dia.and type mm Ф9.53,innergroove Ф9.53,innergroove
Coil length x height x width mm 651x559x44 775x660x44
Outdoor
coil
Number of circuits 2 3
Outdoor air flow m3/h 1800 2200
Outdoor noise level dB(A) 43 48
Dimension(W*H*D) mm 760×590×285 845×695x335
Packing (W*H*D) mm 890×655×360 965×847×395
Outdoor
unit
Net/Gross weight kg 40/45 55/60
Refrigerant type g R407C/1330 R407C/2050
Designpressure MPa 2.6/1.2 2.6/1.2
Liquid side/ Gas side mm(inch) Ф6.35/Ф12.7 Ф6.35/Ф12.7
Max. refrigerant pipe length m 15 15
Refrigerant
piping
Max. difference in level m 5 5
Connection wiring No No
Plug type 16A No
Controller Remote Remote
Operationtemp ℃17-30 17-30
Ambienttemp ℃—7-45 —7-45
Notes: 1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent ref. Piping: 8m(horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. Piping: 8m(horizontal)
3. Actual noise level may differ, depending on the room structure, etc, since these noise values are from an
anechoic room.

- 5 -
R407C
Model FSK-244HF FSK-364HF FS-484HF
Power supply Ph-V-Hz 1, 220-240V~, 50Hz 3N, 380V~, 50Hz 3N, 380V~, 50Hz
Capacity Btu/h 24000 36000 48000
Capacity kW 7.05 10.55 14.1
Input W 3100 4600 5700
Rated current A 13.8 7.8 9.6
Cooling
EER 2,28 2,29 2,48
Capacity Btu/h 28000 40000 53000
Capacity kW 8.2 11.75 15.55
Input W 2950 4800 6000
Rated current A 13.0 8.1 10.1
Heating
COP 2,78 2,45 2,59
Moisture Removal L/h 2.4 3.8 4.8
Max. input consumption W 4030 6200 7200
Max. input current A 18 11.3 12.9
Startingcurrent A 44 50 50
Model HQ034PAA C-SBN303H8A C-SBN373H8A
Type Scroll Scroll Scroll
Brand LG SANYO SANYO
Supplier LG
SANYO SANYO
Capacity Btu/h 29000 39067 49474
Input W 2760 4000 4950
Rated current(RLA) A 12.4 7 8.5
Locked rotor Amp(LRA) A 61 50 50
Thermal protector INTERNAL TYPE INTERNAL TYPE INTERNAL TYPE
Capacitor u 60 / /
Compressor
Refrigerant oil ml 750 1700 1700
Model YDK55-6 YDK56-6 YDK56-6
Brand WELLING WELLING WELLING
Input W 120 137 137
Capacitor uF 3.5 3 3
Indoor fa
n
motor
Speed(hi/lo) r/min 680/ 600 670/ 565 670/ 565
N
umber of rows 2 2 2
Tube pitch(a)x row pitch(b) mm 21X13.37 21X13.37 21X13.37
Fin spacing mm 1.3 1.3 1.3
Fin type (code) Hydrophilic aluminium Hydrophilic aluminium Hydrophilic aluminium
Tube O.D. and type mm
Ф7,
innergroove tube
Ф7,
innergroove tube
Ф7,
innergroove tube
Coil length x height x width mm 1950X126X26.74 1950X168X26.74 1950X168X26.74
Indoor coil
N
umber of circuits 8 12 12

- 6 -
Indoor air flow (Hi/Lo) m3/h 1050/900 1600/1420 1750/1500
Indoor noise level (Hi/Lo) dB(A) 43/40 47/44 47/44
Dimension(W*D*H) Body mm 840X240X840 840X310X840 840X310X840
Dimension(W*D*H) Panel mm 950X40X950 950X40X950 950X40X950
Packing (W*D*H) Body mm 1020X330X930 1020X400X930 1020X400X930
Packing (W*D*H) Panel mm 1030X145X1030 1030X145X1030 1030X145X1030
N
et/Gross weight Body Kg 36/46 40/50 40/50
Indoor unit
Net/Grossweight Panel Kg 6/11 6/11 6/11
Model YDK53-6H YDK250-6D-WL YDK65-6WL;
YDK65-6FC
Brand WELLING WEILING WEILING
Input W 140 307 138+156
Capacitor uF 3 10μ3.5x2
Outdoor fa
n
motor
Speed r/min 800 740 800
N
umber of rows 2 2 2
Tube pitch(a)x row pitch(b) mm 25.4x22 25.4x22 25.4X22
Fin spacing mm 1.5 1.7 1.8
Fin type (code) Hydrophilic aluminium Unhydrophilic aluminium Unhydrophilic aluminium
Tube outside dia.and type mm
Ф9.53,
innergroove tube
Ф9.53,
innergroove tube
Ф9.53,
bare tube
Coil length x height x width mm 850X810X44 955*915*44 715X1220X44
Outdoor coil
N
umber of circuits 2 8 4
Outdoor air flow m3/h 3000 5000 6000
Outdoor noise level dB(A) 52 57 57
Dimension(W*H*D) mm 895X860X330
990x960x360 940X1245X360
Packing (W*H*D) mm 972X9875X406 1120x1090x435 1018X1377X434
Outdoor
unit
N
et/Gross weight Kg 79/90 101/106 110/125
Refrigerant type g R407C/2500 R407C/2700 R407C/4050
Designpressure MPa 1.2/2.8 1.2/3.5 1.2/3.5
Liquid side/ Gas side mm Ф9.53/Ф16 Ф12.7/Ф19.0 Ф12.7/Ф19
Max. refrigerant pipe length m 15 15 15
Refrigerant
piping
Max. difference in level m 5 5 5
Connection wiring mm2 No NO No
Plug type No NO No
Controller Remote Remote Remote
Operationtemp ℃17-30 17-30 17-30
Ambienttemp ℃—7-45 -7 ~ 45 —7~ 45
Notes: 1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent ref. Piping: 8m(horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. Piping: 8m(horizontal)
3. Actual noise level may differ, depending on the room structure, etc, since these noise values are from an
anechoic room.

Part 3 Noise Level
FOUR-WAY CASSETTE TYPE
Microphone
1.0m
High airflow
Low airflow
FSK-124HF FSK-184HF FSK-244HF
Octave band center frequency（Hz）
Sound pressure level dB（0dB=0.0002μbar）
Audibility limits of
continuous white
sound
Octave band center frequency（Hz）
Sound pressure level dB（0dB=0.0002μbar）
Audibility limits of
continuous white
sound
FSK-364HF FSK-484HF
Octave band center frequency（Hz）
Sound pressure level dB（0dB=0.0002μbar）
Audibility limits of
continuous white
sound
- 7 -

Part 4 Velocity ﹠temperature distribution
Discharge angle 60º
Airflow velocity
Temperature
- 8 -

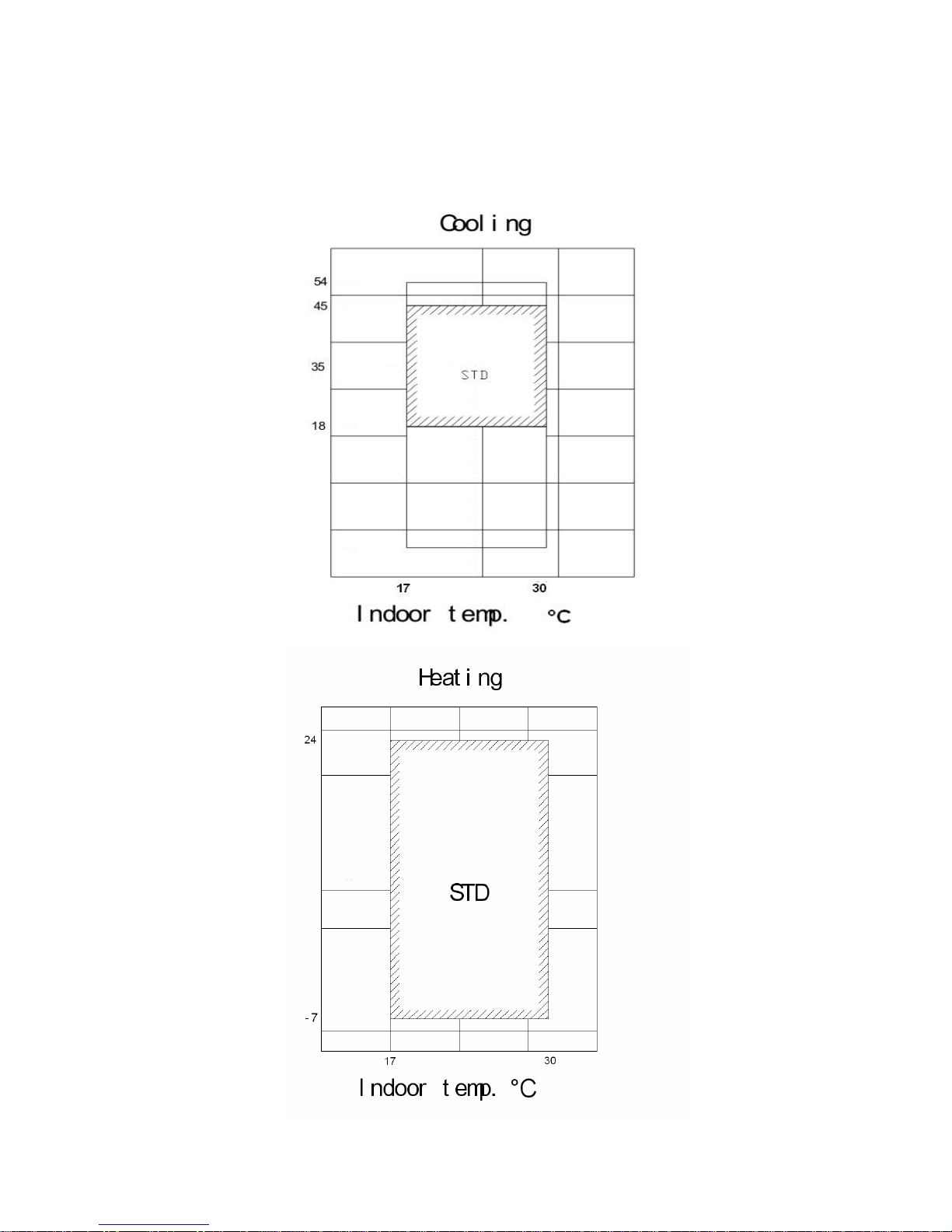

Part 5 Operation Range
Ensure the operating temperature is in allowable range.
- 9 -

- 10 -
Part 6 Capacity Table
Model: FSK-124HF
COOLING OUTDOOR TEMPERATURE DRY
Indoor
Conditions 21ºC 25ºC 30ºC 35ºC 40ºC 45ºC 50ºC
Total capacity kW 3.48 3.33 3.21 3.02 2.90 2.81 2.72
Sensitive capacity kW 2.78 2.66 2.56 2.42 2.32 2.25 2.18
21ºC D
15ºC W Input kW. 0.91 1.04 1.17 1.31 1.44 1.57 1.70
Total capacity kW 3.81 3.64 3.51 3.31 3.18 3.08 2.98
Sensitive capacity kW 3.05 2.91 2.81 2.65 2.54 2.46 2.38
24ºC D
17ºC W Input kW. 0.96 1.10 1.24 1.38 1.52 1.65 1.79
Total capacity kW 4.14 3.96 3.82 3.60 3.46 3.35 3.24
Sensitive capacity kW 3.31 3.17 3.05 2.88 2.76 2.68 2.59
27ºC D
19ºC W
Input kW. 1.02 1.16 1.31 1.45 1.60 1.74 1.89
Total capacity kW 4.76 4.55 4.39 4.14 3.97 3.85 3.73
Sensitive capacity kW 3.81 3.64 3.51 3.31 3.18 3.08 2.98
32ºC D
23ºC W Input kW. 1.17 1.33 1.50 1.67 1.83 2.00 2.17
Model: FSK-124HF
HEATING OUTDOOR TEMPERATURE
Indoor
Conditions 24ºC D
18ºC W
12ºC D
11ºC W
7ºC D
6ºC W
4ºC D
3ºC W
0ºC D
-1ºC W
-5ºC D
-6ºC W
-7ºC D
-8ºC W
-15ºC D
-16ºC W
Capacity kW 5.16 4.13 3.44 3.10 2.92 2.61 2.41 2.24
15ºC Input kW. 1.62 1.30 1.08 1.03 0.97 0.92 0.86 0.76
Capacity kW 5.81 4.64 3.87 3.48 3.29 2.90 2.71 2.52
18ºC Input kW. 1.82 1.46 1.22 1.15 1.09 1.03 0.97 0.85
Capacity kW 6.45 5.16 4.30 3.87 3.66 3.23 3.01 2.80
20ºC Input kW. 2.03 1.62 1.35 1.28 1.22 1.15 1.08 0.95
Capacity kW 7.10 5.68 4.73 4.26 4.02 3.55 3.31 3.07
22ºC Input kW. 2.23 1.78 1.49 1.41 1.34 1.26 1.19 1.04
Capacity kW 8.39 6.71 5.59 5.03 4.75 4.19 3.91 3.63
27ºC Input kW. 2.63 2.11 1.76 1.67 1.58 1.49 1.40 1.23

- 11 -
Model: FSK-184HF
COOLING OUTDOOR TEMPERATURE DRY
Indoor
Conditions 21ºC 25ºC 30ºC 35ºC 40ºC 45ºC 50ºC
Total capacity kW 4.83 4.62 4.45 4.20 4.03 3.91 3.78
Sensitive capacity kW 3.86 3.70 3.56 3.36 3.23 3.12 3.02
21ºC D
15ºC W Input kW. 1.29 1.48 1.66 1.85 2.03 2.21 2.40
Total capacity kW 5.29 5.06 4.88 4.60 4.42 4.28 4.14
Sensitive capacity kW 4.23 4.05 3.90 3.68 3.53 3.42 3.31
24ºC D
17ºC W Input kW. 1.36 1.56 1.75 1.95 2.14 2.34 2.53
Total capacity kW 5.75 5.50 5.30 5.00 4.80 4.65 4.50
Sensitive capacity kW 4.60 4.40 4.24 4.00 3.84 3.72 3.60
27ºC D
19ºC W
Input kW. 1.44 1.64 1.85 2.05 2.26 2.46 2.67
Total capacity kW 6.61 6.33 6.10 5.75 5.52 5.35 5.18
Sensitive capacity kW 5.29 5.06 4.88 4.60 4.42 4.28 4.14
32ºC D
23ºC W Input kW. 1.65 1.89 2.12 2.36 2.59 2.83 3.06
Model: FSK-184HF
HEATING OUTDOOR TEMPERATURE
Indoor
Conditions 24ºC D
18ºC W
12ºC D
11ºC W
7ºC D
6ºC W
4ºC D
3ºC W
0ºC D
-1ºC W
-5ºC D
-6ºC W
-7ºC D
-8ºC W
-15ºC D
-16ºC W
Capacity kW 7.20 5.76 4.80 4.32 4.08 3.65 3.36 3.12
15ºC Input kW. 2.58 2.06 1.72 1.63 1.55 1.46 1.38 1.20
Capacity kW 8.10 6.48 5.40 4.86 4.59 4.05 3.78 3.51
18ºC Input kW. 2.90 2.32 1.94 1.84 1.74 1.64 1.55 1.35
Capacity kW 9.00 7.20 6.00 5.40 5.10 4.50 4.20 3.90
20ºC Input kW. 3.23 2.58 2.15 2.04 1.94 1.83 1.72 1.51
Capacity kW 9.90 7.92 6.60 5.94 5.61 4.95 4.62 4.29
22ºC Input kW. 3.55 2.84 2.37 2.25 2.13 2.01 1.89 1.66
Capacity kW 11.70 9.36 7.80 7.02 6.63 5.85 5.46 5.07
27ºC Input kW. 4.19 3.35 2.80 2.66 2.52 2.38 2.24 1.96

- 12 -
Model: FSK-244HF
COOLING OUTDOOR TEMPERATURE DRY
Indoor
Conditions 21ºC 25ºC 30ºC 35ºC 40ºC 45ºC 50ºC
Total capacity kW 6.86 6.56 6.32 5.96 5.73 5.55 5.37
Sensitive capacity kW 5.49 5.25 5.06 4.77 4.58 4.44 4.29
21ºC D
15ºC W
Input kW. 1.95 2.23 2.51 2.79 3.07 3.35 3.63
Total capacity kW 7.51 7.19 6.92 6.53 6.27 6.07 5.88
Sensitive capacity kW 6.01 5.75 5.54 5.23 5.02 4.86 4.70
24ºC D
17ºC W
Input kW. 2.06 2.36 2.65 2.95 3.24 3.53 3.83
Total capacity kW 8.17 7.81 7.53 7.10 6.82 6.60 6.39
Sensitive capacity kW 6.53 6.25 6.02 5.68 5.45 5.28 5.11
27ºC D
19ºC W
Input kW. 2.17 2.48 2.79 3.10 3.41 3.72 4.03
Total capacity kW 9.39 8.98 8.65 8.17 7.84 7.59 7.35
Sensitive capacity kW 7.51 7.19 6.92 6.53 6.27 6.07 5.88
32ºC D
23ºC W
Input kW. 2.50 2.85 3.21 3.57 3.92 4.28 4.63
Model: FSK-244HF
HEATING OUTDOOR TEMPERATURE
Indoor
Conditions 24ºC D
18ºC W
12ºC D
11ºC W
7ºC D
6ºC W
4ºC D
3ºC W
0ºC D
-1ºC W
-5ºC D
-6ºC W
-7ºC D
-8ºC W
-15ºC D
-16ºC W
Capacity kW 9.84 7.87 6.56 5.90 5.58 1.94 4.59 4.26
15ºC Input kW. 3.54 2.83 2.36 2.24 2.12 2.01 1.89 1.65
Capacity kW 11.07 8.86 7.38 6.64 6.27 2.16 5.17 4.80
18ºC Input kW. 3.98 3.19 2.66 2.52 2.39 2.26 2.12 1.86
Capacity kW 12.30 9.84 8.20 7.38 6.97 6.15 5.74 5.33
20ºC Input kW. 4.43 3.54 2.95 2.80 2.66 2.51 2.36 2.07
Capacity kW 13.53 10.82 9.02 8.12 7.67 6.77 6.31 5.86
22ºC Input kW. 4.87 3.89 3.25 3.08 2.92 2.76 2.60 2.27
Capacity kW 15.99 12.79 10.66 9.59 9.06 8.00 7.46 6.93
27ºC Input kW. 5.75 4.60 3.84 3.64 3.45 3.26 3.07 2.68

- 13 -
Model: FSK-364HF
COOLING OUTDOOR TEMPERATURE DRY
Indoor
Conditions 21ºC 25ºC 30ºC 35ºC 40ºC 45ºC 50ºC
Total capacity kW 10.34 9.89 9.53 8.99 8.63 8.36 8.09
Sensitive capacity kW 8.27 7.91 7.62 7.19 6.90 6.69 6.47
21ºC D
15ºC W
Input kW. 2.90 3.31 3.73 4.14 4.55 4.97 5.38
Total capacity kW 11.32 10.83 10.43 9.84 9.45 9.15 8.86
Sensitive capacity kW 9.06 8.66 8.35 7.88 7.56 7.32 7.09
24ºC D
17ºC W
Input kW. 3.06 3.50 3.93 4.37 4.81 5.24 5.68
Total capacity kW 12.31 11.77 11.34 10.70 10.27 9.95 9.63
Sensitive capacity kW 9.84 9.42 9.07 8.56 8.22 7.96 7.70
27ºC D
19ºC W
Input kW. 3.22 3.68 4.14 4.60 5.06 5.52 5.98
Total capacity kW 14.15 13.54 13.04 12.31 11.81 11.44 11.07
Sensitive capacity kW 11.32 10.83 10.43 9.84 9.45 9.15 8.86
32ºC D
23ºC W
Input kW. 3.70 4.23 4.76 5.29 5.82 6.35 6.88
Model: FSK-364HF
HEATING OUTDOOR TEMPERATURE
Indoor
Conditions 24ºC D
18ºC W
12ºC D
11ºC W
7ºC D
6ºC W
4ºC D
3ºC W
0ºC D
-1ºC W
-5ºC D
-6ºC W
-7ºC D
-8ºC W
-15ºC D
-16ºC W
Capacity kW 14.04 11.23 9.36 8.42 7.96 7.11 6.55 6.08
15ºC Input kW. 5.76 4.61 3.84 3.65 3.46 3.26 3.07 2.69
Capacity kW 15.80 12.64 10.53 9.48 8.95 7.90 7.37 6.84
18ºC Input kW. 6.48 5.18 4.32 4.10 3.89 3.67 3.46 3.02
Capacity kW 17.55 14.04 11.70 10.53 9.95 8.78 8.19 7.61
20ºC Input kW. 7.20 5.76 4.80 4.56 4.32 4.08 3.84 3.36
Capacity kW 19.31 15.44 12.87 11.58 10.94 9.65 9.01 8.37
22ºC Input kW. 7.92 6.34 5.28 5.02 4.75 4.49 4.22 3.70
Capacity kW 22.82 18.25 15.21 13.69 12.93 11.41 10.65 9.89
27ºC Input kW. 9.36 7.49 6.24 5.93 5.62 5.30 4.99 4.37

- 14 -
Model: FSK-484HF
COOLING OUTDOOR TEMPERATURE DRY
Indoor
Conditions 21ºC 25ºC 30ºC 35ºC 40ºC 45ºC 50ºC
Total capacity kW 13.62 13.03 12.55 11.84 11.37 11.01 10.66
Sensitive capacity kW 10.90 10.42 10.04 9.48 9.10 8.81 8.53
21ºC D
15ºC W
Input kW. 3.59 4.10 4.62 5.13 5.64 6.16 6.67
Total capacity kW 14.92 14.27 13.75 12.97 12.45 12.06 11.67
Sensitive capacity kW 11.93 11.42 11.00 10.38 9.96 9.65 9.34
24ºC D
17ºC W
Input kW. 3.79 4.33 4.87 5.42 5.96 6.50 7.04
Total capacity kW 16.22 15.51 14.95 14.10 13.54 13.11 12.69
Sensitive capacity kW 12.97 12.41 11.96 11.28 10.83 10.49 10.15
27ºC D
19ºC W
Input kW. 3.99 4.56 5.13 5.70 6.27 6.84 7.41
Total capacity kW 18.65 17.84 17.19 16.22 15.57 15.08 14.59
Sensitive capacity kW 14.92 14.27 13.75 12.97 12.45 12.06 11.67
32ºC D
23ºC W
Input kW. 4.59 5.24 5.90 6.56 7.21 7.87 8.52
Model: FSK-484HF
HEATING OUTDOOR TEMPERATURE
Indoor
Conditions 24ºC D
18ºC W
12ºC D
11ºC W
7ºC D
6ºC W
4ºC D
3ºC W
0ºC D
-1ºC W
-5ºC D
-6ºC W
-7ºC D
-8ºC W
-15ºC D
-16ºC W
Capacity kW 18.72 14.98 12.48 11.23 10.61 9.48 8.74 8.11
15ºC Input kW. 7.20 5.76 4.80 4.56 4.32 4.08 3.84 3.36
Capacity kW 21.06 16.85 14.04 12.64 11.93 10.53 9.83 9.13
18ºC Input kW. 8.10 6.48 5.40 5.13 4.86 4.59 4.32 3.78
Capacity kW 23.40 18.72 15.60 14.04 13.26 11.70 10.92 10.14
20ºC Input kW. 9.00 7.20 6.00 5.70 5.40 5.10 4.80 4.20
Capacity kW 25.74 20.59 17.16 15.44 14.59 12.87 12.01 11.15
22ºC Input kW. 9.90 7.92 6.60 6.27 5.94 5.61 5.28 4.62
Capacity kW 30.42 24.34 20.28 18.25 17.24 15.21 14.20 13.18
27ºC Input kW. 11.70 9.36 7.80 7.41 7.02 6.63 6.24 5.46

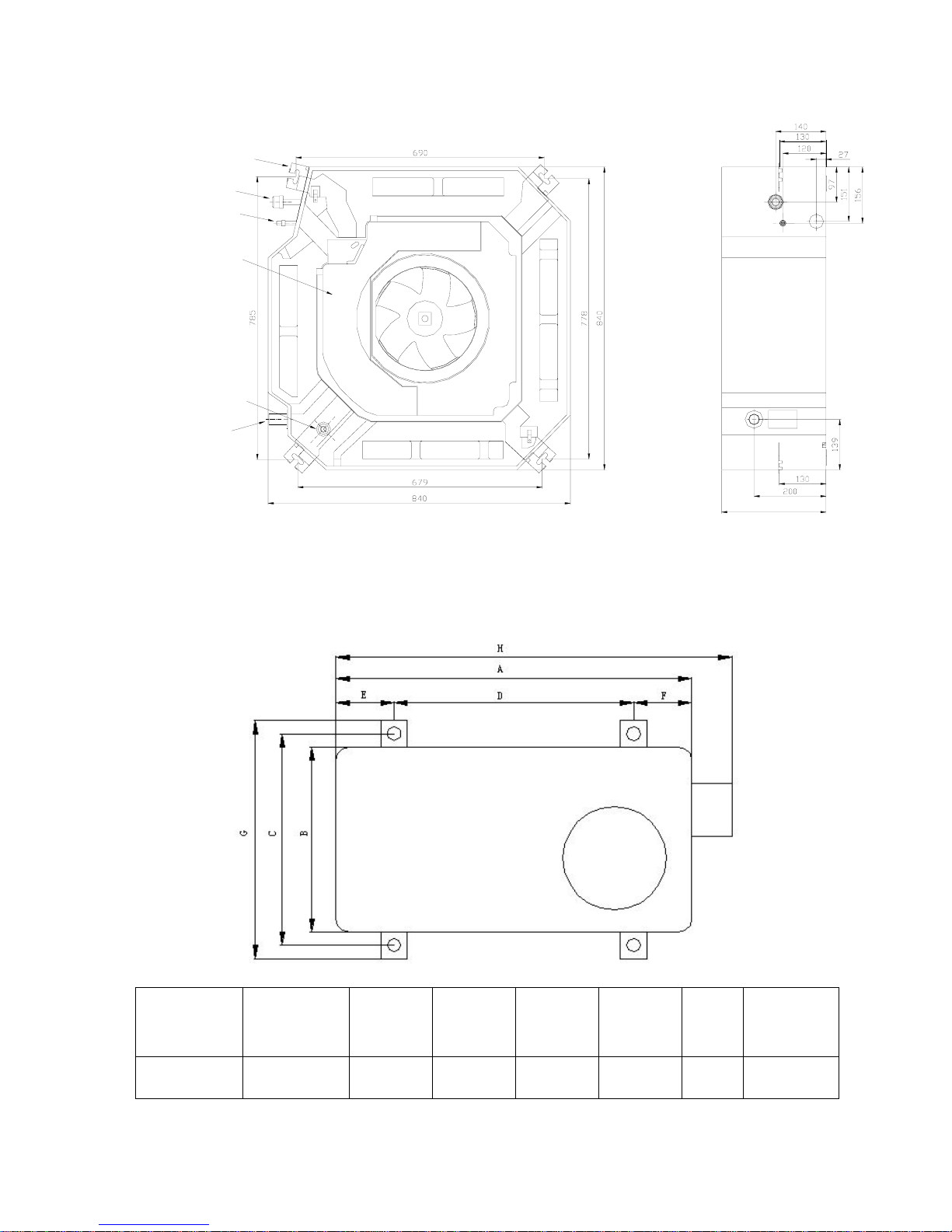

Part 7 Outlines and Dimension
1 Indoor unit FSK-124HF FSK-184HF
580(Body) 67
600(Ceiling hole)
650(Panel)
401(Hook-location)
611(Hook-location)
580(Body)
422 28.5
600(Ceiling hole)
650(Panel)
Drain side and Tubing side
A
600
Hook
265
Panel
Chart 4
Body
Nut
Ceiling
2 Outdoor unit FSO-124HF
- 15 -

3 Outdoor unit FSO-184HF
12. 5
4 Indoor unit FSK-244HF
- 16 -
Gas side
Liquid side
Pump inspect
hole
4-install hanger
Drain hole
E-parts box

5 Indoor unit FSK-364HF FSK-484HF
Gas side
liquid side
Pump inspect
hole
4-install
hanger
Drain hole
E-parts box
310
6 Outdoor unit FSO-244HF
COMP
A
(BODY
DIMENSION)
B
(BODY
DIMENSION)
C
(INSTALL
BOLTS)
D
(INSTALL
BOLTS)
E
(INSTALL
BOLTS)
F
(INSTALL
BOLTS)
G
(BASE
FOOT)
H
(WATER
RECEIVER)
895 300 330 590 163 141 355 1013
- 17 -

7 Outdoor unit FSO-364HF
COMP
A B
(BODY(BODY
DIMENSION) DIMENSION)
C
(INSTALL
BOLTS)
D
(INSTALL
BOLTS)
E
(INSTALL
BOLTS)
F
(INSTALL
BOLTS)
G
(BASE
FOOT)
H
(WATER
RECEIVER)
990 340 360 625 182,5 182,5 396 1070
8Outdoor unit FSO-484HF
A
(BODY
DIMENSION)
B
(BODY
DIMENSION)
C
(INSTALL
BOLTS)
D
(INSTALL
BOLTS)
E
(INSTALL
BOLTS)
F
(INSTALL
BOLTS)
G
(BASE
FOOT)
940.0 340 378 600 170 170 400
- 18 -

Part 8. Electric Control Functions
1. Performance Index
No. Item Index
1 Applicable Voltage Range 165-253V~, 343-418V~
2 A/C Frequency 50Hz
3 Working environment temperature -7°C- +45°C
2. Main Parts Introduction
2.1 Indoor Fan
High speed and low speed.
Breeze speed for anti-cold air.
2.2 Outdoor Fan
High speed and low speed.
Remark : some model just have one speed.
2.3 Buzzer
2.3.1 It will buzz when its driving port in the main chip outputs high level.
2.3.2 It will buzz once when the main frame receives remote start-up signal.
2.3.3 It will buzz once for 1 second when receiving turn-off signal.
2.3.4 It will buzz for 0.5 second once receiving other signal.
2.4 Indicator
2.4.1 There are 4 indicators: operating indicator, timer indicator, water level warning indicator, defrosting
indicator and pre-heating indicator (wind-delivery indicator for cooling-only A/C).
2.4.2 LED indicates errors when protection is in effective.
2.5 Four-way Valve
It is controlled by relays.
2.6 Condensate Pump
It is controlled by relays.
3. Operation Modes and Functions
3.1 Manual Operation
3.1.1 The manual operation mode is controlled through “manual” pad in the wind in-take grid, including such two
modes as manual action and manual cooling. Push the manual pad for each switchover, the order for which
is shown below:
- 19 -
REMOTE CONTROL MANUAL ACTION MANUAL COOLING
3.1.2 Manual Cooling
3.1.2.1 Under this mode, no remote control signal will be received.
3.1.2.2 The compressor is started up unconditionally and the rotating speed of indoor and outdoor fans is set to be
in high and forced cooling operation.
3.1.2.3 Under this mode, the buzzer will buzz twice with each lasting 0.5 second at 0.5 interval. During the first
