Fisher 75396 User manual

Page 1
Read this manual carefully before installing, operating or
servicing this equipment.
IMPORTANT
Dimensions
A 20 1/4”
B 19 3/4”
C 7 13/16”
D 3 7/8”
E7”
SAFETY
Personal injury and/or equipment damage may result
if proper safety precautions are not observed.
• Ensure that reel is properly installed before connecting
input and output hoses.
• Bleed fluid/gas pressure from system before servicing
reel.
• Before connecting reel to supply line, ensure that
pressure does not exceed maximum working pressure
rating of reel.
• Remember, even low pressure is very dangerous
and can cause personal injury or death.
• Be aware of machinery and personnel in work area.
• If a leak occurs in the hose or reel, remove system
pressure immediately.
Operating Instructions
Model:
Wall Mounted Spring Driven Reel
• A high tension spring assembly is contained within the reel.
Exercise extreme caution.
• Pull hose from reel by grasping the hose itself, not the control
valve.
• Ensure that reel, hose, and equipment being serviced
are properly grounded. Use an ohmmeter to check ground
continuity.
• If reel ceases to unwind or rewind, remove system pressure
immediately. Do not pull or jerk on hose!
• Treat and respect the hose reel as any other piece of
machinery, observing all common safety practices.
Fisher Manufacturing Co. • 1900 “O” Street, Tulare, CA 93274
Ph: 800-421-6162 / 559-685-5200 • Fax: [phone]
Part No.75419 Rev.A
75396 35 ft hose with Spray Gun
75397 50 ft hose with Spray Gun

Page 2
Spring Driven Hose Reels
INSTALLATION INSTRUCTIONS
MOUNTING
Caution: Unless reel was specified
differently when ordering, maximum
installation height is 16 feet. Do not
exceed this distance.
1. Unpack and inspect reel for damage.
Turn by hand to check for smooth
operation. Check for completeness.
2. Configure reel for top, side or
bottom-wind hose dispensing by
removing nuts (1) securing guide arm
bracket (2). Position guide arm bracket
to desired location, and replace nuts.
Caution: When changing guide arm
positions, the U-bolt must be placed in
the proper location as instructed in
figure A below. The reel can
“latch out” during use if this
instruction is not adhered to.
3. Position reel on floor, wall, or ceiling.
Secure into place using four (customer
supplied) bolts (3).
INSTALLING THE INPUT HOSE(S)
Warning: Ensure that supply line
pressure does not exceed maximum
working pressure rating of reel. Apply
pipe thread sealant to all threads.
Caution: Use flexible hose connection at
input. Do not use rigid plumbing.
1. Connect supply line hose (4) to main
shaft input (5) as indicated in
illustration.
INSTALLING THE OUTPUT HOSE(S)
Warning: Use extreme caution; reel
under tension. Avoid releasing latch
mechanism. Apply pipe thread sealant to
all threads.
1. Manually turn sheave (10) until spring
is tight, back off 3 turns, then latch.
2. Route output hose(s) (11) through
guide arm bracket (2), U-bolts (12),
then through cutout (13) in spool as
indicated in illustration.
3. Connect output hose(s) (11) to swivel
(14) as indicated in illustration.
4. Tighten U-bolts (12).
5. Charge hose(s). Momentarily open
control valve to purge hose(s) of gases.
When fluid appears at control valve,
close valve. With hose(s) fully charged,
release latch and wind output hose(s)
onto reel.
ADJUSTMENTS
Warning: Use extreme caution; reel
under tension. Avoid releasing latch
mechanism. If necessary, adjust spring
tension on reel by adding or removing
wraps of hose from spool, one wrap at a
time, until desired tension is obtained.
Add wraps to increase tension. Remove
wraps to decrease tension.
SERVICE INSTRUCTIONS
User servicing of the reel is limited to
replacing input/output hoses only. Refer
all other repairs to an authorized service
person or directly to Reelcraft. Failure to
do so can result in personal injury and/or
equipment damage and may void the
warranty. Warning: Rewind hose on
reel, then bleed pressure from system
before performing the following proce-
dures.
1. Replace hoses in accordance with
procedures given in “Installation
Instructions” section of this manual
Caution: When replacing drive spring,
hold the center of the spring down as the
hub is pulled out. If the center is allowed
to raise up, the spring may escape from
it’s container with enough force to cause
injuries.
When disposing of old or broken spring
assemblies, the coils should be welded or
wired together to prevent possible injury
to scrap handling personnel.
2. All mating moving parts are to be
lubricated with Perma Bond or Loctite
anti-seize compound.
Figure A
3
1
5
2
4
14
10
11 15
13
12
2

Spring Driven Hose Reels
Spring Driven Hose Reels
Page 3

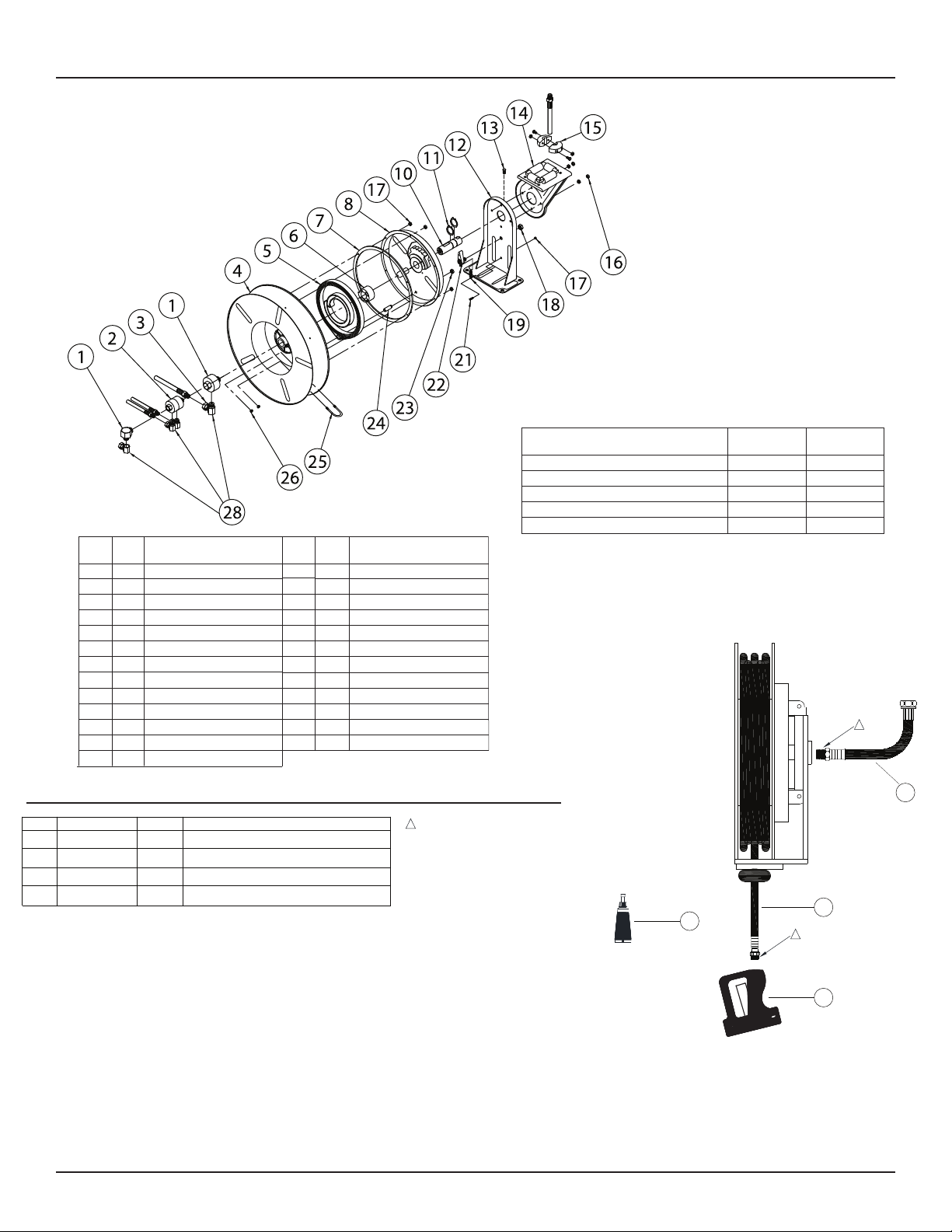

Item
#Description
#
Req.
Item
#Description
#
Req.
75396 75397
1 Swivel Assembly1
3 90° Ell1
4 Sheave Assembly1
5 Drive Spring Assembly1
6 Spring Arbor Assembly1
7 Gasket1
8 Spring Case Assembly1
9 10-32 Hex Locknut6
10 Main Shaft1
11 1 1/4” Snap Ring2
12 Base Assembly1
13 1/2-13 Set Screw1
14 Guide arm with Rollers
1
15 Bumper Stop Assembly 1
16 5/16-18 Locknut4
17 10-32 x 3/8” Nyloc Nut1
18 1/2-20 x 5/8” Hex Nut1
19 Latch Spring1
21 10-32 Shoulder Screw1
22 Latch Pawl Assembly1
23 3/8-24 Jam Nut1
24 Spring Case Stud1
25 U-bolt1
26 1/4-20 X 3/8” Locknut4
28 Swivel Union1
Hose Assembly
Reel Model
33340 33359
Hose I.D. x Length 1/2” X 35’ 1/2” X 50’
Reel Inlet Connection 1/2” FPT 1/2” FPT
Max. Operating Pressure 200 PSI 200 PSI
Max. Operating Temperature 160 °F 160 °F
Item # Req.# Part Description
29 133413 Hose RRA 1/2 X 24
30
31
32
132840 Spray Gun
133340 / 33359 Hose Assy 1/2” X 35’ or 1/2” X 50’
13298 PST Thread Sealant
1. Connect the lead-in line (29) to the reel (75396 / 75397) inlet located on the right-hand side of the hose reel,
by applying PST (32) or plumbers tape on the male 1/2” NPT threads on the lead-in line (29) and thread it
to the reel (75396 / 75397) using a wrench to support the swivel while tightening the lead-in line.
2. Connect the 1/2” female end of the lead-in line (29) to the water supply using PST (32) or plumbers tape
and tighten.
3. Turn on water supply and flush the reel line to remove any debris from the reel for a few seconds and
then turn off water supply.
4. Attach the spray gun (30) to the reel hose (31). By applying PST (32) or plumbers tape on the 1/2” NPT male threads on reel hose
and tighten.
5. Turn water supply on and check for leaks.
NOTE: Apply PST or Plumber Tape on
the following locations to prevent any
leaks.
1
1
1
29
31
30
32
