USER GUIDE
F1 AURA™

Welcome
Thank you for making Fishman a part of your acoustic experience. We are proud
to offer you the finest acoustic amplification products available; high-quality
professional-grade tools to empower you to sound your very best. We are
confident F1 Aura will both enhance and inspire your music making.
Despite its simple and clean appearance, F1 Aura features a powerful set of tone
shaping controls and programmability. We urge you to read through this user
guide and spend some time getting familiar with its operation, so that you may
easily realize the system’s full potential.
Aura Acoustic Imaging Technology uses digital algorithms developed in
Fishman’s audio laboratories to restore a studio-miked sound to an acoustic
instrument. To achieve this, we’ve recorded this instrument using world-class
microphones and techniques to capture an “Image” of the natural sound that
it emits when miked in a professional studio. This Image, when recorded direct
or played through an amp, mixer or PA, blends with the undersaddle pickup to
produce an incredibly accurate recreation of the original recording.

3

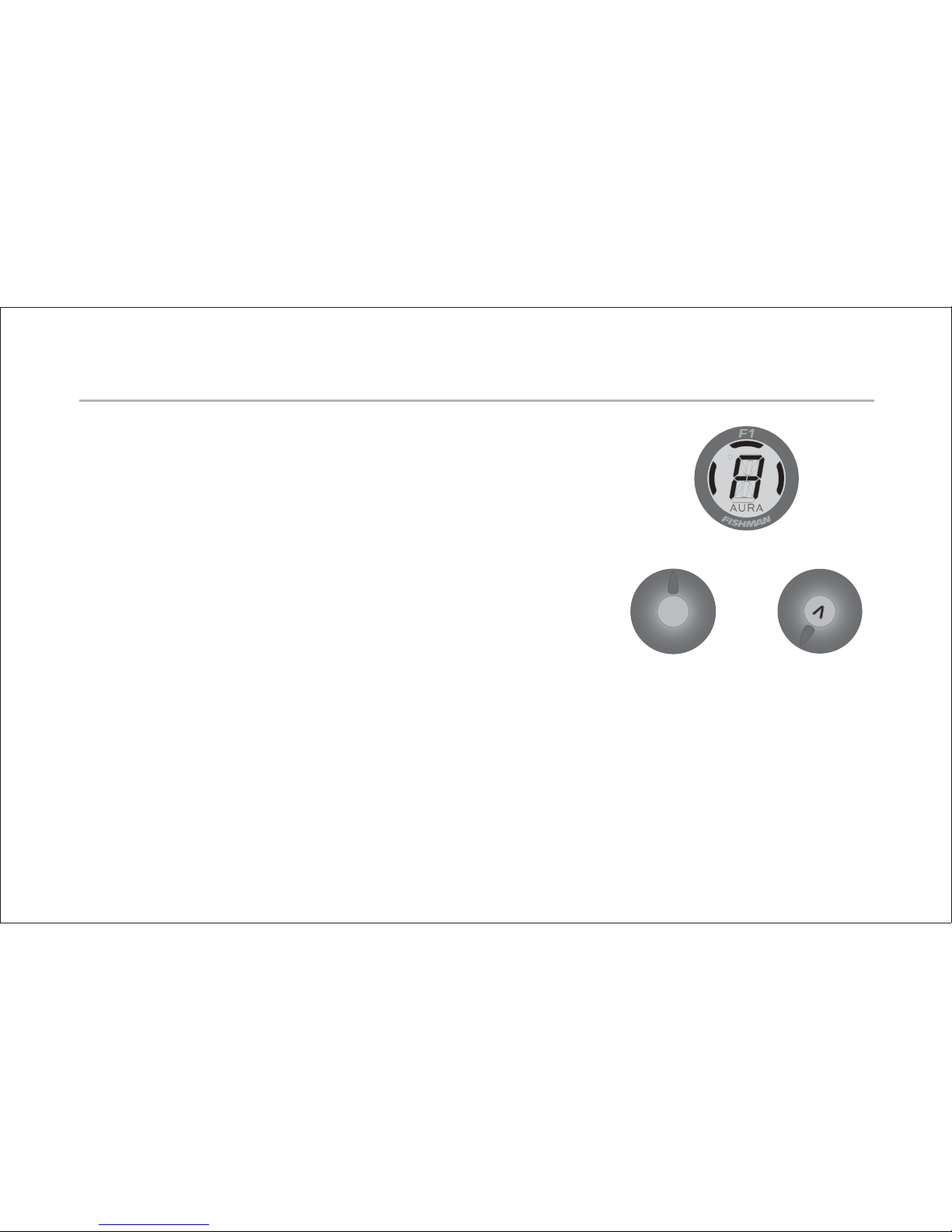

Quick Start
Before you begin, set the controls as shown:
1. Plug in • Use a ¼-inch instrument cable.
2. Tune up • Press and hold the Volume knob until
the tuner comes on. When engaged, the Tuner
mutes
the output. Press Volume to exit Tuner.
3. Turn up • Raise the Volume to a desirable level.
4. Blend in the Image • Turn the Edit knob to
adjust the Image/pickup blend.
5. Select an Image • Press the Edit knob once
and the letter “I” will be displayed. Turn the knob to select different Images.
6. Adjust Tone • Press the Edit knob repeatedly to select among the
different parameters for setting pickup tone. Turn the knob to adjust each
parameter’s value.
Edit Volume

4

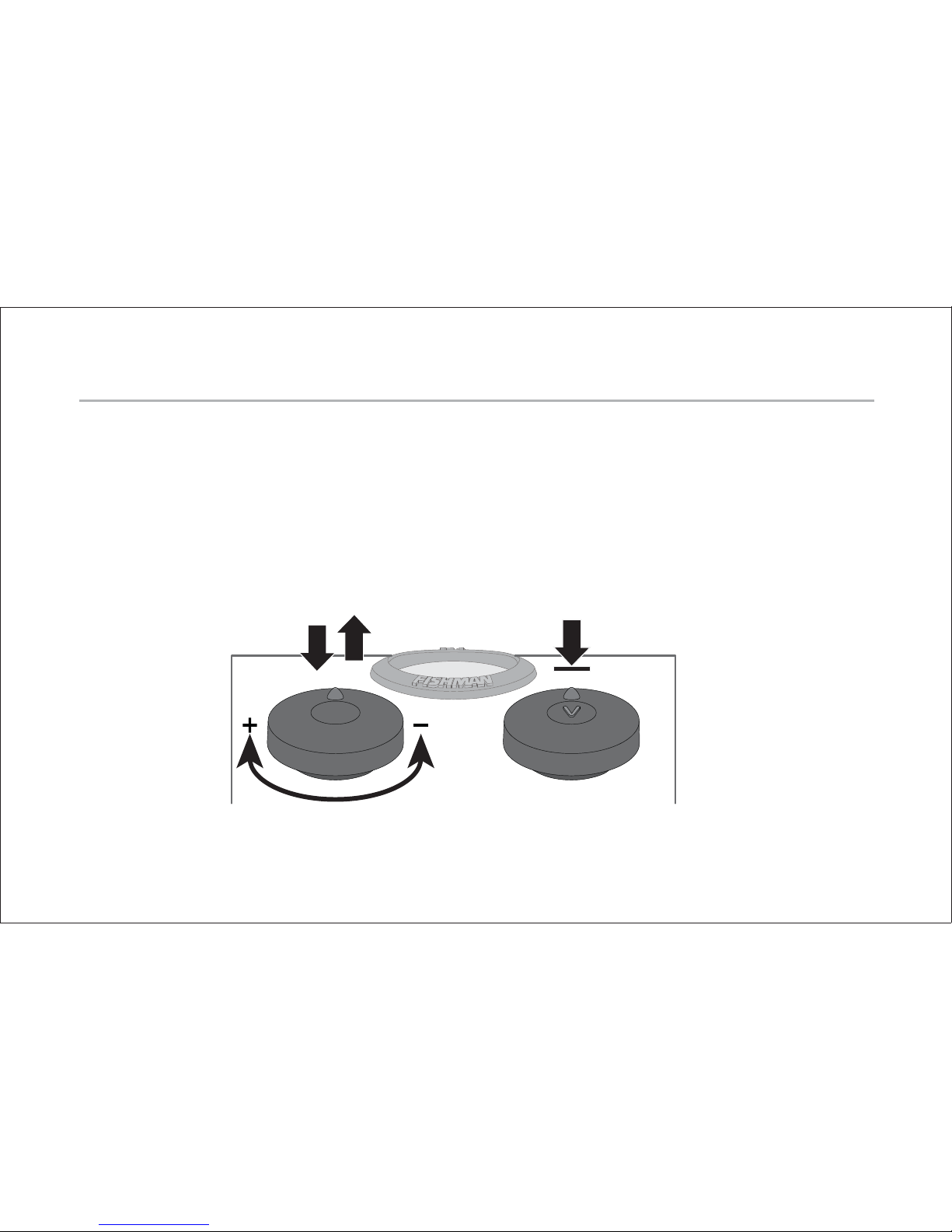

Play/Edit and the Multi-function Controls
About the multi-function controls
F1 Aura packs an incredible amount of features into a small, elegant design. In
order to achieve this, both the Edit and Volume knobs contain a momentary
switch. Rather than just turning a knob, pressing down on it will gain access to
one or more features. For this reason, this guide will refer to knob actions as: turn,
press, or press+hold. Refer to the chart on page 15 for a quick reference of the
various features.
Press
Edit Volume
Turn
to adjust
Press + Hold

5
Play / Edit
F1 Aura operates in two modes: Play and Edit. Play is for selecting the most
frequently used controls while Edit gives you access to many more features.
Play
When you plug in, F1 Aura powers up into Play mode. In Play mode, Volume,
Blend and Phase can be adjusted. The chromatic Tuner and the automatic Anti-
Feedback circuit can also be activated.
Edit
Press and release the Edit knob to enter Edit mode; the tuner’s green in-tune
LED will light solid. Once in Edit, press the Edit knob repeatedly to step through
the parameters. Each parameter is displayed using a single letter to represent
its function (see page 15). Adjust its value by turning the Edit knob. A number is
displayed and the tuner’s sharp/flat lights show positive or negative values.
Note: F1 Aura is programmable and automatically saves your settings.
To exit Edit and return to Play mode, wait 10 seconds for the display to go dark,
or press + hold the Edit knob for 2 seconds. You may also immediately exit by
simultaneously pressing both the Edit and Volume knobs.

6
Play Mode Controls
More
More
Pickup
Blend Volume: turn for volume
Tuner: press + hold 2 seconds
press to exit tuner
Phase: press to toggle
Measure – Press together to
start Anti-feedback search

7
Volume
Turn Volume • For the cleanest noise-free sound, set Volume as high as possible
without causing your amp or mixer to distort.
Phase
Press and release Volume • Use the Phase setting to improve bass response at
low volume and suppress feedback at high volume. Press the Volume knob
several times and leave it in the position most pleasing to your ear.
Tu n e r
Press+hold Volume 2 seconds to turn tuner on.
Press Volume once to turn it off.

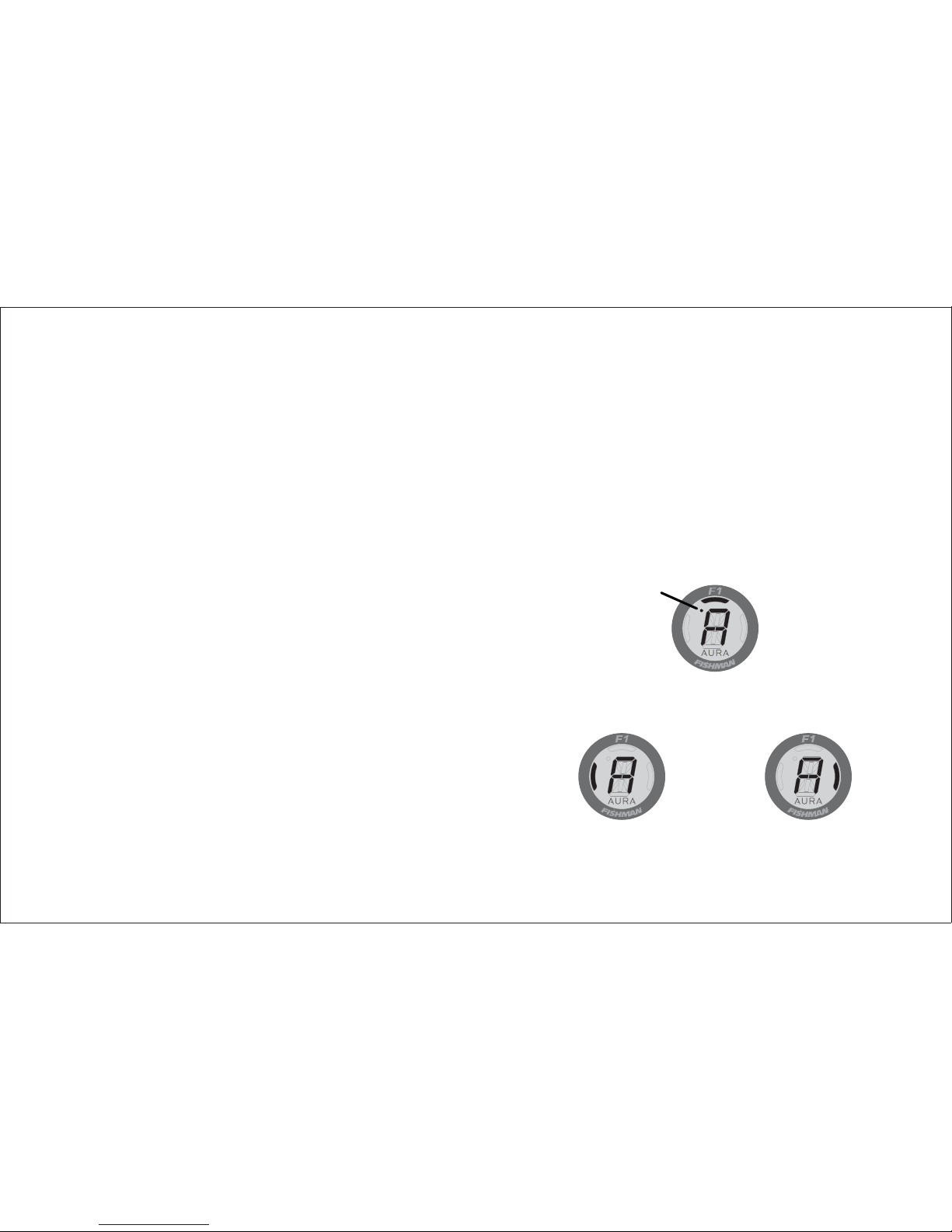

This digital chromatic tuner accommodates all
tunings and mutes the output when engaged.
It can be activated without an instrument cable
connected, in which case it will turn itself off
after 90 seconds of inactivity.
The tuner is calibrated to A=440.
“A” note
below pitch
“A” note
above pitch
“A#” note
in tune
note raised
1/2 step

8
Play Mode Controls (cont.)
Blend
Turn Edit • Turn the Edit knob without pressing on it and the balance between
pickup and Image is adjusted. A setting of P= 100% Pickup signal; 0= a 50/50
pickup/Image blend; I= 100% Image signal.
Suggestions
• For live performance try backing off the Image by setting Blend to
about 2 or 3 (about 65% pickup).
• For recording, try blending in more Image for a realistic acoustic sound.
Automatic Anti-Feedback
Use this search-and-destroy Anti-Feedback circuit in addition to Phase to
control feedback during a performance. F1 Aura’s automatic Anti-Feedback
circuit can apply up to three separate notch filters, which are very precise tone
controls that reduce only a tiny piece of the audio band. When activated, the
filter locates and reduces the problematic resonances associated with feedback.

9
While the Anti-Feedback control is very effective, it’s best if you spend some
time while setting up before a performance and catch any issues before you
begin to play. With some practice, you’ll find you can also use it to “fix” any
resonant notes that may stand out in a particular venue.
Using the automatic Anti-Feedback control:
1. Press + hold both Edit and Volume for 2 seconds. The tuner display will flash
a “1” to indicate it is searching for the first feedback.
2. Turn up the Volume, then either dampen the strings while tapping the body or
play the troublesome note until the feedback begins. The filter will automatically
identify and eliminate the feedback. The “1” in the display will now light solid.
3. At this point, you may continue to turn up your Volume as in step 2 to identify
up to two more problematic resonances. Each is indicated via a flashing “2” or
“3” during the search, in turn lighting solid when the resonance has been
identified.
4. You may press the Volume knob at any time to cancel the search. The circuit
will hold the notched frequenc(ies) in memory until the process is repeated.

10
Edit Mode Controls
Press Edit knob to enter Edit mode; the tuner’s green in-tune LED will light solid.
Once in Edit, press the Edit knob repeatedly to step through the parameters.
Each parameter is displayed using a single letter to represent its function.
Adjust its value by turning the Edit knob. A number is displayed and the tuner’s
sharp/flat LEDs indicate positive/negative values.
Note: F1 Aura is programmable and automatically saves your settings.
To exit Edit mode, wait 10 seconds for the display to go dark, or press + hold the
Edit knob for 2 seconds. You may also immediately exit by simultaneously
pressing both the Edit and Volume knobs.

11

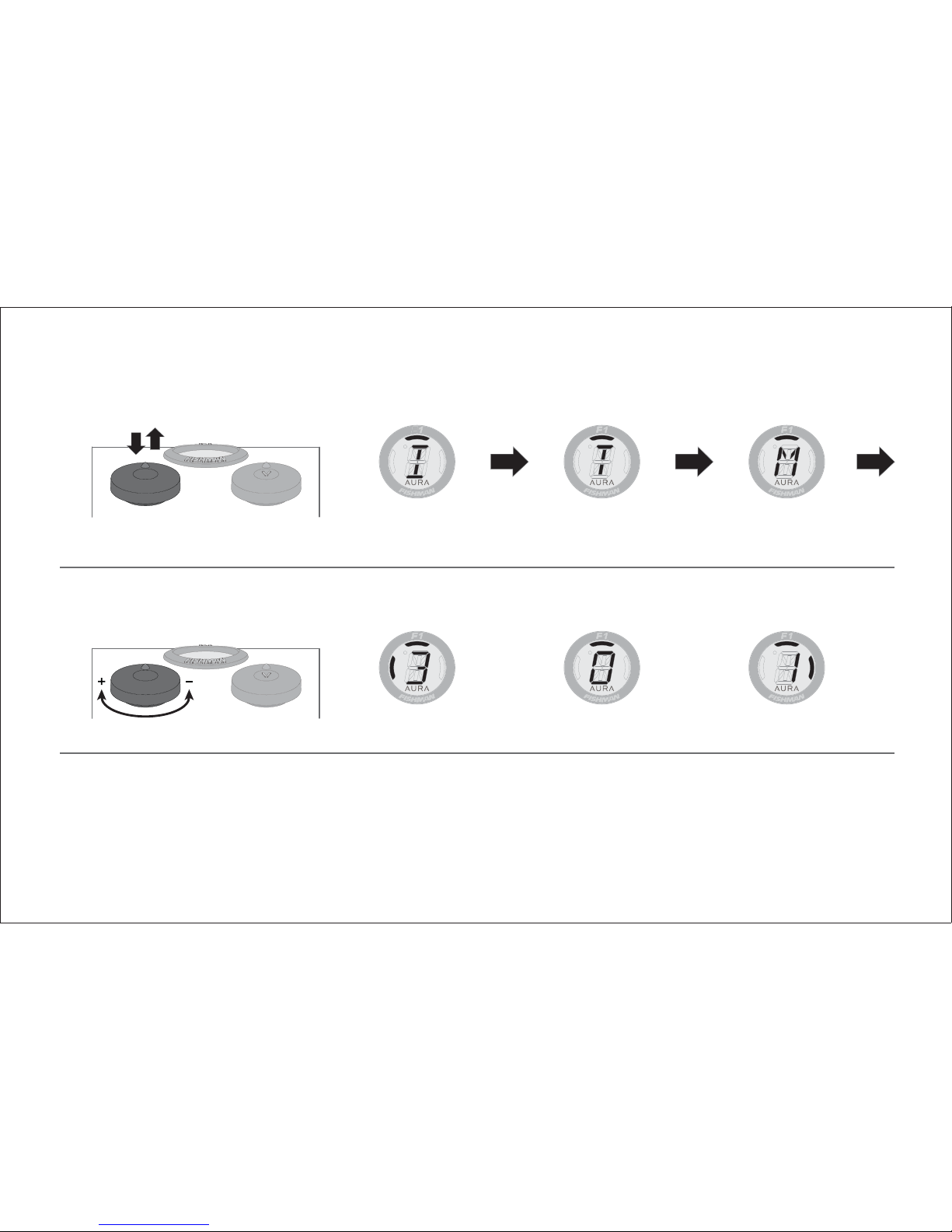

Select
Pickup
Treble EQ
Pickup
Mid EQ
+1
0
-3
1. Press to enter
Edit mode.
Press Press Press
Press Edit repeatedly to select next parameter.
The sharp and flat LEDs indicate + or - values.
3. To exit Edit Mode, wait 10 seconds, or press + hold Edit for 2 seconds. You may also
immediately exit by simultaneously pressing both the Edit and Volume knobs.
2. Turn Edit to adjust
parameter value.

12
Edit Mode Controls (cont.)
Image Select
F1 Aura is factory loaded with Images created especially for this instrument. Each
Image corresponds to a different microphone type and position. Contact the
guitar’s manufacturer to identify the microphone associated with each Image.
Pickup EQ
Bass, Mid and Treble controls allow you to fine tune the pickup signal. The
pickup tone controls are designated by the capital letters T, M, B, corresponding
to Treble, Mid, and Bass respectively.
Blend
Described in detail on page 8, Blend is represented by the letter X.

13
Compressor
The Compressor (C) parameter adjusts several settings within a sophisticated
automatic leveling circuit. As you increase the value, your overall playing
dynamics become increasingly limited, making softer notes louder while
controlling loud spikes in your playing. This can be helpful in performances
where you desire a more even level to your playing. At its maximum setting,
there may be some overall increase in the output level.
Anti-Feedback
This parameter, indicated with the letter A, allows you to temporarily disable the
automatic Anti-Feedback filter if desired. O= Off, I= On. See page 8 for details
on how to use the Anti-Feedback circuit.

14
Edit Mode Controls (cont.)
Image EQ
You can program unique EQ settings for each of the Images. Unlike other Edit
mode parameters, unique tone settings are saved with each Image and recalled
when an Image is selected. In order to prevent dramatic or unwanted changes,
the Image EQ’s Treble, Mid, and Bass controls are separated from the Pickup
EQ and located “under” the Volume knob in Edit mode. They are identified by a
lowercase t, m, b, corresponding to Treble, Mid, and Bass respectively.
To EQ an Image:
1. Adjust the Blend control so that you are hearing 100% Image (page 8)
2. Press Edit knob to enter Edit mode and select an Image
3. Press the Volume button to select the Image Treble EQ (t)
4. Turn the Edit knob to boost or cut the Image Treble EQ
5. Repeat steps 3 & 4 to adjust the Image Mid (m) and Image Bass (b)

15
Edit Mode Parameters
Pickup Bass EQ
Pickup Mid EQ
Pickup Treble EQ
Image Select
Pickup/Image Blend
Compressor
Anti-Feedback
Image Bass EQ
Image Mid EQ
Image Treble EQ

16
Power
Plug in the guitar, and F1 Aura switches on. To conserve the battery, remove the
instrument cable from the guitar when the system is not in use.
The tuner display will flash at power-up to tell you the preamp is on.
Low Battery Indicator
When the tuner flashes “L” once every three seconds, you have approximately
1.5 hours before the battery is exhausted. Change it at the next opportunity.

17
Restore Factory Defaults
1. Press + hold the Edit knob while plugging in the guitar. Continue to hold the
Edit knob down when the tuner displays an “R.”
2. Continue to hold the Edit knob, then press the Volume knob. Release both
knobs. Factory reset is complete when the “R” stops flashing and the unit returns
to normal operation.
Defaults:
• EQ for all Images reverts to flat
• Pickup EQ reverts to flat
• Blend is set to 50/50
• Compressor is set to minimum
• Anti-Feedback frequency is reset to 100Hz
• Image selector reverts to Image #1

18

19
Electrical Specifications
Digital Signal Path:
A/D, D/A conversion: 24-bit
Signal Processing: 32-bit
Typical in-use current consumption @ 9VDC: 18mA
Typical 9V lithium battery life: 54 hours
Typical 9V alkaline battery life: 27 hours
Nominal output impedance: 1k Ohm
Recommended load impedance: 10k Ohm and up
Maximum output level (onset of clipping): +5dBV
Baseline noise: -92dBV
Dynamic Range: 97dB
Bass control: ±12dB @ 70Hz
Midrange control: ±12dB @ 1kHz
Treble control: ±12dB @ 6.5kHz
All specifications subject to change without notice.

www.fishman.com
513-300-160 Rev A 11-09
