Welcome
Thank you for making Fishman a part of your musical experience. We are proud to offer the nest products
available; high-quality professional-grade tools which empower you to sound your very best.
You now own a remarkable musical tool that will transform the way you play guitar!
This guide will help get you up and running with TriplePlay. If you don’t have experience installing software
or making adjustments to your guitar, please consult our online documentation for step-by-step instructions.
You’ll also nd fun, hands-on demo sessions introducing some of the amazing things TriplePlay can do.
Find detailed info about TriplePlay at www.shman.com/tripleplay
3

What is TriplePlay?
TriplePlay is like a musical interpreter, translating your guitar performance into MIDI, a language understood
by most music software and hardware. With TriplePlay, a guitar can sound like any instrument, real or imagined.
TriplePlay doesn’t change what you love about your guitar, nor will it eliminate any of your current sounds. In
fact, you’ll probably nd yourself combining traditional and synthesized sounds in exciting new ways.
4

What’s Included?
TriplePlay includes a pickup and controller that mount on your guitar, a small wireless USB receiver that
plugs into your computer, a charging cable and power supply, hardware for multiple mounting options, and
installation tools. You also get a library of software for recording, performance and notation, featuring stunning
collections of sounds and virtual instruments.
System Requirements
Standard broadband connection for software downloads
Computer Hardware: 4GB of RAM and 10GB of free HD space
Apple Mac: OS X 10.6.0 (Lion) or later
Windows: Win 7 or later, both 32-bit and 64-bit
Refer to www.shman.com/tripleplay for detailed system requirements.
5

6
Basic Concepts
A different kind of pickup. Traditional electric guitar pickups convert string vibrations into electrical signals
which are sent to an amplier or recording device. The TriplePlay pickup sends six individual signals to the
TriplePlay Controller which converts them into MIDI data, then transmits the MIDI wirelessly to the TriplePlay
Receiver connected to your computer.
MIDI guitar vs. traditional guitar. TriplePlay does not wirelessly transmit your traditional guitar sound.
You still need to use a cable to connect your guitar to a computer, amp, or other device. The best way to
connect your guitar’s audio to your computer is by plugging into the computer through a dedicated audio
interface. This allows the user to combine traditional guitar and MIDI inside the TriplePlay software. (While it
is possible to connect directly to most computers via their audio input jacks, most users prefer the superior
sound of a dedicated interface.) If you only plan to use MIDI, you can do everything wirelessly without an
audio interface.
Virtual instruments. A virtual instrument (VI) is software which mimics the sound (and often the look and
feel) of a physical instrument. TriplePlay comes with VIs from the world’s most respected developers. You
can conjure and combine the sounds of hundreds of standard instruments or tweak them into exciting new
tones. TriplePlay can also control most commercially available virtual instruments.

Basic Concepts (continued)
Virtual guitar rigs. A virtual guitar rig (VGR) is software that replicates the sound of amps, pedals, and other
guitar gear. VGRs can reproduce convincing electric guitar tones, just by connecting your traditional guitar
signal directly to your computer. TriplePlay comes with an industry standard virtual guitar rig that will have
you believing you’re playing through your favorite analog gear.
Plug-ins and hosts. A plug-in is a computer program that runs inside another “host” program. TriplePlay
works as both a plug-in and a host. When you run TriplePlay in standalone mode, it hosts all the plug-ins
that come with the program and any others you’ve installed on your computer. TriplePlay can also run as a
plug-in AU Audio Units (Apple) or VST (Steinberg) plug-in within any compatible recording software,
including the powerful program Fishman provides with TriplePlay.
Want more information? Check out our online documentation, where we cover everything in greater detail.
7

Software Download and Installation
TriplePlay comes with a comprehensive software library. It’s so comprehensive, in fact, that it will probably
require several hours to download. We suggest starting that process now. Install the hardware and read up
on TriplePlay’s features while your software downloads.
Software included with TriplePlay:
• Fishman TriplePlay software. The program you’ll use to create and manage your TriplePlay sounds.
Runs both in standalone mode and as a plug-in within DAW software.
• IK Multimedia SampleTank 2.5. A versatile sampler that reproduces the sounds of many acoustic and
electronic instruments.
• IK Multimedia AmpliTube Custom Shop. A powerful and expandable virtual guitar rig VGR with great
amps, speakers and effects boxes.
• Native Instruments Komplete Elements. A set of three world-class programs: Kontakt, a sampler with
a large library of acoustic and electronic sounds; Reaktor, a suite of cutting-edge synthesizers; and
Guitar Rig, one of the leading VGRs.
• Notion Progression. A music notation program optimized for guitarists, whether they use tab, standard
notation, or both. You can create sheet music just by playing!
• PreSonus Studio One. Powerful recording software that can host TriplePlay.
8

Software Download and Installation (continued)
To download your TriplePlay software, visit the product registration section on www.shman.com/tripleplay
To help you get up to speed quickly and enjoying the many features of TriplePlay, we have included a
variety of great factory patches. It is important that you install your software in the order outlined in
the online instructions to insure that your TriplePlay software and factory patches work properly.
Most users will be able to download and authorize all of the software simply by following the
steps outlined on the download page. If you require more detailed instructions consult our online
documentation.
NOTE: Upgrade versions of the third-party software packages are available. These open up even more
musical possibilities.
9

Audio Setups

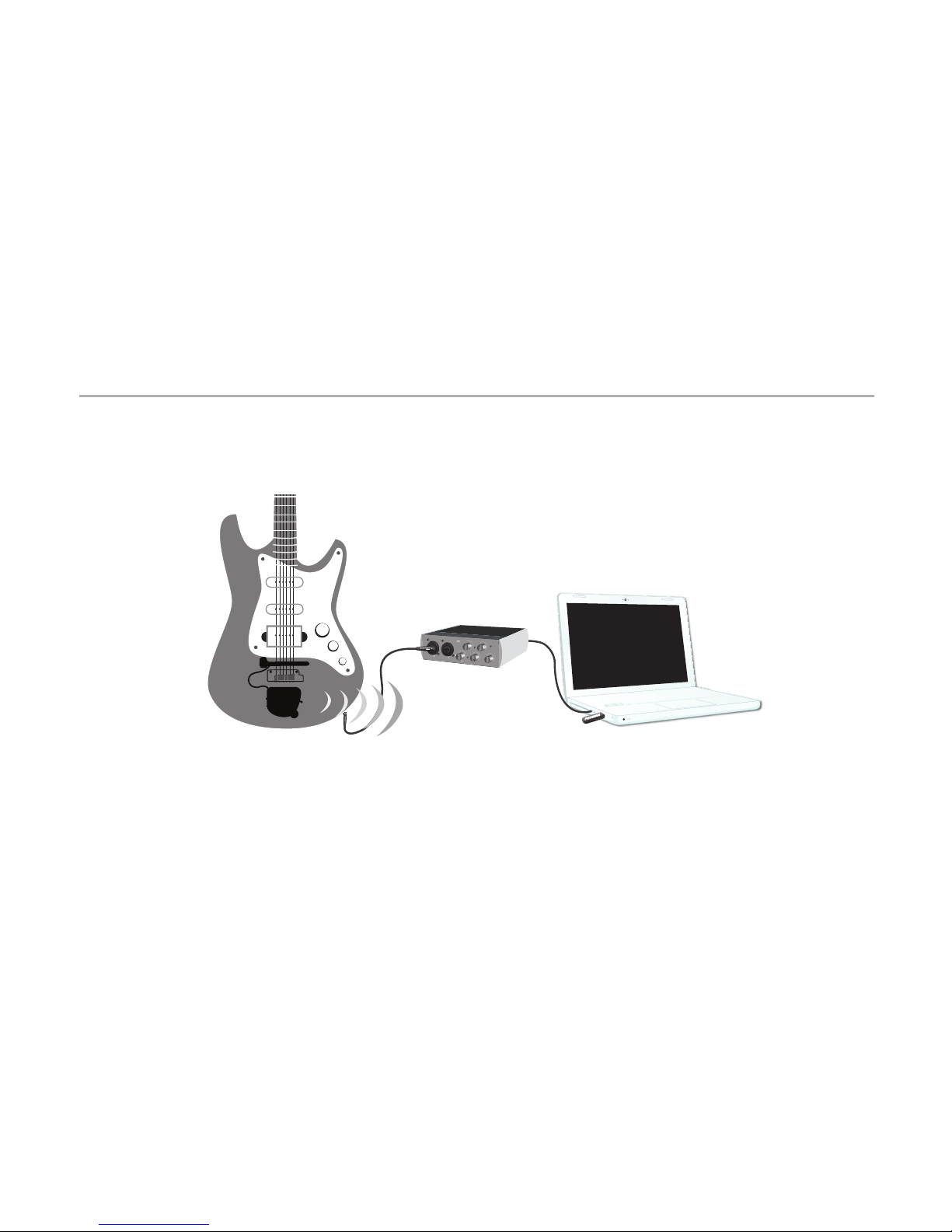

Many players connect their guitars to a computer via a dedicated audio interface. In this scenario,
TriplePlay’s controller transmits MIDI data wirelessly to the receiver, while the audio interface conveys the
audio signal from the guitar’s traditional pickups. These sources get mixed and manipulated in the TriplePlay
software, and the combined sounds exit the computer via the audio interface to your headphones or speakers.
(To utilize the included virtual guitar modeling feature as part of your TriplePlay patch you will need an audio
interface, guitar cable and headphones or speakers)
Other setup options are diagrammed in the online documentation. These include connecting to your
computer’s built-in audio hardware, using a conventional guitar amp or hardware amp simulator, and using
TriplePlay to control hardware synthesizers.
* Windows installations may require the use of a low latency audio driver to avoid long delays.
10

TriplePlay Hardware
Installation overview. You’ll be attaching both the TriplePlay controller and pickup to your guitar. This is
simply an overview of your options. See the online documentation for detailed instructions. Note that the
installation does require adjustment to your guitar. If you are not comfortable adjusting your instrument,
consider using a professional technician to complete your installation.
There are two ways to mount the controller:
Directly to surface of your guitar using a plastic mounting ring. This mount has adhesive on one surface
and magnets on the other. It remains on your guitar, and the controller attaches to it magnetically.
Using one of the included metal endpin brackets. You attach these by loosening your strap button, insert-
ing the bracket’s tongue between the button and guitar body, and then re-tightening the screw. There’s a
right-angled bracket for at-topped guitars, and a slanted one for curved tops. The controller’s magnetic
mounting ring attaches to the bracket with adhesive, but no adhesive touches your guitar.
There are also two ways to mount the pickup:
Directly to your guitar using a plastic mounting pad. The adhesive backed mounting pad attaches to your
guitar between the bridge and the bridge pickup, as close to the bridge as possible. We’ve supplied pads of
varying heights to accommodate most guitars. The pickup slides easily in and out of the mounting pad which
remains attached to your guitar.
Using the bridge bracket. On guitars with tune-o-matic bridges this bracket ts between the main bridge
assembly and the supporting screw posts. Adhere the mounting pad to the bracket and slide the pickup into
the mounting pad.
For detailed installation instructions please visit www.shman.com/tripleplay.
11

TriplePlay Hardware (continued)
Charging the controller. Connect the charge cable to the controller, and plug into one of your computer’s
USB ports, or into a wall socket using the included adapter. A small LED on the controller, glows green while
the unit is charging and turns off once the charge is complete. Allow 90 minutes for the controller to be fully
charged. You can expect about 20 hours of battery life from your charged controller. We recommend fully
charging the controller before using it for the rst time.
Pairing the controller and receiver. When you rst turn on the charged controller and insert the receiver
into a computer USB port, both of their LEDs ash quickly. These LEDs are also push buttons — press each
of them once to link the components. Once linked, the receiver LED glows steadily, and the controller’s LED
ashes slowly.
pairing button
pairing button 

12

Perform Window
A. Patch Readout Area. Here you preview, select,
load, and save your TriplePlay patches. (A “patch”
is a snapshot of a TriplePlay setup, whose info
includes your choice of instruments, fretboard
layout, and other parameters.)
B. Sensitivity/Tuner Area. This area doubles as a
tuner and a calibration tool that ne-tunes
TriplePlay to suit your playing style.
C. Mixer Area. A virtual mixing board for adjusting
the levels, panning, and solo/mute status of the
guitar and synth sounds that comprise each patch.
D. Fretboard/Edit Splits Area. Displays each note
you play in real time. It’s also where you create “splits” — patches that assign different sounds to different
parts of the fretboard.
E. Pull-Down Menus. Here you set your TriplePlay preferences, check for software updates, and call up
various views and windows.
TriplePlay Software
Once you’ve paired the controller and receiver, open the TriplePlay application and you will see the Perform
window.
E
A B
D
C
13

TriplePlay Software (continued)

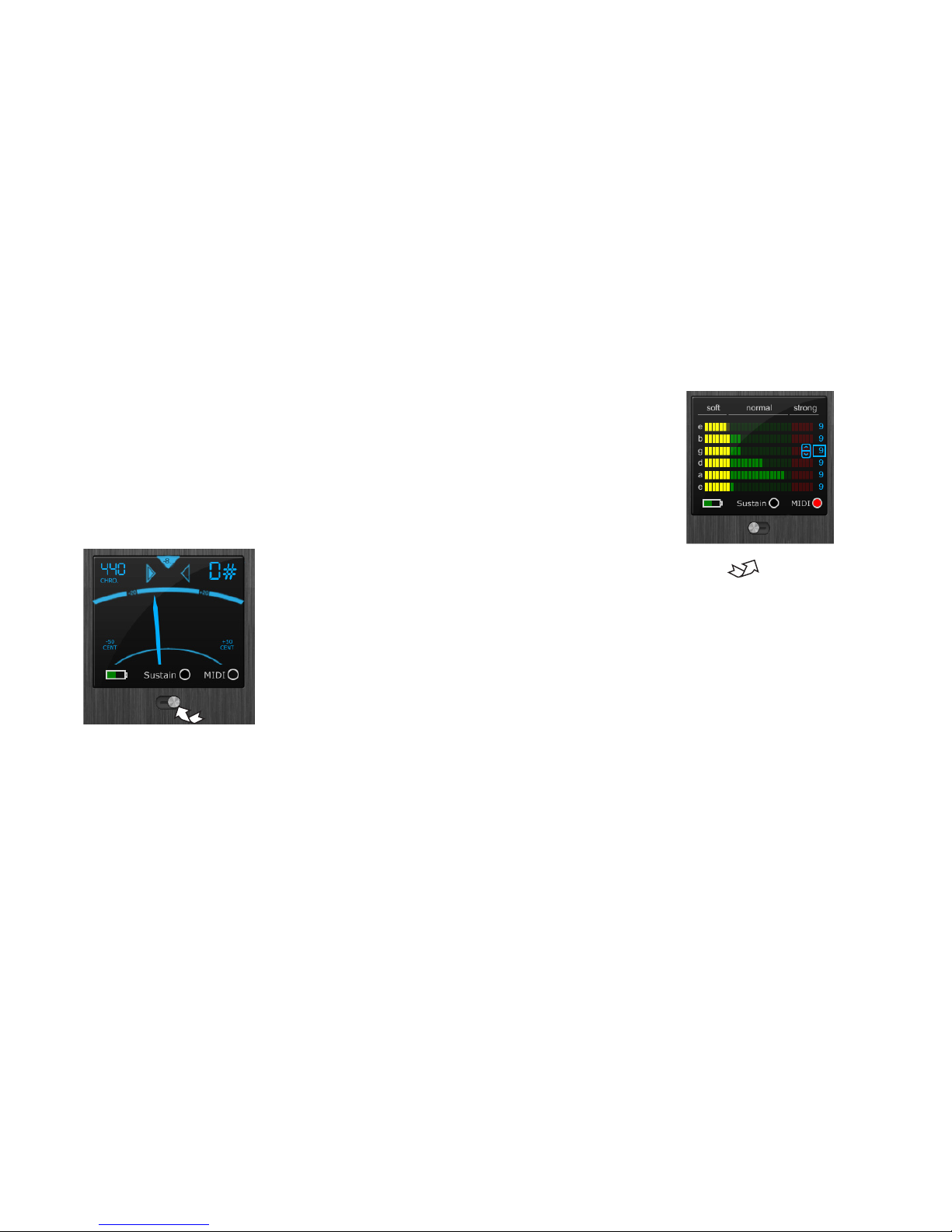

Calibrating string sensitivity. In the center of the interface is a set of meters
for adjusting the dynamic sensitivity for each string. As you play, each string’s
corresponding meter lights up. Using the up and down arrows beneath the
word “strong,” set the sensitivity for each string so that only your loudest notes
send the meter to the top of its range. These settings are scaled from 1 to 16,
with 16 representing maximum sensitivity. Don’t be surprised if your settings
vary from string to string.
Tuning up. This area doubles as a tuner. Just click the
switch beneath the word “Sustain” to tune up, and then
click it again when you’re done.
Audio hardware settings. If you’re using a dedicated audio interface, go to
TriplePlay’s pull-down Options menu and select Preferences to verify that your
interface is selected as the input and output device.
Make some sounds! To audition the factory sounds, simply click the up/down
arrows in the upper-left corner of the interface, next to the patch name.
Next Steps. Obviously, there’s much more to TriplePlay than we can cover in this brief overview. See our
online documentation at www.shman.com/tripleplay for more details.
CALIBRATE
TUNE
14
