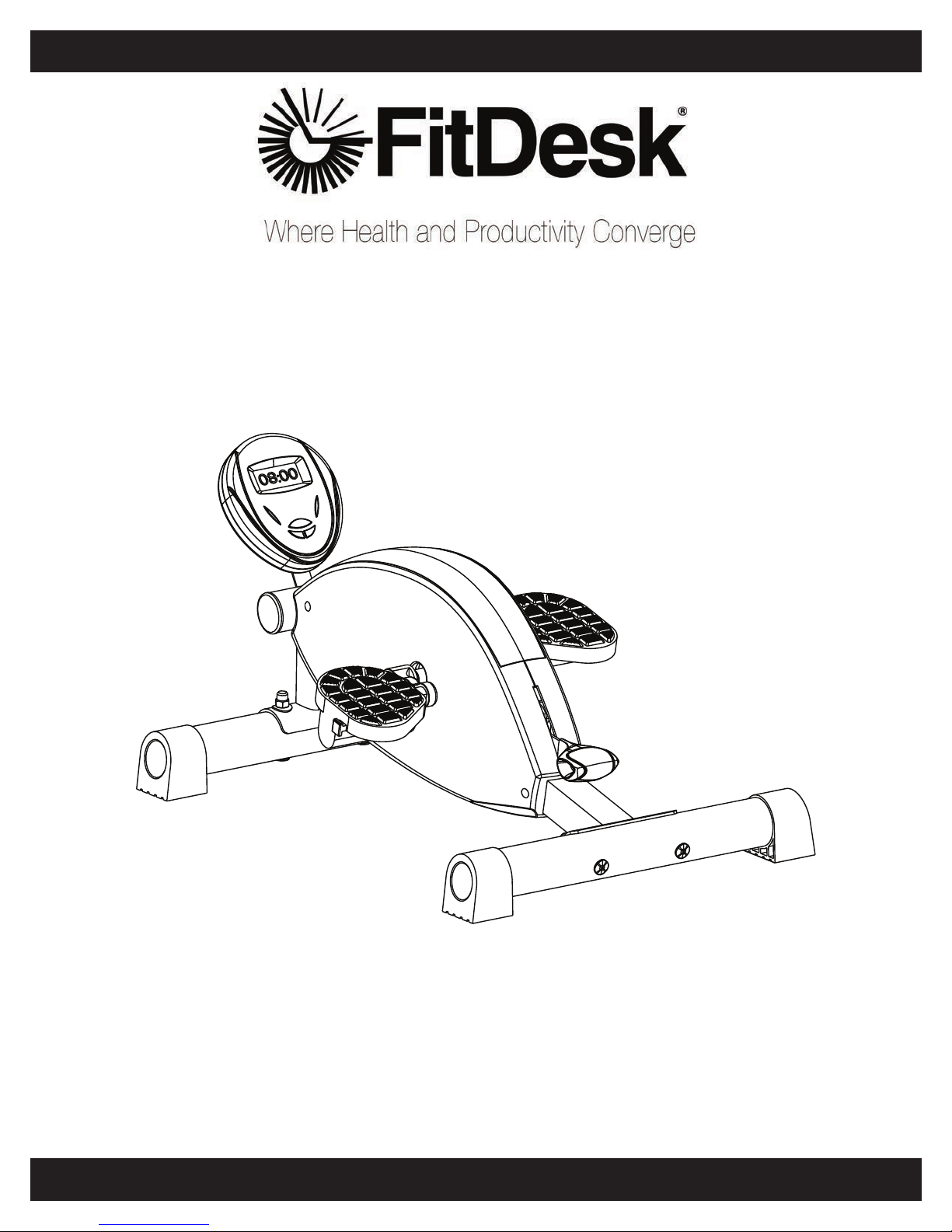

FitDesk 3030 User manual

IMPORTANT: READ THE OWNER’S MANUAL BEFORE ASSEMBLING
1161 SOUTH PARK DRIVE, KERNERSVILLE NC 27284
DISTRIBUTED BY FD PRODUCTS LLC.
VISIT OUR WEBSITE: WWW.THEFITDESK.COM
OR CALL US AT 1-855-713-8887 MONDAY - FRIDAY 9 A.M. - 5 P.M. EST
Owner’s Manual
Model: 3030
Under Desk Cycle

TABLE OF CONTENTS
Introduction..............................................................2
Safety Warnings / Warnings and Labels.................3
Customer Service...................................................4
Tools / Hardware.....................................................5
Parts........................................................................6
Assembly.................................................................7
Meter / Operation....................................................9
Operational Instructions.......................................10
Maintenance and Troubleshooting
Warranty..............................................................11
Complete Parts List.............................................13
Optional Products................................................14
Weight of UDE: 21.94 lbs.
Foot Print in ASSEMBLED position
27.95” wide x 16.93” long x 11.80” high
INTRODUCTION
Thank you for choosing FitDesk®We hope your new FitDesk® Under Desk Cycle becomes a regular part of
your daily routine and we wish you good health and increased wellness as you use this product to infuse activity
into parts of your day.
Before you start assembling your new FitDesk®
please take a moment to make sure all tools,
hardware and parts are included.
Please read all safety precautions before using
this product.
2

SAFETY WARNINGS - URGENT PLEASE READ THIS SECTION
1. Read the entire manual before assembling and using the equipment. Safe use can only be achieved if the equipment
is assembled, maintained and used properly. All users of the equipment must be informed of all warnings and precautions.
2. Before starting or using this equipment you should consult your doctor to determine if you have any health conditions
that could create a risk to your health and safety, or prevent you from using the equipment properly.
3. Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you
experience any of the following symptoms: Pain, tightness in you chest, irregular heartbeat, extreme shortness of
breath, feeling light headed, dizzy or nauseous. If you do experience any of these conditions consult your physician.
.
5. Read and follow all warning stickers on the FitDesk®.
4. Warm-up stretching is recommended before exercise.
6. Keep pets and young children away from the equipment.
Caution: Fingers can get pinched when picking up the FitDesk®UDC.
Caution: Pedal platforms can swing over.
7. Use the equipment on a solid, level surface with a protective cover for your floor or carpet.
8. If using included desk stand for meter, keep wires from getting tangled while pedaling.
9.
Inspect and tighten all parts often. Replace any worn parts immediately.
WE WANT YOU TO SAFELY USE THIS PRODUCT
10. If you find any defective components while assembling or checking the equipment or if you hear any unusual noises
coming from the equipment during use, stop immediately. Do not use the equipment until the problem has been resolved.
Note: The equipment is suitable for home and office use only. Do not use in commercial or rental settings.
11. Do not stand while pedaling. For light exercise use only.
3
WARNINGS AND LABELS NOTE: Read all warning stickers before operating this product.
3030

4
NEED HELP?
CONTACT US FIRST
1-855-713-8887
CUSTOMER SERVICE QUESTIONS
WWW.THEFITDESK.COM
FOR FASTESTPOSSIBLE SERVICE PLEASE HAVE AVAILABLE
Model # 3030 - Serial # (located on the front stabilizer)
[e-mail]
Step 1: www.thefitdesk.com
Step 2: “Support”
Step 3: “Submit A Support Ticket”
EASY TO USE CUSTOMER TICKETING
MONDAY - FRIDAY 9 A.M. - 5 P.M. EST

NOTE: If parts or hardware are missing contact customer service immediately.
Please do not discard your packaging until your entire FitDesk®is fully assembled. Some parts are
purposely packaged in cardboard or Styrofoam and can mistakenly be thrown away with the packaging.
HARDWARE
TOOLS
Each FitDesk®Under Desk Cycle comes equiped with one Wrench and a 6mm Allen Wrench.
CC. (4) M8 Cap Nuts
DD. (4) M8 Washers
5
AA BB
AA.Wrench
(Supplied)
DD
CC
Note: Hardware and Tools not shown to actual size.
Estimated Assembly Time : 10 minutes
BB. 6mm Allen Key
(Supplied)
EE. (2) M5 Cross Bolts
EE

H. Meter Stand
I. Long Meter Cord
G. Meter
F. Meter Support
A. Front Stabilizer B. Rear Stabilizer
D. Left Pedal
C. Main Frame
PARTS
6
A B
C
F
D
E. Right Pedal
E
H
G
I
CAL
ODO
DI ST
SPEED
TI ME
SCAN
MODE
SET
RESET

ASSEMBLY
7
Step 1. Install the Front Stabilizer (A)
to the UDC Main Frame (C) using the
supplied Wrench (AA) Attach and
tighten the two M8 Cap Nuts (CC)
and M8 Washers (DD). Be sure to
tighten securely. Figure 1
Step 2. Install theRear Stabilizer (B)
to the UDC Main Frame (C) using the
supplied Wrench (AA) Attach and
tighten the two M8 Cap Nuts (CC)
and M8 Washers (DD). Be sure to
tighten securely. Figure 2
C
FIGURE 2
FIGURE 1
A
A
CC
CC
DD
CC
DD
CC
DD
C
DD

ASSEMBLY
8
FIGURE 7FIGURE 6FIGURE 5
FIGURE 3
FIGURE 4
Step 5: Using the two M5 Cross Bolts (EE) Install the Meter Support
(F) to the Main Frame (C) using the Screw Driver attached to the 6mm
Allen Key (BB). Figure 5
Step 6: Slide the Meter (G) onto the Meter Support (F). Figure 6
Step 7: Plug the Meter Wire into the back of the Meter (G). (Figure 7)
G
Step 3: Using the supplied Wrench (AA) attach the Left
Pedal (D) to the Crank Arm attached to the Main Frame
(C) by tightening the Pedal counter clockwise.
Note: Left Pedal (D) is reverse treaded. Figure 3
Step 4: Using the supplied Wrench (AA) attach the
Right Pedal (E) to the Crank Arm attached to the Main
Frame (C) by tightening the Pedal clockwise. Figure 4
WARNING: Make sure the pedals are
threaded properly to ensure you do not
damage the threads.
Note: The Pedals must be made
extra tight. Use the included
Wrench or a 15mm wrench to
finish tightening.
C
C
E
D
CEE
C
F
F
G

METER / OPERATION
9
BATTERY
INSTRUCTIONS
INSTALLING AND REPLACING
FitDesk® METER BATTERIES:
The Meter (D) operates using two
AAA batteries.
Batteries are included
Refer to the illustration to install
or replace the batteries.
For Questions Contact:
1-855-713-8887
MONDAY - FRIDAY 9 A.M. - 5 P.M. EST
FitDeskR
CAL
ODO
DIST
SPEED
TIME
SCAN
MODE
SET
RESET
INSTRUCTIONS:
1. Mode button advances the Meter.
a. Time in use
b. Speed - MPH
c. Distance - Miles or KM
e. Calories burned
d. Total distance on FitDesk - ODO in Miles or KM.
®
2. Reset button allows for Meter to be reset for time.
Distance and Calories Mode.
a. Stop pedaling then push reset to reset each Mode.
3. Scan will automatically start at each Mode.
4. Set button to count down feature. Hit the Mode button
to stay on “Time,” make sure you are not in Scan Mode.
Hit “Set” until the desired count down time is displayed.
a. To Stop Scan press mode button again.
b. Scan indicator is on screen when in Scan Mode.
TROUBLESHOOTING:
1. Meter will turn on as soon as you start pedaling.
2. If Meter does NOT show zero even if you push the Mode Button.
a. Check to see that batteries are fresh and properly installed.
3. If zeros display when you press the Mode Button, But not when pedaling.
a. Check connection to Meter.
D

10
MAINTENANCE AND TROUBLESHOOTING
HARDWARE
Verify that all bolts are present and properly tightened.
NOTE: Inspect nuts, screws and knobs on a weekly basis.
The integrity of the FitDesk® UDC 3030 can only be maintained when it is regularly examined for
damage and wear. Special attention should be given to the following:
OPERATIONAL INSTRUCTIONS NOTE: Before operating please read carefully
RESISTANCE LEVER
Move lever from 1-8 to change
resistance. Start at the lowest
resistence setting first.
METER STAND
If you desire, use the supplied Long Meter
Cord (I) and Meter Stand (H) to hold the
Meter (G) on a desk to easily view your
progress.
CAUTION: Keep Long Meter Cord (I)
away from Pedals (D, E) when using UDC.
G
I
H

WARRANTY
11
This limited warranty is applicable to each original end-customer (hereinafter “Customer”) purchasing the FitDesk®
Model: 3030 consisting of the structural metal frame (hereinafter the “Structural Frame”) and various other non-frame
components (hereinafter the “Non-Frame Parts”) sold by FD Products, LLC (hereinafter “Company”) for Customer’s
own use and not for resale. The Structural Frame and Non-Frame Parts are collectively referred to herein as the
“Products”.
1. LIMITED WARRANTY; EXCLUSIVE REMEDIES:
1.1. LIMITED WARRANTY ON PRODUCTS: Company warrants solely to the original Customer that (a) the
Structural Frame will be free from defects in materials and workmanship under normal use for a period of 180 days
from the date of original retail purchase, Notwithstanding the foregoing, the colors and finishes of the Products may
vary within a reasonable scope due to unavoidable color variations in different production batches, and such
variations shall not constitute a material defect. This limited warranty is limited solely to the original Customer with
proof of purchase and is not transferable.
1.2. THE WARRANTY: During a covered Product’s limited warranty period, Company will, at Company’s sole
option and discretion, (1) repair the defective component or product without charge or (2) replace the defective
component or product without charge.
1.3. The foregoing limited warranty is subject to the Customer’s proper storage, transportation, handling and use
of the Products as the same are defined within Company’s then-current published guides and instructions for use
and care. The limited warranty does not include defects due to normal wear and tear, abuse or misuse, mishandling,
neglect, accident, fire, lightning, sunlight or other natural hazard, delivery or transportation damage, failure to follow
applicable directions or instructions, or improper or inadequate cleaning, maintenance, care, repairs, modifications,
or use beyond a Product’s intended use.
1.4. LIMITED WARRANTY CLAIMS PROCEDURE: To obtain performance under this limited warranty, Customer
shall notify Company in writing (to FD Products, LLC, 1161 South Park Drive, Kernersville, NC 27284, Attn: Customer
Service / Warranty Department), by email (to [email protected]), or by telephone (to [phone])
with a full description of the defect that is covered by warranty and a copy of the dated proof of purchase of the
applicable product.
• Company shall review each such claim and issue Customer a return merchandise authorization (“RMA”) in
the event that the described defect or condition merits warranty review as determined by Company. Customers who
have been issued a RMA shall, at Company’s election, return the covered item to the same physical address listed
above for reporting initial claims. Company shall not accept any returned product without a RMA.
• Upon receipt, Company will evaluate the returned product(s) to determine if there is a warranty claim and, if
so, how Company wishes to remedy the same. During a covered product’s respective limited warranty period,
Company will, at Company’s sole and absolute option and discretion, (1) repair the defective component or product
without charge or (2) replace the defective component or product without charge. Refunds are not available
pursuant to this limited warranty.
• Customer is solely responsible for transportation of the covered product(s) to the Company for evaluation
(if applicable and requested by Company). In the event that Company determines that a claim under this limited
warranty is justified, Company shall be responsible for transportation of the repaired, corrected, replaced or
exchanged product back to Customer. Customer shall be solely responsible for the transportation of any product
back to Customer if Company determines that a claim under this warranty is not justified.
• Any repaired, corrected, replaced or exchanged Products shall be subject to the Limited Warranty set forth to
the duration of the original limited warranty period as set forth in Section 1.1. and not for any extended duration,
following their repair, correction, replacement or exchange.

WARRANTY
12
1.1. IF A COMPANY PRODUCT DOES NOT CONFORM TO THESE LIMITED WARRANTIES, THE PURCHASER’S
SOLE AND EXCLUSIVE REMEDY IS, AT COMPANY’S SOLE AND EXCLUSIVE OPTION, THE (1) REPAIR OF ANY
DEFECTIVE PRODUCT OR COMPONENT PART OR (2) REPLACEMENT OF ANY DEFECTIVE PRODUCT OR
COMPONENT PART. THE LIMITED WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND MADE IN
LIEU OF ALL OTHER WARRANTIES, REMEDIES, RIGHTS OR CONDITIONS, WHETHER ORAL OR WRITTEN,
EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. COMPANY
SPECIFICALLY DISCLAIMS, WITHOUT LIMITATION, ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, OF
ANY KIND. IF COMPANY CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY,
ALL SUCH WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY. The
Company does not assume or authorize any person to assume for them any other liability in connection with the
Products.
2. EXCLUSION AND LIMITATION OF LIABILITY:
IN NO EVENT, WHETHER BASED ON CONTRACT OR TORT OR OTHER LEGAL THEORY, SHALL COMPANY BE
LIABLE FOR ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT
NOT LIMITED TO, DAMAGES TO OTHER PROPERTY, INCONVENIENCE, DAMAGES FOR LOSS OF PROFITS,
REVENUE, GOODWILL OR USE, INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN
CONTRACT, TORT, STRICT LIABILITY, OR IMPOSED BY STATUTE, OR OTHERWISE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequen-
tial damages or exclusions or limitations on the duration of implied warranties or conditions, so the above limitations
or exclusions may not apply to Customer. In jurisdictions that limit the scope of or preclude limitations or exclusion
of remedies or damages, or of liability, such as liability for gross negligence or willful misconduct or do not allow
implied warranties to be excluded, the limitation or exclusion of warranties, remedies, damages or liability set forth
above are intended to apply to the maximum extent permitted by applicable law. This limited warranty gives the
Customer specific legal rights, and the Customer may also have other rights that vary by state, country or other
jurisdiction.
3. SEVERABILITY:
If any provision of this limited warranty is held to be illegal, invalid or otherwise unenforceable, such provision will
be enforced to the extent possible consistent with its stated intention, or, if incapable of such enforcement, will be
deemed to be severed and deleted from this limited warranty, while the remainder of the terms of this limited
warranty will continue in full force and effect.
4. DISPUTE RESOLUTION:
This FitDesk Limited Warranty shall be governed by and construed in accordance with the laws of the State of North
Carolina, without regard to its principles of conflicts of law. The parties acknowledge the exclusive jurisdiction of the
federal and state courts of the State of North Carolina. Any claims or disputes under this FitDesk Limited Warranty
shall be heard exclusively in any state or federal courts sitting in Guilford County, North Carolina, and both parties
expressly consent to the personal jurisdiction and venue of the North Carolina state and federal courts for such
actions.

COMPLETE PARTS LIST
13
DESCRIPTION:
1. M8 Cap Nuts
2. M8 Washer
3. Rear Stabilizer
4. Main Frame
5. Left Pedal
6. Right Pedal
7. M5 Cross Bolts
8. Meter Support
9. Meter
10. Front Stabilizer
11. Meter Stand
12. Long Meter Cord
4
4
1
1
1
1
2
1
1
1
1
1
QTY:
For Questions Contact:
1-855- 713-8887
MONDAY - FRIDAY 9 A.M. - 5 P.M. EST
1
1
11
2
10
12
11
4
6
8
7
9
52
22
3
6mm Allen Key for #7 Wrench for #1, #5, #6

14
FitDesk®Model: 3.0
FitDesk®Model: 2050
THE ORIGINAL
OPTIONAL PRODUCTS
To buy other products go to our
Website @ www.thefitdesk.com
R
Sit-To-Stand Desk
Recommended
Max Load: 25 lbs. (11.3 kgs.)
Recommended User Height Range
4’10” to 6’5” (147 cm to 199 cm)
Recommended Max User Weight
300lbs (136 kgs)
Weight of Bike: 48 lbs.
Foot Print in OPEN position
16” wide x 26” long x 45” high

FitDesk®is a registered trademark of FD Products LLC. - All Rights Reserved 2017
Updated 8/18/2017
facebook.com / Fitdesk
