FREE MOTION S 11.5 User manual

Part No. 308203 R1210A Printed in Taiwan © 2010 ICON IP, Inc.
HOW TO CONTACT CUSTO ER CARE
If you have questions after reading this manual, or if parts are damaged or missing, please contact Customer
Care at the phone numbers or addresses listed below. Please note the model number, serial number, and
name of the product (see the front cover of this manual) before contacting Customer Care. If you are
ordering replacement parts, please also note the key number and description of each part (see the PART
LIST and the EXPLODED DRAWING near the end of this manual).
In the United States and Canada
Call: 1-800-201-2109, Mon.–Fri. 8 a.m.–5 p.m. MT
Write:
FreeMotion Fitness
1500 South 1000 West
ogan, UT 84321-9813
United States
Outside the United States and Canada
Call: 001-435-786-3521
Email: [email protected]
USERʼS ANUAL
Serial Number
Decal
odel No. F EX81010-INT.0
Serial No.
Write the serial number in the
space above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
QUESTIONS?
If you have questions, or if parts
are damaged or missing, please
see HOW TO CONTACT
CUSTO ER CARE on the back
cover of this manual.
www.freemotionfitness.com

15

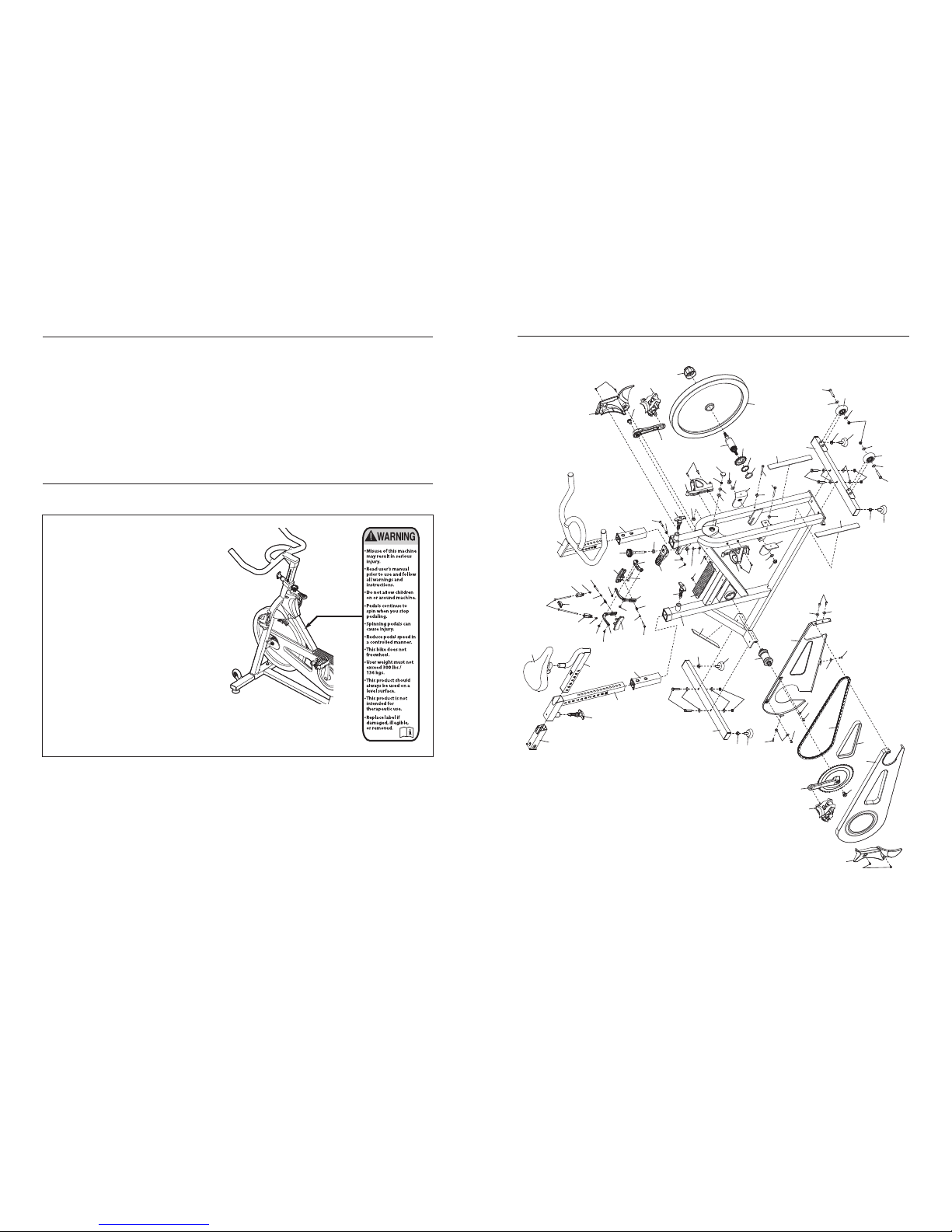

EXPLODED DRAWING Model No. FMEX81010-INT.0 R1210A
1
2
3
4
5
55
6
75
7
7
8
8
9
10
10
9
10
10
11
12
13
13
14
15
16
17
17
18
18
18
18
18
18
18
18
19 20
21
21
22
23
24
25
26
26
26
26
29
26
27
28
30 31
32
30
31
33
34
35
36
19
18 37
38
38
38
39
40
41
42
42
43
44
45
45
46
46
46
46
47
47
47
47
48
48
49
49
49
49
50
51
51
52
53
53
54
55 58
56
57
59
60
61
62
62
63
63
64
65
66
67
68
69
69 70
71
71
72
72
73
73
74
74
2
TABLE OF CONTENTS
WARNINGDECA P ACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMB Y ...............................................................................5
HOWTOUSETHEEXERCISEBIKE .........................................................10
PART IST ..............................................................................14
EXP ODEDDRAWING ....................................................................15
HOWTOCONTACTCUSTOMERCARE ...............................................BackCover
FREEMOTION is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACE ENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the back cover of this
manual and request a free replace-
ment decal. Apply the decal in the
location shown. Warning decals in
other languages are included. Apply the
warning decals on top of the English
warnings in the indicated locations if
desired. Note: The decal(s) may not be
shown at actual size.

14
11 Frame
21Handlebar Post
31Seat
41Seat Carriage
53T-knob
61Right Pedal
74M5 x 16mm Screw
82Water Bottle Holder
94M8 x 40mm Bolt
10 8 M8 Washer
11 1 Rear Stabilizer
12 1 Front Stabilizer
13 4 M8 ocknut
14 1 Right Crank Arm
15 1 Bottom Bracket
16 2 Resistance Cable
17 2 Plastic Bushing
18 10 M6 Flat Washer
19 2 M6 ocknut
20 1 Plug
21 2 Post Sleeve
22 1 Inner Chain Guard
23 1 Shield Insert
24 1 Outer Chain Guard
25 1 Chain
26 6 M6 x 12mm Screw
27 1 Frame Plate
28 2 M6 x 65mm Screw
29 2 M6 x 15mm Screw
30 2 Flange Nut
31 2 Bracket Washer
32 1 Right Chain Adjustment Bracket
33 1 eft Chain Adjustment Bracket
34 1 Resistance Knob
35 1 Brake Spacer
36 1 Cradle
37 1 Square Nut
38 3 Frame Pad
39 1 eft Brake Cover
40 1 Right Brake Cover
41 1 Brake ever
42 2 Nylon Bushing
43 1 Brake Axle
44 1 E-clip
45 4 M4 x 10mm Screw
46 4 Hex Nut
47 4 eveling Foot
48 2 M8 x 45mm Screw
49 4 M8 Flat Washer
50 2 Wheel Nut
51 2 Wheel
52 1 eft Crank Arm
53 2 Crank Bolt
54 1 Flywheel
55 1 ock Ring
56 1 Sprocket
57 1 Hub
58 1 Spacer
59 1 Hub Cover
60 1 Carriage Sleeve
61 1 Seat Post
62 2 Brake Hanger
63 2 Brake Nut
64 1 Small Brake Arm
65 1 arge Brake Arm
66 1 eft Brake Pad
67 1 Right Brake Pad
68 1 Brake Bracket
69 2 Brake Pad Screw
70 1 Brake Bolt
71 2 Pad Spring
72 2 Pad Washer
73 2 Hanger Screw
74 2 Brake Arm Screw
75 1 eft Pedal
*–Assembly Tool
*–Userʼs Manual
Key No. Qty. Description Key No. Qty. Description
PART LIST Model No. FMEX81010-INT.0 R1210A
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
Free otion Fitness assumes no responsibility for personal injury or property damage sustained by
or through the use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
4. The exercise bike is intended for use in a
supervised environment only.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. ake sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise
bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 300 lbs.
(136 kg).
11. Always keep your back straight while using
the exercise bike; do not arch your back.
12. The exercise bike does not have a freewheel;
the pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
13. To stop the flywheel quickly, press the brake
lever downward.
14. When the exercise bike is not in use, tighten
the resistance knob completely to prevent
the flywheel from moving.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
I PORTANT PRECAUTIONS

13
NOTES
4
Thank you for selecting the new FREEMOTION®S
11.5 exercise bike. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The S 11.5 exercise bike pro-
vides a selection of features designed to make your
workouts more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions
after reading this manual, please see the back cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Resistance Knob
Brake ever
Seat
Adjustment Knob
Adjustment Knob
Adjustment Knob
Pedal/Strap
Water Bottle Holder
eveling Foot
Handlebar
BEFORE YOU BEGIN
Wheel
eveling Foot

12
NOTES
5
ASSE BLY
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires an adjustable wrench .
Note: If a part is not in the hardware kit, check to see if it has been preattached.
1. Identify the Rear Stabilizer (11), which does not
have wheels.
Attach the Rear Stabilizer (11) to the Frame (1)
with two M8 x 40mm Bolts (9), four M8 Washers
(10), and two M8 ocknuts (13).
2. Attach the Front Stabilizer (12) to the Frame (1)
with two M8 x 40mm Bolts (9), four M8 Washers
(10), and two M8 ocknuts (13).
1
9
10
9
10
10
11
12
1
1
13
10
13
2

11
HOW TO ADJUST THE PEDAL STRAPS
To tighten the pedal straps (see the drawing on page
4), simply pull the ends of the pedal straps. To loosen
the pedal straps, press and hold the tabs on the buck-
les, adjust the pedal straps to the desired position,
and then release the tabs.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the
resistance of the
pedals, turn the
resistance knob
clockwise; to
decrease the resis-
tance, turn the
resistance knob
counterclockwise.
To stop the flywheel, push the brake lever down-
ward. The flywheel should quickly come to a
complete stop.
I PORTANT: When the exercise bike is not in use,
tighten the resistance knob completely.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike rocks slightly on your floor during
use, first loosen the hex nuts on the leveling feet on
the front or rear stabilizer (see the drawing on page
4).
Next, turn one or both of the leveling feet on the front
or rear stabilizer until the rocking motion is eliminated.
Then, tighten the hex nuts on the leveling feet against
the front or rear stabilizer to lock the leveling feet into
place.
HOW TO AINTAIN THE EXERCISE BIKE
Inspect and tighten all parts of the exercise bike regu-
larly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent.
For maximum performance and safety, replace the
pedals every year. To purchase pedals, see the
back cover of this manual.
I PORTANT: To avoid damage to the exercise bike
and to prevent injury to the user, use only manu-
facturer-supplied pedals. Other pedals may not be
designed for use in fitness clubs or indoor cycling
studios and may be dangerous.
Resistance
Knob
Brake
ever
6
61 Holes
Holes
5
A
4
5
1
3
3
4
3. Identify the Seat Carriage (4) assembly.
ake sure that the nose of the Seat (3) is
pointing straight ahead and that the Seat is
level. If necessary, loosen the Hex Nuts (A)
beneath the Seat, adjust the position of the
Seat, and then retighten the Hex Nuts.
ake sure that the T-knob (5) is firmly
engaged in an adjustment hole in the Seat
Carriage (4).
4. Orient the Seat Post (61) as shown.
ocate the T-knob (5) on the rear of the Frame
(1). oosen the T-knob and pull it outward.
Then, insert the Seat Post (61) into the Frame.
Move the Seat Post (61) upward or downward
to the desired position, release the T-knob (5)
into an adjustment hole in the Seat Post, and
then tighten the T-knob. ake sure that the T-
knob is firmly engaged in an adjustment
hole.

10
HOW TO USE THE EXERCISE BIKE
HOW TO ADJUST THE ANGLE OF THE SEAT
You can adjust the angle of the seat to the position
that is most comfortable. You can also slide your seat
forward or backward to increase your comfort or to
adjust the distance to the handlebar.
To adjust the seat, see the drawing in assembly step 3
on page 6. oosen the hex nuts on the seat clamp a
few turns, and then tilt the seat upward or downward
or slide the seat forward or backward to the desired
position. Then, retighten the hex nuts.
HOW TO ADJUST THE HORIZONTAL POSITION OF
THE SEAT
To adjust the position
of the seat, first
loosen the T-knob
and pull it downward.
Then, move the seat
forward or backward,
release the T-knob
into an adjustment
hole in the seat car-
riage, and firmly
tighten the T-knob.
ake sure that the T-knob is engaged in an adjust-
ment hole.
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat should be at the
proper height. As you pedal, there should be a slight
bend in your knees when the pedals are in the lowest
position.
To adjust the height
of the seat post, first
loosen the T-knob
and pull it outward.
Then, move the seat
post upward or
downward, release
the T-knob into an
adjustment hole in
the seat post, and
firmly tighten the T-
knob. ake sure that the T-knob is engaged in an
adjustment hole. I PORTANT: Do not adjust the
seat post beyond the stop mark on the seat post.
HOW TO ADJUST THE HANDLEBAR POST
To adjust the height
of the handlebar
post, first loosen the
T-knob and pull it
outward. Then, move
the handlebar post
upward or downward,
release the T-knob
into an adjustment
hole in the handlebar
post, and firmly
tighten the T-knob.
ake sure that the T-knob is engaged in an adjust-
ment hole. I PORTANT: Do not adjust the
handlebar post beyond the stop mark on the
handlebar post.
Seat
T-knob
T-knob
Handlebar
Post
Seat
Post
T-knob
7
6. Orient the Handlebar Post (2) as shown.
oosen the T-knob (5) on the front of the Frame
(1) and pull it outward. Then, insert the
Handlebar Post (2) into the Frame.
Move the Handlebar Post (2) upward or down-
ward to the desired position, release the T-knob
(5) into an adjustment hole in the Handlebar
Post, and then tighten the T-knob. ake sure
that the T-knob is firmly engaged in an
adjustment hole.
5. Using an adjustable wrench, tighten a T-knob
(5) into the front of the Frame (1). 5
5
1
6
5
2
1
Holes

9
11. ake sure that all parts are properly tightened before you use the exercise bike. Note: After assembly
is completed, some extra parts may be left over.
9
9. Place the exercise bike in the location where it
will be used. Tip: Place a mat beneath the
exercise bike to protect the floor.
Make sure that all four eveling Feet (47) are in
contact with the floor.
If a eveling Foot (47) is not in contact with the
floor, loosen the eveling Foot until the eveling
Foot contacts the floor.
Then, tighten the Hex Nut (46) on the eveling
Foot (47) firmly against the Rear or Front
Stabilizer (11, 12). Tip: It may be helpful to
use an adjustable wrench to tighten the Hex
Nut.
10
10. oosen the Resistance Knob (34) until the
Brake Pads (66, 67) are not in contact with the
Flywheel (54).
Spray the Brake Pads (66, 67) thoroughly with a
clear silicone lubricant (not included).
Note: This action will extend the life of the
Brake Pads (66, 67) and ensure smooth contact
with the Flywheel (54).
Then, tighten the Resistance Knob (34) until the
Brake Pads (66, 67) are in firm contact with the
Flywheel (54). eave the Brake Pads in this
position for one hour or longer.
Note: This action will set the brake parts and
provide the springs with initial compression.
This action will also ensure that the clear sili-
cone lubricant penetrates the entire surface of
the Brake Pads (66, 67).
46
47
11
12
46
46
47
34
66
67
54
47
8
8. Attach a Water Bottle Holder (8) to one side of
the Frame (1) with two M5 x 16mm Screws (7).
Attach the other Water Bottle Holder (8) to
the other side of the Frame (1) in the same
way.
7
7. Identify the eft Pedal (75), which is marked
with an “ .”
Using an adjustable wrench, firmly tighten the
eft Pedal (75) counterclockwise into the eft
Crank Arm (52).
Tighten the Right Pedal (6) clockwise into the
Right Crank Arm (14). 6
75
8
1
8
7
7
52
14
8
