fitness gear 810E User manual

ELLIPTICAL USER’S GUIDE
FOR MODEL :
810E

BEFORE
YOU BEGIN ASSEMBLYASSEMBLY
3
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY INTRODUCTION
CONGRATULATIONS and THANK YOU for your purchase of this Fitness Gear elliptical!
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, an Fitness Gear elliptical
can help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics
and innovative features you need to get stronger and healthier, faster. Because we're committed to
designing fitness equipment from the inside out, we use only the highest quality components. It's a
commitment we back with one of the strongest frame-to-brake warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality
in its class.
Fitness Gear delivers.
INTRODUCTION
TABLE OF CONTENTS
Important Precautions
Assembly
Before You Begin
Elliptical Operation
Conditioning Guidelines
Troubleshooting & Maintenance
Limited Warranty
CONTACT INFORMATION
4
5
15
16
19
23
27
Back Panel

BEFORE
YOU BEGIN
4
INTRODUCTION ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
IMPORTANT
PRECAUTIONS
BEFORE
YOU BEGIN ASSEMBLY
5
INTRODUCTION
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
SAVE THESE INSTRUCTIONS
Read all instructions before using this elliptical. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this elliptical. It is the
responsibility of the owner to ensure that all users of this elliptical are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the
number listed on the back panel of this manual.
IMPORTANT PRECAUTIONS
At NO time should pets or children under the age of 12 be closer to the elliptical than 10 feet.
At NO time should children under the age of 12 use the elliptical.
Children over the age of 12 should not use the elliptical without adult supervision.
It is essential that your elliptical is used only indoors, in a climate controlled room. If your elliptical has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the elliptical is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
To reduce the risk of burns, fire, electrical shock or injury to persons:
• If you experience chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and
consult your physician before continuing.
• Maintain a comfortable pace. Do not sprint above 80 rpms on this machine.
• To maintain balance, it is recommended to keep a grip on the handlebars while exercising, mounting or
dismounting the machine.
• Do not wear clothes that might catch on any part of the elliptical.
• Do not turn pedal arms by hand.
• Make sure handlebars are secure before each use.
• Do not insert or drop any object into any opening.
• Unplug elliptical before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• This elliptical should not be used by persons weighing more than 250 pounds. Failure to comply will void
the warranty.
• This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school
or institutional setting. Failure to comply will void the warranty.
• Do not use elliptical in garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply
may void the warranty.
• Use the elliptical only as described in this manual.
ASSEMBLY
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
There are several areas during the assembly process of a elliptical that special attention must be paid. It is
very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened.
If the assembly instructions are not followed correctly, the elliptical could have frame parts that are not
tightened and will seem loose and may cause irritating noises. To prevent damage to the elliptical, the
assembly instructions must be reviewed and corrective actions should be taken.
UNPACKING
Unpack the product where you will be using it. Place the product on a level flat surface. It is recommended
that you place a protective covering on your floor. Note: It is recommended that you apply grease to the
threads of each bolt as you assemble the product, to prevent loosening and noise. Also, during each
assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before completely
tightening any ONE bolt.
Before proceeding, find your elliptical’s serial number
located on the console mast bracket and enter it in
the space provided below. Also locate the model name
which is located on the console mast.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOxES BELOW:
SERIAL NUMBER:
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
* Also enter this serial number on your Warranty Card.
IMPORTANT
PRECAUTIONS

BEFORE
YOU BEGIN
6
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
7
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY

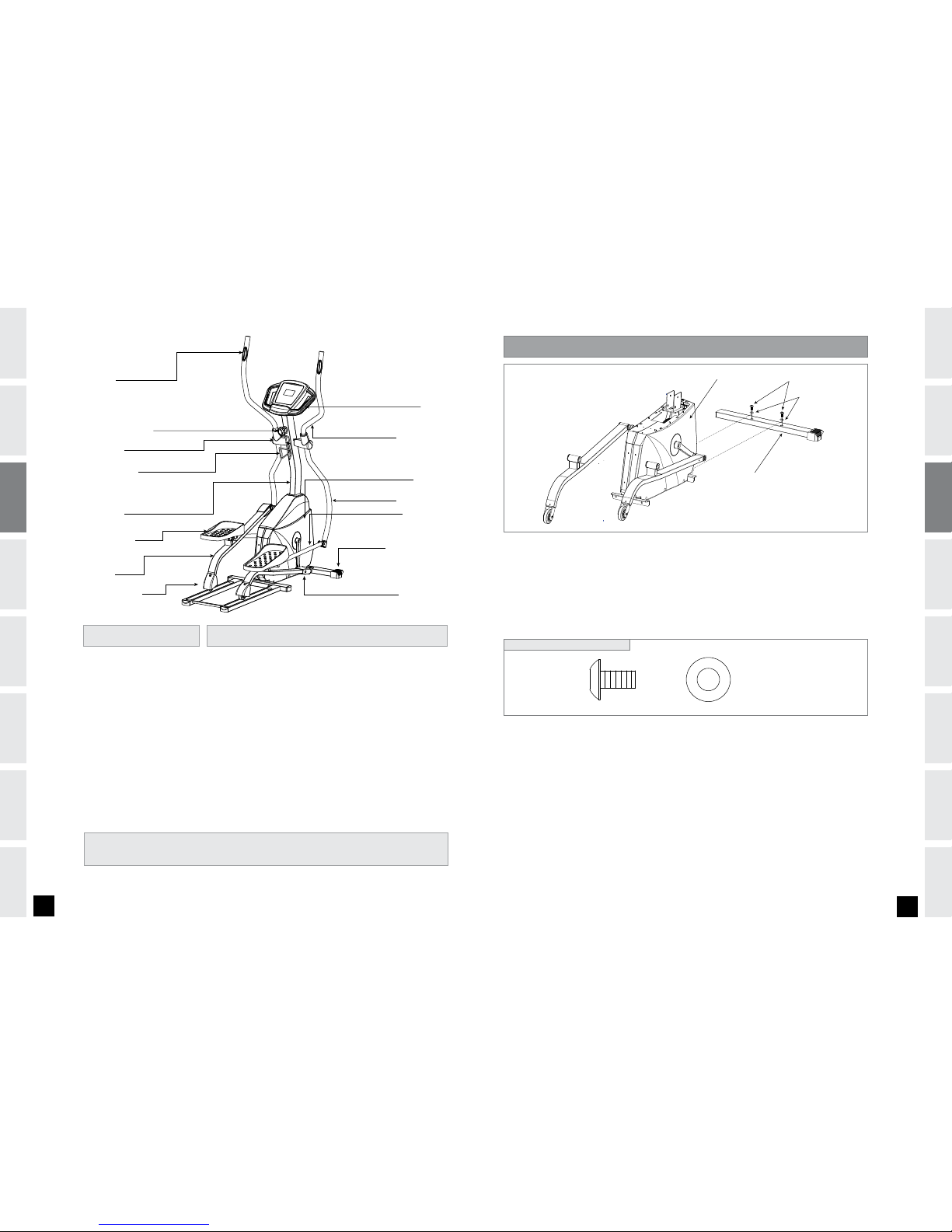

MAIN FRAME
FRONT FOOT TUBE
BOLTS (A)
WASHERS (B)
ASSEMBLY STEP 1
A) Open HARDWARE BAG FOR STEP 1.
B) Attach the FRONT FOOT TUBE to the MAIN FRAME using 2 BOLTS (A) and 2 WASHERS (B).
BOLT (A)
20 mm
Qty: 2
WASHER (B)
17 mm
Qty: 2
HARDWARE BAG FOR STEP 1 CONTENTS :
TOOLS INCLUDED PARTS INCLUDED
 5mm Allen Wrench
 4mm Allen Wrench
 13/17mm Flat Wrench
 1 Console
 1 Console Mast
 1 Front Stabilizer Tube
 2 Upper Handlebars
 2 Lower Handlebars
 2 Pivoting Foot Pads
 1 Top Side Cover
CONSOLE
UPPER HANDLEBAR
MAIN FRAME
LOWER HANDLEBAR
LOWER LINK ARM
FRONT STABILIZER TUBE
GRIP PULSE
CONSOLE MAST
PIVOTING FOOT PAD
PEDAL ARM
 2 AA Batteries
 2 Handlebar Covers
 2 Pedal Arm Covers
 5 Hardware Bags
 Manual Resistance Knob
ELBOW COVER
MANUAL RESISTANCE KNOB
WATER BOTTLE CAGE
PEDAL ARM COVER
ROLLER WHEEL COVER
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.

BEFORE
YOU BEGIN
8
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
9
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
ASSEMBLY STEP 3
TOP CAP
CONSOLE MAST
PRE ATTACHED SCREWS
WATER BOTTLE CAGE
A) Open HARDWARE BAG FOR STEP 3.
B) Slide the TOP cAP over the cONSOLE MAST. Attach WATER BOTTLE cAGE using PRE ATTAcHED ScREWS.
C) Attach the cONSOLE MAST to the MAIN FRAME using BOLT (A), SPRING WASHER (D) and WASHER (B) from
the front and 2 BOLTS (E), 2 WASHERS (B) and 2 NUTS (F) from the side. Make sure to pull the WIRE
through the cONSOLE MAST.
D) Snap TOP cAP into place.
BOLT (A)
20 mm
Qty: 1
NUT (F)
Qty: 2
BOLT (E)
55 mm
Qty: 2
SPRING WASHER (D)
15 mm
Qty: 1
WASHER (B)
17 mm
Qty: 3
HARDWARE BAG FOR STEP 3 CONTENTS :
MAIN FRAME
CONSOLE MAST
BOLT (A)
BOLTS (E)
WASHERS (B)
NUTS (F)
SPRING WASHER (D)
WASHER (B)
TOP CAP
ASSEMBLY STEP 2
A) Open HARDWARE BAG FOR STEP 2.
B) Attach the REAR WHEEL TRAcKS to the MAIN FRAME using BOLTS (A) and 2 WASHERS (B) from the front.
Then finish securing the REAR WHEEL TRAcKS to the MAIN FRAME using 2BOLTS (D), 2NUTS (F) and
2WASHERS (B) from the top.
C) Attach PEDAL ARM cOVERS to PEDAL ARMS using ScREWS (c).
BOLT (A)
70 mm
Qty: 2
WASHER (B)
17 mm
Qty: 4
SCREW (C)
Qty: 2
BOLT (D)
55 mm
Qty: 2
NUT (F)
Qty: 2
HARDWARE BAG FOR STEP 2 CONTENTS :
MAIN FRAME
REAR
WHEEL
TRACKS
BOLT (A)
WASHER (B)
PEDAL ARM COVER
SCREW (C)
BOLT (D)
NUTS (F)

BEFORE
YOU BEGIN
10
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
11
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY

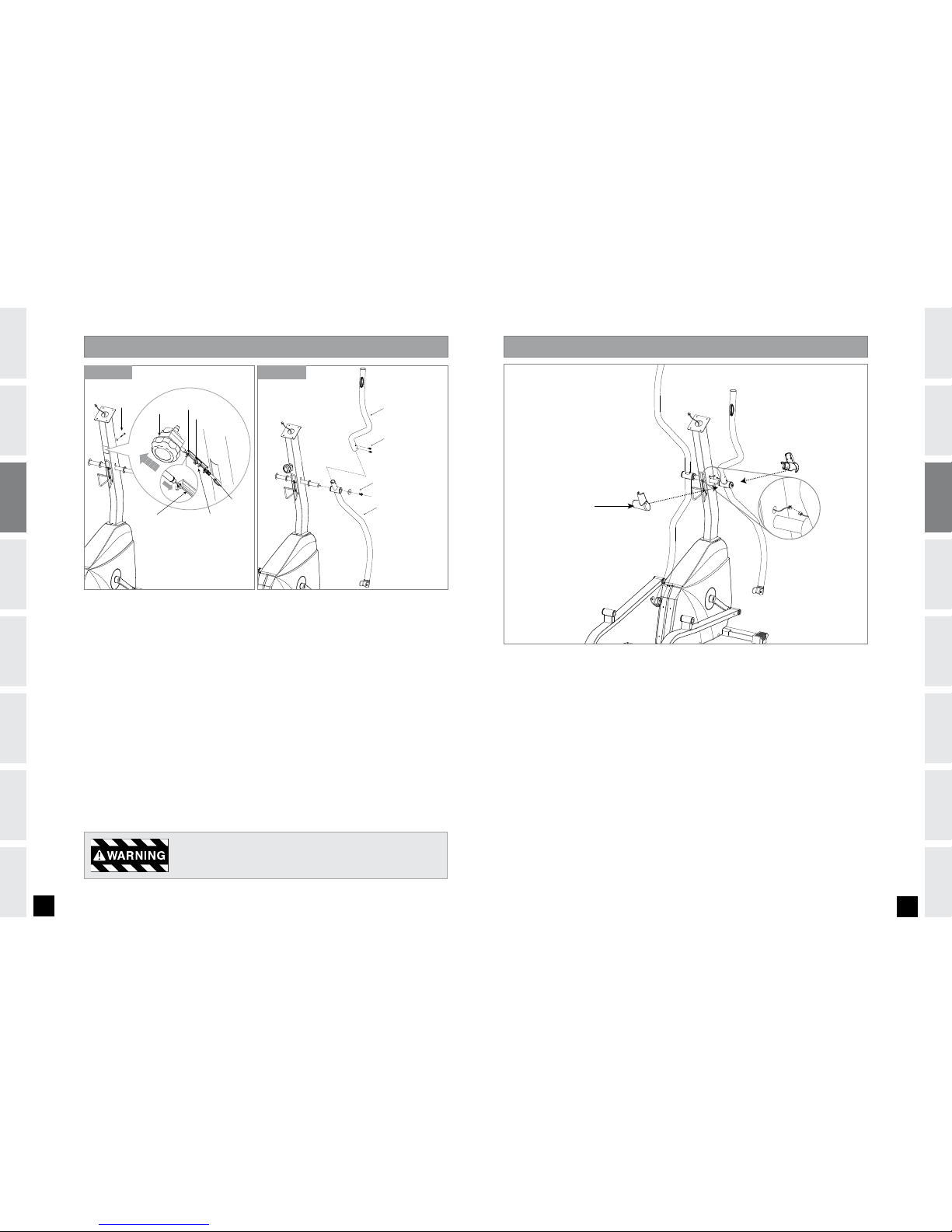

ASSEMBLY STEP 4 ASSEMBLY STEP 5
HANDLEBAR
COVERS
NOTE: There is NO hardware bag for this step.
A) Attach WIRES from mast to handlebar. DO NOT PINcH WIRES.
B) Snap the front and back HANDLEBAR cOVERS together onto the UPPER HANDLE BARS.
Note the position of the snap tabs on the covers before snapping into position.
C) Repeat on other side.
PRE-ATTACHED BOLTS AND WASHERS
LOWER HANDLEBAR
PRE-ATTACHED SET SCREWS
UPPER HANDLEBAR
F) Remove PRE-ATTAcHED BOLT & WASHERS from cONSOLE MAST.
G) Slide LOWER HANDLEBARS onto cONSOLE MAST and attach by re-inserting PRE-ATTAcHED SET ScREWS.
H) Slide UPPER HANDLEBARS onto LOWER HANDLEBARS. Secure UPPER HANDLEBARS to LOWER HANDLEBARS
using PRE-ATTAcHED SET ScREWS.
After handlebars are assembled they will rotate freely – be cautious. Until the
machine is fully assembled, do not grab the handlebars for support.
PRE-INSTALLED
BOLT & WASHER
RESISTANCE
KNOB
TENSION WIRE RESISTANCE
KNOB BRACKET
TENSION
CABLE
TOP KEY HOLE
BOTTOM KEY HOLE
NOTE: There is NO hardware bag for this step. All hardware is pre-installed.
A) Pull TENSION cABLE out from square hole in console mast.
B) Turn RESISTANcE KNOB to highest resistance setting. Place the TENSION WIRE into the BOTTOM KEY HOLE
on the RESISTANcE KNOB BRAcKET.
C) While holding the RESISTANcE KNOB BRAcKET, pull the RESISTANcE KNOB up to slide it into the TOP KEY
HOLE position on the RESISTANcE KNOB BRAcKET.
D) Once the TENSION WIRE is in position, turn the RESISTANcE KNOB to the lowest resistance setting.
E) Slide RESISTANcE KNOB & BRAcKET into the cONSOLE MAST and attach using PRE-INSTALLED BOLT &
WASHER.
STEPS A-E STEPS F-H

BEFORE
YOU BEGIN
12
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
13
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
ASSEMBLY STEP 6
LOWER LINK
ARM
PEDAL ARM
BRACKET
PEDAL ARM BRACKET
PRE-ATTACHED WASHER
PRE-ATTACHED BOLTS
ASSEMBLY STEP 7
A ) Open HARDWARE BAG FOR STEP 7.
B) Align LOWER HANDLEBAR with LOWER LINK ARM.
cAUTION: Be careful to keep the LOWER HANDLEBAR aligned with guide rail. Do not twist it to the left or
right while positioning it on the LOWER LINK ARM.
C) Slide SPAcER (G) through the LOWER LINK ARM and 2 TEFLON WASHERS (B) outside of the
LOWER LINK ARM.
D) Insert BOLT (E) into outside end of LOWER LINK ARM to secure LOWER HANDLEBAR.
E) Insert NUT (c) on right side of LOWER LINK ARM
F) Repeat on other side.
HARDWARE BAG FOR STEP 7 CONTENTS :
LOWER HANDLEBAR
LOWER LINK ARM
NUT (C)
BOLT (E)
TEFLON WASHERS (B)
SPACER (G)
Qty: 2
BOLT (E)
50 mm
Qty: 2
NUT (C)
Qty: 2
TEFLON WASHER (B)
20 mm
Qty: 4
D) Insert LOWER LINK ARM into PEDAL ARM BRAcKET.
E) Insert PRE-ATTAcHED BOLTS into BRAcKET to attach PEDAL ARM and PRE-ATTAcHED WASHER
to LOWER LINK ARM.
F) Repeat on other side.
HARDWARE BAG FOR STEP 6 CONTENTS :
SCREW (A)
10 mm
Qty: 6
LOWER LINK ARM
PLATE
FOOTPAD
SCREWS (C)
A) Open HARDWARE BAG FOR STEP 6
A) Attach FOOTPAD to LOWER LINK ARM PLATE
using 3 ScREWS (c).
B) Repeat on other side.

BEFORE
YOU BEGIN
14
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
15
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
BEFORE
YOU BEGIN ASSEMBLY
ASSEMBLY STEP 8
NOTE: There is NO hardware bag for this
step. All hardware is pre-installed.
A) Attach the cONSOLE MAST wires to the
cONSOLE wires .
B) Carefully tuck the cONSOLE MAST wires
into the cONSOLE MAST before attaching
the cONSOLE.
C) Attach cONSOLE to the cONSOLE MAST
using the 4 PRE-ATTAcHED ScREWS
(screws will have to be removed from
the console first).
DO NOT PINcH WIRES!
YOU’RE FINISHED!
CONSOLE WIRES
PRE-ATTACHED
SCREWS
CONSOLE
CONSOLE MAST
BEFORE YOU BEGIN
CONGRATULATIONS! on choosing your elliptical. You’ve taken an important step in developing and
sustaining an exercise program! Your elliptical is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your elliptical can improve the quality of your life in so many ways.
HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new
elliptical will help you eliminate obstacles that prevent you from exercising.
Inclement weather and darkness won't interfere with your workout when you
use your elliptical in the comfort of your home. This guide provides you with
basic information for using and enjoying your new machine.

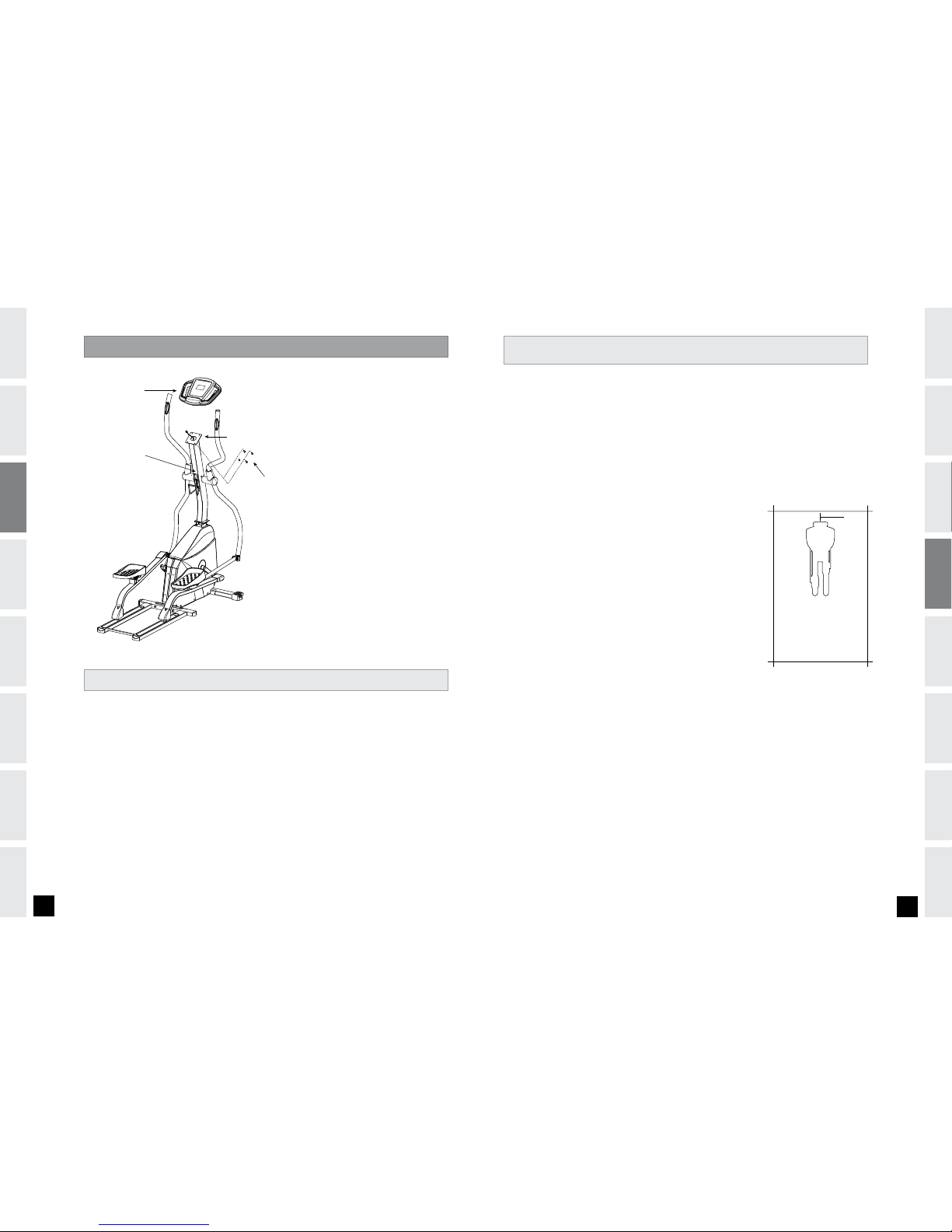

LOCATION OF THE ELLIPTICAL
Place the elliptical on a level surface. There should be 6 feet of clearance
behind the elliptical, 3 feet on each side and one foot in front for the power
cord (See diagram to the right). Do not place the elliptical in any area that
will block any vent or air openings. The elliptical should not be located in a
garage, covered patio, near water or outdoors.
3 feet
6 feet
3 feet
1 foot

BEFORE
YOU BEGIN
16
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY ELLIPTICAL
OPERATION
BEFORE
YOU BEGIN ASSEMBLY
17
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY ELLIPTICAL
OPERATION ASSEMBLY
POWER
Your elliptical is powered by AA batteries. Some ellipticals also have an on/off switch located on the back of
the console.
MOVING
Your elliptical has a pair of transport wheels built
into the FRONT STABILIZER TUBE. To move, first
remove the power supply and firmly grasp the
CONSOLE MAST, carefully tilt and roll.
Our ellipticals are well built and heavy, weighing up to 200 lbs! Use care and
additional help if necessary when moving.
FOOT POSITIONING
Your elliptical offers a variety of foot positions. Moving your foot to the forward most position of the foot pad
increases your step height, which will create a feel similar to a step machine. Placing your foot toward the back
of the foot pad decreases your step height and creates more of a gliding feel, similar to a smooth walk or run.
Your elliptical also allows you to pedal both forward and backwards to offer a variation to your workout and to
focus on other major leg muscle groups such as your hamstrings and calves.
ELLIPTICAL OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.
A) MONITOR DISPLAY: Speed, Time, Pulse, Distance, Level and Calories.
B) START/PAUSE: Press to start/pause/end your workout.
C) RESET: Press to reset the elliptical.
D) BOOK RACK: Holds reading material

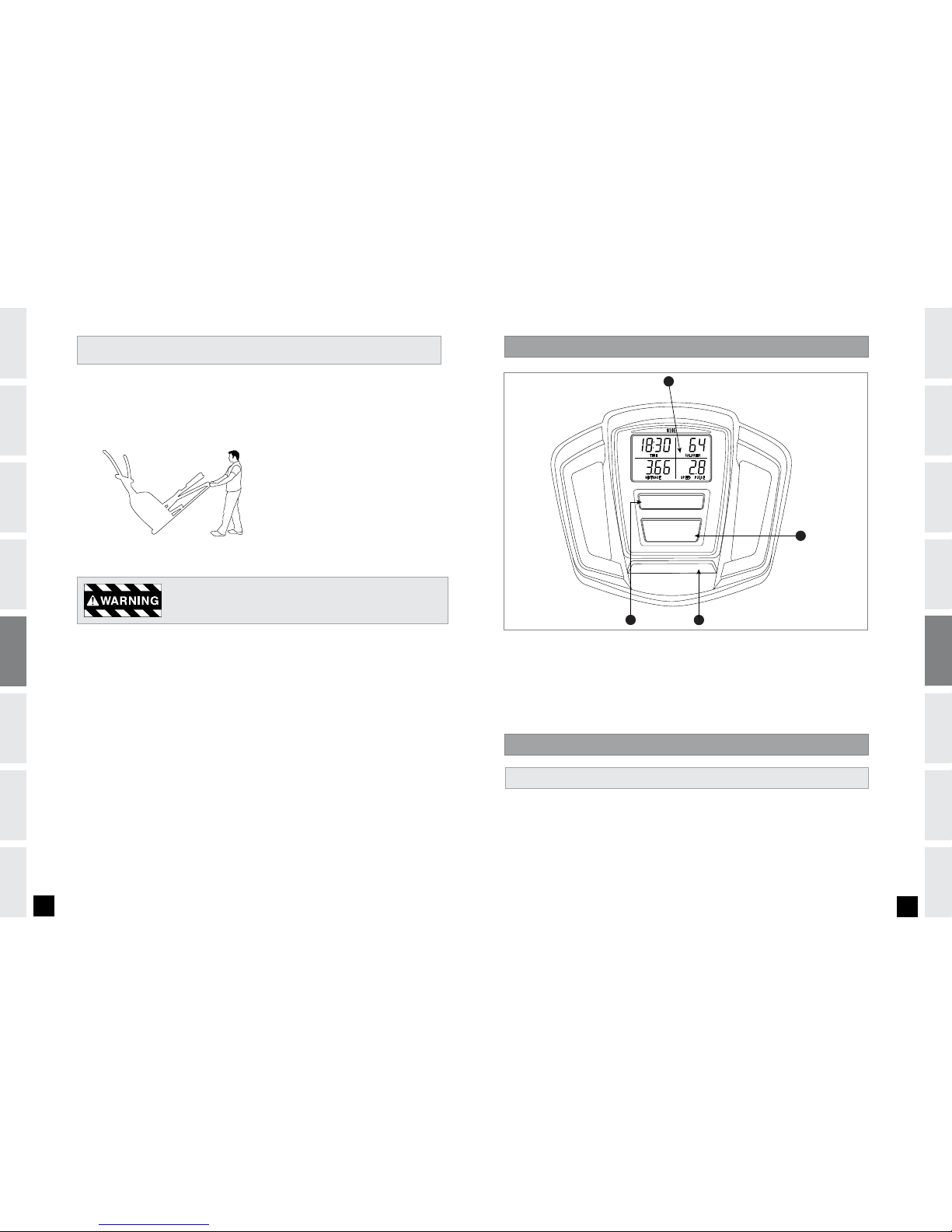

810E CONSOLE DISPLAY
B
CD
S T A R T / S T O P
RESET
A
810E CONSOLE OPERATION
1) Turn on Elliptical.
2) Press START button and begin exercising. The time will count up from 0:00.
3) The resistance level can be adjusted during the workout by turning the RESISTANCE KNOB.
QUICK START

BEFORE
YOU BEGIN
18
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
ELLIPTICAL
OPERATION
BEFORE
YOU BEGIN ASSEMBLY
19
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
CONDITIONING
GUIDELINES ASSEMBLY
HANDLEBARS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart
rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping
the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose,
cupping hold. You may experience an erratic readout if consistently holding the grip pulse handlebars. Make sure
to clean the pulse sensors to ensure proper contact can be maintained.
HEART RATE
ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN ExERCISE PROGRAM.
HOW OFTEN? (Frequency of Workouts)
The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain
cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with
more frequent exercise. Whether it’s 3 days or 6 days, remember that your ultimate goal should be to make
exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside a specific
time of day to exercise. It doesn’t matter whether it’s in the morning before breakfast, during lunch hour or while
watching the evening news. What’s more important is that it’s a time that allows you to keep a schedule, and a
time when you won’t be interrupted. To be successful with your fitness program, you have to make it a priority in
your life. So decide on a time, pull out your day planner and pencil in your exercise times for the next month!
HOW LONG? (Duration of Workouts)
For aerobic exercise benefits, it’s recommended that you exercise from between 24 and 60 minutes per session.
But start slowly and gradually increase your exercise times. If you’ve been sedentary during the past year, it may
be a good idea to keep your exercise times to as little as five minutes initially. Your body will need time to adjust
to the new activity. If your goal is weight loss, a longer exercise session at lower intensities has been found to
be most effective. A workout time of 48 minutes or more is recommended for best weight loss results.
HOW HARD? (Intensity of Workouts)
How hard you workout is also determined by your goals. If you use your machine to prepare for a 5K workout,
you will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long
term goals, always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to
be beneficial! There are two ways to measure your exercise intensity. The first is by monitoring your heart rate
(using the grip pulse handlebars or a wireless chest transmitter - may be sold separately), and the second is by
evaluating your perceived exertion level (this is simpler than it sounds!).
PERCEIVED ExERTION LEVEL
A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While exercising, if you
are too winded to maintain a conversation without gasping, you are working out too hard. A good rule of thumb
is to work to the point of exhilaration, not exhaustion. If you cannot catch your breath, it’s time to slow down.
Always be aware of these warning signs of overexertion.
CONDITIONING GUIDELINES

BEFORE
YOU BEGIN
20
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
21
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY CONDITIONING
GUIDELINES ASSEMBLY

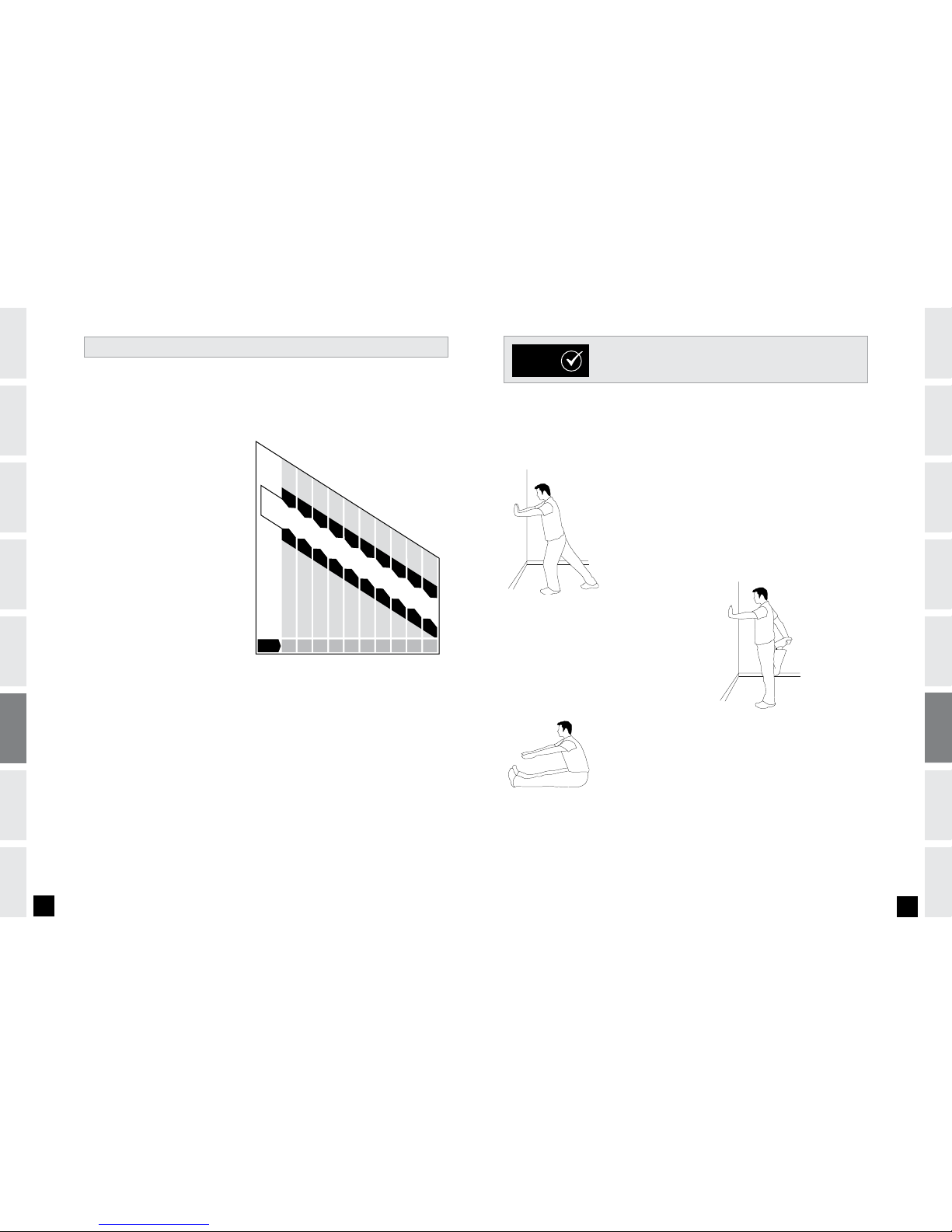

TARGET HEART RATE ZONE CHART
100%
75%
60%
BEATS PER MINUTE
20 25 30 35 40 45 50 55 60 65
AGE
TARGET ZONE
120 117 114 111 108 105 102 99 97 93
150 146 143 139 135 131 128 124 120 116
What is Target Heart Rate Zone?
Target Heart Rate Zone tells you
the number of times per minute
your heart needs to beat to
achieve a desired workout effect.
It is represented as a percentage
of the maximum number of times
your heart can beat per minute.
Target Zone will vary for each
individual, depending on age,
current level of conditioning,
and personal fitness goals. The
American Heart Association
recommends working-out at a
Target Heart Rate Zone of between
60% and 75% of your maximum
heart rate. A beginner will want to
workout in the 60% range while
a more experienced exerciser will
want to workout in the 70-75%
range. See chart for reference.
ExAMPLE:
For a 42-year-old user: Find age along the bottom of the chart (round to 40), follow age column up to
the target zone bar. Results: 60% of maximum Hear Rate = 108 Beats Per Minute, 75% of maximum
Heart Rate = 135 Beat Per Minute.
ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN ExERCISE PROGRAM.
STRETCH FIRST
Before using your product, it is best to take a few minutes to do a few gentle stretching exercises. Stretching
prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into each of these
stretches with a slow gentle motion. Do not stretch to the point of pain. Make sure not to bounce while doing
these stretches.
1. STANDING CALF MUSCLE STRETCH
Stand near a wall with the toes of your left foot about 18" from the wall, and
the right foot about 12" behind the other foot. Lean forward, pushing against
the wall with your palms. Keep your heels flat and hold this position for a
count of 15 seconds. Make sure that you do not bounce while stretching.
Repeat on the other side.
2. STANDING QUADRICEP STRETCH
Using a wall to provide balance, grasp your left ankle
with your left hand and hold your foot against the back
of your thigh for 15 seconds. Repeat with your right
ankle and hand.
3. SITTING HAMSTRING & LOWER BACK MUSCLE STRETCH
Sit on the floor with your legs together and straight out in front of you. Do
not lock your knees. Extend your fingers towards your toes and hold for a
count of 15 seconds. Make sure that you do not bounce while stretching. Sit
upright again. Repeat one time.
STRETCHING
TIPS

BEFORE
YOU BEGIN
22
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
23
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
WARM UP
The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your
muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your product at a
slow pace. The warm up should gradually bring your heart rate into your Target Heart Rate Zone.
COOL DOWN
Never stop exercising suddenly! A cool-down period of 3-5 minutes allows your heart to readjust to the
decreased demand. Make sure that your cool down period consists of a very slow pace to allow your heart
rate to lower. After the cool-down, repeat the stretching exercises listed above to loosen and relax your
muscles.
An important step in developing a long-term fitness program is to determine your goals. Is your primary
goal for exercising to lose weight? Improve muscle? Reduce stress? Prepare for the spring racing schedule?
Knowing what your goals are will help you develop a more successful exercise program. Below are some
common exercise goals:
• Weight Loss - lower intensity, longer duration workouts
• Improve Body Shape and Tone - interval workouts, alternate between hi and low intensities
• Increased Energy Level - more frequent daily workouts
• Improved Sports Performance - high intensity workouts
• Improved Cardiovascular Endurance - moderate intensity, longer duration workouts
If possible try to define your personal goals in precise, measurable terms, and then put your goals in writing.
The more specific you can be, the easier it will be to track your progress. If your goals are long term, divide
them up into monthly and weekly segments. Longer term goals can lose some of the immediate motivation
benefits. Short-term goals are easier to achieve. Your console provides you with several readouts that can
be used to record your progress. You can track Distance, Calories or Time.
THE IMPORTANCE OF A WARM-UP & COOL DOWN
ACHIEVING YOUR FITNESS GOALS
TIPS
TIPS
Your Fitness Gear elliptical is designed to be reliable and maintenance-free. However, if you do experience
problems with your elliptical, please reference the troubleshooting guide listed below.
PROBLEM: The console does not light up.
SOLUTION: Verify the following:
• The power switch is turned to the ON position (may not apply to all models).
• Turn off the machine and remove batteries. Remove the console and check that all connections to the console are
secure and not damaged or pinched.
• Change the batteries.
PROBLEM: The console lights up but the Time/RPM’s do not count.
SOLUTION: Verify the following:
• Turn off machine and remove batteries. Remove the console and check that all connections to the console are
secure and not damaged or pinched.
• If doing the above does not fix the problem, the speed sensor and/or magnet may have become dislodged or
damaged.
PROBLEM: The resistance levels seem to be incorrect, seeming too hard or too easy.
SOLUTION: Verify the following:
• Reset the console and allow the resistance to reset to the default position. Restart and retry the resistance levels.
PROBLEM: The roller wheels appear to be leaving particles on the guide rails.
SOLUTION: This is considered normal wear of the elliptical wheels.
To remove, simply wipe off the roller wheels and guide rails with a damp cloth.
PROBLEM: The elliptical makes a squeaking or chirping noise.
SOLUTION: Verify the following:
• The elliptical is on a level surface.
• Loosen all bolts attached during the assembly process, grease the threads, and tighten again.
TROUBLESHOOTING

BEFORE
YOU BEGIN
24
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
CONDITIONING
GUIDELINES
ASSEMBLY TROUBLESHOOTING
& MAINTENANCE
BEFORE
YOU BEGIN ASSEMBLYASSEMBLY
25
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY TROUBLESHOOTING
& MAINTENANCE
PROBLEM: There is no heart rate reading.
SOLUTION: Remove the console and verify that the heart rate cables are attached properly, making
sure that the cables are securely inserted into the console. Also check wires that were connected
during assembly.
Check your exercise environment for sources of interference such as high power lines, large motors, etc.
YOU MAY ExPERIENCE AN ERRATIC READOUT UNDER THE FOLLOWING CONDITIONS:
• Gripping the heart rate handlebars too tight. Try to maintain moderate pressure while holding onto the
heart rate handlebars.
• Constant movement and vibration due to constantly holding the heart rate grips while exercising.
• When you are breathing heavily during a workout.
• When your hands are constricted by wearing a ring.
• When your hands are dry or cold. Try moistening your palms or rubbing them together to warm.
• Anyone with heavy arrhythmia.
• Anyone with arteriosclerosis or peripheral circulation disorder.
• Anyone whose skin on the measuring palms is especially thick.
NOTE: Outside interference sources such as computers, motors and fluorescent lights may cause the heart rate
reading to be erratic.
If the above troubleshooting section does not remedy the problem, discontinue use and turn the power off.
CALL CUSTOMER TECH SUPPORT AT THE NUMBER ON THE BACK PANEL.
WHEN YOU ARE NEAR THE EQUIPMENT
The following information may be asked of you when you call. Please have these items readily available:
• Model Name
• Serial Number
• Date of Purchase (receipt or credit card statement)
In order for Customer Tech Support to service your elliptical, they may need to ask detailed questions about the
symptoms that are occurring. Some troubleshooting questions that may be asked are:
• How long has this problem been occurring?
• Does this problem occur with every use? With every user?
• If you are hearing a noise, does it come from the front, back or inside? What kind of noise is it (thumping,
grinding, squeaking, chirping etc.)?
• If you are having a resistance problem what is occurring? Is the resistance always too hard or too easy?
Does the resistance respond when pushing the buttons on the console? Does the resistance constantly cycle
through the levels during the workout?
• Has the machine been maintained per the maintenance schedule?
• Does the problem occur when using the handlebars? Without using the handlebars?
Answering these and other questions will give the technicians the ability to send proper replacement parts and
the service necessary to get you and your Fitness Gear elliptical running again!
HEART RATE TROUBLESHOOTING
ARE THE SOUNDS MY ELLIPTICAL MAKES NORMAL?
Our ellipticals are some of the quietest available because they use belt drives and friction free magnetic
resistance. We use the highest grade bearings and belts to minimize noise. However, because the resistance
system itself is so quiet, you will occasionally hear other slight mechanical noises. Unlike older, louder
technologies, there are no fans, friction belts, or alternator noises to mask these sounds on our ellipticals.
These mechanical noises, which may or may not be intermittent, are normal and are caused by the transfer
of significant amounts of energy to a rapidly spinning flywheel. All bearings, belts and other rotating parts
will generate some noise which will transmit through the casing and frame. It is also normal for these
sounds to change slightly during a workout and over time because of thermal expansion of the parts.
WHY IS THE ELLIPTICAL I HAD DELIVERED LOUDER THAN THE ONE AT THE STORE?
All fitness products seem quieter in a large store showroom because there is generally more background
noise than in your home. Also, there will be less reverberation on a carpeted concrete floor than on a wood
overlay floor. Sometimes a heavy rubber mat will help reduce reverberation through the floor. If a fitness
product is placed close to a wall, there will be more reflected noise.
HOW LONG WILL THE DRIVE BELT LAST?
The computer modeling we have done indicated virtually thousands of maintenance free hours. Belts are
now commonly used in far more demanding applications such as motorcycle drives.
CAN I MOVE THE TRAINER EASILY ONCE IT IS ASSEMBLED?
Your elliptical has a pair of transport wheels built into the front legs. It is easy to move your elliptical by
rolling it on the front transport wheels. It is important that you place your elliptical in a comfortable and
inviting room. Your elliptical is designed to use minimal floor space. Many people will place their ellipticals
facing the TV or a picture window. If at all possible, avoid putting your elliptical in a unfinished basement.
To make exercise a desirable daily activity for you, the elliptical should be in a comfortable setting.
CAN I PEDAL BACKWARDS ON MY ELLIPTICAL?
Your elliptical allows you to pedal both forward and backwards to exercise and strengthen a wider range
of muscles.
COMMON PRODUCT QUESTIONS

BEFORE
YOU BEGIN
26
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN ELLIPTICAL
OPERATION LIMITED
WARRANTY
CONDITIONING
GUIDELINES
ASSEMBLY
TROUBLESHOOTING
& MAINTENANCE
BEFORE
YOU BEGIN ASSEMBLYASSEMBLY
27
INTRODUCTION
IMPORTANT
PRECAUTIONS
ELLIPTICAL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
LIMITED
WARRANTY
WHAT KIND OF ROUTINE MAINTENANCE IS REQUIRED?
We use sealed bearings throughout our ellipticals so lubrication is not needed. The most important
maintenance step is to simply wipe your perspiration off the trainer after each use.
HOW DO I CLEAN MY ELLIPTICAL?
Clean with soap and water cleaners only. Never use solvents on plastic parts.
Cleanliness of your elliptical and its operating environment will keep maintenance problems and
service calls to a minimum. For this reason, Fitness Gear recommends that the following preventive
maintenance schedule be followed.
AFTER EACH USE (DAILY)
Turn off the elliptical by unplugging the power cord from the wall outlet
• Wipe down the elliptical with a damp cloth. Never use solvents, as they can cause damage to the
elliptical.
• Inspect the power cord. If the power cord is damaged, contact Fitness Gear.
• Make sure the power cord is not underneath the elliptical or in any other area where it can become
pinched or cut.
To remove power from the elliptical, the power cord must be disconnected from
the wall outlet.
WEEKLY
Clean underneath the elliptical, following these steps:
• Turn off the elliptical
• Move the elliptical to a remote location.
• Wipe or vacuum any dust particles or other objects that may have accumulated underneath the
elliptical.
• Return the elliptical to its previous position.
EVERY MONTH
• Inspect all assembly bolts and pedals on the machine for proper tightness.
• Clean any debris off of the pedal arm wheels and guide rails.
MAINTENANCE
WEIGHT CAPACITY = 250 lbs
FRAME • 1 YEAR
Fitness Gear warrants the frame against
defects in workmanship and materials
for 1 year.
BRAKE • 1 YEAR
Fitness Gear warrants the brake against
defects in workmanship and materials
for the period of one year of the original
owner.
ELECTRONICS & PARTS • 90 DAYS
Fitness Gear warrants the electronic
components and all original parts
for a period of 90 days from the date
of original purchase, so long as the
device remains in the possession of the
original owner.
LABOR • 90 DAYS
Fitness Gear shall cover the labor cost
for the repair of the device for a period
of 90 days from the date of the original
purchase, so long as the device remains
in the possession of the original owner.
LIMITED HOME-USE WARRANTY
ExCLUSIONS AND LIMITATIONS
Who is covered:
• The original owner and is not transferable.
What IS covered:
• Repair or replacement of a defective motor, electronic component, or defective
part and is the sole remedy of the warranty.
What IS NOT covered:
• Normal wear and tear, improper assembly or maintenance, or installation of
parts or accessories not originally intended or compatible with the equipment
as sold.
• Damage or failure due to accident, abuse, corrosion, discoloration of paint
or plastic, neglect, theft, vandalism, fire, flood, wind, lightning, freezing, or
other natural disasters of any kind, power reduction, fluctuation or failure from
whatever cause, unusual atmospheric conditions, collision, introduction of
foreign objects into the covered unit, or modifications that are unauthorized or
not recommended by Fitness Gear.
• Incidental or consequential damages. Fitness Gear is not responsible or liable
for indirect, special or consequential damages, economic loss, loss of property, or
profits, loss of enjoyment or use, or other consequential damages of whatsoever
nature in connection with the purchase, use, repair or maintenance of the
product.
• Equipment used for commercial purposes or any use other than a single family
or Household, unless endorsed by Fitness Gear for coverage.
• Equipment owner or operated outside the US and Canada.
• Delivery, assembly, installation, setup for original or replacement units or labor
or other costs associated with removal or replacement of the covered unit.
• Any attempt to repair this equipment creates a risk of injury. Fitness Gear is not
responsible or liable for any damage, loss or liability arising from any personal
injury incurred during the course of, or as a result of any repair or attempted
repair of your fitness equipment by other than an authorized service technician.
All repairs attempted by you on your fitness equipment are undertaken AT YOUR
OWN RISK and Fitness Gear shall have no liability for any injury to the person or
property arising from such repairs.
SERVICE/RETURNS
• In-home service is available only within 150 miles of the nearest authorized
repair center.
• All returns must be pre-authorized by Fitness Gear.
• Fitness Gear’ obligation under this warranty is limited to replacing or repairing,
at Fitness Gear’ option, the product at one of its authorized service centers.
• A Fitness Gear authorized service center must receive all products for which
a warranty claim is made. These products must be received with all freight
and other transportation charges prepaid, accompanied by sufficient proof of
purchase.
• Parts and electronic components reconditioned to As New Condition by Fitness
Gear or its vendors may sometimes be supplied as warranty replacement parts
and constitute fulfillment of warranty terms.
• This warranty gives you specific legal rights, and your rights may vary from
state to state.

810E Rev. 1.5 | © 2006 Fitness Gear Products | Designed & Engineered in the U.S.A. | Made in China
If you have any questions or comments, you may contact one of our
trained customer technicians via phone.
Customer Tech Support Hotline: [phone]-GEAR
Every employee at Fitness Gear takes pride in providing you with a high quality product.
We want to know if you have a problem and we want to have an opportunity to correct it for you.
NOTE: Please read the TROUBLESHOOTING section before contacting Customer Tech Support.
1620 Landmark Dr,
cottage Grove, WI 53527
Tel: [phone].GEAR
CUSTOMER TECH SUPPORT
