FITRIDER Spinta SC3 User manual

SC3
USER MANUAL
Electric Assist Scooter
MANUAL USUARIO
Patinete con asistencia eléctrica

2www.spintabikes.com
USER MANUAL
Electric Assist Scooter

3
SPINTA SC3
About Manual
Thanks for purchasing our products.
To make sure that you can use the product correctly, please
carefully read the full manual before riding it.
This manual contains important safety use instructions.

4www.spintabikes.com

5
SPINTA SC3
1. The e-scooter is a recreational transporter. Before mastering riding skills, you need to practice.
Neither we are responsible for any injuries or damags caused a rider’s inexperience or failure to
follow the instructions in this document.
2. Please understand that you can reduce the risk by following all the instructions and warnings
in this manual, but you cannot eliminate all the risks. Remember that whenever you ride the
e-scooter you risk injury from loss of control, collisions,and falls.When entering into public spaces
always comply with the local laws and regulations. As with other vehicles, faster speeds requi-
re longer braking distance. Sudden braking on low traction surfaces could lead to wheel slip, or
falls. Be cautious and always keep a safe distance between you and other people or vehicles
when riding. Be alert and slow down when entering unfamiliar areas.
3. Always wear a helmet when riding.Use an approved bicycle or skateboard helmet that ts pro-
perly with the chin strap in place,and provides protection for the back of your head.
4. Do not attempt your rst ride in any area where you might encounter children, pedestrians,
pets, vehicles, bicycles, or other obstacles and potential hazards.
5. Respect pedestrians by always yielding the right of way. Pass on the left whenever possible.
When approaching a pedestrian from the front, stay to the right and slow down. Avoid startling
pedestrians.When approaching from behind, announce yourself and slow down to walking speed
when passing. Please obey local trac laws and regulations if situation is dierent.
6. In places without laws comply with the safety guidelines outlined in this manual. Neither we are
responsiblefor any property damage, personal injury/death, accidents, or legal disputes caused
by violations of the safety instructions.
7. Do not allow anyone to ride your e-scooter on his/her own unless they have carefully read this
manual. The safety of new riders is your responsibility. Assist new riders until they are comforta-
ble with the basic operation of the escooter. Make sure each new rider wears a helmet and other
protective gear.
8. Before each ride check for loose fasteners and damaged components. If the escooter makes
abnormal sounds or signals an alarm, immediately stop riding.And contact your dealer/distributor
for service.
9.Be alert! Scan both far ahead and in front of your escooter -your eyes are your best tool for
safely avoiding obstacles and owtraction surfaces(including, but not limited to, wet ground, loose
sand, loose gravel, and ice).
Riding Safeti

6www.spintabikes.com
10.To reduce risk of injury, you must read and follow all “AUTON” and “WARNING”notices in this
document. Do not ride at an unsafe speed. Under no circumstance should you ride on roads with
motor vehicles. The manufacturer recommends riders be 14+ years old. Always follow these safe-
ty instructions:
①. People who should not ride the Kickscooter include:
Anyone under the inuence of alcohol or drugs.
Anyone who suers from disease that puts them at risk if they engage in strenuous physi-
cal activity.
Anyone who has problems with balance or with motor skills that would interfere with their
ability to maintain balance.
Anyone whose weight is outside the stated limits (see Specications)
Pregnant women
①. Riders under the age of 18 years old should ride under adult supervision.
①. Comply with local laws and regulations when riding this product. Do not ride where prohibi-
ted by local laws.
①. To ride safely, you must be able to clearly see what is in front of you and you must be clearly
visible to others.
①. Do not ride in the snow, in the rain, or on roads which are wet, muddy, icy, or that are sli-
ppery for any reason. Do not ride over obstacles (sand, loose gravel, or sticks). Doing so could
result in a loss of balance or traction and could cause a fall.
11. Do not attempt to charge your escooter if the charger or the power outlet is wet.
12. As with any electronic device, use a surge protector when charging to help protect your Ecoo-
ter from damage due to power surges and voltage spikes. Only use the origianal supplied char-
ger, Do not use a charger from any other dierent product models.
13. Use only the manufacturer approved parts and accessories. Do not modify your Escooter.
Modications to your Escooter could interfere with the operation of the Escooter, could result in
serious injury and/or damage, and could void the Limited Warranty.

7
SPINTA SC3
When unboxing your Escooter,please verify that the above items are included in the package. If
you are missing any components,please contact your dealer/distributor. After verifying that all
components are present and in good condition, you can assemble your new Escooter.
Please retain the box and packaging materials in case you need to ship your Escooter in the
future.Remember to power o your Kickscooter and unplug the charge cable before assembling,
mounting accessories, or cleaning themainframe.
Packing List
T2 User Manual

8www.spintabikes.com

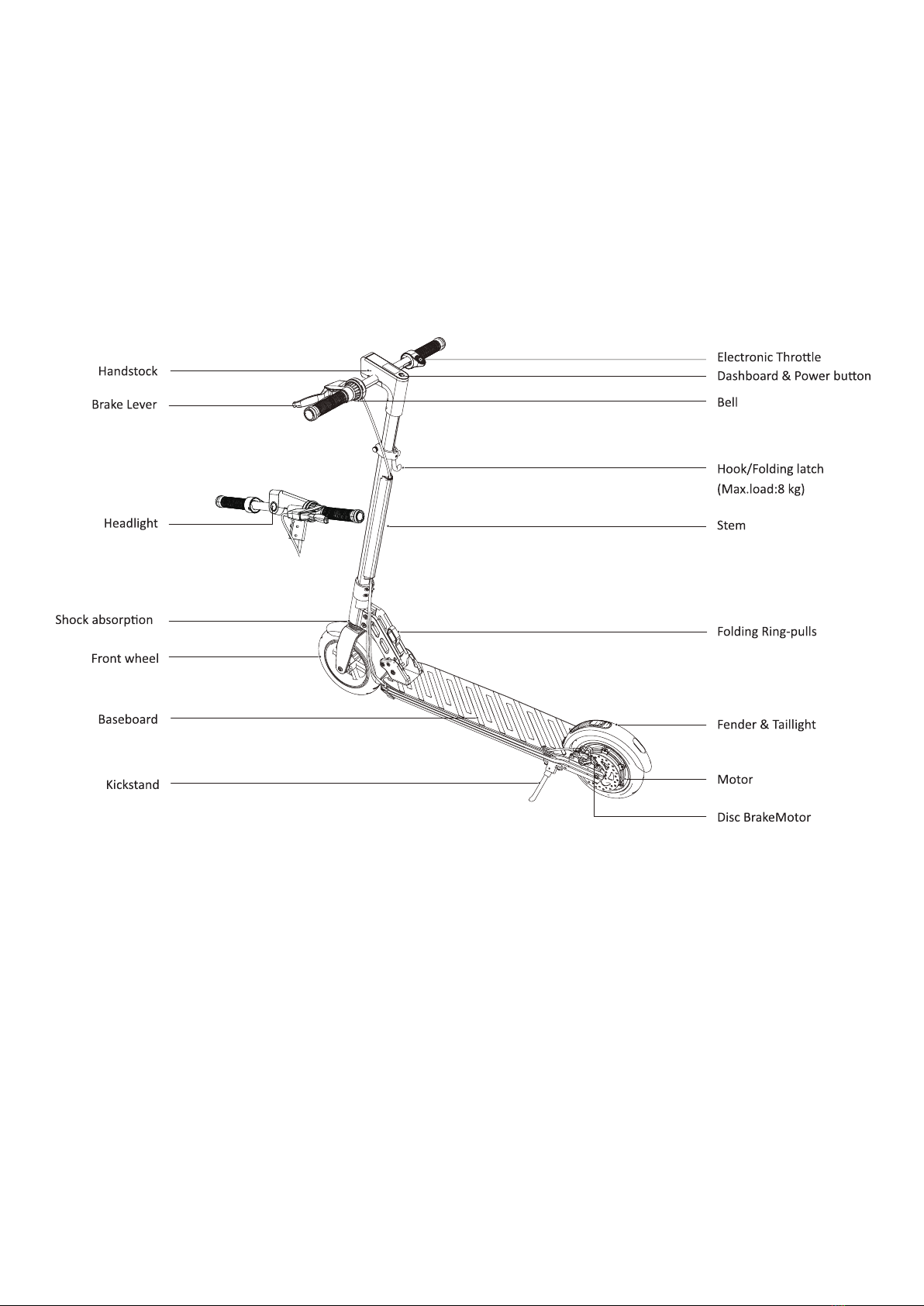

Diagram

9
SPINTA SC3
Dashboard & Power button
Speedometer: Indicates the current speed.Also displays error codes when faults are detected.
Power level: Indicates the remaining battery level with 5 bars. Each bar equates to
approximately 20% power level.
Multi-function button: Power button: Short press to power on.Long press to power o.
When powered on, single click to turn on/o the headlight. When powered on,
short press to change power mode:
L1(Low-speed mode); L2(Middle-speed mode); L3(High-speed mode)
Headlight
Bluetooth: A solid Bluetooth icon indicates that the vehicle is
connected to a mobile device.
Low speed mode: When in low power status, the scooter
will enters to low-speed mode automatically.
Fault Alarm:

10 www.spintabikes.com

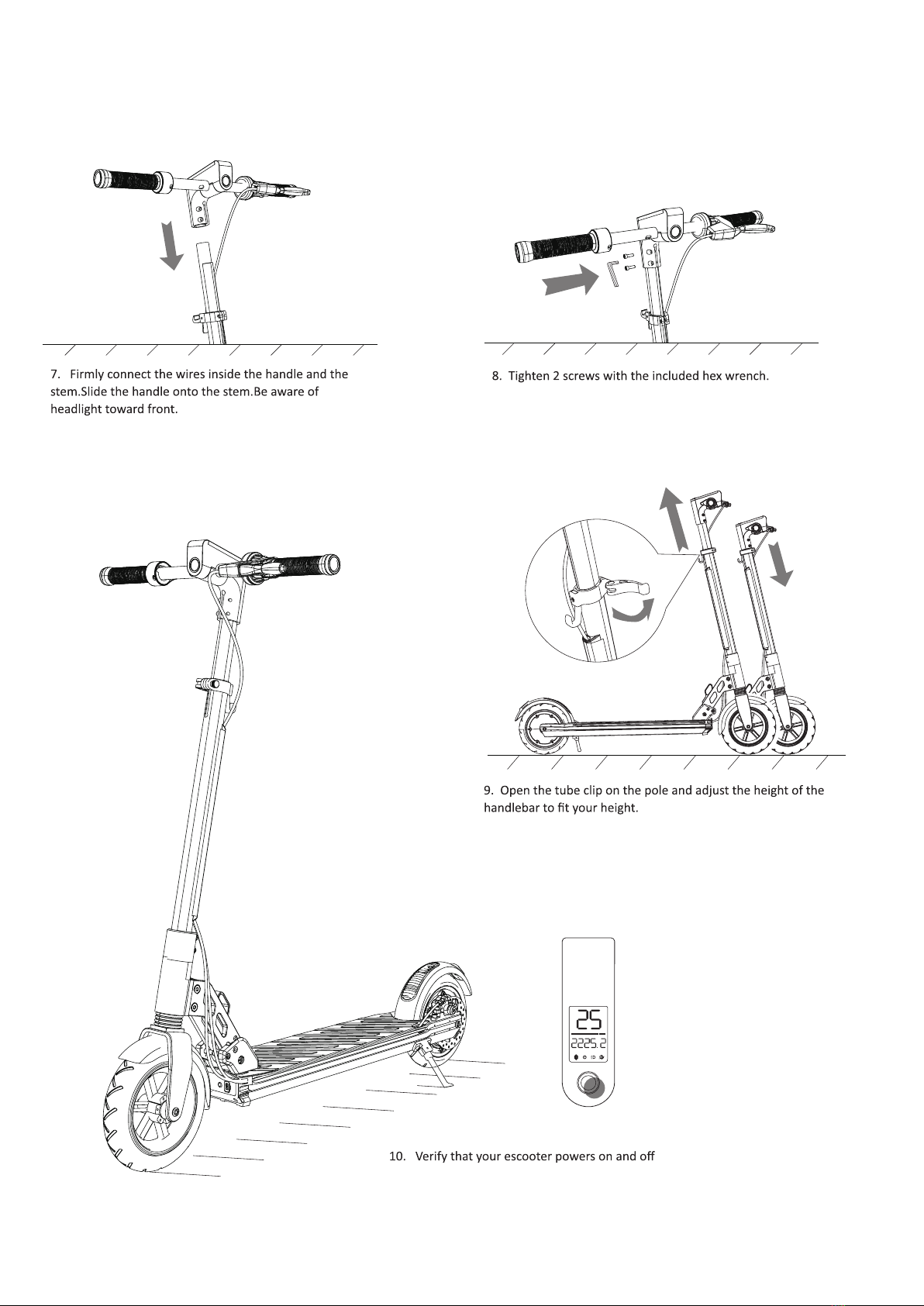

Assembly Diagram

11
SPINTA SC3

12 www.spintabikes.com
Folding and Carrying
Folding:
Carrying

13
SPINTA SC3

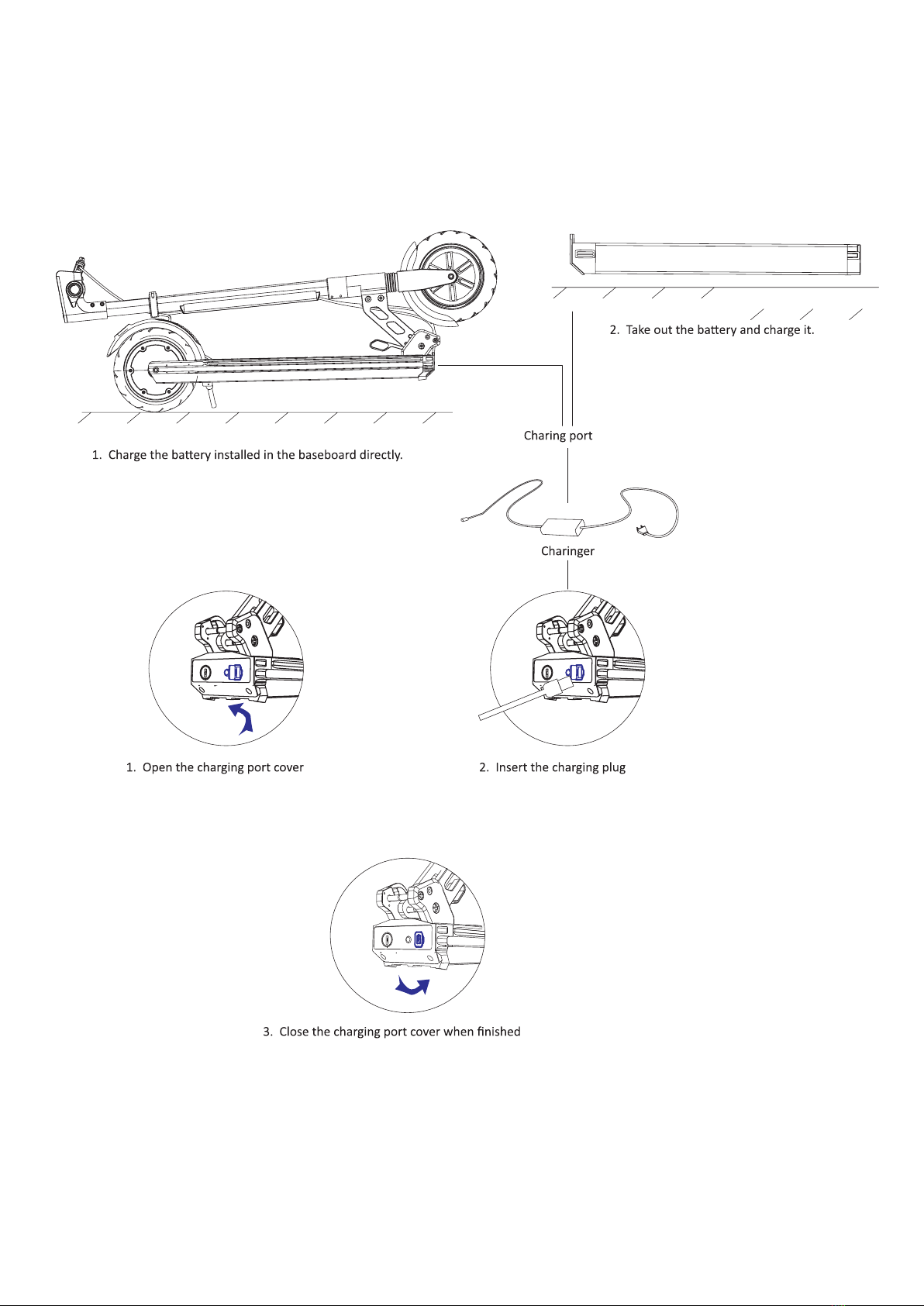

Charging
WARNING①
Do not connect the charger if the charge port or charger cable is wet.
Your Escooter is fully charged when the LED on the charger changes from red(charging)to green(-
trickle charge).
Close the charge port cover when not charging.

14 www.spintabikes.com
Learing to Ride
Wear an approved helmet and other protective gear to minimize any possible iniury.
1.Power on the scooter and check the indicator lamp power level. Charge the scooter if the bat-
tery level is low.
2. Stand on the baseboard with one foot and push o with your foot to start gliding
3. Put your other foot on the baseboard to keep both feet stable. Press the throttle on right hand
to speed up when you are balanced.
Note.For your safety, the motor will not engage until the scooter reachs 2 km/h.
4. Slow down by releasing the throttle: stir the brake lever quickly in order to make a sharp
brake(Stamp the rear fender with foot at the same time can trigger the auxiliary mechanical
braking).
5. To turn,shift your body weight and turn the handle slightly.

15
SPINTA SC3
Warnings
1. WARNING
2. Failure to follow these instructions could lead to serious Injury.
3. Don’t ride the scooter in the rain.
4. Don’t ride over speed bumps, thresholds, or other bumps at high speed.
5. Watch your head when passing though doorways.
6. Watch your speed when traveling downhill. Use both brakes together when traveling at high
speed.
7. Don’t press the throttle when walking with the scooter.
8. Avoid contacting obstacles with the tire/wheel.
9. Don’t carry heavy objects on the handle bar. The maximum load of the hook/folding latch is
8kg.
10. Don’t ride the scooter with only one foot.
11. Don’t ride on public roads,motorways,or highways.
12. Don’t rotate the handle violently while driving at high speed.
13. Don’t ride through puddles or other bodies of water deeper than 5cm
14. The escooter is for one rider only.Don’t ride double or carry any passengers.Don’t carry a
child.
15. Don’t take your hands o the handlebar while riding. Don’t ride with one hand only.
16. Don’t ride up and down stairs or jump over obstacles.

16 www.spintabikes.com
Maintenance
Cleaning and Storage
Use a soft, wet cloth to wipe the mainframe clean. Hard to remove dirt can be scrubbed with a
toothbrush and toothpaste, then cleanedwith a soft, wet cloth. Scratches on plastic parts can be
polished with ne grit abrasive paper
NOTE
Do not wash your Escooter with alcohol, gasoline, acetone, or other corrosive/volatile solvents.
These substances may damage the appearance and internal structure of your Scooter. Do not
wash your Scooter with a power washer or hose.
WARNING
Make sure the Scooter is powered o, the charging cable is unplugged, and the rubber cap on
the charge port is tightly sealed before cleaning; otherwise you may damage the electronic com-
ponents.
Store your Scooter in a cool, dry place. Do not store it outdoors for extended periods of time. Ex-
posure to sunlight and temperature extremes(both hot and cold)will accelerate the aging process
of the plastic components and may reduce battery life.
Battery Pack Maintenance
Do not store or charge the battery at temperatures outside the stated limits(see Specications).
Do not puncture the battery. Refer to your local laws and regulations regarding battery recycling
and/or disposal.
A well maintained battery can perform well even after many miles of riding. Charge the bat-
tery after each ride and avoid draining the battery completely. When used at room temperatu-
re(70°F[22℃])the battery range and performance is at its best;whereas using it at temperatures
below 32 F(0℃)can decrease range and performance.Typically, at-4°F(-20℃) range can be half
that of the same battery at 70°F(22℃).Battery range will recover when temperature rises.

17
SPINTA SC3
NOTE
Typically, a fully charged battery should retain charge for 120-180 days in Standby Mode. A low-
power battery should retain charge for30-60 days in Standby Mode. Remember to charge the
battery after each use.Completely draining the battery may cause permanent damage to the ba-
ttery.Electronics inside the battery record the charge-discharge condition of the battery, damage
caused by over-discharge or under-discharge will not be covered by the Limited Warranty.
WARNING
Do not ride when the ambient temperature is outside the machine operation temperature(see
Specications)because low/high temperature will limit the maximum power/torque. Doing so
could cause personal injury or property damage due to slips or falls.

18 www.spintabikes.com

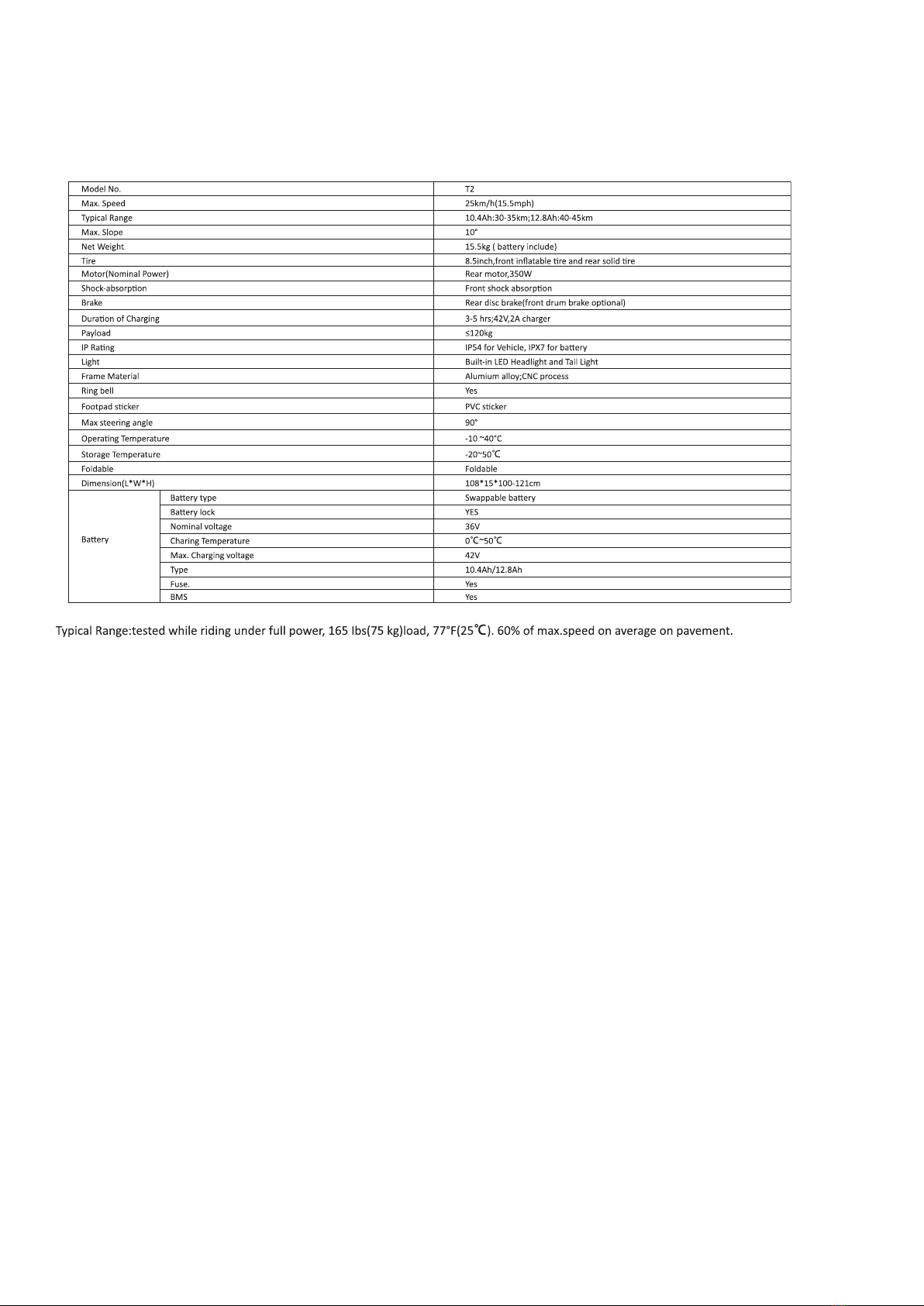

Specifications

19
SPINTA SC3
by FITRIDER
The manufacturer reserves the right to make changes to the product,
release rmware updates,and update this manual at any time.
