FiveStar Breakout AE B6.1 User manual

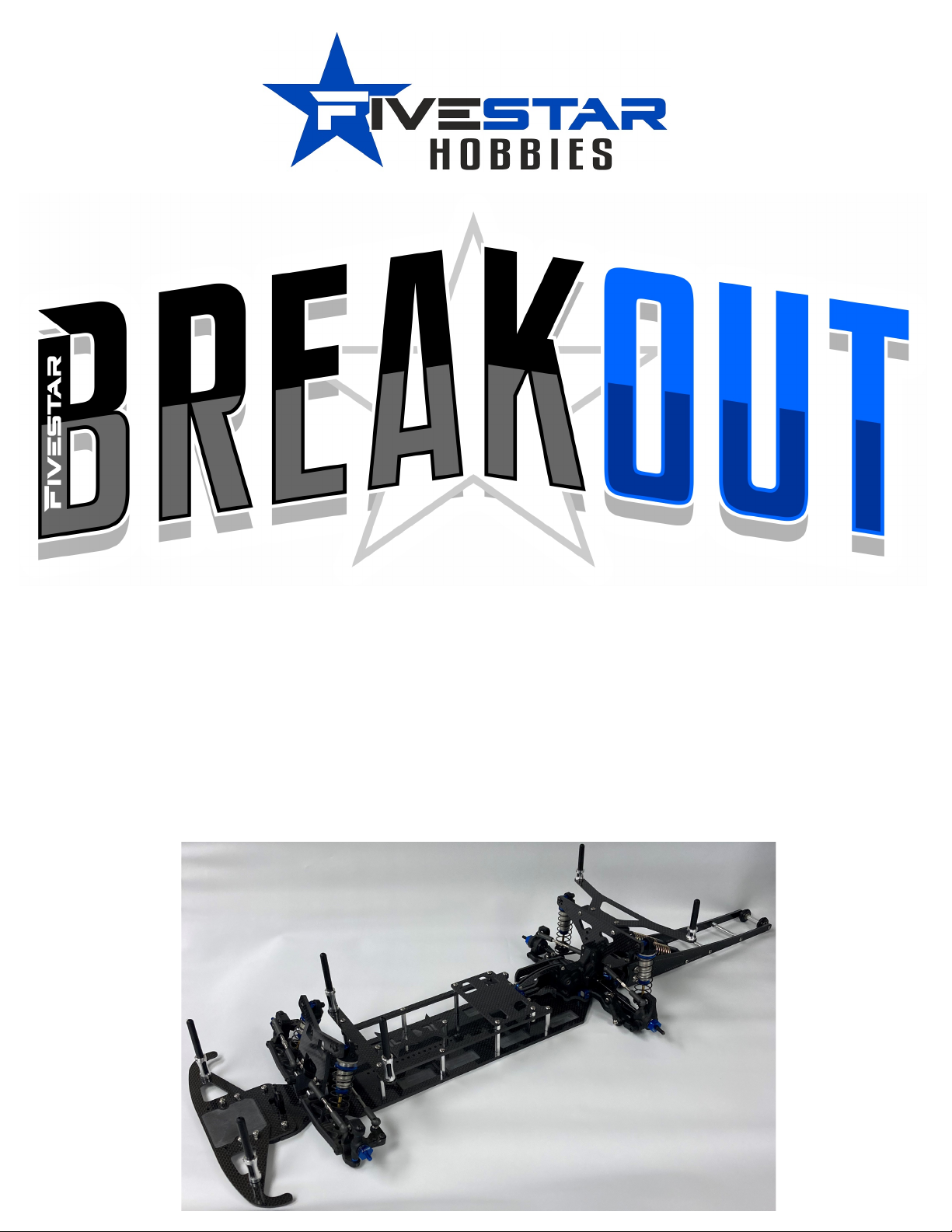

ASSEMBLY INSTRUCTIONS
FOR AE B6.1, B6.2, B6.3 &
RC10B6 BUILDERS KIT
To Our Valued Customer:
Thank you for your purchase from Five Star Hobbies. We are a small business with a goal to
make high quality items that our customer can enjoy. The Breakout no prep kit has become
wildly successful with the help of many when creating it. We also want to thank all of you, the
customer, for believing in us and spending your hard earned money on our products.
We are constantly looking for ways to improve our products and customer support. ALL
constructive criticism is always welcome. Also, if you have any issues with your product or
maybe you just have a question, there are many places to go to get help. If you are on Facebook,
you can check out our group page. It is called Five Star Hobbies Breakout and Street Sweeper
Group. We also have our own Facebook page called Five Star Hobbies. You can message us
through Facebook, but we do not monitor Facebook messages as closely as we would like
because of our busy schedule. If you need immediate assistance or have questions, please call
the store at 531-867-3301. We have helpful staff at the store that will be happy to help. If they
do not have the answer, they will find it for you and call you back. Here is our contact
information:
Five Star Hobbies
10935 Emmet St
Omaha, NE 68164
Phone 531-867-3301
Email: [email protected]
www.fivestarhobbies.com
Sincerely,
Jared Baker
Owner
To complete your Breakout build in "SLIDER" form, you will need the following items:
QTY PART NUMBER DESCRIPTION OF PRODUCT
1 KIT61000
1 90033
1 91855
BREAKOUT KIT
RC10B6 BUILDER'S SUPPORT KIT
RC10B6.2 REAR SUSPENSION ARMS
Popular items to change on your "SLIDER" are these items:
QTY PART NUMBER DESCRIPTION OF PRODUCT
1 91786 RC10B6.1 GEAR DIFFERENTIAL
To complete your Breakout build, you will need the following items:
QTY DESCRIPTIONOF PART OR PRODUCT
2 FRONT WHEELS
2 FRONT TIRES
2 REAR WHEELS
2 REAR TIRES
1 LOW PROFILE SERVO
1 TRANSMITTER
1 RECEIVER
1 SHOCK AND SPRING FOR WHEELIE BAR (OPTIONAL)
1 ESC
1 MOTOR
1 PINION GEAR
1 SPUR GEAR
1 BODY AND PAINT
1 SHOCK OIL OF CHOICE
We also have many optional parts available at our website. www.fivestarhobbies.com Here are some links:
Five Star Hobbies Website
Five Star Breakout Standard Parts Page
Five Star Breakout Optional Parts Page
BAG1
PartNumber Description QT
Y
61003 FrontBumper‐2.5mm 1
61004 FrontMidBumper‐2.5mm 1
70218 25/8"threadedbodypostwith4‐40x1/4BH 2
70220 AluminumBodyPostHolderlongwithsetscrews 2
4‐40x1/4inBH Bodymountholders 2
M3x10mmBH MidBumpertoFrontBumper 4
M3LockNuts MidBumpertoFrontBumper 4
BAG2
PartNumber Description QT
Y
61002 MainChassisTopPlate‐4mm 1
25mmStandOffs Attachtotopplatein6ofthe12 6
91719 AssociatedServoMount 1
M3x6mmBH AssociatedServomounttoTopPlate 2
M3x10mmBH TopPlatetoStandOffs 6

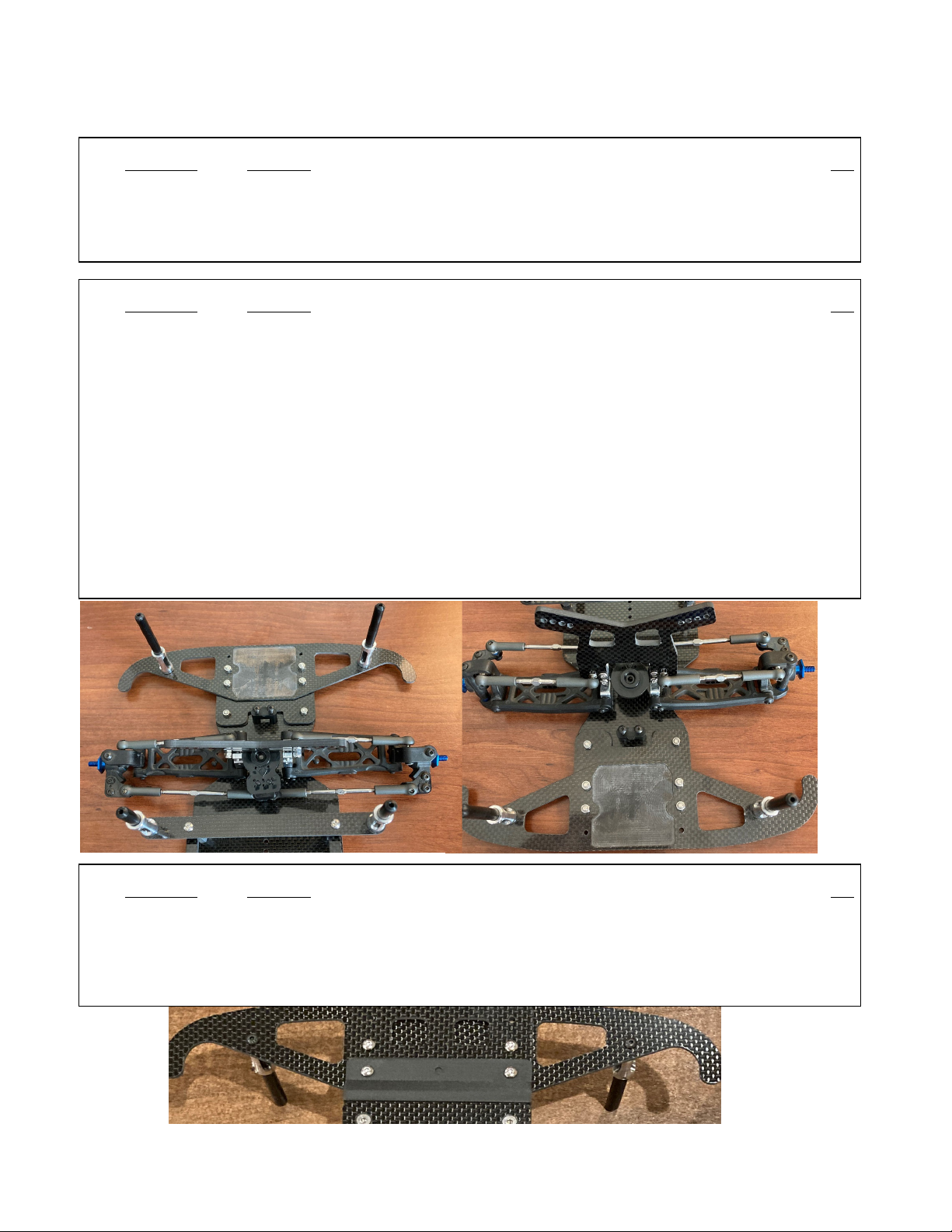

ATTACHTHE6STANDOFFSTOTHELOCATIONSSHOWNINTHEPICTURESTOTHETOPCHASSISPLATEUSINGTHEM3X10MMSCREWS.
ATTACHTHESERVOMOUNTWITHTHEM3X6MMSCREWS.
ATTACHFRONTBUMPERTOMIDBUMPERUSINGTHEM3X10MMSCREWSANDLOCKNUTS.THENATTACHTHEALUMINUMBODYPOST
HOLDERSTOTHEFRONTBUMPERASSHOWNINTHEPICTUREWITHTHE4‐40SCREWS.INSERTTHEBODYPOSTSINTOTHEHOLDERSAND
TIGHTENWITHTHESETSCREWS.
BAG3
PartNumber Description QT
Y
61021 ESCTray2.5mm 1
M3x16mmBH ToattachESCTraytoTopPlate 4
6mmStandOffs BetweenESCandUpperChassisPlate 4
M3LockNuts Back2screws 2
BAG4
PartNumber Description QT
Y
61011 MidBodyMount‐2.5mm 1
70216 15/8"threadedbodypostwith4‐40x1/4BH 2
70220 AluminumBodyPostHolderlongwithsetscrews 2
4‐40x1/4inBH Bodymountholders 2
M3x22mmBH midbodymountto10mmstandofftotopchassisplate 2
10mmStandOf
f
betweenmidbodymountandtopchassisplate 2
RUNALLM3X16MMSCREWSTHROUGHTHEESCPLATEANDTHE6MMSTANDOFFS.SETTHISASIDEALONGWITHTHE3MMLOCKNUTS
TOUSELATER.
RUNTHE3X22MMSCREWTHROUGHTHEMIDBODYMOUNTANDTHE10MMSTANDOFF.THENATTACHTHEBODYPOSTTOTHEMID
BODYMOUNTUSINGTHE4‐40HARDWARE.INSERTTHEBODYPOSTINTOTHEHOLDERANDTIGHTENWITHTHESETSCREWS.
BAG5
PartNumber Description QT
Y
61001 MainChassis‐4mm 1
25mmStandOffs topchassisplatetomainchassis 4
M3x10mmFH ChassistoStandoffs 10
BAG6
PartNumber Description QT
Y
61005 FrontShockTower‐4mm 1
61013 15*CasterBlocks‐Aluminum‐EACH 2
M3x8mmFlatHeadCastorBlockstoChassis 4
M3x10mmButtonHead Toattachshocktowertocasterblocks 4
M3LockNuts Toattachballstudtoshocktower 2
ATTACHTHE4STANDOFFSTOTHEMAINCHASSISWHERETHEYARENOTALREADYATTACHEDONTHETOPCHASSISPLATE.ATTACHTHE
TOPCHASSISPLATETOTHEMAINCHASSISPLATEWITHTHEM3X10MMFLATHEADSCREWS.THENATTACHTHEESCPLATEASSHOWNIN
THEPICTURESUSINGTHEM3LOCKNUTSFROMBAG3.
ATTACHTHECASTERBLOCKSTOTHECHASSISUSINGTHEM3X8MMFHSCREWS.THENATTACHTHESHOCKTOWERTOTHECASTER
BLOCKSWITHTHEM3X10MMBHSCREWS.USINGTHEBALLSTUDSFROMYOURASSOCIATEDKIT,INSTALLTHOSEINTOTHESHOCK
TOWERWITHTHEPROVIDED3MMLOCKNUTS.
BAG7
PartNumber Description QT
Y
LNS1342 3x42Turnbuckle 2
LNS1360 3x60Turnbuckle 2
BAG8
PartNumber Description QT
Y
3528 MoldedServoMounts(PAIR) 1
3526 MoldedServoSaverExtender 1
5242 LargeServoSaver 1
M3x6BH TosecureHingePin 2
3mmFlatWasher ForM3x6BHhingepinscrews 2
3mmSpacer SpacergoesbetweenshocktowerandAEshockmount 2
3x25mmBH Usedtomountthetopoftheshocktothetowerusingthe3mmspacerandAEshockmount 2
4‐40x5/16FlatHead ServoMounttoChassis 4
4‐40x3/8ButtonHead ServotoServomounts 4
BAG9
PartNumber Description QT
Y
M3x14mmFH toattachchassistomidbumperwithskidplate 2
M3LockNuts toattachchassistomidbumperwithskidplate 2
61024 3dPrintedSkidPlate 1
INSTALLTHEBALLCUPSFROMYOURASSOCIATEDKITONTOTHESUPPLIEDTURNBUCKLESFORYOURCAMBERLINKSANDSTEERING
LINKAGES.
ATTACHTHEMIDBUMPERTOTHECHASSISWITHTHETWOM3X14MMSCREWSANDLOCKNUTS.THESKIDPLATEWILLGOBETWEEN
THECHASSISANDTHEMIDBUMPERASSHOWN.
USINGTHE4‐40X5/16FHSCREWS,ATTACHTHESERVOMOUNTSTOTHECHASSIS.THENINSTALLTHESERVOEXTENDERONTOTHESERVO
SAVERANDINSTALLONYOURSERVO.SANDTHEBALLCUPSTHATCONNECTTOTHESERVOSAVERSOTHEYDONOTRUBANDCONNECT
THETURNBUCKLESTOTHESERVOSAVER.WHENINSTALLINGTHEAEPARTS,YOUWILLNEEDTOUSETHE3MMSPACERSBETWEENTHE
SHOCKSANDTHESHOCKTOWERTOGIVEITTHECORRECTSPACING.ONCEYOUINSTALLTHEFRONTARMSANDHINGEPIN,YOUWILL
NEEDTODRILLASMALLHOLECLOSETOTHEHINGEPINSOTHATTHEFLATWASHERKEEPSTHEHINGEPININPLACELIKETHEOTHEREND
OFITWITHTHEASSOCIATEDSCREW.
BAG10
PartNumber Description QT
Y
61022 F'nStarBatteryholder2.5mm 2
M3x10mmFH ChassistoBatterystandoff 2
M3x10mmBH ChassistoBatterystandoff 2
25mmStandOffs Batterystandoff2
BAG11
PartNumber Description QT
Y
61023 DragRiserPlate‐4mm 1
M3x20mmFH ToAttachtransmissiontorearofthechassis 2
M3x12mmFH Toattachtransmissiontochassis 6
61019 ARBKit‐wire,26997,23x12BH,170055colla
r
1
INSTALLTHE25MMSTANDOFFSWHERENEEDEDTOFITYOURBATTERYTOTHECHASSISUSINGTHEM3X10MMFHSCREWS.THEN
INSTALLTHEF'NSTARSTOTHESTANDOFFSWITHTHEM3X10MMBHSCREWS.
INSTALLTHERISERPLATEWITHTHECBLOCKFROMYOURASSOCIATEDKITWITHTWOOFTHE12MMFHSCREWS.THENINSTALLTHE
TRANSMISSIONFROMYOURAEKITWITHTHEREMAINING12MMAND20MMSCREWS.THE20MMSCREWSWILLGOTHROUGHTHED
BLOCK.RUNTHEANTI‐SWAYBARTHROUGHTHEBACKOFTHETRANSMISSIONWITHTHECOLLARINTHEMIDDLEANDATTACHTOTHE
REARARMSASSHOWNUSINGTHECONNECTINGRODS.OPTIONAL‐YOUCANUSETHEHARDWARETHATCAMEWITHTHEAEKITFOR
THEARB.YOUCANCONNECTTHEBARTOTHEFACTORYARBLOCATIONSUSINGTHE6997FROMTHEBREAKOUTKIT,ALONGWITHTHE
91820BALLCUPFROMYOURAEKIT.TRIMTHEARBWIREASNEEDED.
BAG12
PartNumber Description QT
Y
61010 BreakoutMotorPlate‐3mm 1
M3x12mmFH toattachmotorplatetotransmission 3
.062#4spacer Topscrewsonmotorplatewhenremovingthespurguard,1betweenbracesontransmission 3
61009 WaterFallBraces‐2.5mm 2
M3x16mmBH ToAttachWaterFallBracetoTransmission 1
M3x12mmBH ToAttachWaterFallBracetoServoMount 1
M3LockNuts ToattachWaterFallBracetoServoMount 1
BAG13
PartNumber Description QT
Y
61008 RearShockTower‐4mm 1
61012 RearBodyMount‐2.5mm 1
12009 RearBodymountDelrinBlock 1
70216 15/8"threadedbodypostwith4‐40x1/4BHscrews 2
70219 AluminumBodyPostHoldershortwithsetscrews 2
4‐40x1/4inBH Bodymountholders 2
M3x12BH Toattachetheshocktowertothetransmission 4
M3x16mmBH Toattachbodymounttotheprintedblock 2
M3LockNuts Toattachbodymounttotheprintedblockandtheshocktowertotheprintedblock 4
M3x22mmBH Toattachshocktowertoprintedblock 2
INSTALLTHEPRINTEDBLOCKONTOTHESHOCKTOWERUSINGTWOOFTHE22MMBHSCREWSANDLOCKNUTS.THENATTACHTHEBODY
MOUNTTOTHEPRINTEDBLOCKUSINGTHE16MMSCREWSAND3MMLOCKNUTS.ATTACHTHEREARSHOCKTOWERTOTHE
TRANSMISSIONUSINGFOUR12MMBHSCREWS.ATTACHTHEBODYMOUNTHOLDERSTOTHEREARBODYMOUNTWINGUSINGTHE4‐
40BHSCREWS.THENINSERTTHEBODYPOSTSINTOTHEHOLDERSANDTIGHTENUSINGTHESETSCREWS.YOUMAYNEEDTOMOUNT
PARTNUMBER61012UNDERPARTNUMBER12009FORCLEARANCEREASONSOFTHEBODY.
ATTACHTHEMOTORPLATETOTHETRANSMISSIONWITHTHE12MMFHSCREWS.WHENNOTUSINGTHESPURGUARD,YOUWILLUSE
TWOOFTHE.062SPACERSBETWEENTHEMOTORPLATEANDTHETRANSMISSION.YOUMAYNEEDTOCUTAFLATSPOTONTHEMSO
THEYFITPROPERLY.INSTALLTHEWATERFALLBRACESATTHETRANSMISSIONWITHA16MMSCREWANDA.062SPACERBETWEEENTHE
BRACES.ATTHESERVOMOUNT,USEA12MMBHSCREWAND3MMNUTTOSECURETHEBRACES.
BAG14
PartNumber Description QT
Y
61014 TransmissionTopPlate‐2.5mm 1
61015 3DPrintedSupports 2
61016 WheelieBarSideplates‐2.5mm 2
70046 Bearings 4
70020 Wheeliebarwheels 2
70025 Wheeliebarwheelorings 2
61043 STDWheeliebarshockmount 1
M3x18mmBH Fronttwoholesofthe61014tothetransmission 2
M3x10mmBH Attaches61043and61014tothetopof61015 4
M3x10mmBH 8forsideplatestostandoffs,8toattachprintedsupports 16
M3x18mmFH Toattachwheeliebartoprintedsupports 4
M3Locknut Thisgoesontheinsideofthe61015ontheM3x18mmFH
M3CounterSunkWashers GoesontheM3x18mmFHtoattachwheeliebartoprintedsupports 4
45mmStandOffs Supportsbetweenthesiderails 3
30mmstandof
f
betweenwheeliebarwheels 1
M3X16mmBH 2forwheeliebarwheels,2forlowershockmount 2
M3LockNut forwheeliebarwheels 2
M3x12mmBH topshockmountforshockonwheeliebar 1
M3LockNut topshockmountforshockonwheeliebar 1
20mmstandoffs lowershockmount 2
3mmx16mmsetscrew Goesthruthelowerendoftheshockandattachesthe220mmstandoffstomounttheshock 1
MOUNTTHEPRINTEDWHEELIEBARSUPPORTSTOTHERISERPLATEWITHFOUROFTHEM3X10MMBHSCREWSWITHTHERECESSED
NOTCHDOWNFORTHEBEARINGTOGOAGAINST.INSTALLTHE3X18MMFHSCREWSWITHTHECOUNTERSUNKWASHERSINTOWHEELIE
BARSUPPORTSTOHOLDTHE61016PANELTOTHE61015SUPPORT.THEBEARINGFLANGEWILLGOONTEHINSIDEOFTHEPANELAND
SITINTHERECESSEDAREAOFTHE61015.INSTALLTHETRANSMISSIONTOPPLATEONTHEREAROFTHETRANSMISSIONANDTHE
WHEELIEBARSHOCKMOUNT.ALLHOLESONTHESHOCKMOUNTWILLUSEA10MMBHSCREW.THEFRONTTWOHOLESONTHE61014
USETHE3X18MMBH.USINGTHE45MMSTANDOFFSAND10MMBHSCREWS,INSTALLTHESTANDOFFSBETWEENTHEWHEELIEBAR
PLATESTOCONNECTTHETWOSIDES.TOINSTALLTHEWHEELS,USETHE16MMBHSCREWANDRUNITTHROUGHTHESIDEPLATE,
INSTALLANUTONTHEBACKSIDEOFIT.THENINSTALLTHEBEARINGINTOTHEWHEELANDINSTALLTHEWHEELSOTHEFLANGEIS
TOWARDSTHEINSIDEOFTHEWHEELIEBARONBOTHSIDES.USETHE30MMSTANDOFFBETWEENTHETWOWHEELS.INSTALLTHE
16MMSETSCREWBETWEENTHE(2)20MMSTANDOFFSTOMOUNTTHELOERENDOFTHESHOCK.INSTALLTHE3X20BHTHROUGHTHE
TOPSHOCKMOUNTUSINGA3MMLOCKNUTTOSECUREIT.YOUDONOTHAVETOUSEASHOCK.YOUCANLOCKDOWNTHEWHEELIE
BARIFYOUSOCHOOSE.YOUCANALSOLEAVETHETOPSCREWSOUTWHENUSINGASHOCKANDLIMITTHETRAVELBYINSTALLING
LIMITERSONTHESHAFTOFTHESHOCKOUTSIDEOFTHESHOCKBODY.
BAG1
PartNumber Description QTY QTYPICKE
D
61003 FrontBumper‐2.5mm 1
61004 FrontMidBumper‐2.5mm 1
70218 25/8"threadedbodypostwith4‐40x1/4BHscrews 2
70220 AluminumBodyPostHolderlongwithsetscrews 2
4‐40x1/4"BH70071 Bottomof70220 2
M3x10mmBH 4
M3LockNuts 4
BAG2
PartNumber Description QTY QTYPICKE
D
61002 MainChassisTopPlate‐4mm 1
25mmStandOffs 6
91719 AssociatedServoMount 1
M3x6mmBH 2
M3x10mmBH 6
BAG3
PartNumber Description QTY QTYPICKE
D
61021 ESCTray2.5mm 1
M3x16mmBH 4
6mmStandOffs 4
M3LockNuts 2
BAG4
PartNumber Description QTY QTYPICKE
D
61011 MidBodyMount‐2.5mm 1
70216 25/8"threadedbodypostwith4‐40x1/4BH 2
70219 AluminumBodyPostHoldershortwithsetscrews 2
4‐40x1/4"BH70071 Tomountthe70219 2
M3x22mmBH 2
10mmStandOff 2
BAG5
PartNumber Description QTY QTYPICKE
D
61001 MainChassis‐4mm 1
25mmStandOffs 4
M3X10FH 10
BREAKOUTPICKLIST KITPICKEDBY:
BAG6
PartNumber Description QTY QTYPICKE
D
61005 FrontShockTower‐4mm 1
61013 15*CasterBlocks‐Aluminum‐EACH 2
M3Locknut 2
M3x8mmFlatHead4
M3x10mmButtonHead 4
BAG7
PartNumber Description QTY QTYPICKE
D
LNS1342 3x42Turnbuckle 2
LNS1360 3x60Turnbuckle 2
BAG8
PartNumber Description QTY QTYPICKE
D
3528 MoldedServoMounts 2
3526 MoldedServoSaverExtender 1
5242 LargeServoSaver 1
M3X6BH RetainingScrewforHingePin 2
3mmFlatWasher Usedwithretainngscrewtocapturehingepin 2
3mmSpacer GoesbetweentheshocktowerandtheAEshockmount 2
3x25mmBH Foruppershockmountthroughtowerhole 2
4‐40x5/16FlatHead70069 4
4‐40x3/8ButtonHead 4
BAG9
PartNumber Description QTY QTYPICKE
D
61024 3DprintedSkidPlate 1
M3x14mmFH 2
M3LockNuts 2
BAG10
PartNumber Description QTY QTYPICKE
D
61022 F'nStarBatteryholder2.5mm 2
M3x10mmFH 2
M3x10mmBH 2
25mmStandOffs 2
BAG11
PartNumber Description QTY QTYPICKE
D
61023 DragRiserPlate‐4mm 1
M3x20mmFH 2
M3x12mmFH 6
61019 ARBKit‐wire,26997,23x12BH,170055collar 1
BAG12
PartNumber Description QTY QTYPICKE
D
61010 BreakoutMotorPlate‐3mm 1
M3x12mmFH 3
.062#4spacer 1forwaterfallbraceand2formotorplate 3
61009 WaterFallBraces‐2.5mm 2
M3x16mmBH 1
M3x12mmBH 1
M3LockNuts 1
BAG13
PartNumber Description QTY QTYPICKE
D
61008 RearShockTower‐4mm 1
61012 RearBodyMount‐2.5mm 1
12009 RearBodymountDelrinBlock 1
70216 15/8"threadedbodypostwith4‐40x1/4BHscrew 2
70219 AluminumBodyPostHoldershortwithsetscrews 2
4‐40x1/4"BH70071 Bodymountholders 2
M3x16mmBH 2
M3LockNuts 4
M3x12mmBH 4
M3x22mmBH 6
BAG14
PartNumber Description QTY QTYPICKE
D
61014 TransmissionTopPlate‐2.5mm 1
61015 3DPrintedSupports 2
61016 WheelieBarSideplates‐2.5mm 2
70046 Bearings 4
70020 Wheeliebarwheels 2
70025 Wheeliebarwheelorings 2
61043 STDwheeliebarshockmount 1
M3x18mmBH Fronttwoholesof61014 2
M3x10mmBH 20
3mmLocknut 7
M3x18mmFH 4
M3CounterSunkWashers 4
45mmStandOffs 3
30mmstandoff 1
M3X16mmBH 2
M3x20mmBH 1
20mmstandoffs 2
3x16mmSetScrew 1
BAG15 SPARESAEHARDWARE
PartNumber Description QTY QTYPICKE
D
4‐40X3/8BH 2
4‐40X1/4BH 4
4‐40X5/16FH 2
BAG16 SPAREMETRICHARDWARE
PartNumber Description QTY QTYPICKE
D
3mmFlatWasher 2
3x16mmsetscrew 1
.062#4SPACER 1
Spacer3MM 1
M3LockNut 10
M3x6mmBH 2
M3x10mmBH 10
M3x12mmBH 6
M3x16mmBH 2
M3x18mmBH 2
M3x20mmBH 2
M3x22mmBH 2
M3x25mmBH 2
M3x8mmFH 2
M3x10mmFH6
M3x12mmFH 10
M3x14mmFH 2
M3x18mmFH 4
M3x25mmFH 2
PartNumbe
r
Description QTY Retail Totalneededperkit
KIT6100
0
BreakoutDragKit 1 $399.99
PartNumbe
r
Description
S
oldas Retail
LNS1342 3x42Turnbuckle PAIR $12.49 1
LNS1360 3x60Turnbuckle PAIR $15.0
0
1
3526 MoldedServoSaverExtender EACH $3.00 1
3528 MoldedServoMounts(PAIR) EACH $3.00 1
3529 BrassServoMountsEACH $14.0
0
5238 AluminumServoMounts‐pair PAIR $12.0
0
5242 LargeServoSaver EACH $6.00 1
12009 RearBodymountPrintedBlock EACH $7.00 1
30001 AEREAROUTERBRASSARM EACH $28.0
0
30005 AEREARADJUSTABLEARMS PAIR $60.0
0
61001 AEMainChassis‐4mm EACH $95.0
0
1
61002 AEMainChassisTopPlate‐4mm EACH $15.0
0
1
61003 FrontBumper‐2.5mm EACH $15.0
0
1
6100
4
FrontMidBumper‐2.5mm EACH $8.00 1
61005 FrontShockTower‐4mm EACH $26.0
0
1
61006 AESTANDOFFKITFORBREAKOUT‐COMPLETECARANDWHEELIEBAR EACH $30.0
0
61007 PrintedWheelieBarWeightBoxwith4ozofweightandhardware EACH $59.99
61008 RearShockTower‐4mm EACH $30.0
0
1
61009 AEWaterFallBraces‐2.5mm EACH $4.00 2
61010 AEBreakoutMotorPlate‐3mm EACH $12.0
0
1
61011 MidBodyMount‐2.5mm EACH $8.00 1
61012 RearBodyMount‐2.5mm EACH $10.0
0
1
61013 AE10*or15*CastorBlocks‐Aluminum‐EACH EACH $20.0
0
2
6101
4
TransmissionTopPlate‐2.5mm EACH $6.00 1
61015 3DPrintedWheelieBarSupports EACH $5.00 2
61016 WheelieBarSideplates‐2.5mm EACH $10.0
0
2
61017 AluminumWheelieBarSidePanelMount EACH $22.0
0
61018 BrassWheelieBarMount EACH $0.00
61019 ARBKit‐wire,26997,23x12BH,170055Collar EACH $22.0
0
1
61020 AE10*AND15*CastorBlocks‐Brass‐EACH EACH $28.0
0
61021 ESCTray2.5mm EACH $10.0
0
1
61022 F'nStarBatteryholder2.5mm EACH $5.00 2
61023 AEDragRiserPlate‐4mm EACH $14.0
0
1
6102
4
3dPrintedSkidPlate EACH $6.00 1
61025 CapPackHolder EACH $4.00
61026 2.5mmcarbonfiberbatteryholderforMaxAmp EACH $8.00
61027 PrintedWaterfallbrace‐highrise EACH $3.00
61028 AEHardwareKitwithAllStandoffs‐includespartsinpicklist EACH $40.0
0
61029 AEUpgradedAluminumARBkit EACH $0.00
61030 AEAluminumWheelieBarShockMountwithCFsides EACH $0.00
61031 Sidepostbodymountkit‐includespartsingray EACH $35.99
61032 AEBreakoutWheelieBarKitcomplete‐bag14andbag11,butno61019 EACH $89.99
61033 PrintedSidebodymountsupport EACH $2.00
6103
4
Bob'sBulletBoxwith4.5oz(128grams)oftungstenweight EACH $49.99
61035 AEPrintedWaterfallbrace‐std EACH $2.00
61036 AEPrintedWheeliebarshockmountfortopoftransmission EACH $20.0
0
61037 DelrinWheelieBarMount‐Each EACH $16.0
0
61038 2OUNCES‐BRASSASSOCIATEDSERVOWEIGHT EACH $35.0
0
61038 4OUNCES‐BRASSASSOCIATEDSERVOWEIGHT EACH $45.0
0
61038 6OUNCES‐BRASSASSOCIATEDSERVOWEIGHT EACH $55.0
0
61039 HOTWIRETAB EACH $3.00
61040 AEWheeliebarshockmountspacer‐1/4" EACH $4.00
61041 AEBrassTransmissionRiserplate‐sameas61023,butbrass EACH $0.00
61042 13.5RearWeightBoxfortransmissionriserplatewith2ozofweight EACH $29.99
61043 StandardWheelieBarMountforBreakout EACH $10.0
0
1
6104
4
RearWeightboxfortransmissionriserwithwheeliebarmounts EACH $34.99
61045 AEBrassTransmissionRiserplate‐sameas10019‐1butbrass EACH $0.00
61046 AEBrasstransmissionriserplate‐sameas61045,buthasbiggernotchforB6CBlock EACH $0.00
61047 AEPrinted2mmextendeddragtransmissionriserwithaluminumcblock1mmlower EACH $15.0
0
61048 AEPrinted2mmextendeddragtransmissionriserwithbrasscblock1mmlower EACH $15.0
0
70020 Wheeliebarwheels EACH $10.0
0
2
70025 Wheeliebarwheelorings EACH $1.00 2
70046 Wheeliebarbearings EACH $5.00 4
70216 15/8"threadedbodypost EACH $3.00 4
70218 25/8"threadedbodypost EACH $3.00 2
70219 AluminumBodyPostHoldershort EACH $5.00 4
70220 AluminumBodyPostHolderlong EACH $6.00 2
91719 AssociatedServoMount EACH $14.49 1
10019‐1AE3DriserplatewithCBlock1mmlower‐printedversion EACH $9.00
WW6100
4
2mmMidBumper EACH $8.00
WW61001 AE3mmChassis EACH $85.0
0
WW6100
8
3mmRearShockTower EACH $24.0
0
WW61005 3mmFrontShockTower EACH $22.0
0
WW61002 2.5mmTopChassisPlate EACH $15.0
0
6mmstandoff EACH $2.00 4
10mmstandoff EACH $2.00 2
20mmstandoff EACH $2.00 2
25mmstandoff EACH $0.20 12
30mmstandoff EACH $2.00 1
45mmstandoff EACH $2.00 3
M3CounterSunkWashers EACH $0.20 4
3mmFlatWasher EACH $1.00 4
3x16mmsetscrew EACH $1.00 2
.062#4SPACER EACH $1.00 4
Spacer3MM EACH $1.00 3
4‐40x3/8BH EACH $1.00 6
4‐40x1/4inBH EACH $1.00 16
4‐40x5/16FH EACH $1.00 6
M3LockNut EACH $1.00 32
M3x6mmBH EACH $1.00 6
M3x10mmBH EACH $1.00 46
M3x12mmBH EACH $1.00 20
M3x16mmBH EACH $1.00 10
M3x18mmBH EACH $1.00 4
M3x20mmBH EACH $1.00 3
M3x22mmBH EACH $1.00 10
M3x25mmBH EACH $1.00 4
M3x8mmFH EACH $1.00 6
M3x10mmFHEACH $1.00 18
M3x12mmFH EACH $1.00 73
M3x14mmFH EACH $1.00 4
M3x18mmFH EACH $1.00 8
M3x25mmFH EACH $1.00 4
Stroke
Stroke
Driver: CHASSIS:
Date: Track:
Front Suspension:
Rear Suspension:
Electronics: Drivetrain:
Tires:
Shocks:
Slipper Clutch:
Ride Height:
Arm Type:
Anti-Roll Bar:
Steering Block:
Camber:
Tower Type:
Kick-Up Angle:
Ride Height:
Radio:
Toe:
Caster Block Insert:
Wheel Hex:
Camber:
Battery Position:
Battery Weight:
Type:
ESC Settings:
Motor:
Battery:
# of Pads:
ESC:
GEAR DIFF OIL:
Wind:
Pinion: Spur:
Timing:
Servo:
Body:
Total Vehicle Weight:
Wheel (F/R):
Notes:
Front Insert:
Rear Insert:
Front Tires:
Front Compound:
Rear Tires:
Rear Compound:
Bump Steer Spacing:
Steering Plate:
Caster Block Spacing:
Steering Stop Spacing:
CASTER *
Ball Stud Spacing:
Front Rear
Piston:
Fluid:
Spring:
Int. Limiters:
Ext. Limiters:
Stroke:
EPA: %%
Throttle: Brake:
Notes:
Eyelet Length:
Cup Offset:
PRELOAD:
Differential:
Ball Diff:
Gear Diff:
Transmission:
Laydown:
3 Gear: Layback:
4 Gear: Stand Up:
Axle Height:
+3
+2
+1
0
3
3
4
2
2
BC A1
1
Ball Stud Spacing:
Ball Stud Spacing:
Camber Link Spacing:
3
3
2
2
B
B
C A
A
1
1
Ball Stud Spacing:
C Mount:
Aluminum Brass
Tower Type:
Anti-Roll Bar:
Arm Type:
Arm Spacing:
Wheel Hex:
CVA Bone Length:
CVA Axle:
Forward Middle Back
Hub Spacing:
Front of Arm Rear of Arm
Shock Mounting Position: Possible Insert Locations
D Mount:
Aluminum Brass
+3 +2 +1 0
Hub Insert:
Height:
Gear Diff Mass:
RESULTS OF QUICKEST ET - 6' ET_______ 132' ET_________ MPH___________
CASTER BLOCK MATERIAL:
SURFACE TYPE:_______________
REAR WING:
CHASSIS THICKNESS:
WEIGHT ON FRONT BUMPER:
WEIGHT ON LEFT SIDE:
WEIGHT ON RIGHT SIDE:
REAR TO FRONT WEIGHT %:
BODY, CHASSIS AND WEIGHT:
NOTES:
1 OR 2 SHOCKS ON WHEELIE BAR:
SHOCK MODEL / MANUFACTURER:
SHOCK OIL WEIGHT:
SHOCK SPRING:
PRELOAD ON SHOCK:
SHOCK POSITION:
18mm
0*
0*
N/A
GULLWING
KIT / OUTER HOLES
5* UP
4MM
15*
STK ASSOC
0
STK ASSOC
0
1MM
0mm
1mm
X
20mm
-2*
FiveStar roll bar
GULLWING
BACK
KIT / OUTER HOLES
5mm
69mm
+2mm
X
X
X
X
X
X
2mm
2mm
2mm
X
X
+3
LOCKER
SLIPPER ELIMINATOR
2 x 1.6 Flat
2 x 1.7 Flat
2k Diff Fluid
90 wt
WHITE
WHITE
N/A
N/A
N/A
N/A
28 mm
22 mm
LONG
SHORT
10mm
5mm
2
FRNT ASSOC SHOCKS
90 wt
RC4Less Gold Spring
x
x
Stroke
Stroke
Driver: CHASSIS:
Date: Track:
Front Suspension:
Rear Suspension:
Electronics: Drivetrain:
Tires:
Shocks:
Slipper Clutch:
Ride Height:
Arm Type:
Anti-Roll Bar:
Steering Block:
Camber:
Tower Type:
Kick-Up Angle:
Ride Height:
Radio:
Toe:
Caster Block Insert:
Wheel Hex:
Camber:
Battery Position:
Battery Weight:
Type:
ESC Settings:
Motor:
Battery:
# of Pads:
ESC:
GEAR DIFF OIL:
Wind:
Pinion: Spur:
Timing:
Servo:
Body:
Total Vehicle Weight:
Wheel (F/R):
Notes:
Front Insert:
Rear Insert:
Front Tires:
Front Compound:
Rear Tires:
Rear Compound:
Bump Steer Spacing:
Steering Plate:
Caster Block Spacing:
Steering Stop Spacing:
CASTER *
Ball Stud Spacing:
Front Rear
Piston:
Fluid:
Spring:
Int. Limiters:
Ext. Limiters:
Stroke:
EPA: %%
Throttle: Brake:
Notes:
Eyelet Length:
Cup Offset:
PRELOAD:
Differential:
Ball Diff:
Gear Diff:
Transmission:
Laydown:
3 Gear: Layback:
4 Gear: Stand Up:
Axle Height:
+3
+2
+1
0
3
3
4
2
2
BC A1
1
Ball Stud Spacing:
Ball Stud Spacing:
Camber Link Spacing:
3
3
2
2
B
B
C A
A
1
1
Ball Stud Spacing:
C Mount:
Aluminum Brass
Tower Type:
Anti-Roll Bar:
Arm Type:
Arm Spacing:
Wheel Hex:
CVA Bone Length:
CVA Axle:
Forward Middle Back
Hub Spacing:
Front of Arm Rear of Arm
Shock Mounting Position: Possible Insert Locations
D Mount:
Aluminum Brass
+3 +2 +1 0
Hub Insert:
Height:
Gear Diff Mass:
RESULTS OF QUICKEST ET - 6' ET_______ 132' ET_________ MPH___________
CASTER BLOCK MATERIAL:
SURFACE TYPE:_______________
REAR WING:
CHASSIS THICKNESS:
WEIGHT ON FRONT BUMPER:
WEIGHT ON LEFT SIDE:
WEIGHT ON RIGHT SIDE:
REAR TO FRONT WEIGHT %:
BODY, CHASSIS AND WEIGHT:
NOTES:
1 OR 2 SHOCKS ON WHEELIE BAR:
SHOCK MODEL / MANUFACTURER:
SHOCK OIL WEIGHT:
SHOCK SPRING:
PRELOAD ON SHOCK:
SHOCK POSITION:
This manual suits for next models
3
Table of contents
Other FiveStar Blower manuals
