FläktGroup AP BIO 400 User manual

AP BIO 400/500/1000/2400
AIR PURIFIER
INSTALLATION, OPERATION AND MAINTENANCE MANUAL

Table of Contents AP BIO
400/500/1000/2400
2FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications
1 Unit type code ............................................................................. 3
2 Overview of Units and Packaged Content ................................ 4
2.1 Series ......................................................................................................... 4
2.2 Packaged content ...................................................................................... 4
3 Safety and User Information ...................................................... 5
3.1 Availability of the operation manual ........................................................... 5
3.2 Scope of the operation manual .................................................................. 5
3.3 Symbols used ............................................................................................ 5
3.4 Identification of safety instructions ............................................................. 6
3.5 Used safety symbols .................................................................................. 7
3.6 Safety-conscious work procedures ............................................................ 8
3.7 Proper use ................................................................................................. 9
3.8 Improper use .............................................................................................. 9
3.9 Safety standards and regulations .............................................................. 9
3.10 Modifications and changes ........................................................................ 9
3.11 Spare parts .............................................................................................. 10
3.12 Disposal ................................................................................................... 10
3.13 Selection and qualification of personnel .................................................. 10
4 Technical Description ............................................................... 11

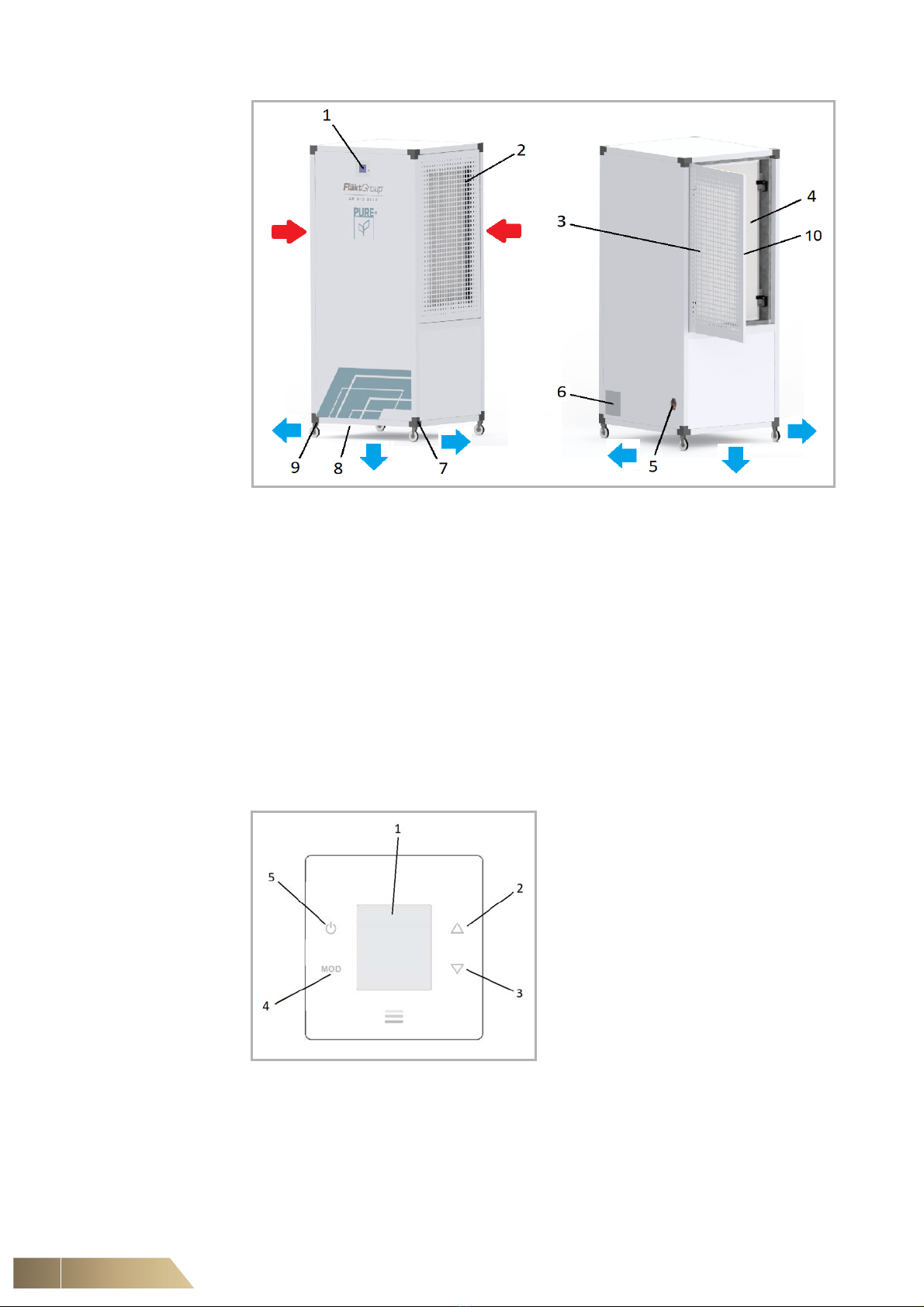

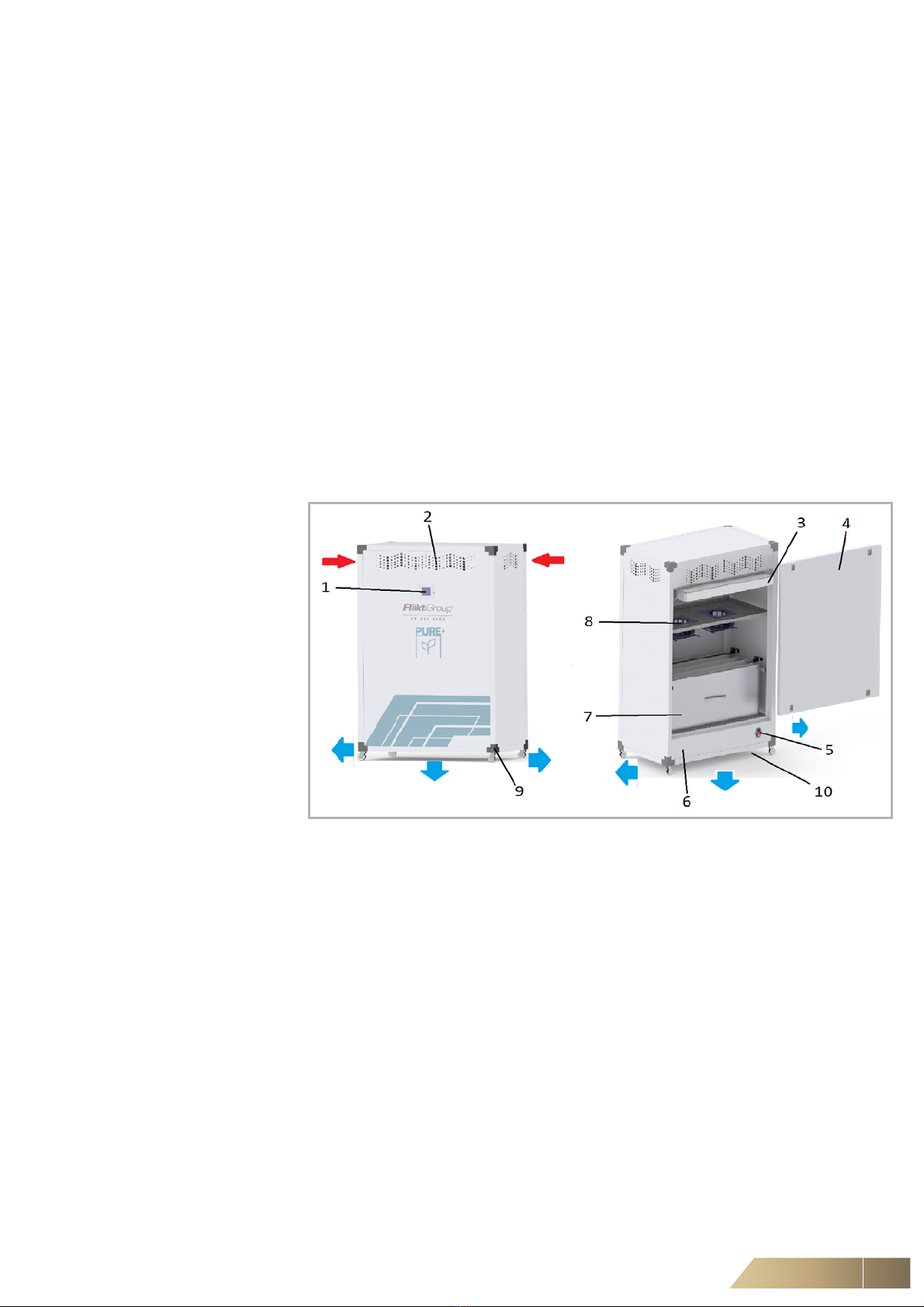

4.1 Unit description ........................................................................................ 11
4.2 Functional description .............................................................................. 13

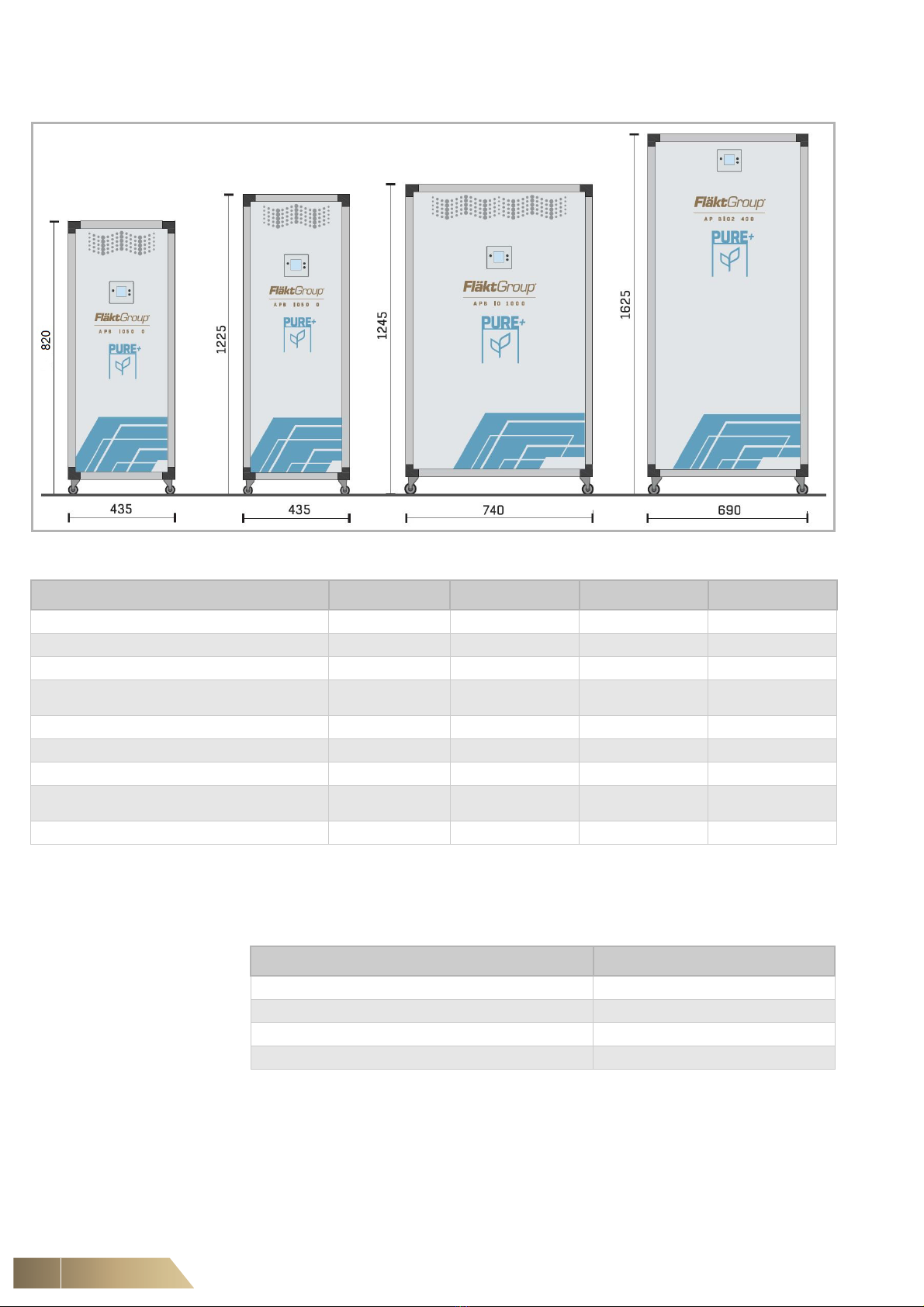

4.3 Technical data AP BIO ............................................................................. 14
4.4 Operating limits ........................................................................................ 14
4.5 Spare parts .............................................................................................. 15
5 Shipping and storage ............................................................... 16
5.1 Delivery .................................................................................................... 16

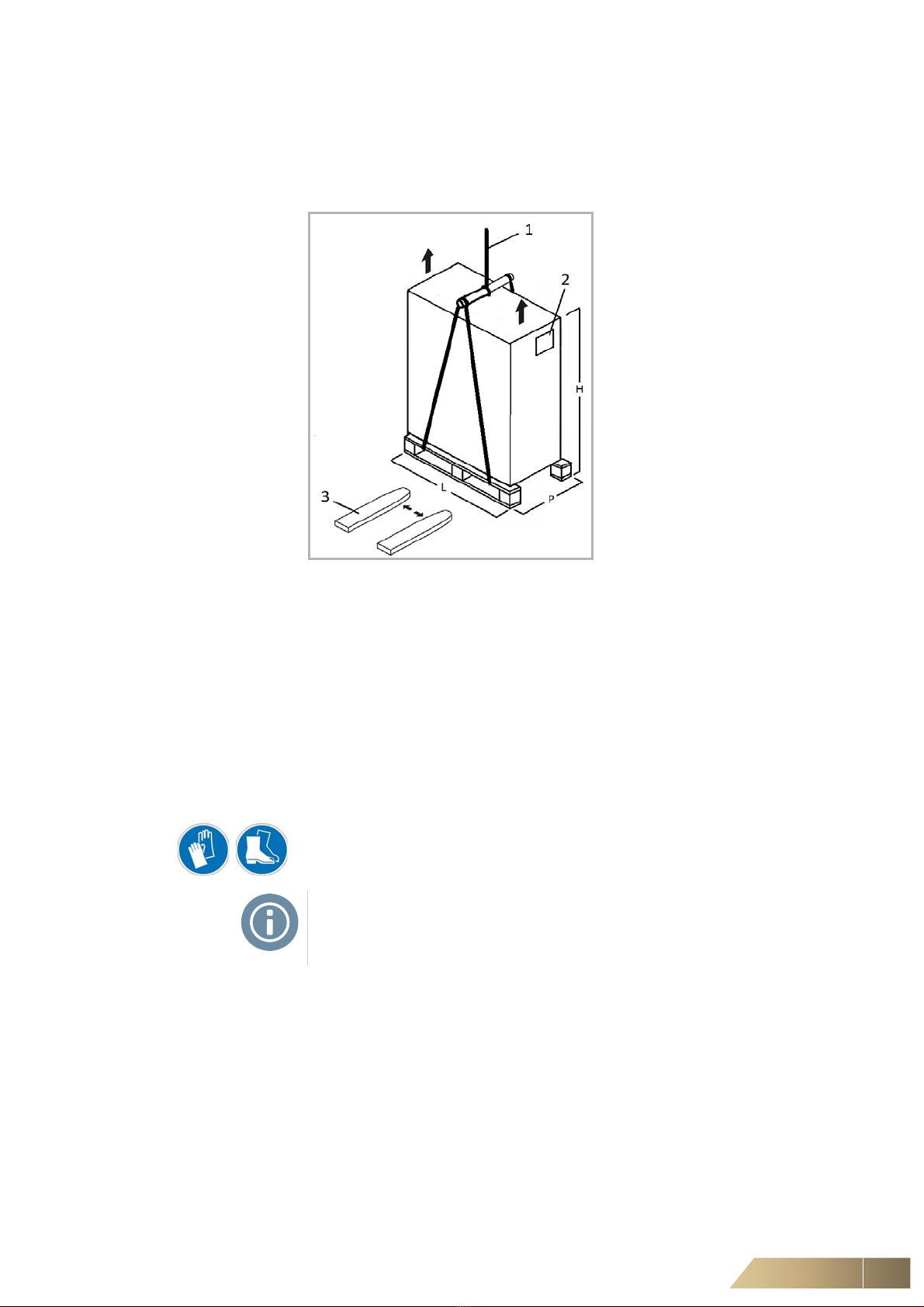

5.2 Transport .................................................................................................. 16
5.3 Storage .................................................................................................... 17
6 Assembly ................................................................................... 18
6.1 Erecting the unit ....................................................................................... 18
7 Commissioning and operation ................................................ 19

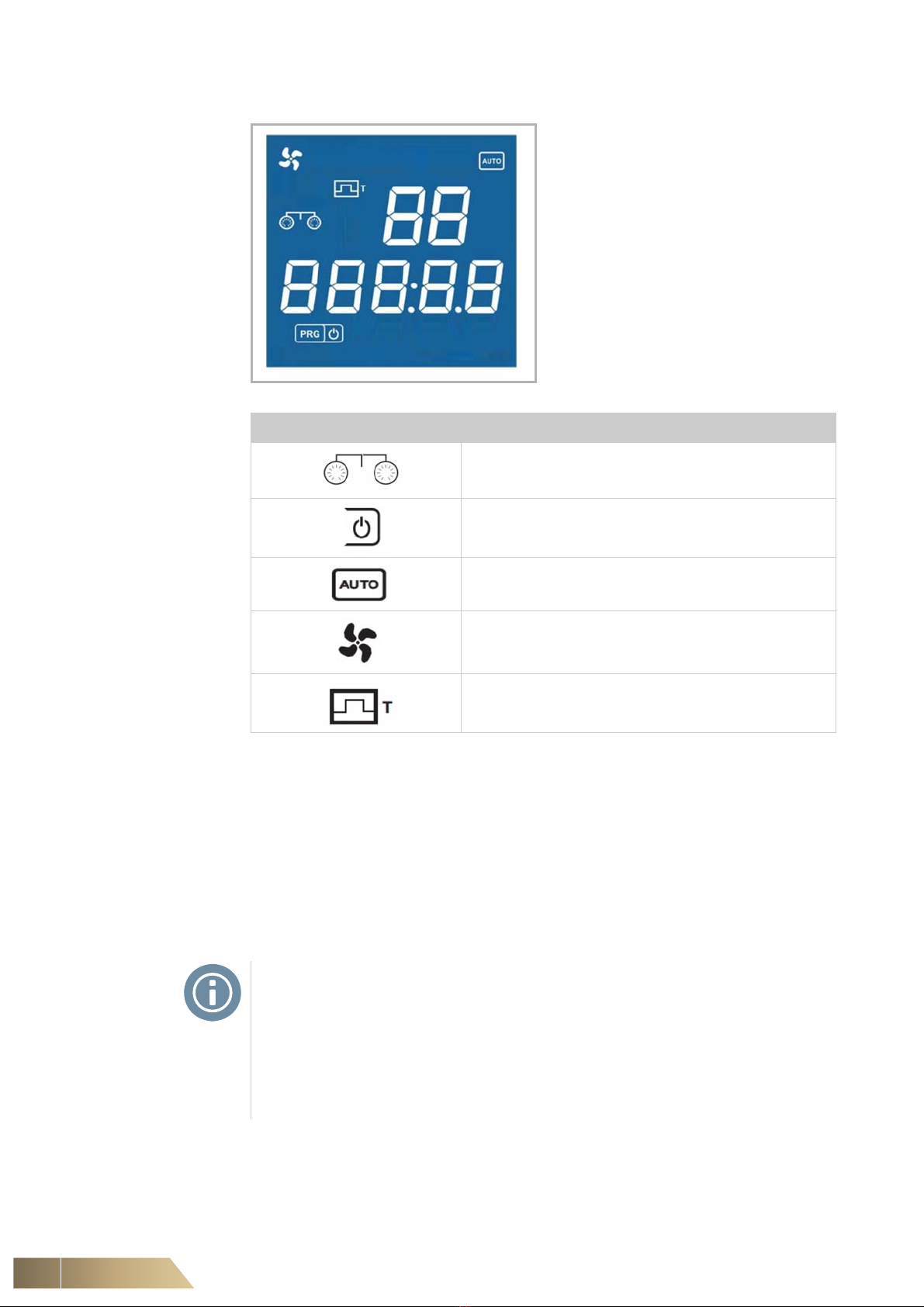

7.1 Overview of the operating elements ........................................................ 19
7.2 Commissioning ........................................................................................ 20
7.3 Operation ................................................................................................. 21
7.4 Settings .................................................................................................... 21
8 Fault finding and troubleshooting ........................................... 22
8.1 Troubleshooting ....................................................................................... 22
9 Maintenance of the AP BIO ...................................................... 23
9.1 Replacing the filters ................................................................................. 23
9.2 Cleaning the air purifier ............................................................................ 27
10 Disassembly and Disposal ....................................................... 28
10.1 Dismantling .............................................................................................. 28
10.2 Disposal ................................................................................................... 28
11 Appendix .................................................................................... 29
11.1 CE-Certification ........................................................................................ 29

AP BIO Unit type code
400/500/1000/2400
FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications 3
1 Unit type code
FläktGroup AP BIO Series AP 04 . B S C A 00 Z AP 04 FB
Product line Size Filter set Control system Fan control Design (frame) Additional features Accessories Product line Size Type
Product line AP BIO
Size
04 - 400
05 - 500
10 - 1000
24 - 2400
Filter set B - biological (anti virus & bacteria)
Control
system S - standard
Fan control C - constant flow
Design
(frame) W - white
Additional
features 00 - without
Accessories ZAP - AP BIO
Size
04 - 400
05 - 500
10 - 1000
24 - 2400
Type
Filters
FS - biological filter ISO ePM1 55% (F7) + HEPA filter (H14), set for 1 unit
FP - pre-filter (ISO ePM1 55% (F7), set for 1 unit
FB - biological HEPA filter (H14), set for 1 unit

Overview of Units and Packaged Content AP BIO
400/500/1000/2400
4FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications
2 Overview of Units and Packaged Content
2.1 Series
For detailed information on individual unit series refer to the data sheets or the
quotation text for the unit.
2.2 Packaged content
The following components are included in the packaged content:
–Unit according to designation on the unit identification plate
– Operation manual including all information on the supplied unit
– Possible accessories and special equipment (only if ordered). Consider supplied
operation and installation manuals for accessories supplied separately
Notice!
Use only provided order-related documentation for commissioning, maintenance
and servicing of the unit. It is not allowed to use general data, since they may not
take actually installed individual components and special accessories into account.

AP BIO Safety and User Information
400/500/1000/2400
FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications 5
3 Safety and User Information
This is an original operation manual verified by the manufacturer. FläktGroup AP BIO
series units are constructed using state-of-the-art technology and according to recog-
nized safety regulations.
Use the FläktGroup units only in a technically sound condition for the intended
purpose, observing the current operation manual and taking safety aspects and
potential hazards into account. Failure to follow the instructions in this manual may
result in danger to health and safety, damage to materials and incorrect unit operation.
Have all faults repaired by an authorized specialist without delay!
3.1 Availability of the operation manual
This operation manual contains important instructions regarding safe and proper
operation of the FläktGroup unit.
This operation manual must be available at the installation site of the unit at all times.
Anyone who works with or on the unit must read and observe this operation manual.
The operation manual is intended for use by fitting and installation companies, building
services engineers, technical personnel or trained persons as well as electrical
specialists.
3.2 Scope of the operation manual
This operation manual provides information about the following:
– Assembly/disassembly
– Use and operation
– Maintenance and Troubleshooting
3.3 Symbols used
The following symbols are used to highlight particular text sections in this operation
manual:
– This symbol is used for normal lists.
•This symbol indicates instructions to follow.
9This symbol indicates the result of an action.
ATTENTION
Damage to the unit!
In case of alarms and faults, always make sure that the cause of the error is
identified. In particular, a manual reset of an alarm without first rectifying the cause
can damage the unit and invalidate the warranty.
Notice!
Additional details on using the units are specified here.
Recycling!
This symbol is used to highlight instructions on proper reuse of packaging material
and disused components and assembly groups (separated according to recyclable
materials).

Safety and User Information AP BIO
400/500/1000/2400
6FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications
3.4 Identification of safety instructions
The following designations/symbols are used in this manual to specify safety
instructions:
3.4.1 DANGER – Death/serious irreversible injury
Indicates an (extremely) hazardous situation which will result in death or serious
irreversible injury if the safety instructions are not followed.
Example:
3.4.2 WARNING – Death/serious injury
Indicates a hazardous situation which can result in death or serious irreversible
injury if the safety instructions are not followed.
Example:
3.4.3 CAUTION – Minor or moderate injury
Indicates a hazardous situation which can result in minor or moderate injury if the
safety instruction is not followed.
Example:
Electrocution through hazardous voltage will lead to death or serious injury.
•Disconnect the unit from the power supply and ensure the power cannot be
switched back on.
•Ensure the unit is voltage-free and isolated, earth and short circuit the unit, cover
or shield off neighboring live components.
Warning of contaminated filter surfaces!
When working on the unit or in case of damage to the components, there is a health
risk injury the contaminated filter surfaces.
•Wear protective clothing and safety goggles
•Wear protective mask
•Exercise due caution and attention when carrying out this work.
Sharp corners and edges can cause injuries!
There is a risk of cuts on thin edges when cleaning or maintaining the unit.
•Wear resistant gloves.

AP BIO Safety and User Information
400/500/1000/2400
FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications 7
3.4.4 ATTENTION – Environmental or material damage
Indicates actions that can result in damage to equipment or property.
Examples:
3.5 Used safety symbols
ATTENTION
ATTENTION
Environmental damage!
Heavily contaminated filters can have a negative impact on production processes.
Depending on the filtered-out materials, contaminated filters are therefore classi-
fied as hazardous waste and must be properly disposed of according to the pre-
vailing directives and laws.
ATTENTION
Damage through static discharge!
While carrying out adjustment work on the unit, make sure that you discharge
yourself statically before touching the electrical components.
Electrical hazard
Personal injury
Overhead loads
Risk of tipping
Rotating components
Crushing of limbs
Sharp cutting edges
Static discharge
Environmental damage
Damage to the unit
Contaminated surfaces

Safety and User Information AP BIO
400/500/1000/2400
8FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications
3.6 Safety-conscious work procedures
When carrying out installation or maintenance jobs FläktGroup recommends to ob-
serve the following instructions:
•Wear suitable protective clothing during all work, such as protective footwear,
gloves, safety goggles, etc.
•Avoid flame sources, especially burning cigarettes. Open flame sources and
smoking in the proximity of the unit are prohibited. Filters in general and used filters
in particular can easily catch fire.
General Notes:
– As long as the unit is operating and rotating parts are still moving, do not remove any
unit covers and protective covers.
– Before switching on the unit again, make sure that the unit panels and doors are
properly attached and closed.
When working within range of mains voltage:
For all kinds of work:
•Please comply with the installation and shipping instructions for FläktGroup units.
•Observe the pre-commissioning requirements.
•Always make sure that the FläktGroup unit is accessible only to authorized and
trained technical personnel. If necessary, use appropriate equipment to keep
unauthorized persons away from the unit.
Electrocution through hazardous voltage will lead to death or serious injury.
•Disconnect the unit from the power supply and ensure the power cannot be
switched back on.
•Ensure the unit is voltage-free and isolated, earth and short circuit the unit, cover
or shield off neighboring live components.
Warning of contaminated filter surfaces!
When working on the unit or in case of damage to the components, there is a health
risk injury the contaminated filter surfaces.
•Wear protective clothing and safety goggles
•Wear protective mask
•Exercise due caution and attention when carrying out this work.
Sharp corners and edges can cause injuries!
There is a risk of cuts on thin edges when cleaning or maintain the unit.
•Wear resistant gloves.

AP BIO Safety and User Information
400/500/1000/2400
FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications 9
3.7 Proper use
AP BOI air purifiers are only used indoors, i.e. in standard environments according to
IEC 60721-3-3 and are designed exclusively for internal filtration and decontamination
of air.
•Children are not allowed to operate the unit.
•Indoor installation only, it is allowed to operate the unit only indoors.
•Keep the unit away from open flames.
•Install the unit on an even surface and ensure safe cabling connection.
Proper use also includes observance of the operation manual and the inspection and
maintenance conditions stipulated by FläktGroup.
3.8 Improper use
Any use other than that described above is considered improper. The manufacturer/
supplier is not liable for damage arising from improper use. The user alone bears the
risk.
3.9 Safety standards and regulations
During installation, electrical connection, commissioning, repairs and maintenance of
the AP BIO air purifiers ensure to meet the applicable safety regulations, standards
and generally accepted technical rules.
– DIN EN 60335-1 ed. 3 Household and similar electrical appliances
Safety - Part 1: General requirements.
3.10 Modifications and changes
You are not allowed to change, add to or modify the FläktGroup units in any way. Any
changes or modifications to the FläktGroup units will invalidate the CE conformity
certificate and render all warranty claims null and void.
Personal injury and equipment damage!
It is not allowed to operate FläktGroup units:
– in areas subject to explosion risk
– outdoors
– in environments with strong electromagnetic fields
– for industrial air filtration

Safety and User Information AP BIO
400/500/1000/2400
10 FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications
3.11 Spare parts
Only original FläktGroup spare parts are allowed, since FläktGroup is not liable if
third-party spare parts are used.
3.12 Disposal
Equipment and operating supply materials must be disposed of according to material
type in an environmentally friendly manner – please refer to chapter 10.2 "Disposal".
3.13 Selection and qualification of personnel
Ensure that every person working on the unit has read and understood this entire
operation manual – especially the chapter on safety. It is too late to do this after work
has already begun.
All skilled staff must be able to assess the work assigned to them, and recognize and
avoid all associated dangers.

AP BIO Technical Description
400/500/1000/2400
FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications 11
4 Technical Description
4.1 Unit description
AP BIO air purifiers are equipped with a filtration system for decontamination of air.
This process is performed by filter inserts of filtration class ISO ePM1 55% (F7) and
HEPA filter inserts of filtration class H14 with active bactericidal, fungicidal and viru-
cidal agent AirFend ™, which filters and decontaminates bacteria and viruses.
AP BIO air purifiers are fully completed at the factory and are subjected to a test oper-
ation, so they are easy and quick to install.
Directives and regulations Units meet the following directives and standards:
– Directive on Machinery 2006/42/EC
– Low Voltage Directive (LVD) 2014/35/EU
– Electromagnetic Compatibility (EMC) 2014/30/EU
– Certified Quality Management System ISO 9001
4.1.1 General overview
Fig. 4-1 General overview AP BIO 400, 500 and 1000
1: Control panel
2: Indoor air inlet
3: Pre-filter ISO ePM1 55% (F7)
4: Access panel with key
5: Power socket with integrated switch
6: Identification plate
7: HEPA H14 AirFend filters
8: Fans with EC motors
9: Casters
10: Clean air outlet

Technical Description AP BIO
400/500/1000/2400
12 FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications
Fig. 4-2 General overview AP BIO 2400
1: Control panel
2: Indoor air inlet
3: Access door with key
4: Pre-filter ISO ePM1 55% (F7) and HEPA H14 AirFend filter
5: Power socket with integrated switch
6: Identification plate
7: Rear casters
8: Clean air outlet
9: Front caster (with brake)
10: Door lock for access with key
For installed components on the individual unit, refer to the data sheets or the quotation
text for the unit.
4.1.2 Control panel
Fig. 4-3 Overview control panel
1: Display
2: Increase button
3: Decrease button
4: Mode setting button
5: On/Off button
For the data displayed on control panel, refer to chapter 7.1 "Overview of the operating
elements".

AP BIO Technical Description
400/500/1000/2400
FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications 13
4.2 Functional description
4.2.1 AP BIO air purifier (Model 2400)
Fig. 4-4 Functional overview
1: Indoor air inlet
2: Control panel
3: Indicator light
4: Fan
5: Air outlets
6: Second HEPA H14 filtration barrier
7: First ISO ePM1 55% (F7) filtration barrier
The control panel (2) used to adjust the air flow rate of the unit.
The electrically driven fan (4) creates a constant negative pressure in the air column.
The air flows through the indoor air inlet (1) and further through the ISO ePM1 55%
(F7) filtration barrier (7). In this step 55% of particles and microbes are captured.
A second HEPA H14 filtration barrier (6), which is also impregnated with the 100%
natural AirFendTM bio-decontaminating solution in powder form, deactivates viruses
and bacteria.
The clean air flows out through the air outlets (5) where traps are present to reduce
noise levels.
The indicator light (3) indicates a filter change when the loading conditions are
reached.

Technical Description AP BIO
400/500/1000/2400
14 FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications
4.3 Technical data AP BIO
Fig. 4-5 Example dimensions AP BIO 400
Tab.4-1 Technical specifications
4.4 Operating limits
AP BIO 400 AP BIO 500 AP BIO 1000 AP BIO 2400
Air flow range 90 - 400 m3/h 90 - 500 m3/h 180 - 1000 m3/h 240 - 2400 m3/h
Average air flow 300 m3/h 300 m3/h 600 m3/h 1250 m3/h
Filter face velocity 0.90 m/s 0.90 m/s 0.90 m/s 0.50 m/s
Dimensions (LxWxH) 435x435x820mm
(incl. wheels)
435x435x1225mm
(incl. wheels)
740x435x1245mm
(incl. wheels)
690x640x1625mm
(incl. wheels)
Weight 25 kg 32 kg 58 kg 89 kg
Operating voltage 230 V AC, 50 Hz 230 V AC, 50 Hz 230 V AC, 50 Hz 230 V AC, 50 Hz
Max. power consumption 180 W 180 W 350 W 1360 W
Sound pressure level LPA at max airflow at a distance
of 1m from the air purifier 61 db(A) 63 db(A) 66 db(A) 77 db(A)
Filter placement Top Top Top Side
Max. operating temperature 45 °C
Max. operating temperature 5 °C
Max. operating humidity 90%
For specifications also refer to the unit name plate

AP BIO Technical Description
400/500/1000/2400
FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications 15
4.5 Spare parts
4.5.1 Specification of filters
Tab.4-2 Specification of filters
Type Size Class Frame Surface
m2Gasket AirFlow
m3/h Order code
AP BIO 400 305 x 305 x 292 H14 galvanized steel U-profile 6.5 PU 750 ZAP 04 FB
AP BIO 500 305 x 305 x 292 H14 galvanized steel U-profile 6.5 PU 750 ZAP 05 FB
AP BIO 1000 305 x 610 x 292 H14 galvanized steel U-profile 13 PU 1500 ZAP 10 FB
AP BIO 2400 450 x 850 x 117 H14 galvanized steel U-profile 14 PU 1400 ZAP 24 FB
AP BIO 400 305 x 305 x 48 ISO ePM1 55% Plastic 1.6 No 500 ZAP 04 FP
AP BIO 500 305 x 305 x 48 ISO ePM1 55% Plastic 1.6 No 500 ZAP 05 FP
AP BIO 1000 305 x 610 x 48 ISO ePM1 55% Plastic 3.3 No 1000 ZAP 10 FP
AP BIO 2400 450 x 850 x 48 ISO ePM1 55% Plastic 6.7 No 2100 ZAP 24 FP

Shipping and storage AP BIO
400/500/1000/2400
16 FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications
5 Shipping and storage
5.1 Delivery
The units will be delivered with casters and with mounted filters.
Upon receipt of the units, inspect them for shipping damage and verify that the ship-
ment is complete (refer to chapter 2.2 "Packaged content") according to the freight bill.
Take photographs of all visible transit damage.
5.2 Transport
•Before lifting or shipping the unit, make sure that all mountings are fixed and
secured.
•Only use lifting gear with sufficient load-bearing capacity.
•Never use damaged lifting gear.
•Ropes/chains must not be knotted and/or be exposed to sharp edges.
•Only use ropes/chains of the same length.
•Only use the designated lifting gear (provided on site).
•A girder with suitable load-bearing capacity must be used to ensure the stability of
the lifted load and to avoid the lifting gear coming in contact with the unit.
•Move the unit carefully without fast irregular movements.
•Do not move the unit in case of strong wind conditions.
•Always set the unit down gently, without bumping it.
•If required, engage a specialist company to ship the unit.
Notice!
Missing parts or claims of shipping damage can only be reported to the transport
insurance if the damage has been confirmed by the delivering carrier.
Notice!
We recommend keeping the equipment in the original packaging for protection and
ease of handling during shipping and storage.
Remove the original packaging only just before installation.
Up to commissioning, protect the unit from building dust, dirt and damage!
Danger due to high loads!
Inappropriate handling with high loads can lead to death or serious injuries.
For unit weight, refer to the order-related documentation and the unit identification
plate.
Danger due to overhead loads!
Never stand beneath suspended loads, since there is always a risk that the lifting
gear, tackle, ropes or slings are faulty or damaged. Failure to follow safety precau-
tions could result in death or serious injury.
•Wear safety clothing and protective helmet.
•Never stand under suspended loads!

AP BIO Shipping and storage
400/500/1000/2400
FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications 17
TRANSPORT WITH PACKAGING
Only appropriately equipped personnel must perform the transportation in compliance
with the applicable safety regulations. Lifting and rigging the unit must only be per-
formed using lifting devices appropriately designed to support the entire weight of the
unit. Do not stack the units!
Fig. 5-1 Transporting with packaging
1: Crane
2: Identification plate
3: Lift truck
•Lifting with the lift truck (3)
Position the fork at the unit bottom and set it to the widest possible position.
•Lifting with the crane (1)
To lift, insert poles into the feet of the unit that are long enough for the lifting ropes
and anti-slip devices to be attached. For the dimensioning of the pipes, please refer
to the figure in the corresponding section.
To avoid damage, make sure that the hoist ropes cannot rub against the unit.
•For your own safety wear gloves and safety footwear when lifting or shipping the
unit.
5.3 Storage
Allowable storage conditions / allowable air condition for un-installed units
The storage of air purifiers and filter inserts with the virucidal agent AirFend ™ is
allowed in warehouses of type IE 12 according to EN IEC 60721-3-1 ed. 2. Units must
be stored in a weatherproof, dry and dust-free location.
Air temperature: - 15 °C to + 46 °C
Air humidity: up to 85% (relative humidity with no condensation)
Notice!
Use only supplied documentation and enclosed detailed dimensional drawings
when transporting the unit.

Assembly AP BIO
400/500/1000/2400
18 FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications
6 Assembly
6.1 Erecting the unit
The unit must be installed at a location that fulfills the following requirements:
– Ensure that the ground are level and that it can support the weight of the equipment,
so that no vibrations or operating noises occur when the unit is operating.
– The unit must be installed in such a way that it is only accessible to trained and
authorized technical personnel. If required, use appropriate equipment to keep
unauthorized persons away from the unit.
– To achieve the best performance of the AP BIO air purifier it is desirable to position
the unit as close to the center of the room as possible. Make sure that the indoor air
inlets at the top of the unit are not blocked, otherwise operation, performance and
noise levels will be affected.
– Roll the unit to the desired position and apply the brake on the front casters
(AP BIO 2400 and AP BIO 1000).
– Connect the power supply. If necessary, use an extension cord compatible with the
electrical power of the unit (see identification plate).
Note on mounting and installing the unit!
Here you will find information on how to mount and install the unit.
Placement, installation and assembly may only be carried out by qualified
specialists with proper professional training and experience in the relevant
accident prevention regulations, as well as other generally recognized safety and
occupational health codes.
Note on moving the unit!
If the FläktGroup units have been moved from one plant/location to another,
repeated commissioning is required.
Notice!
Use only the supplied order-related documentation and enclosed detailed
dimensional drawings when transporting the unit.

AP BIO Commissioning and operation
400/500/1000/2400
FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications 19
7 Commissioning and operation
7.1 Overview of the operating elements
7.1.1 Control panel elements
Fig. 7-1 Overview control panel
1: Display
2: Increase button
3: Decrease button
4: Mode setting button
5: On/Off button
ATTENTION
Damage to the unit!
The unit must not be operated until the proper function tests have been carried out.

Commissioning and operation AP BIO
400/500/1000/2400
20 FG-DC_10523-GB_AP Bio_IOM-R0-12/2020 • Subject to modifications
7.1.2 Symbols of the control panel display
Fig. 7-2 Symbols of the control panel display
Tab.7-1 Symbols of the control panel display
7.2 Commissioning
•Set the power switch to position ON (I). Refer to:
Fig. 4-1 General overview AP BIO 400, 500 and 1000 Pos. 5 and
Fig. 4-2 General overview AP BIO 2400 Pos. 5.
•After a few moments, the WAIT symbol will disappear from the display.
•Use the INCREASE button to adjust the air volume setpoint to the maximum value
•Enable unit to operate for 3 to 5 hours.
•After 3 to 5 hours of initial activation use the INCREASE or DECREASE button to
adjust the air volume setpoint to the desired value.
•Repeat the above activation procedure when the AirFend HEPA14 filter is replaced.
Symbol Meaning
Constant flow
On/Off status light
Off = Unit is off
On = Unit is on
Regulation mode status light
Off = Manual mode
On = Automatic mode
Fan status light
Off = Fan is off
On = Fan is running
Alarm light indicating clogged filter alarm light
Notice for the first unit activation!
– When the unit is switched on for the first time, the AirFend is transferred to the
HEPA filter which activates the biological AirFend layer.
– This will result in a smell of cloves and other biological substances.
– Such smell emissions are normal and do not represent a reason for complaint.
– This smell subsides in a few days following the activation.
– Activation of the AirFend layer can cause allergic reaction.
