Flavel FSSP00MN Mounting instructions

SILVER SAPPHIRE
INSET “HOLE IN THE WALL” DECORATIVE
FUEL-EFFECT GAS FIRE
Installation, Maintenance & User Instructions
Hand these instructions to the user
Model No. FSSP00MN & FSSC00MN are for use on Natural Gas (G20)
at a supply pressure of 20 mbar in G.B. / I.E.
NOTE TO THE INSTALLER : Prior to commencing
Installation of this product, ensure you have an M3 / M4
socket or nut runner available

CONTENTS
PAGE
Section 1 Information and Requirements
1.0 Appliance information 3
1.1 Conditions of installation 4
1.2 Flue & Chimney Suitability 4
1.3 Site Preparation / Location 5
1.4 Shelf position 5
1.5 Fitting to Pre-Fabricated Metal Flue boxes 5
1.6 Spillage Monitoring System 5
Section 2 Installation of Fire
2.1 Unpacking the firebox and Silver Sapphire trim assembly 6
2.2 Preparing the firebox opening 7
2.3 Installing the firebox and gas supply pipe 8-11
2.4 Gas tightness and inlet pressure 11
2.5 Fitting the Silver Sapphire trim assembly 12-13
Section 3 Assembling Fuel Bed and Commissioning
3.1 Fitting the pebble fuel-bed set 13-16
3.2 Fitting the coal fuel-bed set 17-20
3.3 Lighting the appliance 21
3.4 Checking for clearance of combustion products 22
Section 4 Maintenance
4.1 Removal of the burner assembly 23
4.2 Removal of the piezo igniter 23
4.3 Removal of the control valve 24
4.4 Removal of the ODS pilot assembly 24
Section 5 User Instructions
5.1 About your Flavel Silver Sapphire 25
5.2 Operating the Fire 26
5.3 Cleaning the Fire 27
5.4 Assembling the Pebble Fuel-bed 28-31
5.5 Assemblling the Coal Fuel-bed 31-35
Model numbers FSSP00MN & FSSC00MN are manufactured by:-
CFM Europe Ltd
Trentham Lakes
Stoke-on-Trent
Staffordshire
ST4 4TJ
2

SECTION 1
INFORMATION AND REQUIREMENTS
1.0 APPLIANCE INFORMATION
Main injector : (1 off) Bray Injector Cat 82 – size 500 (NG)
Pilot Type : Copreci ODS 21100 / 141
Max. Gross Heat Input : 6.9 kW
Min. Gross Heat Input : 4.2 kW
Cold Pressure : G20 20.0+/-1.0 mbar (8.0 +/- 0.4 in w.g.)
Ignition : Push Button Piezo
Electrode Spark Gap : 4.0mm
Packed W eight Combustion Chamber : 28.0 kg
Fig 1.
Top View of Combustion Side View of Combustion
Chamber Chamber
3

INSTALLATION REQUIREMENTS
1.1 CONDITIONS OF INST ALLATION
It is the law that all gas appliances are installed only by a CORGI Registered
Installer , in accordance with these installation instructions and the Gas Safety
(Installation and Use) Regulations 1998 as amended. Failure to install appliances
correctly could lead to prosecution. It is in your own interest and that of safety to
comply with the law.The installation must also be in accordance with all relevant
parts of the Local and National Building Regulations where appropriate, the
Building Regulations (Scotland Consolidation) issued by the Scottish Development
Department, and all applicable requirements of the following British Standard Code
of Practice.
1. BS 5871 Part 3 Installation of Decorative Fuel Effect Gas Fires
2. BS 6891 Installation of Gas Pipework
3. BS 5440 Parts 1 & 2 Installation of Flues and Ventilation
4. BS 1251 Open fire place components
5. BS 715 / BS EN 1856-2 Metal flue pipes for gas appliances
6. BS EN 1858 Clay Flue Blocks and Terminals
7. IS 813 : Domestic Gas Installation (Republic of Ireland)
No purpose made additional ventilation is normally required for this
appliance, when installed in G.B. When Installing in I.E. please consult
document I.S. 813 : Domestic Gas Installation, which is issued by the
National Standards Authority of Ireland. If installing in Northern Ireland,
please consult local building regulations. Any purpose made ventilation
must be checked periodically to ensure that it is free from obstruction.
1.2 FLUE AND CHIMNEY SUITABILITY
This appliance is designed for use with conventional brick built or lined chimneys
and fabricated flues and metal flue boxes conforming to BS 715 / BS EN 1856-2.
All flues must conform to the following minimum dimensions.
Minimum diameter of circular flues 175 mm
Minimum effective height of all flue types 3 metres
Safe clearance of combustion products must always be checked by carrying out a
smoke match test as described on page 22.
4

1.3 SITE PREPARATION / PRODUCT LOCATION
The appliance must only be installed into an opening with a non-combustible
surface. The product must not be fitted into a room containing a bath or a shower .
Combustible material such as wood, that is often used in the preparation of a hole
in the wall type opening, may be fitted to within 100mm of either side of the
opening, providing it does not project more than 100mm from the front of the
opening. Soft furnishings, decorations and some forms of wall covering may
discolour if fitted too close to the fireplace opening.
CFM Europe will not be liable for damage to soft furnishings, decorations
and wall coverings that are fitted too close to the appliance.
DO NOT PLACE ANY OBJECTS, SUCH AS ORNAMENTAL ITEMS ETC. ON THE CANOPY OF THE
SILVER SAPPHIRE FRAME.
1.4 SHELF POSITION
The fire may be fitted below a combustible shelf providing there is a minimum
distance of 100mm above the top of the canopy and the shelf does not project
more than 150mm. If the shelf overhangs more than 150mm the distance
between the fire and the shelf must be increased by 15mm for every 25mm of
additional overhang over 150mm.
1.5 FITTING TO PRE-FABRICATED TWIN WALL METAL FLUE BOXES
The appliance may be fitted to twin wall metal flue boxes conforming to the
constructional requirements of BS 715, (for example the Selkirk LFE 175 box).
The box must have a minimum flue diameter of 175mm internal and minimum
internal dimensions of 320mm deep by 560mm high by 580mm wide. There are
no maximum dimensional requirements for the box. The top face of the box must
be insulated with a minimum thickness of 50mm of non-combustible mineral wool
insulation or similar material. The flue box must stand on a non-combustible base
of minimum thickness 12mm.
1.6 SPILLAGE MONITORING SYSTEM
This appliance is fitted with an atmosphere sensing spillage monitoring system in
the form of an oxygen sensing pilot. This is designed to shut the fire of f in the
event of a partial or complete blockage of the flue causing a build up of
combustion products in the room in which the fire is operated. The following are
important warnings relating to this spillage monitoring system :-
1) The spillage monitoring system must not be adjusted by the installer .
2) The spillage monitoring system must not be put out of operation.
3) When the spillage monitoring system is exchanged only a complete original
manufacturers part may be fitted. It is not possible to replace individual parts on
the pilot system on this appliance, only a complete pilot assembly (including the
thermocouple) may be fitted. 5

SECTION 2
INSTALLATION OF FIRE
2.1 UNPACKING THE FIREBOX AND SILVER SAPPHIRE TRIM ASSY.
Carefully lift the combustion chamber out of the carton. Remove the loose item
packaging carefully from the pack. Check the contents as listed :-
Packing Check List
Carefully lift the components out of the carton. Remove the loose item packaging
carefully from the pack. Check the contents as listed :-
1 offFirebox assembly
1 offBurner tray
1 offBoxed ceramic fuel-bed set (packed inside firebox, coal or pebble
dependent upon model chosen)
1 offInstallation & User Instruction Manual (Combined)
1 offLoose Items pack
1 offSilver Sapphire top section
1 offSilver Sapphire base section
1 offL/H Silver Sapphire side cheek
1 offR/H Silver Sapphire side cheek
1 offPair Latex Gloves
1 offLength of foil tape
2 offSelf adhesive foam strip (1 off short, 1 off long)
6
PLEASE NOTE : LATEX GLOVES ARE SUPPLIED WITH
THIS PRODUCT TO PREVENT DAMAGE OF THE
DECORATIVE SECTIONS OF THE ASSEMBLYDURING
INSTALLATION. AN ALTERNATIVE SET OF
PROTECTIVE GLOVES SHOULD BE USED BY
INSTALLERS WHO SUFFER FROM SKIN CONDITIONS
CAUSED BY LATEX ALLERGIES

2.2 PREPARA TION OF THE FIREBOX OPENING
If installing the product into a hole in the wall type installation, create an opening
as shown in Fig. 2 below. If installing into a conventional opening with a hearth
panel, create an opening as shown in Fig. 3 below.
Fig. 2 - Hole in the Wall Installations
Fig. 3 - Conventional Installations
Min. 560mm
Max. 570mm
Min. 560mm
Max. 570mm
42mm
50mm
300mm
Minimum
7
300mm Mim.
760mm Minimum

2.3 INSTALLING THE FIRE BOX & GAS SUPPLYPIPE.
Establish which type of flue you are intending to install the fire in to :-
225 x 225mm (9 inch x 9 inch) brick built chimneys, 175mm (7 inch) diameter
lined brick or stone flue, or insulated pre-fabricated metal flue box to B.S.
715.
Aspillage test must always be carried out to check satisfactory
clearance of flue products, regardless of the type of flue the
appliance is being fitted to.
Proceed as follows :-
a) Remove the burner tray by unscrewing the 2 of f retaining nuts on the
base. See fig. 4 below.
Fig. 4
b) Fit the self adhesive foam seal to the rear of the firebox frame, as
shown overpage in Fig. 5. The firebox seal is supplied in two sections,
a short piece and a long piece. Fit the short piece to the left hand
mounting flange of the firebox.
8
Retaining Nuts for Burner Tray

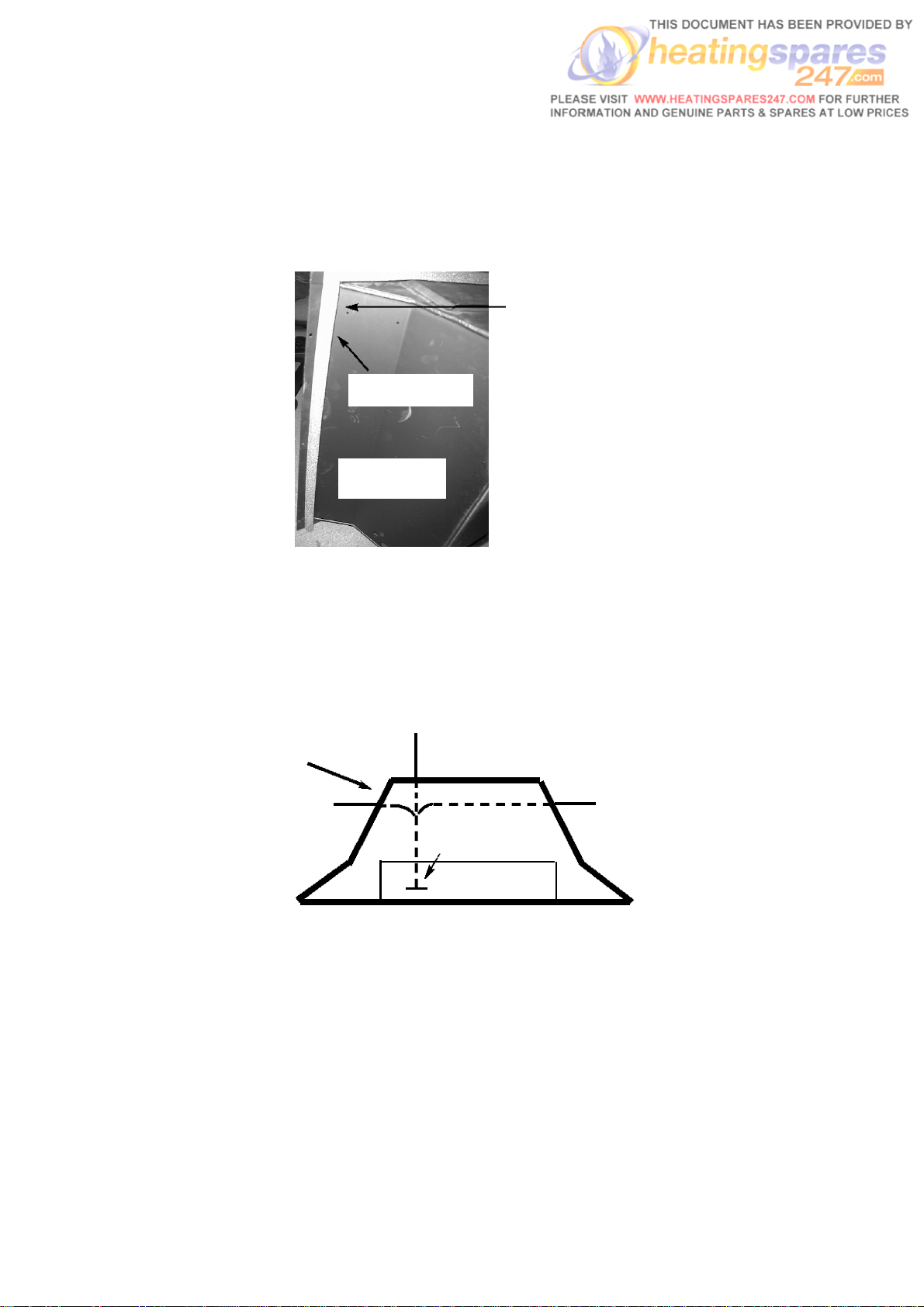

Fig. 5
c) Decide which side the gas supply is to enter the fire from. The gas
connection can be made via the left hand side, right hand side or rear,
to the burner tray inlet elbow which is located at the bottom left hand
side at the front. The gas connection to the appliance should be made
to the isolating / inlet elbow using 8mm rigid tubing. There must be no
soldered joints within the firebox. See Fig. 6a below.
Fig. 6a
Note : Before breaking into the gas supply a pressure drop test should be
carried out to establish that the existing pipework is sound.
Carefully withdraw the fire box from the opening to enable the gas supply and fire
fixing to be completed. Ensure the gas pipe is capped to prevent entry of debris.
9
R/H/S Gas Supply
L/H/S Gas Supply
Rear Gas Supply
Restrictor Elbow
Position
Firebox viewed
from top
Foam seal to be fitted to
perimeter of firebox
NOTE : Firebox
viewed from Rear in
this image
Fit the short piece to the left
hand mounting flange of the
firebox.

IMPORTANT : Sealing of the Gas Unused Gas Pipe Inlet Apertures
In line with current CORGI regulations, it is imperative that the gas supply inlet
apertures that are not utilised during the installation are sealed with the foil
tape as supplied . Failure to seal these inlet apertures could lead to flame
reversal, which in turn will damage the burner and control systems of the product.
Fig. 6b below shows a correctly sealed installation.
Fig. 6b
PLEASE NOTE :-
Only holes to be left are the specifically
sized air relief holes as indicated by the
labels positioned by them and the gas
inlet aperture that is used
Seal off unused gas inlet
apertures and cable fixing
holes as shown
10
CFM EUROPE LTD. WILL NOT BE LIABLE FOR
GUARANTEE CLAIMS THATARE AS ADIRECT
RESULT OF THE UNUSED GAS INLET APERTURES
NOT BEING CORRECTLYSEALED.

d) Drill 6 of f holes in the front face of the opening in positions to match
those in the front frame of the firebox as shown below in Fig. 7.
Fig. 7
e) Secure the firebox to the opening using the six off No. 12 x 40mm
screws provided, ensuring that the foam seal is consistent around the
opening, and that it forms an effective seal.
f) Re-fit the burner tray onto the weld studs on the base of the firebox,
and tighten the nuts securely .
2.4 GAS TIGHTNESS AND INLET PRESSURE
a) Remove the pressure test point screw from the inlet elbow and fit a
manometer.
b) Turn on the main gas supply and carry out a gas tightness test.
c) Depress the control knob and turn anti-clockwise to the position marked
pilot. Hold in the control knob for a few seconds to purge the pipe work
then press the igniter button. The burner should light, continue to hold
the control knob for a few seconds then turn to the full-on position.
d) Check that the gas pressure is 20.0 mbar (+/- 1.0mbar) 8.0 in w.g.(+/-
0.4 in w.g.)
e) Turn off the fire, remove the manometer and refit the pressure test point
screw. Check the pressure test point screw for gas tightness with the
appliance turned on using a suitable leak detection fluid or detector .
627mm CRS
11

2.5 FITTING OF THE FRET AND SIDE CHEEKS
a) For this part of the installation, the latex gloves supplied should be used
to protect the decorative parts. Also, leave the protective coating in
place until the installation is complete.
b) Remove the two off M4 nuts and washers on the base of the firebox, as
shown below in Fig. 8a
c) Fit the lower canopy to the firebox by locating the two holes in the lower
canopy onto the two studs as detailed in section b) above and refitting
the two off M4 nuts and washers on the base of the firebox
d) Locate the three studs in the upper canopy onto the three protruding
flanges at the top of the firebox. Once located, the inner flange on the
lower surface can be secured using the M4 nuts and bolts supplied.
Finally, using an M3 nut runner or socket and the M3 nuts supplied
secure the canopy through the holes in the lower surface.
e) Remove the protective cover from the upper surface of the lower
canopy and that on the flanges of the fret only.
f) Fit the fret, located by two M5 screws in the holes provided.
g) Remove the protective covering from the side cheeks and fit as shown
in Fig. 8b overpage.
Fig. 8a
12
Position of M4 Nuts & washers on base of firebox
Lower canopy locates onto these weld studs

13
i) Finally remove all the protective coating.
Fig. 8b
SECTION 3
ASSEMBLING FUEL BED AND COMMISSIONING
3.1 ASSEMBLING THE CERAMICS AND FUEL BED
(PEBBLE FUEL-BED MODELS)
a) Place the ribbed ceramic fuelbed base on top of the fuelbed support
and pull fully forwards to the burner .Make sure that the fuelbed
base is located centrally in the fire box.Ensure that the fuelbed
base fit fully down onto the fuel bed support and is not
lodged on the burner. See fig. 9 below.
Fig. 9
NOTE : The position of the fuel-bed components are critical to the
performance of the product. Therefore please ensure that the fuel-bed
components are positioned as described in the following section prior to
requesting a service call due to soot build up, poor flame pattern etc.

b) Position front ceramic rail on burner front ceramic support and ensure
that the locating channel in the front ceramic rail is correctly located
onto the lip on the burner front ceramic support. (See fig. 10 below)
Fig. 10
c) Pick pebbles A to E and arrange along the the front rail, ensuring that
they are evenly spaced. Use the recess’s in the front ceramic rail as a
guide for placement. (See fig. 11 below)
Fig. 11
14
ABCDE

d) Select pebbles F to I and arrange behind the front row of pebbles,
ensuring that flame paths as indicated below are not interupted.
.(See fig. 12 below)
Fig. 12
e) Select pebbles (J & N) and position to fill the gaps at each end of the
third row of pebbles, as shown below in Fig. 13
Fig. 13
15
F G HI
JN

f) Select the remaining pebbles K, L & M (which are slightly larger that the
other pebbles) and arrange along the rear of the fuelbed, using the ribs
in the rear of the fuelbed as a guide for placement. (See fig. 14 below)
Fig. 14
The exact position and fit of the pebbles may be finely adjusted to give the most
pleasing and random appearance.
Warning : Use only the pebbles supplied with the fire. When replacing the
pebbles remove the old pebbles and discard them. Fit a complete
set of pebbles of the correct type. Do not fit additional pebbles or
any pebbles other than a genuine replacement set.
To ensure that the release of fibres from these R.C.F (Refractory Ceramic
Fibre) articles is kept to a minimum, during installation and servicing we
recommend that you use a HEPAfiltered vacuum to remove any dust
accumulated in and around the appliance before and after working on the
appliance. When replacing these articles we recommend that the replaced
items are not broken up, but are sealed within heavy duty polythene bags,
clearly labelled as “RCF waste”. RCF waste is classed as a “stable”, non
reactive hazardous waste and may be disposed of at a landfill licensed to
accept such waste Protective clothing is not required when handling these
articles, but we recommend you follow the normal hygiene rules of not
smoking, eating or drinking in the work area, and always wash your hands
before eating or drinking.
16
K M
L

3.2 ASSEMBLING THE CERAMICS AND FUEL BED
(COAL FUEL-BED MODELS)
a) Place the ribbed ceramic fuelbed base on top of the fuelbed support
and pull fully forwards to the burner.Make sure that the fuelbed
base is located centrally in the fire box.Ensure that the fuelbed
base fit fully down onto the fuel bed support and is not
lodged on the burner. (See fig. 15 below)
Fig. 15
b) Position front ceramic rail on burner front ceramic support and ensure
that the locating channel in the front ceramic rail is correctly located
onto the lip on the burner front ceramic support. (See fig. 16 below)
Fig. 16
17
NOTE : The position of the fuel-bed components are critical to the
performance of the product. Therefore please ensure that the fuel-bed
components are positioned as described in the following section prior to
requesting a service call due to soot build up, poor flame pattern etc.

c) Fit five of the coals onto the front ceramic rail, ensuring that they are
evenly spaced. Use the recess’s in the front ceramic rail as a guide for
placement. (See fig. 17 below)
Fig. 17
d) Select four of the coals and arrange behind the front row of coals,
ensuring that flame paths as indicated below are not interupted.
(See fig. 18 below)
Fig. 18
18

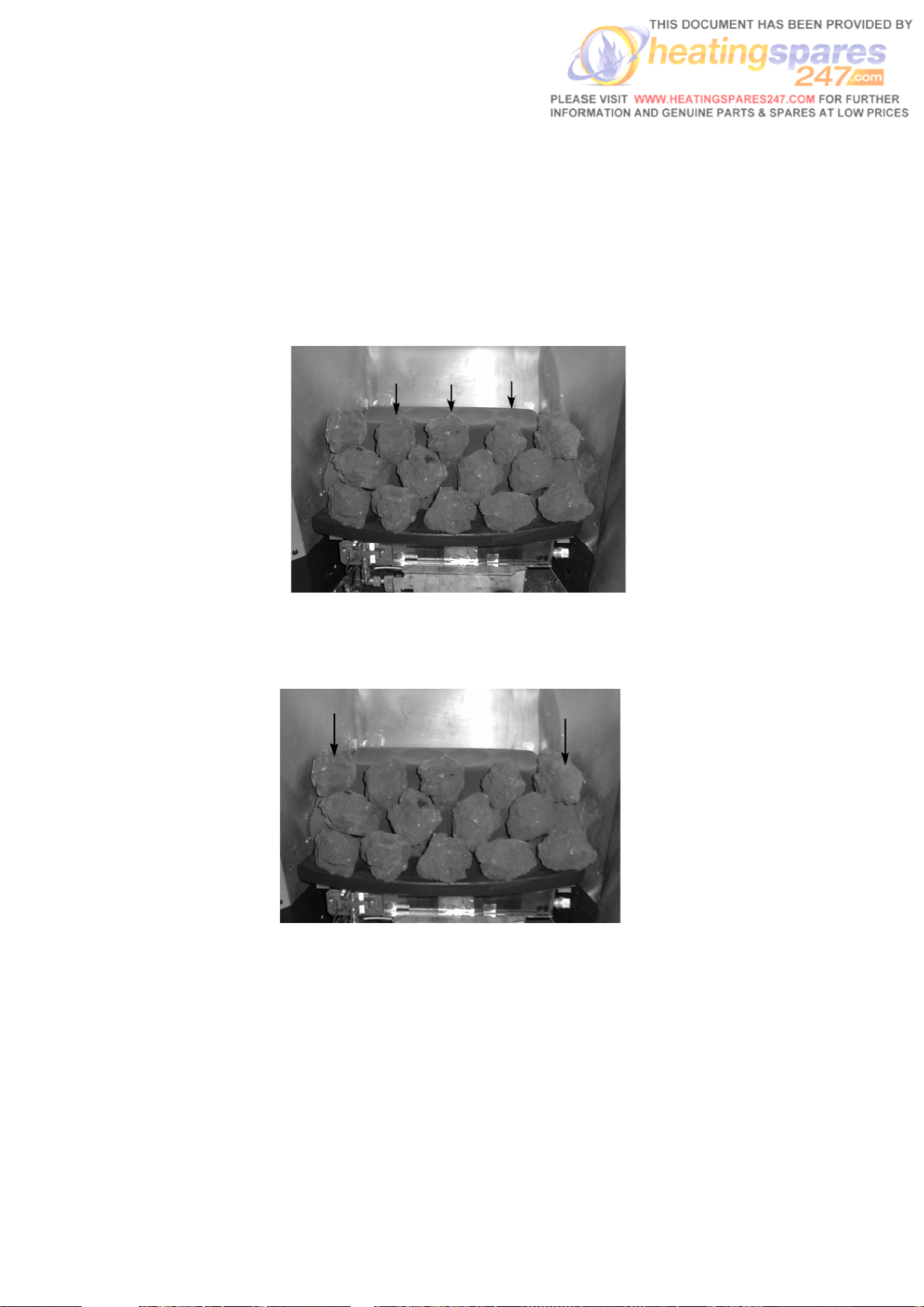

e) Select three of the coals and arrange along the rear of the
fuelbed, using the ribs in the rear of the fuelbed as a guide for
placement. (See fig. 19 below)
Fig. 19
f) Select two coals and position to fill the gaps at each end of
the third row of coals, as shown below in Fig. 20
Fig. 20
19

g) Select the remaining four coals and position along the rear edge of the
fuelbed (See fig. 21 below)
Fig. 21
The exact position and fit of the coals may be finely adjusted to give the most
pleasing and random appearance.
Warning : Use only the coals supplied with the fire. When replacing the
coals remove the old coals and discard them. Fit a complete set of
coals of the correct type. Do not fit additional coals or any coals
other than a genuine replacement set.
To ensure that the release of fibres from these R.C.F (Refractory Ceramic
Fibre) articles is kept to a minimum, during installation and servicing we
recommend that you use a HEP Afiltered vacuum to remove any dust
accumulated in and around the appliance before and after working on the
appliance. When replacing these articles we recommend that the replaced
items are not broken up, but are sealed within heavy duty polythene bags,
clearly labelled as “RCF waste”. RCF waste is classed as a “stable”, non
reactive hazardous waste and may be disposed of at a landfill licensed to
accept such waste Protective clothing is not required when handling these
articles, but we recommend you follow the normal hygiene rules of not
smoking, eating or drinking in the work area, and always wash your hands
before eating or drinking.
20
