Flavel Expression HE Mounting instructions

Expression HE
INSET LIVE FUEL EFFECT GAS FIRE
Installation, aintenance & User Instructions
Hand these instructions to the user
odel No’s FHKCEHRN is only for use on Natural Gas (G20) at a
supply pressure of 20 mbar in G.B. / I.E.
** denotes trim and fret variant

CONTENTS
Section 1 Information and Requirements PAGE
1.0 Appliance Information 3
1.1 Conditions of Installation 4
1.2 Flue and chimney suitability 4
1.3 Fireplace / surround suitability 5
1.4 Shelf position 5
1.5 Chimney inspection 5-6
1.6 Fire place opening / catchment space 6-7
1.7 Fitting to metal flue boxes 7
1.8 Fitting to pre-cast flues 8
1.9 Spillage monitoring system 8
1.10 Wall / hearth mounting 9
Section 2 Installation of Fire
2.1 Unpacking the fire 10
2.2 Installing the fire box 10-18
2.3 Gas tightness and inlet pressure 18
Section 3 Assembling Fuel Bed and Commissioning
3.1 Assembling the ceramics and fuel bed 19-23
3.2 Connecting the battery pack 24
3.3 Fixing the infra-red eye 25
3.4 ighting the appliance 26
3.5 Fitting the Expression fascia 27
3.6 Checking for clearance of combustion products 27
Section 4 aintenance
4.1 Removal of the burner assembly 28
4.2 Removing the remote gas valave 29
4.3 Removing the Oxy-Pilot assembly 29
4.4 Repacing the batteries 30
Section 6 User Instruction Section
6.1 Conditions of Installation & about your new fire 32-33
6.2 Operating the fire 34
6.3 Remote handset malfunction 35
6.4 Re-assembling the ceramics and fuel bed 36-40
6.5 Cleaning the fire 40
6.6 Cleaning the fuel-bed / glass panel 40-41
6.7 Removal & re-fitting the Expression fascia 41
6.8 User replaceable parts 41
2

SECTION 1
INFOR ATION AND REQUIRE ENTS
1.0 APPLIANCE INFOR ATION
Model FHKCEHRN
Gas Type G20
Main injectors (2 off) Size 130
Pilot Type Copreci 21100 / 162 (RC)
Max. Gross Heat Input : 4.5 kW
Min. Gross Heat Input : 3.5 kW
Cold Pressure : All models 20.0 +/- 1.0 mbar
Ignition : 9V battery generator (RC models)
Electrode Spark Gap 4.5mm Nominal
Weight 22.5 kg
Fire box Dimensions (with Expression fascia fitted)
Width : (with Expression fascia) 500mm
Height : (with Expression fascia) 643mm
Depth : (overall-without fender) 180mm
Depth : Flush-fit (from mounting face to rear) 180mm
Gas Connection 8mm Compression (Supplied with fire)
This appliance is manufactured by :-
BFM Europe td, Trentham akes, Stoke-on-Trent, ST4 4TJ
Efficiency Declaration
The efficiency of this appliance has been measured as specified in
BS 7977-1 : 2002 and the result is 70%. The gross calorific value of the fuel has
been used for this efficiency calculation.
The test data from which it has been calculated has been certified by G Industrial
Services UK td. The efficiency value may be used in the UK Government’s
Standard Assessment Procedure (SAP) for energy rating of dwellings.
3

INSTALLATION REQUIRE ENTS
1.1 CONDITIONS OF INSTALLATION
It is the law that all gas appliances are installed only by a Registered Installer, in
accordance with these installation instructions and the Gas Safety (Installation and
Use) Regulations 1998 as amended. Failure to install appliances correctly could
lead to prosecution. It is in your own interest and that of safety to comply with the
law.
The installation must also be in accordance with all relevant parts of the ocal and
National Building Regulations where appropriate, the Building Regulations
(Scotland Consolidation) issued by the Scottish Development Department, and all
applicable requirements of the following British Standard Code of Practice.
1. BS 5871 Part 2 Installation of Inset Fuel Effect Gas Fires
2. BS 6891 Installation of Gas Pipework
3. BS 5440 Parts 1 & 2 Installation of Flues and Ventilation
4. BS 1251 Open fire place components
5. BS 715 / BS EN 1856-2 Metal flue pipes for gas appliances
6. BS 6461 Part 1 Installation of masonary chimneys and flues
7. IS 813 : 1996 Domestic Gas Installation (Republic of Ireland)
No purpose made additional ventilation is normally required for this
appliance, when installed in G.B. When Installing in I.E. please consult
document I.S. 813 : 1996 Domestic Gas Installation, which is issued by the
National Standards Authority of Ireland. If installing in Northern Ireland,
please consult local building regulations. In Scotland, please consult the
current edition of the Building standards regulations, issued by the Scottish
Executive. Any purpose made ventilation must be checked periodically to
ensure that it is free from obstruction.
1.2 FLUE AND CHI NEY SUITABILITY
This appliance is designed for use with conventional brick built or lined chimneys
and fabricated flues and metal flue boxes conforming to BS 715 / BS EN 1856-2.
All flues must conform to the following minimum dimensions.
inimum diameter of circular flues 125 mm (Without Flue
Restrictor Fitted)
inimum effective height of all flue types 4 metres
When fitting to conventional chimneys or 175mm flues it may be desirable to
fit the flue restrictor baffle (supplied) to reduce the flue flow and increase the
efficiency of the fire. Safe clearance of products must always be checked by
carrying out a smoke match test as described.
4

1.3 FIREPLACE / SURROUND SUITABILITY
The fire must only be installed on a hearth it must not be installed directly onto
carpet or other combustible floor materials. The fire is suitable for fitting to
non-combustible fire place surrounds and proprietary fire place surrounds with a
temperature rating of at least 150oc. (Class “O”)
If a heating appliance is fitted directly against a wall without the use of a fire
surround or fire place all combustible material must be removed from behind
the trim. Soft wall coverings such as blown vinyl, wall paper etc. could be
affected by the rising hot air and scorching and / or discoloration may result.
Due consideration should be made to this when installing or decorating.
1.4 SHELF POSITION
The fire may be fitted below a combustible shelf providing there is a minimum
distance of 200mm above the top of the fire and the shelf does not project more
than 150mm. If the shelf overhangs more than 150mm the distance between the
fire and the shelf must be increased by 15mm for every 25mm of additional
overhang over 150mm.
1.5 FLUE / CHI NEY INSPECTION
Before commencing installation, a flue or chimney should be inspected to ensure
that all the following conditions are satisfied.
1. Check that the chimney / flue only serves one fire place and is clear of any
obstruction. Any dampers or register plates must be removed or securely
locked in the open position.
2. Brick / stone built chimneys or any chimney or flue which has been used
for an appliance burning fuel other than gas must be thoroughly swept.
The base of the chimney / flue must also be thoroughly cleared of debris
etc.
3. Any under-floor air supply to the fire place must be completely sealed off.
4. Ensure that the inside of the chimney / flue is in good condition along it’s
length and check that there is no leakage of smoke through the structure
of the chimney during and after the smoke pellet test.
5. Using a smoke pellet, check that there is an up-draught in the
chimney / flue and that the smoke can be seen issuing from the
terminal / chimney pot outside.
There must be no leakage of smoke through the structure of
the chimney during or after the smoke pellet test and it is
important to check inside upstairs rooms adjacent to the chimney /
flue.
5

Check the chimney pot / terminal and general condition of the
brickwork or masonry. If the chimney or flue is in poor condition or if
there is no up-draught do not proceed with the installation. If there is a
history of down-draught conditions with the chimney / flue, a tested and
certificated flue terminal or cowl suitable for the relevant flue type should
be considered.
6. A spillage test must always be carried out during commissioning of
the appliance.
1.6 FIRE PLACE OPENING AND CHI NEY CATCH ENT SPACE
The front opening of the fire place must be between 370 and 450 mm wide, and
between 550 and 570mm high. If the opening exceeds these dimensions then a
surround must be constructed from suitable non-combustible material to produce a
correct size opening. Any surround must be suitably sealed to the fire place to
prevent leakage. See below in figure 1.
When installing into a brick built chimney, you must ensure that there is sufficient
depth to accomodate any debris which may fall from the chimney. This depth
must be sufficient to accomodate 12 litres of volumetric space.

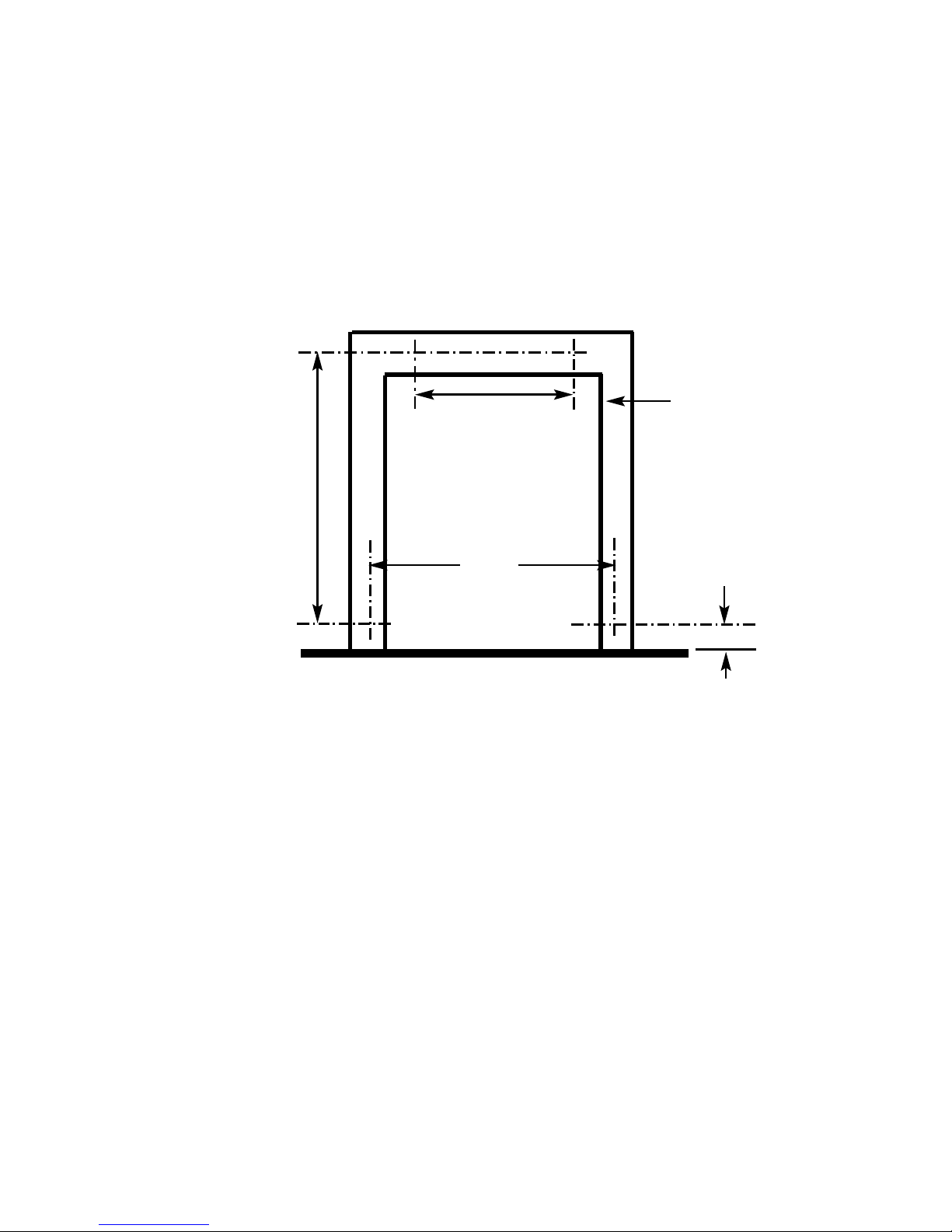

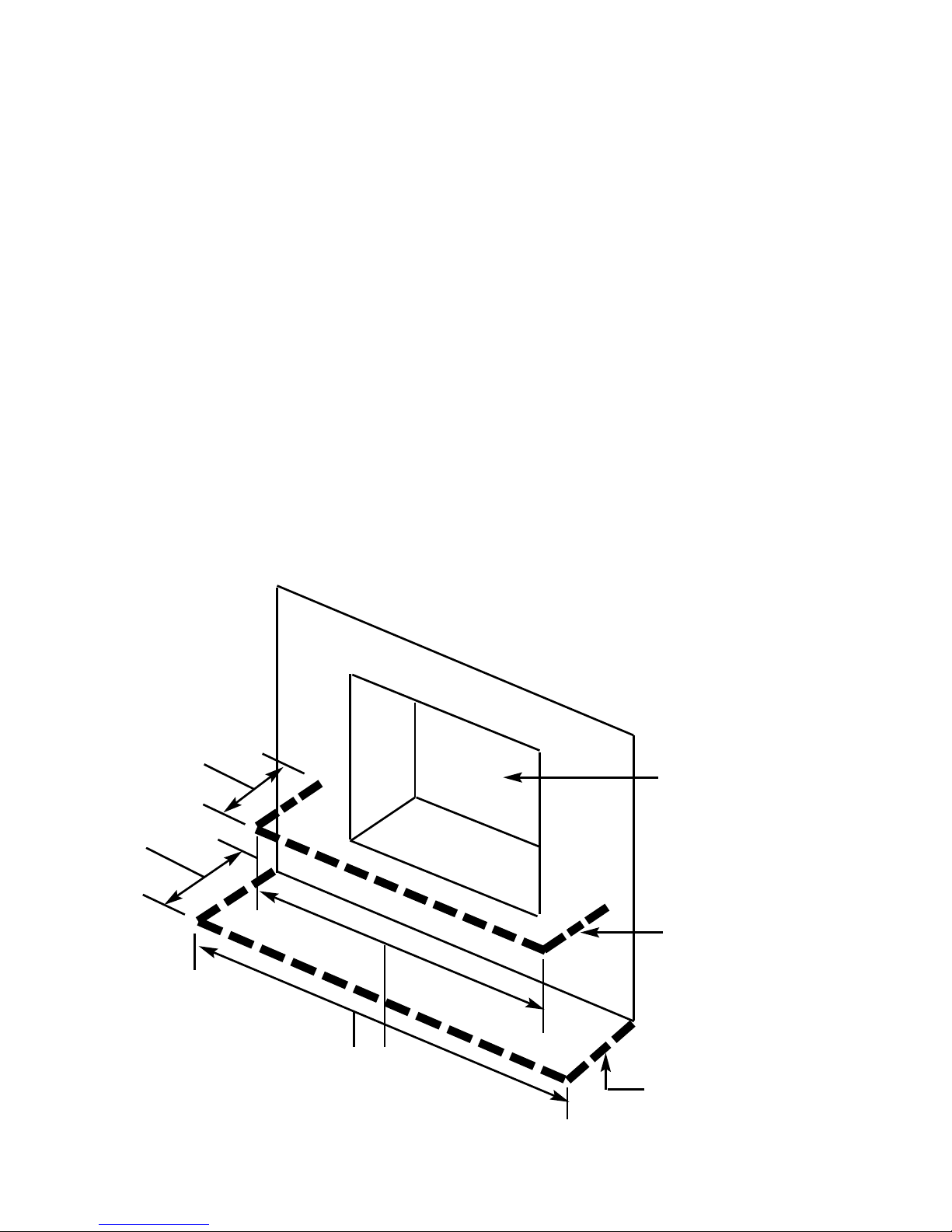

Fire Opening
370mm Minimum
450mm Maximum
580mm
Minimum
470mm Minimum
Fig. 1
550mm Minimum
570mm Maximum
Minimum Flat
Sealing Area
6

Table A - Installation Depth Requirements for a Flavel Expression HE being
installed into a bric built chimney, requiring 12.0 litres of debris collection
volume (figure 2)
When installing this product into a brick built chimney, there must be a minimum
depth available of 200mm available for the collection of debris behind the firebox
when installed.

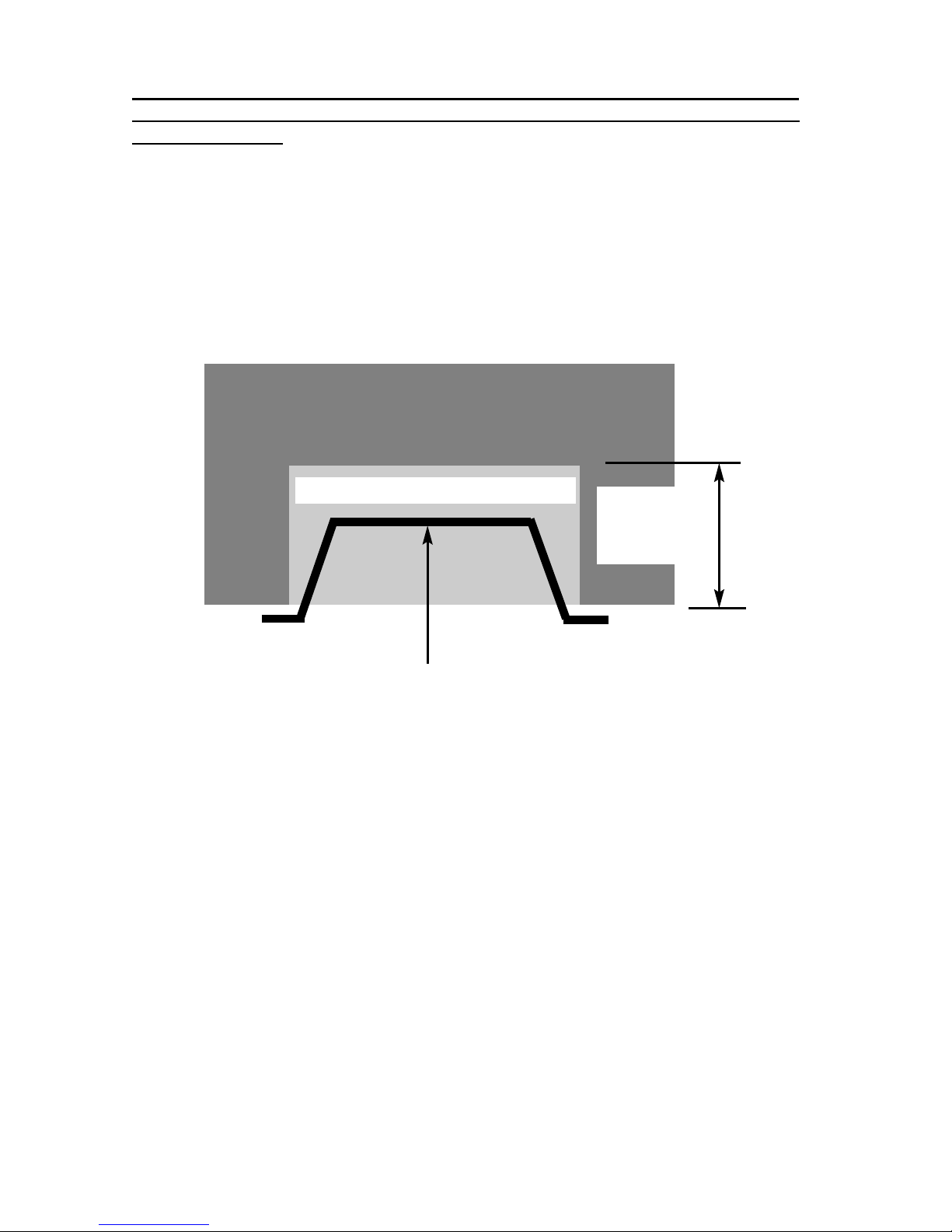

See figure 2 below for explanatory diagram.
Fig. 2
1.7 FITTING TO PRE-FABRICATED TWIN WALL ETAL FLUE BOXES
The appliance may be fitted to twin wall metal flue boxes conforming to the
constructional requirements of BS 715, (for example the Selkirk FE 175 box).
The box must have a minimum flue diameter of 125mm internal and minimum
internal dimensions of 275mm deep by 580mm high by 400mm wide. The top face
of the box must be insulated with a minimum thickness of 50mm of
non-combustible mineral wool insulation or similar material. The flue box must
stand on a non-combustible base of minimum thickness 12mm if the flue box
being utilised is of single skin construction.
7

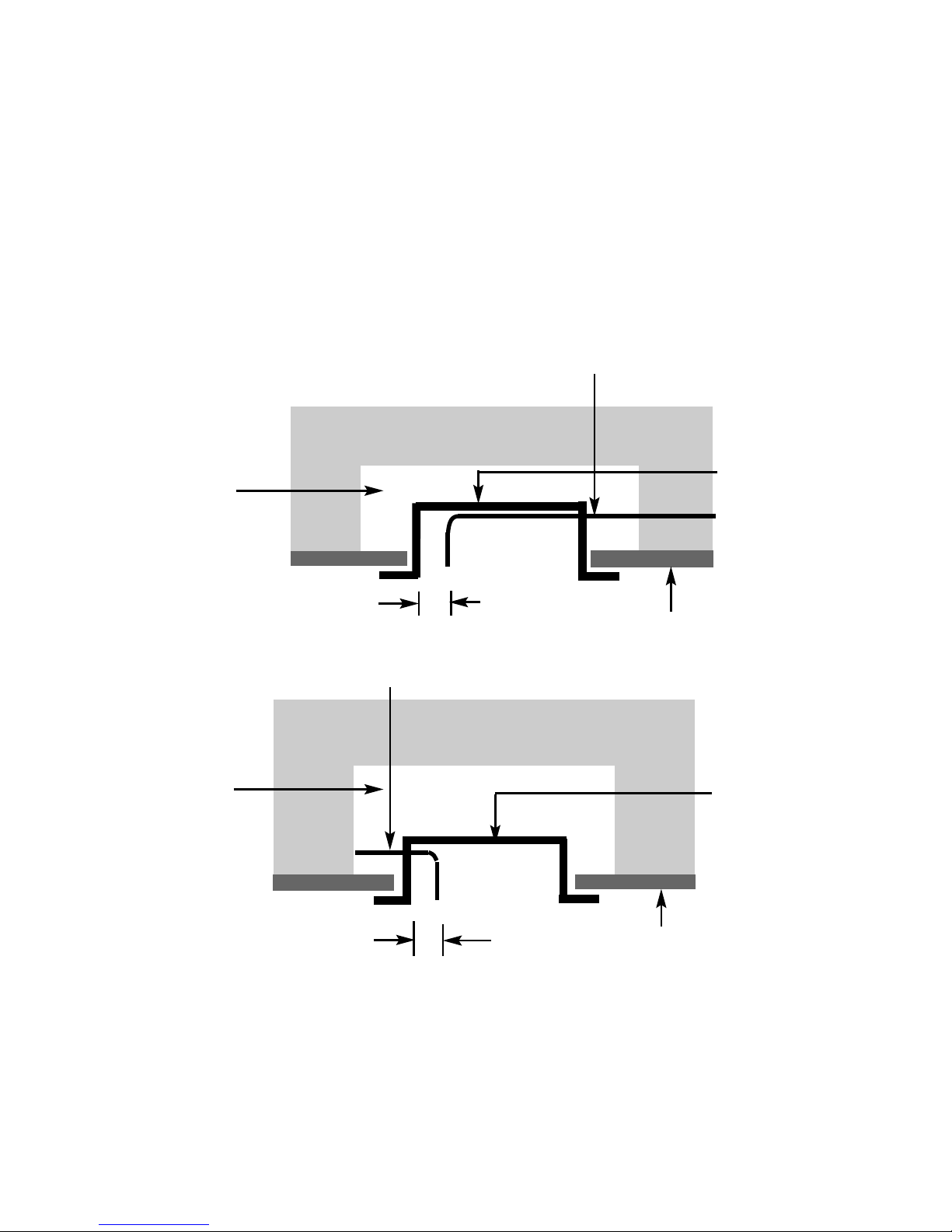

Firebox
Depth equired
200mm
Minimum
VOID FOR FLUE DEBRIS COLLECTION

1.8 FITTING TO PRE-CAST FLUES
When installing this appliance into pre-cast flues, always ensure that the
spigot restrictor baffle has been removed.
To install the fire box in to pre-cast flue starter blocks, there must be at least
180mm from the mounting face of the fire to the rear of the pre-cast flue
starter block to allow sufficient space for debris collection. It is important to
consider this depth when choosing a fire surround as the thickness of the fire
surround must be sufficient to give a total depth of at least 180 mm to the rear of
the starter block, otherwise there will be insufficient depth. If in doubt about the
suitability of the fire contact the manufacturer for advice before proceeding. This
fire has been designed to fit standard 100mm pre-cast starter blocks with 3
inch rebated false chimney breast and a 10mm plaster wall covering. It is
important to ensure that the pre-cast flue is in good condition and is free from
extruded mortar or sealant from between the flue blocks.
This appliance has been tested for use in a pre-cast flue block complying
with BS EN 1858. In accordance with BS EN 1858, pre-cast flues built with
directly plastered faces (front or rear) are not correctly installed as to ensure
proper operation with any type of gas fire. In some instances of this flue
construction, temperature cracking of surface plaster may occur through no
fault of the appliance. An air gap or some form of insulation material should
be installed to prevent normal flue temperatures from damaging wall
surfaces.
1.9 SPILLAGE ONITORING SYSTE
This appliance is fitted with an atmosphere sensing spillage monitoring system in
the form of an oxygen sensing pilot. This is designed to shut the fire off in the
event of a partial or complete blockage of the flue causing a build up of
combustion products in the room in which the fire is operated. The following are
important warnings relating to this spillage monitoring system :-
1) The spillage monitoring system must not be adjusted by the installer.
2) The spillage monitoring system must not be put out of operation.
3) When the spillage monitoring system is exchanged only a complete original
manufacturers part may be fitted. It is not possible to replace individual parts on
the pilot system on this appliance, only a complete pilot assembly (including the
thermocouple) may be fitted.
8

1.10 WALL / HEARTH OUNTING
This appliance must be fitted on a flat, non-combustible base of minimum
thickness 12mm. In addition, a non-combustible hearth or physical barrier should
be provided in front of the fire.
With “hole in the wall” type installations, where it may be desirable not to fit a
hearth panel or physical barrier, the product may be installed in accordance with
Document J of the building regulations so that every part of the flame or
incandescent material is at least 225mm above the floor level. For the customers
safety, and in accordance with BS 5871-2, the fitting of a hearth panel or physical
barrier should be carried out. Should this advice not be followed however, please
give consideration to the safety of the occupants in the room to which the
appliance is installed.
Any hearth panel or physical barrier that is fitted should project a mnimum of
300mm forwards from the fire opening and 150mm either side of the fire
opening, as shown below in Fig. 3 Any physical barrier must be securely fixed and
be of robust design.
Fig. 3
Example of Wall
Mounted Physical /
Tactile Barrier
Example of Floor Mounted
Physical Barrier i.e. Hearth
Panel
Fireplace Opening
300mm
Minimum
300mm
Minimum
150mm Minimum each
side of fireplace
opening
9

SECTION 2
INSTALLATION OF FIRE
2.1 UNPACKING THE FIRE
Carefully lift the fire out of the carton. Remove the loose item packaging carefully
from the front of the appliance. Check the contents as listed :-
Packing Check ist
1 off Fire box / burner assembly
1 off Boxed ceramic base, front ceramic rail and 7 coals
1 off oose items bag including remote handset and 6AA batteries and
1 off 9V battery on RC models.
1 off Flue restrictor baffle
1 off Installation & Maintenance / User Instruction Book (Combined)
2.2 INSTALLING THE FIRE BOX
Establish which type of flue you are intending to install the fire in to :-
225 x 225mm (9 inch x 9 inch) brick built chimneys 175mm (7 inch) diameter lined
brick or stone flue, insulated pre-fabricated metal flue box to BS 715 / BS EN
1856-2. When installing into 125mm (5 inch) diameter lined brick or stone flue, or
insulated pre-fabricated metal flue box and liner to BS 715 / BS EN 1856-2 the
restrictor baffle must not be fitted.
The flue restrictor baffle (supplied in the loose items) should only be used in
225 x 225mm (9 inch x 9 inch) brick built chimneys where the flue pull is
excessive. It must not be fitted if installing the product into a metal flue box,
pre-cast or 125mm diameter lined flue. See fig 4 / 5 below for details on fit-
ting / removing the restrictor baffle onto the spigot on the rear of the firebox.
A spillage test must always be carried out to check satisfactory clearance of
flue products, regardless of the type of flue the appliance is being fitted to.
10
F g 4 -Flue Restr ctor
Baffle Not F tted
F g 5 - Flue Restr ctor
Baffle F tted v a 3 screws
as shown
3 screws

Proceed as follows :-

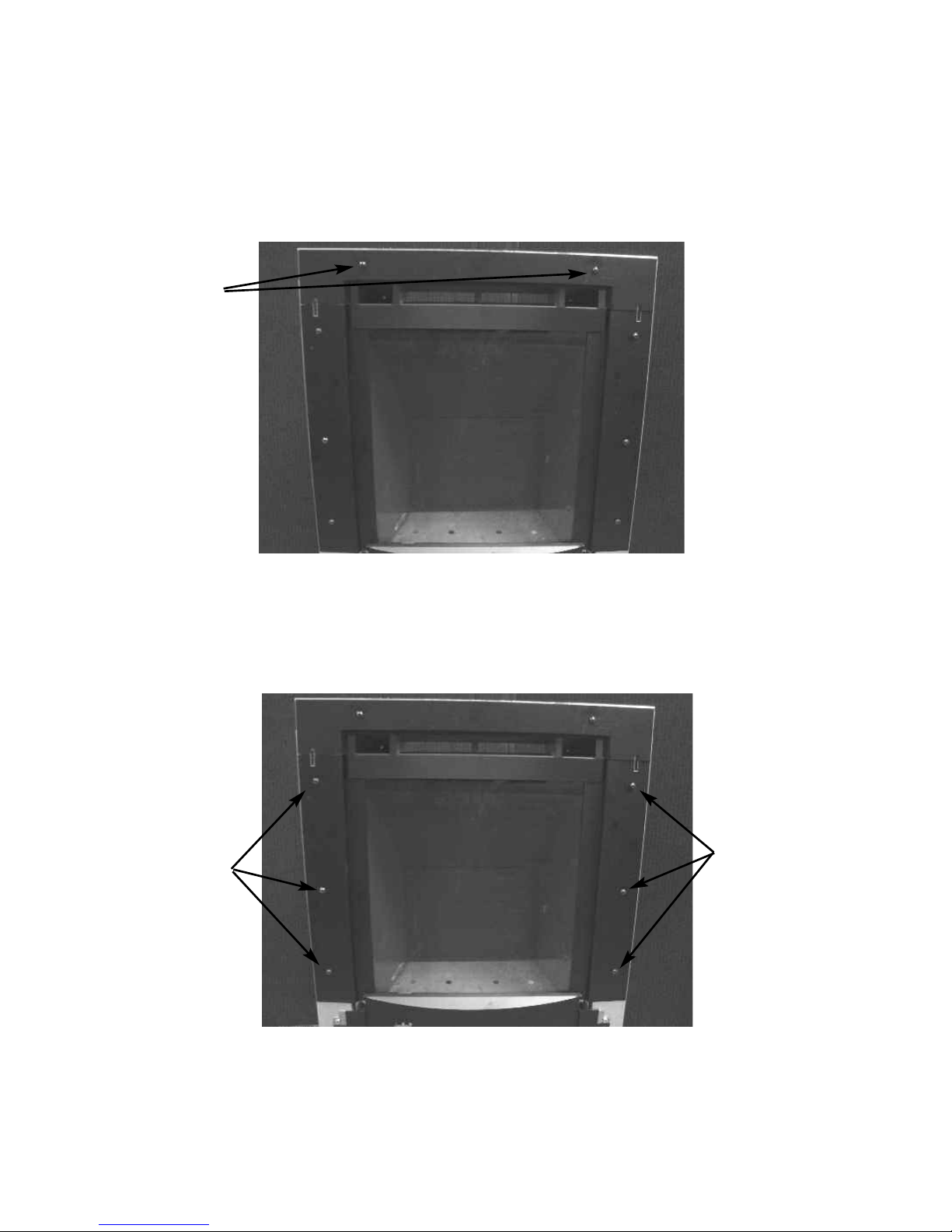

a) Remove the top glass retaining cover from the product. It is secured via
the two screws as indicated. See figure 6 below.
Fig. 6
b) Remove the left and right hand side glass securing brackets from the
product. They are secured via 3 off screws each side. See figure 7
below.
Fig. 7
11
2 off securing
screws
3 off securing
screws L/H/S
3 off securing
screw /H/S

c) ift the glass panel forwards and clear from the firebox, taking care not
to damage the glass panel. See figure 8 below.
Fig. 8
d) Remove the burner heat shield, which is retained by 2 off screws as
shown below in figure 9.
Fig. 9
12
Burner Heat
Shield etaing
Screws

For all Remote Control models proceed as follows :-

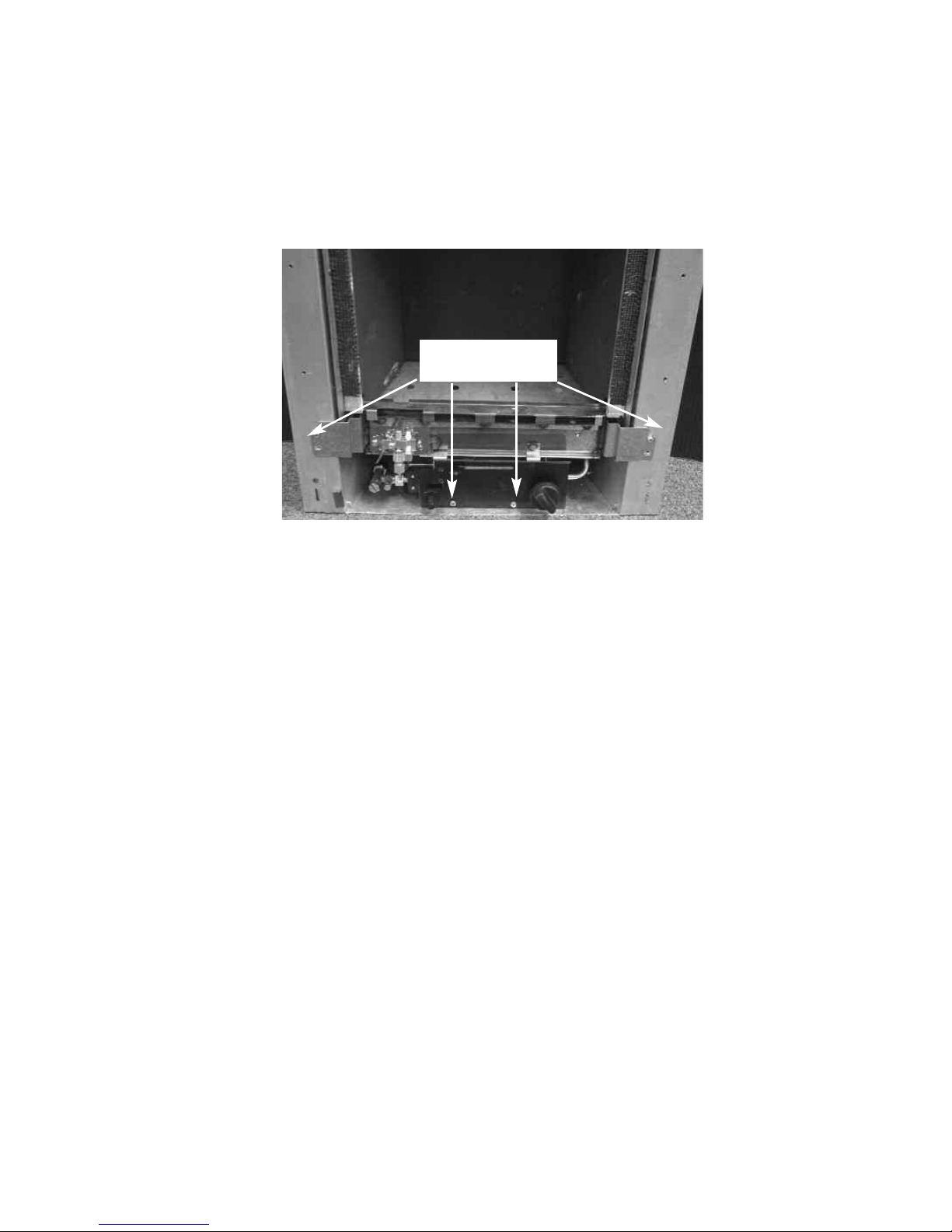

e) Remove the two off screws from the left and right hand burner
mounting brackets, plus the two screws from the base of the control
panel as shown below in figure 10, this will allow removal of the
complete burner unit from the firebox.
Fig. 10
13
4 off burner
retaining screws

Continue as follows :-
f) Whilst the fire box is still in position, decide which side the gas supply is
to enter the fire from. If concealed pipe work is required plan the pipe
run to enter the fire box through one of the openings in the sides or rear
of the fire box below the fuelbed support panel and connect to the
isolating / inlet elbow. The gas connection to the appliance should be
made to the isolating / inlet elbow using 8mm rigid tubing. There must
be no soldered joints within the firebox. See figure 11 & 12 below for
suggested concealed pipe layouts.
Fig. 11
Fig. 12
Note : Before breaking into the gas supply a pressure drop test should be
carried out to establish that the existing pipework is sound.
Carefully withdraw the fire box from the opening to enable the gas supply and fire
fixing to be completed.
14
Firebox
Fireplace
Builders
Opening
Gas Supply
Firebox
Approx.
40mm Fireplace
Gas Supply
Approx.
40mm
Builders
Opening

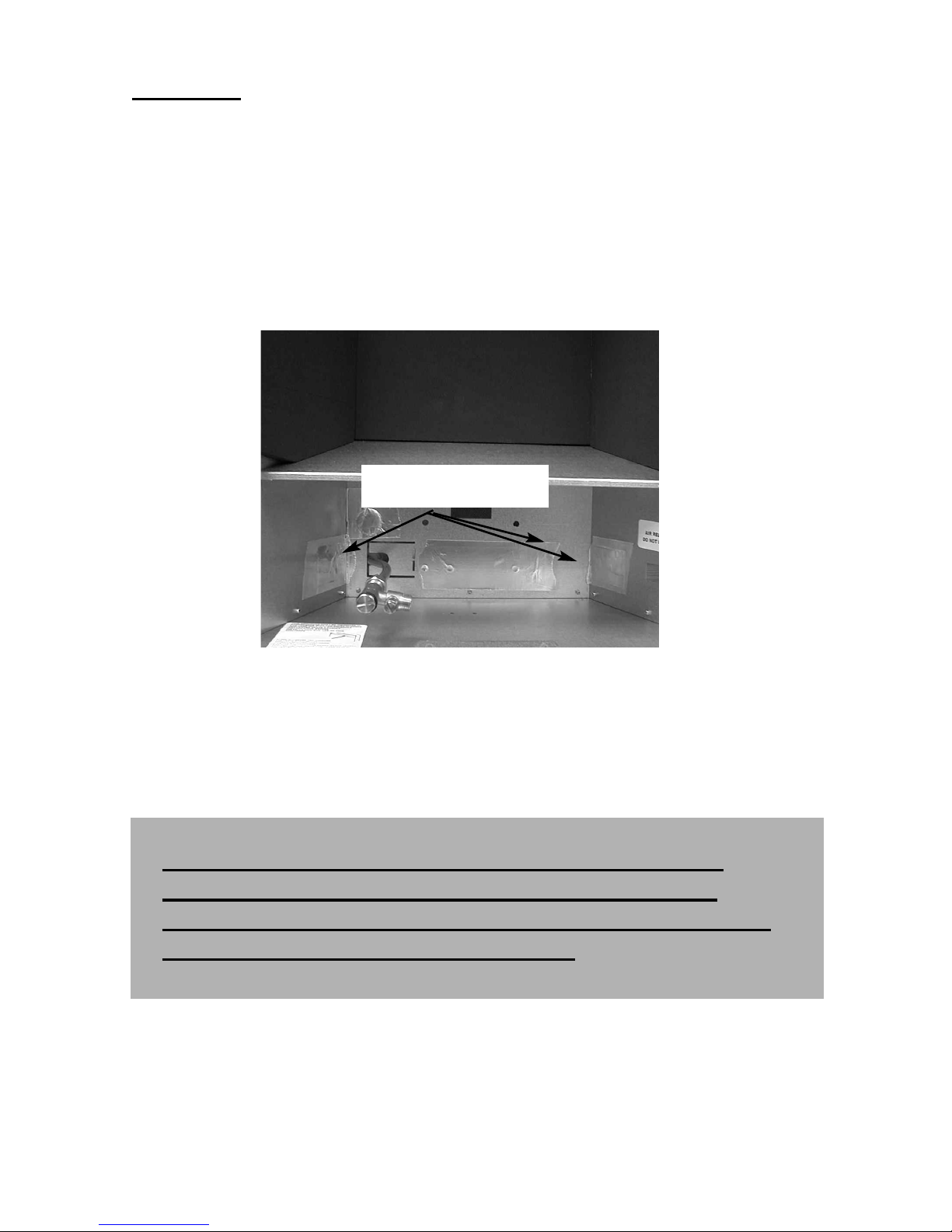

I PORTANT : Sealing of the Gas Unused Gas Pipe Inlet Apertures
In line with current regulations, it is imperative that the gas supply inlet aper-
tures that are not utilised during the installation are sealed with the foil tape
as supplied. Failure to seal these inlet apertures could lead to flame
reversal, which in turn will damage the burner and control systems of the product.
Figure 13 below shows a correctly sealed installation.
Fig. 13
PLEASE NOTE :-
BF EUROPE LTD. WILL NOT BE LIABLE FOR
GUARANTEE CLAI S THAT ARE AS A DIRECT
RESULT OF THE UNUSED GAS INLET APERTURES
NOT BEING CORRECTLY SEALED.
Seal off unused gas inlet
apertures as shown
15

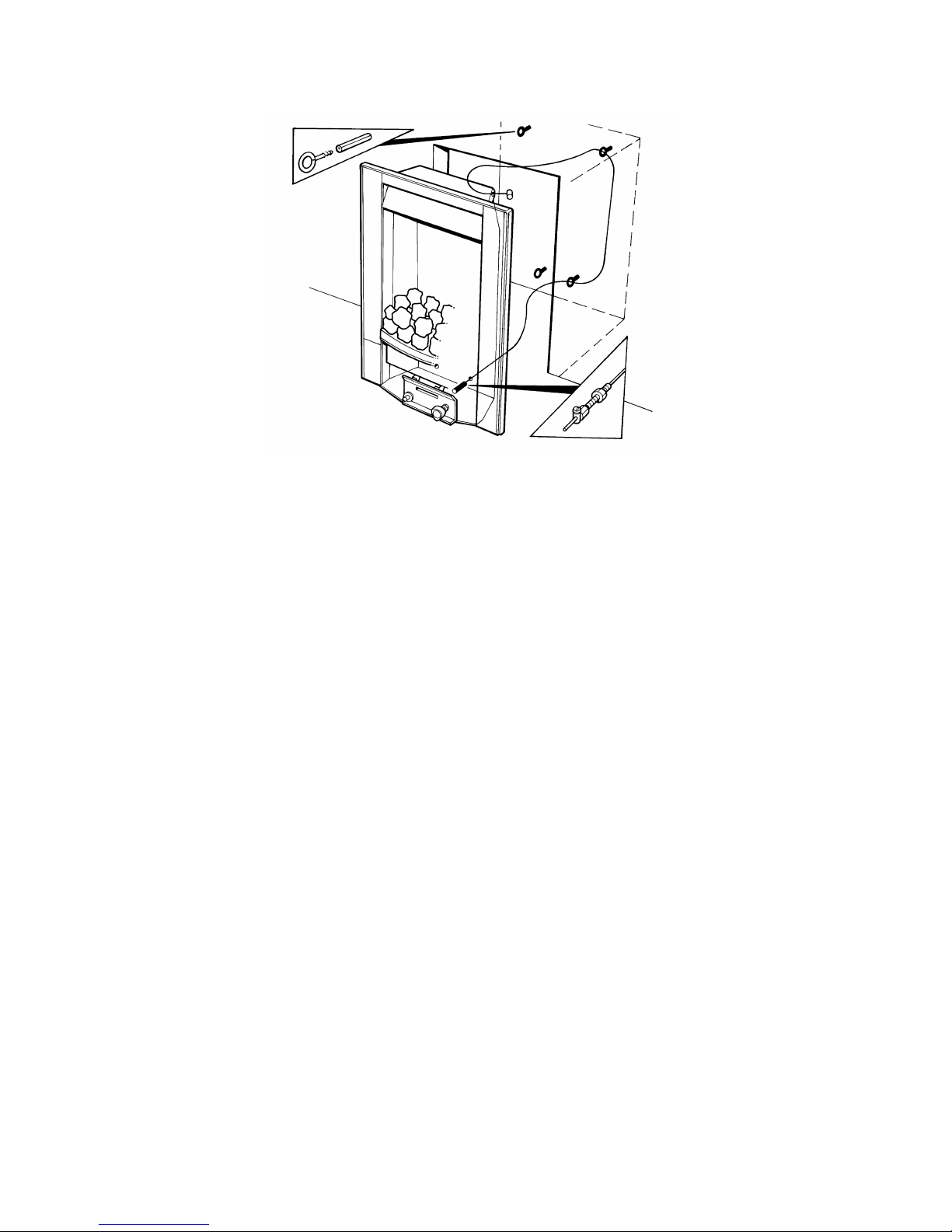

The preferred method of fixing which is suitable for almost all situations is
the cable fixing method which is described in the following section in detail.
To fit using the preferred cable method proceed as follows-
g) Mark out and drill 4 off No 14 (6mm) holes in the back face of the fire
opening in the positions shown below in figure 14.
Fig. 14
Fit the wallplugs provided and screw the fixing eyes securely into the rear of the
fire opening. If the clearance at the rear of the fire is at the minimum specified for
a precast flue application, it may be necessary to bend over the lower fixing eyes
after screwing them fully in to the rear of a pre-cast starter block.
h) Uncoil the two fire fixing cables and thread one end of each of the
cables through one of the two holes on each side of the flue outlet
shroud.
i) Position the fire carefully on the (protected) surface of the hearth and
reach into the fire opening. Thread each of the cables vertically
downwards through the pair of fixing eyes on the same side of the fire.
Thread the free end of the cables through the corresponding circular
hole on each side of the lower rear of the fire. Carefully slide the fire
box back into the fire opening and pull both cables tight.
j) Thread a tensioning screw over each of the cables and ensure that the
tensioning nut is screwed fully up against the hexagon shoulder of the
tensioning screw (this provides maximum travel for the tensioning nut).
k) Fit a screwed nipple on to each of the cables and pull hand tight up
against the tensioning screw, then secure each nipple with a flat
bladed screwdriver. See figure 15 overpage.
16
20mm
500mm Fireplace Opening
100mm
250mm

Fig. 15
l) Evenly tighten the tensioning nuts to tension both cables and pull the
fire snugly against the wall. Do not overtighten, it is only necessary to
pull the seal up against the sealing face of the wall, it does not need to
be compressed. Check that there are no gaps behind the seal.
m) With the fire securely in place, if a concealed gas connection has been
made through either of the access holes in the sides of the fire, the
holes should be closed around the pipe to prevent leakage of air
through the gap around the pipe.
n) Refit the burner. Fit the four retaining screws on and check that the
burner is correctly locked into position.
o) Refit the front burner heat shield to the sides of the fire box (2 Screws)
and secure the trim to the fire using the magnets provided.
p) Before making the final gas connection, thoroughly purge the gas
supply pipework to remove all foreign matter, otherwise serious
damage may be caused to the gas control valve on the fire.
17

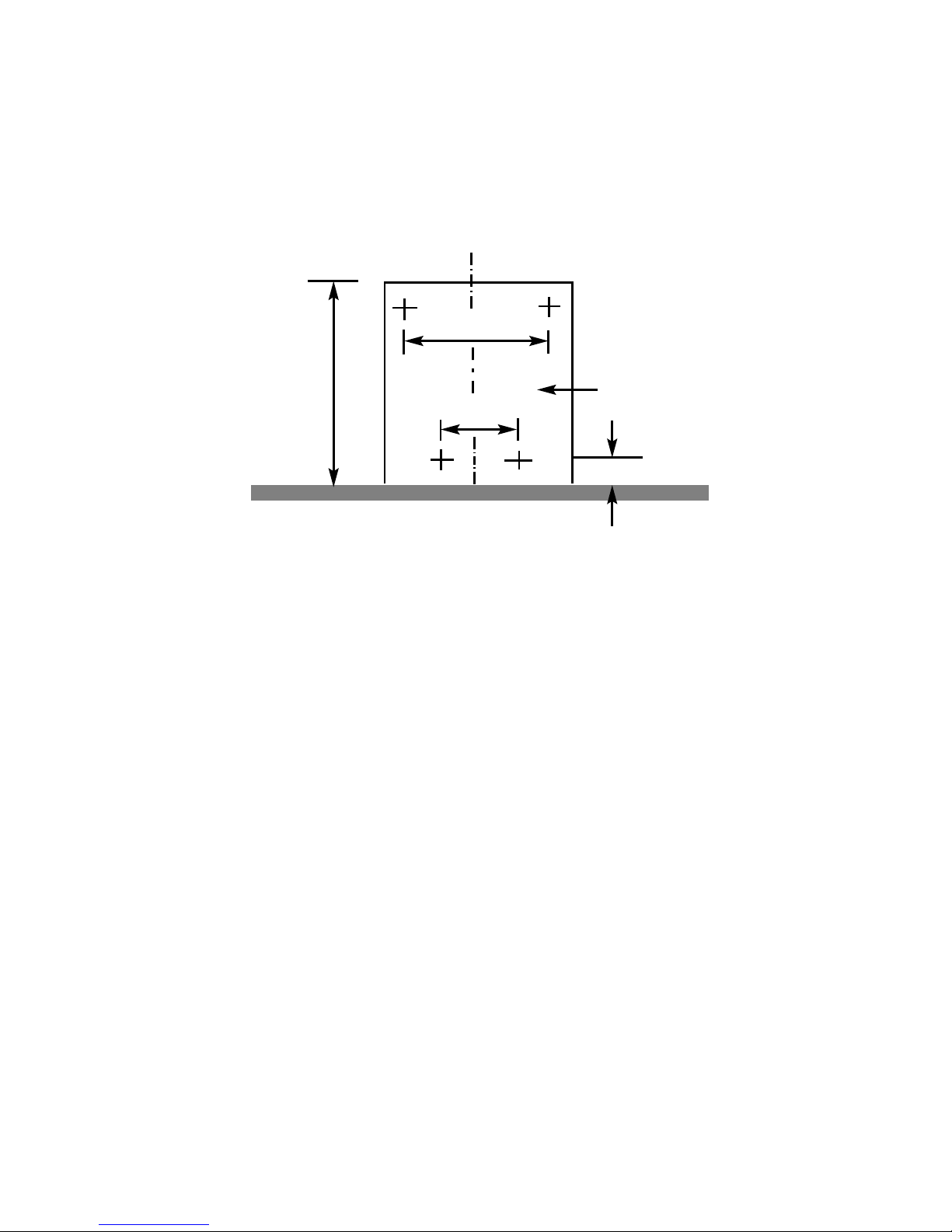

The other firebox fixing method is as follows :-
In installations where the cable method is not suitable (e.g. loose masonary in rear
of fire opening) the firebox can be secured to the fire surround using four screws
and wall plugs provided. Below (figure 16) is a diagram to indicate the hole centre
positions available on the firebox to facilitate the screw fixing to the fireplace /
surround.
Fig. 16
2.3 GAS TIGHTNESS AND INLET PRESSURE (RE OTE CONTROL
ODELS).
a) Remove the pressure test point screw from the inlet elbow and fit a
manometer.
b) Turn on the main gas supply and carry out a gas tightness test.
c) Depress both the round buttons on the handset. The fire will then
commence its ignition sequence and will light to high. See page 24 for
full details of the operating method for the fire.
d) Check that the gas pressure is 20.0 mbar (+/- 1.0mbar) 8.0 in w.g.(+/-
0.4 in w.g.)
e) Turn off the fire, remove the manometer and refit the pressure test point
screw. Check the pressure test point screw for gas tightness with the
appliance turned on using a suitable leak detection fluid or detector.
18
512mm
260mm
50mm
Firebox
Mounting
Flange
426mm

SECTION 3
ASSE BLING FUEL BED AND CO ISSIONING
3.1 ASSE BLING THE CERA ICS AND FUEL BED - COAL ODELS
a) Place the ribbed ceramic fuelbed base on top of the fuelbed support
and pull fully forwards to the burner. ake sure that the fuelbed
base is located centrally in the fire box.Ensure that the fuelbed
base fit fully down onto the fuel bed support and is not
lodged on the burner. Ensure the air ports as indicated by the
arrows are not blocked by the fuel-bed matrix. See figure 17 & 18
below.
Fig. 17
Fig. 18
19
Check a r ports n fuel-bed base panel are not obstructed.
If these a r ports are not n l ne w th the holes n the fuel-
bed base matr x do not proceed w th the nstallat on
A r ports n Fuelbed base mount ng panel
NOTE : The pos t on of the fuel-bed components are cr t cal to the
performance of the product. Therefore please ensure that the fuel-bed
components are pos t oned as descr bed n the follow ng sect on pr or to
request ng a serv ce call due to soot bu ld up, poor flame pattern etc.

b) Position the front ceramic coal support onto the burner support as
shown below in figure 19.
Fig. 19

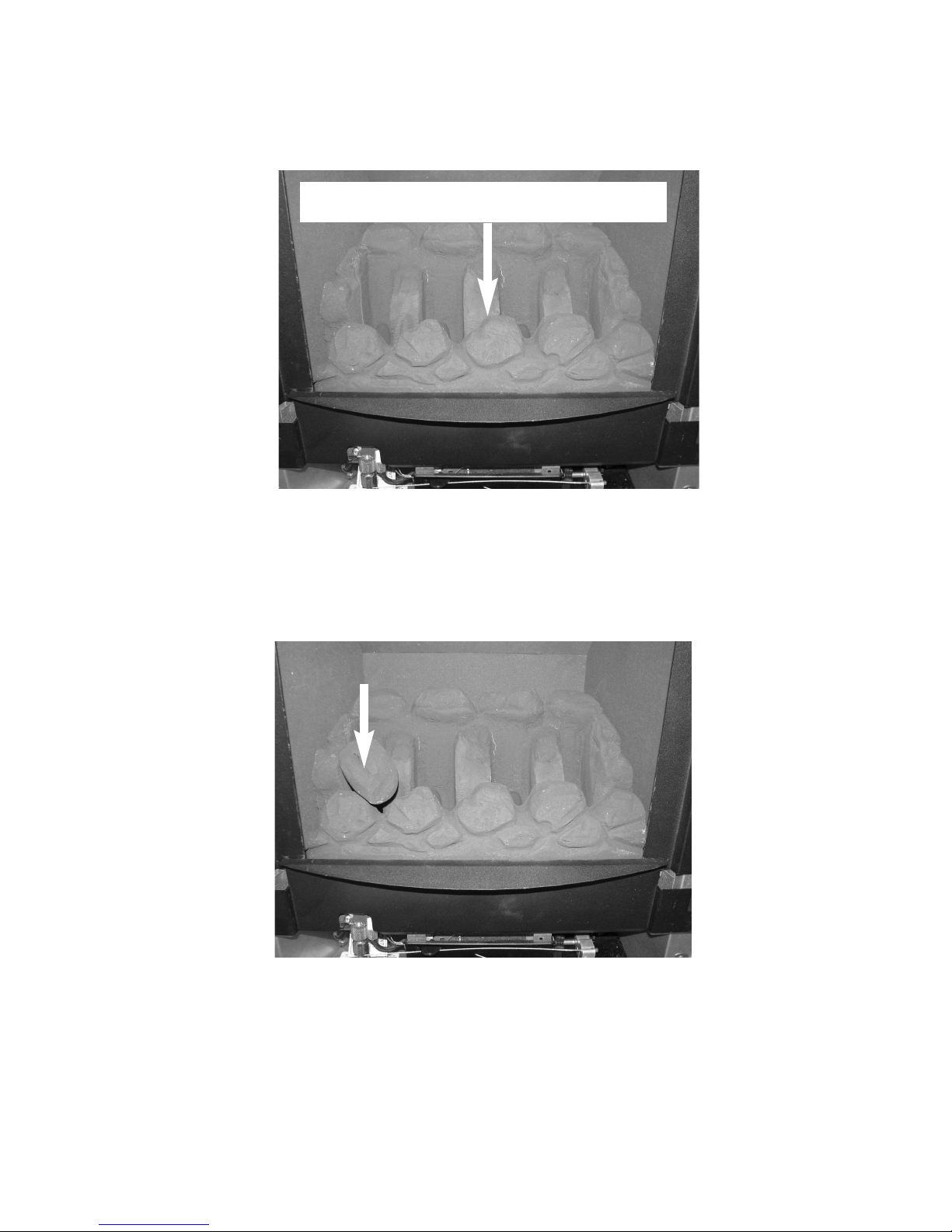

c) Fit the front row left hand coal as shown below in figure 20.
Fig. 20
20
Positioning of front ceramic coal support onto burner
support
