Carrel (Low & High) Assembly Instructions
Page 1of 2
83.33-36-INST
Rev. A

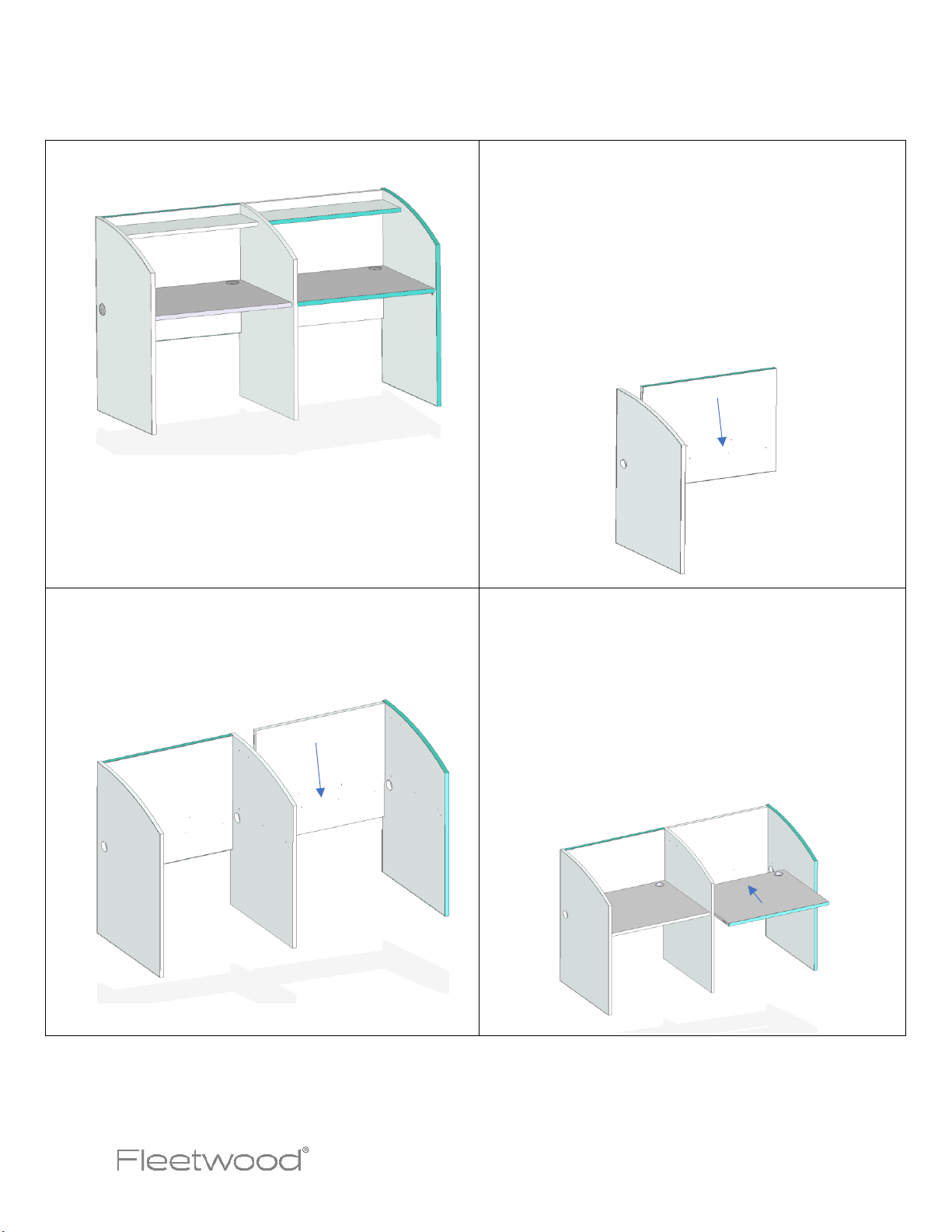

STARTER/ADDER CARREL WITH HIGH ENDS SHOWN
Note: The assembly of this unit requires two people.
TOOLS REQUIRED:
-Phillips Tip Screwdriver
-Rubber Mallet
1. Locate the back panel and LH end panel. Attach back
panel to end panel by having one person hold the end
panel in an upright position and a second person slide
the back panel over the four shoulder screws located
near the back edge of the end panel. Once the back
panel has been slid downward enough to engage the
shoulder screws, use rubber mallet to properly seat the
modular clips.
*NOTE: Be sure the trough holes and worksurface
attachment holes are facing toward the inside of the
carrel.
2. Locate the intermediate panel. Repeat Step 1 to attach
the end/intermediate panel to opposite end of the back
panel. Continue to repeat this step until all additional
intermediate panels, backs and opposite end panels
have been attached.
3. Locate the worksurface. Attach the worksurface to the
end/intermediate panels. Note the relief cutouts on the
bottom of the worksurface near each of the modular
clips. Slide the worksurface between the
end/intermediate panels until the relief cutouts align
with the shoulder screws. Lower the worksurface and
slide toward the back panel to engage the shoulder
screws. Use the rubber mallet to properly seat the
modular clips onto the shoulder screws.

Carrel (Low & High) Assembly Instructions
Page 2of 2
83.33-36-INST
Rev. A
For questions, please call us at [phone]
4. Lock the worksurface together with back panel by using 2
angle brackets. Fasten the brackets to the bottom rear of
the worksurface first using the supplied #8 x 5/8 screws.
Fasten to the back panel to eliminate any gap. Next, repeat
at the front edge of the worksurface and end/intermediate
panel using additional screws. Repeat the process on all
worksurfaces.
5. *Note: Low carrels are sold without shelves. Skip this
step if you purchased low carrels.
Locate the shelves. Attach the shelves to the
end/intermediate panel. Lower the shelves over the
shoulder screws above the worksurface and slide
toward the back panel to engage the shoulder screws.
Use a rubber mallet to properly seat the modular clips.
Repeat this step for all remaining shelves.
6. Locate the wire management trough. Align the holes in the
wire management trough to the holes in the back panel
below the worksurface. Attach by using #8 x 5/8 screws .
7. Insert the wire management grommets into
ends, intermediate panels and worksurfaces
