Flepcher FLP-ZS9812 MKII User manual

The ZS9812 MKII Zone Selector allows the selection of up to 12 individual zones, with a convenient ALL CALLS function to
provide activation for all the zones on the unit. When paging microphone is activated, the paging console will dictate the
selection of active zones in accordance to the settings. Similarly, once paging console is deactivated, the bypassed zones
shall revert back to the previous setting, providing both order and convenience to the users.
The ZS9812 MKII fits aptly into application that goes beyond the intended 12 zones. Configuration of the active zones can
be done either manually through front panel switches, or remotely via negative triggering method. When remote paging
microphone is in use, the zone selector switches on the unit will be temporarily deactivated, muting the BGM along the
way.
FLP-ZS-9812 MKII
12 Channel Zone Selector
• An ALL CALL button for simultaneous activation of all zones
• A priority triggering port feature for connection to handheld emergency paging microphone
• Priority relay to override DC signal
Product Features
Power Consumption
Zone Load Rating
Operating Voltage
Connections
Cable Size
Dimension (W x D x H)
Weight
Finish
Specifications
6:8W or 0.28A at ALL CALL
400W at 100V amplifier line output
24V DC via adaptor
Detachable connectors
Up to 2.5mm sq
484mm x 132mm x 44mm
2.1 kg
Black

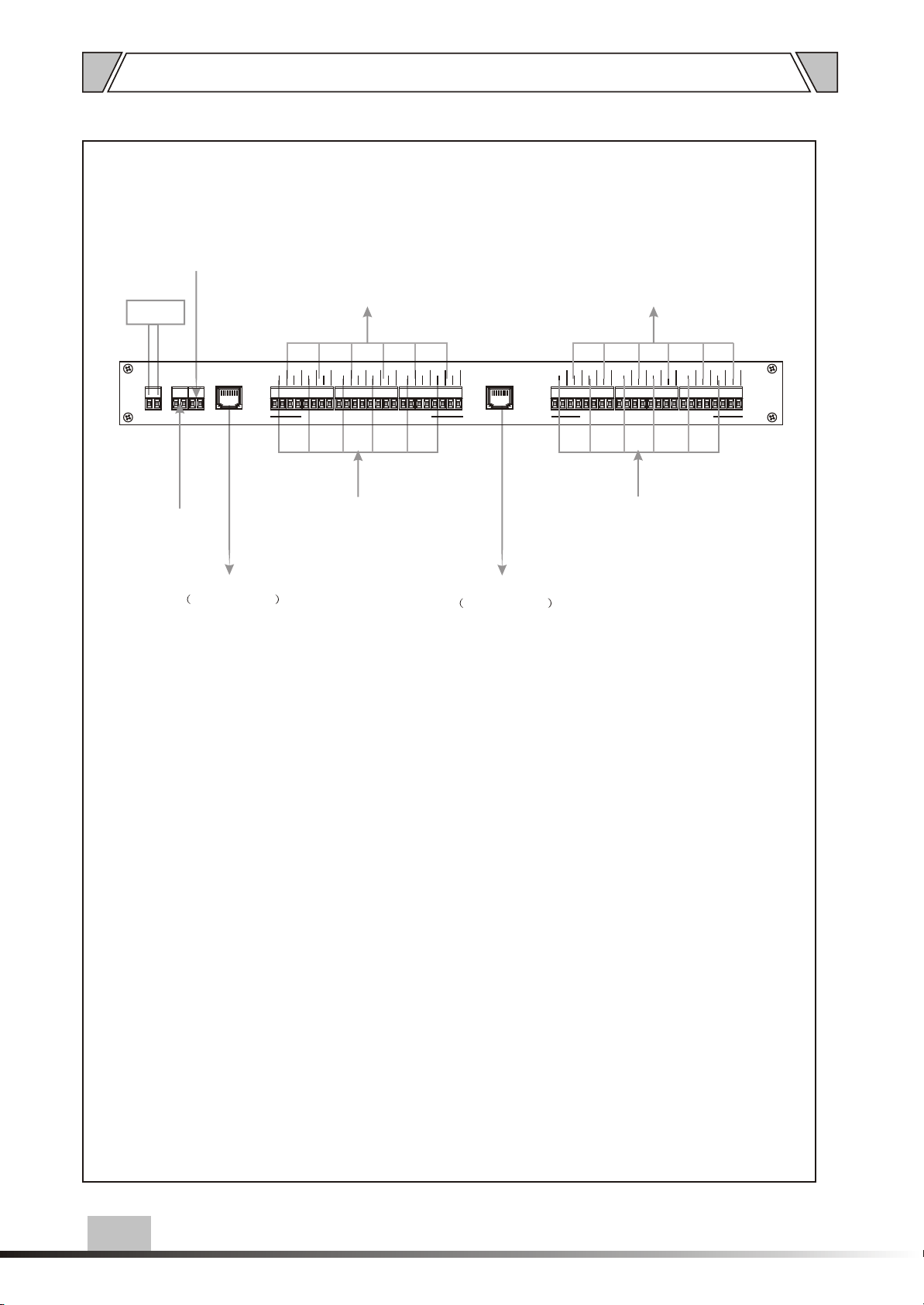

Portable Sound System Mixer Amp/ Pre Amp/ Power Amp Paging Microphone
& Zone selector Rack mount equipment
Relay Trigger Input
Connect to
PMC-012
Connect to
PMC-012 Connect to
amplifier 100v
Connect to
amplifier 100v
To speaker
zone 7-12
To speaker
zone 1-6
Relay Trigger Output
17

Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
PUBLIC ADDRESS SYSTEM
TMTM
ZONE SELECTOR
FLP-ZS9812MKII
OPERATION MANUAL
OVERRIDE
12345678910 11 12 ALL CALL
SPEAKER ZONE SELECT
FLP-ZS9812MKII
ZONE SELECTOR
TMTM

FLP-ZS9812MKII 2
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS .......................................................................................3
2. FEATURES ...............................................................................................................5
3. NOMENCLATURE AND FUNCTIONS
3.1 Front Panel .............................................................................................................6
3.2 Rear Panel..............................................................................................................7
4. MACHINE OPERATION ..........................................................................................8
5. APPLICATIONS .......................................................................................................9
6.SPECIFICATIONS .................................................................................................10

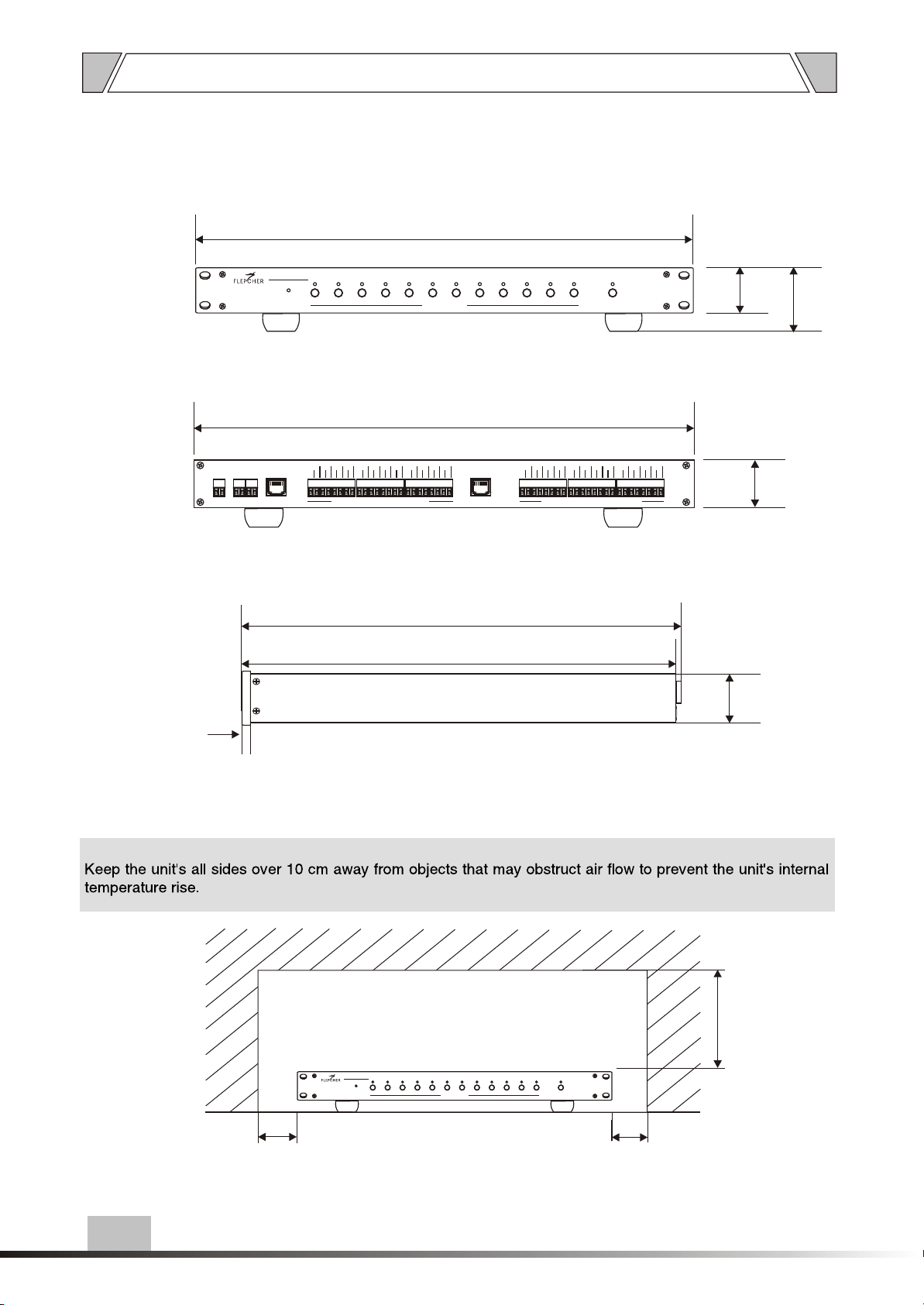

7.DIMENSIONAL DIAGRAM ....................................................................................11

3FLP-ZS9812MKII
1. SAFETY PRECAUTIONS
Be sure to read the instructions in this section carefully before use.
Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentally spill into the unit, this may cause a
fire or electric shock.
Do not insert nor drop metallic objects or flammable
materials in the ventilation slots of the unit's cover,
as this may result in fire or electric shock.
When Installing the Unit When Installing the Unit
Should the following irregularity be found during
use, immediately switch off the power, disconnect
the power supply plug from the AC outlet and contact
y our nearest dealer. Make no further attempt to op-
erate the unit in this condition as this may cause
fire or electric shock.
If you detect smoke or a strange smell coming
from the unit.
If water or any metallic object gets into the unit
If the unit falls, or the unit case breaks
If the power supply cord is damaged (exposure
of the core, disconnection, etc.)
If it is malfunctioning (no tone sounds.)
To prevent a fire or electric shock, never open nor
remove the unit case as there are high voltage
components inside the unit. Refer all servicing
to your nearest dealer.
Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on
the unit.Using a voltage higher than that which
is specified may result in fire or electric shock.
Do not cut,kink otherwise damage nor modify the
power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never
place heavy objects - including the unit itself - on
the power cord, as doing so may result in fire or
electric shock.
Be sure to replace the unit's terminal cover after
connection completion. Because high voltage
is applied to the speaker terminals,never touch
these terminals to avoid electric shock.
Be sure to ground to the safety ground (earth)
terminal to avoid electric shock. Never ground
to a gas pipe as a catastrophic disaster mayresult.
Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in theunit falling
down,causing personal injury and / or property
damage.

4
FLP-ZS9812MKII
An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in
the electrical installation of the building.
Never plug in nor remove the power supply plug
with wet hands, as doing so may cause electric
shock.
When unplugging the power supply cord, be sure
to grasp the power supply plug; never pull on the
cord itself. Operating the unit with a damaged
power supply cord may cause a fire or electric
shock.
When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit
with the power cord connected to the outlet may
cause damage to the power cord, resulting in fire or
electric shock. When removing the power cord, be
sure to hold its plug to pull.
Do not block the ventilation slots in the unit's cover.
Doing so may cause heat to build up inside the unit
and result in fire.
Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in fire or
electric shock.
Do not place heavy objects on the unit as this may
cause it to fall or break which may result in personal
injury and/or property damage. In addition, the object
itself may fall off and cause injury and/or damage.
Make sure that the volume ontrol is set to minimum
position before power is switched on. Loud noise
produced at high volume when power is switched
on can impair hearing.
Do not operate the unit for an extended period of
time with the sound distorting. Thisis an indication
of a malfunction, which in turn can cause heat to
generate and result in a fire.
Contact your dealer as to the cleaning. If dust
is allowed to accumulate in the unit over a long
period of time, a fire or damage to the unit may
result.
If dust accumulates on the power supply plug or in
the wall AC outlet, a fire may result. Clean it peri-
odically. Inaddition, insert the plug in the wall outlet
securely.
Switch off the power, and unplugthe power supply
plug from the AC outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or
more. Doing otherwise may cause a fire or electric
shock.
Due to product upgrades, while some of the
features and specification in the user manual
does not match the actual functions, sorry for
any inconvenience and thanks for your kind
understanding!
When Installing the Unit When Installing the Unit

5
2. FEATURES
FLP-ZS9812MKII
1. Built-in independent partitions, with the region control.
2.12 amplifier audio signal input, 12 outputs, one correspondence.
3. Can be remote control district, the region features.
4. With a short-circuit signal control function of the region, and the short-circuit the signal output port.

6
1. OVER RIDE
When it is light, other lights are off and
the ZONE1 ~ 12 after the board did not
signal output
3. NOMENCLATURE AND FUNCTIONS
1

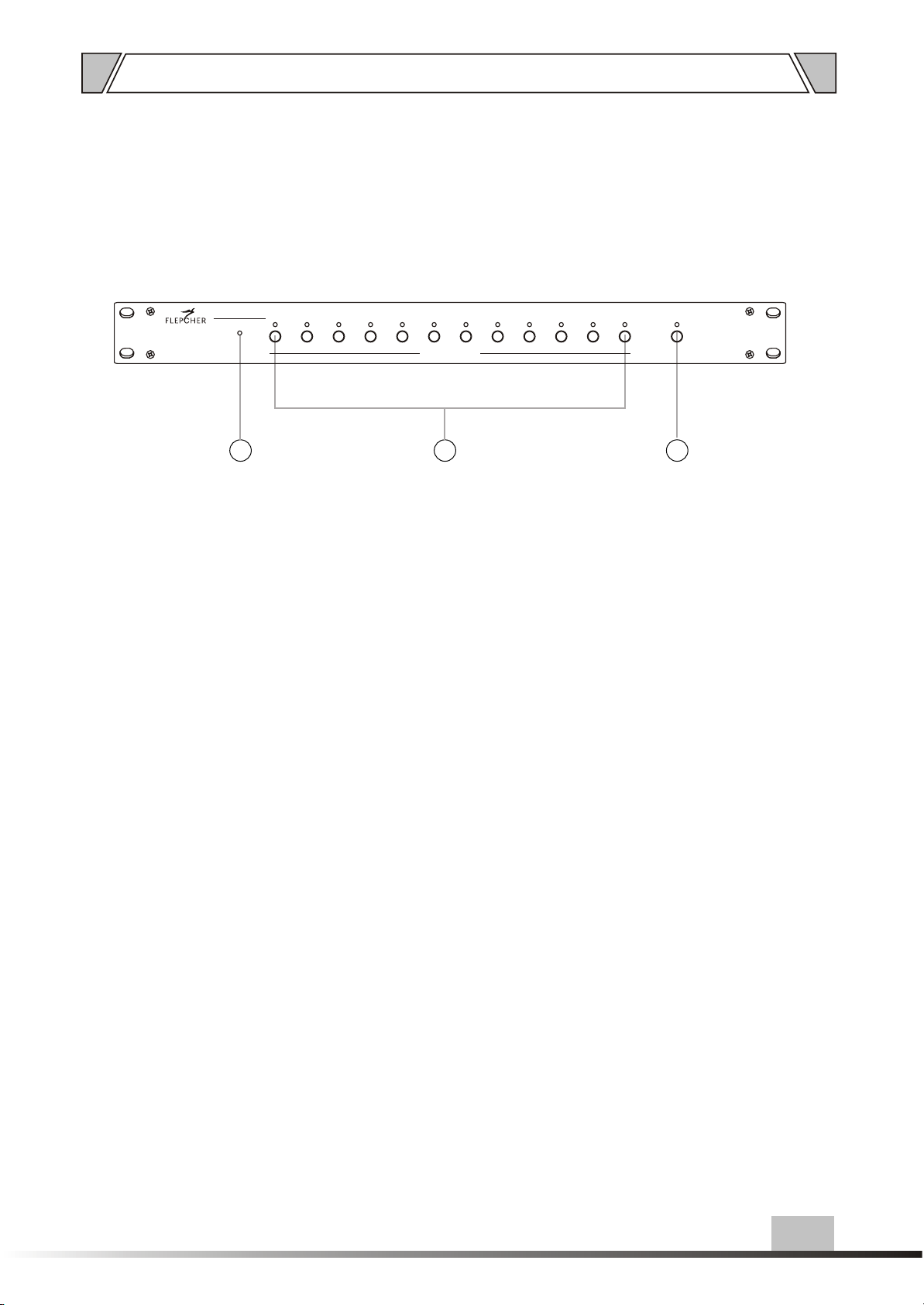

3.1 FRONT PANEL
FLP-ZS9812MKII
23
2. Zoning button
Zoning indicator
3. ALL CALL
All zoning button
All zoning indicator
OVERRIDE
12345678910 11 12 ALL CALL
SPEAKER ZONE SELECT
FLP-ZS9812MKII
ZONE SELECTOR
TM

DC24V
+ -
RELAY
TRIG
RELAY
CON
T
REMOTE SELECT
PIN 1-Z1
PIN 2-Z2
PIN 3-Z3
PIN 4-Z4
PIN 5-Z5
PIN 6-Z6
PIN 7-AC
PIN 8-PR
AMP 1
100V
COM
ZONE 1
100V
COM
AMP 2
100V
COM
ZONE 2
100V
COM
AMP 3
100V
COM
ZONE 3
100V
COM
AMP 4
100V
COM
ZONE 4
100V
COM
AMP 5
100V
COM
ZONE 5
100V
COM
AMP 6
100V
COM
ZONE 6
100V
COM
AMP 9
100V
COM
ZONE 9
100V
COM
AMP10
100V
COM
ZONE10
100V
COM
AMP 7
100V
COM
ZONE 7
100V
COM
AMP 8
100V
COM
ZONE 8
100V
COM
AMP11
100V
COM
ZONE11
100V
COM
AMP12
100V
COM
ZONE12
100V
COM
REMOTE SELECT
PIN 1-Z7
PIN 2-Z8
PIN 3-Z9
PIN 4-Z10
PIN 5-Z11
PIN 6-Z12
PIN 7-AC
PIN 8-GND
AMPLIFIER INPUTS-ZONE OUTPUTS FOR ZONE 1 TO 6 AMPLIFIER INPUTS-ZONE OUTPUTS FOR ZONE 7 TO 12
NOMENCLATURE AND FUNCTIONS
7
1. 24V DC INTPUT
2. RELAY TRIG
Short-circuit signal input
3. RELAY CONT
Short-circuit signal output
4. REMOTE SELECT
Remote Control Port
5. AMP1~AMP6
Amp signal(100V) input
6. AMP7~AMP12
Amp signal(100V) input
7. ZONE7-ZONE12
Zone signal(100V) output
8. ZONE1-ZONE6
Zone signal(100V) output

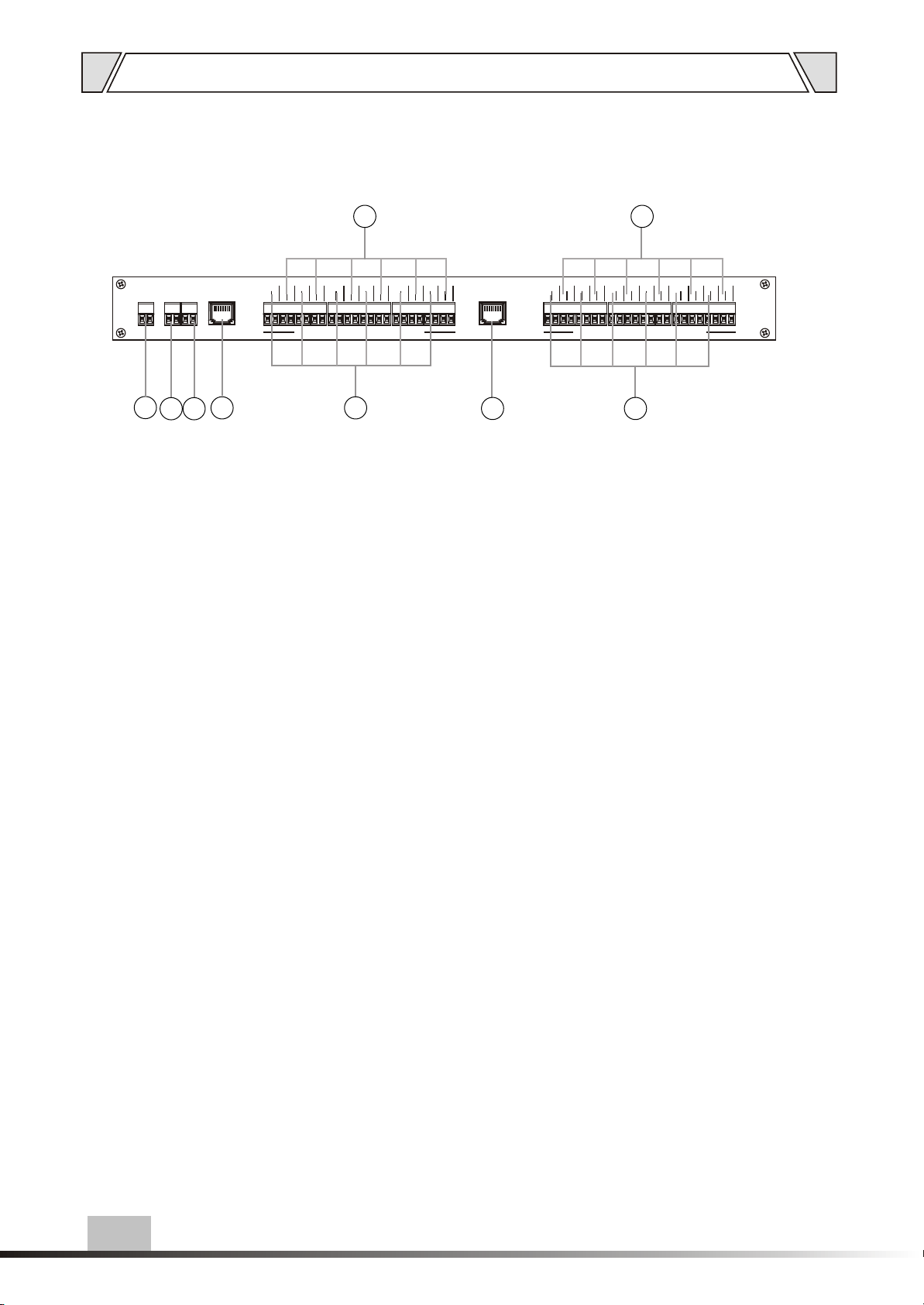

3.2 REAR PANEL
1
FLP-ZS9812MKII
5
234
7
6
8
4

4. MACHINE OPERATION
8
FLP-ZS9812MKII
12 3
45678PIN 1-Z1
PIN 2-Z2
PIN 3-Z3
PIN 4-Z4
PIN 5-Z5
PIN 6-Z6
PIN 7-AC
PIN 8-PR
1. Panel 1 to 12 buttons and the corresponding channel indicator light after the plate AMP1 ~ 12
and ZONE1 ~ 12.Press the button corresponding to the channel after the board has a
corresponding signal output (in the channel under the premise of an input signal),ALL ZONE
button is pressed, after a 12-channel board can be output (100V).
2. RELAY TRIG signal input short circuit, REPLAY CONT Duanyou short-circuit signal output at the
same time ZONE1 ~ 12 have a 100V output.
3.REMOTE SELECT sequence of Figure PIN interface.
a. REMOTE SELECT after the panel on the left of the PIN1-PIN6
Said control ZONE1-ZON6, PIN1-6 and GND shorted to trigger connected ZON1-6, Input the
corresponding output channel may be communication number, panel indicator light does not
shine panel indicator light does not shine;PIN7-AC and ground shorted all the light does not
shine, ZONE1 ~ 12 have a 100V output. PIN8 and GND shorted, panel lights all the knowledge,
ZONE1 ~ 12 have no output.
b. REMOTE SELECT right after the board of the PIN1-PIN6s aid control ZONE7-ZON12, PIN1-6 and
GND shorted to trigger connected ZON7-12, the input and output channels corresponding to 11 can
be connected, panel indicator light does not shine.
c. PIN7-AC remote region control, PIN7 shorted GND, can be controlled ZONE1-12 District,
signal conduction, but the panel lights are not bright.
d. PIN8-PR force to cut off function, PIN8 shorted GND, can be controlled ZONE1-12 District, the
signal cut off, the panel lights are bright,
FLP-PMC012
12 ZONES REMOTE PAGING
MICROPHONE
TMTM
MIC
12
3
PUSH
CHIME ALL TALKPOWER
-18 -15 -12 -9 -6 -3 0 +3 +6 +9
-18 -15 -12 -9 -6 -3 0 +3 +6 +9
OUTPUT LEVEL
CH4
CH3CH2CH1
CH8CH7CH6CH5
CH12CH11CH10CH9
Note:
The PIN and GND shorted by using a remote control port connected to FLP-PMCE012
control, shown in Figure:
Press the CH1 ~ 12 (rather 2 REMOTE SELECT ports correspond to a short PIN and
access, such as the pressCH1, left REMOTE SELECT to PIN1 and GND shorted, press
CH7, the right side of REMOTE SELECT the PIN1 and GND shorted), corresponding
ZONE1 ~ 12 through the signal (100V),They are independently controlled, that is, at
the same time press the CH1 ~ 12, ZONE1 ~ 12 can be through the signal (through 100V).
Press the ALL button (equivalent to PIN7 and GND shorted), ZONE1 ~ 12 can be accessed
through the signal (100V).
The right side PIN8 can be GND by themselves

5. APPLICATIONS
REAR PANEL CONNECTIONS
9FLP-ZS9812MKII
SHORT-CIRCUIT
SIGNAL INPUT
SHORT-CIRCUIT SIGNAL OUTPUT
DC 24V
TO SPEAKER(100V) TO SPEAKER(100V)
AMPLIFIER(100V) AMPLIFIER(100V)
FLP-PMC012
TO REMOTE CONTROL PORT
FLP-PMC012
TO REMOTE CONTROL PORT
DC24V
+ -
RELAY
TRIG
RELAY
CON
T
REMOTE SELECT
PIN 1-Z1
PIN 2-Z2
PIN 3-Z3
PIN 4-Z4
PIN 5-Z5
PIN 6-Z6
PIN 7-AC
PIN 8-PR
AMP 1
100V
COM
ZONE 1
100V
COM
AMP 2
100V
COM
ZONE 2
100V
COM
AMP 3
100V
COM
ZONE 3
100V
COM
AMP 4
100V
COM
ZONE 4
100V
COM
AMP 5
100V
COM
ZONE 5
100V
COM
AMP 6
100V
COM
ZONE 6
100V
COM
AMP 9
100V
COM
ZONE 9
100V
COM
AMP10
100V
COM
ZONE10
100V
COM
AMP 7
100V
COM
ZONE 7
100V
COM
AMP 8
100V
COM
ZONE 8
100V
COM
AMP11
100V
COM
ZONE11
100V
COM
AMP12
100V
COM
ZONE12
100V
COM
REMOTE SELECT
PIN 1-Z7
PIN 2-Z8
PIN 3-Z9
PIN 4-Z10
PIN 5-Z11
PIN 6-Z12
PIN 7-AC
PIN 8-GND
AMPLIFIER INPUTS-ZONE OUTPUTS FOR ZONE 1 TO 6 AMPLIFIER INPUTS-ZONE OUTPUTS FOR ZONE 7 TO 12

10
6.SPECIFICATIONS
MODEL FLP-ZS9812MKII
AUDIO OUTPUT 100V
AUDIO INPUT
100V
FLP-ZS9812MKII
AUDIO AMPLIFIER RECEIVER MODULE
DIMENSION(mm)
WEIGHT
484X132X44
POWER REQUIREMENTS
DC 24V
1.9kg

100
Over
100
Over
Over
100
7. DIMENSIONAL DIAGRAM
UNIT:mm
6
41
41
136
132
44
50
440
484
UNIT:mm
11 FLP-ZS9812MKII
OVERRIDE
12345678910 11 12 ALL CALL
SPEAKER ZONE SELECT
FLP-ZS9812MKII
ZONE SELECTOR
TM
OVERRIDE
12345678910 11 12 ALL CALL
SPEAKER ZONE SELECT
FLP-ZS9812MKII
ZONE SELECTOR
TM
DC24V
+ -
RELAY
TRIG
RELAY
CON
T
REMOTE SELECT
PIN 1-Z1
PIN 2-Z2
PIN 3-Z3
PIN 4-Z4
PIN 5-Z5
PIN 6-Z6
PIN 7-AC
PIN 8-PR
AMP 1
100V
COM
ZONE 1
100V
COM
AMP 2
100V
COM
ZONE 2
100V
COM
AMP 3
100V
COM
ZONE 3
100V
COM
AMP 4
100V
COM
ZONE 4
100V
COM
AMP 5
100V
COM
ZONE 5
100V
COM
AMP 6
100V
COM
ZONE 6
100V
COM
AMP 9
100V
COM
ZONE 9
100V
COM
AMP10
100V
COM
ZONE10
100V
COM
AMP 7
100V
COM
ZONE 7
100V
COM
AMP 8
100V
COM
ZONE 8
100V
COM
AMP11
100V
COM
ZONE11
100V
COM
AMP12
100V
COM
ZONE12
100V
COM
REMOTE SELECT
PIN 1-Z7
PIN 2-Z8
PIN 3-Z9
PIN 4-Z10
PIN 5-Z11
PIN 6-Z12
PIN 7-AC
PIN 8-GND
AMPLIFIER INPUTS-ZONE OUTPUTS FOR ZONE 1 TO 6 AMPLIFIER INPUTS-ZONE OUTPUTS FOR ZONE 7 TO 12

PUBLIC ADDRESS SYSTEM
VersionV0.1
TMTM
