FLIFLI AirDrop User manual

FLiFLi AirDrop is a portable drop device, attachable to your drones. AirDrop body and
remote control can send and receive data by interchanging one's Identification Number(ID)
which follows wireless communication rule. AirDrop has a advanced operating system and
can be activated by a remote control which is included in the product package. AirDrop is
designed to provide a light weight and easy-to-use dropping experience. And it is much
easy and convenient to equip.
https://www.flifliairdrop.com/guide
QUICK GUIDE

Carefully read this guide before using the AirDrop. Using the AirDrop increases the load on
the drone and quickens battery drainage. AirDrop is not recommended for novice pilots or
if you are inexperienced in flying Phantom series. Refrain from hanging the objects that
are too heavy for the drone. Reduce the flight speed, and avoid sudden movements.

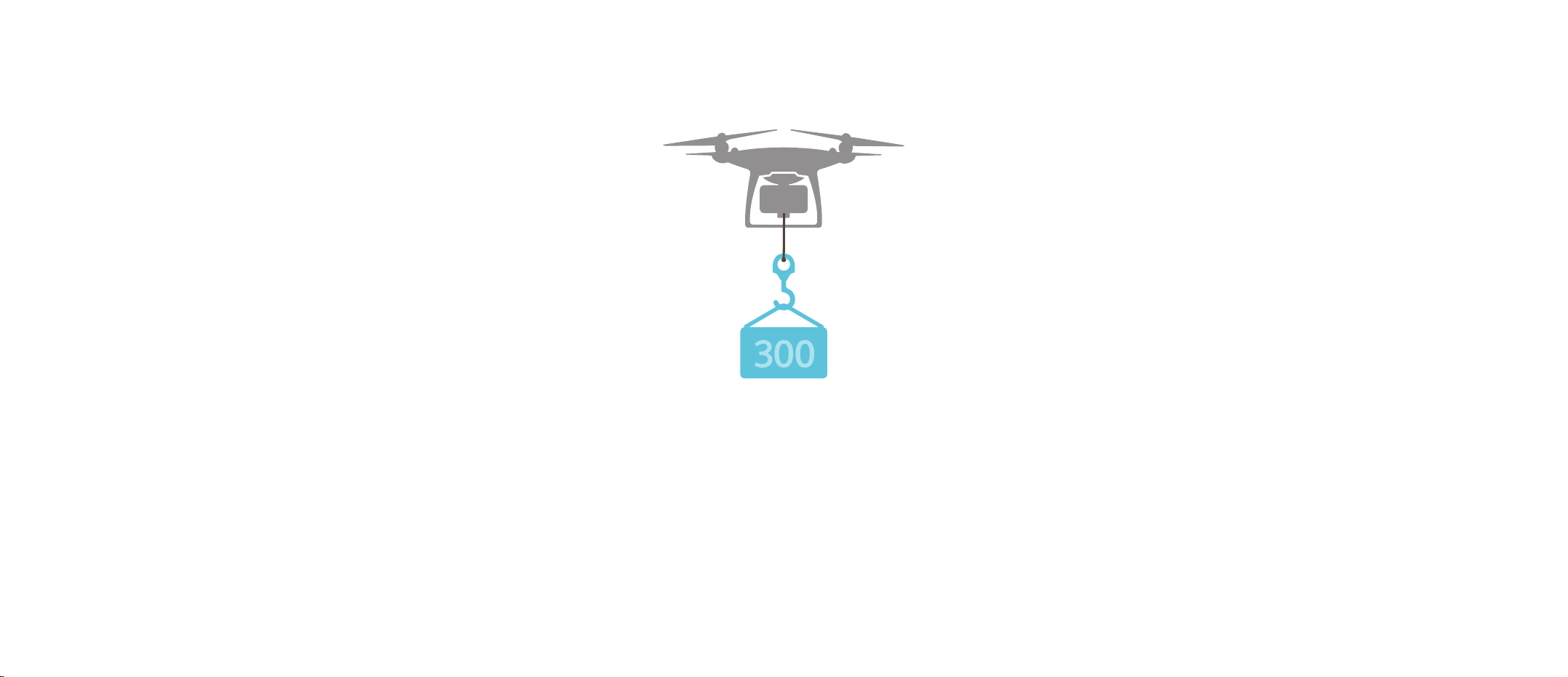

Phantom can stably carry about 300g of weight.
Depending on the type of drones (lifting force), the maximum load capacity may vary.
300

120 g

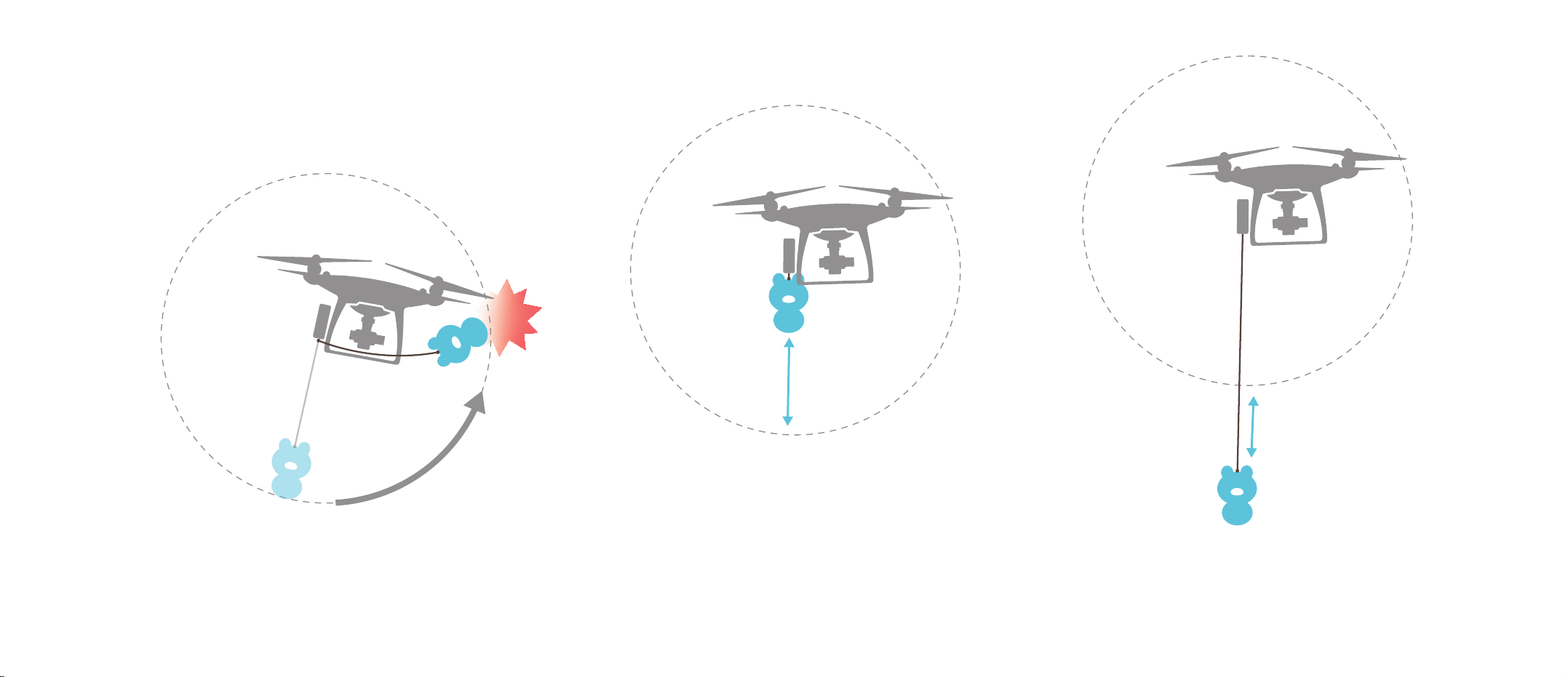

If the hanging object is too light, it can be blown in the wind and makes drone operation unsafe. Remove
the attached strings or adjust the length so that the object does not reach the propeller’s range.

600 g1 kg

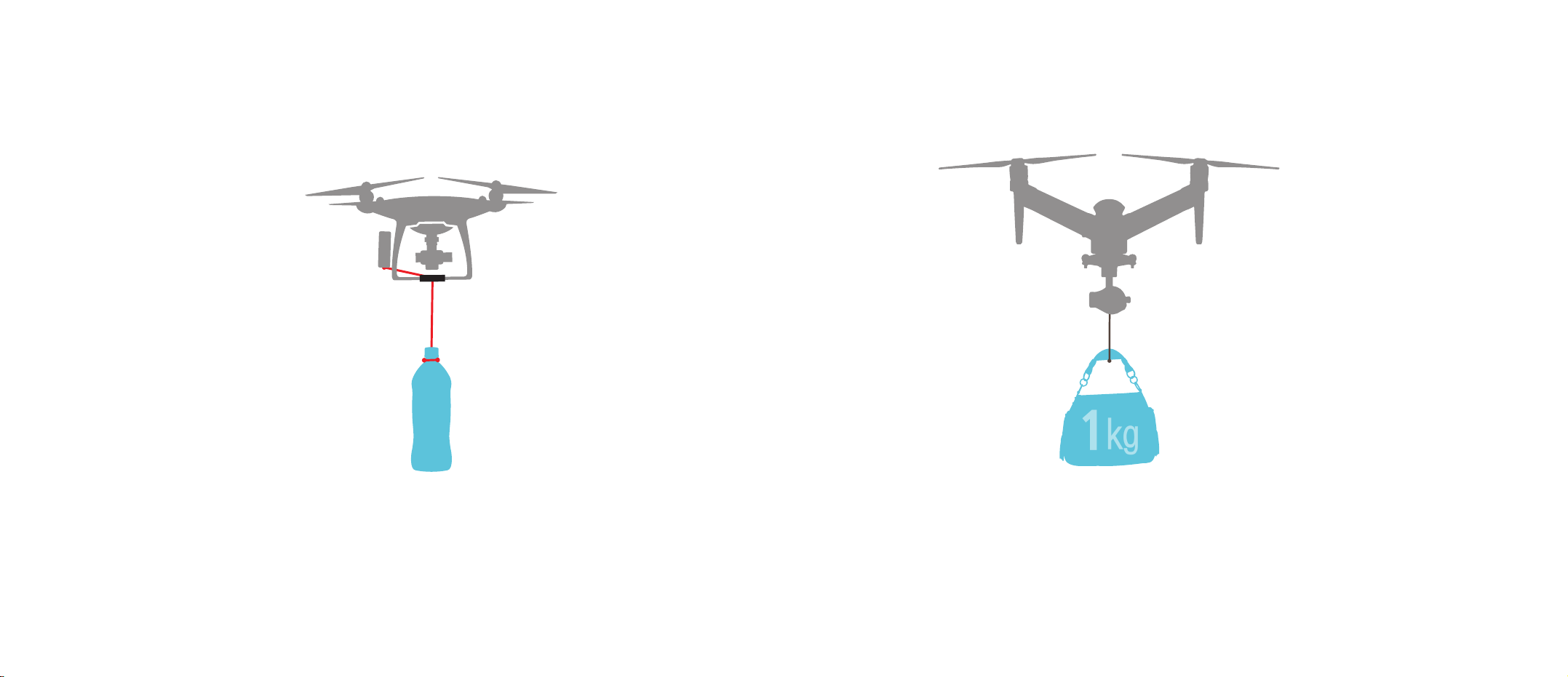

When hanging a heavier object, move the
center of gravity to the midpoint of the drone
using auxiliary device (e.g. gimbal guard).
The pin of the AirDrop body opens up to about 1kg
of weight of the load. Applying a lubricant to the
pin (a metal bar with 3mm thickness) will reduce
the frictional force and make it easier to open.
1㎏

3 kg
If AirDrop is attached to the drone with higher lifting force, up to about 3 kg can be hung.
When carrying more than 1kg of weight, the AirDrop pin will not open, but it can be used
to transport the object. Lower the object until it touches the ground and open the pin.
①
②
3㎏
3㎏

AirDrop guarantees a working distance of 1 km.
In the distance of more than 3 km, the probability of operation will decrease.

It doesn't disturb sight of camera installed on drone.

Multiple AirDrops can be used at the same space.
However, AirDrops will not work if more than one persons press the buttons
on the remote control simultaneously. When more than one persons press
the buttons on the remote control in sequence, all the AirDrops will work.
1 2 3

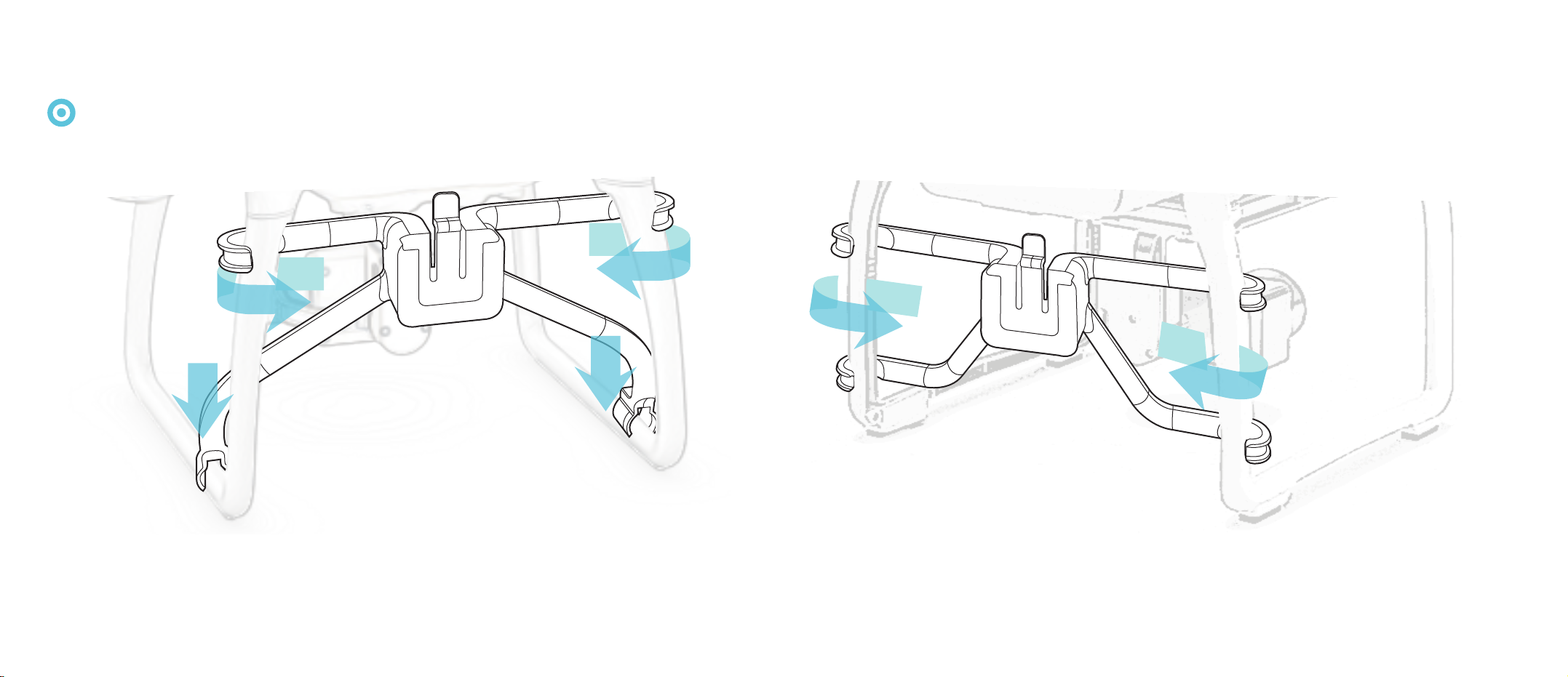

Attach the bracket
Attach the bracket to the landing gear.
● FB-1000GT : Phantom 4 Pro/Advanced/Pro V2.0
● FB-1000ST : Phantom 4 (Standard) only
● FB-1000BT : Phantom 3 Professional/Advanced/SE/4K
● FB-1000AT : Phantom 3 Standard only

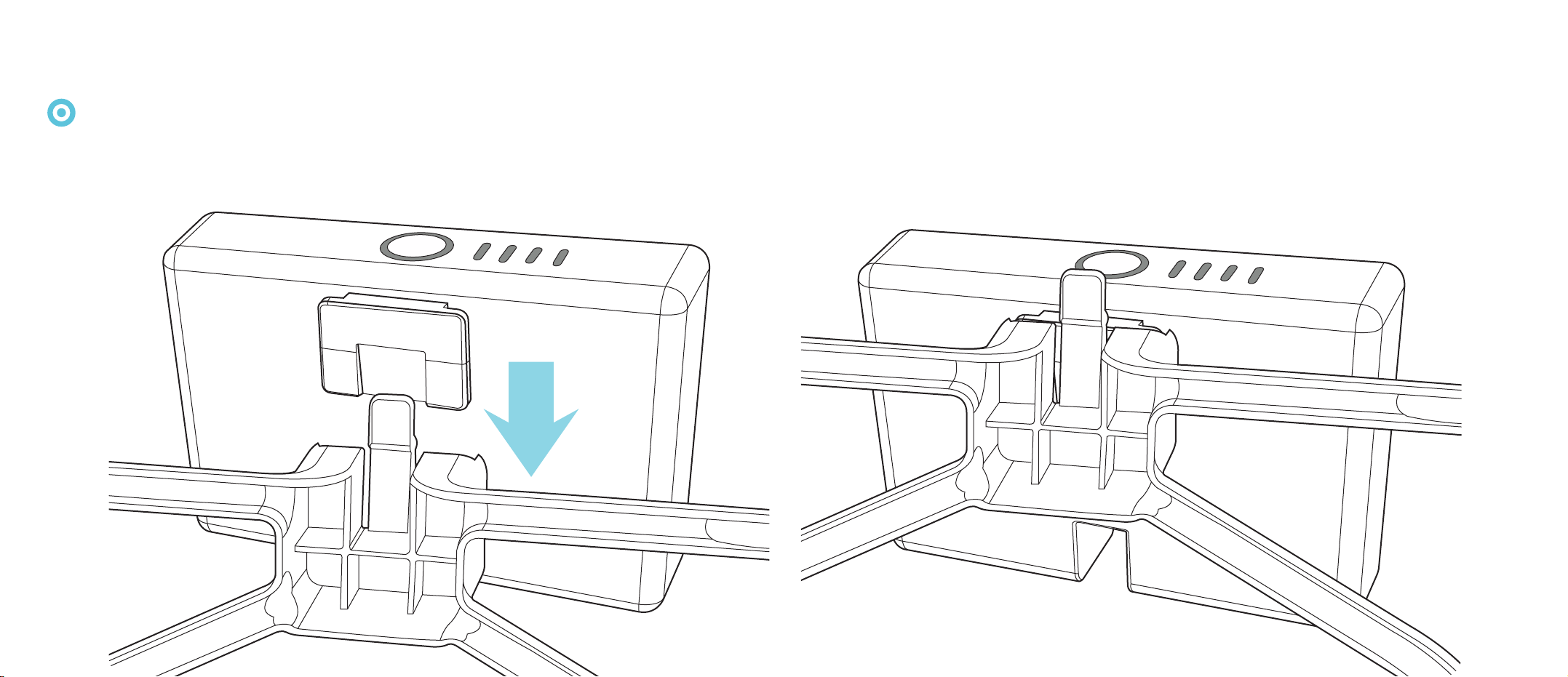

Attach the AirDrop body
Combine the bracket’s groove and the protruded part of the AirDrop body.

Turn on/off
Slowly double-click the button and hold it for a while to power on/off.
( LED will blink when AirDrop turn on/off. )

Operate
Slowly press button of remote control for more than 1 second. Main body and remote control send
signal to each other in order to check whether AirDrop pin is closed or open. If you quickly press button of remote
control repetitively, signals overlap and operation is delayed.

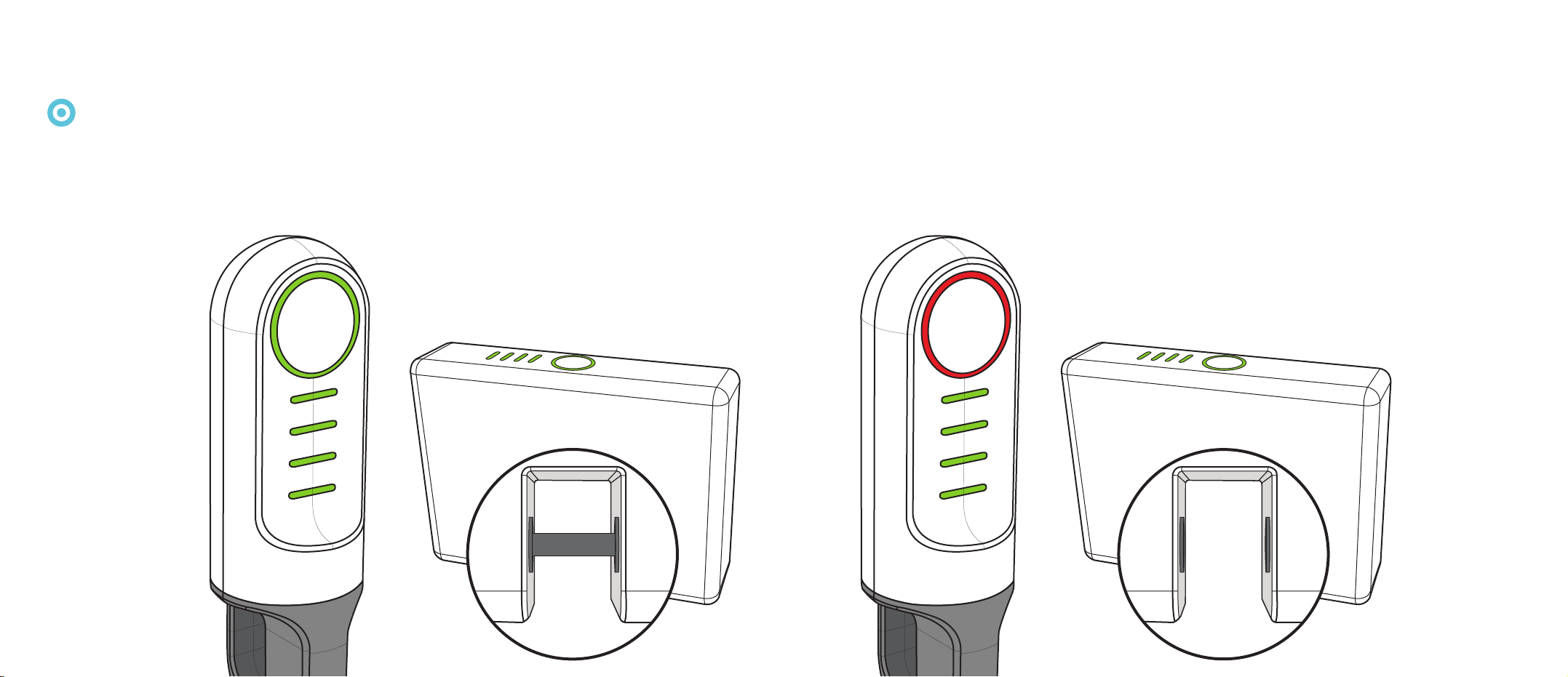

Remote Red LED
(Opened Hook)
Remote Green LED
(Closed Hook)

Built-in antenna
Turn the remote control black ring toward the AirDrop body. Black ring part of the remote has an
antenna built in. Wrapping antenna by hand reduces working distance.

Battery check
Charging is required when the LED bar level goes down. Battery check : Press the button once in the off
state. Battery operating time : 410 hours (standby), Body 2 hours and remote 3 hours (continuous movement).
Turn off the power when not using AirDrop.

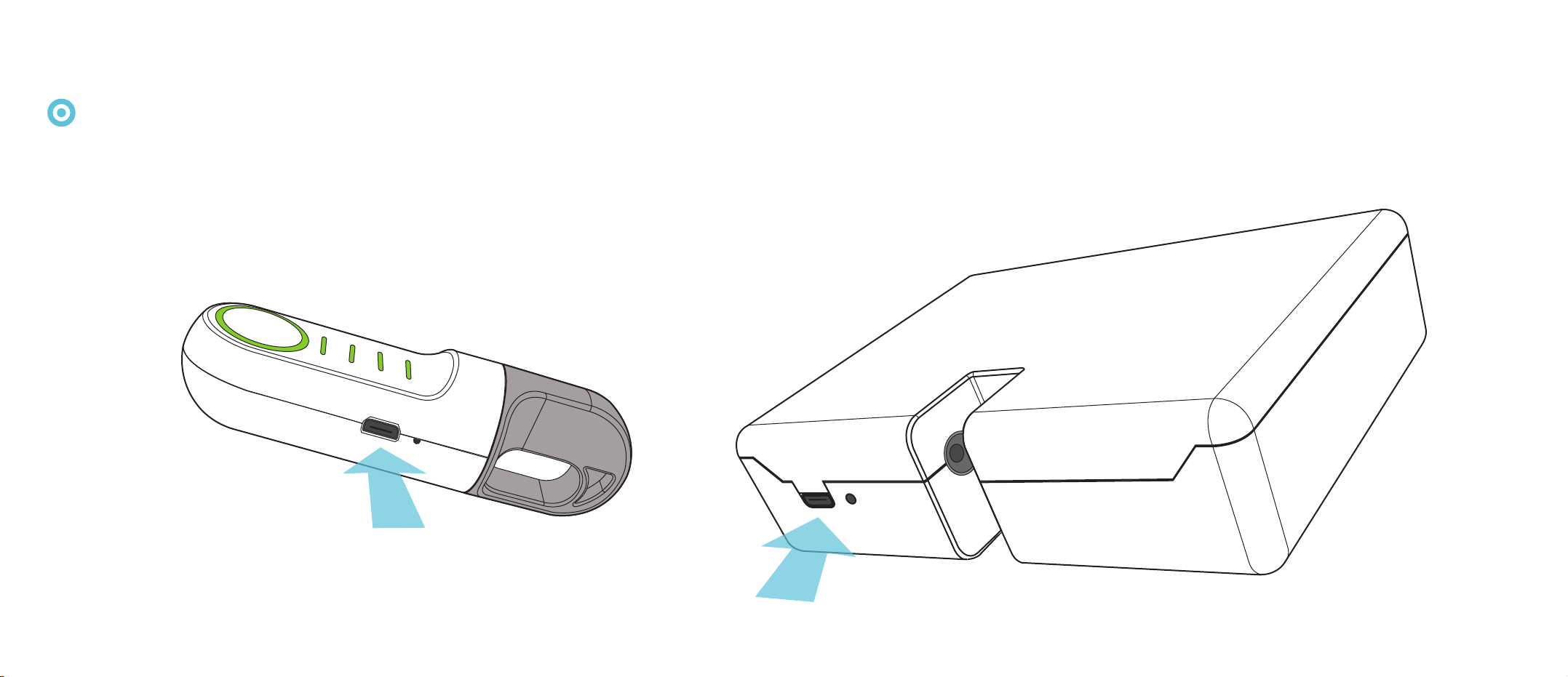

Charge battery
Full charge : First charging 2.5 hours, usually 50 minutes. Press the reset button when it is not charged.
Please charge at room temperature. If your country is winter, the AirDrop may be frozen during shipment. If the
AirDrop is frozen, it cannot be charged. (charging with USB 5-pin cable)

Reset
When AirDrop malfunction appears, press the reset button next to the charging socket using sharp
and thin tool like clip or toothpick.

Synchronization
To synchronize, press and hold the power buttons in both the body and remote at the same time
for more than 15 seconds. (start with the power off)
1) LED 1-3 and 2-4 flickers in turn when the main and the remote are on standby for synchronization.
2) LED blinking will stop when synchronization is done.
More than 15 Seconds More than 15 Seconds

Flight safety

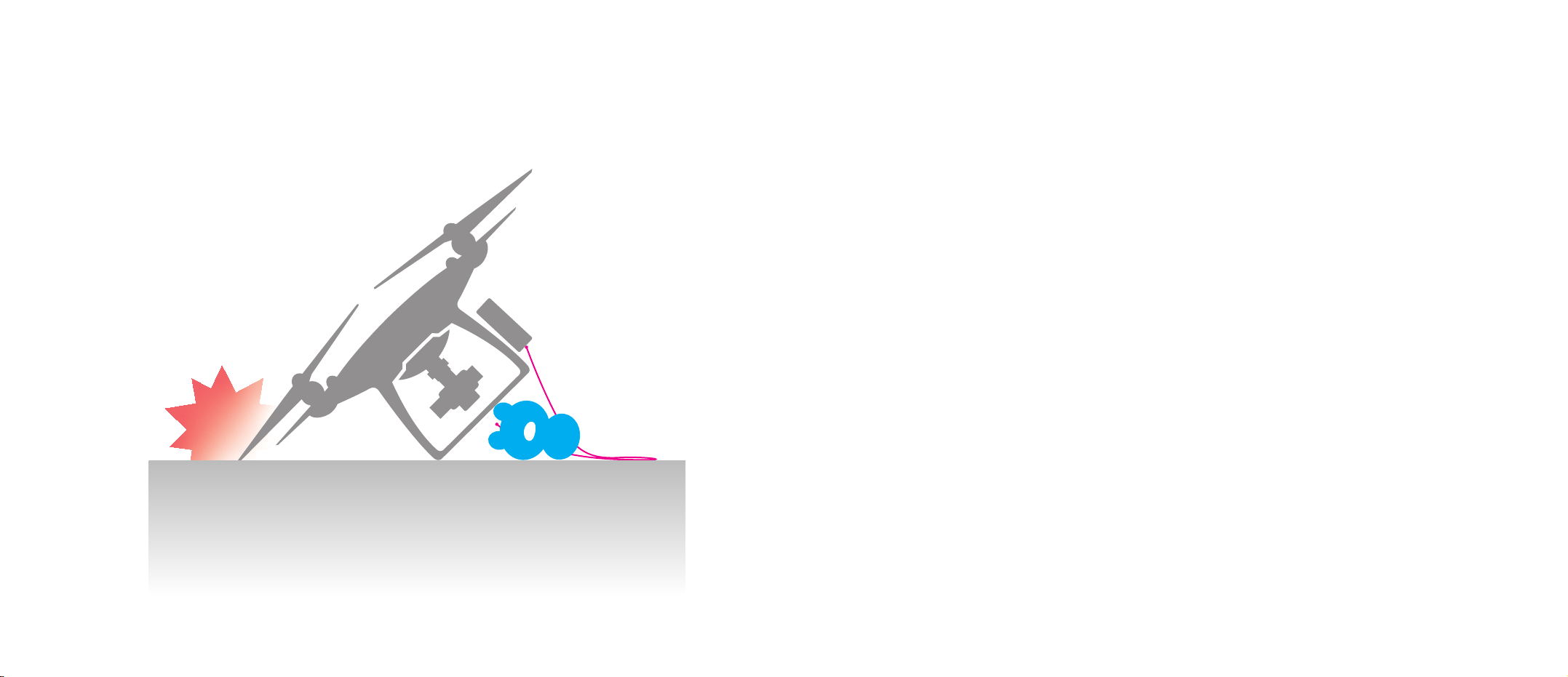

◎ Don't land with dropping object. If you need to
land the loaded drone after taking off, please discard
the load first before landing.
◎ Do not open Sports Mode when using AirDrop.
◎ Adjust Visual Navigation System if dropping
object is large.
◎ Using the AirDrop increases the load on the drone
and quickens battery drainage.
◎ AirDrop is not recommended for novice pilots or if
you are inexperienced in flying Phantom series.
◎ Do not mount magnet or magnetic metal to avoid
interfering with geomagnetism and disordering flight
control system. (Iron, Cobalt, Nickel)

User's safety guideline
Use AirDrop in compliance with local laws and regulations. Air drop equipment is a drone accesory product
which attaches to light-weight flying drone, and we will like users to heed full attention to these prohibited
acts written below.
① Air dropping activities that can possibly cause danger to people or property. ② Flying ctivities that
can possibly cause danger to people or property in a populated region or in a place where many people
are crowded together. ③ Flying in the area where people can't see the targeted place with the naked
eye. ④ Flying activities from sunset to sunrise. Exceptions will be if it is authorized by related statute,
then flying is authorized. ⑤ Flying and controlling drones under the influence of alcohol, drug, or other
substance that can possibly influence people's mind. ⑥ Flying activities that are abnormal to normal
flying re-gulations. ⑦ Bothering flying path to all aircrafts, light aircrafts, and other light non-motor
power flying equipment by using drones. ⑧ Flying above 150 meters (standard will be above 150 meter
ground, sea and hurdle level, excetions will be if it was authorized by related statute) ⑨ Flying in the
prohibited flying area
Theses rules are based on Korea Civil Aeronautics Safety Law and Civil Aeronautics Safety Law's enforcement regulation, and
therefore flying standard and regulation might be different depending on where you are located at. Thus, please verify your
country's regulation standard before flying.
