Floe 511-00832-00 User manual

- 3/4” SOCKET
- 3/4” WRENCH
- 11/32” WRENCH
- PHILLIPS SCREW DRIVER
- TORQUE WRENCH
TOOLS REQUIRED
All material © 2018 FLOE International, Inc.
Unauthorized reproduction is strictly prohibited.
Specications subject to change without notice.
INSTRUCTION P/N 611-00832-00
ISSUED: 3/22/17 REVISED 5/18
FLOE WIRELESS REMOTE
ASSEMBLY INSTRUCTIONS
KIT P/N 511-00832-00

DETAIL A
A
PARTS LIST FOR 511-00832-00
DESCRIPTIONPART NUMBERQTYITEM
HHCS, 1/2-13 X 1" SS001-70205-00
11
HHCS, 1/2-13 X 1 1/4" SS
001-70207-0022
FLAT WASHER, 1/2" 18-8 SS
001-71021-0023
RPHMS, 8-32 X 3/4" SS
001-72525-0024
NUT, NYLOCK 1/2-13 ALUM.
001-76072-00
2
5
NUT, NYLOCK 8-32 ALUM.001-76209-00
2
6
NUT, 1/2-13 ALUM.
001-76350-00
17
PLUG, WIRED REMOTE BYPASS
007-05294-00
1
8
VELCRO, 1/2" DOUBLE SIDE BLACK
014-02310-00
5 YD
9
ASS'Y, RADIO REMOTE MAST
111-00032-00
1
10
WELD'T, BRACKET - MAST MOUNT
111-00122-00
111
WIRELESS, RADIO REMOTE & TRANS
511-00870-00
1
12
WIRELESS, RADIO REMOTE & TRANS
511-00870-00
antenna
1
13
WIRELESS REMOTE

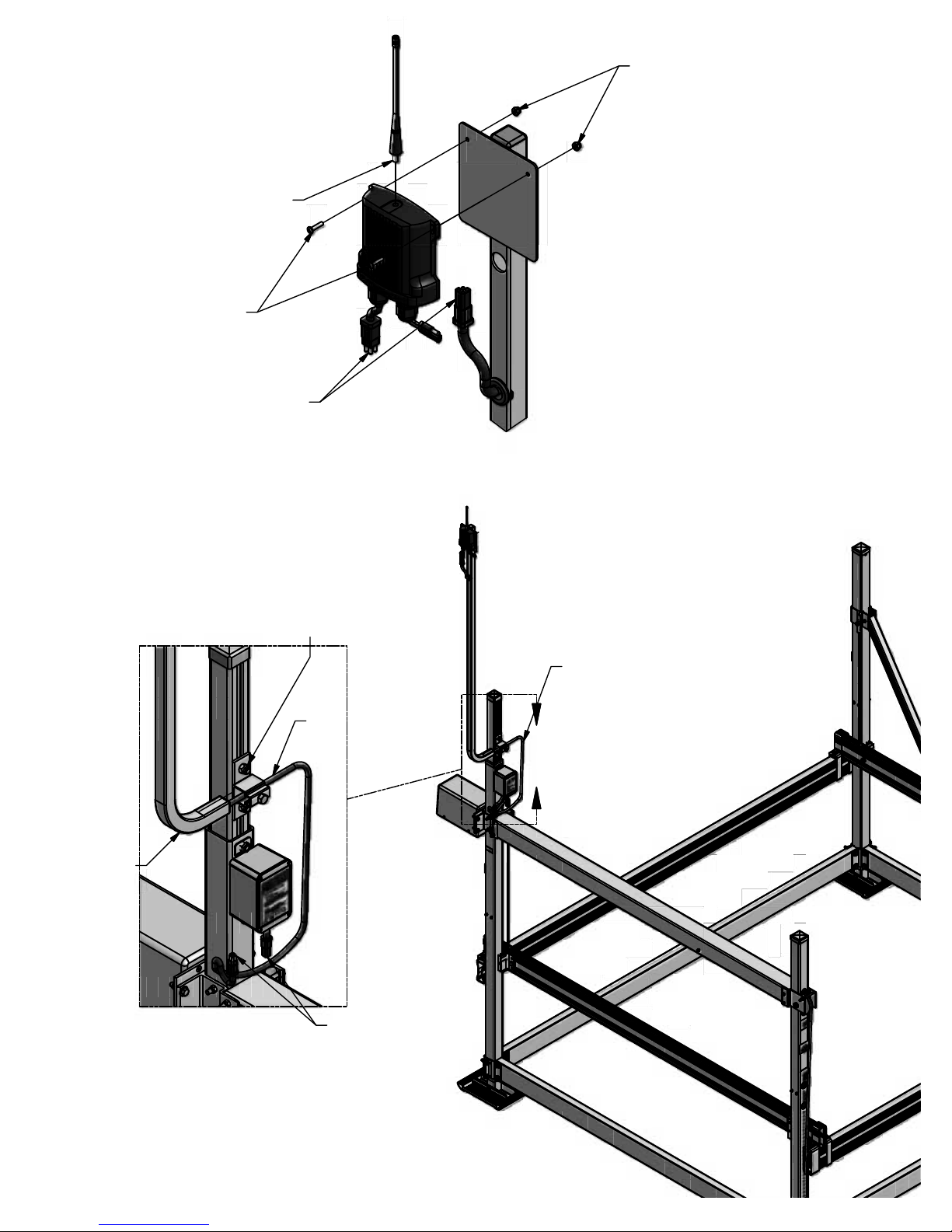

EXPLODED VIEW AND BOM
KIT P/N 511-00832-00
SHEET 2 OF 7
4
12
6
10
2
11
5
7
1
13
3
2

STEP 1
- ASSEMBLE MAST MOUNT BRACKET
SHEET 3 OF 7
FIG. 2
TOP VIEW OF CORNER POST
FIG. 1
STEP 2
- ASSEMBLE MAST MOUNT BRACKET ONTO LEG INSERT
- IF LIFT HAS CANOPY ALREADY INSTALLED, THE BRACKET AND RAIL FROM THE CANOPY
WILL HAVE TO BE REMOVED FROM THE DESIRED LEG FOR THIS STEP.
INSERT (2) 1/2 X 1 1/4"
BOLT THROUGH
WASHER AND BRACKET.
START 1/2" NYLOCK NUTS
ONTO BOLTS, DO NOT
TIGHTEN UNTIL STEP #4
1/2" WASHER BRACKET
START 1/2 X 1" BOLT INTO NUT
IN NUT TRACK, DO NOT TIGHTEN
UNTIL MAST IS IN THE BRACKET
SLIDE 1/2" ALUM. NUT INTO
NUT TRACK ON BRACKET
REMOVE CAP FROM LEG
INSERT ON CORNER POST
REINSTALL ONCE STEP IS COMPLETE
SLIDE WASHERS INTO
TRACK ON LEG INSERT
SLIDE HEAD OF BOLTS INTO
TRACK ON LEG INSERT
LEG INSERT IN CORNER POST
3

DETAIL A
A
STEP 3
- ASSEMBLE RECIEVER ONTO MAST
- INSTALL ANTENNA TO RECIEVER
SHEET 4 OF 7
FIG. 4
FIG. 3
TOP SECTION OF MAST
STEP 4
- CUT DOUBLE SIDED VELCRO IN LENGTHS NEEDED TO SECURE THE WIRE TO THE FRAME OF THE LIFT IN A
MANNER THAT WILL PREVENT THE WIRES FROM BEING HARMED FROM THE LIFT MOVING UP AND DOWN.
SECURE WIRE TO FRAME WITH VELCRO
SLIDE MAST
INTO BRACKET
FEED WIRE
THROUGH BRACKET
CONNECT WIRES
TORQUE NUTS TO 45 FT/LBS
#8/ NYLOCK NUT
THREAD ANTENNA
INTO TOP OF RECEIVER
SCREWS THROUGH
RECEIVER AND MAST
CONNECT WIRES TOGETHER
4

Floe Wireless Systems

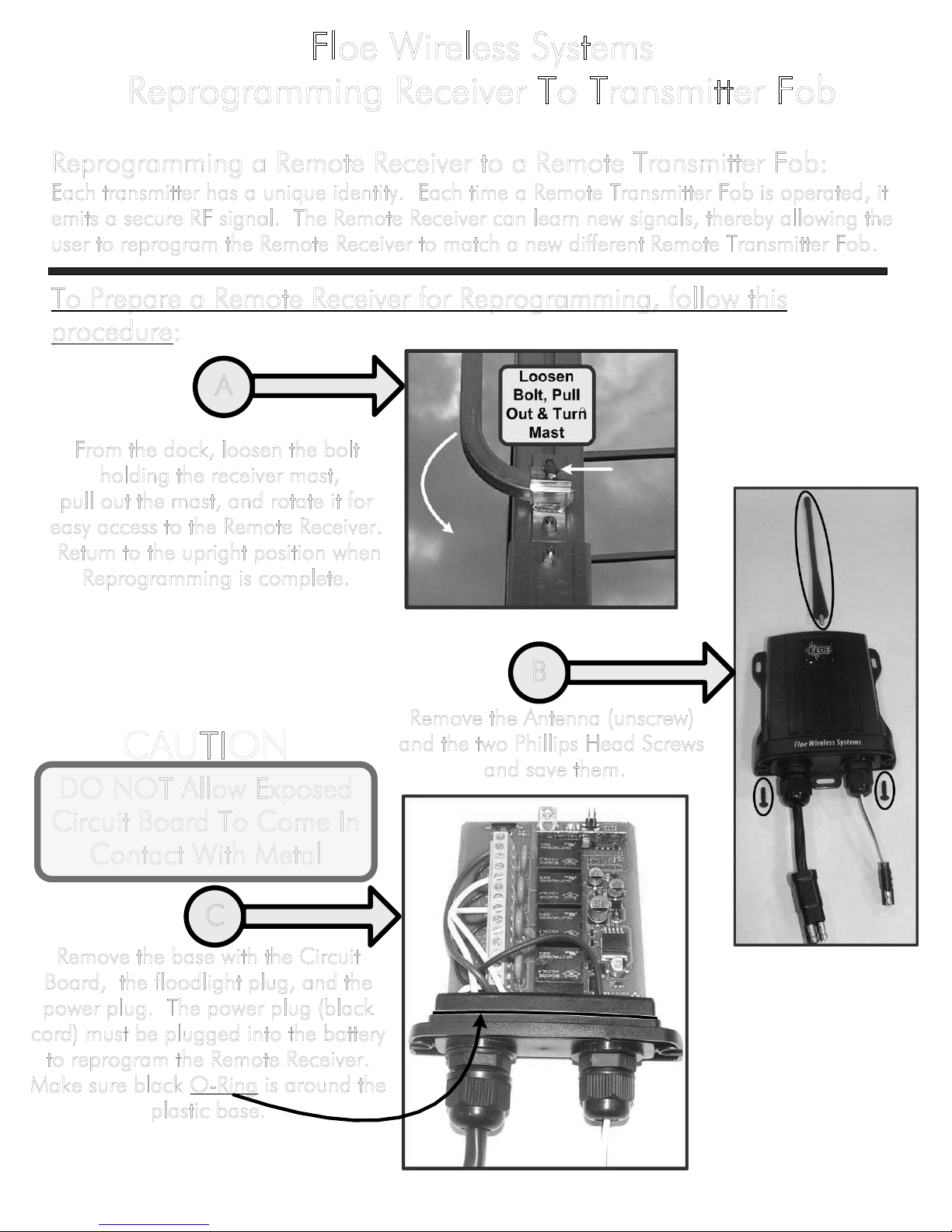

Reprogramming Receiver To Transmitter Fob
Reprogramming a Remote Receiver to a Remote Transmitter Fob:
Each transmitter has a unique identity. Each time a Remote Transmitter Fob is operated, it
emits a secure RF signal. The Remote Receiver can learn new signals, thereby allowing the
user to reprogram the Remote Receiver to match a new different Remote Transmitter Fob.
To Prepare a Remote Receiver for Reprogramming, follow this
procedure:
Remove the Antenna (unscrew)
and the two Phillips Head Screws
and save them.
Remove the base with the Circuit
Board, the floodlight plug, and the
power plug. The power plug (black
cord) must be plugged into the battery
to reprogram the Remote Receiver.
Make sure black O-Ring is around the
plastic base.
From the dock, loosen the bolt
holding the receiver mast,
pull out the mast, and rotate it for
easy access to the Remote Receiver.
Return to the upright position when
Reprogramming is complete.
A
B
C
CAUTION
DO NOT Allow Exposed
Circuit Board To Come In
Contact With Metal
SHEET 5 OF 7
5

Erasing Current Settings (this will de-program all existing Remote Transmitter Fobs):
To Reprogram the Remote Receiver:
To erase all current settings, press and hold down the ‘Learn Switch’ for 15 seconds.
Now when any of the three buttons on the Remote Transmitter Fob are pressed, the
green ‘Learn LED’ light will flash but nothing will work.
1. DOWN: *
Press the ‘Learn Switch’ Once.
The green ‘Learn LED’ light will flash Once.
Press and hold down the DOWN button on the Remote Transmitter Fob
for four seconds or until the green ‘Learn LED’ light flashes continuously
and the lift goes DOWN.
At the top of the Circuit Board are the ‘Learn Switch’, red ‘Power LED’ light (always on),
and green ‘Learn LED’ light (on only during programming) . Before reprogramming a
Remote Receiver, decide whether to erase the current settings or not. If replacing a lost
Remote Transmitter Fob but still have another working fob, do not erase the current
settings. The Remote Receiver can store up to 40 settings.
Do I need to Erase Current Settings?
2. UP: *
Press the ‘Learn Switch’ Twice.
The green ‘Learn LED’ light will flash Twice.
Press and hold down the UP button on the Remote Transmitter Fob for
four seconds or until the green ‘Learn LED’ light flashes continuously and
the lift goes UP.
3. FLOODLIGHT:
Press the ‘Learn Switch’ Three Times.
The green ‘Learn LED’ light will flash Three Times.
Press and hold down the LIGHT button on the Remote Transmitter Fob for
four seconds or until the green ‘Learn Light’ flashes once and the
Floodlight turns on.
* NOTE: If the Lift is at its’ upper or lower limit, the lift will not move past that limit while
reprogramming, but the green ‘LEARN LED’ light will still flash after 4 seconds
to indicate the reprogramming was effective.
SHEET 6 OF 7
6

Reassemble the Remote Transmitter and Reinstall the Mast:
SHEET 7 OF 7
7

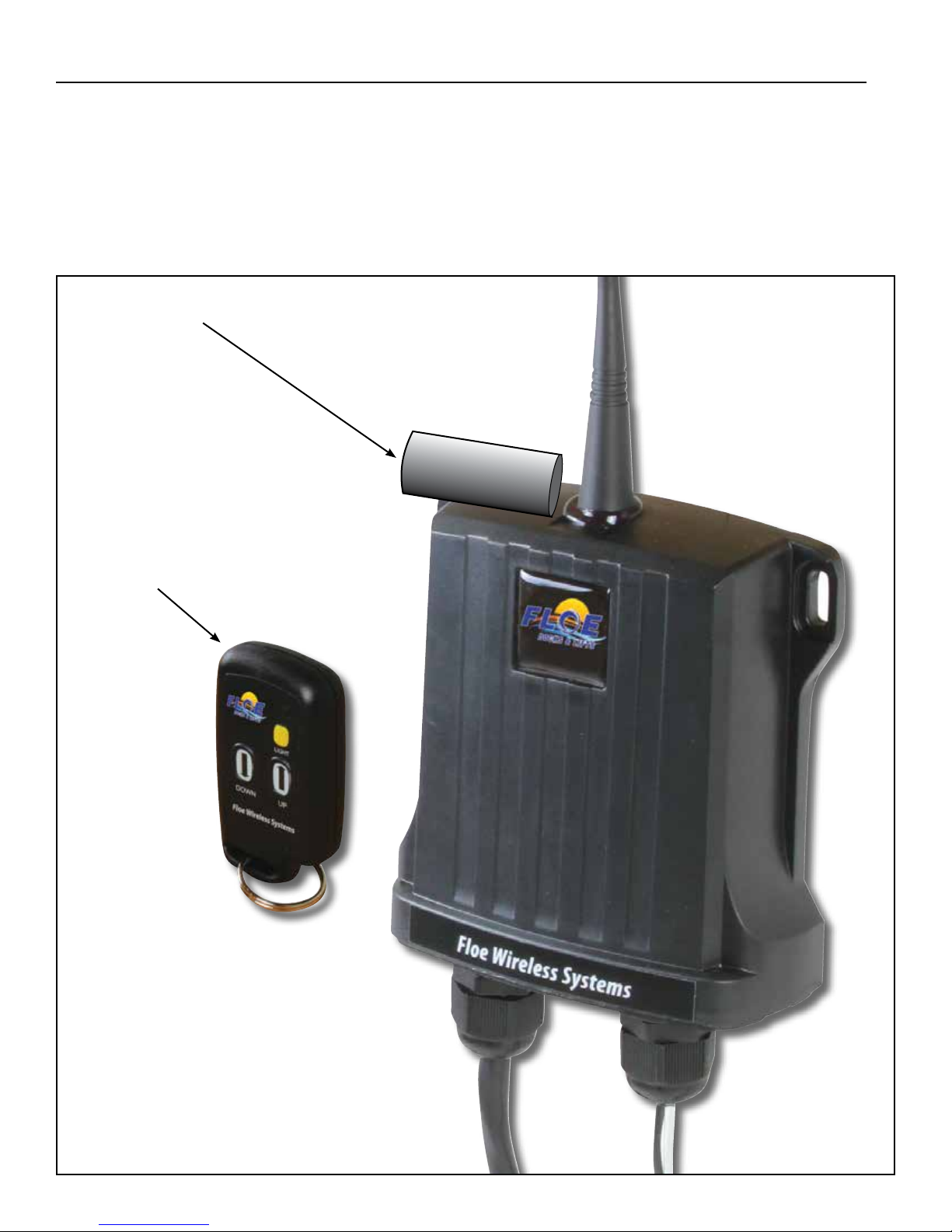

For Alternate Reprogramming, place a magnet to the right side
and upper corner of the receiver as shown. Hold any button on
the remote until you hear the relay click. Conrm by pressing
any of the buttons and listening for clicking of relay.
Alternate Reprogramming Receiver To Transmitter Fob
MAGNET
A. HOLD MAGNET IN THIS LOCATION...
B. WHILE PRESSING ANY BUTTON
ON REMOTE.
