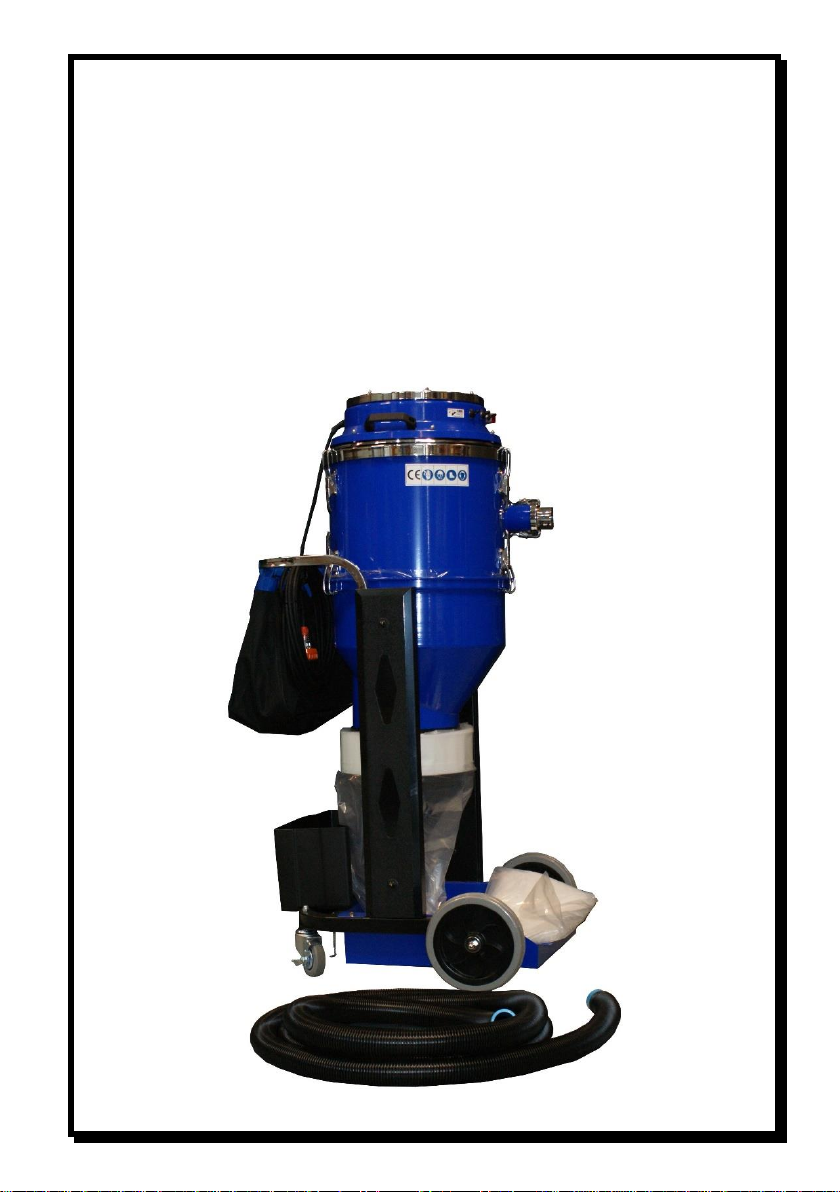

DM-2680
Safety & Operators
Manual

DM-2680 Safety & Operators Manual
1800 FLOOREX
PAGE 1. 1800 356 673
Table of Contents
Contents
Table of Contents................................................................................. 1
Safety Instructions................................................................................ 2
Filter Cleaning....................................................................................... 4
Operating Instructions ......................................................................... 5
Electrical Safety.................................................................................... 7
Problem Solving ................................................................................... 9

DM-2680 Safety & Operators Manual
1800 FLOOREX
PAGE 2. 1800 356 673
Safety Instructions
1. Read and understand the instructions on the Dust Extractor
and in this manual. Different models may have different
parts and controls.
2. Equipment should only be operated by trained personnel, in
good physical condition and mental health (not fatigued).
3. This equipment is intended for commercial use.
4. This equipment could produce sound pressure levels
greater than 85db. The operator must wear approved
safety ear protection.
5. For the operators’ safety and the safety of others, always
keep all guards and shrouds in place.
6. This the Dust Extractor is intended for use with concrete
dust.
7. Do not lend or rent the Dust Extractor without the operating
instructions for the Dust Extractor.
8. Wear clothing suitable for the job and for the work place
including, safety shoes, hard hat, hearing protection, non-
fogging vented safety goggles, and dust mask suitable for
dust.
9. Keep body parts or any loose clothing away from moving
parts. Failure to comply could result in bodily injury.
10. Do not modify the Dust Extractor in any way. Only use
genuine Dustmaster parts and accessories.
11. Repairs should be performed by qualified persons only.

DM-2680 Safety & Operators Manual
1800 FLOOREX
PAGE 3. 1800 356 673
12. Never operate or store the Dust Extractor in rain or if heavy
moisture is present.
13. WARNING! Breathable silica may be generated by use
and maintenance of this the Dust Extractor. Silica can
cause severe and permanent lung damage, cancer, and or
other serious diseases. Do not breathe the dust. Do not rely
on your sight or smell to determine if dust is in the air. Silica
may be in the air without a visible dust cloud. If air
monitoring for silica is not provided by your employer at
your work site, you must wear appropriate respiratory
protection when operating or maintaining this equipment.
Consult your employer for proper respiratory protection.

DM-2680 Safety & Operators Manual
1800 FLOOREX
PAGE 4. 1800 356 673
Filter Cleaning
1. The Dust Extractor has a filter cleaning system that
operates when the filter cleaning knob is activated.
2. In normal operation, the filters will be sufficiently cleaned
without the need for any manual filter cleaning such as
washing the pleats directly.
3. Do not use compressed air to clean any filter as it can
damage the media and allow dust to enter the motor.
4. This Rotary Filter Cleaning System is very effective and
takes only 10-20 seconds to deep clean the filter when the
suction motors are turned off.
5. The rotary filter cleaning is best performed when the motors
are both stopped. But can assist in the cleaning during
operation while the machine is in operation.
6. Above all please contact your supplier if you have a
concern.

DM-2680 Safety & Operators Manual
1800 FLOOREX
PAGE 5. 1800 356 673
Operating Instructions
1. Wear clothes suitable for the job and for the work place
including, safety shoes, hard hat, hearing protection, non-
fogging vented safety goggles, and dust respirator suitable
for dust.
2. Be sure all equipment is tested and tagged prior to use on
any job.
3. Connect hose to the dust extractor via standard 50mm
Hose cuffs. If 38mm hose is more practical, use the smaller
hose after more than 5 Meters of 50mm hose. This is to
reduce the speed of the air/dust coming into the Dust
Extractor.
4. Make sure the Head is secured via the over center clamps
provided before plugging the machine in to power.
5. Connect the Dust Extractor to suitable power outlet. This is
normally 10A. If you need to connect using extension cords
please consult your supplier to confirm the best size
conductor to use.
6. Always move the Dust Extractor with the handles and not
by pulling the hose. Pulling the machine via the hose could
make the machine tip over and damage occur to the
machine.
7. Keep the Dust Extractor clear of drainage pits and grates or
any such hazard. Failure to comply could result in bodily
injury and or could damage the Dust Extractor or property.
8. Do not attempt to make any adjustments while the Dust
Extractor is in operation. Any adjustments must only be
performed when the Dust Extractor is stopped and power
disconnected.

DM-2680 Safety & Operators Manual
1800 FLOOREX
PAGE 6. 1800 356 673
9. Switch the Filter cleaning switch on for 20-30 seconds prior
to operating if the filter is not clean.
a. This can be switched off after the 20-30
seconds but also can be left on during
vacuum operation.
b. Leaving the filter cleaning on during vacuum
operation is optional.
c. The filter cleaning does clean the filter a little
whilst the motors are on, but not as effective
as when the vacuum motors are off.
10. Switch the vacuum motors on using the toggle switches.
There is often no need to run both motors especially if the
tool it is connected to is fairly small like a hand grinder or
even a Meteor™ 250 or a Satellite™ 480 and Satellite™
650.
11. Use both motors when using a wand and floor tool to clean
the floor.
12. The Head can be lowered using the handle lever and
locked in place using the pin
13. WARNING! Breathable silica may be generated by use
and maintenance of this the Dust Extractor. Silica can
cause severe and permanent lung damage, cancer, and or
other serious diseases. Do not breathe the dust. Do not rely
on your sight or smell to determine if dust is in the air. Silica
may be in the air without a visible dust cloud. If air
monitoring for silica is not provided by your employer at
your work site, you must wear appropriate respiratory
protection when operating or maintaining this equipment.
Consult your employer for proper respiratory protection.

DM-2680 Safety & Operators Manual
1800 FLOOREX
PAGE 7. 1800 356 673
Electrical Safety
1. All electrical maintenance and repairs are to be carried out
by qualified persons only.
2. CAUTION - Line terminals may be alive when main switch
is in the off position. Disconnect all power at source before
performing any maintenance or repairs.
3. WARNING - DO NOT operate the Dust Extractor with any
electrical panels open.
4. Never operate the Dust Extractor in the rain or if heavy
moisture is present.
5. Never bypass over current devices in this the Dust
Extractor.
6. Never connect or disconnect power cables with voltage
present or while under load.
7. Disconnect all power connections and observe lock out /
tag out procedures before attempting to carry out any
maintenance or repair on any equipment.
8. Avoid any contact with any rotating parts or driven parts.
9. Never use equipment that has not been tested and tagged
(including cords).
10. Before connecting the Dust Extractor to power, check the
condition of all power leads and cables on, or used in
conjunction with the Dust Extractor. DO NOT USE the Dust
Extractor if any faults cuts, wear marks, bare wires out of
plugs or sockets are identified.
Get qualified persons to repair and re-tag it as required by
regulations in your country.

DM-2680 Safety & Operators Manual
1800 FLOOREX
PAGE 8. 1800 356 673
14. Connect the Dust Extractor to suitable power outlet. This is
normally 10A. If you need to connect using extension cords
please consult your supplier to confirm the best size
conductor to use.
11. The Dust Extractor can produce sound pressure levels
greater than 85db. The operator must wear approved
safety ear protection.

DM-2680 Safety & Operators Manual
1800 FLOOREX
PAGE 9. 1800 356 673
Problem Solving
This Is a Guide Only. Consult Your Supplier for Your Application
PROBLEM
CAUSE
REMEDY
EXPLANATION
The Dust
Extractor will
not start / run.
No power is
present at cable
PowerPoint.
Check the power is
present with another
tool.
Using another tool confirms power is
present
An overload has
tripped
Have a qualified
person check the
machine for faults
There is always a reason for the trip.
You are best to find out why before
proceeding.
The Dust
Extractor is not
sucking at all.
The head is not
fitted correctly
Make sure the head is
correctly positioned on
the main bowl and
firmly against the seal.
If the bucket is not against the seal
firmly air can come in and reduce the
air flow and or suction.
The seal is
missing at the
Bottom
Check the seal by eye
and feel around the
seal area for leaks and
replace or re fit.
If the seals are not correctly fitted or
missing the air flow and or suction will
be greatly reduced.
The filters are
blocked.
Check the rotary filter
cleaning is not working
The filter system
not working
correctly or
switched on.
Have Qualified
persons check the
Dust Extractor system
and rectify the problem
by replacing the faulty
part.
Restores the filter cleaning
mechanism.
The Dust
Extractor seems
to have lost
suction over a
period of time
on the job.
The dust bin is
over full.
Empty the dust bin.

DM-2680 Safety & Operators Manual
1800 FLOOREX
PAGE 10. 1800 356 673
Warranty:
Warranty is for a period of 12 months from original purchase date,
covering manufacturer’s defects (does not cover brushes on the motor
which have an estimated life of 600 hours)
