FLOTIDE SMD2835 LED User manual

Instruction Manual for Resin Filled LED Underwater Light
IMPORTANT: This manual includes essential information on the safety measures to be
implemented for installation and start-up. Therefore, the installer, as well as the user,
must read these instructions before beginning installation and start-up.
Technical Specification
Standard input voltage: 12V ; Standard input watt:
SMD2835 LED
252 LED
18~20W
333 LED
22~24W
450 LED
33~35W
630 LED
40~42W
Use life: 30,000 hours
Single color : Cool White ,Pure White , Warm White ,Blue, Red, Green
RGB & RGBW : Switch control , Remote control , External control modes.
To Operate the lights:
1. White only, Warm White only, or other single color only lights (12AC/DC ,2 wires out )
Note: To prevent risk of fire which could result in property damage and to ensure optimum
performance , do not exceed the load factor specified in the instruction provided by the
transformer manufacture .
These lights are not dimmable, and are not compatible with dimmer switches or dimmer relays .
They can be wired into a switch or manually turn ON/OFF the lights.
2.1. RGB Switch control mode. (12VAC ,2 wires out)
See the below of 16 color modes sequence.
1. Evening sea: slow animation blue/purple 2. Evening rivers: slow animation green/yellow
3. Riviera: slow animation blue/cyan 4. White: neutral white
5. Rainbow: slow animation in green/blue/green+blue/red+blue/green+blue/RGB/red
6. River of colors: slow animation in red/green/blue/green+blue/red+blue/green+blue/RGB,
followed by program 8
7. Disco: fast animation, (fast-slow) followed by program 5
8. Four seasons: slow animation in red+green/green/green+blue/blue/violet/red
9. Party: fast animation, (fast-slow) followed by program 6
10. White: sun white. 11. Red: fixed color red 12. Green: fixed color green
13. Blue: fixed color blue .14. Green-blue: fixed color green/blue(cyan)
15. Red-green: fixed color red/green(yellow) 16. Blue-red: fixed color blue-red(purple)
2.2. RGBW Switch control mode. ( 12VAC ,2 wires out)
See the below of 15 color modes sequence.
1. Evening sea: slow animation blue/purple 2. Evening rivers: slow animation green/yellow
3. Riviera: slow animation blue/cyan 4. White: sun white
5. Rainbow : R→G→B→W→RW→RG→GW→BW→GB→RB→RGB→RGW→RBW→
GBW→RGBW color gradual changing
6.Disco: R→G→B→W→RW→RG→GW→BW→GB→RB→RGB→RGW→RBW→GBW→
RGBW color flashing
7. Four seasons: RGBW→RG↓B↓W↓→ R↓G↑→G↓B↑→B↓W↑→R↑G↑B↑W
auto changing
8.Party: R→G→B→W→RW→RG→GW→BW→GB→RB→RGB→RGW→RBW→GBW→
RGBW color jump changing
9. White: pure white 10. Red: fixed color red 11. Green: fixed color green
12. Blue: fixed color blue 13. Green-blue: fixed color green/blue(cyan)
14. Red-green: fixed color red/green(yellow) 15. Blue-red: fixed color blue-red(purple)
To Operate these RGB/RGBW lights:
•The 15/16 pre-programmed effects and combinations may be selected using the on/off switch
of your pool lights. Just switch off and switch on within 3 second. (Switch control)
•If the light is powered off for more than 20 seconds, it will keep the latest program when it is
turned on again.(Memory Function)
• To achieve synchronization, confirm all lamps are installed correctly on the same switch, after
they are powered off for more than 20 seconds, switch on and switch off continuously 3 times,
and then finally turn them on again. They will all go to program 1. Now you can select a program
for them by switch off and on within 3 seconds .(Re-set Function)

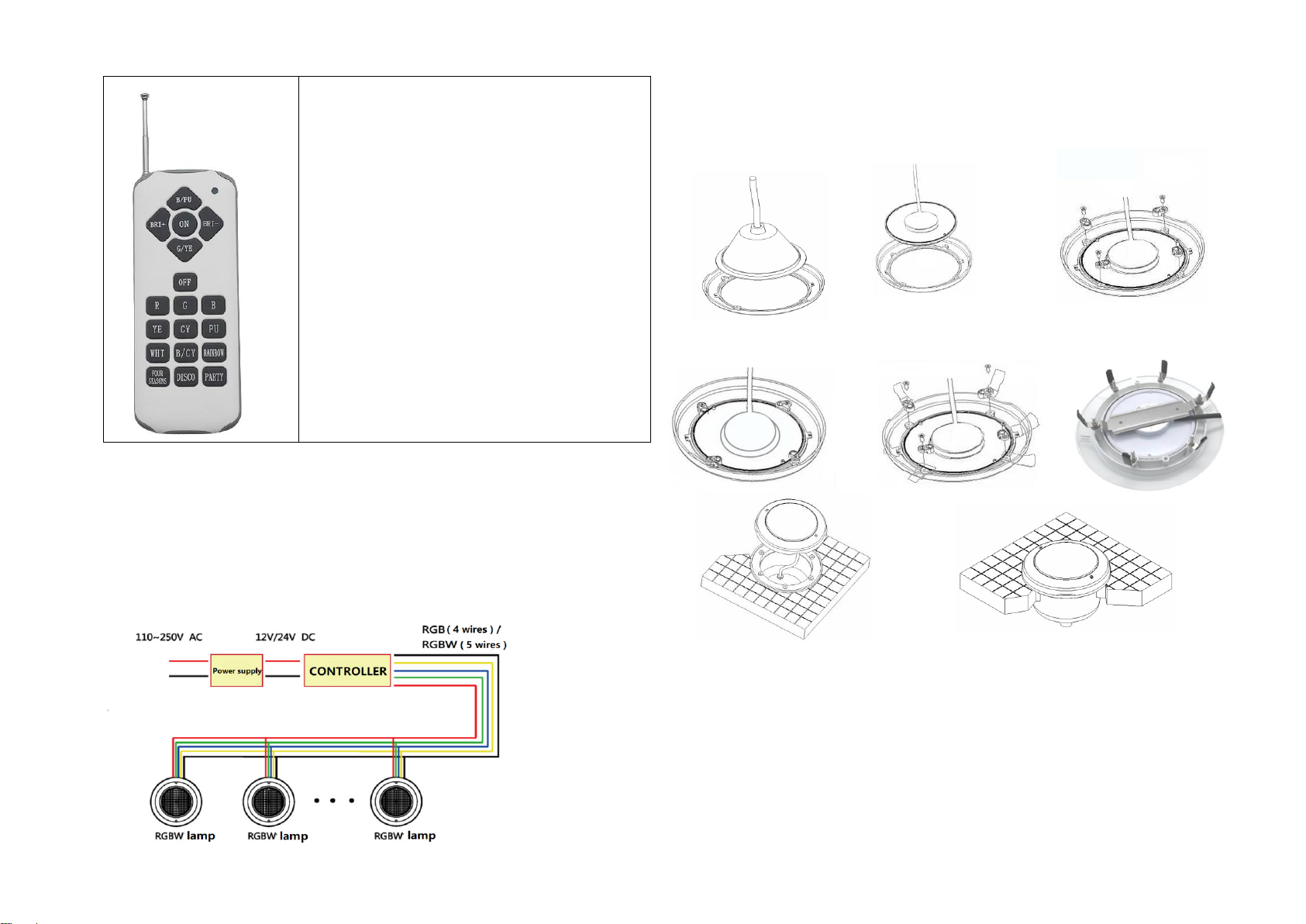

3,RGB/RGBW Remote control mode (12VAC ,2 wires out) (with memory function)
ON key: Power On OFF key: Power off
BRI+ KEY: brightness +,10 grade in total
BRI- KEY: /brightness -,10 grade in total
B/PU key: slow animation blue/purple
G/YE key: slow animation green/yellow
B/CY key: slow animation blue/cyan
R key: static red color G key: static green color
B key: static blue color WHT key: static white color
YE key: static yellow color (R+G)
CY key: static cyan color (G+B)
PU key: static purple color (R+B)
Rainbow key: multiple colors gradual changing
Four seasons key: multiple colors fade changing
DISCO key: multiple colors flash changing
PARTY key: multiple colors jump changing
4.RGBW / RGB External control mode (12V/24VDC ,5 / 4 wires out )
IMPORTANT: This section only applies to the RGBW/RGB lights with 5/4 wires out ,12VDC or
24VDC. pool operators can choose to install controllers to build a fine control system .
The specification of the controller and the power supply , especially the input voltage ,must be
well known by the users and installers before installation .Failure to do so may cause the injury
to person and damage to the lights system .
Installation
All lamps should be placed on the wall of the pool at approximately 700mm below the water
surface, in areas that are easily accessible from the upper edge of the pool.
This LED bulb is fitting to PAR56 niches and for replacing the PAR56 directly. Refer to the below
pictures:
1. 2. 3.1
4.1 3.2 4.2
56
Warranty
The manufacturer warrants this resin filled LED underwater lights against defects in materials
and workmanship for a period of two years from the date of purchase. This warranty does not
cover the fixture becoming damaged due to misuse, accidental damaged, improper handling
and/or installation and specifically excludes liability for direct, incidental damages.
WARNING: Frequent voltage fluctuations can irreparably damage the lamp.
If the installation must take place in areas where these changes may be frequent, a system to
protect the lamps must be installed on the electric system of the pool.
Don’t use electronic transformers which may damage the light. You should use
industrial frequency transformer , such as toroidal transformer and square transformer .
