FlowLine LM50 Series User manual

Warranty, Service & Repair
WARRANTY
Flowline warrants to the original purchaser of its products that such
products will be free from defects in material and workmanship under
normal use and service for a period which is equal to the shorter of
one year from the date of purchase of such products or two years from
the date of manufacture of such products.
This warranty covers only those components of the products which
are non-moving and not subject to normal wear. Moreover, products
which are modified or altered, and electrical cables which are cut to
length during installation are not covered by this warranty.
Flowline’s obligation under this warranty is solely and exclusively
limited to the repair or replacement, at Flowline’s option, of the prod-
ucts (or components thereof) which Flowline’s examination proves to
its satisfaction to be defective. FLOWLINE SHALL HAVE NO
OBLIGATION FOR CONSEQUENTIAL DAMAGES TO PERSON-
AL OR REAL PROPERTY, OR FOR INJURY TO ANY PERSON.
This warranty does not apply to products which have been subject to
electrical or chemical damage due to improper use, accident, negli-
gence, abuse or misuse. Abuse shall be assumed when indicated by
electrical damage to relays, reed switches or other components. The
warranty does not apply to products which are damaged during ship-
ment back to Flowline’s factory or designated service center or are
returned without the original casing on the products. Moreover, this
warranty becomes immediately null and void if anyone other than ser-
vice personnel authorized by Flowline attempts to repair the defective
products.
Products which are thought to be defective must be shipped prepaid
and insured to Flowline’s factory or a designated service center (the
identity and address of which will be provided upon request) within
30 days of the discovery of the defect. Such defective products must
be accompanied by proof of the date of purchase.
Flowline further reserves the right to unilaterally wave this warranty
and to dispose of any product returned to Flowline where:
a. There is evidence of a potentially hazardous material present
with product.
b. The product has remained unclaimed at Flowline for longer than
30 days after dutifully requesting disposition of the product.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND
THE DESCRIPTION ON THE FACE OF THIS WARRANTY. This
warranty and the obligations and liabilities of Flowline under it are
exclusive and instead of, and the original purchaser hereby waives, all
other remedies, warranties, guarantees or liabilities, express or
implied. EXCLUDED FROM THIS WARRANTY IS THE IMPLIED
WARRANTY OF FITNESS OF THE PRODUCTS FOR A PARTIC-
ULAR PURPOSE OR USE AND THE IMPLIED WARRANTY OF
MERCHANT ABILITY OF THE PRODUCTS.
This warranty may not be extended, altered or varied except by a writ-
ten instrument signed by a duly-authorized officer of Flowline, Inc.
To register your product with the manufacturer, fill out the enclosed
warranty card and return it immediately to:
Flowline Inc.
10500 Humbolt Street
Los Alamitos, CA 90720.
If for some reason your product must be returned for factory ser-
vice, contact Flowline Inc. to receive a Material Return
Authorization number (MRA) first, providing the following infor-
mation:
1. Part Number, Serial Number
2. Name and telephone number of someone who can answer
technical questions related to the product and its application.
3. Return Shipping Address
4. Brief Description of the Symptom
5. Brief Description of the Application
Once you have received a Material Return Authorization number,
ship the product prepaid in its original packing to:
Flowline Factory Service
MRA _____
10500 Humbolt Street
Los Alamitos, CA 90720
To avoid delays in processing your repair, write the MRA on the
shipping label. Please include the information about the malfunc-
tion with your product. This information enables our service tech-
nicians to process your repair order as quickly as possible.
®
Version 2.0A
© 1999 FLOWLINE Inc.
All rights reserved.
Manual # LM900003 8/99
Side Mount Bracket
LM50 Series
Owner’s Manual

Step One
SPECIFICATIONS
One Smart Trak Side Mount Bracket (LM50-1001) includes the fol-
lowing parts (see illustration on cover):
1 Bracket 1 Adjusting plate
1 gasket 1 backing plate
Check to make sure that all the parts are included in the kit before pro-
ceeding. If you plan to bolt the bracket into position, obtain two plas-
tic, fiberglass or stainless steel 3/8" bolts of the proper length (2-3"),
nuts and four washers.
Material Compatibility:
The bracket components are made of 20% glass filled PP
(Polypropylene, a polyolefin), except for the gasket which is made of
closed cell neoprene. Make sure that the application liquids will not
harm any materials that will be wetted. To determine the chemical
compatibility between the components and your application liquids,
refer to the Compass Corrosion Guide available from Compass
Publications (phone [phone]).
Assembly and Installation:
The bracket may be installed on the sidewall or lip of a tank. In side-
wall installations, the adjusting plate allows you to tilt the bracket if
desired. The adjusting plate is not used when mounting to the lip of a
tank. Assemble as shown in the illustrations, threading washers onto
the bolts next to each head and nut. NOTE: The indented side, not the
flat side, of the backing plate should face the gasket, Side wall mount-
ing is NOT liquid tight; fluid should not rise to the bolt level.

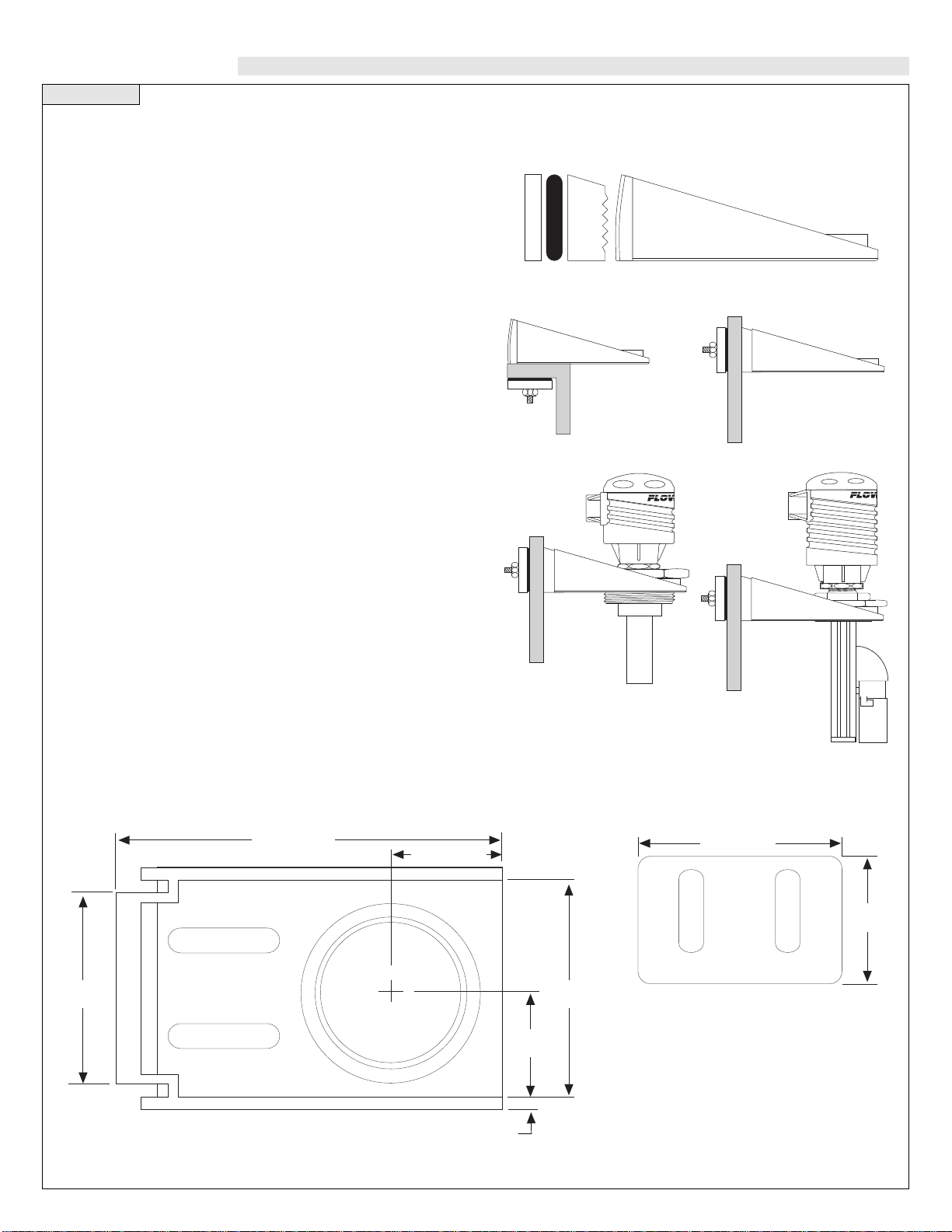

Backing
Plate
Gasket
Adjusting
Plate
Bracket
6.1” (15.5 cm) 1.7” (4.3 cm)
1.8”
(4.4 cm)
3.5”
(8.9 cm)
.2”
(.5 cm)
3.2”
(8.1 cm)
3.2” (8.2 cm)
2.0”
(5.1 cm)
Dimension (Brqcket): Dimension (Backing Plate):
Inventory:
Top Lip: Side Wall:
Tp Switch Pak: To Smart Trak:
