D013-A
FLOWRATE MONITOR / TOTALIZER
WITH HIGH / LOW ALARM OUTPUT
Signal input flowmeter: (0)4-20mA
Output: High and Low alarm

User manual D013-A Flowrate Monitor / Totalizer
ii FW-D013-A-MAN-EN-V0102_02
Health and Safety Information
This instruction manual supplements the requirements of nationally accepted codes of
practice. All installations must comply with the relevant sections of these codes and/or
other comparable codes that applies in the region the D013-A is installed in.
In addition, particular industries or end users may have specific requirements relating to
the safety of their installations. These requirements must also be met.
Disposal
Caution:
The D013-A must only be installed, operated and maintained by competent personnel
that received proper training on regular basis, including instructions on the various
types of protection and installation practices, relevant rules and regulations, and the
general principles of area classification.
At the end of its life this product must be disposed of according to local regulations
regarding waste electronic equipment. If a battery is present in this product it must be
disposed of separately. The separate collection and recycling of your waste equipment
will help to conserve natural resources and ensure that it is recycled in a manner that
protects the environment.

FW-D013-A-MAN-EN-V0102_02 iii
Read Me First!
About This Guide
This manual describes all standard features and instructions related to the D013-A
Flowrate Monitor / Totalizer.
This manual is intended for all personnel involved in the operation, configuration,
installation and troubleshooting of the D013-A Flowrate Monitor / Totalizer.
Information in this manual is subject to change without prior notice. Fluidwell bv is not
responsible for mistakes in this material or for incidental damage caused as a direct or
indirect result of the delivery, performance or use of this material.
© All rights reserved. No parts of this publication may be reproduced or used in any
form or by any means without written permission of your supplier.
Prerequisites
All personnel working with the D013-A Flowrate Monitor / Totalizer are assumed to fully
understand, be capable of and act according to the information provided in this manual.
All personnel working with the D013-A are further assumed to be authorized and
properly trained for the task at hand.
About Functions and Type Codes
Not all D013-A types share the same functions. Depending on the type codes on your
particular D013-A, some functions described in this manual may –or may not– be
available.
For details see this manual.
Conventions
The following conventions may have been used to emphasize information:
Note:
This version (FW-D013-A-MAN-EN-V0102_02) is written with a focus on software
version 03.03.03. For other versions contact your supplier.
Warning:
This icon warns about actions that, when not performed correctly, may lead to product
damage, personal injury or even death.
Warning:
Danger of electrical shock: this icon warns about actions that include the risk of
electrical shock, resulting in product damage, personal injury or even death.
Such actions are best performed with power removed or made inaccessible.
Caution:
This icon warns about actions or procedures that may lead to incorrect functioning of
the D013-A when not applied correctly.
Note:
This icon indicates a hint or provides important background information about the
consequences of the described procedure or action.
Example:
This icon indicates a solution for a hypothetic situation, intended to help you interpret
the related concept information.

User manual D013-A Flowrate Monitor / Totalizer
iv FW-D013-A-MAN-EN-V0102_02
How To Read This Manual
This guide consists of the following main sections:
Power up, Power down and Storage of the D013-A
Your D013-A was shipped to you in a cardboard box and may be equipped with battery
power. During transport the unit was switched off (shelf mode).
• If your D013-A is equipped with a battery you can press SELECT twice to power it up.
• To power your D013-A down you must perform the following steps:
a Press and hold PROG for 7 seconds. (See "Password Protection" on page 18 when
password protected.)
b Setup is indicated. Use to go to Setup Menu 5 — "Power Management"
c Next press twice to go to 52 "Battery Mode" and press PROG
dYouenter 52 menu. Select shelf and press PROG to switch the unit off.
Storage and Hot Spare Configuration
When storing or transporting the D013-A, put the unit back in shelf mode and store it
at room temperature, in a dry place and in the original box.
Caution:
• Before operating, configuring, opening or installing the D013-A you are expected to
have read and understood all relevant sections in this manual.
• Before operation the D013-A MUST be installed in compliance with the installation
instructions as described in "Installation Instructions" on page 9.
chapter 1: "Introduction" on page 1 Provides an introduction and technical overview of the
D013-A Flowrate Monitor / Totalizer.
chapter 2: "Specifications of the D013-A" on page 5 Provides an overview of the D013-A specifications.
chapter 3: "Installation Instructions" on page 9 Providesmechanicalandelectricalinstallationinstructions.
chapter 4: "Configuring the D013-A" on page 17 Provides an overview of configuration commands and
programming sequence of the D013-A.
chapter 5: "Operating the D013-A" on page 32 Provides operating instructions for the daily use of the
D013-A.
chapter 6: "Maintenance" on page 35 Provides maintenance instructions.
Note:
Before storing you may want to consider configuring a spare unit with identical settings
as an active unit in the field. This way you have created a “hot spare” which can be
taken from shelf and field mounted within minutes by electrical engineers.
SETUP
SETUP

v
FW-D013-A-MAN-EN-V0102_02 v
Contents
Read Me First! iii
About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
About Functions and Type Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
How To Read This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Power up, Power down and Storage of the D013-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Storage and Hot Spare Configuration. . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . .. . . . . . . iv
1 Introduction 1
System Description of the D013-A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Functions and Features . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. 1
Field Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Standard Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
The D013-A Display Functions. . . . . . . . . . .. . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 2
Configuration of the D013-A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
EEPROM Memory . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. .. . . .. . . . . . . 2
Options of the D013-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Available D013-A configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Specifications of the D013-A 5
General specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Panel Mount Enclosure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Approvals and compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power supply . . . . . . . . . . . . . . . .. .. . . .. . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . 5
Sensor excitation . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . 6
Terminal connections . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . 6
Data protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Flowmeter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pulse output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operational. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operator functions . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . 7
Total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Accumulated total. . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . .. . . . . . . 7
Flowrate . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . 7
Alarm values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Installation Instructions 9
Mechanical Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Electrical installation – general. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Overview of Terminal Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power Supply Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
External Power supply wiring . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . 11
Alarm output wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Active / Passive output, Type OH. . . . .. . . . . . . . . . . . . . . .. . . .. . . . . . . . . . . . . . . .. .. . 15
Passive output, Type OT . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . 15
Relay Contact Output, Type OR. . . . . . . . . .. . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . 16

User manual D013-A Flowrate Monitor / Totalizer
1–CONTENTS
vi FW-D013-A-MAN-EN-V0102_02
4 Configuring the D013-A 17
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
The D013-A Display Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
The D013-A Key Functions . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . .. . . . . . . . . . . . . . . .17
Quick Reference Menu . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . 18
Password Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
8
Modes of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Overview of Setup Functions and Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
The D013-A Setup Functions Explained . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Flowrate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Alarm . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . . . 24
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Power Management . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . 26
Flowmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .27
Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
5 Operating the D013-A 32
The D013-A button and display functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
The D013-A Display Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
The D013-A Key Functions . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . .. . . . . . . . . . . . . . . .32
Operator functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Display flowrate and total or flowrate. . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . .. . . . 33
Clear total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Display accumulated total . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 33
Operator alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Low-battery alarm . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 34
Alarm 01-03. . . . . . . . . . . . . .. . . . . .. . . .. . . .. . . .. . . .. . . .. . . . . .. . . .. . . .. . . . . . . . 34
6 Maintenance 35
General directions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Battery life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Replacing the battery. . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . 35
Preventive maintenance checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Setup Configuration Examples 37
Troubleshooting the D013-A 40

FW-D013-A-MAN-EN-V0102_02 1
1
CHAPTER
Introduction
System Description of the D013-A
Functions and Features
The Flowrate Monitor / Totalizer model D013-A is a microprocessor controlled device to linearise
the flowmeters flowcurve and to display flowrate, total and accumulated total as well as to
generate a scaled pulse according the accumulated total.
The D013-A has been designed with a focus on:
• Ultra-low power consumption, to allow for battery operation of up to five years.
• Front panel mounting solution based on IP66/67 (Nema4X), suitable for harsh industrial
surroundings.
• Very easy and user-friendly installation and programming through an easy menu-driven
structure. Know one, know them all!
• Ability to process all types of flowmeter signals.
•Transmitting possibilities with one configurable output
Field Input
The “A” in D013-A indicates a 0(4)–20mA flowmeter input. Other versions are available to
process pulse (P) or 0–10V (U) flowmeter signals.
•The D013-A can read one passive or active flowmeter with a 0(4)–20mA output.
•To power the flowmeter, several options are available.
Standard Outputs
•Several outputs, configurable as alarm outputs.
alarm output
Figure 1: Typical application of the D013-A

User manual D013-A Flowrate Monitor / Totalizer
1–INTRODUCTION
2FW-D013-A-MAN-EN-V0102_02
The D013-A Display Functions
The D013-A has a large transflective LCD with a number of symbols and digits to display
measuring units, status information, trend indication and keyword messages.
Configuration of the D013-A
"Available D013-A configurations" on page 3 shows that this unit is available in various hardware
configurations to support a wide range of applications. Other models of this type have other
configurations. Contact your reseller for details.
The configuration mode of the D013-A allows you to configure and shape your D013-A towards
your specific requirements. The configuration mode supports all available hardware
configurations of the D013-A and includes several important features such as span,
measurement units, signal settings, etc.
All setting as are stored in EEPROM memory and will not be lost in case of power breakdown or in
the event of an empty battery.
EEPROM Memory
The D013-A contains EEPROM memory that does not loose its data upon power loss.
All configuration settings remain stored in case of a power failure or deactivation of the unit (e.g.
during transport or storage). The totals and accumulated totals of the process are also stored in
EEPROM every minute.
Options of the D013-A
The following section describes the configuration options this particular D013-A may have been
equipped with. Other models of this type have other options. Contact your reseller for details.
Figure 2: The display functions of the D013-A
Indication of large
display readout Measuring units large display readout
Large display trending
(increase or decrease) Numerical 17mm large display readout
low battery indicator (replace
when steady) D013-A status indicators
indication of small
display readout Alphanumerical small display readout
RUN
LOW BATTERY
SET-UP PAUSE ALARM
PROGRAM
READY
Note:
You may optimize battery-life time (type PBonly) by optimizing the power-management
functions as described in 5 "Power Management" on page 26.

User manual D013-A Flowrate Monitor / Totalizer
INTRODUCTION – 1
FW-D013-A-MAN-EN-V0102_02 3
Available D013-A configurations
Your D013-A model is available in a number of hardwired configuration options.
A product label on the backside of the unit identifies which configuration options are included in
your D013-A.
The following table identifies the options that may apply to your D013-A.
Note:
A combination of configuration options is not always possible: some options rule others
out and some options require others to be included. Consult the product label on your
D013-A enclosure to see which options are included on your particular unit.
Standard confuguration: D013-A-HB-OT-PX-ZX
Coding information D013-_ -HB -O_ -P_ -Z_
flowmeter input signal(s)
AAnalog (0)4-20mA input
Panel mount enclosure - IP66/67 (NEMA4X)
HB Aluminum DIN 43700 / IEC 61554 front panel
Pulse output
OH Active and passive transistor output - requires PD (AC/DC) or PM
OR Highly isolated mechanical relay output - requires PD (AC/DC). or PM
OT Passive transistor output - standard configuration
Power supply
PB Long life lithium battery
PD 24V DC/AC + sensor supply
PL Input loop powered, the unit draws power from the 4—20mA flowmeter
PM 115 - 230V AC + sensor supply
PX Basic power supply 8 - 30V DC (no real sensor supply)
Other options
ZB Bi-color backlight green/amber
ZJ Earth removal ALU front cover
ZX No options
The bold marked text contains the standard configuration.

User manual D013-A Flowrate Monitor / Totalizer
1–INTRODUCTION
4FW-D013-A-MAN-EN-V0102_02
This page is left blank intentionally.

FW-D013-A-MAN-EN-V0102_02 5
2
CHAPTER
Specifications of the D013-A
General specifications
Display
Type High intensity reflective numeric and alphanumeric LCD, UV-
resistant.
Digits Seven 17mm (0.67") and eleven 8mm (0.31")digits.
Various symbols and measuring units.
Refresh rate User definable: fast - 1 sec - 3 sec - 15 sec - 30 sec - off.
Option ZB Transflective LCD with bi-color LED backlight; green / amber.
Intensity and color can be adjusted in the configuration menu.
High contrast readings in full sunlight and darkness.
Panel Mount Enclosure
General Die-cast ALU (aluminum) enclosure with Polycarbonate
window and silicone.
UV stabilized and flame retardant material.
Control Keys Three industrial micro switch keys. UV-stabilized silicone
keypad
Painting UV-resistant 2-component industrial paint
Dimensions 144 x 72 x 71.4mm (5.67" x 2.83" x 2.81") – LxHxD
Classification IP66, IP67 (NEMA4x) at the front-side
Panel cutout 138 x 68mm (5.43" x 2.68") – LxH
Panel thickness Max. 6mm (¼")
Type HB Die-cast ALU panel-mount enclosure according: DIN 43700 /
IEC 61554
Temperature
Operating -40°C to +80°C (-40°F to +176°F) ambient
Approvals and compliances
EMC compatibility Compliant ref: EN 61326 (1997), EN 61010-1 (1993).
Power supply
Type PB 3,6V Lithium battery life-time depends upon settings and
configuration – up to 5 years.
Type PD 24V AC / DC ± 10%. Power consumption max. 5 Watt.
Type PL Input loop powered from sensor signal 4-20mA (type A).
Type PM 115-230V AC ± 10%. Power consumption max. 15 Watt.
Type PX 8-30V DC. Power consumption max. 0.3 Watt.
Type ZB 20 - 30V DC. Power consumption max. 1 Watt.
With type PD - PM: Internally powered

User manual D013-A Flowrate Monitor / Totalizer
2–SPECIFICATIONS OF THE D013-A
6FW-D013-A-MAN-EN-V0102_02
Sensor excitation
Sensor exitation specifications relate to the power supply
type.
Type PB / PX Not available
Type PD / PM Dipswitch adjustable sensor supply:
8.2V DC. Iout max 35mA @ 20°C
12V DC. Iout max 50mA @ 20°C
24V DC. Iout max 75mA @ 20°C (this voltage can vary
depending on the input supply voltage).
Terminal connections
Type Removable plug-in terminal strip.
Wire max. 1.5mm2and 2.5mm2solid / stranded.
Screw thread M3
Tightening torque 0.5-0.6 Nm
Data protection
Memory type EEPROM; data retention >10 years
Automatic backup of settings upon change & running totals
every minute
Access restriction Via configurable 4 digit numerical pass code
Inputs
Flowmeter
Type A 0(4)–20mA - with signal calibration feature.
Accuracy Resolution: 16 bit. Error < 0.01mA / ± 0.05% FS. Low level
cut-off programmable.
Span 0.001 - 999.999 with variable decimal position.
Update time Four times per second
Voltage drop max. 2V DC @ 20mA
Relationship Linear and square root calculation.
Note external power to sensor required; e.g. type PD / PM.
Outputs
Pulse output
Output type Scaled pulse output – 500Hz max. - transmitting accumulated
total
Type OH Active 24V DC transistor output; Requires PM/PD. Max load
75mA
Passive transistor output - not isolated; Requires PM/PD. Max.
24V DC - 300mA.
Type OR Isolated electro-mechanical relay (NO/NC); max. resistive
load: 2A@230Vac / 30V DC. Pilot duty rating: 0,5A @ 230Vac.
Requires PM/PD (DC).
Note: In case of inductive load, use RC snubbers.
Type OT Passive transistor output (NPN) - not isolated; Max. 50V DC -
300mA.

User manual D013-A Flowrate Monitor / Totalizer
SPECIFICATIONS OF THE D013-A – 2
FW-D013-A-MAN-EN-V0102_02 7
Operational
Operator functions
Displayed functions • total and / or flowrate
• total and accumulated total
Note: Total can be reset to zero by pressing the CLEAR-key twice.
• alarm values low and high flowrate
Note: when configured, operator can change alarm values
Total
Units L, m3, kg, lb, GAL, USGAL, bbl - no unit
Digits 7 digits
Displayed decimals configurable 0 — 3
Note:Total can be reset to zero by pressing the STOP key twice.
Accumulated total
Units / Decimals Identical to selection for "Total".
Digits 11 digits
Flowrate
Units mL, L, m3, mg, g, kg, ton, GAL, bbl, lb, cf, REV, no unit, scf,
Nm3, Nl, P
Digits 7 digits
Displayed decimals configurable 0 — 3
Time units /sec –/min – /hr – /day
Alarm values
Units According flowrate settings
Digits 7 digits
Displayed decimals According flowrate settings
Time units According flowrate settings
Visible to operator Alarm values low and high flowrate, including delay time.
Note:
Accumulated total can not be reset to zero.

User manual D013-A Flowrate Monitor / Totalizer
2–SPECIFICATIONS OF THE D013-A
8FW-D013-A-MAN-EN-V0102_02
This page is left blank intentionally.

FW-D013-A-MAN-EN-V0102_02 9
3
CHAPTER
Installation Instructions
Mechanical Installation
To extend life of your unit:
• Mount the D013-A on a solid base to avoid vibrations.
• Provide sufficient slack on cables to prevent stress on cable entries.
• Make sure the seal is mounted properly between the housing and the panel.
• The IP66, IP67 (NEMA4X) classification is valid for the front enclosure only.
• Do not expose the casing to strongly varying (weather) conditions, not even when rated IP67.
Note:
This section describes various hardware configurations of the D013-A. Your particular
model of the D013-A may not support all configuration options described.
Figure 3: Mechanical mounting precautions
Figure 4: Panel cut-out dimensions
@@Panel cut-out dimensions D-series
68mm (2.68")
138 mm (5.43")
10.2 mm (0.4”)
72 (2.83”)
144 mm (5.67”)
55,3mm (2.18”)
15,6mm (0.61”)

User manual D013-A Flowrate Monitor / Totalizer
3–INSTALLATION INSTRUCTIONS
10 FW-D013-A-MAN-EN-V0102_02
Electrical installation – general
Overview of Terminal Connectors
To gain access to the connectors open the panel containing the D013-A. You now see the battery
cover with the battery and the connectors at the back side of the display unit as shown below.
The actual number and size of connectors depends on your particular model.
Figure 5: Connector location D013-A
flowmeter and Power
A 6-pole Classic COMBICON connector connects the
flowmeter and (optional) power supply.
Pulse Output
A 3-pole Classic COMBICON connector connects the
optional Pulse output.
Mains Power Supply
A3-poleClassicCOMBICON connector connects the mains
power supply.(110/230V) (PM)
Figure 6: Pin layout options of main connector(s) –availability depends on model ID
AC power
supply
(option)
Pulse out (option) Voltage
switch
8.2/12/24V
input
0(4)-20mA sensor
supply DC power supply
Analog out /
HART
(option)
R1 R2 R3 S1 S2 S3 S4 P3 P4 A1 A2
⊥+↑A
B
A
B⊥I+↑3.0V↓8.2/12/
24V↓⊥+↑
OT: NPN A: 0(4)-20mA PD:24V DC
⊥+↑+↓
⊥+↑ ⊥ +↑
OH: PNP / NPN
A-PL: 4-20mA
(input loop powered) PX: 8-30Vdc
COM
⊥NO NC
OR: make-and-
break relay
Figure 7: Voltage switch positions
8.2V 12V 24V
A
B
A
B
A
B
A
B
A
or
B
A
B
P0 P1 P2
∼∼
PD:24V AC
L1 N
PM: 115-
230V AC

User manual D013-A Flowrate Monitor / Totalizer
INSTALLATION INSTRUCTIONS – 3
FW-D013-A-MAN-EN-V0102_02 11
Connector Types and Wiring Sizes
The following connector types are fitted. Wires are connected using a flat head screw driver:
Classic COMBICON
A screw connector with 5.08mm pitch, suitable for 0.2—2.5mm2 or AWG
24—12 wire. Max. torque 0.5Nm.
Power Supply Wiring
Below section describes the available power supply types for the D013-A. Which types are
available in your particular D013-A depends on the ordering code.
Battery equipped models switch their internal battery off when an external supply is active.
The following power supply options are available:
• Battery powered. see "Battery powered type PB" on page 11 for details.
• Input loop powered, see "Loop Powered Flowmeter Input Wiring Option Type A-PL" on page 14
for details.
• Externaly powered, see ""External Power supply wiring" on page 11" for details.
Battery powered type PB
Type PB is internally battery powered and does not require any external wiring.
When power supply PX is available (see below) the internal battery is switched off. This extends
battery life and guarantees higher availability during power outages.
• A healthy battery has a life expectancy of several years, depending on its use and
configuration settings. For details see "Battery life" on page 35.
• When installing verify that the battery is in good working condition by running the power-up
sequence on page iv of this manual. If the battery needs to be replaced follow the battery
replacement instructions delivered with the new battery.
External Power supply wiring
The D013-A can be equipped with several external power supplies, type PX, PM or PD (AC/DC).
• For type PX or PD dc your D013-A must be equipped with a 6-pole connector.
Type PD can also power your flowmeter in the field, see "Power supply" on page 5 for details.
• For type PD ac or PM your D013-A must be equipped with an additional 3-pole connector.
Note:
• The internal battery is on standby, when external power is supplied. Note that the
internal battery cannot be used to power a flowmeter (pin S4)!

12 FW-D013-A-MAN-EN-V0102_02

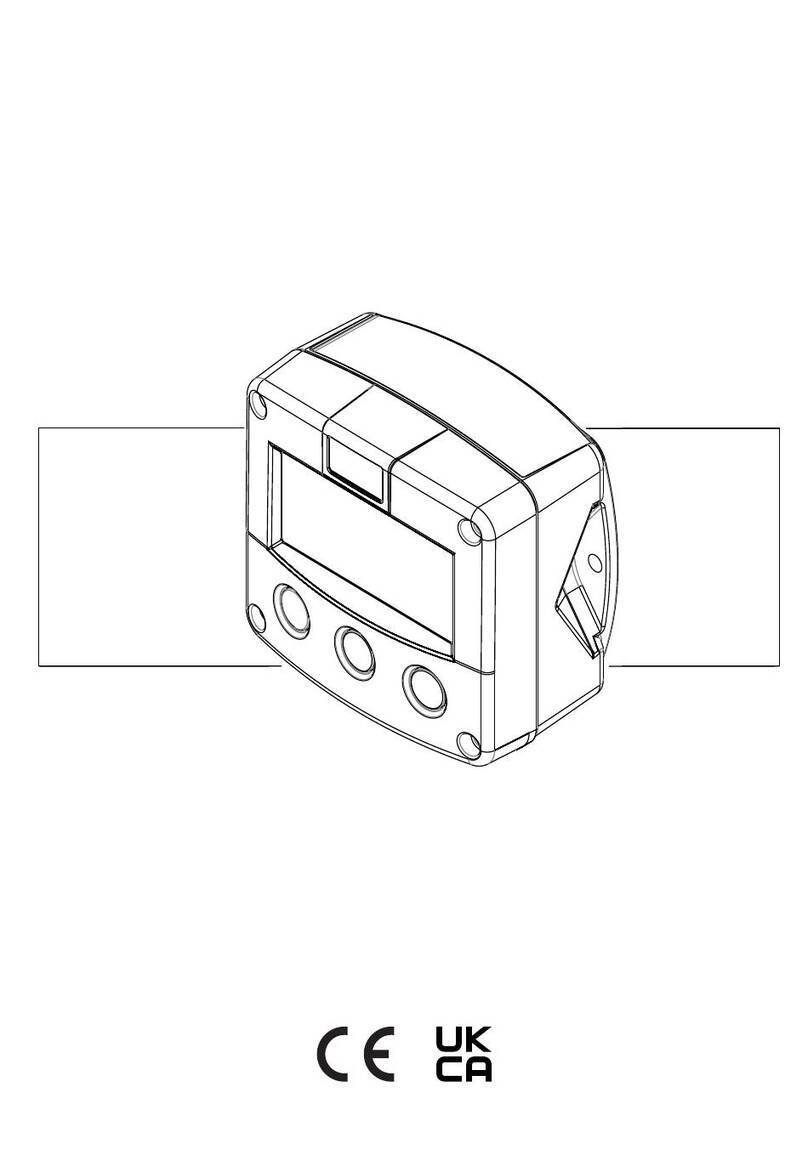

User manual D013-A Flowrate Monitor / Totalizer
3–INSTALLATION INSTRUCTIONS
Power wiring type PX
Connect the “-”, GND or “0V” wire of your external power supply to pin P3. Connect the “+” wire
to pin P4.
With power wiring type PX pin S4 offers 8.2V to power a device in the field
Power wiring type PD
Figure 8: Power wiring type PX
D013-A
P4
8-30Vdc
P3
With power wiring type PD / PM pin S4 offers a limited sensor supply (8.2/12/24V) to power the
flowmeter in the field.
Figure 9: Power wiring type PD DC / AC – with flowmeter supply
D013-A
P4
24Vdc ±10%
P3
S4 Power supply to flowmeter,seeFigure
7: "Voltage switch positions" for settings
P2
24Vac 50/60Hz
P1
0V
+
++
-
+
0V
++
-
~
~
ground - yellow /green
P0

User manual D013-A Flowrate Monitor / Totalizer
INSTALLATION INSTRUCTIONS – 3
FW-D013-A-MAN-EN-V0102_02 13
Power wiring type PM
Type PM is a galvanically isolated highpower switching power supply, converting 115–230Vac
mains (50/60Hz) to power the D013-A,the backlight (option) and provides up to 24V sensor
supply to the field.
Backlight
For those applications where readability during day and night is an issue, a bi-color backlight is
available. The background color can be set to green or amber and the intensity can be adjusted
in the configuration menu, see 43 "Backlight" on page 25
Backlight requires a power supply of at least 16V and is internally powered by options PD, PM or
PX above 16V.
Warning
•HIGH VOLTAGE! Danger of electrical shock: remove power from the supply lines
before connecting.
Warning
• Never connect 24V AC and DC together on the same unit, this will damage the unit.
Figure 10: Power wiring type PM
D013-A
S4 Supplies up to 24Vdc@75mA sensor
power, see Figure 7: "Voltage switch
positions" for settings
P3/
S1
P2
115–230Vac 50/60Hz
+
0V
N
P1
L1
P0 ground - yellow /green

User manual D013-A Flowrate Monitor / Totalizer
3–INSTALLATION INSTRUCTIONS
14 FW-D013-A-MAN-EN-V0102_02
I/O wiring options
Flowmeter Input Wiring Options Type A
The D013-A requires a 0(4)–20mA input signal which will be processed 4 times a second with a
14 bit accuracy.
Sensors that are not externally/self powered can by powered by the sensor supply terminal,
when the D013-A is equipped with power supply type PD.
Explanation of symbol ‘cable shielding’
Loop Powered Flowmeter Input Wiring Option Type A-PL
The D013-A with type PL requires a 4-20mA flowmeter signal which has a double function:
The signal will be processed 4 times a second with a 14 bits accuracy and the unit will be
powered from the sensor signal (loop power). The input is not isolated.
Figure 11: 0(4)–20mA signal input
D013-A sensor supply
(only with type PD) S4
Option 1: powered by
sensor supply
Option 2: self / externally
powered
0(4)–20mA S2
S1
1
2
cable shielding
Figure 12: 4–20mA loop powered signal input
D013-A Loop power provided by externally powered sensor
4–20mA
S2
S1
