Fluke 2042 User manual

®
Model 2042
Cable Locator
Users Manual
PN 2438531
May 2005 (English)
© 2005 Fluke Corporation. All rights reserved. Printed in China.

LIMITED WARRANTY AND LIMITATION OF LIABILITY
Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The
warranty period is one year and begins on the date of shipment. Parts, product repairs, and services are warranted for 90
days. This warranty extends only to the original buyer or end-user customer of a Fluke authorized reseller, and does not apply
to fuses, disposable batteries, or to any product which, in Fluke's opinion, has been misused, altered, neglected, contamina-
ted, or damaged by accident or abnormal conditions of operation or handling. Fluke warrants that software will operate sub-
stantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective
media. Fluke does not warrant that software will be error free or operate without interruption.
Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no
authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purcha-
sed through a Fluke authorized sales outlet or Buyer has paid the applicable international price. Fluke reserves the right to
invoice Buyer for importation costs of repair/replacement parts when product purchased in one country is submitted for repair
in another country.
Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair, or replacement
of a defective product which is returned to a Fluke authorized service center within the warranty period.
To obtain warranty service, contact your nearest Fluke authorized service center to obtain return authorization information,
then send the product to that service center, with a description of the difficulty, postage and insurance prepaid (FOB
Destination). Fluke assumes no risk for damage in transit. Following warranty repair, the product will be returned to Buyer,
transportation prepaid (FOB Destination). If Fluke determines that failure was caused by neglect, misuse, contamination, alte-
ration, accident, or abnormal condition of operation or handling, including overvoltage failures caused by use outside the pro-
duct’s specified rating, or normal wear and tear of mechanical components, Fluke will provide an estimate of repair costs and
obtain authorization before commencing the work. Following repair, the product will be returned to the Buyer transportation
prepaid and the Buyer will be billed for the repair and return transportation charges (FOB Shipping Point).
THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FIT-
NESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of inciden-
tal or consequential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any provision of
this Warranty is held invalid or unenforceable by a court or other decision-maker of competent jurisdiction, such holding will
not affect the validity or enforceability of any other provision.
Fluke 2042
LIMITED WARRANTY AND LIMITATION OF LIABILITY
2
Fluke Corporation
P.O. Box 9090
Everett WA
98206-9090
Fluke Europe B.V.
P.O. Box 1186
5602 B.D. Eindhoven
Netherlands

Page
General Information / Introduction /Scope of Supply .................................... 4
Product Description ...................................................................................... 4
Scope of supply ............................................................................................ 5
Transport and Storage .................................................................................. 5
Safety Measures............................................................................................ 5
Appropriate Usage ...................................................................................... 7
Operation Elements and Connections .......................................................... 7
Carrying out measurement............................................................................ 11
Theoretical functional principle ................................................................ 12
Locator in complete circuits .................................................................... 12
Important Application .............................................................................. 12
In open circuits (one pole application) .................................................... 14
In complete circuits (double pole application) ........................................ 14
Locating and tracing of lines, sockets, switches and junctions in house
installations circuits.................................................................................. 15

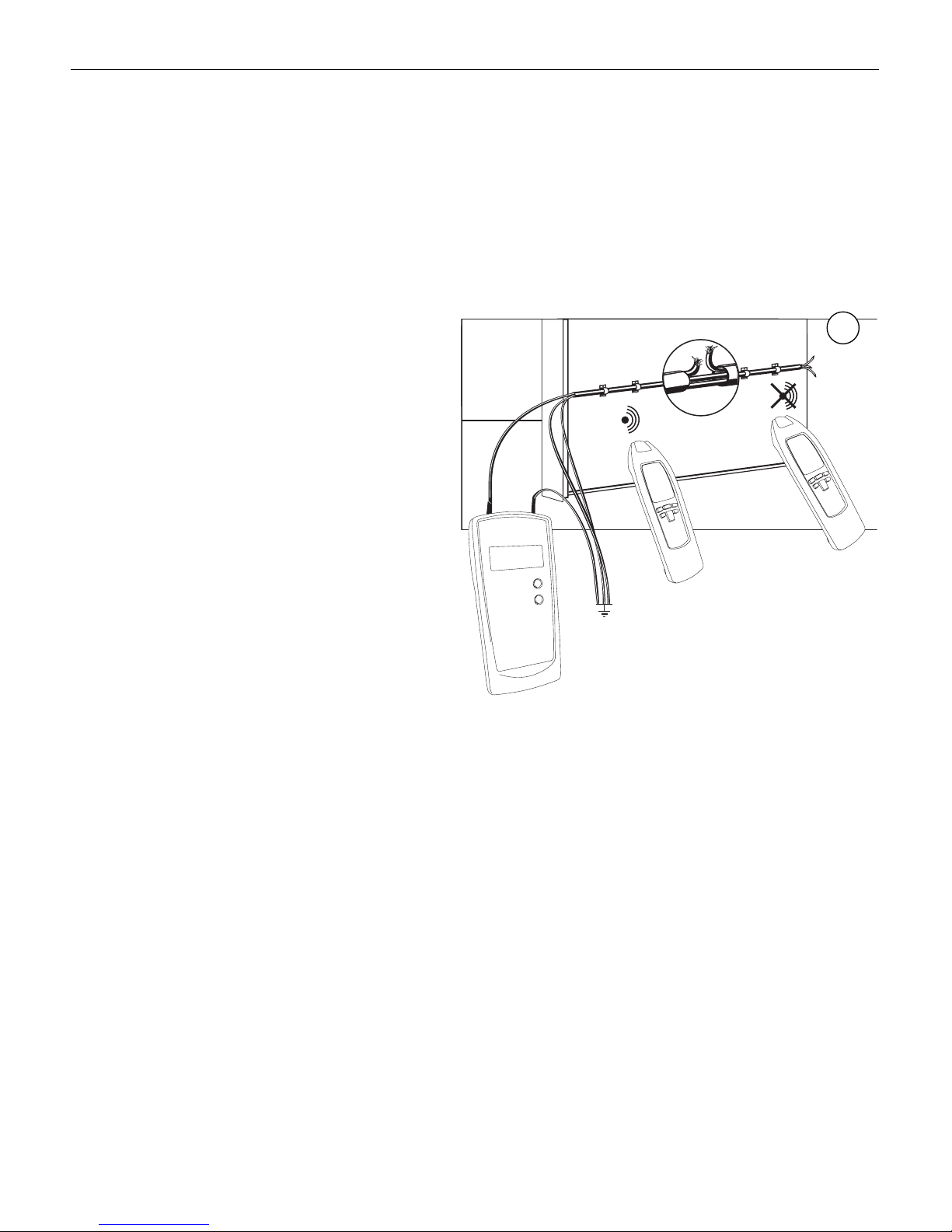

Locating of line interruptions .................................................................. 16
Precise locating of line interruptions using two transmitters .................. 16

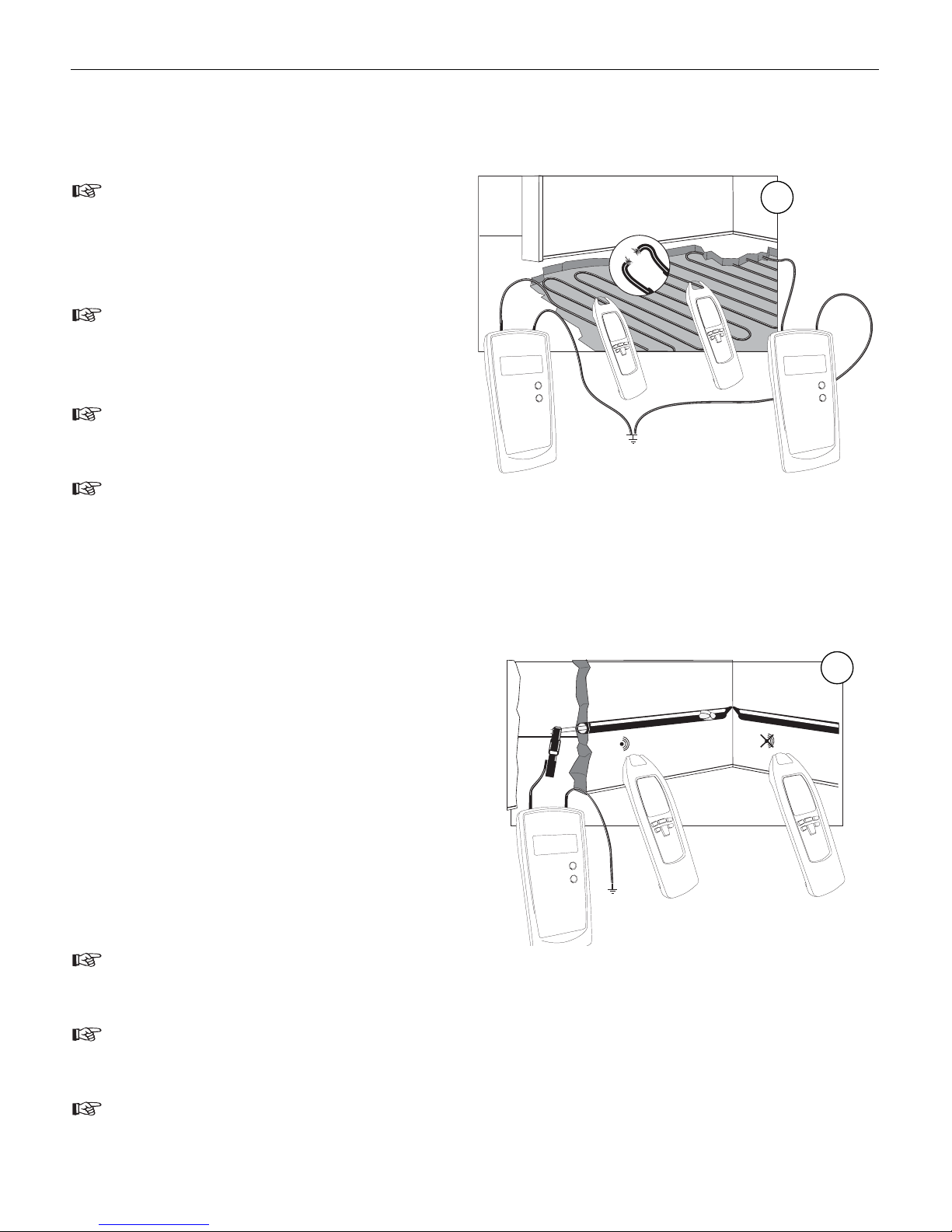

Error detection for a electrical floor heating (one-pole application) ........ 18
Locating of bottlenecks (obstructions) in installation pipes .................... 18
Locating Fuses (dual-pole application).................................................... 19
Locating of short-circuits in conductors (double-pole applicaion ............ 19
Tracing installed water and heating pipes (one-pole application)............ 20
Detecting the direction of water and heating pipes already installed ...... 21
Locating a complete house wiring (one-pole application) ...................... 21
Following lines with higher location depth (dual-pole application) .......... 22
Tracing Conductors Within the soil (single-pole application) .................. 22
The reach will be improved when seeking the tension............................ 23
Sorting or determination of conductors already installed ...................... 24
Mains Voltage Detection Locating Line Interruptions .............................. 24
Setting the Codes.......................................................................................... 25
Measurement Point Illumination .................................................................... 25
Maintenance .................................................................................................. 25
Cleaning ........................................................................................................ 25
Battery Replacement .................................................................................... 25
Transmitter Built-in Fuses.............................................................................. 27
Calibration Interval ........................................................................................ 27
Technical Data .............................................................................................. 28
Fluke 2042
Table of Contents
3

References marked on instrument or in Users Manual
Warning of a potential danger, comply with Users Manual.
Caution! Dangerous voltage. Danger of electrical shock.
Reference. Please use utmost attention.
Conformity symbol, the instrument complies with the valid directives. It complies with the EMV
Directive 89/336/EEC are fulfilled, it also complies with the Low Voltage Directive (73/23/EEC).
The Users Manual contains information and references, necessary for safe operation and main-
tenance of the instrument. Prior to using the instrument (commissioning / assembly) the user is
kindly requested to thoroughly read the Users Manual and comply with it in all sections. Failure
to read the Users Manual or to comply with the warnings and references contained herein can
result in serious bodily injury or instrument damage.
General Information / Introduction /Scope of Supply
The FLUKE Cable Locator is a portable measurement instrument and can be used to detect or
trace conductors.
Product Description

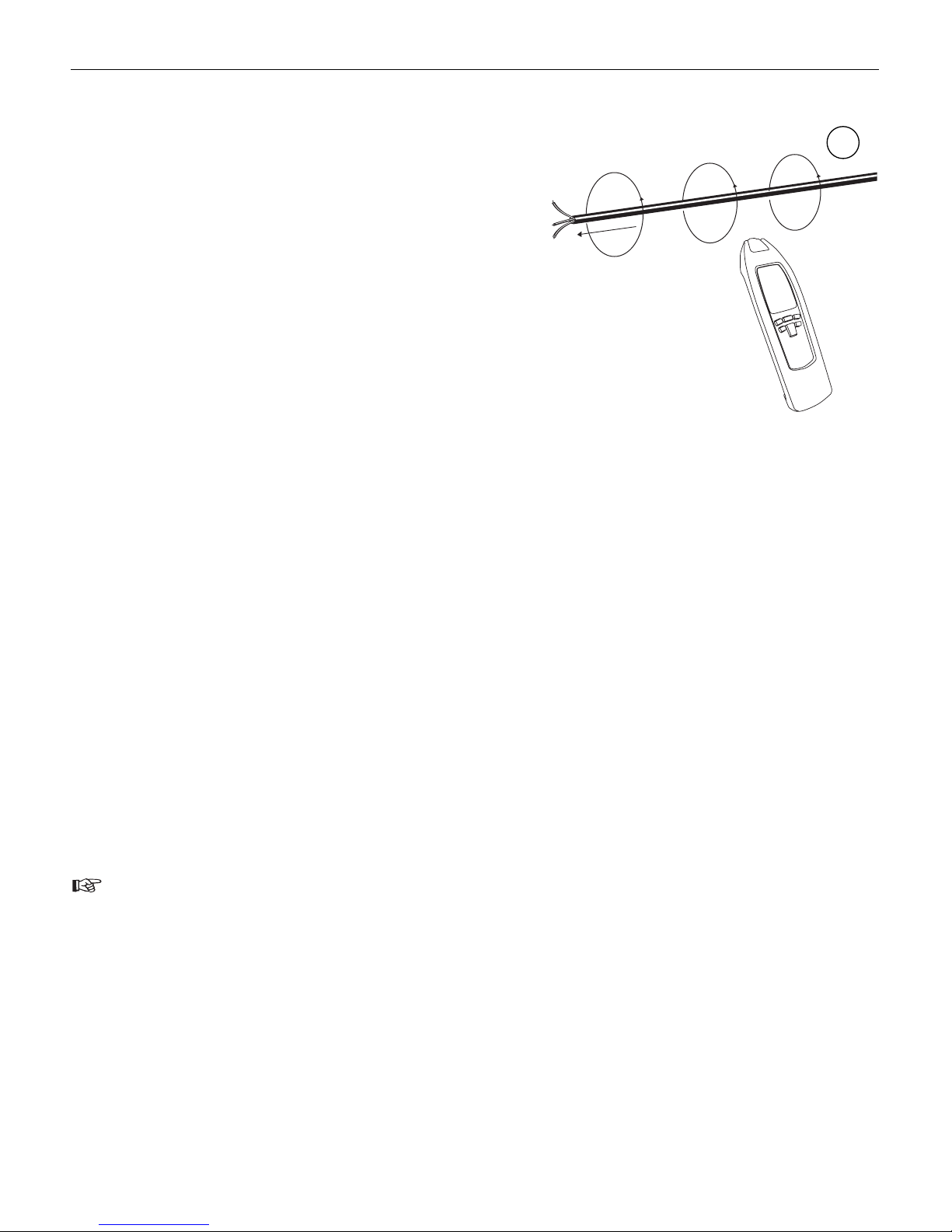

The FLUKE Cable Locator consists of a transmitter and a receiver. The signal generated by the
transmitter is made of a modulated current, generating an electro-magnetic field around a con-
ductor. This electro-magnetic field induces a voltage within the receiving coil. The induced voltage is
amplified, decoded, and converted to the original signal by the receiver, and finally displayed on the
screen. The connecting parameter for the transmitter during an application must be a closed current
circuit.
The FLUKE Cable Locator is characterized by the following features:
• Finding conductors in walls, conductor interruptions, short-circuits in conductors
• Conductor tracing in the soil
• Detecting fuses and assigning current circuits
• Tracing sockets and distribution sockets having accidentally been covered by plastering
• Detecting interruptions and short-circuits in floor heating
• Tracing metallic water and heating piping
• All application areas (both, voltage-free and live) are performed without using any additional in-
struments
• Transmitter display indicates the transmission level, the transmission code, as well as the foreign
voltage

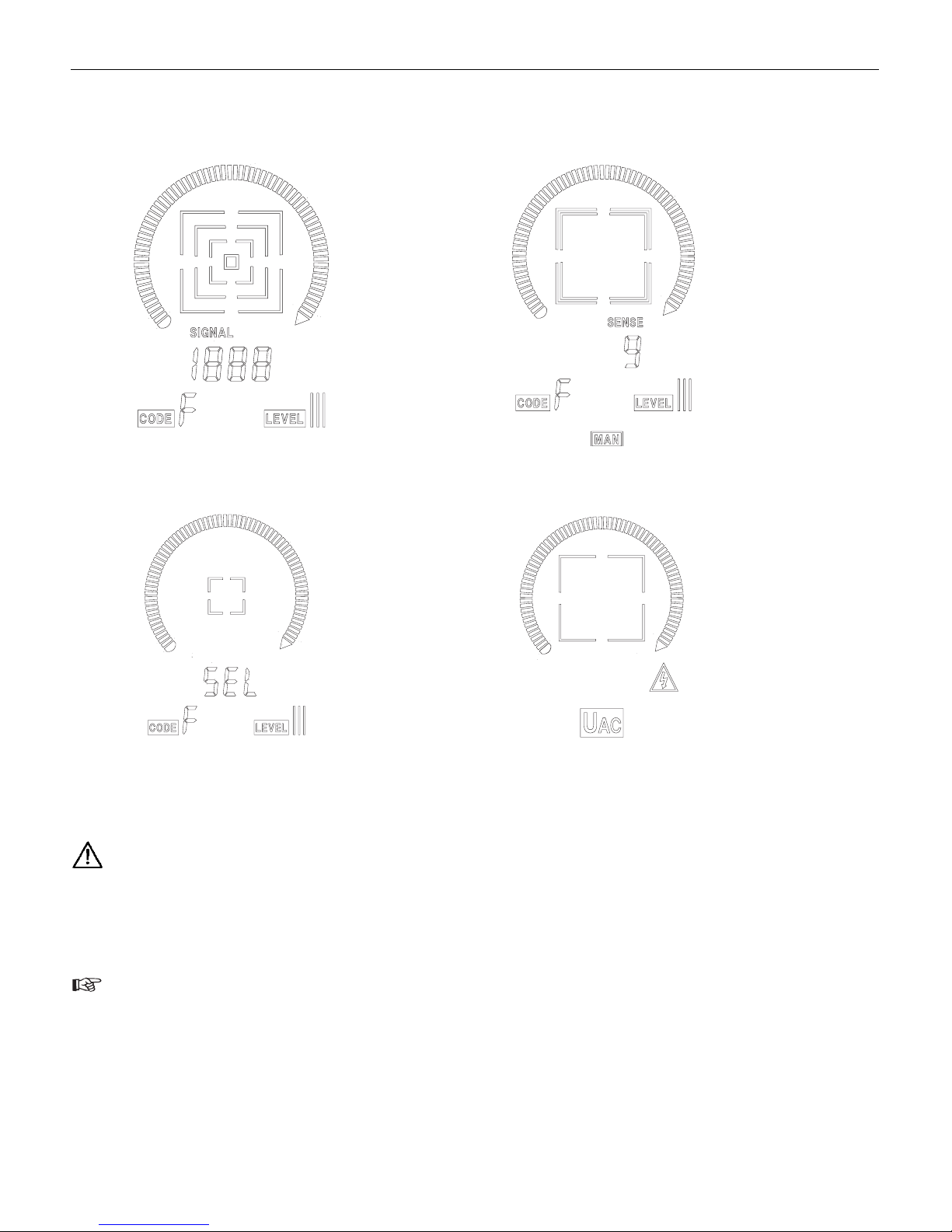

• Receiver display indicates the reception level, the transmission code, as well as the mains volta-
ge detection
• Automatic and manual sensitivity adjustment
• Acoustic reception signal may be switched off
4
Fluke 2042
General information

• Auto-Power-Off function
• Backlight
• Additional lighting function when working under bad lighting conditions
• Additional transmitters are available to extend or distinguish several signals
Scope of supply
1 pc. FLUKE Cable Locator Transmitter
1 pc. FLUKE Cable Locator Receiver
4 pc. Test Leads
1 pc. Battery 9 V, IEC 6LR61
6 pc. Batteries 1,5V, IEC LR6
2 pc. Cocodile Clamps
2 pc. Test Probes
1 pc. Carrying Case
1 pc. Users Manual
Transport and Storage
Please keep the original packaging for later transport, e.g. for calibration. Any transport damage
due to faulty packaging will be excluded from warranty claims. In order to avoid instrument damage,
it is advised to remove batteries when not using the instrument over a certain time period. However,
should the instrument be contaminated by leaking battery cells, you are kindly requested to return it
to the factory for cleaning and inspection. Instruments must be stored in dry and closed areas. In the
case of an instrument being transported in extreme temperatures, a recovery time of minimum 2
hours is required prior to instrument operation.
Safety Measures
The FLUKE Cable Locator has been constructed in accordance with the safety regulations for elect-
ronic test and measurement instruments and has left the factory in safe and perfect condition. To
maintain this condition, the user must pay attention to the safety references contained in this Users
Manual. This Users Manual contains information and warnings necessary for safe operation and
maintenance of the instrument.
The respective accident prevention regulations established by the associations for electrical
systems and equipment must be strictly met at all times.
In order to avoid electrical shock, the valid safety and VDE regulations regarding excessive con-
tact voltages must receive utmost attention, when working with voltages exceeding 120V (60V)
DC or 50V (25V)rms AC. The values in brackets are valid for limited ranges (as for example me-
dicine and agriculture).
Measurements in dangerous proximity of electrical installations are only to be executed when
instructed by a responsible electrical specialist, and never alone.
5
Fluke 2042
Safety Measures

Prior to usage, inspect instrument for external damage. Prior to any operation, ensure that con-
necting leads used and electronic load are in perfect condition.
If the operator’s safety is no longer ensured, the instrument is to be put out of service and pro-
tected against use. The safety is no longer insured, if the instrument:
• shows obvious damage
• does not carry out the desired measurements
• has been stored for too long under unfavourable conditions
• has been subjected to mechanical stress during transport.
The Cable Locator may only be used on systems complying with the nominal voltages indicated
in the technical data section.
However, we recommend to exclusively connect the transmitter from the phase towards the
neutral conductor. If transmitter connection is realised from the phase towards the protective
conductor, the functional safety of the protective conductor must be tested first, in compliance
with DIN VDE 0100. The reason is that when connecting the transmitter from phase towards
ground, all parts being connected to the earth may be live in the event of an error (if the earth
resistance does not comply with the prescriptions).
If the RCD trips when connecting the sender (with reference to the protective earth contact PE),
a fault current is already active within the installation which generates the RCD tripping when
cumulated to the additionally fed current.
If the instrument is subjected to an extremely high electro-magnetic field, its functioning ability
may be impaired.
Never try to disassemble battery cells ! The battery contains very strong base chemicals. Dan-
ger of causticization ! If the battery contents come in contact with skin or clothing, rinse imme-
diately with water. If the battery contents come in contact with the eyes, immediately flush by
using pure water and consult a doctor.
Never try to make contact between both battery cell poles, for example by using a wire con-
nection. The resulting short-circuit current is very high and causes extreme heat. Danger of fire
and explosion !
When replacing or changing the battery, make certain of correct polarity. Batteries with reversed
polarity can lead to instrument destruction. Furthermore, they may explode or ignite.
Only use batteries as describet in the technical data section
Avoid any heating up of the instrument by direct sunlight to ensure perfect functioning and long
instrument life.
6
Fluke 2042
Safety Measures

Appropriate Usage
The instrument may only be used under those conditions and for those purposes for which it
was conceived. For this reason, in particular the safety references , the technical data including
environmental conditions and the usage in dry environments must be followed.
When modifying or changing the instrument, the operational safety is no longer ensured.
Operation Elements and Connections

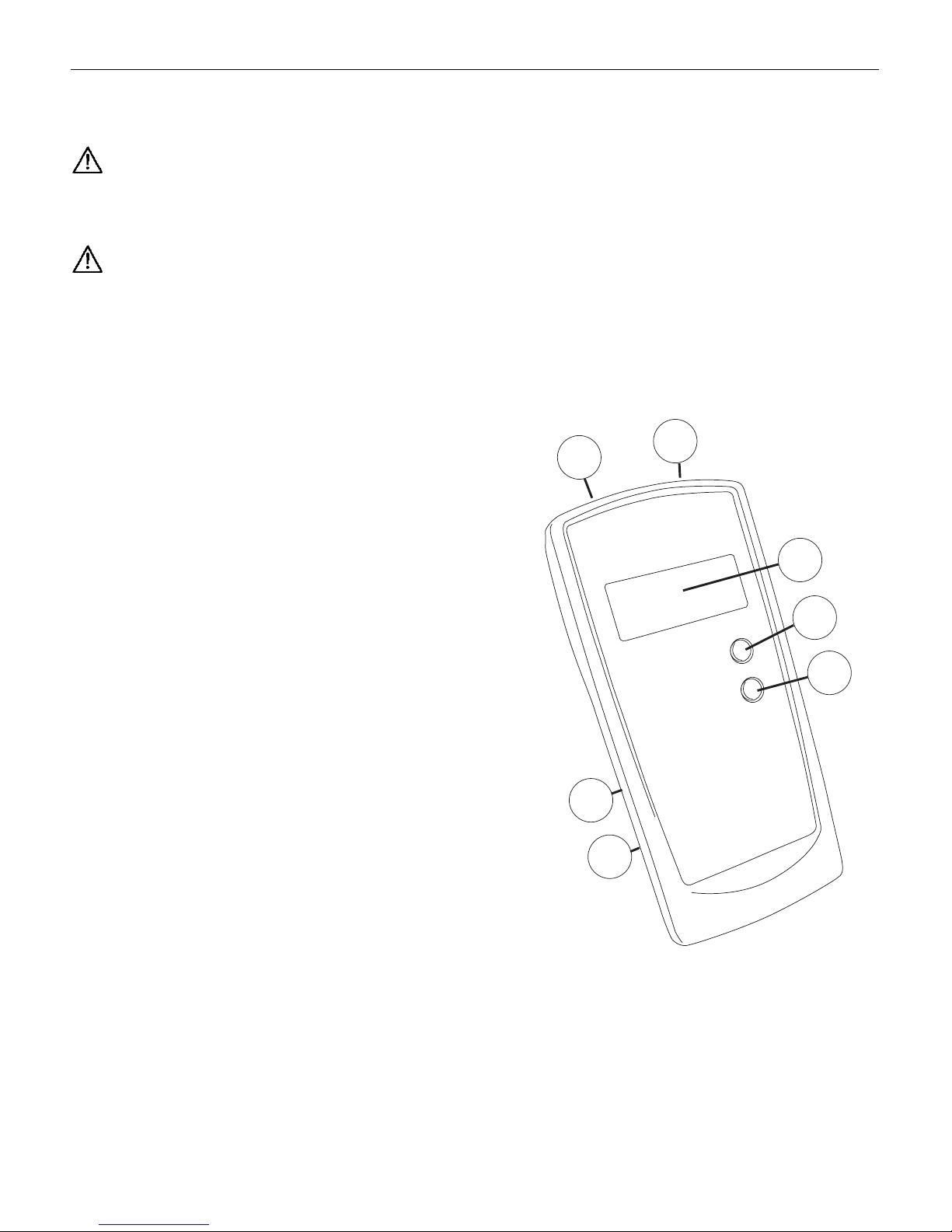

Transmitter
1) Terminal "+"
2) Terminal "ground"
3) LCD
4) Key Sensitivity Level
Repeated pressing allows selection between
three transmission levels.
5) Key ON/OFF
To switch off the instrument press the button for
approx. 2 seconds.
6) Battery case (backside)
6 a) Jumper for selectable Code (in battery case)
Standard setup is "Code F”
12
3
4
5
6
6a
7
Fluke 2042
Users manual

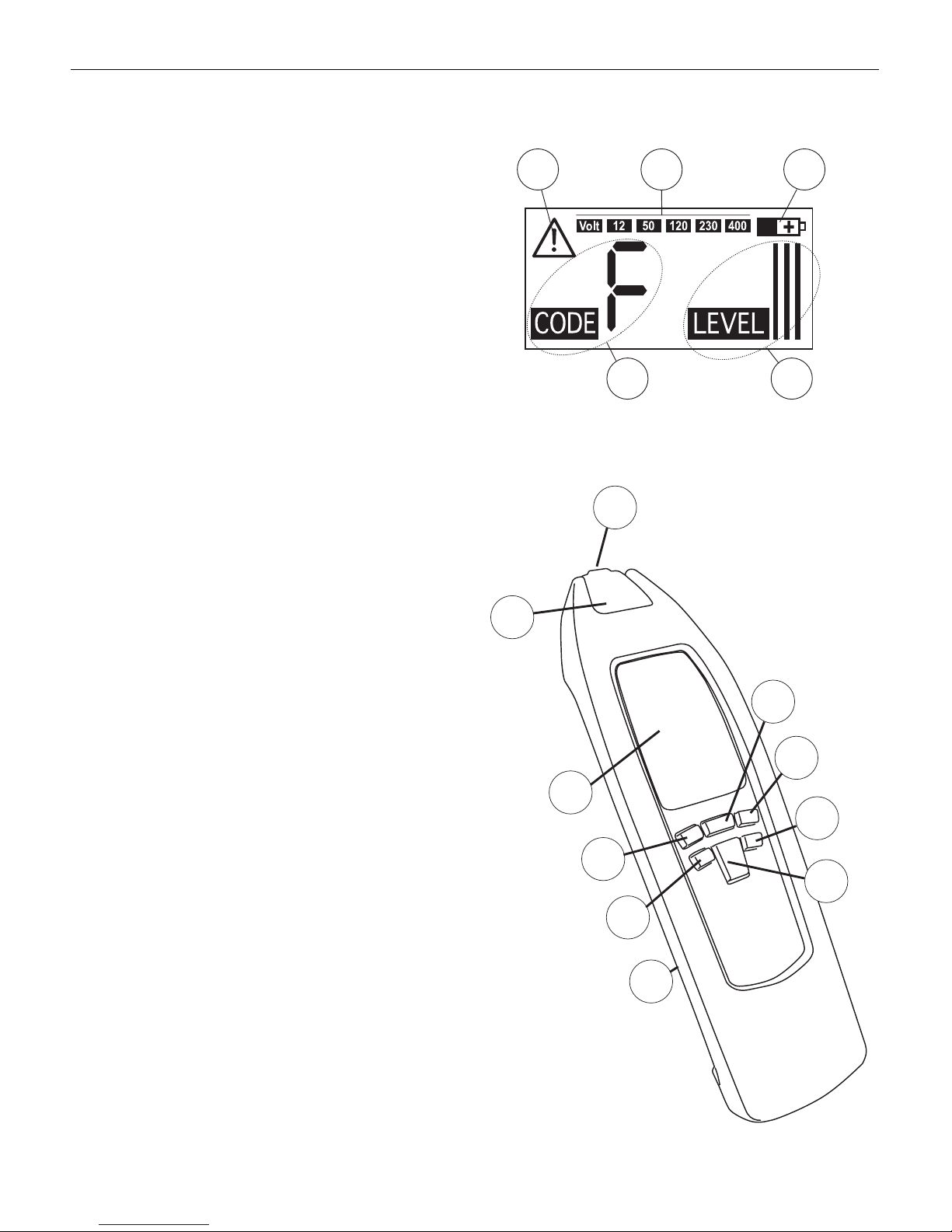

Transmitter – Display
3a) Transmitted Code
3b) Display for external voltage (i.e. 50 V)
3c) External voltage detection
The integrated foreign voltage detection fea-
ture is not appropriate to check (if the con-
nection is live) ! Tor check that the system is
live, use an appropriate voltage tester (e.g.
FLUKE T100).
3d) Display for battery status
3e) Display transmitted level (I, II or III)
Receiver
7) Button to switch the acoustic display on or off
8) ON/OFF button to switch the instrument on or
off / backlight. To switch off the instrument,
press the button during 2 s, approximately.
If no button is pressed during a certain pe-
riod, the instrument automatically switches off
after approximately 5 minutes.
Briefly press the respective LCD backlight
button to switch it on and off while the recei-
ver is switched on.
9) LCD
10) Light
11) Sensor head
Slowly move the sensor head across the lo-
cation to be searched. If the searching move-
ment is too fast, the signal cannot be
(recognized).
12) "UAC" button to select between cable locator
mode and mains voltage detection mode
13) "- " button, to switch the light function mode
on or off
This function is automatically switched off
after approximately 60 seconds.
14) SEL button to switxch on/of selective mode
11
12
13
14
15
7
8
9
10
16
3b 3c3d
3e3a
8
Fluke 2042
Users manual

15) Toggle button for manual selection of the sensitivity
upward selection
 downward selection
This button remains inactive when selecting the mains voltage detection mode.
Automatic Mode
(Standard setting after switch-on) If the automatic mode is selected the message "SIGNAL" is dis-
played. (9 d) and (9 j) indicate the signal intensity.
Manual Mode
Selection is made by means of downward selection ". If the manual mode is selected the mes-
sages "MAN " and "SENSE" are displayed. When further pressing "" the sensitivity may be redu-
ced from "9" to "1".
If the signal level available is high, it is recommended to select a low sensitivity level. .
“ When pressing "" the sensitivity may be increased from "1" to "9".
If the signal level available is low, it is recommended to select a high sensitivity level.
If the sensitivity level "9" has been selected and "5" is pressed again, the instruments returns to au-
tomatic mode.
Selektive Modus
The change-over of modes is performed by pressing the "SEL" button (14). If the selective mode
has been selected "MAN" (9 m) is displayed on the screen and "SEL" (9 j) appears in the numerical
box. Reduction of sensitivity is made by pressing the "arrow down" button. The sensitivity display is
performed by the "size" of the magnifying glass.
If the signal level present is high, it is recommended to set a low sensitivity.
The sensitivity is increased when pressing the "” button.
It is recommended to select a high sensitivity if the signal level present is low.
Once the maximum sensitivity is set and the "" button is pressed again, the instrument returns
into automatic mode.
16) Battery case (on instrument rear)
9
Fluke 2042
Users manual

Receiver – Display
9 a) Display to indicate that the acoustic display is
switched off
9 b) Symbol to indicate the active LCD illumination
9 c) Information transmitted by the transmitter
(transmission code and battery charge conditi-
on)
9 d) Display to indicate that the automatic mode is
switched on
9 e) Bargraph display to indicate the signal intensity
9 f) Display for discharged battery
9 g) Manual mode: additional graphic display to indi-
cate the selected sensitivity Display of the sen-
sitivity within the selective mode.
Large magnifying glass => high sensitivity,
Small magnifying glass => low sensitivity
9 h) Display to indicate that the manual mode is
active
9 i) Display for mains voltage
9 j) Automatic mode; digital display for signal inten-
sity / manual mode, display of sensitivity/ SEL
for selecitve mode.
9 k) Transmission level transmitted by the transmit-
ter (LEVEL I, II, or III)
9 l) Display to indicate that the mains voltage detection is switched on
9 m) Display to indicate that the manual mode has been selected
9e
9f
9g
9h
9i
9j
9k
9L
9m
9a
9b
9c
9d
10
Fluke 2042
Users manual

Cable Locator Mode
a) Automatic mode b) Manual mode
c) Selective Mode Mains Voltage Detection
Carrying out measurement
The transmitter should be connected between phase and neutral. First verify that the ground
wire is in compliance with the VDE 100 for, when connectiong the transmitter from phase to
ground, all parts being connected to ground could be live during failures (in cases where the
earth resistance does not comply with the regulations).
If the RCD trips when connecting the sender (with reference to the protective earth contact PE),
a fault current is already active within the installation which generates the RCD tripping when
cumulated to the additionally fed current
11
Fluke 2042
Users manual

Theoretical functional principle
The FLUKE Cable Locator consists of a transmitter and a
receiver. The signal generated by the transmitter consists
of a modulated current. Generating a magnetic field ar-
round a conductor, see figure 1. This electro-magnetic
field surrounding the conductor induces a voltage within
the receiver coils. For both modes, automatic mode and
manual mode, the receiver works with three coils and
does, not depend on a position. A selective and position-
dependant search is performed in selective mode with
only one active coil.
Locator in complete circuits
1st Possibility (one pole application)
Connect the transmitter to only one conductor. In this operational mode, the transmitter is supplied
by the built-in battery. Due to the high-frequency signal generated by the transmitter, only one sin-
gle conductor can be located and traced. The second conductor is the ground. This arrangement
causes a high frequency current to flow through the conductor and to be transmitted to ground, si-
milar to a radio and receiver. As from now on, we will call the above described operation one-pole
application.
2nd Possibility (double-pole application)
Connect the transmitter to the mains. The transmitter is supplied by the mains. In this example, the
modulated current flows through the phase into the transformer and back through neutral. There is
a further possibility for voltage free systems by connecting the transmitter to two line terminals while
short-circuiting the other line ends. Thus a complete circuit is created. Then, the transmitter is sup-
plied by the built-in battery. From now on, we will call this operation double pole application.
The FLUKE Cable Locator can only detect or locate lines, which are connected correctly in ac-
cordance with the physical principle described.
Important Application
For our example, we advise you to take a piece of a plastic-sheathed cable NYM 3 x 1,5 mm2, for
example. Provisionally install 5m of this cable along the wall with nail clips at eye level as surface
mounting. Make sure that the wall is accessible from both sides. Create an artificial interruption at a
distance of 1,5m before the line terminal. The line terminals must be open. Strip the interrrupted
lead at the lead at the start of the light plastic-sheathed cable and connect it via the measuring
leads (supplied with the instrument) with terminal (1) of the transmitter.
12
Fluke 2042
Users manual
1

Connect terminal (2) of the transmitter to a suitable ground. All other cable leads must also be con-
nected to the transmitter and the same ground.
Switch in the transmitter via push button (5). Set the transmitter to "LEVEL I" via button (4). The
transmitter function is indicated via the flashing of the signal lamp (3). During the manufacture pro-
cess, the transmitter has been programmed to display the letter "F". Change the Code via Jumper
(7).
Switch, on the receiver via pushbutton (8). All
segments are indicated on the display (9) for a
short period of time. This indicates that the re-
ceiver is functional and that the batteries are
full. When switching on the receiver, the instru-
ment is automaticaly set to ”Automatic Mode”.
To change the sensitivity press the button 15.
Now, the "Manual Mode” is activated.The sen-
sitively range comprises 9 levels. The respecti-
ve sensitivity level, betweeen 1 and 9, is
changed and briefly displayed (9 + 9g) by pres-
sing buttons (15). If a selective and position-de-
pendant search has to be performed select the
selective mode by pressing the button 14 SEL.
Now touch the light-plastic sheathed cable with your receiver just before the location of the interrup-
tion. With button (15) "SENSE" set the sensitivity level so as to just receive the "F' signal. The signal
strength is indicated via the bargraph (9f). The display indicates the signal sent. Together with this
optical indication, an acoustic signal is also emitted from the receiver. If the signal strength increa-
ses further, the bargraph (9f) is illuminated one after the other in accordance with the signal
stength.
Now, using the lowest possible sensitivity level of the receiver, move along the cable and past the in-
terruption. The signal "F is not displayed any longer and the acoustic signal is not audible any more.
Repeat the same experiment on the other side of the wall.
For this, set the transmitter to "Level III" using switch 4. Thus, the range increases by a factor 5.
13
Fluke 2042
Users manual
2

To perform the test, it is good to mark the location of the artificial interruption on the opposite side of
the wall. Select the sensitivity using button (15) to make sure that the signal "F” is only just receiva-
ble. Trace the signal in the wall with the receiver until it is no longer indicated. Localize the artificial
interruption by systematically adjusting the sensitivity.
The switching with button 4 from»LEVEL I«to»LEVEL III«the sensitivity of the Distance is in-
creased up to factor 5.

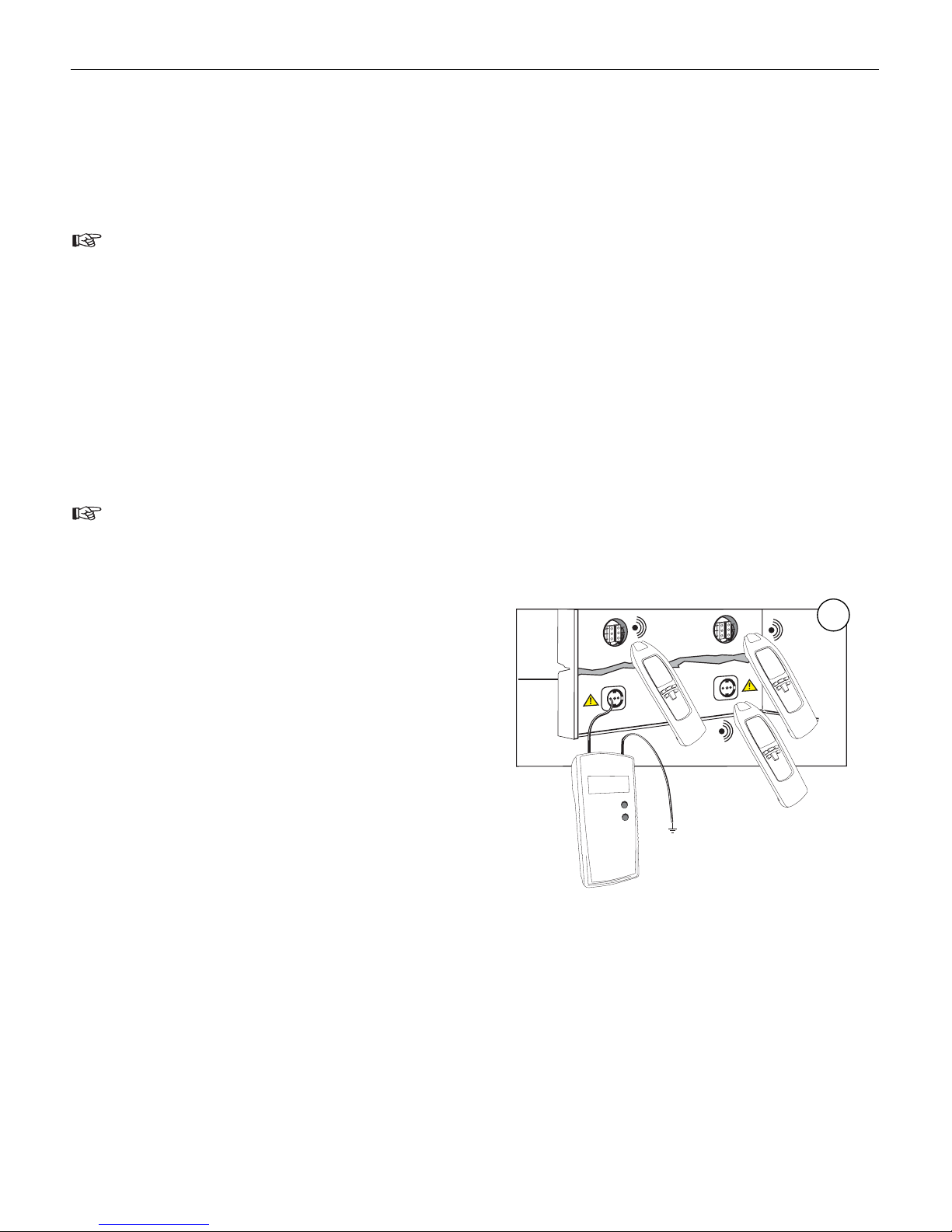

In open circuits (one pole application)
Line interruptions in walls and floors. Finding and tracing of lines, sockets, junction box, switches,
etc. for house installations. Finding bottlenecks, kinking and bucklings and obstructions in installati-
on pipes by means of a metal coil.
The ground connector must be connected to a suitable earth. A typical example would be an
earthed socket. The tracing depth amounts to 0...2 meters.
The tracing depth depends on the medium and application

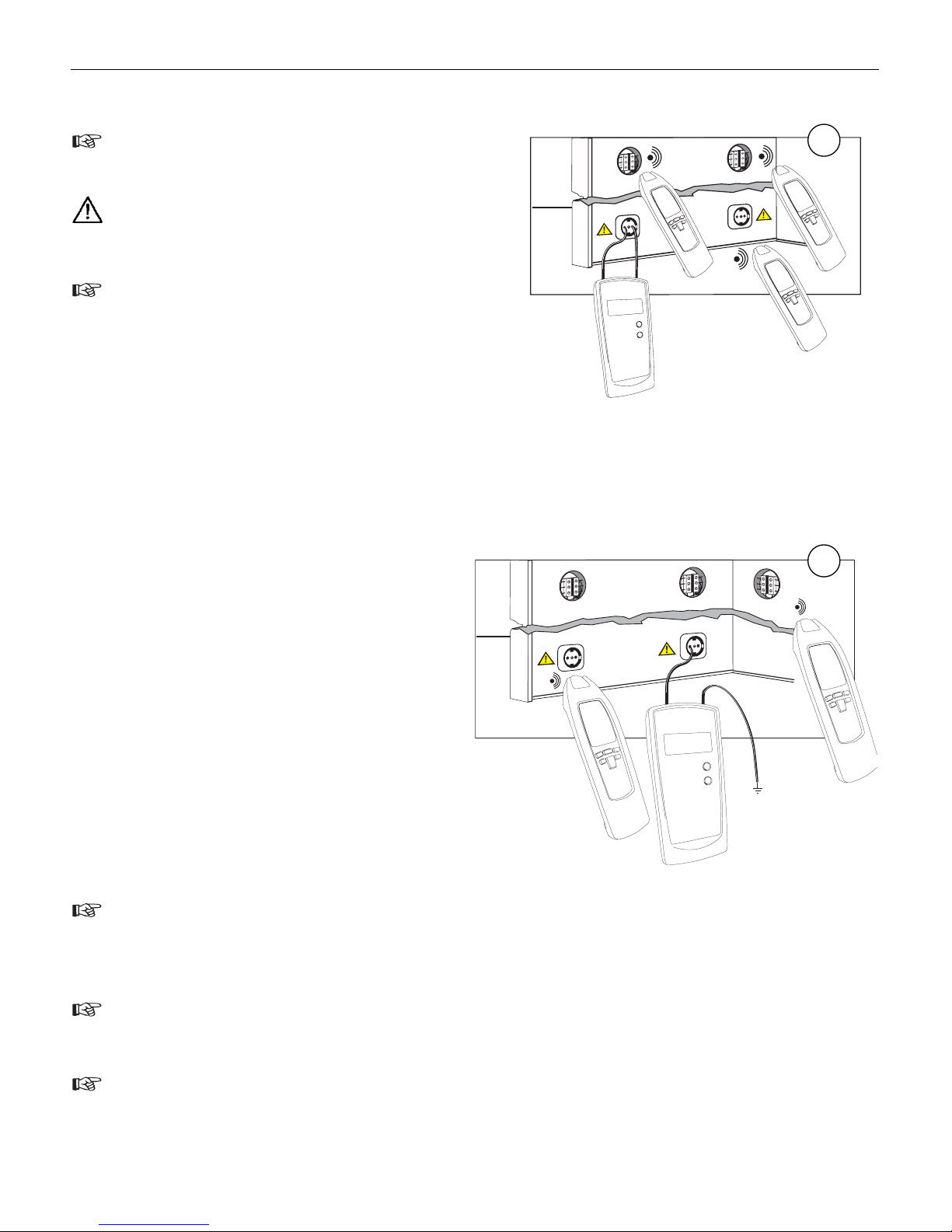

In complete circuits (double pole application)
When detecting short-circuits or during wire sorting,
i.e circuits with or wihout voltage. Voltgage-free cir-
cuits are directly supplied by the instrument battery.
In live circuits , the transmitter is supplied directly by
the circuit connected. Switching from battery voltage
to circuit voltage is carried out automatically. The
transmitter is voltage-proof up to 400 V AC/DC.
Example for a complete circuit: Complete circuits
are apppropriate for: i.e. detecting sockets, swit-
ches, etc in live installations.
14
Fluke 2042
Users manual
3

The tracing depth amounts to 0...0,5 meters..The
tracing depth depends of medium and application
When connecting in live circuits, safety regulations
must be followed.
The switching with button 4 from »LEVEL I« to
»LEVEL III« the sensitvity of Distance is increased
up to factor 5.

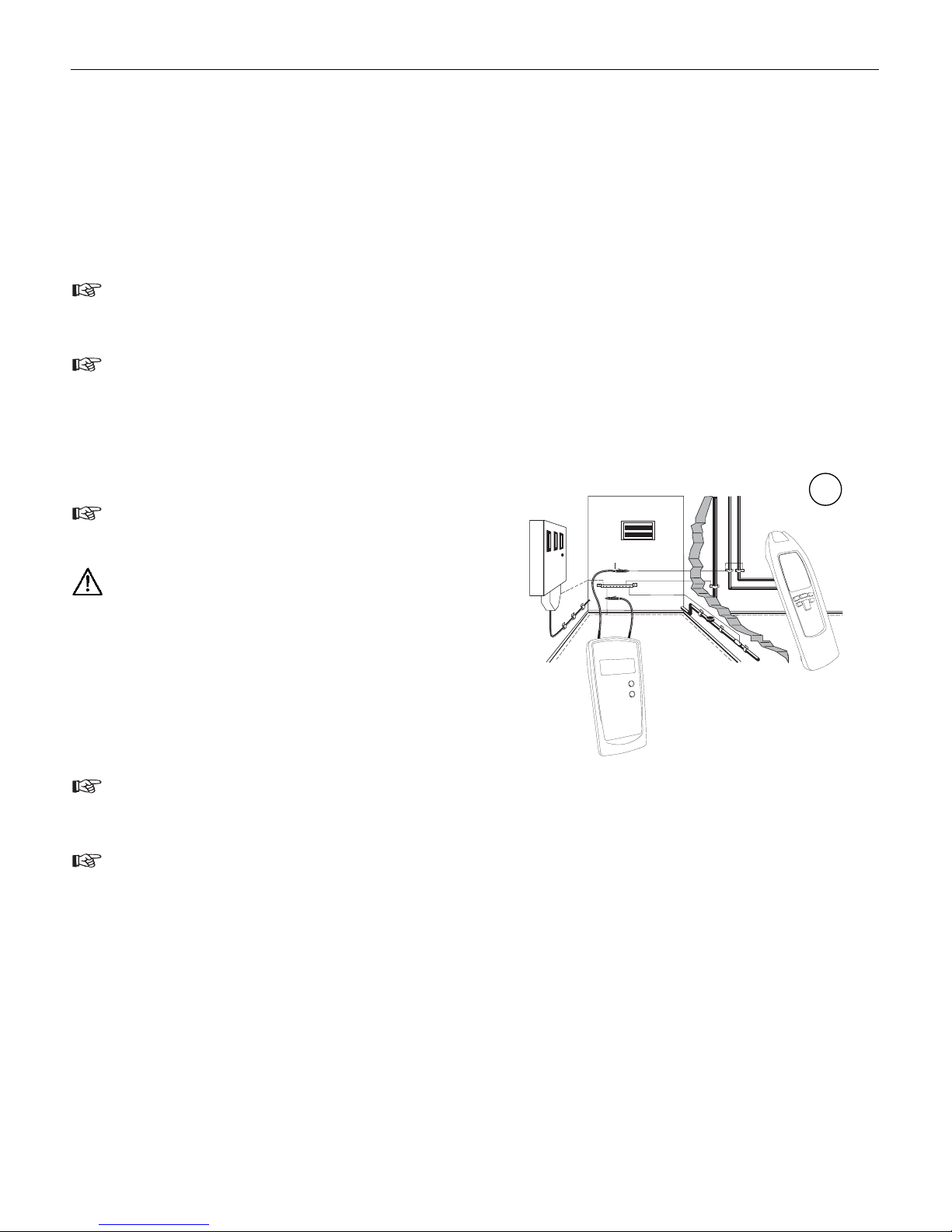

Locating and tracing of lines, sockets, switches and junctions in
house installations circuits (one-pole application)
Requirements:
• The circuit must be dead.
• Neutral line and ground must be connected
and fully operational.
• Connect transmitter to phase and neutral ac-
cording to figure 7.
• Carry out this example as described in the ap-
plication example.
With the one-pole indication, also lateral circuit
branches can be traced.
If the supply cable fed with the signal via the transmitter is located, e.g. directly in parallel to
other conductors (e.g. cable duct), or if these conductors are crossed, the signal is also input
into the other conductors. The fuse must be removed during this example.
The switching with button 4 from »LEVEL I« to »LEVEL III« the sensitvity of Distance is increa-
sed up to a factor of 5.
Setup: manual mode, minimal sensitivity. Tracing depth max. 2 meters.
15
Fluke 2042
Users manual
4
5

Locating of line interruptions (one-pole application)
Requirements:
• The circuit must be dead.
• All lines which are not required must be connected to the auxiliary ground in accordance with figure 8.
• Connect transmitter to one lead and to an neutral according to figure 8.
• Carry out this example as described in the application example.
Line interruption in the plastic-sheathed cable.
The ground connected to the transmitter should be
earth from an earthed socket or a water pipe which is
properly earthed.
When tracing line interruptions in multicore cables,
not that all remaining leads in plastic-sheathed cable
or conductor must be grounded in accordance with
the regulations.
This is required to avoid crosscoupling of the fed sig-
nal (by a capacitive effect to the source terminals).
The tracing depth for sheathed cable and conductors
are different, as the individual leads in the sheathed
cable are twisted around themselves.
The transition resistance of a line interruption must
be higher than 100 kOHM. The verification of resis-
tance can be carried out by any multimeter.
Systematically circle around the interruption the changing the sensitivity.
The switching with button 4 from »LEVEL I« to »LEVEL III« the sensitvity of Distance is increa-
sed up to factor 5.
Tracing depth max. 2 meters.
Setup: manual mode, minimal sensitivity
Precise locating of line interruptions using two transmitters
(one-pole application)
When locating a line interruption using one transmitter to feed from one conductor end, the location
of interruptions may not be precisely located in case of bad conditions due to a field disturbance.
The drawbacks described above can easily be avoided when using two transmitters (one from each
end) for line interruption detection. In this instance, each of the transmitters are set to a different line
code (e.g. transmitter one to code "F, the other transmitter to code "C"). A second transmitter with a
different line code is not included within the scope of supply and, therefore, has to be ordered sepa-
rately. (Order number 2041 D with line code "C").
16
Fluke 2042
Users manual
6

If the transmitters are connected in accordance with the figure 13, the receiver
indicates "C" at the left side of the line interruption. If you continue further than the interruption, to-
wards the right, the receiver displays "F". If you are directly above the interruption, no line code is
displayed, due to the overlapping of both transmitter signals. The line interruption is located exactly
in the middle between the displayed line codes "C" and "F
Conditions:
• The current circuit must not be live.
• All lines not being used must be connected to the auxiliary ground as shown in the figure.
• Connect both transmitters as shown in the figure..
• Proceed as described in the application example.
The ground connected to the transmitter and to
the wires not being used can be as follows is: an
auxiliary ground, an orderly connected ground
contact of a home office socket, or an orderly a
grounded water pipe.
Please make sure during line interruption loca-
ting in multi-wire shielded conductors and ca-
bles, that all remaining wires are orderly groun-
ded. This is required to avoid inductive
disturbance (by capacity coupling).
The locating depth for shielded conductors and cables varies, as the individual wires within the
shield are twisted.
The transition resistance of a line interruption must be higher than 100 kOHM. The verification of re-
sistance can be carried out by any multimeter.
• Systematically circle the interruption by changing the sensitivity.
The switching with button 4 from »LEVEL I« to »LEVEL III« the sensitvity of Distance is increa-
sed up to factor 5.
Setup: manual mode, minimal sensitivity. Tracing depth max. 2 meters.
F
C
FC
17
Fluke 2042
Users manual
7

Error detection for a electrical floor heating (one-pole application)
Please also note the connection conditions.
If a shield mat or shield wiring is located
above the heating wires, no ground connecti-
on may exist. If required, separate the shield
from the ground connection.
The switching with button 4 from »LEVEL I«
to »LEVEL III« the sensitvity of Distance is in-
creased up to a factor of 5.
A second transmitter is required for this appli-
cation.
Setup: manual mode, minimal sensitivity. Tra-
cing depth max. 2 meters.
Locating of bottlenecks (obstructions) in installation pipes
(single-pole application)
Requirements:
• Any circuits in the pipe must be dead and groun-
ded.
• Connect transmitter to the metal coil and auxiliary
ground according to figure 9.
• Carry out this example as described in the appli-
cation example.
Systematically circle round the interruption the
changing the sensitivity
If you have only coil actual of non conducting material (ex. fiber), we recommand you to slide a
copper wire ex. 1,5 mm2up to the x-pipes.
The switching with button 4 from »LEVEL I« to »LEVEL III« the sensitvity of Distance is increa-
sed up to a factor of 5.
Setup: manual mode, minimal sensitivity. Tracing depth max. 2 meters.
F
C
FC
18
Fluke 2042
Users manual
8
9

Locating Fuses (dual-pole application)
When connecting in live circuits, the safety directions
must absolutely be respected.
Insert into the current circuit of a multifamily residential
structure within a socket between L1 and N and switch
the transmitter to "LEVEL I".
You may assign the signal in the secondary distribution
and main distribution by transmitter pre-setting "LEVEL
I". Thus, fuses and automatic devices can definitely be
assigned to a certain current circuit.
The detection or assignment of the fuse strongly depends on the wiring realised within the dis-
tribution. To obtain a result as precise as possible, the cover should be removed and the supply
line to the fuse should be traced.
• Set transmitter to LEVEL I
The switching with button 4 from »LEVEL I« to »LEVEL III« the sensitvity of Distance is increa-
sed up to s factor of 5.
Setup: selective mode, minimal sensitivity
Safety cut-outs of different manufacturers have different installation positions for magnetic coils.
If no evident signal can be found by the receiver in the position shown below it is advised to mo-
dify the position by 90° towards the left or the right.
Locating of short-circuits in conductors (doubel-pole applicaion
Requirements:
• Any existing circuits within the cable must be voltage-
free.
• Connect transmitter in accordance with Figure 11.
• Carry out this example as described in the application
example
Note that the tracing depth for sheathed cable and con-
ductors are different due to the fact that the individual leads
in the sheathed cable are twisted around themselves.
Usually, short-circuits can only be correctly detected when
the short-circuit resistance is lower than 20 Ohm. The verification of the short-circuit resistance can
be carried out with any multimeter.
19
Fluke 2042
Users manual
10
11

Should the short-circuit resistance amount to more than 20 Ohm, you can try the experiment to de-
tect the error location by means of the line interruption mehtode. You can try with sufficient energy
to determine the error location (low ohmic connection) or to burn it in a way ensuring a line interrup-
tion.
• Systematically circle round the interruption by changing the sensitivity
The switching with button 4 from »LEVEL I« to »LEVEL III« the sensitvity of Distance is increa-
sed up to a factor of 5.
Setup: manual mode, minimal sensitivity. Tracing depth max. 0,5 meters.
Tracing installed water and heating pipes (one-pole application)
The following has to be respected:
The line to be located must be separated from the
equipotential bonding.
For safety reasons the electrical system must not be
live!
Connect transmitter at foundation ground to the ground
socket. The second transmitter socket has to be con-
nected to the conductor to be located. Now the feed line
can be traced.
The switching with button 4 from »LEVEL I« to »LEVEL III« the sensitvity of Distance is increa-
sed up to a factor of 5.
Setup: manual mode, minimal sensitivity. Tracing depth max. 2 meters.
20
Fluke 2042
Users manual
12
