Multiflex Marine RT-XX User manual

Instruction Manual,
Installation and
Maintenance Guide
HYDRAULIC REUSABLE HOSE
RT-XX

It gives us immense pleasure to welcome you to the family. multisteer
multisteer products can be sourced in 80 countries through a wide distribution network.
Dear Customer
©Power Steering System
©Hydraulic Steering Systems
© Mechanical Steering Systems
© PWC Cables
© Engine Control Cables & Control Boxes
© Mooring Compensators
© Boat Trailer Rollers
© Steering Wheels
We appreciate your decision to use products. With over two decades of experience, multisteer multisteer
is one of the leading manufacturers of Steering and Control Products for the boating industry.
Our range of products includes -
Extensive research, innovation and technology allows us not only to ensure reliability and quality of
products but also helps us to increase our product oerings to our customers, including customization of
products and services.
multisteer Steering Products are tested and conform to :
Recreational Cra and Personal Watercra Directive 2013/53/EU.
Our true endeavor is to present you with the best quality products and excellent services, thus building a
strong foundation to our relationship with you.
Warm regards,
Team Multisteer

TABLE OF CONTENTS
B. DOCUMENT REVISIONS 02
A. ABOUT THE MANUAL 01
C. SAFETY SYMBOLS USED 02
D. SAFETY WARNINGS 03
E. NAUTICAL WORD REFERENCE 03
F. WARRANTY 04
SECTION 1 - PRODUCT DESCRIPTION
1.2 PRODUCT EXPLODED VIEW 07
1.1 FUNCTION OF A REUSABLE HOSE 06
SECTION 2 - PRODUCT INSTALLATION
2.1 TOOLS REQUIRED DURING INSTALLATION 08
2.2 INSTALLING HYDRAULIC REUSABLE HOSE 09
SECTION 3 - TROUBLESHOOTING
3.2 DISASSEMBLING 16
3.1 FAULTS, CAUSE & SOLUTION 15
3.3 ROUTINE MAINTENANCE 17

01
Nothing in this Instruction Manual should be understood as a warranty or a guarantee for the
products. Nothing contained in this Manual can be interpreted as an amendment or confirmation of
the terms of any purchase contract.
NOTE : It is very important to read this Instruction Manual carefully before carrying out any activities
involving the product, its handling and unloading.
Multiflex reserves all the rights to alter the Instruction Manual format if another format is more suitable for
the particular product.
Multiflex takes no responsibility for any possible mistakes due to printing errors in this Manual.
A. ABOUT THE MANUAL
©Use this product only for its intended use as described in this Instruction Manual.
©This Instruction Manual itself is an important part of the purchased Multiflex product.
©The Instruction Manual includes - Description of the Products, Safety Warnings and Step wise
Procedures for Handling, Assembling, Installation, Maintenance, Disassembling and Replacement of
the Products.
©Immense care has been taken in collecting and chec king the information contained in this Instruction
Manual to make it as accurate and understandable as possible.
©The Instruction Manual contains all the essential information for the users regarding the purchased
Multiflex product. This document is to be given along with the product.
©ALL RIGHTS ARE RESERVED. Distributing Rights, Part Numbers, Pictures, Text or any content of Multiflex
products incorporated in this Instruction Manual property of Multiflex.
©The user must be aware of the content of this Instruction Manual. No activities regarding the product
(like its Assembling, Disassembling, Maintenance, Transport etc.) should be carried out without
carefully reading this Instruction Manual.

02
B. DOCUMENT REVISIONS
REV. DATE REVISION DESCRIPTION
1 August-2021 First Edition
RT-XX-IM1
The following Symbols / Terms define the various HAZARD identifications in this Instruction Manual to
ensure User Safety and to assure correct Installation and Operation of the Product.
The “DANGER” symbol indicates an immediate hazardous situation which, if not
avoided, will result in death or serious injury.
DANGER :
The “NOTICE” symbol indicates important information for the correct installation and
for maintenance that does not cause personal injury or component damage.
The adjacent symbol indicates that all the activities should be carried out by a
Professional Marine Technician.
SKILLED LABOUR REQUIRED :
The “WARNING” symbol indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
WARNING :
The “CAUTION” symbol indicates attention to unsafe practices which, if not avoided,
could result in minor or moderate injury or component damage.
CAUTION :
NOTICE :
C. SAFETY SYMBOLS

NOTE : It is advised to read the other manuals as well which are provided with the Steering System
Components.
Multisteer shall not be responsible for any damage because of the user’s negligence.
It is very important to read this section carefully to avoid any personal harm or injury and also to prevent
machinery damage.
SAFETY RULES :
DURING INSTALLATION :
©Conform with all system ratings / regulations.
©Check fluid level in Helm Pump. Also check all fittings for leakage.
©DO NOT modify or substitute any component without written approval from Multiflex.
©Confirm that extruded nylon tubing has NOT been substituted for Multisteer Steering Hose.
©Do not let unskilled sta peorm the Installation.
©Do not use this equipment for a purpose dierent from the one it has been designed for, which is
specified in the Installation and Maintenance Manual.
©DO NOT PUT YOUR HANDS BETWEEN MOVING PARTS.
©Do not disable the safety devices.
DO NOT operate boat if any component is not in proper working condition.
WARNING :
03

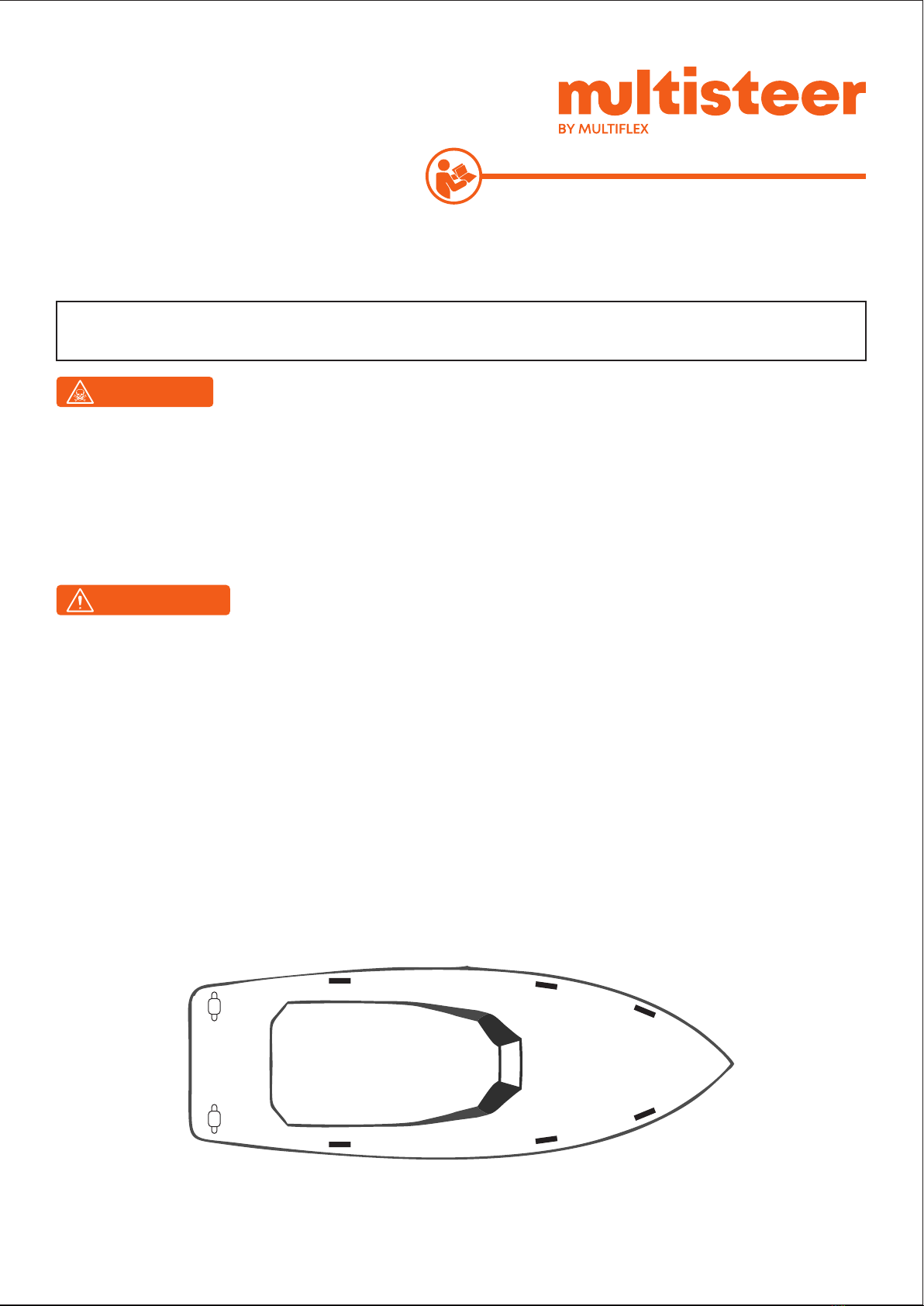

D. SAFETY WARNINGS
DANGER :
PORT
STARBOARD
BOWSTERN
E. NAUTICAL WORD REFERENCE

04
F. WARRANTY
If the products are used commercially or in any rental or income generating activity, the warranty shall be:
MULTISTEER* warrants all products for a period of One (1) year from the date of purchase by the consumer
or Two (2) years from the month of manufacture. In both cases, serial number of the product or kit should be
shared with Multisteer. Multisteer products are to be free from any defects due to material or
manufacturing workmanship. This will be subject to exclusions listed below. Improper installation
automatically voids this warranty. Installation is to be peormed by a qualified marine technician only.
Should the products be altered / disassembled in any manner the warranty shall be void.
PRODUCT WARRANTY
©For Hydraulic Product: 180 days/6 months from the date of purchase
(It is mandatory to provide proof of purchase for warranty claim. No claim shall be entertained without the
proof of purchase)
EXCLUSION
©Failure caused by normal wear and tear, climate conditions, miss-use, neglect, lack of proper
maintenance, accidents, fire, racing, overloading, modification, beaching or grounding of vessels,
collision, impacts, towing, use during war or hostilities, commercial use
©Components not manufactured by MULTISTEER
©Components not manufactured by MULTISTEER whether warranted by the other manufacturer
©Any product that has not been properly and professionally installed
©Any product that has been installed other than as recommended in our installation or operation
instructions or specifications
©Has been used on boat / engine combination where the engine horsepower exceeds the rating
defined by the boat manufacturer
©Has been used with other products that in the opinion of Multisteer are not compatible
©Cost of removal, re-installation of any component (including components manufactured by
MULTISTEER) disassembly or reassembly of any parts, units or products containing the component
The repair or replacement of any defective parts shall be the PURCHASERS SOLE and EXCLUSIVE Remedy
and MULTISTEER’s sole and exclusive liability under this warranty. LABOR FOR ANY REMOVAL,
REINSTALLATION OR REPLACEMENT IS NOT INCLUDED. MULTISTEER’s obligation under this warranty is limited
to the repair or replacement of product identified by MULTISTEER as defective, when delivered by the
purchaser pursuant to written authorization and instructions from MULTISTEER. Shipping will be prepaid to
MULTISTEER’s manufacturing facility or any other designated plant or repair facility. Repaired or replaced
items are warranted as provided herein for the unexpired portion of the applicable warranty period.
LIMITATIONS

05
THIS WARRANTY, AND THE RIGHTS AND REMEDIES UNDER IT, IS EXCLUSIVE AND IS GIVEN IN PLACE OF ALL
OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED. INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, WHETHER ARISING BY LAW, CONDUCT OR USAGE
OF TRADE, PURCHASER’S REMEDIES SHALL BE LIMITED AS STATED HEREIN AND MULTISTEER SHALL NOT BE
LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES OR LOSSES RESULTING FROM
DEFECTS. ANY ADDITIONAL SELLERS BE IT WHOLESALE OR RETAIL ARE NOT A CO-WARRANTOR AND ARE NOT
AUTHORIZED BY MULTISTEER TO AMEND OR MODIFY THIS LIMITED WARRANTY IN ANY MANNER.
WARRANTY MAY NOT BE TRANSFERRED TO SUBSEQUENT PURCHASERS.
MULTISTEER employees or associates or representatives oral or any other written statements shall not
constitute warranties and should not be relied by the customers and are not part of the warranty stated
herein.
MULTISTEER reserves the right to make changes in the design, construction, and manufacturing of its
products at any time without notice and without any obligation to incorporate such changes into
products of prior manufacture. This limited warranty applies to new components only sold by MULTISTEER
and its group. This limited warranty contains the entire agreements between MULTISTEER and its group
and the purchaser and supersedes all prior agreements, discussions, negotiations, commitments, and
representations, whether oral or written, between them regarding MULTISTEER and its group’s warranty.
OUR PRODUCTS ARE NOT INTENDED FOR USE IN RACING APPLICATIONS WHETHER PROFESSIONAL AMATEUR.
OUR WARRANTY DOES NOT COVER LABOR, TOWING, OR ANY OTHER ASSOCIATED EXPENSES. FURTHER, IT
DOES NOT COVER PRODUCTS THAT HAVE BEEN IMPROPERLY INSTALLED, DAMAGED DURING INSTALLATION,
MISAPPLIED, OR MISUSED.
MULTISTEER shall be THE SOLE ENTITY FOR DETERMINATION OF A DEFECTIVE PRODUCT. DEFECT WILL NOT BE
DETERMINED UNTIL SAID PRODUCT HAS BEEN INSPECTED BY MULTISTEER AND ITS GROUP AT THEIR
MANUFACTURING FACILITY SPECIFIED AT TIME OF CLAIM.
*Multisteer is a brand owned by GMG Techno Trades Pvt. Ltd., India.
Any product that is presumed to be defective should be reported to MULTISTEER and its group within 48
hours of discovery. Upon notification MULTISTEER and its group will attempt to troubleshoot the problem
with our customer over the phone / email. If we are unable to resolve the problem MULTISTEER and its group
will issue a Returns Material Authorization Code and ask that the product in question be sent back to
MULTISTEER and its group specified facility with all parts and original packaging. All returned products
must be returned freight prepaid.
If any part of the Limited Warranty is determined to be void or illegal the remainder shall remain in full force
and eect.
If you need to begin the warranty process, please email what your product is, current issue, name and
contact number to [e-mail]
A team member will review your inquiry and get back to you within 48 hours.
MISCELLANEOUS

06
SECTION 1 - PRODUCT DESCRIPTION

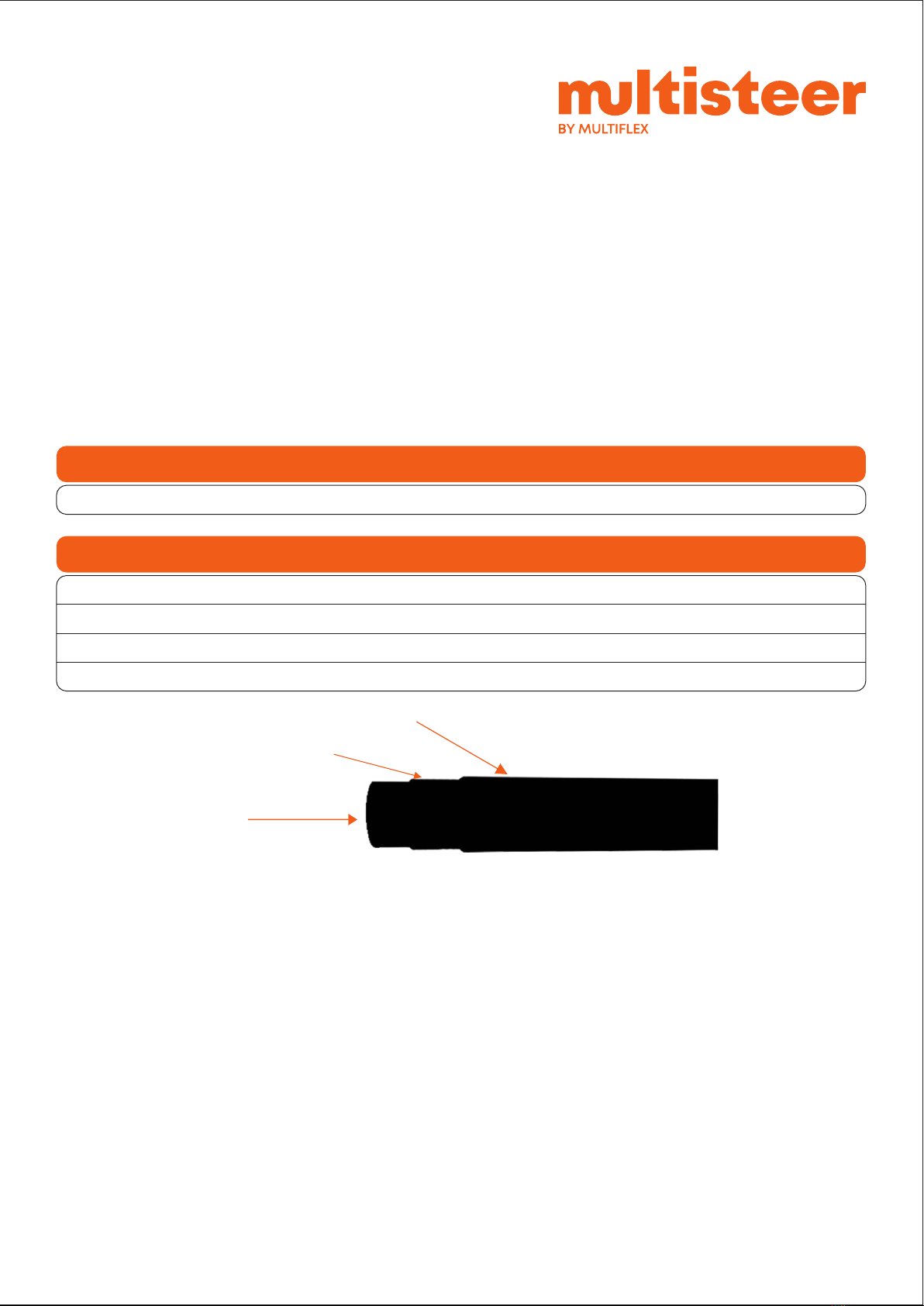

1.1 FUNCTION OF A REUSABLE HOSE
The Multisteer Reusable Hose For Hydraulic Steering System consists of :
It oers great durability and safety even in extreme environments.
The Reusable Hoses is designed to operate in an ambient temperature ranging between -40°C and +100°C
and Working Pressure upto 70 Bar / 1000 Psi.
The Multisteer Reusable Hose conform to Recreational Cra and Personal Watercra Directive 2013/53/EU
in accordance with EN ISO 10592:1995 / A1:2000.
All components are manufactured to meet or exceed the challenges of a marine environment.
Cover
Reinforcement
Core
Model No. Description Working Pressure
HT-XX Thermoplastic Hose Tube. XX-length in Meters 70 Bar / 1000 psi5/16” R7
Size
DescriptionConstruction
Core
Reinforcement
Cover
Temperature Range
Thermoplastic Elastomer
Single Braid of Synthetic Fiber
Polyurethane, Black Colour, Pin Pricked
Continuous: -40°C to +100°C Temp

07
1.2 PRODUCT EXPLODED VIEW
HYDRAULIC REUSABLE HOSE
1
3
2
4
5
6
7
Item No. Description Qty.
1
2
3
4
5
6
7
Conduit Sleeve
Nipple
Hex Nut
O-Ring
Hose Tube - 5/16" R7
Bend Restrictor
Marking Sleeve
02
02
02
02
01
01
01

2.1 TOOLS REQUIRED DURING INSTALLATION
SECTION 2 - PRODUCT INSTALLATION
08
The following are the necessary tools required for the proper installation of the Multisteer Hydraulic
Reusable Hose Assembly.
16, 17, 18, 19 mm Box or Open Type
Wrench / Spanner
Marine
Grease
8, 9, 16, 17, 18, 19 mm Wrench /
Spanner, Box or Open End type
Measuring
Tape
Bench
Vice
Pipe
Cutter
8 mm Diameter
Mandrel

09
2.2 INSTALLING HYDRAULIC REUSABLE HOSE
Step 1 : Measure the desired length of the Hydraulic Hose Tube (5) and make a mark on the tube with the
help of a marker.
STEP 2 : Cut the Hose Tube (5) at the marking by making a straight cut using a Pipe Cutter.

10
STEP 3 : Insert the Marking Sleeve (7) and Bend Restrictor (6) into the Hose tube as shown in image.
STEP 4 : Dismantle the Reusable Hose fitting.

11
STEP 5 : Measure the inner length of the Conduit Sleeve (1) and mark the same on the hose tube (5).
STEP 6 : Apply marine grease on the suace of the Hose Tube (5) before installation to avoid the damage
and enable easy assembly.

12
STEP 7 : Gently place the Conduit Sleeve (1) over the Hose Tube and give a slight press.
STEP 8 : Insert the Mandrel inside the Hose Tube (5) passing through Conduit Sleeve (1) to avoid any pressure
on the Hose while holding on bench vice. Now hold the Hose and Sleeve assembly on bench vice and
rotate the Conduit Sleeve until Hose tube properly touches the inner face of sleeve collar.

13
STEP 9 : Insert the Nipple (2) inside the Hex Nut (3) as shown in image and apply marine grease over the
threaded portion of the Nipple.
STEP 10 : Hold the Conduit Sleeve (1) over the bench vice. Insert the Nipple (2) into the Conduit Sleeve and
tighten it with the help of spanner keeping a clearance of 3 mm between across flat of Nipple and front
face of Conduit Sleeve.

14
STEP 11 : The minimum bending radius of the Hose Tube (5) is 100 mm. Any excessive pipe bending could
break them by compromising the good operation of the system. If necessary, replace te damaged pipe.
Keep the Pipes far from heat sources and from Chemical Substances. Protect the Pipes that must pass
through bulkheads by using suitable thru hulls. The bends must be peectly smooth. Any bends or dents
might prevent the Hydraulic oil passage.
Keep it clean. Make sure that working areas are free from dust and dirt. The protective plugs of threaded
holes must be removed only before the connection of fittings and pipes. Make sure that pipes are
peectly clean and free from swa, especially for copper and steel pipes. If the installer uses pipes apart
from Kit OB, the full responsibility for the same lies with him.
At the end of the installation make sure that the pipes do not inteere with the engine and with fixed or
mobile parts of the boat or of the Steering System itself.
WARNING :
Tube should not be
Bend and Twist

15
SECTION 3 – TROUBLESHOOTING
3.1 FAULTS, CAUSE & SOLUTION
Below are most common faults and their solutions
CAUSE SOLUTIONFAULT
a) Bad tightening or low
torque of the fittings.
b) Lack of fitting sealant
WARNING :
Never use teflon tape or
adhesive tape on any fitting.
a) Tighten the fittings with a
maximum torque if 15Nm.
b) Drain and disassemble
the Steering System.
Remove the fittings and
remove the oil from
threads. Put the sealant
on the fitting and tighten
them. Install the helm.
WARNING :
Aer this operation it is
necessary to carry out
another bleeding.
1. Leaks from Steering
System Fittings
2. During the filling, the
S t e e r i n g S y s t e m
becomes completely
jammed.
a) Blockage in the hose
b e t w e e n S t e e r i n g
System and Cylinder.
a) Replace Hose
DANGER :
The damaged hose must be
replaced, otherwise it may
cause loss if steering and
severe personal injury or
property damage.

16
3.2 DISASSEMBLING
It is requested to return this product to a nearby registered dismantler or recycler while disposing this
product.
For any reason, if the system has to be removed, it is very important to dispose the waste properly
considering the environment.
The Steering System CONTAINS POLLUTANT FLUIDS that must be disposed of according to local
government regulations.
CAUTION :
SYSTEM DIAGRAM

17
3.3 ROUTINE MAINTENANCE
Multisteer Steering System if properly installed and maintained, gives you years of safe and reliable
peormance.
1. Inspect Steering Hoses & Fittings for damages, wear & leaks.
3. Check the signs of corrosion.
4. Inspect Hydraulic Oil for cleanliness, flush if required.
2. Check tightness of all Fasteners / Fittings to the system.
The Steering System CONTAINS POLLUTANT FLUIDS that must be disposed of according to local
government regulations.
WARNING : SKILLED LABOR REQUIRED :
