Fluke 9133 User manual

9133
Infrared Thermometer Calibrator
User’s Guide
Rev. 531701
Hart Scientific
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com

Rev. 531701

Table of Contents
1 Before You Start . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Symbols Used . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Safety Information . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.1 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.2 Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Hart Scientific Authorized Service Centers . . . . . . . . . . . 4
2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Specifications and Environment Conditions . . . . . . . 9
3.1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Environmental Conditions . . . . . . . . . . . . . . . . . . 10
3.3 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Quick Start . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.2 Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3 Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.4 Setting the Temperature . . . . . . . . . . . . . . . . . . . 14
5 Parts and Controls . . . . . . . . . . . . . . . . . . . . 15
5.1 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.2 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 General Operation . . . . . . . . . . . . . . . . . . . . 17
6.1 Changing Display Units . . . . . . . . . . . . . . . . . . . . 17
6.2 Switching to 230 V Operation . . . . . . . . . . . . . . . . 17
6.3 Ice Buildup/Purge. . . . . . . . . . . . . . . . . . . . . . . 17
7 Controller Operation . . . . . . . . . . . . . . . . . . . 19
7.1 Target Temperature . . . . . . . . . . . . . . . . . . . . . . 19
7.2 Temperature Set-point . . . . . . . . . . . . . . . . . . . . 19
7.2.1 Programmable Set-points. . . . . . . . . . . . . . . . . . . . . . . . 19
7.2.2 Set-point Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7.3 Temperature Scale Units . . . . . . . . . . . . . . . . . . . 21
7.4 Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
i

7.4.1 Scan Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.4.2 Scan Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.5 Set-point Resistance . . . . . . . . . . . . . . . . . . . . . 23
7.6 Temperature Scale Units . . . . . . . . . . . . . . . . . . . 23
7.7 Secondary Menu . . . . . . . . . . . . . . . . . . . . . . . 23
7.8 Heater Power . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.9 Proportional Band . . . . . . . . . . . . . . . . . . . . . . 24
7.10 Controller Configuration . . . . . . . . . . . . . . . . . . . 25
7.11 Operating Parameters . . . . . . . . . . . . . . . . . . . . 25
7.12 Serial Interface Parameters . . . . . . . . . . . . . . . . . . 26
7.12.1 Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.12.2 Sample Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.12.3 Duplex Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.12.4 Linefeed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.13 Calibration Parameters . . . . . . . . . . . . . . . . . . . . 27
7.13.1 R0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.13.2 ALPHA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.13.3 DELTA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.13.4 BETA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8 Digital Communication Interface . . . . . . . . . . . . 29
8.1 Serial Communications . . . . . . . . . . . . . . . . . . . . 29
8.1.1 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.1.2 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.1.2.1 Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8.1.2.2 Sample Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8.1.2.3 Duplex Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8.1.2.4 Linefeed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8.1.3 Serial Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
8.2 Interface Commands . . . . . . . . . . . . . . . . . . . . . 31
9 Calibration Procedure . . . . . . . . . . . . . . . . . . 35
9.1 Calibration Points. . . . . . . . . . . . . . . . . . . . . . . 35
9.2 Calibration Procedure . . . . . . . . . . . . . . . . . . . . 35
9.2.1 Compute DELTA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.2.2 Compute R0 and ALPHA . . . . . . . . . . . . . . . . . . . . . . . . 36
9.2.3 Compute BETA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.2.4 Accuracy and Repeatability . . . . . . . . . . . . . . . . . . . . . . 37
10 Maintenance . . . . . . . . . . . . . . . . . . . . . . . 39
11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . 41
11.1 Troubleshooting Problems, Possible Causes, and Solutions. . 41
11.2 Comments . . . . . . . . . . . . . . . . . . . . . . . . . . 43
ii

11.2.1 EMC Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
11.2.2 Low Voltage Directive (Safety) . . . . . . . . . . . . . . . . . . . . . 43
iii

iv
Figures

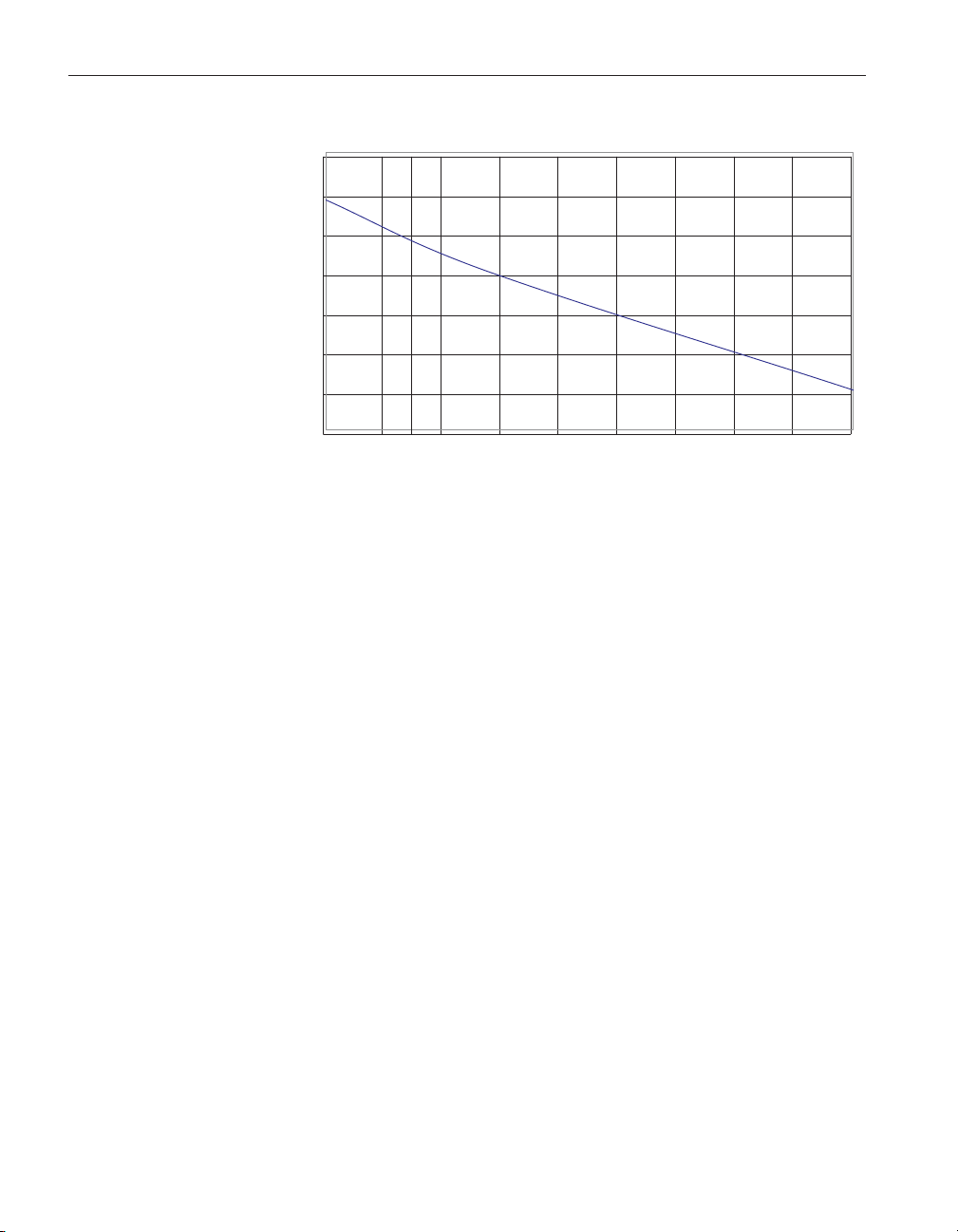

Figure 1 Temperature Gradient Between Probe and IR Target
Surface at Ambient of 30°C . . . . . . . . . . . . . . . . . . . . . . . . 10

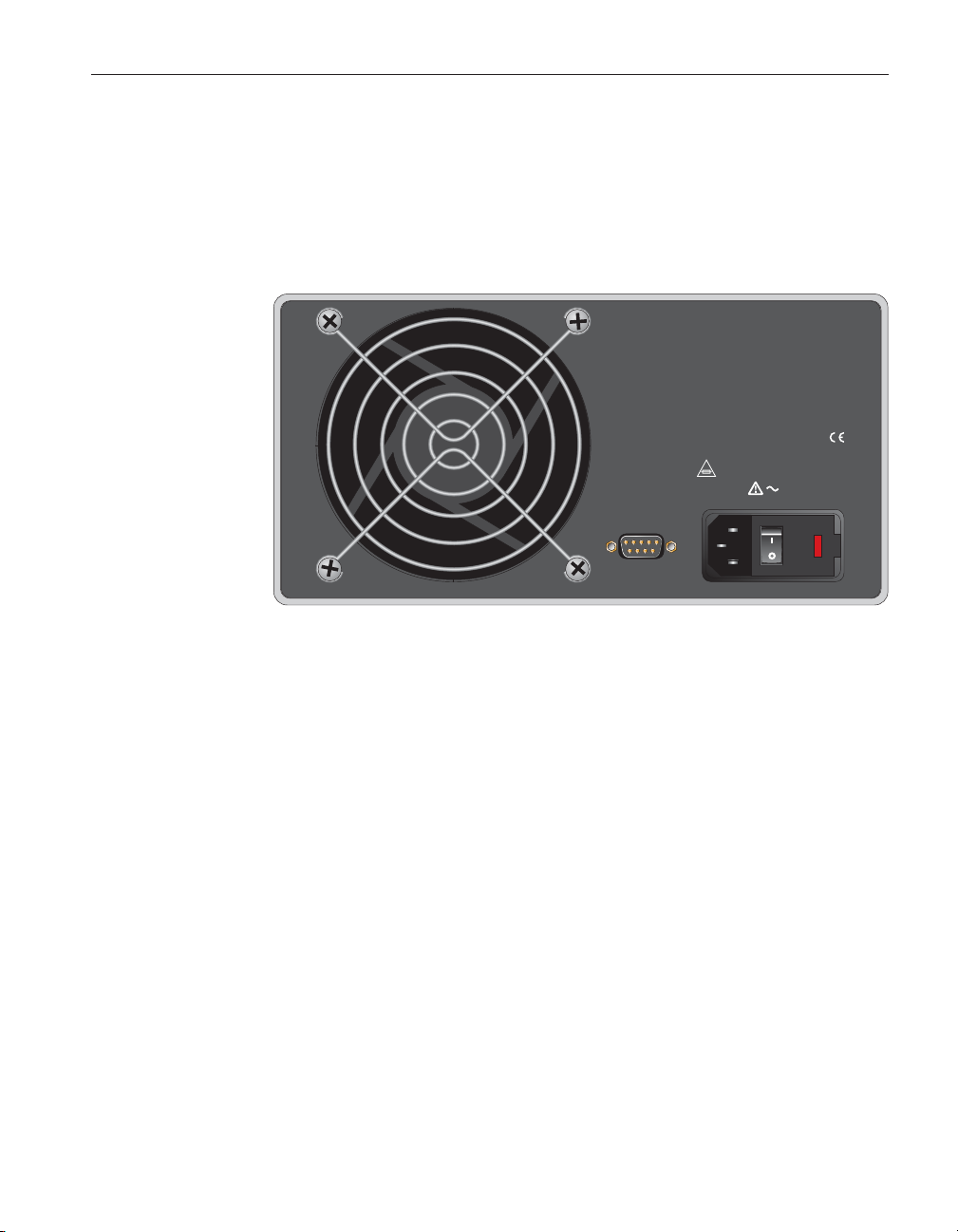

Figure 2 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 3 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 4 Controller Operation Flow Chart . . . . . . . . . . . . . . . . . . . . . 20
Figure 5 Serial Cable Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

v
Tables
Table 1 International Electrical Symbols . . . . . . . . . . . . . . . . . . . . . . 1
Table 2 Controller Communications Commands . . . . . . . . . . . . . . . . . . 32
Table 2 Controller Communications Commands continued . . . . . . . . . . . . 33

1 Before You Start
1.1 Symbols Used
Table 1 lists the International Electrical Symbols. Some or all of these sym-
bols may be used on the instrument or in this manual.
Symbol Description
AC (Alternating Current)
AC-DC
Battery
CE Complies with European Union Directives
DC
Double Insulated
Electric Shock
Fuse
PE Ground
Hot Surface (Burn Hazard)
Read the User’s Manual (Important Information)
Off
On
1
1
Before You Start
Table 1 International Electrical Symbols

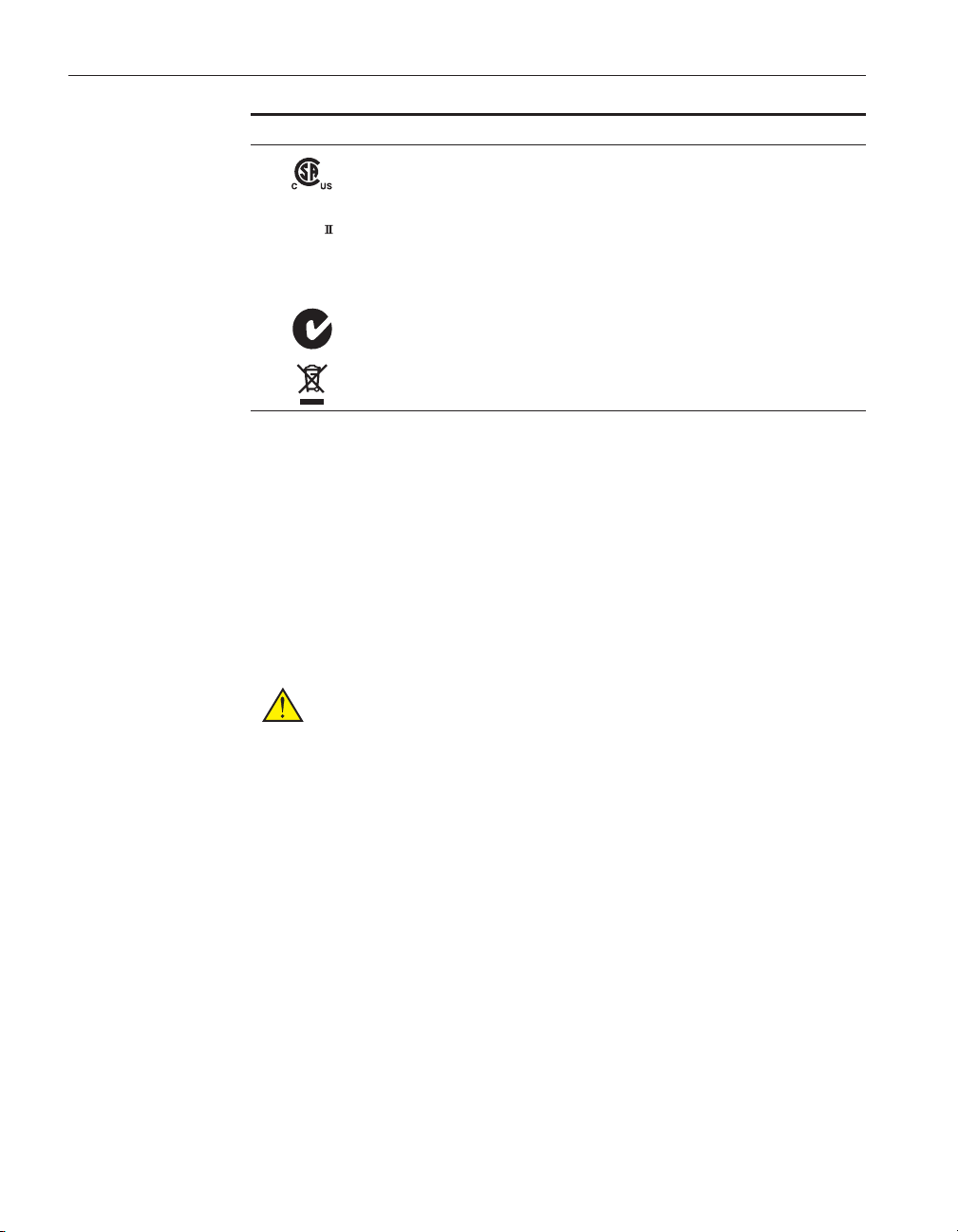

Symbol Description
Canadian Standards Association
OVERVOLTAGE (Installation) CATEGORY II, Pollution Degree 2 per
I EC1010-1 refers to the level of Impulse Withstand Voltage protection
provided. Equipment of OVERVOLTAGE CATEGORY II is energy-con-
suming equipment to be supplied from the fixed installation. Exam-
ples include household, office, and laboratory appliances.
C-TICAustralianEMCMark
The European Waste Electrical and Electronic Equipment (WEEE) Di-
rective (2002/96/EC) mark.
1.2 Safety Information
Use this instrument only as specified in this manual. Otherwise, the protec-
tion provided by the instrument may be impaired.
The following definitions apply to the terms “Warning” and “Caution”.
•“Warning” identifies conditions and actions that may pose hazards to
the user.
•“Caution” identifies conditions and actions that may damage the in-
strument being used.
1.2.1 Warnings
To avoid personal injury, follow these guidelines.
•BURN HAZARD – DO NOT touch the IR target surface of the unit.
•The temperature of the IR target surface is the same as the actual tem-
perature shown on the display. If the unit is set at 150°C and the dis-
play reads 150°C, the target surface is at 150°C.
•Temperatures above 70°C (158°F) are considered hazardous. Use ex-
treme care when working with these temperatures. Observe all warn-
ings and cautions given in this manual.
•The sheet metal of the instrument may exhibit extreme temperatures
for areas close to the IR target surface.
•DO NOT turn off the unit at temperatures higher than 100°C. This could
create a hazardous situation. Select a set-point less than 100°C and al-
low the unit to cool before turning it off.
•DO NOT operate this unit without a properly grounded, properly polar-
ized power cord.
•DO NOT connect this unit to a non-grounded, non-polarized outlet.
9133
User’s Guide
2
CAT

•HIGH VOLTAGE is used in the operation of this equipment. SEVERE
INJURY OR DEATH may result if personnel fail to observe safety pre-
cautions. Before working inside the equipment, turn the power off and
disconnect the power cord.
•Always replace the fuse with one of the same rating, voltage, and type.
•Allow at least six inches of space between the instrument and nearby
objects. DO NOT place instrument under a flammable structure.
•DO NOT use this unit for any application other than calibration work.
•DO NOT use this unit in environments other than those listed in the
user’s guide.
•DO NOT operate near flammable materials.
•Use of this instrument at HIGH TEMPERATURES for extended periods
of time requires caution.
•Completely unattended high temperature operation is not recom-
mended for safety reasons.
•Before initial use, after transport, and anytime the instrument has not
been energized for more than 10 days, the calibrator must be ener-
gized for a dry-out period of 1 to 2 hours before it can be assumed to
meet all of the safety requirements of the IEC1010-1.
•The instrument can generate extreme temperatures. Precautions must
be taken to prevent personal injury or damage to objects.
•Use only a grounded AC mains supply of the appropriate voltage to
power the instrument. Refer to Section 3.1, Specifications for power
details.
•The instrument is equipped with operator accessible system fuses. If a
fuse blows, it may be due to a power surge or failure of a component.
Replace the fuse once. If the fuse blows a second time, it is likely
caused by failure of a component part. If this occurs, contact an Autho-
rized Fluke Hart Scientific Service Center (see Section 1.3). Always re-
place the fuse with one of the same rating, voltage, and type. Never
replace the fuse with one of a higher current rating.
•This instrument is intended for indoor operation only.
•Follow all safety guidelines listed in the user’s manual.
•Calibration Equipment should only be used by Trained Personnel.
1.2.2 Cautions
•Use the target cover at temperatures below 5°C. If ice forms on the tar-
get, the IR probe will not indicate the correct temperature.
•DO NOT use fluids to clean out the target surface.
3
1
Before You Start

•DO NOT change the values of the calibration constants from the factory
set values. The correct setting of these parameters is important to the
safety and proper operation of the calibrator.
•DO use a ground fault interrupt device.
•Operate the instrument in room temperatures between 5–50°C
(41–122° F). Allow sufficient air circulation by leaving at least 6 inches
of space between the instrument and nearby objects.
•The instrument is a precision instrument. Although is has been de-
signed for optimum durability and trouble free operation, it must be
handled with care. The convenient fold-up handle allows one hand
carrying. The instrument should not be operated in excessively wet,
oily, dusty, or dirty environments. It is important to keep the calibra-
tion probe well and the IR target surface clean and clear of any foreign
matter. Do not operate near flammable materials.
•DO NOT use fluids to clean out the calibration probe well or on the IR
target surface.
•Before initial use, after transport, and anytime the instrument has not
been energized for a “dry-out” period of 1-2 hours before it can be as-
sumed to meet all of the safety requirements of the IEC 1010-1.
•If a main supply power fluctuation occurs, immediately turn off the in-
strument. Wait until the power has stabilized before re-energizing the
instrument.
9133
User’s Guide
4

5
1
Before You Start

2 Introduction
The Fluke Hart Scientific 9133 Mid-Range Field IR Calibrator may be used as
a portable instrument or bench top temperature calibrator for calibrating
point IR thermometers. The 9133 is small enough to use in the field, and
accurate enough to use in the lab. Calibrations may be done over a range of
-30°Cto150°C(-22°F to 302°F). Temperature display and setability resolu-
tion of the 9133 is 0.1 degrees.
The instrument features:
•Rapid heating and cooling
•RS-232 interface capability
Built in programmable features include:
•Temperature scan rate control
•Eight set-point memory
•Adjustable readout in °C or °F
The temperature is accurately controlled by Hart’s digital controller. The
controller uses a precision platinum RTD as a sensor and controls the well
temperature with a FET driven thermal electric device.
For improved uncertainties, a 0.125" diameter external reference thermome-
ter may be used in the calibration probe hole at the top of the instrument.
When using an external reference thermometer, the instrument accuracy,
stability, and ambient temperature effects on the surface can be minimized.
The LED front panel continuously shows the current temperature. The tem-
perature may be easily set with the control buttons to any desired tempera-
ture within the specified range. The instrument’s multiple fault protection
devices insure user and instrument safety and protection.
The 9133 calibrator was designed for portability, low cost, and ease of oper-
ation. Through proper use, the instrument will provide continued accurate
calibration of temperature sensors and devices. The user should be familiar
with the safety guidelines and operating procedures of the calibrator as de-
scribed in this user guide.
7
2
Introduction

3 Specifications and Environment
Conditions
3.1 Specifications
Temperature
Range†–30°C to 150°C (-22°F to 302°F)
Accuracy‡±0.4°C (±0.72°F) [using 1/8" PRT]
Stability ±0.1°C (±0.18°F)
Target Size 2.25" (57 mm)
Target Emissivity 0.95 (±0.02 from 8 to 14μM)
Resolution 0.1° C or F
Heating Time 15 minutes (25°C to 150°C)
Cooling Time 15 minutes (25°C to -20°C)
Power 115 VAC (±10%), 1.5 A, or 230 VAC (±10%), 1.0 A, switchable,
50/60 Hz
Size (H,W,D) 152 x 286 x 267 mm (6 x 11.25 x 10.5")
Weight 4.6 kg (10 lb.)
Safety OVERVOLTAGE (Installation) CATEGORY II, Pollution Degree 2 per
IEC1010-1
†When using a purge, the high and low range are reduced. This amount depends on the
flow and temperature of the purge.
‡Temperature difference between the IR target surface and the reference probe are cal-
culated as shown in the graph in Figure 1 on page 10. Note: As the temperature of the
IR target surface increases, the temperature difference decreases.
9
3
Specifications and Environment Conditions

3.2 Environmental Conditions
Although the instrument has been designed for optimum durability and
trouble-free operation, it must be handled with care. The instrument should
not be operated in an excessively dusty or dirty environment. Maintenance
and cleaning recommendations can be found in the Maintenance section of
this manual.
The instrument operates safely under the following conditions:
•temperature range: 5–50°C (41–122°F)
•ambient relative humidity: maximum 80% for temperature <31°C, de-
creasing linearly to 50% at 40°C
•pressure: 75kPa–106kPa
•mains voltage within ±10% of nominal
•vibrations in the calibration environment should be minimized
•altitudes less than 2,000 meters
9133
User’s Guide
10
-0.2
-0.15
-0.1
-0.05
0
0.05
0.1
0.15
-30 -10 10 30 50 70 90 110 130 150
Reference Probe °C
delta T °C
Figure 1 Temperature Gradient Between Probe and IR Target Surface at Ambient of 30°C

11
3
Specifications and Environment Conditions

4 Quick Start
4.1 Unpacking
Unpack the calibrator carefully and inspect it for any damage that may have
occurred during shipment. If there is shipping damage, notify the carrier
immediately.
Verify that the following components are present:
•9133 calibrator
•report of calibration
•power cord
•user's guide
•serial cable
•target cover
•9930 software
4.2 Set Up
Place the calibrator on a flat surface with at least 6 inches of free space
around the instrument. The prop may be swung down to raise the front of
the instrument from a horizontal position. Plug the power cord into a
grounded mains outlet. Observe that the nominal voltage corresponds to
that indicated on the back of the calibrator.
Turn on the power to the calibrator by toggling the power switch on. The
fan should begin quietly blowing air through the instrument and the con-
troller display should illuminate after 3 seconds. After a brief self-test the
controller should begin normal operation. If the unit fails to operate please
check the power connection.
The thermal electric devices will start operating to bring the temperature of
the calibrator to the set-point temperature and the display will begin to
show the actual target temperature.
Caution: Use the target cover at temperatures below 5°C. If ice forms on
the target, the IR probe will not indicate the correct temperature.
4.3 Power
Plug the instrument power cord into a mains outlet of the proper voltage,
frequency, and current capability. Refer to Section 3.1, Specifications for
power details. Turn the instrument on using the rear panel “POWER”
switch. The instrument turns on and begins to heat to the previously pro-
13
4
Quick Start

grammed temperature set-point. The front panel LED display indicates the
actual instrument temperature.
4.4 Setting the Temperature
Section 8.2 explains in detail how to set the temperature set-point on the
calibrator using the front panel keys. The procedure is summarized here.
1. Press the “SET” button twice to access the set-point value.
2. Press the “UP” or “DOWN” button to change the set-point value.
3. Press the “SET” button to program in the new set-point.
4. Press the “EXIT” button to return to the temperature display.
When the set-point temperature is changed the controller switches the
heater on or off to raise or lower the temperature. The displayed tempera-
ture gradually changes until it reaches the set-point temperature. The tar-
get may require 5 to 10 minutes to reach the set-point depending on the
span. Another 5 to 10 minutes is required to stabilize within ±0.1°Cofthe
set-point. Ultimate stability may take 15 to 20 minutes more of stabilization
time.
9133
User’s Guide
14

5 Parts and Controls
5.1 Back Panel
The back panel (Figure 2) consists of the power inlet, power switch, serial
port, and fan.
Power Inlet – At the rear of the calibrator is the removable power cord in
let that plugs into an IEC grounded socket.
Power Switch – The power switch is located on the power entry module
(PEM).ThePEMalsohousesthefuses.ThePEMallowstheunittobefield
switchable for 115 VAC (±10%) or 230 VAC( ±10%) operation. (See Section
6.2, Switching to 230 V Operation.)
Serial Port – A DB-9 male connector is present for interfacing the calibrator
to a computer or terminal with serial RS-232 communications.
Fan – The fan inside the calibrator varies in speed. As the target tempera-
ture increases the fan speed decreases. Slots are provided for airflow. The
area around the calibrator must be kept clear to allow adequate ventilation.
The airflow is directed out the two sides.
15
5
Parts and Controls
RS-232
115V - 3AT 250V
230V - 1.6AT 250V
115 VAC 50/60 Hz 3A
230 VAC 50/60 Hz 1.6A
~
Figure 2 Back Panel

5.2 Front Panel
The front panel (Figure 3) consists of the controller display, controller
key-pad, and target assembly.
Controller Display – The digital display displays set and actual tempera-
tures and various calibrator functions, settings, and constants. The display
shows temperatures in units according to the selected scale °C or °F.
Controller Keypad – The four button keypad allows easy setting of the
set-point temperature. The control buttons (SET, DOWN, UP, and EXIT) are
used to set the calibrator temperature set-point, access and set other oper-
ating parameters, and access and set calibration parameters.
Setting the control temperature is done directly in degrees of the current
scale. The control temperature can be set to one-tenth of a degree Celsius
or Fahrenheit.
Thefunctionsofthebuttonsareasfollows:
SET – Used to display the next parameter in a menu and to set parameters
to the displayed value.
DOWN – Used to decrement the displayed value of parameters.
UP – Used to increment the displayed value.
EXIT – Used to exit from a menu. When the EXIT button is pressed any
changes made to the displayed value are ignored.
Target Assembly – The target assembly is 2.25" (57 mm) in diameter and
has an emissive of 0.95.
9133
User’s Guide
16
SET UPDOWN EXIT
Smoked Display Window
9133
INFRARED CALIBRATOR –35°C to 150°C
SET UPDOWN EXIT
Figure 3 Front Panel
