The Fluke 67 MAX Infrared Thermometer (the Product) can determine the surface
temperature by measuring the amount of infrared energy radiated by the subject’s skin.
WWarning
Read all safety information before you use the Product.
It is important to understand there are inherent differences in accuracy between skin-surface
temperature measurements obtained with an IR thermometer versus subdermal/core
temperature measurements made with a contact thermometer.
ASTM laboratory accuracy requirements in the display range of 37 °C to 39 °C (98 °F to
102 °F) for IR thermometers is ±0.3 °C (±0.5 °F), whereas for mercury-in-glass and electronic
thermometers, the requirement per ASTM Standards E667-86 and E1112-86 is ±0.1 °C
(±0.2 °F).
Proper measurement technique is critical to keep sources of error to a minimum. Potential
error sources include measurement distance to subject, measurement location, anatomical

67 MAX
Users Manual
2
variations between subjects, ambient temperature conditions, failure to observe the
maximum-displayed reading, and more.
A correction between skin temperature at the forehead and sublingual (under the tongue)
temperature was determined by a clinical study of adult subjects. The Product has not been
tested on children and thus, is subject to error when used on children under 18 years of age.
Characteristics and procedures are available from the manufacturer upon request. The
Product defaults to body mode that incorporates this correction into the displayed
measurement to compensate for this effect.
Contact Fluke
Fluke Corporation operates worldwide. For local contact information, go to our website:
www.fluke.com
To register your product, view, print, or download the latest manual or manual supplement, go
to our website.
Fluke Corporation
6920 Seaway Blvd
Everett, WA 98203
[phone]
[email protected].

Infrared Thermometer
Safety Information
3
Safety Information
The Product meets requirements established in ASTM Standard E1965-98 (2016) Standard
Specification for Infrared Thermometers for Intermittent Determination of Patient Temperature
and ISO 80601-2-56 Medical electrical equipment part 2-56: Particular requirements for basic
safety and essential performance of clinical thermometers for body temperature
measurement. Full responsibility for the conformance of the Product to the standard is
assumed by Fluke Corporation.
Notes
•The Product is not FDA Approved or cleared.
•The Product is intended for consumer use and is NOT INTENDED for
use to collect information for medical diagnosing purposes.
•The Product complies with the FDA Enforcement Policy for Clinical
Electronic Thermometers During the Coronavirus Disease 2019
(COVID-19) Public Health Emergency.
A Warning identifies conditions and procedures that are dangerous to the user. A Caution
identifies conditions and procedures that can cause damage to the Product or effect essential
performance.
See Table 1 for safety symbols used on the Product and in this manual.

67 MAX
Users Manual
4
WWarning
To prevent personal injury or possible misdiagnosis of body temperature:
•Read all safety information before you use the Product.
•Do not alter the Product and use only as specified, or the protection
supplied by the Product and its measurement accuracy can be
compromised.
•Before you use the Product, inspect the case and optical lens. Look for
cracks in case plastics, scratches, or other damage to the optical lens.
Do not use the Product if it appears damaged.
•Do not use in ambient environments outside of the specified operating
temperature and humidity range or subject the Product to excessive
mechanical shock. Permanent damage to the Product including
inaccurate temperature measurement may result.
•Do not use or store the Product in direct sunlight or near other sources
of radiant heat. This can cause the Product temperature to differ from
ambient conditions and affect measurement accuracy. Allow the Product
time to equalize to ambient conditions before use.
•Do not use the Product around explosive gas, vapor, or in damp or wet
environments.
•Do not use the Product if it operates incorrectly.

Infrared Thermometer
Safety Information
5
•Optical lens components must be free of moisture, dust, and debris to
ensure measurement accuracy. Clean and disinfect only as specified.
•Replace the batteries when the low battery indicator shows to prevent
incorrect measurements.
•Do not store the Product for long periods with the battery installed to
prevent battery leakage.
•Repair the Product before use if the battery leaks. Battery leakage may
damage the Product.
•Do not attempt to service the Product.

67 MAX
Users Manual
6
Table 1. Safety Symbols
Symbol Meaning Symbol Meaning
WWARNING - RISK OF
DANGER. Consult user documentation.
Operating ambient
temperature (15 °C to 40 °C).
Measured temperature range
(22 °C to 43 °C).
Storage temperature
(-20 °C to 50 °C). Battery (case)

Infrared Thermometer
The User Interface
7
The User Interface
The Product user interface is made up of a trigger, buttons, and a display. Use the buttons to
move through the various Product menu choices. Buttons and display messages are
described in Table 2.
Table 2. Product Buttons and Display Messages
Symbol Meaning Symbol Meaning
body
Body mode menu icon.
Body mode is for body-
temperature
measurements. Select On
or Off. Body mode is the
default mode of the
Product. See Figure 1.
b
Denotes that the Product is
in Body mode. To change
to Surface mode, push SEL
until body appears and
then push SET. b
disappears and the non-
adjusted surface
temperature measurement
is shown. See Figure 1.
°C / °F Celsius or Fahrenheit. To change temperature units, push SEL until the
display shows only For Cand push SET to make the choice.

67 MAX
Users Manual
8
Table 2. Product Buttons and Display Messages (cont.)
Symbol Meaning Symbol Meaning
g
The Product is in HOLD
mode. The display reading
will not change while in
this mode.
Low battery symbol
(display)
Select button (SEL). Push
to scroll through the menu.
SET button. Push to
choose a menu item.
Up and Down arrow
button. Push this to scroll
up or down through the
menu or to adjust
temperature settings.
tri9
This denotes the
Trigger mode menu
choice. See Trigger
Mode.
C0Ld
H0t
Use the Product in ambient conditions between 15 °C and 40 °C.
In colder or hotter conditions the display reads C0Ld or H0t and the
Product does not show a temperature reading.

Infrared Thermometer
The User Interface
9
Table 2. Product Buttons and Display Messages (cont.)
Symbol Meaning Symbol Meaning
SCAN
When you push and hold
the trigger, and then move
across a surface, the
Product is in SCAN mode.
Max
In SCAN mode, this
indicates the maximum
temperature reading
and is held by the
Product until the trigger
is released.
EMS
Emissivity. In Surface
mode, the display shows a
fixed value of 0.98.
Lo / Hi
The Lo or Hi indicators
appear when the
measured temperature
is outside of the
specified range of the
Product (22 °C to
43 °C). When <21.5 °C,
the display shows Lo.
When >43.5 °C, the
Product shows Hi.

67 MAX
Users Manual
10
Use the Product
Note
When ambient conditions change significantly, wait 30 minutes for the Product to
stabilize before you use it or the accuracy may be impacted. For example, if the
Product is brought from cold or hot outdoor conditions into a building.
Aim the Product for Body Temperature
When you use the Product to measure body temperature, make sure that the Product shows
the correct temperature. When you measure the subject’s temperature, make sure the skin of
the forehead is unobstructed by hair, eye glasses, or anything that could interfere with the
emitted infrared energy. Make sure the distance to subject is 50 mm to 150 mm (2 in to 6 in),
or accuracy may be impacted. Make sure the Product is in Body mode. See Figure 1.

Infrared Thermometer
Use the Product
11

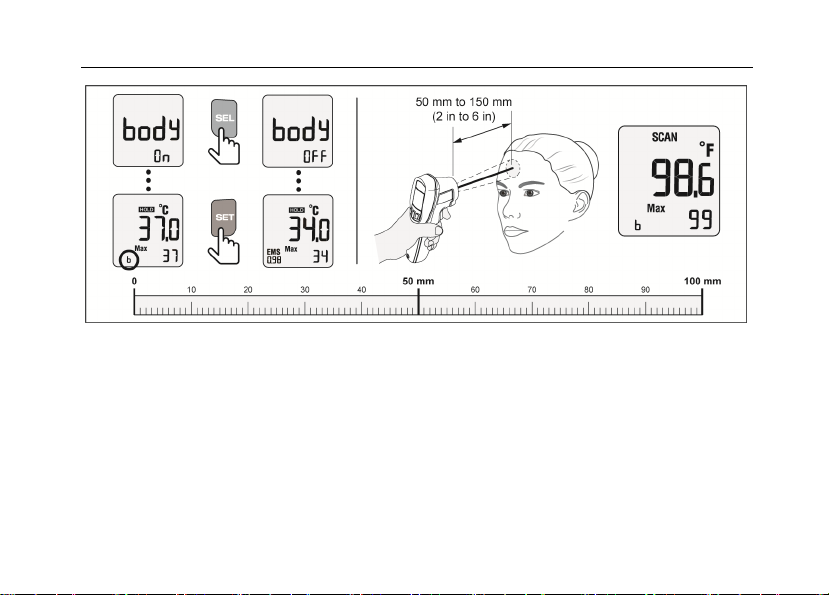

Figure 1. Aiming the Product

67 MAX
Users Manual
12
The Trigger
To take a measurement, see Figure 2:
1. Aim the Product at the subject.
2. Pull the trigger for more than
1 second to measure the
temperature (). Note that all the
display segments temporarily
appear when you pull the trigger.
WWarning
Do not use if any segments are
missing from those shown in
Figure 2. The Product is
damaged.
3. Release the trigger to HOLD the
current measurement ().
Figure 2. Trigger

Infrared Thermometer
Use the Product
13
Alarm
The Product has an alarm setting for
when the measured temperature is above
a set limit. To set or adjust the alarm, see
Figure 3:
4. Push SEL until Alarm HI appears.
1. To set the alarm temperature, push
the up or down arrow.
2. Once the desired temperature
appears, push SET to toggle the
alarm on or off.
If the measured temperature is above the
alarm limit, Alarm HI shows.
Figure 3. Alarm

67 MAX
Users Manual
14
Trigger Mode
Trigger mode saves battery power when the Product is stored in a toolbox or similar condition.
With Trigger mode On, if the trigger is pulled continuously, the Product turns off after
approximately 10 minutes. With Trigger mode Off the Product only turns off after the trigger is
released for 7 seconds. To turn Trigger mode on or off, push SEL until the display reads
tri9, then push SET to toggle it On or Off.
Maintenance
Calibration and Verification
For calibration and verification, see the 67 MAX Calibration Manual located at Fluke's website
at www.fluke.com.
Change the Battery
Do not dispose of this Product or product battery as unsorted municipal waste.
To install or change the AA IEC LR06 battery, open the battery compartment and replace the
battery as shown in Figure 4.
Clean the Product
Use 70 % isopropyl alcohol on a sponge or soft cloth to clean the Product case. A swab may
be used to clean the IR lens. See Figure 4.

Infrared Thermometer
Maintenance
15
WCaution
Do not submerge the Product.
Figure 4. Change the Battery and Clean the Product

67 MAX
Users Manual
16
Specifications
Temperature Range 22 °C to 43 °C (71.6 °F to 109.4 °F)
Accuracy valid for period of
1 year after date of last
calibration.
0.3 °C (0.5 °F)
Stabilization
If ambient temperature changes by more than 10 °C
(18 °F), wait 30 minutes for the Product temperature to
stabilize, or accuracy may be impacted.
Power 1 AA IEC LR06 Battery
100 hours continuous operation
Emissivity 0.98 (fixed value for human skin)
Distance to Subject 50 mm to 150 mm (2 in to 6 in)
Operating Temperature TAMB 15 °C to 40 °C (59 °F to 104 °F)
Storage/Transport
Temperature -20 °C to 50 °C (-4 °F to 122 °F), (without battery)
Operating Humidity 10 % to 95 % RH non-condensing
Operating Altitude 3000 meters above mean sea level
Storage Altitude 12 000 meters above mean sea level
Ingress Protection Rating IEC 60529: IP42 (protected against the ingress of dust and
splashed water)
