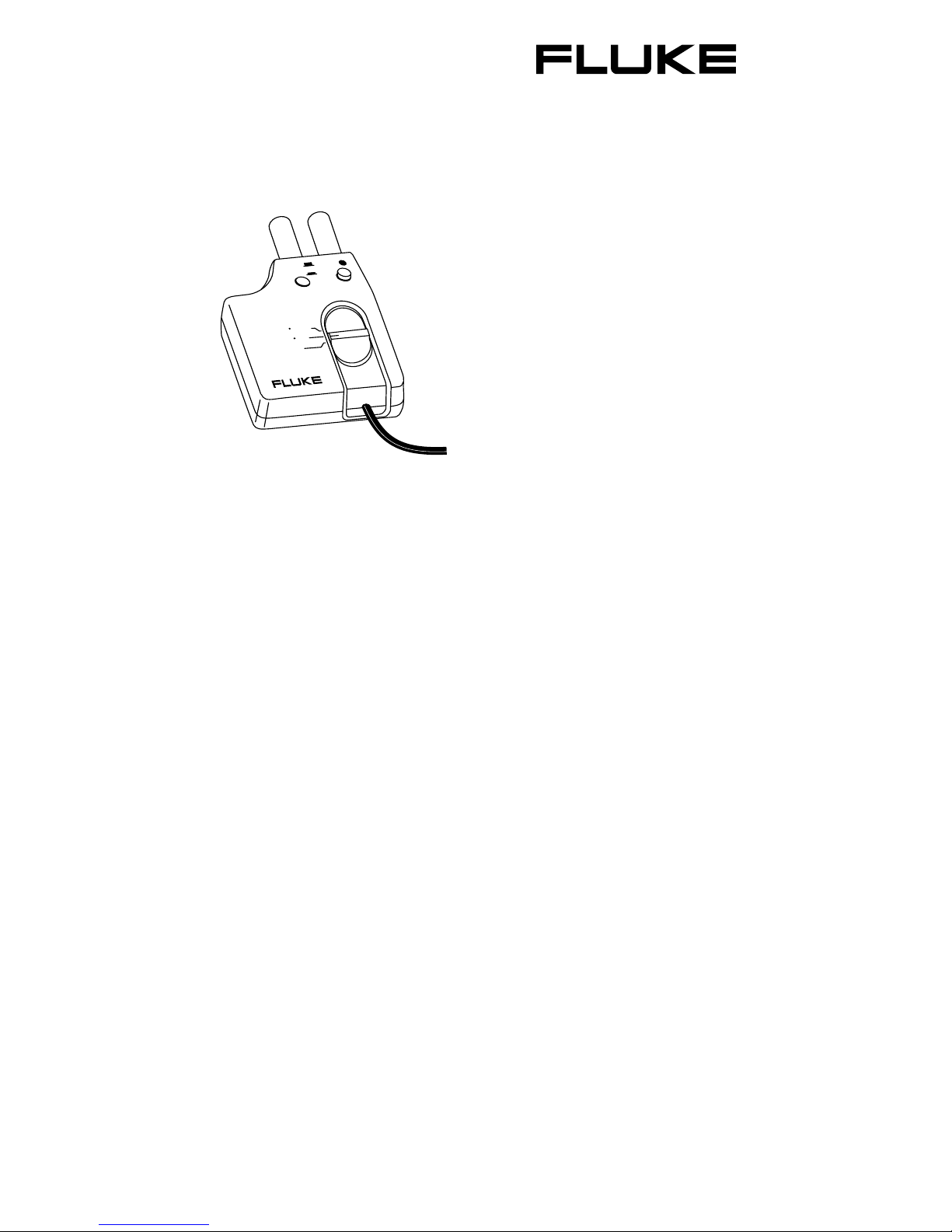

PV350
Pressure/ Vacuum Transducer Module
PV350
PRESSURE / VACUUM MODULE
cmHg
inHg
kPa
psi
OFF
METRIC
ENGLISHZE
Instruction Sheet
Introduction
The PV350 Pressure/Vacuum Transducer Module (the module)
measures gauge pressure; the difference between atmospheric
(barometric) pressure and the pressure (or vacuum) applied to the
pressure port on the transducer. It then converts that measurement to 1
mV dc per unit. A module and a high-performance digital multimeter
(DMM) with min/max function become a datalogger capable of measuring
peak high and peak low.
Box Contents
•Pressure/Vacuum Transducer Module
•1/4 in. male flare to 1/4 in. female pipe thread connector
•9 V battery
•Instruction Sheet
•Quick Reference Guide
Safety Information
WWarning
To avoid eye injury, always wear approved safety glasses
when working with this instrument.
To avoid injury from pressure explosion:
•Be sure that pressure is removed before
disconnecting any hoses or tubing from the PV350
transducer.
•Follow accepted safety procedures for systems on
which pressure or vacuum measurements are made.
•Make sure the PV350 is serviced by a qualified
technician.
•Complies with safety standard EN/IEC 61010.
PN 926873 May 1992 Rev. 5, 1/07
© 1999-2007 Fluke Corporation, All rights reserved. Printed in U.S.A.
All product names are trademarks of their respective companies.

PV350 English Instruction Sheet
Page 2
•To ensure that the module is used safely, follow all
safety and operating instructions in this Instruction
Sheet. If the module is not used as described in this
Instruction Sheet, the safety features of the module
might be impaired.
•Do not use the module if the module or fittings look
damaged, or if you suspect that the module is not
operating properly.
•WThis symbol on the module indicates that an
operator should refer to an explanation in the
instruction sheet.
•Follow accepted safety procedures for the systems on
which pressure or vacuum measurements are being
made.
Materials Compatibility
The PV350 is compatible with industrial gases and liquids that are
compatible with 316 stainless steel. To determine the compatibility of a
liquid or gas, refer to the manufacturer's specifications. When making
measurements on more than one type of pressure system, make sure the
fluids or gases in those systems are compatible. If they are not,
contamination or damage to the system being measured may result.
Cleaning
Clean the module using a soft cloth and mild soap and water. Do not
immerse the PV350 in liquids.
Clean the transducer and connectors after each use with a cleaner
appropriate for the liquid or gas connected during measurement. Refer to
the manufacturer’s instructions for the proper cleaning material.
Measuring Pressure and Vacuum
WCaution
The sensor diaphragm can be damaged by solid or sharp
objects. Never insert any object into the inlet port.
Clean the sensor immediately after use with appropriate
solvents (refer to the solvent manufacturer's instructions).
Note
Fluke recommends that Teflon sealing tape (or its equivalent)
be used in fitting threads to ensure good seals between the
PV350 and any hoses or fittings.
1. Plug the PV350 into the DMM (red polarity dot to volts input) and set
the multimeter to mV dc.
2. Check the battery voltage (see Testing the Battery).
3. Press the English/Metric button to select the desired units.
4. Slide the switch to the desired setting.
5. Before applying pressure, zero the module by turning the ZERO
potentiometer until the DMM displays zero. (Zero on the range you
will be using and rezero the DMM whenever the scale is changed.)

PV350 English Instruction Sheet
Page 3
mV
87
TRUE RMS MULTIMETER
OFF
mA
A
A
μ
mV
V
V
400mA
FUSED
!
ACOMV
mAA
10AMAX
FUSED
MIN MAX
RANGE
HOLD
Hz
PEAK MIN MAX
REL
H
PV350
P
R
E
S
S
U
R
E
V
A
C
U
M
N
M
O
D
U
L
E
M
E
T
R
I
C
M
E
T
R
I
C
OFF
kPa.psi
cmHg.inHg
FLUKE
To
pressure/vacuum
input
Sensor
Module

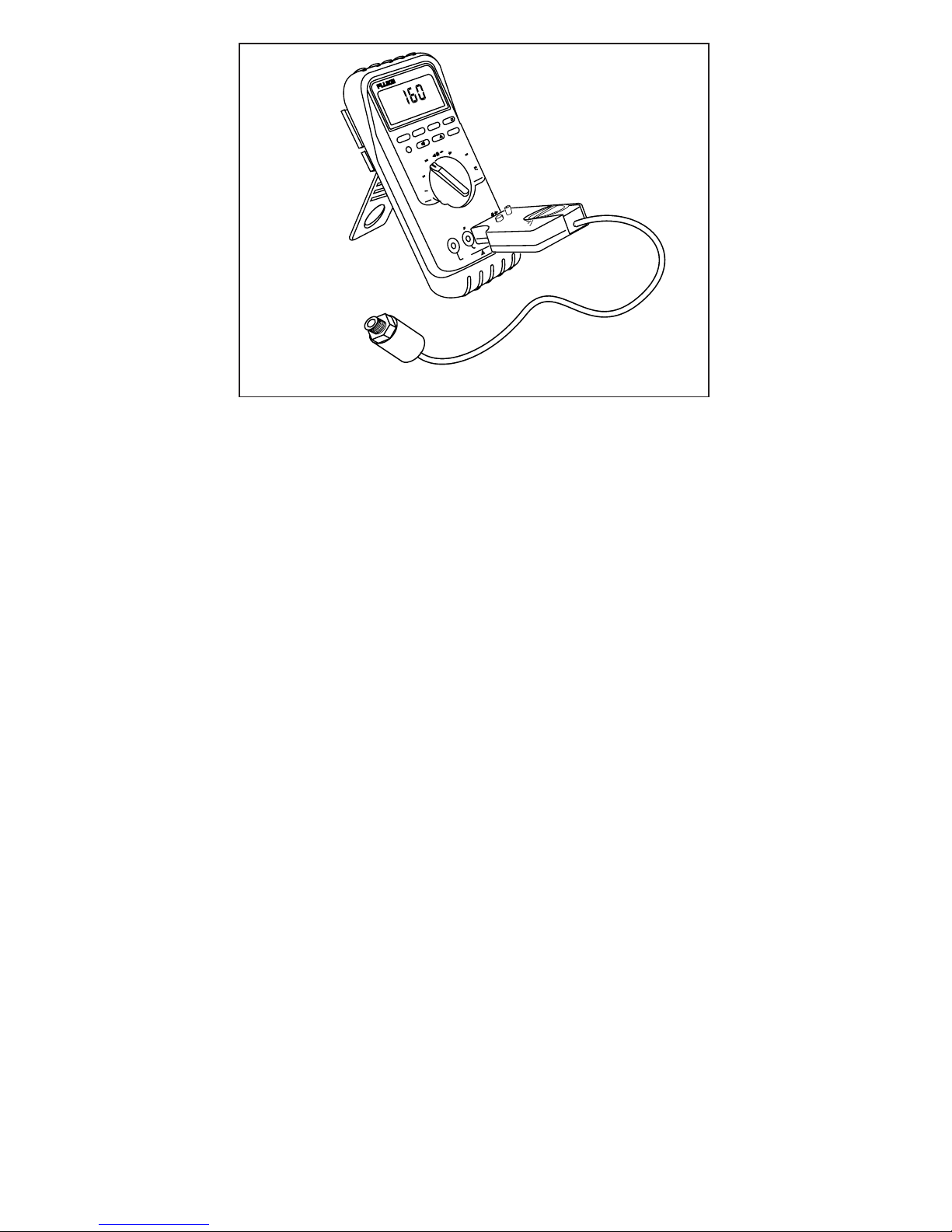

Figure 1. Operation
Note
The Relative or Zero function on your DMM (if available) can
be used instead of the ZERO potentiometer to zero the meter.
Refer to the multimeter's user manual for instructions on using
this function. Zeroing the meter does not affect the module's
specified accuracy.
6. Apply pressure/vacuum to the PV350 and read the DMM display.
•When measuring pressure, if the DMM displays OL,
switch the multimeter range from millivolts to dc volts.
Increasing the range to dc volts moves the decimal
position three places to the left (500 psi displays as
0.500 V).
•When measuring vacuum the DMM displays a minus sign.
Testing the Battery
1. Turn the DMM and the module OFF and connect the PV350 to the
DMM.
2. Turn the DMM on and set the DMM to the mV dc range.
3. If the DMM displays less than 100 mV, replace the battery.
How to Replace the Battery
XWWarning
To avoid electrical shock, disconnect the module from all
devices before opening the case. Be sure to completely
reassemble the module before attempting to use it.

PV350 English Instruction Sheet
Page 4
Battery
Figure 2. Battery Replacement
1. Turn the module OFF and unplug it from the DMM.
2. Remove the screw from the back of the module, separate the case,
and replace the battery.
3. To reassemble, line up the holes in the case with the
METRIC/ENGLISH switch and zero knob. Then snap the two halves
together. Reinstall the screw.
Typical Applications
Refer to Figures 3 and 4 for typical applications.
88
AUTOMOTIVE TESTER
MIN MAX RANGE HOLD
H
mA
A
mV
V
V
OFF
A
mA A
10A MAX
FUSED
ZERO
SMOOTH Hz
RPM % DUTY
mA
A
RPM
ALERT
TRIGGER
_
+
ms-PULSE
!
COM
1000V MAX
400mA MAX
FUSED
DC
mV
4000
mV
20 2 46 3824684
VRPM
METRIC
ENGLISHZ
PV500
PRESSURE/VACUUMMODULE
cmHg
inHg
kPa
psi
OFF
Figure 3. Pressure for HVAC/R Super Heat Measurements

PV350 English Instruction Sheet
Page 5
88
AUTOMOTIVE TESTER
MIN MAX RANGE HOLD
H
mA
A
mV
V
V
OFF
AmA A
10A MAX
FUSED
ZERO
SMOOTH Hz
RPM % DUTY
mA
A
RPM
ALERT
TRIGGER
_
+
ms-PULSE
!
COM
1000V MAX
400mA MAX
FUSED
DC
mV
4000
mV
20 2 46 3824684
RANGE
VRPM
METRIC
ENGLISH Z
PV500
PRESSURE/VACUUMMODULE
cmHg
inHg
kPa
psi
OFF

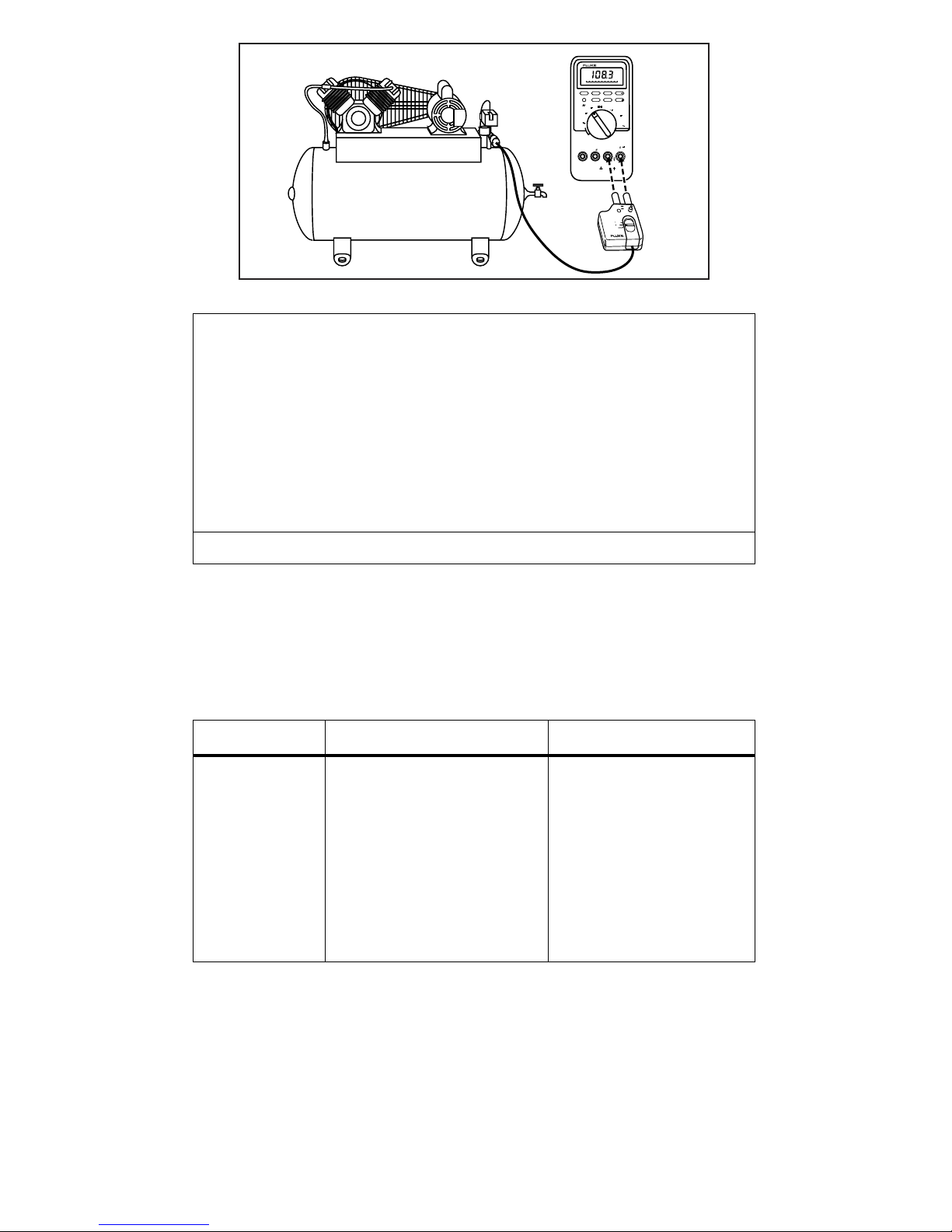

Figure 4. Measure Pneumatic Pressures
psi = inches of H2O x (3.6127 x 10-2) inches of H2O = psi x 27.68
psi = mm of H2O x (1.4223 x 10-3) mm of H2O = psi x 703.1
psi = cm of H2O x (14.223 x 10-3) cm of H2O = psi x 70.3
psi = bar x (14.503) bar = psi x 0.0689
psi = lbs/ft2x (6.9444 x 10-3) lbs/ft2= psi x 144
psi = mbar x (1.4503 x 10-2) mbar = psi x (68.9513)
psi = Pascals x (1.4503 x 10-4) Pascals = psi x (6.895 x 103)
All H2O conversion factors are @ 4°C
Conversion Factors
How to Calibrate the PV350
Calibrate the PV350 yearly to ensure that it meets its performance
specifications.
Table 1. Recommended Equipment
Instrument Minimum Specification Recommended Model
Precision
Pressure
Reference
500 psi, 0.25 % of reading
accuracy Crystal Engineering inHg/PSIG Multical or
equivalent
Pressure
Source Nitrogen gas bottle with pressure regulator, >750
psi
Tescom pressure
regulator Model 44-
2214-24 1 V
DMM 0 to 500 mV (minimum)
with 0.1 mV resolution
10 MΩinput impedance
Fluke 189 or equivalent
1. Allow the PV350 to stabilize at room temperature, away from drafts,
for at least 30 minutes. Turn on the DMM and, if required by its
operating instructions, allow it to warm up as indicated.

PV350 English Instruction Sheet
Page 6
2. Connect the pressure regulator to the nitrogen bottle and the
reference pressure gauge to the pressure regulator. The nitrogen
bottle must have >750 psi.
3. Verify the condition of the battery and if necessary, replace the
battery. (Refer to Figure 2.)
4. Remove the top cover of the module and connect it to the mV input
of the DMM. Set the scale to measure 500 mV (0.1 mV resolution).
5. Turn on the PV350 and allow it to warm up for two minutes.
6. Set the PV350 to the psi range.
7. Center the ZERO potentiometer, R3 (see Figure 5). Remove the
knob from R3 and insert it into R4 (the coarse zero adjustment).
With no pressure applied, set the reading to 0 mV ±0.3 mV. Insert
the knob back into R3, and adjust the final reading to 0.0 mV,
±0.1 mV.
R4
R3
R16
Figure 5. Calibration Adjustment Points
8. Connect the sensor to the pressure reference and nitrogen bottle
pressure calibration system.
9. Adjust the pressure regulator to about 250 psi. The readings on the
reference pressure gauge and the reading from the PV350 should
agree within ±0.1 % of the point, ±-0.3 psi: approximately ±0.6 mV
or ±0.6 psi. Adjust R16 as necessary.
10. Adjust the pressure regulator to about 350 psi. The readings on the
reference pressure gauge and the PV350 should agree within
±0.1 % of the point, ±0.3 psi: approximately ±0.7 mV or ±0.7 psi. If
necessary, adjust R16 to bring the reading into specification and
recheck the 250 psi point. It may be necessary to repeat steps 9 and
10 until both points are within specification.
11. Reduce pressure to zero and switch the module OFF.
How to Verify Calibration
1. Connect the sensor (transducer) to a pressure calibration standard,
and plug the module into the DMM.
2. Be sure the system is vented, then zero the module.
3. Enter the pressure settings shown in Table 2 and check for the
indicated readings

PV350 English Instruction Sheet
Page 7
Note
To save time, verify each reading (psi, kPa, cm of Hg, and
inches of Hg) before changing the pressure setting.
Table 2. Readings in mV
Setting
(in psi) psi* kPa cm-Hg Inches-Hg
0
125
350
-0.1 to +0.1
123.4 to126.6
346.2 to 353.8
-0.7 to +0.7
--
2386.8 to
2439.2
-0.5 to +0.5
--
1790.4 to
1829.7
-0.2 to +0.2
--
704.9 to
720.3
*Zero the module before making psi measurements. Do not re-zero when
switching to check kPa, cm-Hg, or in-Hg readings.
Specifications
The following specifications apply at 23 ±5 °C for 1 year after calibration
when the module is zeroed prior to each measurement.
Pressure
Range Accuracy
to 350 psig
(3.447 to 2413 kPa)
350 to 500 psig
(2413 to 3447 kPa)
±1 % of reading ±0.3 psig
(±1 % ±2.1 kPa)
±5 % of reading ±1 psig typical
(±5 % ±7.0 kPa)
Vacuum
Range Accuracy
0 to 29.9 in-Hg
(0 to 76 cm-Hg)
±1 % of reading ±0.5 in-Hg
(±1 % of reading ±1.3 cm-Hg)
Output: 1 mV per unit (psi, kPa, cm-Hg or in-Hg)
Resolution: 0.1 psi/in-Hg in mV range, 1 psi/in-Hg in Volt range with
3 1/2- or 4-digit meters.
RFI Specification: Typically < 1 % error from 14 kHz to 30 MHz at
1 V/M.
Meter Input Impedance: ≥10 MΩ(For input impedance of 1 MΩ, add
0.5 % to basic accuracy specification.)
Maximum working pressure: 500 psi.
Burst Pressure: 1000 psi.
Storage Temperature: -51 to 71 °C

PV350 English Instruction Sheet
Page 8
Operating Environment
Temperature Humidity
-10 to 10 °C
10 to 30 °C
30 to 40 °C
40 to 50 °C
50 to 55 °C
Uncontrolled Humidity
0 to 95 % Relative Humidity
0 to 75 % Relative Humidity
0 to 45 % Relative Humidity
0 to 35 % Relative Humidity
Temperature Derating: (Add to Basic Accuracy Specification.
°C = ambient temperature)
Temperature Range Derating
28 to 55 °C
18 to 28 °C
0to 18 °C
-10 to 0 °C
0.016 % x (°C - 28)
No derating
0.048 % x (18 - °C)
0.264 % x (9 ° - °C)
General
Weight: 12 oz, (336 grams)
Battery: Standard 9 V battery (NEDA #1604, 6F22, 006P)
Battery Life: 300 hours (typical) for Carbon-zinc 400 hour (typical) for
Alkaline
Vibration: 3 g @ 55 Hz sinusoidal
Shock: 1 meter drop
Electrical Cable: Black PVC, will withstand up to 105 °C
Cable Length: 8 ft
Pressure Port Connection: 1/4 in. NPT
Connector: Brass 1/4 in. male flare to 1/4 in. female pipe thread
Table 3. List of Replaceable Parts
Part Number Description
446823
2813197
2816172
913207
926873
926881
927009
Battery, Primary, 9 V, 0-15 mA
Case Bottom, PV350
Case Top, PV350
Fitting, BR, SAE, 45, 1/4 FP
PV350 Instruction Sheet
PV350 Quick Reference Guide
Replacement Cable Assembly
To contact Fluke or for service, call one of the following telephone
numbers:
USA: 1-888-44-FLUKE (1-888-443-5853)
Canada: 1-800-36-FLUKE (1-800-363-5853)
Europe: [phone]
Japan: [phone]
Singapore: [phone]
Anywhere in the world: [phone]
Or, visit Fluke's Web site at www.fluke.com.
Fluke Corporation Fluke Europe B.V.
P.O. Box 9090 P.O. Box 1186
Everett, WA 5602 B.D.
98206-9090 Eindhoven
The Netherlands
