Fly Dragon LIGHT SKY 1810 BEAM FX User manual

USER MANUAL
LED

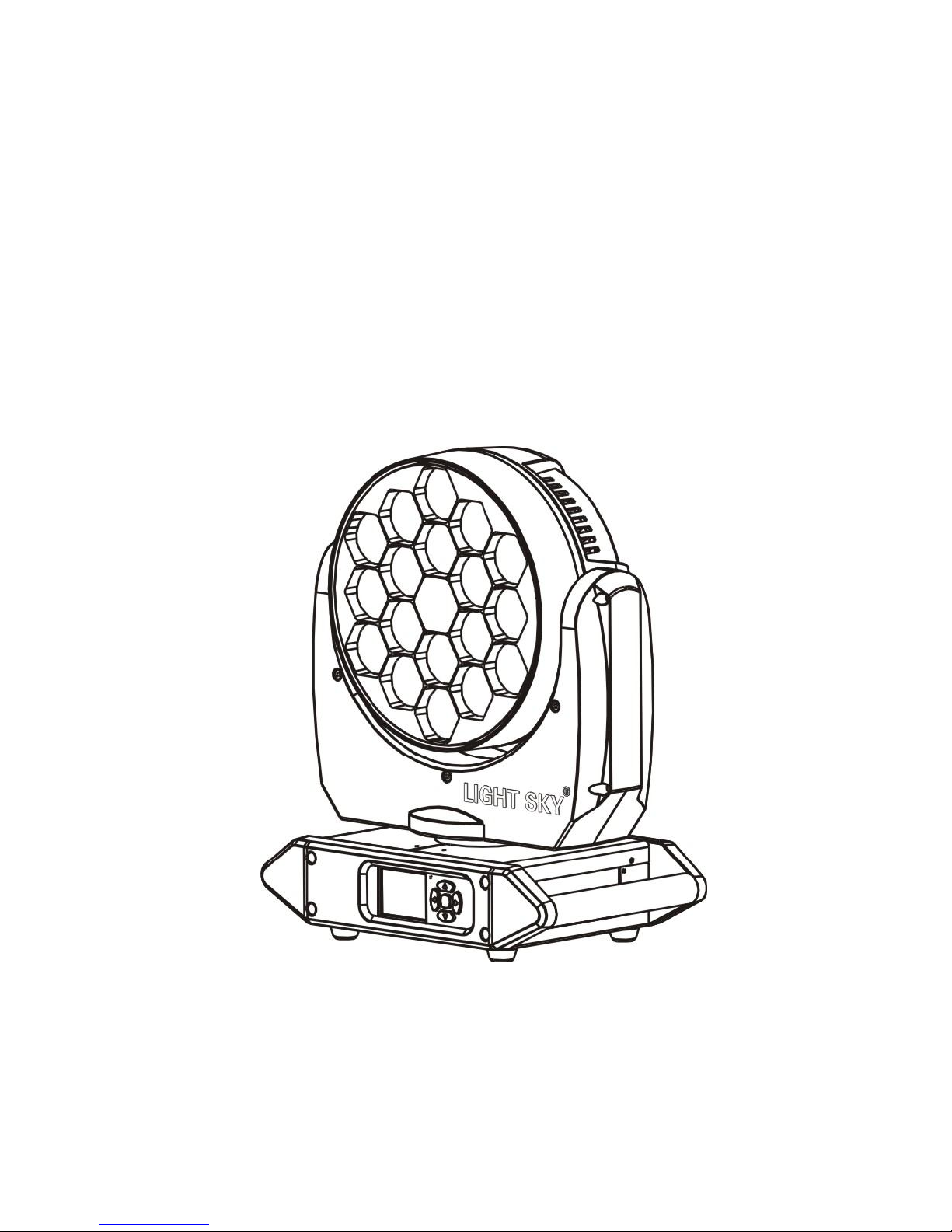

1810 BEAM FX

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
1
CONTENTS
1. General information 2
2. Safety instructions 3
3. Trait and skill specifications 4
4. Operation panel 5
5. Dimensional drawings 6
6. Photometric data 6
7. Mounting and Installation 7
8. Power supply and Signal connection 9
9. Display menu 11
10. DMX traits 20
11. Circuit connecting diagram 25
12. Trouble dispose 26
13. Cleaning and Maintenance 27
14. Duty exonerative and Copyright protection 27

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
2
1. GENERAL INFORMATION
INTRODUCTION: Congratulations, you have just purchased one of the
most innovative and reliable LED fixtures on the market today. Our
company has been designed to perform reliably for years when the
guidelines in this booklet are followed. Please read and understand the
instructions in this manual carefully and thoroughly before attempting to
operate this unit. These instructions contain important information
regarding safety during use and maintenance.
UNPACKING: Thank you for purchasing our company products. Every
product has been thoroughly tested and has been shipped in perfect
operating condition. Carefully check the shipping carton for damage that
may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your fixture for damage and be sure all accessories
necessary to operate the fixture have arrived intact. In the event damage
has been found or parts are missing, please contact our customer support
team for further instructions. Inside the box you should find: the fixture,
a DMX XLR cable, a power cable, and this user manual.
Please do not discard the shipping carton in the trash. Please recycle
whenever possible.
Notice: As part of our ongoing commitment to continuous
products update, company will keep the right to improve
this products, the information in this menu may be
changed in the future, the company reserve the right to
change the data without any advises.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
3
2. SAFETY INSTRUCTIONS
●1. In order to ensure the light could operate normally, the ambient
temperature couldn't be higher than 38℃ and no lower than- 2℃.
●2. Under normal condition, the highest sectional surface temperature
may be up to 60 ℃.
●3.These projectors are designed depends on the electric shock
protection, the projector should be connected with the power supply
system which connected ground enough. The projector's ground
cable should be connected with the ground cable of the power
supply system as well. The ground mark of the light metal cover
should be connecting with the installation bricked steadily.
●4. Don't use the power cable when the insulation is damaged.
It must be the manufacturer or distributor or the professional person
to change the damaged power cable in order to avoid any
dangerous.
●5.Please check the voltage, frequency data of power supply system is
suitable for the mentioned on the projector. Please do avoid the
different voltage between them and burn the projector.
●6.Do not attempt to operate this fixture if the power cord has become
damaged or frayed.
●7.Never open this fixture while in use.
●8.Never look directly into the light source. You risk injury to your
retina, which may induce blindness.
●9.Please be aware that damages caused by modifications to the device
are not subject to warranty.
Notice: To guarantee proper and consistent operation, it is
important to follow the guidelines in this manual. Our
company will not accept responsibility for damages
resulting from the misuse of this fixture due to the
disregard of the information printed in this manual.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
4
3. PERFORMANCE TRAIT AND SKILL SPECIFICATIONS
◎ Voltage：AC100~240V 50/60Hz.
◎ Power：264W.
◎ LED chip：10W，RGBW 4 in 1 LED chip.
◎ LED QTY：18PCS.
◎ LED life：50000H.
◎ Lens degree：1.5°.
◎ Beam angle：min.6°,max.60°.
◎ Color: RGBW macro color system.
◎ Strobe：1-30 times/ second electronic strobe and random strobe.
◎ Dimmer：65536 class dimmer.
◎ Pan/Tilt ： Pan ：540° times /2.0 seconds Tilt：180°/1.2 seconds.
◎ Control Mode: DMX512, RDM, Stand-alone mode ,Voice Control
mode , Mater-Slave mode , Wireless DMX512.
◎ Channel: Simple(11CH),Standard(17CH), Extended1(21CH),
Extended2(25CH)
◎ Display Menu:
1. 2.4 inches TFT touch screen, Chinese and English two version
language.
2, Display board can record device’s using time , show device’s
temperature, channel data and software version .
3, Edit the procedure

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
5
◎ Other feature :
1.Extend IP address function , each IP address maximum can set 64
ID
2.Support DMX signal priority identification, when lose the signal
it would be turn into Black , default scene , Automatic function
etc according to your set.
3.Remote control function: control the procedure, speed etc function
by the remote controller when the product under the condition
without signal.
4.Software upgrade : upgrade software by XRL cable.
◎ Outlooking: adopt ABS anti-fire plastic.
◎ Carton size : 412×287×525MM.
◎ N.W.: 8.5KG G.W.: 11.1KG
◎ Light size:322×242×336MM
4. OPERATION PANEL

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
6
5. DIMENSIONAL DRAWINGS
6. PHOTOMETRIC DATA

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
7
7. MOUNTING AND INSTALLATION
Cautions:
For added protection mount the fixtures in areas outside walking
paths, seating areas, and away from areas were unauthorized personnel
might reach the fixture. Before mounting the fixture to any surface, make
sure that the installation area can hold a minimum point load of 10 times
the device's weight. Fixture installation must always be secured with a
secondary safety attachment, such as an appropriate safety cable. To
avoid injury, never stand directly below the device when mounting,
removing, or servicing the fixture.
Mounting points:
Overhead mounting requires extensive experience, including
amongst others calculating working load limits, a fine knowledge of the
installation material being used, and periodic safety inspection of all
installation material and the fixture. If you lack these qualifications, do
not attempt the installation yourself. Improper installation can result in
bodily injury. Be sure to complete all rigging and installation procedures
before connecting the main power cord to the appropriate wall outlet.
Mounting
Our company is fully operational in any mounting position, hanging
upside-down, side mounted, or set on a flat level surface, etc. Be sure this
fixture is kept at least 0.5m (about 1.6feet) away from any flammable
materials (decoration etc.).
When clamp mounting; always use and install the supplied safety
cable as an added safety measure to prevent accidental damage in the
event of a clamp failure. See the image below.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
8

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
9
8. POWER SUPPLY AND SIGNAL CONNECTION
1. Power supply
Use the professional plug to connect the projector and main power
supply. Please pay attention to the voltage, frequency the same as the
mentioned on the projector. Suggest each light has separately switched of
the power supply so that could turn on or turn off each projector
desultorily.

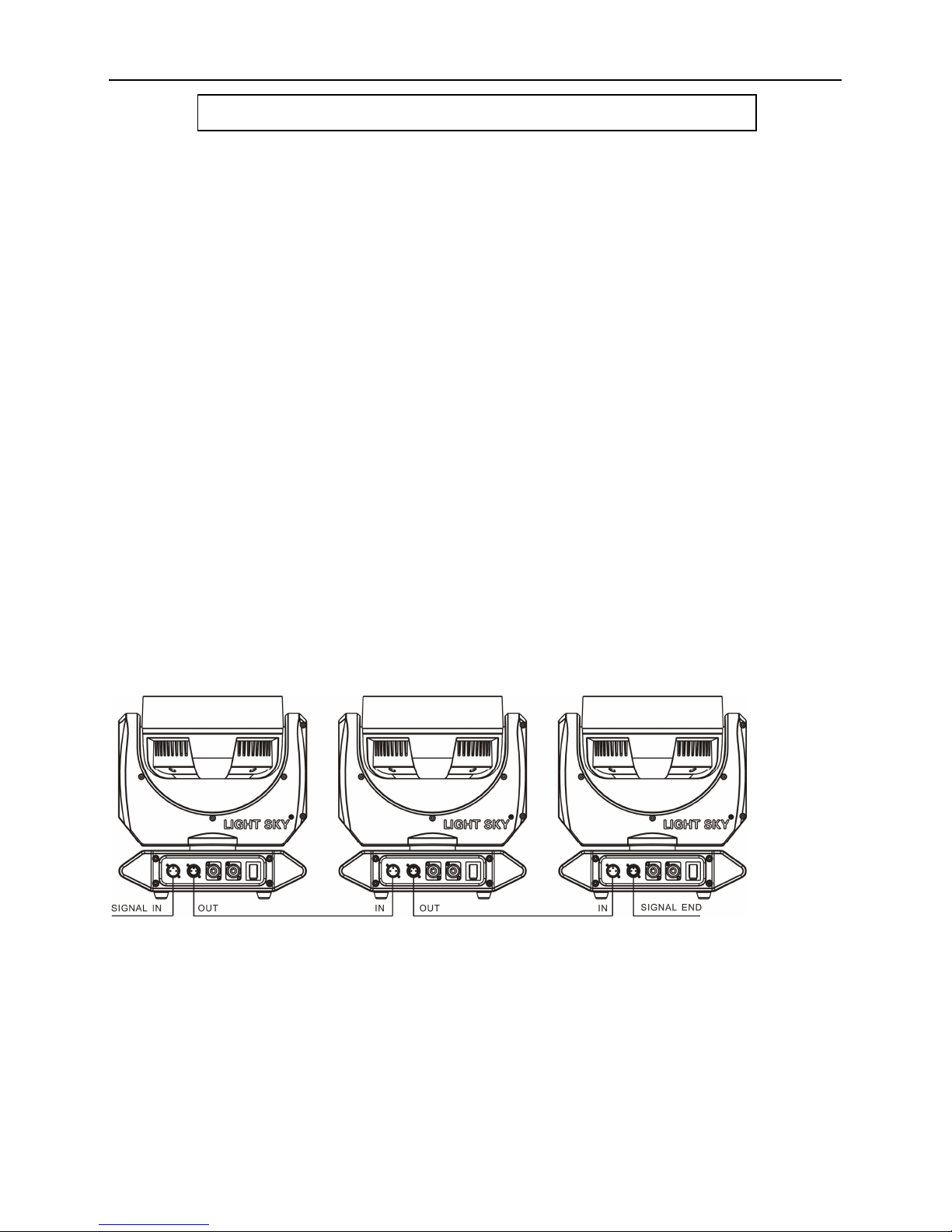

2. Signal connection
Please use the round 3/5-pin XLR plugs &sockets offered by menu
facture to connect the first projector's output to the second projector'
input and connect the second projector's output to the third device's input.
And in the same way for the rest, eventually connect the last device's
output, all the devices are together as the following figure.
The devices’ control signal output or input by using the 3/5-pin XLR pug
and socket. If need to long then the communication cable, please make
sure the both side of 3/5-pin plug is one to one. (one to one, two to two,
three to three). Otherwise, the communication cable will be interrupted.
The communicate cable is 2-pin shielded cable 75Ω
Resistance with each core is at least a 0.5mm diameter. (Caution: All the
inside leading wire of 3/5-pin XLR plug couldn't touch each other or
plinth).
Recommend to use the DMX signal terminator for the installation to
avoid the electronic noise damage the digital control signal. Simply

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
10
speaking, DMX terminator is an XLR connector with a 120Ω 1/2w
resistor connected across pin 2 and 3.Which is then plugged into the
output socket on the last projector in the chain. Refer to the connection as
above:(Picture ).We suggest using the DMX signal distributor when the
distance of the lights over 15meter,In case of effect the light
communication because of the signal feeble.
3. Light power connection:
the items can't be more than 6pcs under series connection.
After doing the above operation and making sure all the devices had
been installed with natural operate, press the power switch to check
whether everything is working normally.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
11
9. DISPLAY MENU
MenuⅠ MenuⅡ Ⅲ Menu Remark
DMX Address 001-512
Fixture ID 000-064
Simple(11CH) Default
Standard(17CH）
Extended1(21CH）
Channel mode
Extended2（25CH）
Wired input Default
Wireless input
DMX input mode
Reset wireless
Hold
Black
D.scene
Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
Program 7
DMX function
Program 8
Slave mode
Slave-Master Master mode
Close
Sound control Open
SETTING
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
12
ⅠMenu
ⅡMenu Ⅲ Menu Remark
Power on time ****H
Fixture times Lamp on time ****H
Fixture
temperatures LAMP_TEM ***℃
RDM UID 3888:********
1. Dimmer 0-255
2. Dimmer fine 0-255
3. Shutter 0-255
4. Red-1 0-255
5. Green-1 0-255
6. Blue-1 0-255
7. White-1 0-255
8. Red-2 0-255
9. Green-2 0-255
10.Blue-2 0-255
11.White-2 0-255
12.Red-3 0-255
13.Green-3 0-255
14.Blue-3 0-255
15.White-3 0-255
16.Macro colour 0-255
17.Pan 0-255
18.Pan fine 0-255
19.Tilt 0-255
20.Tilt fine 0-255
21.Lens Rota. 0-255
INFO
DMX live
22.Rota.speed 0-255

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
13
ⅠMenu
ⅡMenu Ⅲ Menu Remark
23.Fixture control 0-255
24.Calibration 0-255
DMX live
25.Slave ID 0-255
LED_XY_SOFT:V*.**
Version info LED_DPY_SOFT:V*.**
INFO
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
14
ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Remark
Close Default
P/T swap Open
Close Default
Pan invert Open
Close Default
Tilt invert Open
Pan/Tilt
Exit
System reset
Reset Exit
Open Quick
closedown Close
Close P/T angle
limit Open
Close Program
on/off Open
Pan start
Pan end
Tilt start
Tilt end
PERSON
Set P/T
angle
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
15
ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Remark
English(英文) Default
Display
language Chinese（中文)
Light always
2 minutes Default
4 minutes
Display sleep
6 minutes
Display
intensity 10-100
Normal Default Display
rotation Rotate 180
TFT calibration
Display
Exit
PERSON
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
16
ⅠMenu ⅡMenu Ⅲ Menu Remark
1. Dimmer 0-255
2. Dimmer fine 0-255
3. Shutter 0-255
4. Red-1 0-255
5. Green-1 0-255
6. Blue-1 0-255
7. White-1 0-255
8. Red-2 0-255
9. Green-2 0-255
10.Blue-2 0-255
11.White-2 0-255
12.Red-3 0-255
13.Green-3 0-255
14.Blue-3 0-255
15.White-3 0-255
16.Macro 0-255
17.Pan 0-255
18.Pan fine 0-255
19.Tilt 0-255
20.Tilt fine 0-255
21.Lens Rota. 0-255
22.Rota.SP 0-255
23.Fixture 0-255
24.CAL 0-255
25.Slave ID 0-255
MANUAL
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
17
ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu
Scene 0-100
1. Dimmer 0-255
2. Dimmer fine 0-255
3. Shutter 0-255
4. Red-1 0-255
5. Green-1 0-255
6. Blue-1 0-255
7. White-1 0-255
8. Red-2 0-255
9. Green-2 0-255
10.Blue-2 0-255
11.White-2 0-255
12.Red-3 0-255
13.Green-3 0-255
14.Blue-3 0-255
15.White-3 0-255
16.Macro 0-255
17.Pan 0-255
18.Pan fine 0-255
19.Tilt 0-255
20.Tilt fine 0-255
21.Lens Rota. 0-255
22.Rota.SP 0-255
23.Fixture 0-255
24.CAL 0-255
25.Slave ID 0-255
Save scene
PROGRAM
Edit
program
Edit
program 1
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
18
ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu
Edit program 2 Same as Edit program1
Edit program 3 Same as Edit program1
Edit program 4 Same as Edit program1
Edit program 5 Same as Edit program1
Edit program 6 Same as Edit program1
Edit program 7 Same as Edit program1
Edit program 8 Same as Edit program1
Edit
program
Exit
Start step 0-100
End step 0-100
Step time 0-255
Save
Set program 1
Exit
Set program 2 Same as Set program 1
Set program 3 Same as Set program 1
Set program 4 Same as Set program 1
Set program 5 Same as Set program 1
Set program 6 Same as Set program 1
Set program 7 Same as Set program 1
Set program 8 Same as Set program 1
Set
program
Exit
Run Running
program…
Scene 0-100
Save scene
Fixed
scene Exit
PROGRAM
Exit

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD
www.lightsky.com.cn
www.lightsky-china.com
19
ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu
Error list
Pan ±5.00%
Tilt ±5.00%
Lens ±5.00%
Calibration
Exit
Factory default ****
Calibration default ****
Time clean ****
Developer ****
Machine sel. ****
Factory
Exit
Updata ****
SERVICE
Exit
