Flycatcher smART Pixelator User manual

1. Plug in the smART Pixelator™ AC Adapter (included) or insert 4 C batteries (not included).
2. Flip the switch on the back to turn on.
3. Insert the pre-loaded activity card into the back of the smART Pixelator ™ with the flat side facing up.
4. Place smART Pixel Beads tray (included) or Sequins or Pegs tray (sold separately) on the Pixelator surface.
5. After 15 minutes of no activity, the smART Pixelator™ lights will turn o. Reactivate using the buttons in the app or on
the Pixelator.
USER MANUALUSER MANUAL
For additional products or information on using
multiple trays, smART Pixel Pegs or Sequins, or
creating 3D designs, go to:
www.smartpixelator.com
Requires Android 5.0+
Requires Apple iOS 8.0+
SIMPLE SET UPSIMPLE SET UP

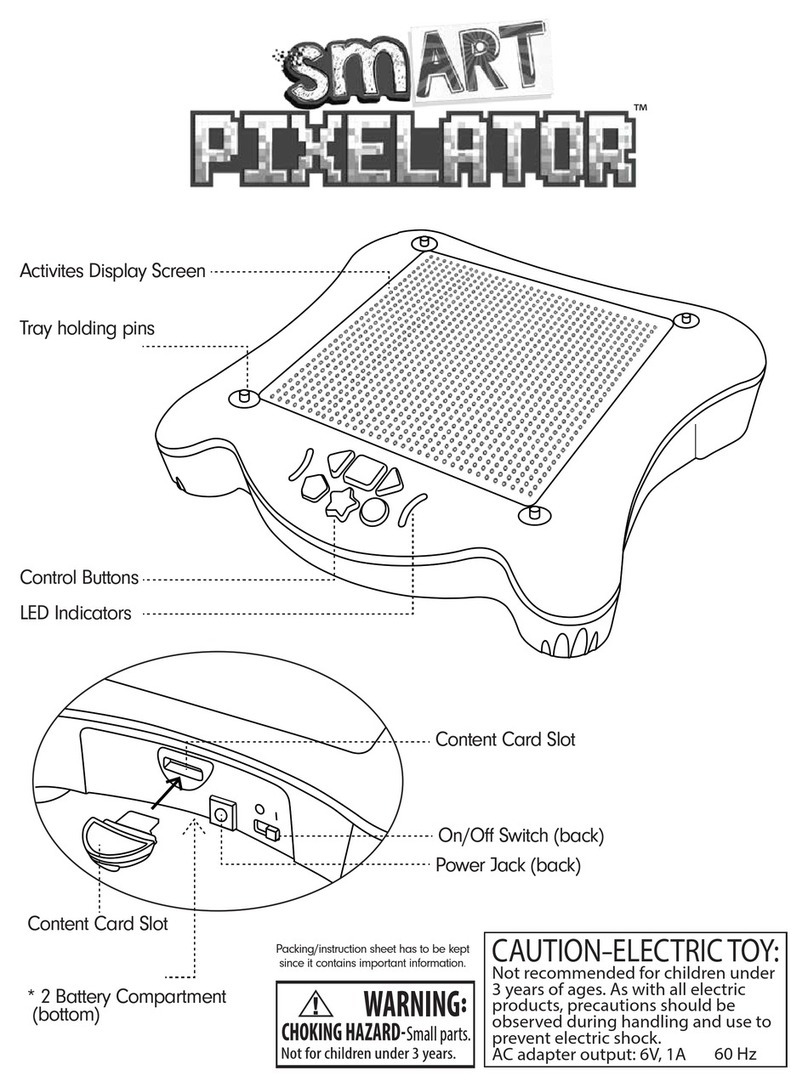

On/O Switch
(back)
AC Adapter
connection (back)
* 2 Battery
Compartments
(bottom)
SD Activity
Card Slot
SD Activity Card
Control Buttons
Tray holding pins
Activities Display Screen
CONTROL BUTTONS
Go to Home
Go Back a Step
Go Forward a Step
Next Drawing
Previous Drawing
Repeat Last Step/AutoPlay
LED Indicators
CAUTION-
ELECTRIC TOY:
N ot recommendedfor children
under
3 years of ages. A s with
all electric products, precautions
should be observed during handling
and use to prevent electric shock.
AC adapter: INPUT:100-240VAC, 0.3A MAX 50/60H z;
OUTPUT: 5.9V 1.0A
WARNING:
CHOKING HAZARD Small parts
Not for children under 3 years
™

*The toy should be periodically examined for potential hazardous parts to be repaired or replaced.
QUICK STARTQUICK START
1. Download the smART Pixelator app on your mobile device or tablet.
2. Turn on your Bluetooth and connect to the smART Pixelator by clicking on the “connect” button
at the top right of your screen.
3. Pick a design:
- Choose from 50 projects on the pre-loaded activity card.
The six projects shown on the box can be completed with the 1300 Pixel Beads in this package.
- Customize your project by changing colors.
- Engineer your own project using the FREE app and any photo from a smart device.
EASY FINISHEASY FINISH
1. When you’ve completed your bead design, gently remove the tray from the smART Pixelator ™ .
Place on an ironing board or on a towel on a heat-safe flat surface.
Cover entire design with ironing paper.
2. Using a preheated dry iron set on medium, iron design in a circular motion, beginning with the edges.
Keep moving the iron until the beads show through the paper, about 10 to 30 seconds.
3. Let design cool about 15 seconds, then flip tray over on a flat, heat-safe surface and tap to remove
beads. Peel o paper and re-use to cover reverse side of your design.
Repeat ironing process on second side (not mandatory). Let design cool completely and remove paper.
SAFETY INFORMATIONSAFETY INFORMATION
In exceptional circumstances batteries may leak fluids that
can cause a chemical burn injury or ruin your product.
To avoid battery leakage:
To insert or change the batteries,
twist the screw counter-clockwise to
loosen. Remove old batteries and in
sert 4 C batteries with the correct
polarity. Replace the screw and twist
clockwise to close.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) this device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
This device contains licence-exempt
transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic
Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two
conditions: (1) This device may not cause
interference. (2) This device must accept any
interference, including interference that may
cause undesired operation of the device
Warning: Changes or modifications to this
unit not expressly approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
Note:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
Non-rechargeable batteries are not to be recharged.
Rechargeable batteries are to be removed from the toy
before being charghed.
Rechargeable batteries are only to be charged under
adult supervision.
Do not mix alkaline, standard (carbon-zinc), or
rechargeable (nickel-cadmium) batteries.
Do not mix old and new batteries.
Only batteries of the same or equivalent types as
recommended are to be used.
Batteries are to be inserted with correct polarity.
Exhausted batteries are to be removed from the product.
The supply terminals are not to be short circuited.
Dispose of battery(ies) safely.
Do not dispose of this product in a fire.
The batteries inside may explode or leak.
BATTERY INSTALLATION
AC ADAPTER: RADIO STATEMENT
BATTERY SAFETY INFORMATION
For more detailed instructions,
questions or problems, please visit
www.smartpixelator.com
smART pixelator™ is a trademark
of Flycatcher Inc.
Copyright © 2019 Flycatcher Inc.
All rights reserved.
Visit us at:
www.smARTpixelator.com
2 TRAYS -
EACH TRAY
HOLDS
2 C BATTERIES
C SIZE BATTERY
1 2
C SIZE BATTERY
FCM-IMPX-01 rev. J
