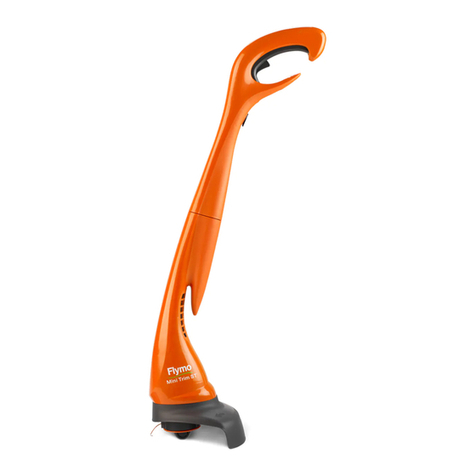

Flymo MINI TRIM User manual

IMPORTANT INFORMATION
Read before use
& retain for future reference
®
Original Instructions
Mini Trim

Carton Contents
IMPORTANT ! Please check the contents of the carton are correct BEFOREassembling your new product.
IF ANY PARTS ARE MISSING CONTACT:-
Husqvarna UK Ltd. Customer Service Department direct
Telephone : [phone] UK 1800 882 350 ROI Fax : [phone]
Safety
General
1. This product is not intended for use by persons (including
children) with reduced physical, sensory or mental capabil-
ities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning the
use of the product by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the product. Local regulations may restrict the age
of the operator.
2. Never allow children or people unfamiliar with the in-
structions to use the machine.
3. Stop using the machine while people, especially chil-
dren, or pets are nearby.
4. Only use the trimmer in the manner and for the func-
tions described in these instructions.
5. Never operate the trimmer when you are tired, ill or
under the influence of alcohol, drugs or medicine.
6. The operator or user is responsible for accidents or
hazards occurring to other people or their property.
Electrical
AVOID ACCIDENTAL STARTING, REMOVEPLUG
FROM MAINSAND KEEP FEET AWAYFROM THE
SWITCH LEVER WHEN:- CLEANINGAROUND THE
INSIDEOF THE SAFETY GUARD, REMOVINGOR
REFITTING SPOOL CAP, MANUALLYFEEDINGOR
REPLACINGNYLON LINE
1. It is recommended that you use a Residual Current
Device (R.C.D.) with a tripping current of not more
than 30mA. Even with a R.C.D. installed 100% safety
cannot be guaranteed and safe working practice must
be followed at all times. Check your R.C.D. every time
you use it.
2. Before use, examine the cable for signs of damage or
ageing. If the cable is found to be defective, take the
product to and Authorised Service Centre and have
the cable replaced.
3. Do not use the trimmer if the electric cables are dam-
aged or worn.
Mini Trim Auto +/
MT25
WARNING. When using the product the safety rules must be followed. For your own safety and that of bystanders
please read these instructions before operating the product. Please keep the instructions safe for later use.
Explanation of Symbols on the product
Warning
Read the user instructions carefully to make
sure you understand all the controls and what
they do.
Keep others, including children, pets and by-
standers outside the 10 metre hazard zone.
Stop the trimmer immediately if you are ap-
proached.
Wear eye protection to protect against objects
thrown by the cutting line.
To avoid the possibility of electric shock, do
not use in damp or wet conditions.
Switch off! Remove plug from mains before
adjusting, cleaning or if cable is entangled or
damaged.
Warning: The cutting line continues to rotate after the
machine has been switched off.
360º
10m
Please note: This manual covers various products. Please read the user instructions carefully to fully identify, assem-
ble and use the features that apply to your trimmer.
Upper Shaft
Switch Lever
Electric Cable with
moulded on plug
Guard
Instruction
Manual
Lower
Shaft
Mini Trim/MT21/
Mini Trim Auto
Upper Shaft
Switch Lever
Electric Cable with
moulded on plug
Guard
Instruction
Manual
Lower
Shaft
Steady
Handle
Screw
Screw

4. Immediately disconnect from the mains electricity supply
if the cable is cut, or the insulation is damaged. Do not
touch the electric cable until the electrical supply has
been disconnected. Do not repair a cut or damaged
cable. Replace it with a new one.
5. Your extension cable must be uncoiled, coiled cables
can overheat and reduce the efficiency of your trimmer.
6. Keep the cable clear of the cutting area and obstacles
at all times.
7. Do not pull cable around sharp objects.
8. Always switch off at the mains before disconnecting
any plug, cable connector or extension cable.
9. Never pull on the cable to disconnect any of the plugs.
10.Switch off, remove plug from mains and examine
electric supply cable for damage or ageing before
winding cable for storage. Do not repair a damaged
cable, replace it with a new one. Use only our re-
placement cable.
11.Always wind cable carefully, avoiding kinking.
12.Use only on AC mains supply voltage shown on the
product rating label.
13.Our trimmers are double insulated to EN60335.
Under no circumstance should an earth be connected
to any part of the trimmer.
Preparation
1. While using your product always wear eye protection,
substantial footwear and long trousers. Do not oper-
ate the equipment when barefoot or wearing open toe
sandals.
2. Before using the machine and after any impact, check
for signs of wear or damage and repair as necessary.
3. Inspect the area to be cut before each use. Remove
all objects such as stones, broken glass, nails, wire,
string etc, which can be thrown or become entangled
in the trimmer head.
4. Before use, inspect the area for wildlife, especially
hedgehogs.
5. Check that the cutting head is fitted correctly.
Use
1. Use the trimmer only in daylight or good artificial light.
2. Avoid operating your trimmer in wet grass, where feasible.
3. Take care in wet grass, you may lose your footing.
4. On slopes, be extra careful of your footing and wear
non-slip footwear.
5. Do not walk backwards when trimming, you could trip.
Walk never run.
6. Keep cutting head below waist level.
7. Switch off before pushing the trimmer over surfaces
other than grass.
8. Never operate the trimmer with damaged guards or
without guards in place.
9. Never fit metal cutting elements.
10.Keep hands and feet away from the cutting means at
all times and especially when switching on the motor.
11.Never pick up or carry a trimmer by the cable.
12.Do not lean over the trimmer guard - objects may be
thrown by the cutting line.
13.Remove the plug from the mains :
- before leaving the trimmer unattended for any period;
- before clearing a blockage;
- before checking, cleaning or working on the appliance;
- if you hit an object. Do not use your trimmer until you
are sure that the entire trimmer is in a safe operating
condition;
- if the trimmer starts to vibrate abnormally. Check im-
mediately. Excessive vibration can cause injury.
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure the
trimmer is in safe working condition.
2. Replace worn or damaged parts for safety.
3. Only use the replacement cutting line specified for
this product.
4. Only use replacement parts and accessories recom-
mended by Husqvarna UK Ltd.
5. After any maintenance in dealing with the cutting line, al-
ways return the product to its normal operating position
before switching on.
6. Clean unit with a dry cloth. Never use metal objects to
clean the unit.
7. Inspect and maintain the trimmer regularly. Any repairs
must be carried out by an authorised repairer.
8. Store in a cool dry place and out of reach of children.
Do not store outdoors.
9. Allow the product to cool for at least 30 minutes be-
fore storing.
Cables
IMPORTANT
If you want to use an extension cable when operating your
product, only the following cable dimensions should be used.
- 1.0 mm2: max length 40 m
- 1.5 mm2: max length 60 m
- 2.5mm2: max length 100 m
Minimum rating :
1.00mm2 size cable, 10 amps 250 volts AC.
YOUR TRIMMER IS SUPPLIED WITH A CABLE
WIRED DIRECTLY INTO THE PRODUCT.
1.If the supply cord is damaged, it must be replaced by your
local Husqvarna UK Ltd. Approved Service Centre or simi-
larly qualified persons in order to avoid a hazard.
2.Flymo Extension Cables are available from your
local Husqvarna UK Ltd. Approved Service Centre.
3.Do not wire an extension cable directly to your product
yourself. Please contact your local Husqvarna UK Ltd.
Approved Service Centre for further information on the
connectors and kits available.
4.Only use extension cables specifically designed for
outdoor use and which conform to one of the following
specifications: Ordinary rubber (60245 IEC 53), Ordi-
nary PVC (60227 IEC 53) or Ordinary PCP (60245 IEC
57)
Our connectors are suitable for use with 2 core cable
only. Under no circumstances should these connectors
be used for earthed products.
All of our connectors and cables are of splashproof con-
struction. They are not waterproof and must not be left out-
side permanently nor should they be submerged or
immersed in water. Do not let cable lay or trail through pools
of water or splashed with water from hose pipes.
MAINS PLUG REPLACEMENT
• If the plug supplied is cut off it should be destroyed.
There is an electric shock hazard if a cut off plug is in-
serted into a 13 amp socket.1. No earth required.
Our products are double insulated to EN60335 and
under no circumstances should an earth be con-
nected to any part of the product.
2. Ensure the mains voltage suits your product.
3. IMPORTANT!
The wires in the mains lead are coloured in accordance
with the following code:
BLUE - NEUTRAL
BROWN - LIVE
The wire which is coloured BLUE must be connected to
the Terminal which is marked with the letter ‘N’ or
coloured BLACK. The wire which is coloured BROWN
must be connected to the Terminal which is marked with
the letter ‘L’ or coloured RED.
4. It is important that the outer sheath is clamped cor-
rectly into the 3-pin plug.
5. If in doubt consult your local Service Repairer or qual-
ified electrician before the machine is used.
6. A 13 Amp fuse must be fitted to the Mains Plug.
7. The normal plug fuse and household fuse only pro-
tect the electrical equipment and are not a safeguard
against electrocution.
If your product is hard wired i.e. non-detachable mains
electric cable, a conversion kit and extension cable is
available from all Approved Service Centres which can
be found in your local Yellow Pages.

Assembly Instructions
Shaft Assembly (A)
1. Locate the lower shaft (A1) into the upper shaft (A2).
2. Grasp firmly and hold steady the lower shaft. Locate
the upper shaft and snap together firmly.
• The unit is correctly assembled when the gap be-
tween the upper and lower shaft has been closed.
Safety Guard Assembly (B) & (C)
1. Locate the safety guard (B1) over the cutting head
(B2). Ensure the nylon line is fed through the hole in
the safety guard as illustrated in fig B.
2. Push into location and turn safety guard in the direc-
tion illustrated in Fig C, until a click is heard and the
safety guard is securely locked in position.
3. With the screw provided, insert into the guard as illus-
trated in Fig D and tighten to secure.
• ENSURE THE SAFETY GUARD IS SECURELY IN
PLACE BY ATTEMPTING TO TWIST GUARD.
Cable Restraint (E1) & (E2)
1. Form loop in mains cable and push the loop through
the slot as illustrated in picture (E1).
2. To secure, position loop over the hook and pull the
cable back through the slot as illustrated in picture
(E2).
A
12
Starting and Stopping
1
2
B
Mini Trim/MT21 Mini Trim Auto/
Auto +/MT25
C
2
1
E1 E2
F
WARNING
Cutting head continues to rotate after the trimmer has
been switched off.
To start your trimmer
Squeeze the switch lever (F).
To stop your trimmer
Release the switch lever (F).
2
1
D
How to Trim
WARNING: The use of eye protection is recommended.
Do not lean over the trimmer guard whilst trimming, objects
may be thrown by the cutting line.Do not allowcutting head
to rest on the ground.Do not overload your trimmer.Over-
loading can be avoided by making sure the motor speed
does not dropunduly.Disconnect the mains electricity sup-
ply before attempting any maintenance or adjustment.
1. Cut with cutting line at an angle using the tip (G).
2. Swing trimmer in and out of the cutting area taking
small cuts (G).
G

To feed the nylon line
1. Press and hold the two latches (H).
2. Gently pull the line until it reaches the line cutter.
3. Release the two latches. Check that the spool is
locked in position.
4. If too much line has been fed out, press the two
latches and turn the spool anti-clockwise until the line
is at the desired length.
To remove spool
1. Press and hold the two latches.
2. Pull spool out of spoolholder (J).
When refitting the spool
1. Keep all areas of the spool and spoolholder clean.
Failure to do so may prevent the spool from being se-
curely located in the spoolholder.
2. Make sure the line is placed through the slot in the
spoolholder (K).
3. Place spool into spoolholder and press down into place.
4. Check that the spool is correctly fitted by trying to re-
move the spool without depressing the latches (K1).
To r e place nylon line
Replacement line is available from most Husqvarna UK
Ltd. stockists. You can buy it either as spool and line
complete or as nylon line only.
To r e place spool and line complete
1. Remove old spool.
2. Release line from cleat. Unwind approximately 100mm
of line and feed through slot in spoolholder (K).
3. Re-fit spool into spoolholder. Check that the spool is
locked in position.
To r e place nylon line on spool
1. Take approximately 5 metres of line line and insert
into one of the line lock holes in the spool (L).
2. Wind line onto spool in the direction of the arrows on
the top of the spool. Care should be taken to ensure
that the line is neatly coiled on the spool (L).
3. Leave approximately 100mm of line unwound and
feed through slot in spoolholder (K).
4. Replace spool into spoolholder.
Ensure spool is correctly fitted.
Remember!Your trimmer is designed to use only nylon line
witha maximum diameter of 1.5mm.Use only genuine
Husqvarna UK Ltd.nylon line.
Fault Finding Hints
WARNING! Disconnect from the mains electricity supply be-
fore attempting any maintenance or adjustment.
1. Line too short.
Feed out line.
2. Line broken inside of spoolholder.
Remove spool and re-thread line.
3. Line jammed on spool.
Remove spool and rewind line to remove crossed loops.
4. Poor performance.
Ensure the inside of the spoolholder is clean and free
from debris.
5. Line snaps continuously.
Use only tip of nylon line to trim. If symptoms still per-
sist, change spool and line.
6. Line will not pull out.
Check that line has been released from cleat.
7. IF FAULT PERSISTS
Contact Husqvarna UK Ltd. Customer Service. Tele-
phone [phone].
Manual Line Feed System
Line cutter
Spool
Spoolholder
Latches
Slot
H
J
K
L
Line lock
hole
Cleat
K1

Automatic Line Feed System
How the automatic line feed works (M)
1. When initially switching on the trimmer, a small length of
line is fed out.
2. A ‘clattering’ noise will be heard when the nylon line hits
the line cutter. DO NOT BE ALARMED this is quite nor-
mal. After approximately 5 seconds the line will be cut to
the correct length and the noise will reduce as the motor
reaches full speed.
•Make sure the motor is upto full speed before trimming.
3. If the noise of the nylon line being cut cannot be heard,
more line will need to be fed out.
4. To feed more line, it is first necessary to allow the motor
to stop completely, then re-start, allowing the motor to
reach full speed.
5. Repeat step 4. until you hear the line hitting against the
cutter. (Do not repeat this procedure more than 6 times)
6. If problems are experienced with the automatic line feed
refer to Fault Finding Chart.
To manually feed the nylon line (N)
1. If required line can be fed out manually.
2. To operate, press and release manual line feed button,
whilst gently pulling on one of the lines until the line
reaches the line cutter.
3. When the required amount of line is fed out, gently pull
on the second line (there is no need to press the manual
line feed button again).
4. If the line extends past the line cutter, too much line has
been fed out.
5. If too much line is fed out, remove the spool cap and click
spool anti-clockwise until the line is at the desired length.
To remove spool cap
1. Press and hold in the two cap release latches. (P).
2. Pull cap away from the spoolholder. (P).
When refitting the spool cap
1. Keep all areas of the cap and spoolholder clean. Failure
to do so may prevent the cap being securely located in
the spoolholder.
2. Replace the cap, pressing firmly DOWN towards the
spoolholder to ensure cap is fully located.
3. Check that the cap is correctly fitted by trying to remove
it without depressing the two latches.
To r e place nylon line.
For your convenience it is recommended you buy spool and
line complete. Nylon line only is also available. Both are
available from Husqvarna UK Ltd. stockists.
To fit spool and line complete:
1. Remove old spool.
2. Place new spool into spoolholder with cut out areas of
the spool in line with eyelets as shown in figure Q.
3. Release one line from cleat and feed line through eyelet (Q).
4. Repeat for second line.
•Ensure spool is fully located by gently rotating it during fit-
ment, whilst keeping the spoolholder steady.
5. Refit the cap.
To fit nylon line only:
•Remember! Your Trimmer is designed to use only nylon
line with a maximum diameter of 1.5mm.Use only gen-
uine Husqvarna UK Ltd. nylon line.
1. IMPORTANT - Always wind the line onto the upper sec-
tion of the spool first.
Take approximately 5 metres of line. Insert 15mm of line
into one of the holes in the upper section of the spool (R)
and wind line in the direction of the arrows on the top of
the spool. Leave approximately 100mm of line unwound
and place into cleat as illustrated in figure R. Repeat on
lower section of spool.
2. Care should be taken to ensure that the line is neatly
coiled on the spool. Failure to do so will impair the effi-
ciency of the automatic line feed.
3. Then fit spool as described in ‘To fit spool and line com-
plete’, section above.
• Always return the product to its normal operating position
before switching on.
Line cutter
Manual line
feed button
Cap
Cap release
latch
Spool
Spoolholder
Eyelet
M
N
P
Q
R
Cleat
Cut out area
of spool
Eyelet

Maintenance
After you have finished using your trimmer follow the
procedure below:
1. Disconnect from the mains electricity supply.
2. Never clean your trimmer with water, cleaning flu-
ids, or solvents, just remove debris with a suitable
tool, a soft brush or dry cloth.
3. Using a soft brush, clean around the inside of the
safety guard, the cutting head and the motor hous-
ing air vents. (Fig S, T).
4. Inspect the trimmer carefully, especially the parts
of the cutting head.
5. If your trimmer is damaged in any way contact your
local approved service centre.
•Never use a damaged trimmer.
6. Wind cable carefully to avoid kinking.
7. Store in a cool, dry place and out of reach of chil-
dren.
Fault Finding Chart (Automatic Line Feed only)
WARNING Disconnect from the mains electricity supply before attempting any maintenance or adjustment.
FAULT CHECK ACTION
Is the automatic line feed work-
ing? Manually feed out line.
Is the line fed out and visible?
Has line been removed from
cleat?
Remove cap and spool, free line
and re-fit spool and cap.
The line may be jammed on the
spool. Rewind line to remove
crossed loops. Check that line is in
correct section of spool.
Is the manual line feed working?
Has too much line been fed out? Rewind line.
Contact your local approved Service
Centre or Husqvarna UK Ltd.Customer
Service.
Is the line cutter missing from the
safety guard?
Contact Husqvarna UK Ltd. Customer Service
Telephone : [phone] UK 1800 882 350 ROI
No
No
No
Yes
Yes
LINE NOT FEEDING
OR
LINE TOO SHORT
OR
TRIMMER VIBRATES
CONTINUOUS
CLATTERING NOISE
LINE SNAPS CONTINUOUSLY
IF NONE OF THE ABOVE
OR IF FAULT PERSISTS
Has the motor reached full speed
before use?
No
Allow the motor to reach full speed
before use
Are you using the trimmer cor-
rectly?
?
Only use tip of nylon line to trim.
Is the line jamming on the spool?
Yes
Rewind the line on the spool, if
symptoms still persist, change
spool and line.
S
T
Environmental Information
• Awareness of the environment must be considered
when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal
information.
The symbol on the product or on its packaging indi-
cates that this product may not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic
equipment.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the envi-
ronment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
For more detailed information about recycling of this prod-
uct, please contact your local council office, your house-
hold waste disposal service or the shop where you
purchased the product.
Replacement Parts
Spool and Line
ET21 Reference no.: FLY031
ET23DX Reference no.: FLY021
ET23+DX Reference no.: FLY021
ET25+DX Reference no.: FLY021
Part no.: 513106090
Part no.: 513937190
Part no.: 513937190
Part no.: 513937190

5051963-07
Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice.
Copyright © 2013 Flymo S.A. All rights reserved. Flymo® and other product and feature names are registered or unregistered trademarks
of Flymo S.A.
If any part is found to be defective due to faulty manufacture within
the guarantee period, Husqvarna UK Ltd., through its Authorised
Service Repairers will effect the repair or replacement to the cus-
tomer free of charge providing:
(a) The fault is reported directly to the Authorised Repairer.
(b) Proof of purchase is provided.
(c) The fault is not caused by misuse, neglect or faulty adjustment
by the user.
(d) The failure has not occurred through fair wear and tear.
(e) The machine has not been serviced or repaired, taken apart or tam-
pered with by any person not authorised by Husqvarna UK Ltd.
(f) The machine has not been used for hire.
(g) The machine is owned by the original purchaser.
(h) The machine has not been used commercially.
* This guarantee is additional to, and in no way diminishes the
customers statutory rights.
Failures due to the following are not covered, therefore it is important
that you read the instructions contained in this Operator's Manual
and understand how to operate and maintain your machine:
Failures not covered by guarantee
* Replacing Nylon Line.
* Failures as a result of not reporting an initial fault.
* Failures as a result of sudden impact.
* Failures as a result of not using the product in accordance with
the instructions and recommendations contained in this Opera-
tor's Manual.
* Machines used for hire are not covered by this guarantee.
* The following items listed are considered as wearing parts and
their life is dependent on regular maintenance and are, there-
fore not normally subject to a valid warranty claim: Nylon Line,
Spool and Line, Electric Mains Cable.
* Caution!
Husqvarna UK Ltd. does not accept liability under the warranty
for defects caused in whole or part, directly or indirectly by the
fitting of replacement parts or additional parts that are not either
manufactured or approved by Husqvarna UK Ltd., or by the ma-
chine having been modified in any way.
Guarantee & Guarantee Policy
Service Recommendations
• Your product is uniquely identified by a silver and black product rating label.
• We strongly recommend that your product is serviced at least every twelve months, more often in a professional application.
EC Declaration of Conformity
Husqvarna AB, S-561 82, Huskvarna, Sweden
Declare under our sole responsibility that the product(s);
Designation.................................... Lawn Trimmer
Designation of Type(s) .................. ET21, ET23DX, ET23+DX, ET25+DX
Identification of Series.................... See Product Rating Label
Year of Construction...................... See Product Rating Label
Conforms to the essential requirements & provisions of the following EC Directives:
2006/42/EC, 2004/108/EC, 2000/14/EC, 2011/65/EU
based on the following EU harmonized standards applied:
EN60335-1, EN60335-2-91, EN50366, EN55014-1, EN61000-3-2, EN61000-3-3
The maximum A weighted sound pressure level LpA at the operator’s position, measured according to EN60335-2-91,
is given in the table.
The maximum hand / arm vibration weighted value ah measured according to EN ISO 20643 on a sample of the above
product(s) is given in the table.
2000/14/EC: The Measured Sound Power LWA & Guaranteed Sound Power LWA values are according to the tabulated
figures.
Conformity Assessment Procedure...............Annex VI
Notified Body.................................................Intertek, Cleeve Road
Leatherhead, Surrey
KT22 7SB, England
Ulm 22/02/2013
P. Lameli
Global R & D Director - Hand held
Keeper of technical documentation
Ty pe
Width of Cut (cm)
Speed of Rotation of Cutting Device (rpm)
Power (kW)
Measured Sound Power LWA (dB(A))
Guaranteed Sound Power LWA (dB(A))
Sound pressure LpA (dB(A))
Uncertainty KpA (dB(A))
Hand / arm vibration ah(m/s2)
Uncertainty Kah (m/s2)
Weight (Kg)
ET21
21
13,000
0.23
91
93
77.4
2.5
4.59
1.5
2.0
ET23DX
23
11,500
0.25
91
93
82.9
2.5
4.85
1.5
2.0
ET23+DX
23
11,500
0.25
91
93
82.9
2.5
4.85
1.5
2.3
ET25+DX
25
10,500
0.30
94
95
82.3
2.5
4.5
1.5
2.3
Husqvarna AB,
S-561 82
Huskvarna,
Sweden
