Blizzard FMX30 User manual
Planetary Mixer
Instruction Manual
Page 2of 19
Pack Contents
The following is included:
•Food Mixer •Spiral Dough Hook •Whisk
•Mixing Bowl •Beater • Instruction Manual
General Description
This is a kind of changing speed gear mixer. With its planetary stirring design, it has a
compact structure, high efficiency, power saving and easy operation. It provides as an
ideal assistant to you for bread and cake making.
Technical Parameters
Name Power
(KW)
Weight
(KG)
Speed of Stirring Shaft (r/min) Overall Dimensions
(mm)
1st Speed 2nd Speed 3rd Speed
10L 0.55/0.75 45 108 195 355 505 x 475 x 710
20L 1.1 106 108 195 355 630 x 590 x 890
20L with hub 1.1 108 108 195 355 630 x 590 x 890
30L 1.5 178 91 166 282 710 x 670x 1270
30L with hub 1.5 180 91 166 282 710 x 670x 1270
Page 3of 19
Main External Parts of Mixer
①Gear change hand lever
②Stirring shaft
③Mixer
④Stainless barrel
⑤Power switch
⑥Bent lever
⑦Safety guard ( may choose the fitting)
⑧Support
Page 4of 19
Operation Instruction
①Standard power supply v/ HzAc. (Please use a plug with 3 wide contacts
and good grounding.)
②Installation of mixer: Put the stirring shaft 2 in Mixer 3 and rotate it in clockwise
direction.
③Starting procedures: Pull the hand lever 6 to raise the bowl and close the safety
grille 7 to the closed position. Select the speed required by moving the gear change
hand lever 1 before starting, then turn on the power switch 5. Run the mixer for a
maximum of 30 minutes of constant run.
④Speed transformation: If you want to change speed, please turn off the power switch
5 firstly, and then pull the gear change hand lever 1 to the position required.
⑤Shutting down: when the operation is complete, turn off the power switch 5 firstly,
then pull the gear change hand lever 1 to position 1, and pull back the hand lever 6
to the lowest point and finally disconnect power supply.
Accessories and Functions
①Whisk: Used for stirring of liquid material, such as cram and egg. Recommended
speed: mid or high speed.
②Beater: Used for stirring of paste, powder and fragmental material, such as stuffing
and cake dough. Recommended speed: start with low speed, end with mid speed.
③Spiral dough hook: Used for stirring of sticky material, such as dough.
Recommended speed: low speed.
Page 5of 19
Notes
①The power socket must be provided with a good ground wire to guarantee the
mixer’s good grounding through it. There will be an electric shock if no ground
wire or an improper grounding mounted. The ground wire can never be connected
with gas pipe, water pipe, lightning rod or telephone line. Electric leakage should
be checked after installation. Once the power line damaged, the user must replace
them in the special maintain service company.
②Don’t put your hands into the stirring barrel during operation. Power supply
should be disconnected before the mixer is going to be installed.
③Don’t operate the mixer beyond the time limit to prevent reduction of its service
life.
④The mixer should be mounted on a stable and clean place. Keep it away from
overheated or over-wet places and away from equipment which has strong
electromagnet or can produce strong electromagnet.
⑤Keep the machine clean constantly. Disconnect power supply before
maintenance. Clean it with a piece of soft and a bit wet cloth. Don’t clean it with
liquid or spraying detergent.
Maintenance
Clean the bowl and stirrer daily or after use to maintain hygiene standard.
The transmission gear box is greased in factory. Check the greasing each 6 months. To
ass or refill grease, open the top cover, then fill grease from aperture or replace the
grease directly.
Page 6of 19
Trouble Shooting
Problems Causes Solutions
Tool shaft does not
rotate after starting the
machine
Loosen electric wiring Check electric wiring, tighten
those loose connects
Oil leakage The seal rings are worn out Replace seal rings
Motor temperature
raised while reduced
output speed
Too low voltage Check the power supply
Overloaded Reduce load
The sped of mixing is too
high or using a wrong
stirrer
Select a suitable speed and
stirrer
The mixing knocks
with the bowl
The stirrer or bowl is
deformed
Repair or replace the stirrer
or bowl
Abnormal noise and
high temperature from
gearbox
Insufficient lubrication Add or replace the grease
Accessories canno0t
be removed from
motor
Debris (flour)stuck in the
spigot / attachment
Clean the attachment and
spigot with warm water, push
upwards and turn to
disengage fitting, pull down
to withdraw attachment
Warning!
If the equipment is out of function, please make sure that it is serviced by professional
person or please turn to special service point.
Page 7of 19

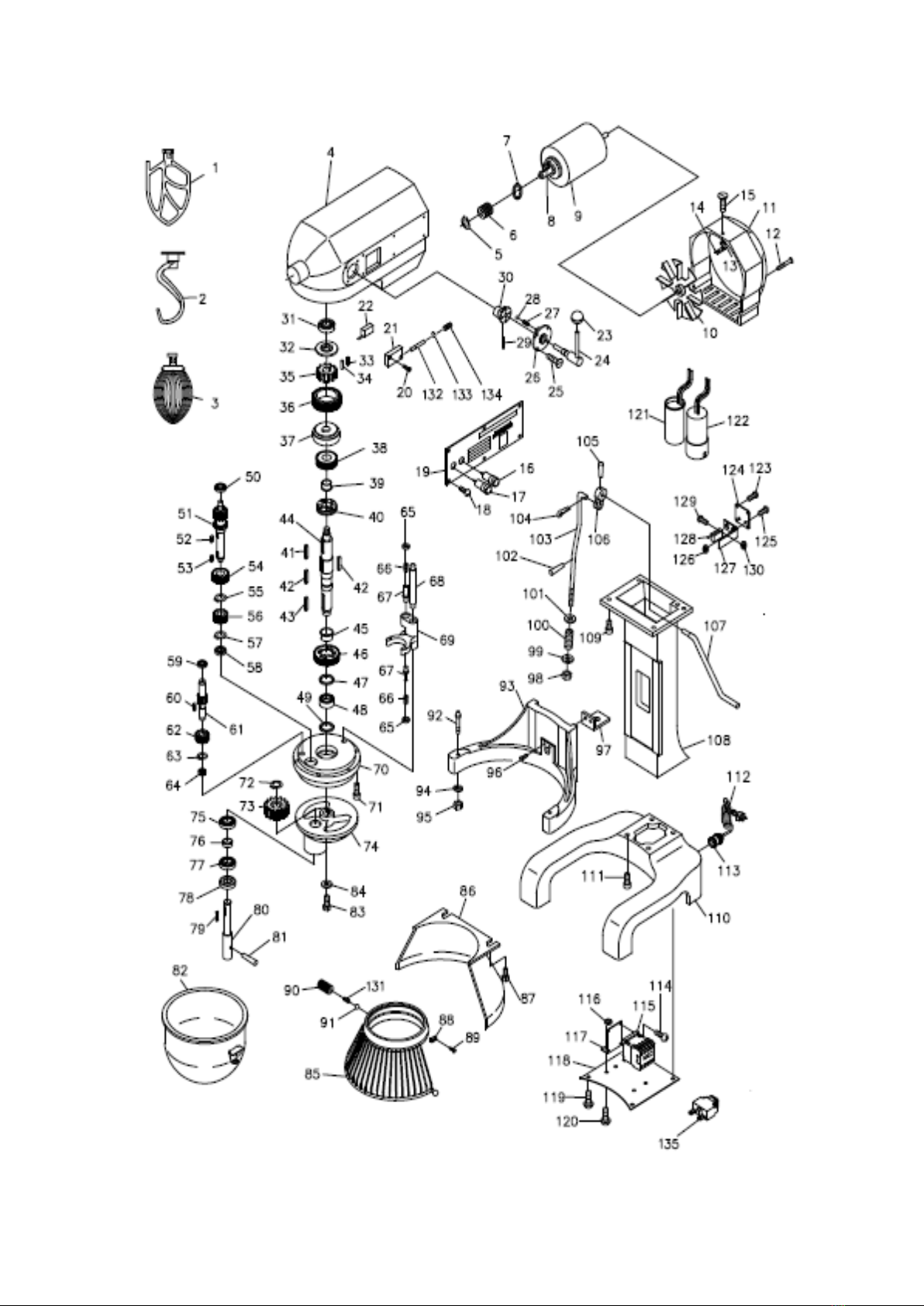

Parts of 10L
SER.NO.
PART.NO.
PART NAME
SER.NO.
PART.NO.
PART NAME
1
10-1
Flat Beater
69
10-69
Shifting yoke
2
10-2
Hook
70
10-70
Inner gear
3
10-3
Wire whip
71
10-71
hexagon socket cap screws
4
10-4
Gear box
72
10-72
Circlips for shaft
5
10-5
Circlips for shaft
73
10-73
Planet gear
6
10-6
Worm pole
74
10-74
Operating shelf
7
10-7
Oil seal
75
30-76
Bearing
8
10-8
Key
76
10-76
Running shaft support
9
10-9
Motor
77
30-76
Bearing
10
10-10
fan
78
10-78
Oil seal
11
10-11
Back cover
79
10-79
Key ：5X20
12
10-12
Nut:M5X60
80
10-80
running spindle
13
10-13
Spring washer
81
10-81
Retainer-spring
14
10-14
Connector
82
10-82
Bowl
15
10-15
Nut:M4X8
83
10-83
cross recess pan head screw
16
10-16
Red button
84
10-84
Moving frame clamp
17
10-17
Green button
85
10-85
front shield
18
10-18
Nut:M4X8
86
10-86
back shield
19
10-19
Brand
87
10-87
hexagonal head bolt
20
10-20
Nut:M4X20
88
10-88
Bump pin block
21
10-21
The micro switch installation
89
10-89
cross recessed countersunk head screw
22
10-22
Distance switch
90
10-90
Allen flat end set screws
23
10-23
Nob
91
10-91
steel ball
24
10-24
Speed handle
92
10-92
Taper pin column
25
10-25
Nut:M4X8
93
10-93
Support
26
10-26
fix seat
94
10-94
Spring washer
27
10-27
Spring
95
10-95
Type 1 hexagonal nut
28
10-28
steel ball
96
10-96
cross recessed countersunk head screw
29
10-29
Retainer-spring
97
10-97
Support lifting climbing
30
10-30
nob
98
10-98
hexagon lock nut
31
10-31
deep groove ball bearing
99
10-99
flat washer
32
10-32
Plug
100
10-100
compression spring
33
10-33
Spring
101
10-101
flat washer
34
10-34
Roller：6X10
102
10-102
elastic cylindrical pin
35
10-35
Gear
103
10-103
Connecting rod
36
10-36
Super machine parts
104
10-104
cotter
37
10-37
ring gasket
105
10-105
Retainer-spring
38
10-38
Combination of gear
106
10-106
Crank lever
39
10-39
Gear shaft sleeve
107
10-107
Handle
40
10-40
Claw-type clutch
108
10-108
Stud
41
10-41
Key ：5X25
109
10-109
hexagonal head bolt
42
10-42
Key ：5X30
110
10-110
foundation
43
10-43
Key ：5X30
111
10-111
hexagonal head bolt
44
10-44
Main shaft
112
10-112
Power cord
45
10-45
Gear shaft sleeve
113
10-113
Power supply is waterproof connectors
46
10-46
Gear
114
10-114
cross recess pan head screw
47
10-47
Spring washer
115
10-115
Contact switch
48
30-36
Bearing
116
10-116
Type 1 hexagonal nut
49
10-49
Oil seal
117
10-117
Ac contactor stents
50
10-50
Bearing
118
10-118
shied
51
10-51
Gear shaft
119
10-119
cross recess pan head screw
52
10-52
Key ：5X10
120
10-120
cross recess pan head screw
53
10-53
Key ：5X10
121
10-121
Capacitor
54
10-54
Combination of gear
122
10-122
Capacitor
55
10-55
Circlips for shaft：55
123
10-123
cross recess pan head screw
56
10-56
Gear
124
10-124
Travel switch fixed plate
57
10-57
Circlips for shaft
125
10-125
cross recess pan head screw
58
10-58
Bearing
126
10-126
Type 1 hexagonal nut
59
10-59
Bearing
127
10-127
Travel switch bracket
60
10-60
Key ：5X14
128
10-128
Distance switch
61
10-61
Shaft worm gear
129
10-129
cross recess pan head screw
62
10-62
Worm gear
130
10-130
Type 1 hexagonal nut
63
10-63
Circlips for shaft
131
10-131
Shield compression spring
64
10-64
Bearing
132
10-132
Switch shaft pin
65
30-7
Control nut
133
10-133
split washer
66
10-66
Spring
134
10-134
Switch shaft pin compression spring
67
10-67
Fork pin
135
10-135-
Version 4
overload switch
68 10-68
declutch shift shaft
Page 8of 19
Page 9of 19

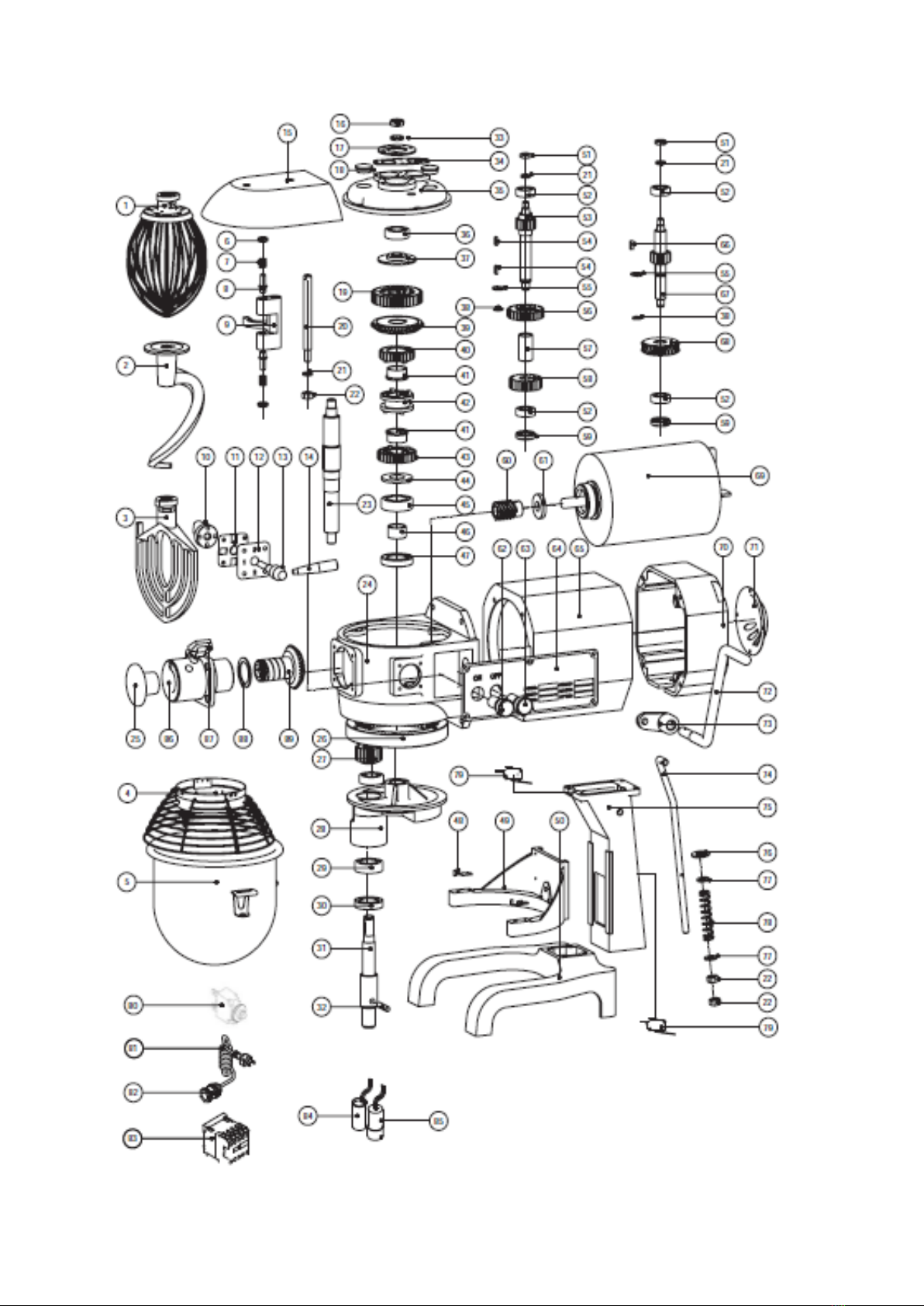

Parts of 20L
