Berkel PM30 User manual

Models PM30/PM40
Planetary Mixers
!PM30 30 Qt. Floor Model
!PM40 40 Qt. Floor Model
Item #
Standard Features
!!Model PM30 30-Qt. Mixer with 3-speed, 1 HP
(continuous duty), totally enclosed, and permanently
lubricated, thermally protected motor; furnished in
15/ 60/1, 15 amp, AC, ETL listed; also available in
220/50/1 and 220/60/1, ETL listed
!!Model PM40 40-Qt. Mixer with 3-speed, 1.5 HP
(continuous duty), totally enclosed, and permanently
lubricated, thermally protected motor; furnished in
115/60/1, 23 amp, AC, ETL listed; also available in
220/50/1 and 220/60/1, ETL listed
! Wide-faced, hardened alloy steel, helical gears fully
sealed in lubricant with heavy-duty ball bearings and
clutch combine for highly dependable, quiet operation
!3 Pre-selected, fixed speeds
!Manual bowl lift is lever operated and self-locking in top
position
!15-minute timer for continuous or timed operation,
automatically shuts off the machine in any speed after
the pre-determined time has elapsed
!#12 Taper hub for use with any #12 size attachments
!Flat Batter Beater, Wire Whip and Spiral Dough Hook
!Bowl Guard with interlock prevents the mixer from running
if guard is opened
!No-Volt Release prevents activation of the mixer in the
event of a power interruption; operator must restart the
mixer
!Highly reliable, moisture resistant stop and start switches
!Welded steel frame construction; finish is silver metallic
epoxy powder coat enamel for easy cleaning
!Attached 6-foot, flexible, 3-wire cord and plug for
grounded receptacle
Options
!220/60/1 AC, ETL listed
!220/50/1 AC, ETL listed
Planetary Mixers Models PM30/PM40
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX [phone] • www.berkel.com
Form #SPC26-1103N
Features
Berkel Models PM30 and PM40 planetary mixers are
heavy-duty, precision crafted, versatile machines. These
all-purpose mixers use a powerful, planetary mixing action
to thoroughly blend, mix and aerate all ingredients with
consistent and predictable results. The wide-faced,
hardened alloy steel helical gears deliver energy at pre-
selected fixed speeds. Models are available in 30 and 40-
quart sizes with a selection of optional bowls to provide
additional capacity and flexibility. Each mixer comes
standard with a stainless steel bowl, spiral dough hook,
batter beater and wire whip. The heavy-duty, stainless
steel, wire front bowl guard opens easily for adding
ingredients. The bowl guard interlock prevents the mixer
from running if guard is opened or the bowl is lowered. The
units feature moisture resistant switches, No-Volt Release
and 15-minute timers that automatically shut off the
machines in any speed after the predetermined time has
elapsed.
Approved By:
Date
Model PM30
Accessories
!VSPH - #12 Taper Hub; Vegetable Shredder/Plate Holder
!FCMC - #12 Taper Hub; Meat Grinder
!Bowl Dolly
!Reduction Set

Form #SPC26-1103N © 2003 Berkel Company Litho in U.S.A.
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX [phone] • www.berkel.com
Planetary Mixers Models PM30/PM40
Models PM30/PM40
Planetary Mixers
Specifications
Design: Heavy-duty, all purpose mixers use a
powerful, planetary mixing action to thoroughly blend,
mix and aerate all ingredients with consistent and
predictable results.
Motor/Electrical: ! Model PM30 30-Qt. Mixer with
3-speed, 1 HP (continuous duty), totally enclosed,
and permanently lubricated, thermally protected
motor; furnished in 115/60/1, 15 amp, AC, ETL listed.
Also available in 220/60/1 and 220/50/1, AC, ETL listed.
! Model PM40 40-Qt. Mixer with 3-speed, 1.5 HP
(continuous duty), totally enclosed, and permanently
lubricated, thermally protected motor; furnished in 115/
60/1, 23 amp, AC, ETL listed. Also available in 220/60/1
and 220/50/1, AC, ETL listed.
Finish/construction: Cast base finished in metallic
silver, epoxy powder coat enamel for easy cleaning.
Transmission: Wide-faced, hardened alloy steel,
helical gears fully sealed in transmission lubricant with
heavy-duty ball bearings and clutch combine for
highly dependable, quiet operation.
Speeds: 3 Pre-selected, fixed speeds.
Bowl Guard: Bowl Guard with interlock prevents the
mixer from running if guard is opened.
Power Hub: #12 Taper hub for use with any optional
#12 size attachment.
Controls: Highly reliable, moisture resistant switches,
provide for continuous operation and a 15-minute
timer automatically shuts off the machine in any speed
after the pre-determined time has elapsed.

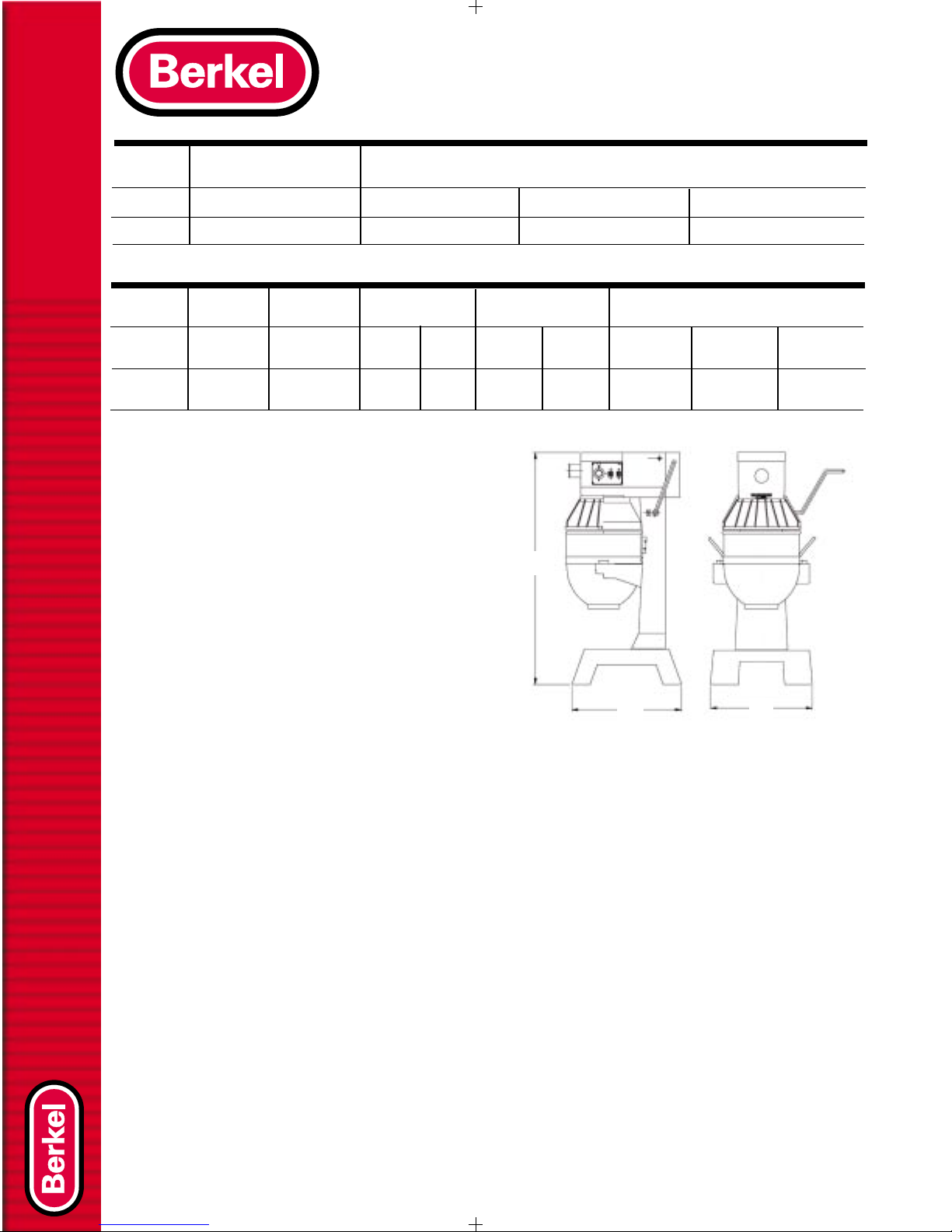

Model No. Bowl Product Dimensions
Capacity Width A Depth B Height C
PM30 30-Qts (32 Liters) 24” (610 mm) 25” (635 mm) 46” (1170 mm)
PM40 40-Qts (43 Liters) 24” (610 mm) 25” (635 mm) 46” (1170 mm)
Motor Electrical Speed Range Weight Box Dimensions
Beater Hub Net Ship Width Depth Height
PM30 3-speed 115/60/1 46-149 105-338 399 lbs. 467 lbs. 27” 27” 52”
1 HP (181 kg.) (212 kg.) (690 mm) (690 mm) (1320 mm)
PM40 3-speed 115/60/1 46-149 105-338 415 lbs. 490 lbs. 27” 27” 52”
1.5 HP (189 kg.) (223 kg.) (690 mm) (690 mm) (1320 mm)
Models PM30/PM40
No-Volt Release: Prevents activation of the mixer in the
event of a power interruption; operator must restart the mixer.
Standard Equipment: The mixing unit with one stainless
steel bowl, bowl guard, flat batter beater, wire whip and
spiral dough hook.
Bowl Lift: Manual bowl lift is lever operated and self-
locking in top position,
Cord and Plug: Attached 6-foot flexible 3-wire cord and
plug for grounded receptacle.
Warranty: All parts, service and travel coverage for one
year, exclusive of wear items.
As we continually strive to improve our products, specifications
are necessarily subject to change without notice.
