FMI LBG24-BM User manual

INSTALLATION INSTRUCTIONS FOR
CONCRETE LOG MODELS LBG(18,24,30)-BM
Save this manual for future reference
Figure 4 - Installing Left Ember Bed Log
Left Ember
Bed Log
5. The right ember bed log 24" & 30'' (D-047)
has a hole in the log that sets on the grate
nger and the other end rest on the re-
place oor, place log as shown in Figure 5,
page 2. The right ember bed logs for 18"
(D-072) has a groove on the side that sets
on the ember bed pan and the back of the
log needs to rest against the front of the
base. Make sure the ame from the ember
pan does not touch the ember bed log.. The
back side of this log needs to rest against
the front of the base assembly, make sure
the ame from the ember pan does not
touch the ember bed log.
3. Place front left (18" D-064, 24" D-057 & 30"
D-038) and front right (18" D-065, 24" D-058
& 30" D-039) logs as shown in Figure 3.

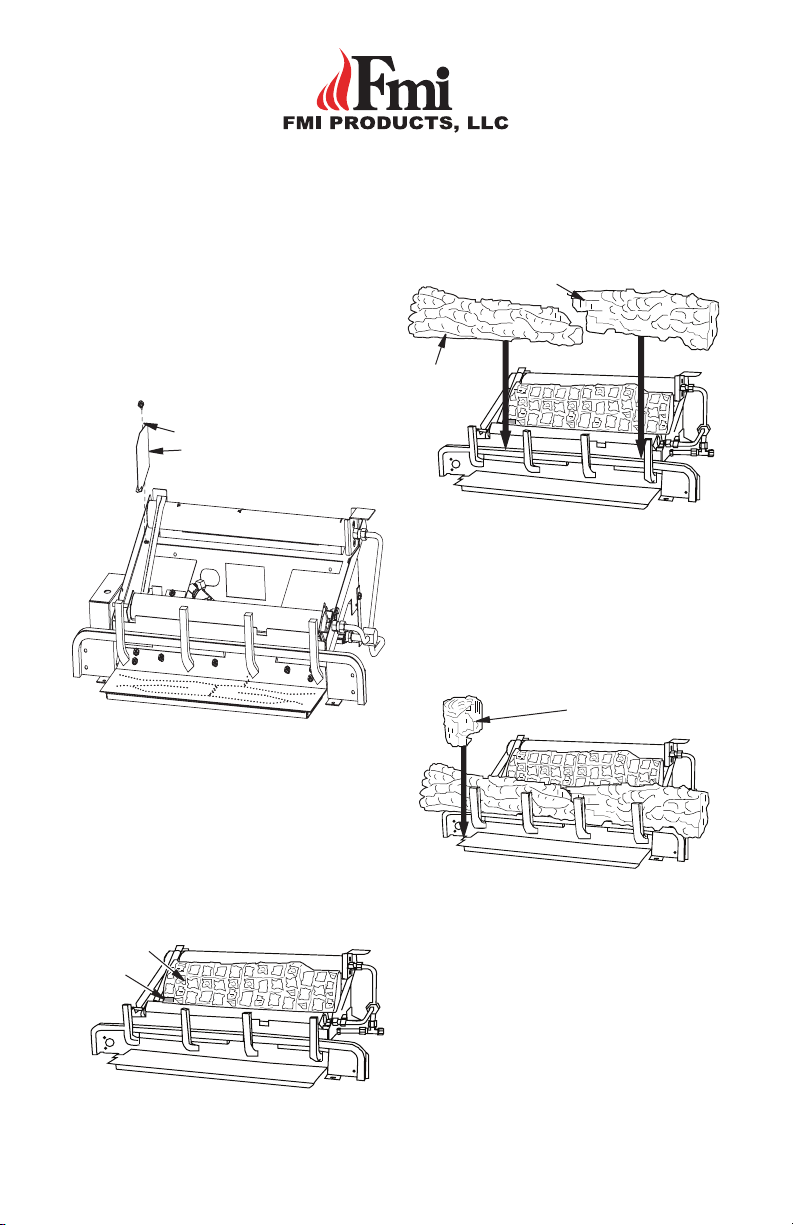

Figure 2 - Installing Fiber Ramp Log
Figure 3 - Installing Left/Right Front Logs
Ramp Log
Left Front
Log
Right Front Log
Metal
Tab
4. Place left ember bed log (18" D-073, 24" &
30" D-048) as shown in Figure 4. The log has
groove on one side that sets on the ember
bed pan. The back side of this log needs to
rest against the front of the base assembly.
Make sure the ame from the ember pan
does not touch the ember bed log.
Note: Your appliance may vary from model
shown but log placement will be the same.
1. Before placing any logs on the chassis you
will need to remove the Air Shield located
on the left side near the rear burner as
shown in Figure 1. The Air Shield is held in
place with one screw, remove the Air Shield
and place the screw back into the hole in
the chassis. Place the Air Shield with you
owner's manual and keep.
Figure 1 - Removing Air Shield
Air Shield
Screw
2. Place ber ramp log in center of chassis
as shown in Figure 2. The ber ramp log
can be identied by the shape and much
lighter weight when compared to the other
logs. The log must sit at on the black
sheet metal and behind the left metal tab
as shown. Make sure the side marked
''BOTTOM'' is setting down.

www.fmiproducts.com 126045-01A2
INSTALLATION
Continued
Figure 6 - Installing Left Middle Log
Figure 5 - Installing Right Ember Bed Log
Right Ember
Bed Log
Left Middle
Log
Hole
Underneath
Grate Prong
Figure 7 - Installing Right Middle Log
Right Middle
Log
Rear
Middle Log
Figure 8 - Installing Rear Middle Log
6. The left middle log (18" D-066, 24" & 30"
D-040) has a groove on the bottom to sit
on the chassis and has to sit on the tab on
the back of the left front log as shown in
Figure 6.
7. The right middle log (18" D-067, 24" & 30"
D-041) has a groove on the bottom to sit on
the chassis and has to sit on the tab on the
back of the right front. The right middle log
should have a recess area that ts around
the ramp log as shown in Figure 7.
8. The rear middle log (18" D-068, 24" &
30" D-042) should t between the ramp
log and the rear burner. The left and right
middle logs have recessed areas for the
rear middle log to sit into (See Figure 8).
There may be a small gap between the rear
middle log and the ramp log, this is normal..
Be careful not to push the rear burner out
of position while installing this log.
9. Rest the rear log (18" D-069, 24" & 30"
D-043) on the chassis behind the rear
burner as shown in Figure 9. The bottom
of the rear log will sit into the rear log sup-
ports.
Figure 9 - Installing Rear Log
Rear Log

www.fmiproducts.com
126045-01A 3
11. Rest the middle crossover log (18" D-070,
24" & 30" D-044) onto the right middle log
and the left front log (see Figure 11). Make
sure to match the projection on the bottom
of the crossover log with the recess area in
the right middle log and the left front log.
12. Place the top rear log (18" D-071, 24" &
30" D-045) onto the rear log as shown. The
rear log has a projection that will t into the
recess area on the bottom of the top rear
log (see Figure 12).
INSTALLATION
Continued
Figure 10 - Installing Left Top Log
Figure 11 - Installing Middle Crossover Log
Figure 12 - Installing Top Rear Log
Rear Log
Left Top Log
Left
Middle
Log
Top Rear
Log
Rear Log
Middle
Crossover
Log
10. Place the left top log (D-046) onto the rear
log and the left middle log. Make sure to
place the projection on the bottom of the
left top log into the recessed areas on the
rear and left middle logs (see Figure 10).

126045-01
Rev. A
08/11
2701 S. Harbor Blvd.
Santa Ana, CA 92704
1-866-328-4537
www.fmiproducts.com
LBG18-BM LOG ID
NUMBER
LBG24-BM LOG ID
NUMBER
LBG30-BM LOG ID
NUMBER DESCRIPTION QTY
125851-01 NONE 125852-01 NONE 125852-01 NONE Log, Ramp 1
125851-02 D-064 125852-02 D-057 125853-01 D-038 Log, Left Front 1
125851-03 D-065 125852-03 D-058 125853-02 D-039 Log, Right Front 1
125851-04 D-073 125852-04 D-048 125852-04 D-048 Log, Left Front Ember Bed 1
125851-05 D-072 125852-05 D-047 125852-05 D-047 Log, Right Front Ember Bed 1
125851-06 D-066 125852-06 D-040 125852-06 D-040 Log, Left Middle 1
125851-07 D-067 125852-07 D-041 125852-07 D-041 Log, Right Middle 1
125851-08 D-068 125852-08 D-042 125852-08 D-042 Log, Rear Middle 1
125851-09 D-069 125852-09 D-043 125852-09 D-043 Log, Rear 1
125851-10 D-046 125851-10 D-046 125851-10 D-046 Log, Left Top 1
125851-11 D-070 125852-11 D-044 125852-11 D-044 Log, Middle Crossover 1
125851-12 D-071 125852-12 D-045 125852-12 D-045 Log, Top Rear 1
125851-13 NONE 125851-13 NONE 125851-13 NONE Log, LBG-BM Switch 1
PARTS
LOG MODELS
LBG18-BM, LBG24-BM, LBG30-BM
Cross reference log numbers.
