NNSSTTAALLLLAATTOONN NNSSTTRRUUCCTTOONNSS
PPrreelliimmiinnaarryy NNootteess BBeeffoorree nnssttaallllaattiioonn
This is a High Efficiency, Flueless, nset Live Fuel Effect appliance. t provides radiant and con-
vected warmth both efficiently and safely utilising the latest type catalytic converter burner
technology.
The fire incorporates a thermostatically controlled gas valve which can be adjusted by the
control knob on the front of the gas valve. The fire is designed to reduce its heat output as
the temperature in the room in which it is installed rises. The main burner will automatically
switch from low to pilot as the room temperature continues to rise. As the room temperature
cools the main burner will switch from pilot to low and then adjust its input as required.
This fire incorporates a combustion monitoring system (Oxygen Depletion Sensor). t must
not be adjusted or put out of operation. f replaced then manufacturers original parts must be
used.
The fire is designed to fit various types of situations as listed in the nstallation Requirements.
This appliance must be installed in accordance with the rules in force and only used in a suf-
ficiently ventilated space. A minimum of 100cm2 ( (15.5 in2) purpose provided ventilation is
required for this appliance, an openable window or louvre is also required. This appliance is
factory set for operation on the gas type, and at the pressure stated on the appliance data
plate.
The room size should be a minimum of 30m3(1059ft3) to allow adequate circulation of air and
ensure the correct operation of the fire when installed in a living room. This volume may
include adjacent spaces but these spaces must not be separated by a door. n order to con-
vert from cubic feet (ft3) to cubic metres (m3) divide the room volume (in ft3) by 35.3.
The appliance must not be installed in a bedroom, bathroom or any sleeping area. The appli-
ance does not require a flue system of any type as the catalytic converter cleans the com-
bustion products to provide a complete combustion system which is intrinsically safe.
The appliance must be installed by a competent person in accordance with Gas Safety
( nstallation and Use) Regulations 1998 or rules in force. t is strongly recommended that a
CORG registered engineer is used for this purpose as they are the only persons approved by
the HSE under the above regulations.
On initial lightup of a new appliance, the ‘newness’ will very quickly burn off within the first
5 minutes of operation. During this period some smoke may be emmited from outlet louvres,
this should be no cause for concern. Accordingly, the room should be well ventilated with all
windows and doors open during this period.
Read all these instructions before commencing installation.

MMPPOORRTTAANNTT NNOOTTEESS
This fire is an nset Live Fuel Gas Fire, providing radiant and convected warmth. t is designed to operate on
Natural Gas following factory set adjustments, (see Data Plate on appliance for gas type and pressure).
t is the LAW that all gas appliances and fittings are installed by a competent person (such as a CORG regis-
tered fitter) and in accordance with the Gas Safety ( nstallation and Use) Regulations 1998, the relevant British
Standards for nstallation, Codes of Practice and the Manufacturers' nstructions. The installation shall also be
carried out in accordance with the following regulations:
The Building Regulations issued by the Department of the Environment, the Building Standards (Scotland)
(Consolidation) Regulations issued by the Scottish Development Department.
RReelleevvaanntt BBrriittiisshh ssttaannddaarrddss iinnssooffaarr aass tthhee rreelleevvaanntt aarreeaass aarree nnoott ccoovveerreedd bbyy tthheessee iinnssttrruuccttiioonnss..
NNoottee:: FFoorr RReeppuubblliicc ooff rreellaanndd,, rreeffeerreennccee sshhoouulldd bbee mmaaddee ttoo tthhee rreelleevvaanntt ssttaannddaarrddss ggoovveerrnniinngg iinnssttaallllaattiioonn.. ((SS
881133:: 11999966))
Failure to comply with these regulations could lead to prosecution and deem the warranty
invalid.
This appliance must be installed in accordance with the rules in force and used only in a suf-
ficiently ventilated space.
Consult ALL instructions before installation and use of this appliance.
This appliance is free from any asbestos material. Refractories and coal bed are constructed
from ceramic fibre.
11
SSeeccttiioonnCCoonntteennttssPPaaggee NNoo..
11..00mmppoorrttaanntt NNootteess11
22..00AApppplliiaannccee DDaattaa22
33..00nnssttaallllaattiioonn RReeqquuiirreemmeennttss22
3.1 Room Sizing 2
44..00SSiittee RReeqquuiirreemmeennttss22
4.1 Ventilation 3
55..00UUnnppaacckkiinngg tthhee AApppplliiaannccee44
5.1 Component Checklist 4
66..00AApppplliiaannccee nnssttaallllaattiioonn44
6.1 Preparing the Appliance 4
6.2 Gas Supply Routes 5
6.3 nstallation Method 1 5
6.4 nstallation Method 2 6
6.5 nstallation Method 3 7
77..00GGaass SSuuppppllyy88
88..00FFiinnaall CCaavviittyy BBooxx FFiixxiinngg88
SSeeccttiioonnCCoonntteennttssPPaaggee NNoo..
8.1 Cable Fixing 9
99..00FFuueell BBeedd LLaayyoouutt99
1100..00FFiittttiinngg DDeeccoorraattiivvee HHoooodd//FFrraammee1111
1111..00TTeessttiinngg aanndd CCoommmmiissssiioonniinngg1111
11.1 Operating the Appliance 11
11.2 Spark Failure 12
11.3 Setting Pressure 12
1122..00BBrriieeffiinngg tthhee CCuussttoommeerr1122
1133..00SSeerrvviicciinngg1122
13.1 Cleaning the Coals 13
13.2 Servicing the Burner Tray 13
13.3 Pilot Assembly 13
13.4 Catalyst 14
13.5 Testing for Firebox Leakage 14
1144..00TTrroouubblleesshhoooottiinngg GGuuiiddee1155
11..00

NNSSTTAALLLLAATTOONN RREEQQUURREEMMEENNTTSS
The fire has been designed to be installed in two main applications; either to fit into a suitable opening creat-
ed in the inner leaf of an outside wall or false chimney breast/extended fire surround built to conceal the
appliance. The appliance can also be fitted into an unserviceable or inoperative fireplace served by a disused
natural draught flue. t is recommended that the old flue should be partially sealed off to prevent draughts,
however some ventilation will be required in the old flue to prevent condensation and dampness.
The cavity box and firebox must be installed onto a suitable non-combustible insulating surface at least 12 mm
thick covering the entire base area of the box. The fire must be used with a back panel capable of withstand-
ing 150°C minimum. Any combustible materials directly behind the fire frame (or back panel) and close to the
cavity box of the fire must be removed and replaced with non-combustible material such as cement, brown-
ing, 'Superlux' board or equivalent materials.
RROOOOMM SSZZNNGG
The room size should be a minimum of 30m3(e.g. 12’x11’6’x7’6”) to allow adequate circulation of air and
ensure the correct operation of the fire. To calculate a room size in cubic metres (m3) divide the room volume
in cubic feet (ft3) by 35.3.
SSTTEE RREEQQUURREEMMEENNTTSS

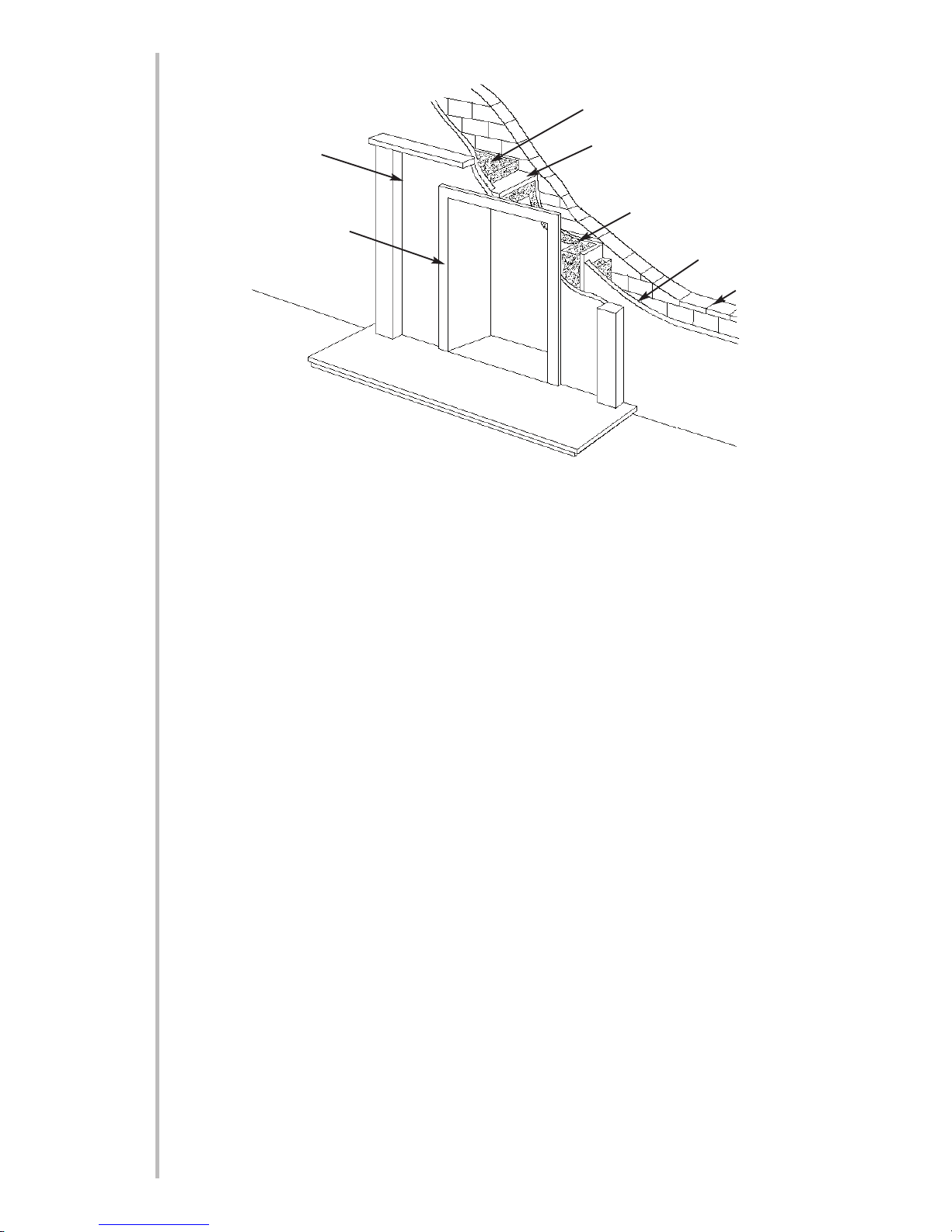

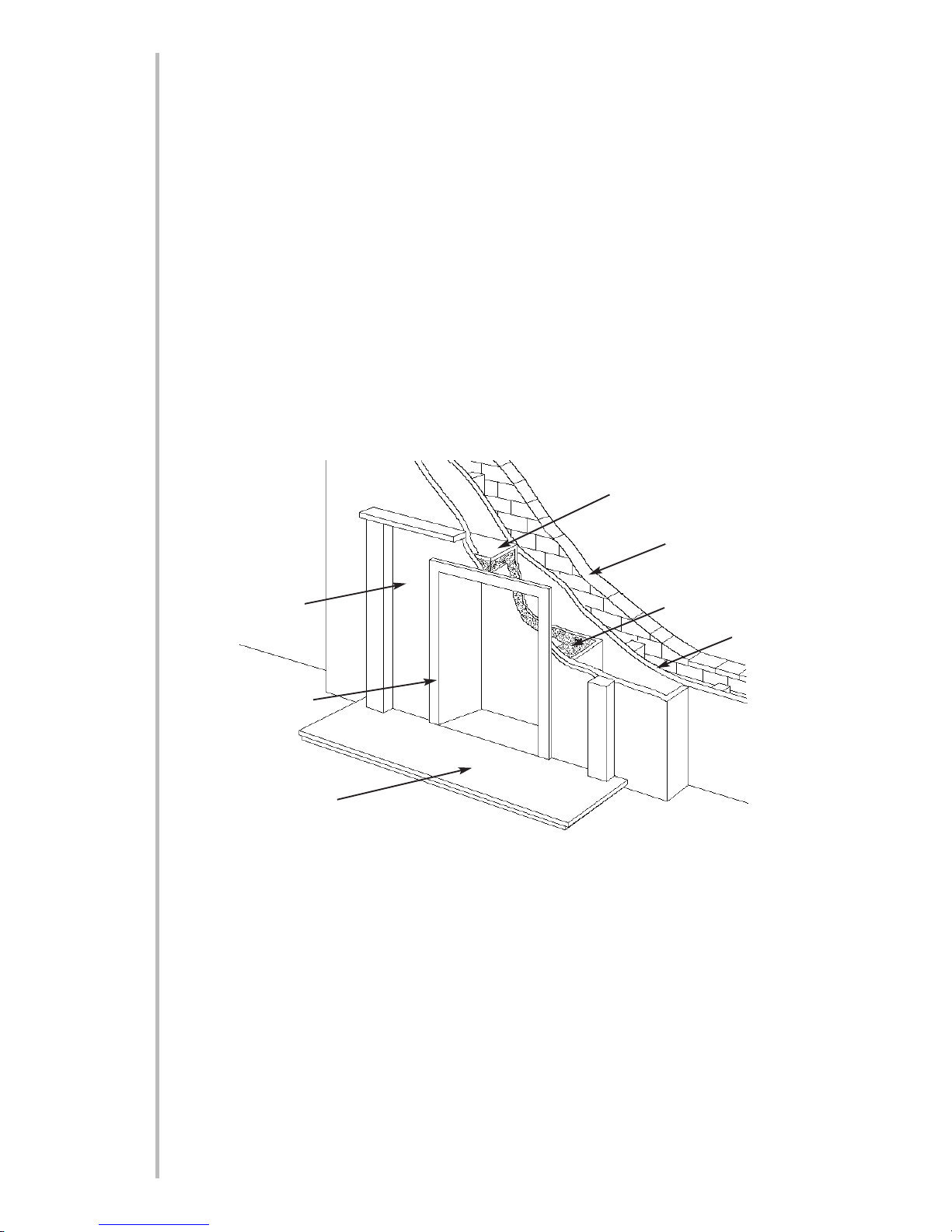

The appliance may be installed by one of the following methods:
1. Fitment against the inner face of a house wall with a suitably constructed false chimney breast or
rebated fire surround to enclose the depth of the fire. f a timber false chimney breast is construct
ed, clearances and insulation must be as for a timber constructed wall.
2. nsertion into a purpose made opening in the inner leaf of a cavity wall or a disused conventional
fireplace opening. Bridging the cavity may cause unwanted moisture to track to the inside of the
house from the cavity and therefore should be avoided. Protection from moisture and falling debris
above the cavity box should be provided. f in doubt consult local building control officers.
3. nstallation into a timber framed house wall using clearances and insulation as described in the
appropriate section. f in doubt, consult local building control officers.
The opening dimensions for insetting the appliance must be;
WWDDTTHH
between 410 mm and 440 mm and
HHEEGGHHTT
between 560 mm and 580 mm high. The opening must be within these sizes for the full depth of the
cavity box in non-combustible applications. Applications involving combustible materials e.g. timber battens in
false chimney breasts, must use appropriate clearances and insulation methods as described in the relevant
section of these instructions.
22
AAPPPPLLAANNCCEE DDAATTAA
Gas Group G20 Natural Gas CAT 2H
nlet Pressure 20 mbar
Max Energy nput Gross 2.6 kW
Net 2.35 kW
Max Gas Rate 0.25 m3/h
Min Energy nput Gross 2.1 kW
Net 1.89 kW
Pilot Energy nput Gross 166 W
Net 150 W
Burner Pressure High 7.7 (+/- 0.25) mbar. Hot
6.5 (+/- 0.25) mbar. Cold
Low 4.8 (+/- 0.25) mbar. Hot
Main njector Burner Stereo. Size 60 / Bray Cat 82-280
Gas nlet Connection 8 mm compression
gnition Piezo spark
Spark Gap 4.0 mm (± 1.0mm)
Weight 23 Kg
PPlleeaassee sseeee DDaattaa BBaaddggee aaffffiixxeedd ttoo aapppplliiaannccee ffoorr ccuurrrreenntt ddaattaa..
TThhiiss aapppplliiaannccee iiss ffoorr uussee oonnllyy wwiitthh tthhee ggaass ttyyppee,, aanndd aatt tthhee pprreessssuurree ssttaatteedd oonn tthhee aappppllii--
aannccee DDaattaa BBaaddggee..
22..00
33..00
33..11
44..00

SSTTEE RREEQQUURREEMMEENNTTSS ((ccoonnttiinnuueedd))
Opening
DDEEPPTTHH
must be 145 mm or greater. Opening
DDEEPPTTHH
includes any plaster, cement or infill/back pan-
els that form part of the installation.
n the event that the fire is sited in a disused or unserviceable fireplace served by a natural draught flue, any
existing under grate draught device should be sealed off to prevent loss of heat or creation of draughts. The
passageway into the flue should be partially sealed to prevent excessive draughts, however some ventilation
will be required in the old flue to prevent condensation and dampness. Advice should be sought from your
local building control officer.
f a concealed gas connection is to be made, the supply pipe should always be sleeved through walls and
floors using the shortest possible route. t is possible to install the gas supply from the side of the hearth and
round into the cavity but use only factory sleeved pipe. A length of no more than 1.5m of 8mm diameter pipe
must be used to avoid unnecessary pressure drops.
The wall for the opening must be non-combustible or prepared as described in the relevant section. Bare plas-
terboard must be protected by non-combustible plaster or replaced with non-combustible material (e.g.
Superlux board). Any gap between wall boards and the wall must be filled using glass fibre insulation, silicone
mastic or similar material to prevent heat ingress.
f the appliance is to be installed as a 'hole in the wall' fire it does not require any hearth as such, providing it is
mounted more that 150mm (6") above floor level. NOTE: Depending on the fret and trim type supplied with
the fire, a suitable non-combustible ledge for placement of the fire front will be required.
The appliance requires a hearth with non-combustible surface of at least 12 mm thick, projecting 100mm from
the front of the appliance. The top surface must be at least 50 mm above the surrounding floor level or be sur-
rounded by a raised edge or fender 50 mm high.
Any type of fire surround used with this appliance must be adequately sealed to the wall and floor to prevent
excess draughts from around the back of the fire. The temperature rating of any surround used must be 150°C.
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions
given below.
The shelf depth may be greater but the height must also be increased accordingly. An increase in height of 25
mm is required for every 12.5 mm of additional shelf depth. For shelves that are too low protective devices
can be used such as metal heat deflectors, but it must be assured that the shelf does not reach an unaccept-
able temperature before relying on such a solution. A non-combustible shelf may be fitted to within 100mm of
the top edge of the fire frame, but any articles placed on it must also be tolerant of high temperatures.
Combustible materials such as wood may be fitted to within 100mm (4in) of either side of the fire frame /
trim, providing the forward projection does not exceed 100mm (4in). Any combustible sidewalls must be at
least 500mm to the side of the radiant heat source.
As with all heating appliances any decorations, soft furnishings and wall coverings (i.e. flock, blown vinyl and
embossed paper) positioned too close to the appliance may discolour or scorch.
VVEENNTTLLAATTOONN
A minimum of 100 cm2purpose provided ventilation is required for this appliance. An openable window or
louvre is also required. The requirements of other gas appliances operating in the same room or space must
be taken into consideration when assessing ventilation.
Any ventilation fitted must comply with BS 5871 part 2 and BS 5440 part 2 insofar as the relevant areas are
not covered by these instructions. Ventilation fitted under or within immediate vicinity of the appliance must
not be used as it may adversely effect performance of the ODS system. The appliance MUST NOT be
installed in a bedroom, bathroom or any sleeping area. For Republic of reland, see relevant rules in force.
33
MMaaxxiimmuumm ddeepptthh ooff sshheellffMMiinniimmuumm ddiissttaannccee ffrroomm hheeaarrtthh ttoo uunnddeerrssiiddee ooff sshheellff
180mm 850mm
100mm 790mm
44..00
44..11

UUNNPPAACCKKNNGG TTHHEE AAPPPPLLAANNCCEE
Stand the carton the right way up, cut the strapping bands and remove the top endcap. Read ALL these
instructions before continuing to unpack or install this appliance.
Remove the box containing the cast front fret, and the box containing the ceramic coals and other ceramic
firebed components. Remove the cardboard packing pieces and any other bags or boxes containing fittings
or other parts. When all loose parts have been removed, the outer sleeve may be lifted off to reveal the appli-
ance. Check that the components supplied against the component checklist. Please dispose of all the pack-
aging materials at your local recycling centre.
CCOOMMPPOONNEENNTT CCHHEECCKKLLSSTT
QQUUAANNTTTTYYDDEESSCCRRPPTTOONN
1 Cavity box, firebox and burner assembly fitted with glass panel
1 Decorative frame
1 Hood
1 Cast front fret with separate ashpan door
1 Moulded ceramic fibre combustion matrix
14 ndividual ceramic coals (5 moulded and 9 broken)
2 Ceramic fibre side cheeks
1 Ceramic backpanel
2 Sealing grommets
1 Cable fixing kit
1 Screw and rawl plug pack
1 Set of manufacturers instructions and warranty card
AAPPPPLLAANNCCEE NNSSTTAALLLLAATTOONN
NNoottee:: EEnnssuurree tthhaatt tthhee ggaass ssuuppppllyy iiss iissoollaatteedd bbeeffoorree ccoommmmeenncciinngg iinnssttaallllaattiioonn ooff tthhee aapppplliiaannccee..
The fireplace opening and environment must be in compliance with specifications laid down in the appropri-
ate sections of these instructions.
PPRREEPPAARRNNGG TTHHEE AAPPPPLLAANNCCEE
Remove the appliance from its carton as described previously and stand on a dustsheet. Remove the glass
panel and place it and the coals, ceramics and fixings safely to one side.
Lay the fire on its back. Remove the firebox assembly from the cavity box by removing the fixings provided on
the front of the firebox frame. Place the firebox to one side for the time being.
Knock out holes are provided in the rear and sides of both the cavity box and inner firebox for use where con-
cealed pipework is required. Knock out the appropriate holes with a sharp tap from a hammer and fit the rub-
ber grommets supplied. A small incision can now be made in the rubber to slip snugly around the outside of
the supply pipe and sleeving.
NNoottee:: DDoo nnoott iinnssttaallll oorr uussee tthhee aapppplliiaannccee wwiitthhoouutt tthheessee sseeaallss iinn ppllaaccee..
44
55..00
55..11
66..00
66..11

GGAASS SSUUPPPPLLYY RROOUUTTEESS
The gas supply may enter the fire over
the hearth or by concealed connection
behind the fire.
Following preparation for the fixing
method, the concealed gas supply (if
required) can now be put into place.
When the opening is ready for installa-
tion of the fire the gas supply can be
routed (examples shown in the following
diagram). f the gas pipe has been
sleeved the ends of the sleeving must be sealed. The end of the 8mm pipe should be temporarily sealed to
prevent the ingress of debris during fixing. An inlet restrictor elbow is supplied as part of the burner assembly
to facilitate servicing.
Concealed pipes should not be routed through walls without being protected by sleeving or conduit.
For nstallation Method 1 (mounting against a wall) the supply can be routed in the normal manner. For
nstallation Method 2 (insetting into the inner leaf of a cavity wall) use only factory sleeved pipe in a continu-
ous unjoined length in the cavity of the wall and areas that communicate with the cavity. This is a permitted
gas supply pipe routing.
NNSSTTAALLLLAATTOONN MMEETTHHOODD 11 ((aaggaaiinnsstt aa nnoonn--ccoommbbuussttiibbllee iinnssiiddee wwaallll))
TThhiiss mmeetthhoodd rreeqquuiirreess nnoo mmooddiiffiiccaattiioonnss ttoo tthhee iinntteerrnnaall wwaallll ooff aa pprrooppeerrttyy aanndd iiss aacchhiieevveedd bbyy uussiinngg eeiitthheerr aa ssuurr--
rroouunndd wwiitthh eexxtteennddeedd rreebbaattee oorr aa ffaallssee cchhiimmnneeyy bbrreeaasstt ooff mmiinniimmuumm 114455mmmm iinntteerrnnaall ddeepptthh..
A false chimney breast should be installed, taking into account any guidance given in the section on timber
framed buildings as far as insulation and clearances are concerned. As a general rule, when the false chimney
breast is constructed from combustible materials the cavity box must be insulated with 50 mm of fibre glass
wool or rock wool to the sides, rear and 100 mm to the top. t should also be fitted in a 'Superlux' box with an
external height of 670 mm and a width of 529 mm.
Finally install the fireplace or fire surround and back panel/marble to its finished location.
55
A- Opening Width; Max 440mm,
Min 410mm
B- Opening Height; Max 580mm,
Min 560mm
C- Recess Depth; 145mm
Outer Cavity Leaf
Non-combustible Backpanel
False Chimney Breast
A
B
C
66..22
66..33
Non-combustible insi e wall

NNSSTTAALLLLAATTOONN MMEETTHHOODD 22 ((rreecceessssiinngg iinnttoo aa nnoonn--ccoommbbuussttiibbllee wwaallll))
TThhiiss mmeetthhoodd aalllloowwss ffoorr iinnssttaallllaattiioonn ooff tthhee aapppplliiaannccee wwiitthh tthhee rreeaarr ppaarrtt rreecceesssseedd iinnttoo tthhee iinnnneerr lleeaaff ooff aa ccaavviittyy
wwaallll.. TThhiiss sshhoouulldd eennaabbllee aa ssttaannddaarrdd ffiirree ssuurrrroouunndd aanndd bbaacckk ppaanneell//hheeaarrtthh sseett ttoo bbee ffiitttteedd ttoo tthhee wwaallll wwiitthh tthhee
ffiirree pprreesseenntteedd nnaattuurraallllyy iinn aa fflluusshh ffiitttteedd mmaannnneerr.. TThhee ssttrruuccttuurraall iinntteeggrriittyy ooff tthhee wwaallll mmuusstt bbee mmaaiinnttaaiinneedd..
Check on cavity insulation type (if applicable). f cavity insulation is of a loose fill variety take precautions to
prevent excessive loss of material when the inner leaf is opened up by packing the cavity firmly with a mini-
mum 50mm of rockwool or glass fibre. This will hold back any loose material now or in the future.
To maintain the structural integrity of the wall it is recommended that a suitable lintel is fitted. t is sometimes
possible to install this appliance without a lintel depending on the type of wall but the guidance of a qualified
professional or local building control officer is essential to confirm this.
Mark out the area of the proposed fireplace opening on the wall. Obtain a suitable concrete or steel lintel
from a builder's merchant. Drill four holes at the corners of the lintel position and squarely over the fireplace
opening, if possible centrally under a block joint . Clear out the block work in the area and insert the lintel by
saw, or stitch drill and chisel. Do not dry bed the lintel - always bed on mortar and securely slate pin. Clear out
the block work from below the lintel to form the opening for the cavity box of the fire to be inserted.
The top of the exposed area of cavity must be sealed against the ingress of moisture dripping from above. The
best way to do this is a cavity tray but an easier and quicker method is to affix a 'Supalux' or equivalent board
into the cavity. Slope the board towards the outside wall and support with screws, cement, 'Unibond' or sili-
cone mastic etc. This will harmlessly guide all moisture to the outside wall. The exposed sides of the cavity
must be packed with a good depth (minimum 50mm) of glass fibre or rock wool to prevent draughts and heat
loss even if no loose fill material is present. t is good practice to insulate the rear of the fire from the cavity to
prevent heat loss and condensation.
The non-combustible hearth may now be put in place. Again this should not bridge the cavity where it proj-
ects into the wall space. Finally install the fireplace or fire surround and back panel/marble to its finished loca-
tion.
66
A- Opening Width; Max 440mm,
Min 410mm
B- Opening Height; Max 580mm,
Min 560mm
C- Recess Depth; 145mm
Outer Cavity Leaf
Superlux Boar
Lintel
Inner Cavity Leaf
Non-combustible Backpanel
Superimpose
Hearth
B
A
C
66..44

NNSSTTAALLLLAATTOONN MMEETTHHOODD 33 ((ttiimmbbeerr ffrraammeedd bbuuiillddiinnggss))
Where removal of any part of a timber frame is undertaken the structural integrity of the wall must be
retained. The advice of your local building control officer should be sought. f the property is under any NHBC
warranty it is also advised that their advice on this kind of modification is sought.
Either of the two preceding installation methods may be adapted for timber framed buildings, providing extra
care is taken in ensuring combustible materials are adequately protected from the effects of heat.
The appliance must be installed in accordance with the British Gas documents DM2 and DM3 or the nstitute
of Gas Engineers published procedure document GE/UP/7.
Special attention must be paid to the location of studwork frames of the inner leaf and the appliance posi-
tioned accordingly. Wires and pipes that run within the wall must also be taken into account.
nnssttaallllaattiioonn aass ppeerr mmeetthhoodd 11 ((aaggaaiinnsstt iinnnneerr wwaallll))
When using this method of installation the following amendments should be incorporated.
50mm insulation (e.g. rockwool) plus a 12 mm thick fire retardant board, 'Superlux' or equivalent, must be pro-
vided between combustible materials and the sides and rear of the cavity box. 100 mm of insulation (e.g. rock-
wool) plus a 12 mm thick fire retardant board, 'Superlux' or equivalent, must be provided to the top of the cav-
ity box. t is also a good idea to enable as much airflow into and out of the area behind the fire as possible
without excessive heat losses when the fire is off.
77
Superlux Box: External Dims;
Height 670mm, Wi th
529mm, Depth 207mm
Outer Cavity Leaf
Rockwool Insulation 50mm
si es an rear 100mm top
Inner Cavity Leaf
Non-combustible
Backpanel
Cavity Box
66..55
Superimpose Hearth

NNSSTTAALLLLAATTOONN MMEETTHHOODD 33 ((ccoonnttiinnuueedd))
nnssttaallllaattiioonn aass ppeerr mmeetthhoodd 22 ((rreecceessssiinngg iinnttoo aa wwaallll))
When setting the appliance into the wall find a suitable position between frame timbers and open up the hole.
Secure back the damp proof membrane to prevent ingress of damp.
Again 50mm insulation plus a 12 mm thick fire retardant board, 'Superlux' or equivalent, must be provided
between combustible materials and the sides and rear of the cavity box. 100 mm of insulation plus a 12 mm
thick fire retardant board, 'Superlux' or equivalent, must be provided to the top of the cavity box. The exposed
cavity should be sealed off using non-combustible board, ('Supalux' or equivalent), made into a 4-sided box. t
is also good practice to further insulate the cavity with a 50mm layer of Rockwool outside the Superlux box.
Note that the appliance should not be allowed to bridge the cavity in this installation method. t is also a good
idea to enable as much airflow into and out of the area behind the fire as possible without excessive heat loss-
es when the fire is off.
GGAASS SSUUPPPPLLYY
When the opening is ready for installation of the fire the gas supply can be routed via knockout holes (exam-
ples are shown in the diagram shown in section 6.2).
Temporarily fit the cavity box and offer up the firebox assembly to ensure a suitable gas route can be
achieved.
FFNNAALL CCAAVVTTYY BBOOXX FFTTTTNNGG
f not previously carried out, insert the cavity box into the opening and mark the screw locations required for
fixing. Remove the cavity box and drill the previously marked holes in the opening or constructional hearth
area and fit rawl plugs.
Carefully insert the cavity box into the opening and guide the gas pipe through the sealing grommet into its
final routing position and fit the restrictor inlet elbow supplied to the gas pipe. Secure the cavity box by insert-
ing screws in the previously prepared locations.
The cavity box may also be fitted using the cable fixing kit supplied as detailed in the next section.
88
Rockwool to Insulate Cavity
Superlux Box: 12mm thick,
External Dims; Height 670mm,
Wi th 529mm, Depth 207mm
Rockwool Insulation 50mm
si es an rear 100mm top
Inner cavity Leaf
Outer Cavity Leaf
Fireplace Backpanel,
non-combustible
Cavity Box
66..55
77..00
88..00

CCAABBLLEE FFXXNNGG
When using this method for fixing, the minimum depth of the open-
ing must be increased from 145 mm to 175 mm. This is to allow for
the eyebolts and a space for the cable tensioning.
Drill four holes as shown in the diagram and fit the fibre rawlplugs.
f the fireplace does not allow for the exact layout shown, the eye-
bolts should be fixed to give as similar a configuration as possible.
Thread both tensioning cables through the holes at the top of the
cavity box then through both eyelets and back through the lower
holes in the cavity box.
Push the cavity box back into the fireplace, centralise, pull the loose
cables through the holes and into the bottom of the cavity box.
Thread the cable tensioners onto the cables with the nuts screwed
down close to the tensioner head. Slide the screwed nipple onto the
cable, pull cable taut and tighten nipple. Adjust tensioner using a suitable spanner to pull the appliance back
into position, to allow an even pull around the fireplace opening. Visually inspect and repeat if necessary to
achieve a good fit.
NNoottee:: SSuurrpplluuss ccaabbllee MMUUSSTT NNOOTT bbee ccuutt ooffff,, aass tthhiiss wwiillll pprreevveenntt pprrooppeerr iinnssttaallllaattiioonn aafftteerr sseerrvviicciinngg.. CCooiill uupp tthhee
ssuurrpplluuss ccaabbllee aanndd ttuucckk tthhee ccooiillss oouutt ooff tthhee wwaayy..
Fit the firebox assembly into the cavity box securing with the fixings originally removed. Purge the gas supply
thoroughly to purge any air or grains of dirt. Now connect the restrictor elbow to the inlet pipe of the fire tray
and tighten the gas connection. Pressurise the gas supply and test properly for soundness in accordance with
current Approved Codes of Practice.
FFUUEELL BBEEDD LLAAYYOOUUTT
Place the brick panel against the rear of the firebox.
Place the ceramic combustion matrix onto the burn-
er and the ceramic side cheeks onto the matrix.
Ensure that the hole for pilot flame viewing is clear
and easily visible.
Place the front row of 5 moulded coals onto the
matrix, equally spaced across the width of the fire.
They may be at any rotational orientation desired.
Ensure their rear edges do not overhang the flame
ports. Corners or rough edges MUST NOT be allowed
to enter the flame ports.
99
380 mm
200 mm
80 mm
88..11
99..00

FFUUEELL BBEEDD LLAAYYOOUUTT ((ccoonnttiinnuueedd))
Place the centre row of four broken coals, making
sure that they do not fall down into the flame port
but bridge across the spaces as shown. Rotational
orientation maybe as desired.
Place the top row of five broken coals onto the flats in
the matrix. Ensure the coals are not put into holes in
the matrix. Bridge the gaps between the support pil-
lars and rear of the matrix and the centre row of coals.
Rotational orientation may be as desired.
NNoottee:: TThhee ccooaallss mmuusstt nnoott bbee ccrraammmmeedd ttooggeetthheerr oorr iinnsseerrtteedd iinnttoo tthhee hhoolleess iinn tthhee mmaattrriixx.. AA wweellll llaaiidd oouutt,, ggeenneerr--
oouussllyy ssppaacceedd ccooaall llaayyoouutt wwiillll ggiivvee tthhee bbeesstt rreessuullttss..
The edges or corners of the front row
of coals MUST NOT be allowed to
enter the flame slots in the matrix. f in
doubt, pull them forward as far as pos-
sible.
Fit the glass door assembly by locating
the two lugs at its base in the fire sur-
round. Push the top of the door
towards the fire and secure in position
with the 2 screws provided.
SSPPEECCAALL NNOOTTEE:: EEvvaalluuaattee tthhee ffllaammee ppiiccttuurree wwiitthh tthhee ggllaassss ddoooorr iinn ppllaaccee,, ppaayyiinngg ppaarrttiiccuullaarr aatttteennttiioonn ttoo aannyy
ffllaammeess tthhaatt ppllaayy oonnttoo tthhee ffiirreebbooxx ssiiddeess oorr ffoorrwwaarrddss ttoowwaarrdd tthhee ggllaassss ddoooorr.. ff tthhiiss iiss tthhee ccaassee,, ttuurrnn tthhee ccoonnttrrooll
kknnoobb ttoo tthhee OOFFFF ppoossiittiioonn aanndd aallllooww tthhee ffiirree ttoo ccooooll.. RReemmoovvee tthhee ggllaassss ddoooorr,, aanndd aaddjjuusstt tthhee ccooaallss aaccccoorrddiinnggllyy..
TThhiiss wwiillll rreedduuccee tthhee ppoossssiibbiilliittyy ooff hheeaatt ddiissccoolloouurraattiioonn.. BBee ccaarreeffuull nnoott ttoo hhaannddllee tthhee ccooaallss wwiitthh bbaarree hhaannddss aass
tthheeyy qquuiicckkllyy aabbssoorrbb hheeaatt.. tt iiss aallwwaayyss bbeesstt ttoo ssppeenndd aa lliittttllee eexxttrraa ttiimmee aatt tthhiiss ppooiinntt ttoo ggeett tthhee ffllaammee ppiiccttuurree rriigghhtt
tthhaann ttoo hhaavvee qquueerriieess ffrroomm aa ccuussttoommeerr aatt aa llaatteerr ddaattee.. TThhee mmaaiinn ffaaccttoorr aaffffeeccttiinngg ffllaammee ppiiccttuurree aanndd bbaallaannccee iiss
ccooaall llaayyoouutt..
The fire is designed to operate correctly with the coals supplied when assembled according to the instruc-
tions. Never add to the fourteen coals or change them for a different type. Never put combustible or non-
combustible materials, rubbish or other matter into the fire. Please note that it takes approximately 15 minutes
for the full flame effect to be achieved.
1100
99..00

FFTTTTNNGG TTHHEE DDEECCOORRAATTVVEE FFRRAAMMEE AANNDD HHOOOODD
The appliance is supplied with a decorative frame and hood.
A plastic protective coating may have been applied to the
face of the frame assembly; which must be removed at this
stage.
The frame attaches to the firebox either as a three-piece clip-
on assembly, or as a single unit retained by magnets. n the
case of the three-piece assembly the side pieces clip onto
the firebox and should be pushed firmly into position first,
followed by the top bar, which should overlap the sides.
Place the fire fret casting in front of the fire with the ashpan
door beneath. Align centrally with the firebox.
Fit the convector hood to the firebox by engaging the two
mounting hooks into the relevant slots in the firebox. The
hood should be pressed inwards and downwards to secure
into position.
TTEESSTTNNGG AANNDD CCOOMMMMSSSSOONNNNGG
As previously mentioned, firstly turn on and test the gas supply up to the fire for any leaks, in accordance with
current Approved Codes of Practice (ACOPs).

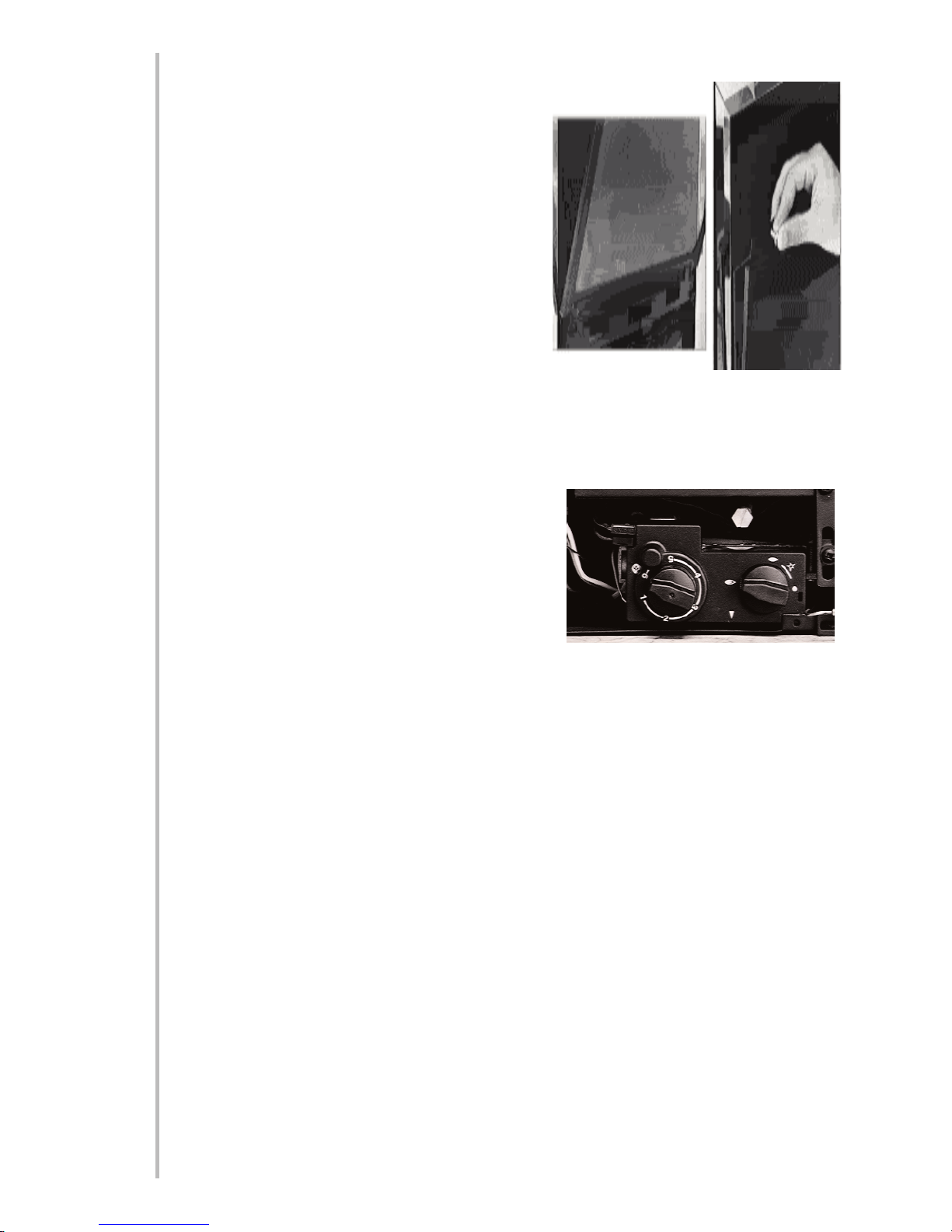

OOPPEERRAATTNNGG TTHHEE AAPPPPLLAANNCCEE
The pilot is visible through a viewing hole in the left hand side
of the matrix.
Turn the thermostat knob to position 6
Turn control knob slightly left towards the ignition position
until reaching the stop, press down and hold for 5 seconds
(only pilot gas is flowing)
Continue pressing down the knob while turning further to the left to activate the piezo spark, continue to hold
the knob down for a further 10 seconds after the pilot has been lit. f the pilot does not light repeat the previ-
ous steps.
Upon lighting and after the further 10 seconds, release the knob and turn further to the left to the ON posi-
tion. The main burner will light and be controlled in accordance with the thermostat knob setting. Adjust the
thermostat knob to the desired setting. The higher the number, the higher the room temperature will become
prior to the fire reducing its heat input. The thermostat knob does not permanently turn the fire on or off.
The fire will operate bewteen maximum and minimum temperature settings, however if the room temperature
continues to rise the main burner may switch off. As the room temperature then falls the main burner will light
again.
f the pilot is extinguished during use of the fire, you MUST wait ten minutes before repeating the ignition pro-
cedure.
To turn the main burner OFF whilst keeping the pilot flame lit, turn the control knob to the pilot position then
only the pilot will remain lit.
To shut the fire off completely, press the knob down and continue turning to the right from the pilot position
to the OFF position.
A safety interlock prevents re-ignition of the pilot flame until the thermocouple has cooled sufficiently to allow
the magnetic valve unit to reset itself.
1111
1100..00
1111..00
1111..11

SSPPAARRKK FFAALLUURREE
The gap between the spark electrode and the pilot should be 3 - 5mm to produce a good spark. There should
be no need to adjust this. f under any circumstances the piezo electric spark fails, the pilot cannot be lit man-
ually.
SSEETTTTNNGG PPRREESSSSUURREE
Remove the screw from the pressure test
point (situated on the main burner supply
pipe, protruding from between the gas valve
and the fire tray) and attach a manometer.
Light the fire and set the thermostat to the
maximum setting (6).
The burner pressure should be in accordance
with the figures stated in the data section of
these instructions. The fire is factory set to
achieve these pressures and any significant
variation could indicate a supply problem. f
the pressure is too high, the gas supply meter
may be set incorrectly. This should be checked with the fire running and if necessary reset by the gas supplier.
f the burner pressure is too low, then check the meter governor pressure with the appliance running. f this is
less than approximately 20mbar it will need to be reset by the gas supplier.
f the setting pressure is too low but the meter pressure is acceptable, then a problem in the supply pipework
is to be suspected. This will be dirt and debris, kinked or inadequate size pipes, restriction in a fitting, shut off
elbow not fully open or solder flashing across a joint.
Switch the fire off, disconnect the manometer and refit the test nipple screw. Light the fire and check for gas
soundness.
BBRREEFFNNGG TTHHEE CCUUSSTTOOMMEERR
All instructions must be handed to the user for safekeeping. Show the customer how to light and control the
fire.
After commissioning the appliance, the customer should be instructed on the safe use of the appliance and
the need for regular servicing. Frequency of service depends on usage, but MUST be carried out at least once
annually.
Advise that cleaning of the fire maybe achieved when the fire is cold using a damp cloth and mild detergent
on most surfaces.
Advise that the fire will emit a "newness" smell for a time after initial commissioning and that extra ventilation
may be needed during this time.
Recommend that a guard be used for the protection of the young, pets, the elderly and the infirm.
SSEERRVVCCNNGG
solate the fire from the gas supply. Ensure that the fire is fully cold before attempting service. A suggested
procedure for servicing is detailed below.
1. Lay out the dustsheet and tools.
2. Remove the hood and front fret.
3. Remove the glass door assembly (2 screws) and clean carefully.
4. Carefully remove the ceramic components.
5. nspect the catalyst and clean if necessary with a soft brush.
6. Disconnect the gas supply and remove the two securing screws in the tray legs.
7. Lift away burner tray assembly.
8. Strip off the burner pipes and clean thoroughly.
9. Clean the injector, pilot assembly and the burner tube. Do not attempt to remove the pilot injector
as this can cause damage.
1122
1111..22
1111..33
1122..00
1133..00

SSEERRVVCCNNGG ((ccoonnttiinnuueedd))
10. Re-assemble and re-fit the burner tray.
11. Turn on the gas supply and leak test. Check pilot and burner for good ignition.
12. Refit the ceramics, paying attention to the final layout as per installation section.
13. Refit the glass door assembly, ensuring a good seal.
14. Refit the hood.
15. Check any purpose provided ventilation is un-obstructed.
16. Light the fire and test setting pressures.
17. Check safe operation of the appliance.
For specific servicing instructions, see relevant sections.
CCLLEEAANNNNGG TTHHEE CCOOAALLSS
Remove the fire front casting and place to one side. Remove the hood. Remove the glass door assembly.
Remove the ceramic components. Gently clean in the open air. Be careful not to create dust from the coals.
Where necessary replace damaged components with genuine spares. Seal scrap ceramic components in plas-
tic bags and dispose at proper refuse sites as directed. f using a vacuum cleaner a HEPA filtering system is rec-
ommended.
Re-fit the coals by referring to the relevant section of these instructions. Refit the glass door assembly ensuring
a good seal. Refit the hood.
SSEERRVVCCNNGG TTHHEE BBUURRNNEERR TTRRAAYY AANNDD GGAASS AASSSSEEMMBBLLYY
Firstly, remove the hood and front fret, the glass panel, coals and ceramics, and disconnect the gas connection
at the isolator elbow. Remove the burner tray by removing the 2 securing screws through the legs. The gas
connections to the gas valve can now be released. Remove the pilot and main burner pipes and blow through
to dislodge any debris. Remove the injector elbow and blow through to make sure it is entirely clear.
When replacing the injector elbow, ensure that it aligned accurately with the centre of the mixer tube entering
the burner and not at an angle. Always make sure that the nut securing the injector elbow is tight. Unclip the
pilot lint gauze and clean with a soft brush. Clean the exterior of the pilot assembly with a soft brush and blow
through the flame ports on the pilot head. Check the aeration holes are free from lint or dirt. The pilot assem-
bly can be removed if required by disconnecting the electrode lead, gas pipe and unscrewing the mounting
screws and lifting away.
The pilot assembly is a non-serviceable item and should not be taken apart. Aeration holes must be absolutely
clear internally for proper operation.
NNEEVVEERR MMOODDFFYY OORR BBEENNDD TTHHEE TTHHEERRMMOOCCOOUUPPLLEE TTOO MMAAKKEE TTHHEE
PPLLOOTT SSTTAAYY AALLGGHHTT
. f the pilot will not stay lit there may a problem with dirt, the gas supply, or the thermo-
couple needs replacement. Modifications are dangerous and can have a serious unseen effect on safety.
The gas valve is a non-serviceable item. f this needs replacement, remove the two M5 securing screws and
remove the complete valve. Replacement must be done using original manufacturers parts.
Re-assembly in the reverse of removal.
PPLLOOTT AASSSSEEMMBBLLYY
Remove the burner tray as in relevant section and pilot unit as described.
Clean the pilot assembly with a soft brush and blow through. Check the aeration holes are free of any dirt or
lint. Clean thoroughly internally, the connection can be removed from the base of the pilot unit using two
spanners to make cleaning easier. Do not damage or try to remove the pilot injector.
The unit is factory set and the only check necessary is to ensure the spark gap is correct. See specifications
for gas setting.
NNEEVVEERR MMOODDFFYY OORR BBEENNDD TTHHEE TTHHEERRMMOOCCOOUUPPLLEE TTOO MMAAKKEE TTHHEE PPLLOOTT SSTTAAYY AALLGGHHTT
. f the pilot will not
stay lit there is a problem with dirt, the gas supply, or the thermocouple needs replacement. Modifications are
dangerous and can have a serious unseen effect on safety and therefore MUST not be done. Replacement
must be done using original manufacturers parts.
1133
1133..00
1133..11
1133..22
1133..33

CCAATTAALLYYSSTT
t is recommended that the catalyst is inspected for signs of damage and dirt during routine servicing proce-
dures.
The expected life of the catalyst is in excess of 11,000 hours (10 years of normal use). After this time the cata-
lyst should be replaced.
f there are any deposits of dirt or soot on the catalyst they should be cleaned with a soft brush and a vacuum
cleaner. f removed for cleaning ensure the seals are in good condition before replacing the catalyst. New
seals will usually be required.
The performance of the catalyst may be checked using a Carbon Monoxide (CO) analyser as follows. Position
gas sample probe directly over the catalyst via the lower outlet louvre, in the centre of the upper firebox.
gnite the fire as per the operating instructions, and run at Maximum setting for 15 minutes. The Carbon
Monoxide (CO) concentration of the gases emmited by the Catalytic Converter should not exceed 15 p.p.m.
(0.0015%).
mmppoorrttaanntt:: TThhee tteemmppeerraattuurree ooff tthhee ggaasseess eemmmmiitteedd bbyy tthhee ccaattaallyyttiicc ccoonnvveerrtteerr iiss iinn eexxcceessss ooff 440000 oocc.. MMeeaassuurriinngg
ggaass ooff tthhiiss tteemmppeerraattuurree mmaayy ddaammaaggee ssoommee ttyyppeess ooff ggaass aannaallyysseerrss.. ff iinn ddoouubbtt ccoonnssuulltt tthhee eeqquuiippmmeenntt mmaannuuffaacc--
ttuurreerr..
f replacing the catalyst, remove the hood and front fret, the glass panel. The catalyst is located behind the top
front panel (6 screws), remove these screws and the top panel. Withdraw the catalyst and its seals from the
firebox and discard.
Refit a new catalyst and seals in reverse order.
TTEESSTTNNGG FFOORR FFRREEBBOOXX LLEEAAKKAAGGEE
Appliances that are several years old or have been extensively dismantled should be checked for soundness. t
is important that all the products of combustion pass through the catalytic converter at the top of the firebox
before leaving the appliance.
The firebox is heated by lighting for a few minutes to provide a flow through the firebox and catalytic convert-
er. The burner is then shut off and a smoke pellet or match introduced at the base of the fire underneath the
burner tray. Large quantities of smoke will emerge from the top of the appliance but none should emerge from
around the door. t is important to note that the appliance can never be expected to be 100% smoke tight and
small quantities of smoke may be seen in corners of joints and mating faces etc without affecting safety when
the fire is actually in operation.
1144
1133..44
1133..55

TTRROOUUBBLLEESSHHOOOOTTNNGG GGUUDDEE
FFiirree ssppaarrkkss bbuutt ppiilloott ddooeess nnoott lliigghhtt
No gas to fire - check isolators are open.
Pipe work blockage or kink - rectify.
Air not fully purged - re-purge supply or wait longer.
Spark earthing to metal work - check gap is correct.
Blocked pilot - check and replace where necessary.
PPiilloott lliigghhttss bbuutt tthheenn ggooeess oouutt
Severe restriction in gas supply - clear obstruction.
Faulty thermocouple - replace pilot unit.
Blocked pilot - replace.
Blocked lint gauze - clean.
Hold control knob in for longer.
NNEEVVEERR MMOODDFFYY OORR BBEENNDD TTHHEE TTHHEERRMMOOCCOOUUPPLLEE TTOO MMAAKKEE TTHHEE
PPLLOOTT SSTTAAYY AALLGGHHTT
. f the pilot will not stay lit there is a problem
with dirt, the gas supply, or the thermocouple is in need of replace
ment. Modifications are dangerous and can have a serious unseen
effect on safety.
FFiirree ddooeess nnoott ssppaarrkk aatt ppiilloott
Electrode lead detached - refit.
Spark gap too large or small - reset correctly.
Faulty piezo unit - replace gas valve.
Debris shorting out electrode - clean.
Spark shorting to metalwork under tray - realign electrode lead.
FFiirree rruunnss ffoorr aa ttiimmee aanndd tthheenn ccuuttss ooffff
Check pilot has extinguished. (As the room temperature rises the
thermostat will regulate the output of the fire down to pilot, as the
room temperature falls, the main burner will relight)
Ensure room sizing and ventilation are adequate (See Section 3.1
and 4.1)
Loose or faulty thermocouple - rectify.
Blocked pilot - replace.
Dirt or lint in pilot aeration hole or on the lint gauze - clean thor
oughly.
NNEEVVEERR MMOODDFFYY OORR BBEENNDD TTHHEE TTHHEERRMMOOCCOOUUPPLLEE TTOO MMAAKKEE TTHHEE
PPLLOOTT SSTTAAYY AALLGGHHTT
. f the pilot will not stay lit there is a problem
with dirt, the gas supply, or the thermocouple needs replacement.
Modifications are dangerous and can have a serious unseen effect
on safety.
PPiilloott ffllaammee sshhrriinnkkss wwhheenn ffiirree iiss oonn hhiigghh
Poor gas flow to fire - check pressure with fire on high.
f pressure is low - remove any restriction in pipework or valve.
Check all isolators are adequately sized and fully open.
Check meter pressure is adequate.
NNEEVVEERR MMOODDFFYY OORR BBEENNDD TTHHEE TTHHEERRMMOOCCOOUUPPLLEE TTOO MMAAKKEE TTHHEE
PPLLOOTT SSTTAAYY AALLGGHHTT
. f the pilot will not stay lit there is a problem
with dirt, the gas supply, or the thermocouple needs replacement.
Modifications are dangerous and can have a serious unseen effect
on safety.
FFiirree ssmmeellllss wwhheenn ffiirrsstt lliitt oorr iinn uussee
Newness smell from brand new appliance. (See Preliminary Notes
section)
Leakage occurring - Carry out leakage test and rectify any problems.
Low temperature sealants or combustible materials used in incor
rect positions.
1155
1144..00

UUSSEERR NNSSTTRRUUCCTTOONNSS
SSeeccttiioonnCCoonntteennttPPaaggee NNoo
1.0 mportant Notes 1
2.0 Fire Front 2
3.0 Clearances to Combustibles 2
4.0 Ventilation and Room Size 2
5.0 Operating nstructions 2
6.0 Combustion Spillage Monitoring System 3
7.0 Cleaning 3
8.0 Coals and Ceramics 3
9.0 Servicing 3
10.0 List of Replacement Parts 4
MMPPOORRTTAANNTT NNOOTTEESS
The installation and Servicing of this fire MUST only be carried out by a competent person (such as a CORG
registered fitter) in accordance with the Gas Safety ( nstallation and Use) Regulations 1998, the relevant British
Standards, Codes of Practice, the Building Regulations and the manufacturer's instructions.
Failure to comply with the above recommendations could lead to prosecution and invalidate the appliance
warranty.
Please ensure you are handed all of the manufacturers documents on completion of the installation. This will
include these instructions.
Always keep a note of the installer's name and address, the original purchase receipt and the date of installa-
tion for future reference.
The fire should be serviced regularly to ensure continued safe operation. See the servicing section of the
nstallation nstructions for further reference.
Parts of this appliance become naturally hot during use. t is recommended that a suitable fireguard conform-
ing to BS 6778 or BS 6539 is used, especially where young children, pets, the elderly or infirm are concerned.
The manufacturer of this appliance considers all surfaces as working surfaces with the exception of the control
knob, control panel and ash pan cover.
Combustible items, such as flooring and furniture and soft wall coverings (such as blown vinyl or embossed
paper), low temperature surrounds etc may discolour if fitted too close to the fire. See relevant section for fur-
ther details on clearances to combustibles. No combustible materials or flooring should protrude onto the
hearth.
This appliance incorporates a combustion monitoring system (Oxygen Depletion Sensor).
DO NOT burn any foreign material on this fire. The coals must be of the correct type and laid out in accor-
dance with the relevant section of the these instructions. Failure to do so may create a hazard or lead to soot-
ing. Under no circumstances shall the appliance be used if the glass front door or panel has been removed,
damaged or is open.
The integral catalytic converter should be checked by the installer upon servicing to ensure there are no
defects or obstructions that may prevent the satisfactory flow of combustion products.
The expected life of the catalytic converter is in excess of 11,000 hours (10 years of normal use). After this
time the catalytic converter should be replaced.
This appliance is only suitable for the gas type for which it is supplied.
11
11..00

FFRREEFFRROONNTT
This fire is supplied with a particular style of fire front. Use of the fire front will ensure an adequate airflow
under the firebox for the correct functioning of this appliance. Compliance with safety standards cannot be
guaranteed when another style of front is used.
CCLLEEAARRAANNCCEESS TTOO CCOOMMBBUUSSTTBBLLEESS
A non-combustible shelf may be fitted to within 100mm of the top edge of the fire frame. However the items
placed on it must also be able to withstand high temperatures.
A combustible shelf may be fixed to the wall above the fire, providing that is complies with the dimensions
given below.
Combustible materials, such as wood, may be fitted to within 100mm (4in) of either side of the frame of the
appliance, providing the forward projection does not exceed 100mm (4in).
Any combustible sidewalls must be at least 500mm to the side of the radiant heat source.
As with all heating appliances any decorations soft furnishings and wall coverings (i.e. flock, blown vinyl and
embossed paper) positioned too close to the appliance may discolour or scorch.
VVEENNTTLLAATTOONN AANNDD RROOOOMM SSZZEE
Purpose provided ventilation of 100cm2is required for this appliance. An openable window or louvre is also
required.
Any ventilation fitted must comply with BS 5871 part 2 and BS 5440 part 2. Ventilation fitted under, or within
immediate vicinity of the appliance must not be used as it may adversely effect performance of the combus-
tion monitoring system (ODS) system.
The requirements of other appliances operating in the space or room must be taken into consideration when
assessing ventilation requirements, this will have been carried out by your CORG registered installer.
A supply of fresh air into the room is advisable to maintain temperatures within limits.
The appliance MUST NOT be installed in a bedroom, bathroom or any sleeping area.
For Republic of reland, see relevant rules in force.
The room size should be a minimum of 30m3to allow adequate circulation of air and ensure the correct oper-
ation of the fire. This volume may include adjacent spaces, but these spaces must not be seperated by a door.
OOPPEERRAATTNNGG NNSSTTRRUUCCTTOONNSS
The pilot is visible through the small hole in the left hand side
of the coal bed front edge.
Turn the thermostat knob to position 6
Turn control knob slightly left towards the ignition position until
reaching the stop, press down and hold for 5 seconds (only
pilot gas is flowing)
Continue pressing down the knob while turning further to the
left to activate the piezo spark, holding the knob down for a
further 10 seconds after the pilot has been lit. f the pilot does not light repeat the previous steps.
22
MMaaxxiimmuumm ddeepptthh ooff sshheellffMMiinniimmuumm ddiissttaannccee ffrroomm hheeaarrtthh ttoo uunnddeerrssiiddee ooff sshheellff
180mm 850mm
100mm 790mm
22..00
33..00
44..00
55..00

OOPPEERRAATTNNGG NNSSTTRRUUCCTTOONNSS ((ccoonnttiinnuueedd))
Upon lighting and after the further 10 seconds, release the knob and turn further to the left to the ON posi-
tion. The main burner will light and be controlled in accordance with the thermostat knob setting. Adjust the
thermostat knob to the desired setting, the higher the number, the higher the room temperature will become
prior to the fire reducing its heat input.
The fire will operate bewteen maximum and minimum temperature settings, however if the room temperature
continues to rise the main burner may switch off. As the room temperature then falls the main burner will light
again.
f the pilot is extinguished during use of the fire, you MUST wait ten minutes before repeating the ignition pro-
cedure. To turn the main burner OFF whilst keeping the pilot flame lit, turn the control knob to the pilot posi-
tion, only the pilot will remain lit. To shut the fire off completely press the knob down and continue turning to
the right from the pilot position to the OFF position.
A safety interlock prevents re-ignition of the pilot flame until the thermocouple has cooled sufficiently to allow
the magnetic valve unit to reset it self.
CCOOMMBBUUSSTTOONN MMOONNTTOORRNNGG SSYYSSTTEEMM
This fire is fitted with a combustion monitoring safety device (ODS). f the fire shuts down during use for no
apparent reason then several reasons may be suspected. f a door or window has been opened creating a
draught, then pilot disturbance could be the problem and removal of the draught should resolve this. The fire
can then be re-lit in accordance with the previous section. A grommet seal may also be missing from the fire-
box causing abnormal draught to shut down the pilot. Call your installer to check seals are properly fitted.
f pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance
OFF, call in your installer to check the appliance and ventilation. Remedial work must be carried out as
required. DO NOT allow the appliance to be used until the appliance and installation is passed as safe. f the
pilot continues to be extinguished you must call your installer to check the operation of the complete appli-
ance.
CCLLEEAANNNNGG
Before carrying out any of the following operations ensure that the fire is OFF and completely cold.
Debris that may form on the fire bed should be periodically removed by a competent person. Large deposits
could indicate incorrect coal placement. This should be remedied by a competent person and the fire serv-
iced before further use. To gain access to the fire bed, remove the hood and glass door assembly. The hood
should be lifted and pulled outwards. Next remove the door by removing the 2 screws and disengaging the 2
lugs at the bottom. The glass can be cleaned using a proprietory hob cleaner. Test on a small area first.
F REFRONT - Any dust accumulating in the fire front may be removed using a vacuum cleaner or dry cloth.
Heavy stains may be removed by using a damp cloth and mild household detergent. Brass parts of the fire
front may be cleaned using a suitable brass cleaner. Replace the front centrally against the fire after cleaning.
PA NTED AREAS - These can be cleaned using a dry cloth.
CCOOAALLSS AANNDD CCEERRAAMMCCSS
Refer to the relevant section of the nstallation section of this booklet for instructions on cleaning and replac-
ing the coals and ceramics.
SSEERRVVCCNNGG
The fire should be checked on an annual basis to ensure it is working safely and that there is no excessive
build up of soot. The frequency of service will depend on usage but MUST be carried out at least once annu-
ally. Servicing must be carried out by a competent person, such as a CORG registered installer.
Cleaning of the coals may be carried out by following the instructions given in the nstallation section. The
nstallation instructions carry full servicing details for the use by the installer.
33
55..00
66..00
77..00
88..00
99..00
