Focal Point JEMEZ User guide

JEMEZ
Fuel Effect Gas Fire
INSTALLATION, SERVICING
AND USER INSTRUCTIONS
All iinstructions mmust bbehhanded ttotthe uuser ffor ssafekeeping
Revision B 07/03
Country(s) of destination: GB, IE
Focal Point Fires plc, Avon Trading Park, Christchurch, Dorset BH23 2BT
: [phone]
Fax: [phone]
www.focalpointfires.co.uk
e-mail: [email protected]
Powaflue

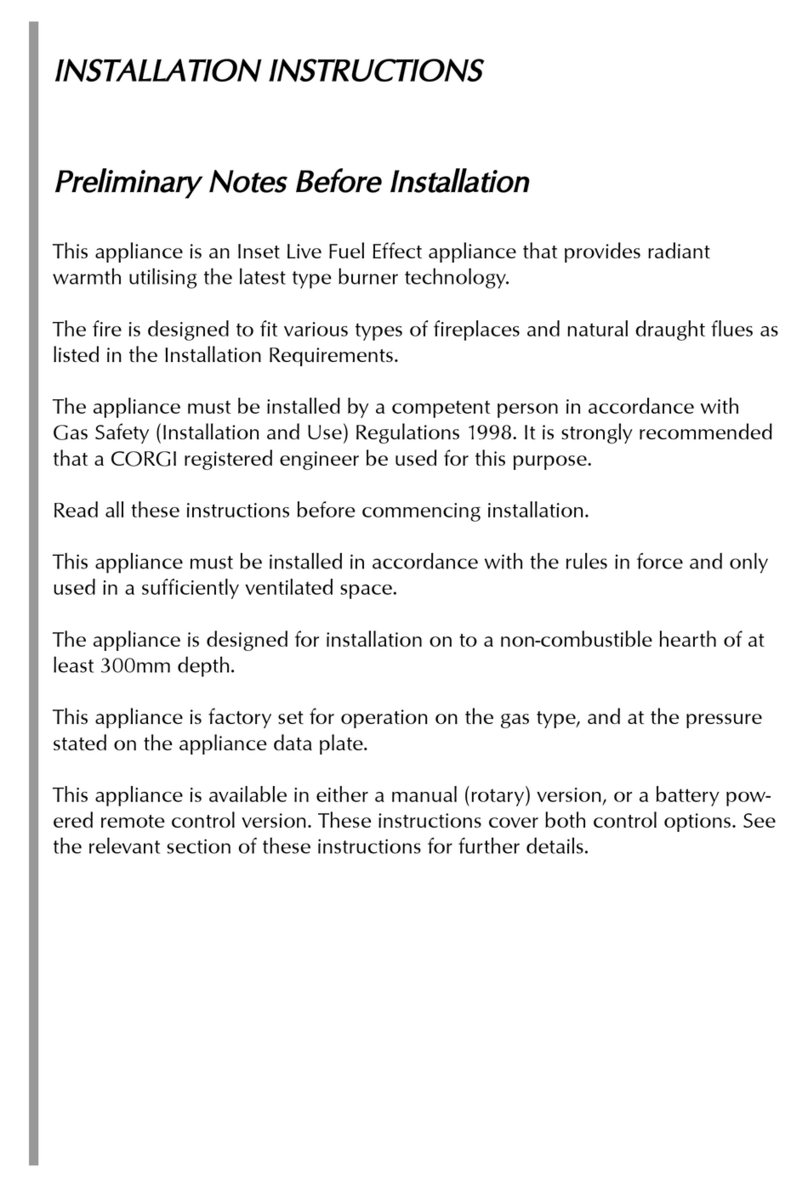

INSTTALLATTION IINSTTRUCTTIONS
PPrelimminnary NNotes BBefore IInnstallationn
This appliance is an Inset Live Fuel Effect appliance which provides radiant
warmth utilising the latest type burner technology.
The fire is designed to fit various types of fireplaces and natural draught flues as
listed in the Installation Requirements.
The appliance must be installed by a competent person in accordance with
Gas Safety (Installation and Use) Regulations 1998. It is strongly recommended
that a CORGI registered engineer be used for this purpose.
Read all these instructions before commencing installation.
This appliance must be installed in accordance with the rules in force and only
used in a sufficiently ventilated space.
The appliance is designed for installation on to a non-combustible hearth of at
least 300mm depth.
This appliance is factory set for operation on the gas type, and at the pressure
stated on the appliance data plate.

IMPORTANT NNOTES
This fire is an Inset Live Fuel Effect Gas Fire providing radiant warmth. It is designed to operate on Natural Gas
only.
It is the LAW that all gas appliances and fittings are installed by a registered competent person (such as a CORGI
registered fitter) and in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant
British Standards for Installation, Codes of Practice and in accordance with the Manufacturers’ Instructions. The
installation shall also be carried out in accordance with the following regulations:
The Building Regulations issued by the Department of the Environment, the Building Standards (Scotland)
(Consolidation) Regulations issued by the Scottish Development Department.
BS 5871 part 2
BS 5440 part 1
BS 1251
BS 6891
BS 6461 parts 1 and 2
BS 5482 part 1 (for LPG appliances)
BS 3456 part 201
BS-EN 60335-2-30
Failure ttoccomplyywwith tthese rregulations ccould llead ttopproseccution aand ddeem tthe wwarrantyy
invalid.
This aapplianccemmust bbeiinstalled iinaaccccordanccewwith tthe rrules iinfforcceaand uused oonlyyiinaa
sufficcientlyyvventilated sspacce.
Consult aall iinstrucctions bbefore iinstallation aand uuse ooftthis aappliancce.
This aappliancceiisffree ffrom aanyyaasbestos mmaterial. RRefracctories aand ccoal bbed aare cconstruccted
from cceramiccffibre.
1
Secction
1.0
2.0
3.0
4.0
5.0
6.0
7.0
7.1
8.0
8.1
8.2
8.3
8.4
8.5
8.6
8.7
Contentss
Important Notes
Appliance Data
Installation Requirements
Terminal Location
Site Requirements
Ventilation
Unpacking the Appliance
Component Checklist
Preparing for Installation
Outer Wall Aperture
Gas Supply Routing
Installation Method 1
Installation Method 2
Installation Method 3
Flue Preparation
Convector Box and Tray
PaggeNNo.
1
2
2
3
4
4
5
5
5
6
6
7
8
9
11
11
Secction
8.8
9.0
10.0
11.0
11.1
11.2
11.3
11.4
11.5
12.0
13.0
13.1
13.2
13.3
13.4
14.0
Contentss
Fitting Fan Terminal
Fuel Bed Layout
Fitting Frame and Front
Testing & Commissioning
Operating the Appliance
Spark Failure
Setting Pressure
Flue Monitoring System
Testing for Spillage
Briefing the Customer
Servicing
Cleaning the Coals
Dismantling the Burner Tray
Checking the Fan Assembly
Control Box Removal
Troubleshooting Guide
PaggeNNo.
11
13
14
15
15
15
15
16
16
17
17
17
18
18
18
19
Note - FFor RRepubliccoofIIreland, rreferencce
sshould bbemmade ttotthe rrelevant sstandardss
ggoverninggiinsstallation, pparticcularly iinrreggard
to fflue ssizinggaand vventilation. SSee IIS813,
ICP3, IIS3277aand aany oother rrulessiinfforcce.
1.0

INSTALLATION RREQUIREMENTS
Compatible wall thicknesses for the Installation Methods detailed in this Guide are as follows;
Note: TThesseddimenssionssaare bbetween tthe ssurfacceooftthe mmarble/bacckpanel aand tthe ssurfacceooftthe ooutsside wwall.
IInntteerrnnaall
This appliance MUST NOT be installed into a room containing a bath or shower, or where steam may be
present. The firebox must be installed onto a suitable non-combustible insulating surface at least 12mm thick,
covering the entire base are of the box. This appliance is suitable for use with a “lightweight” surround and back
panel of 150ºc minimum rating. A suitable gas supply and an electrical 3 Amp fixed fused spur are both required
near the intended appliance site.
EExxtteerrnnaall
Please refer to the diagram on the following page for more details of the most suitable site for the fan terminal.
The terminal must be located so that the outlet is not obstructed in any way allowing poor disposal of
combustion products. A safety cage should be fitted in place over the terminal to ensure compliance with
Byelaws. Terminals located in passageways between two properties, public footpaths or which might discharge
over the same may be subject to local Byelaws on items such as minimum distances for projection. In these
circumstances it is the installers responsibility to check that the location of the terminal does not infringe any
Byelaws. If in any doubt about flue terminal location, especially with regards to garages and car ports then further
advice should be sought from CORGI or the manufacurer.
2
APPLIANCE DDATA
Gas Group G20 Natural Gas CAT I2H
Inlet Pressure 20 mbar
Max Energy Input (gross) 6.2 kW
Min Energy Input (gross) 3.5 kW
Pilot Energy Input (gross) 210 W
Setting Pressure 15.2 mbar
Main Injector Burner Stereo size 78
Gas Inlet Connection 8mm compression
Ignition Piezo spark
Spark Gap 3.5 to 4.5mm
Electrical Supply 230V~50Hz (ac)
Current Rating 0.3A running, 0.4A on start up
Fuse Rating 3 Amp
Approximate Weight Fire Unit 20Kg, Fan Unit 12Kg
Flue Specification Twin walled circular section flue tube provided
with appliance. No additional or alternative flue
may be used. Outer flue tube diameter 120mm
See Data Badge affixed to appliance for current data.
This aappliancceiisffor uuse oonlyywwith tthe ggas ttyype, aand aattthe ppressure sstated oontthe aappliancce
Data BBadge, aand iisffor ddeccorative ppurposes.
2.0
3.0
* These dimensions allow for 25mm Rockwool insulation jacket,
other forms of insulation may require adjustment.
Surface mounted firebox/surface mounted fan terminal.* 75mm 570mm
Surface mounted firebox/recessed fan terminal.* 160mm 660mm
Recessed firebox/surface mounted fan terminal. 220mm 720mm
Recessed firebox/recessed fan terminal. 310mm 810mm
Min Max

INSTALLATION REQUIREMENTS ((continued)
Avoid locating the terminal in close proximity to combustible materials, such as plastic drainpipes and fences. If
these are impossible to avoid, then a suitable metal deflector must be used if the flue gasses begin to heat the
object. For minimum standard dimensions of clearance see below.
Covered areas such as under car ports should be avoided but if no alternative is available the following notes
should be adhered to; The covered area should have at least two open sides (i.e. a roof and ONE supporting wall).
If more than one side is filled, then advice must be sought on the location’s suitability. Any openings into
dwellings such as doors, windows and air vents under the covered area must be at least 1200mm away from the
terminal position. If the roof is constructed from plastic material, great care must be taken with the installation as
there is no simple method of protecting this type of roof from heat build up.
TERMINAL LOCATION
MMiinniimmuummllooccaattiioonnddiissttaanncceess
A - 200mm above ground level.*
B - 200mm below balconies or car ports.
C - 1500mm vertically between terminals.
D - 300mm horizontally between terminals on same wall.
E - 75mm below gutters, soil pipes or drain pipes.
F - 200mm below eaves.
G - 300mm from internal or external corners
H - 75mm from vertical drain pipes.
J - 300mm directly below an openable window or other opening e.g. air vent.
K - 1200mm from an opening into the building under a car port.
L - 600mm from a surface facing the terminal.
M - 1200mm from another terminal facing the terminal.
Care should also be taken with the terminal location relative to nearby plants, grass, or trees as the gases expelled
may be hot enough to damage them. At least 1000mm clearance is recommended.
Note: DDimenssionssrrelate sspeccificcally ttotthe eexhausstooutlet aattthe bbasseoofffan tterminal bbox.
3
4.0
E
H
D
C
G
G
A
J
B
K
L/M
*a suitable metal
deflector may be
required where
plastic pipes are
involved.
Metal deflector plate with
min. 5mm air gap.
4.0

SITE RREQUIREMENTS
For aesthetic purposes it is essential that the hearth and infill plinth area are flat and level. The hearth and infill
must also be square to the back panel. Failure to comply with this could cause the appliance to lean away from
the fireplace resulting in an unsatisfactory installation.
The electrical earth to the property and all wiring must be carried out in accordance with IEE Wiring Regulations
(including any Local Regulations). If you are unsure about this aspect, then professional advice should be sought.
This appliance is suitable for use with a 230V~50Hz (ac) single phase (normal domestic) electrical supply.
Connection to the mains supply should be made with the three core cable (green/yellow -earth, blue - neutral,
brown - live) to a fixed fused spur with double pole insulation (minimum 3mm separation of poles) and fused at
3 amp. Take care not to pull or damage the internal wiring to the the fan unit at any time during installation.
Should the mains cable become damaged at any stage, it should only be replaced with the manufacturers sup-
plied cable (part no. EL006225/0). Failure to use a genuine spare could cause a hazard.
WWAARRNNIINNGG!!TTHHIISSAAPPPPLLIIAANNCCEEMMUUSSTTBBEEEEAARRTTHHEEDD..
If a concealed gas supply is to be used, the supply pipe must be sleeved through walls and floors. If the fire is to
be inset into the cavity leaf, only factory sleeved pipe should be used. For further details see relevant section. A
separate isolation device must be incorporated into the incoming gas supply to facilitate servicing. No more than
1.5 metres of 8mm pipe should be used in the connection of the gas supply to the appliance, as more could result
in an unacceptable drop in pressure.
This appliance must only be installed onto a non-combustible wall or surface. The fire requires a hearth with a
non-combustible surface at least 12mm thick. The top surface of the hearth must be at least 50mm above floor
level, or be surrounded by a raised edge or fixed fender of at least 50mm high. The non-combustible hearth must
extend a minimum of 300mm in front of, and 150mm either side of the live part of the appliance. The hearth must
therefore be a minimum of 680mm wide.
The appliance must be installed by one of the following methods;
1 - Fitment against an existing inner house wall with a suitably constructed fireplace and/or false
chimney breast to enclose the depth of the fire.
2 - Insertion into a purpose made opening in the inner leaf of a cavity wall or disused fireplace opening
with the use of a suitable fireplace surround etc.
Note: TThe aapplianccemmusstnnot bbridggetthe ccavity - aany
overhanggbbeinggkkept ttoaamminimum, aand tthe IInsstallation iinsstrucctionssmmusstbbeaadhered tto. BBuildingg
Control rrequirementssmmay vvary iinssome aareass,eenquiriesssshould bbemmade aaccccordinggly.
3 - Installation into a timber framed dwelling using the clearances to combustible materials shown in the
relevant section. Building Control requirements vary in some areas, enquiries should be made
accordingly.
An unprotected combustible shelf may be fitted above the appliance, provided it complies with the minimum
dimensions stated below. Protective materials can be used to deflect heat from shelves that are too low.
A non-combustible shelf may be fitted to within 10mm of the top edge of the fireframe. Combustible materials,
such as wood, may be fitted to within 100mm (4in) of either side of the frame of the firebox providing it projects
no further forward than 100mm (4in). As with all heating appliances, decorations, soft furnishings and wall
coverings (such as blown vinyl, flock and embossed paper) may discolour or scorch if positioned too close to the
fire. If the appliance is fitted to a dry-lined wall, the gap between the plasterboard and blocks must be sealed with
non-combustible material and any unplastered board replaced with superlux or other non-combustible material
if in direct contact with the appliance.
4
Maximum ddepth oofsshelf MMinimum ddisstancceffrom iinsside eedggeoof
fire fframe ttouundersside oofsshelf
100mm (4in) 203mm (8in)
150mm (6in) 305mm (12in)
203mm (8in) 356mm (14in)
5.0

VENTILATION
No purpose provided ventilation is normally required with this appliance. However, the ventilation requirements
of other gas appliances in the same room or space should be taken into consideration. A spillage test should be
carried out as described in the relevant section with the doors and windows both open and closed, and with any
extractor fan running on full. Where fitted, ventilation must comply with the requirements of BS 5440 part 2.
Vents directly underneath or within the immediate vicinity of appliances
musstnnot
be used as they may
adversely affect ODS pilot operation.
Note: FFor RRepubliccoofIIreland ssee IIS813, IICP3 aand IIS3277aand aany oother rrulessiinfforcce.
UNPACKING TTHE AAPPLIANCE
Stand the carton right way up, cut the strapping bands and remove the top end cap. Read all the instructions
before continuing to unpack or install this appliance.
Remove the box containing the cast front fret, and the bag containing the coals. Remove the cardboard packing
pieces, and any bags containing other fittings or parts. When all loose parts have been removed, the outer sleeve
may be lifted off to reveal the appliance.
Check that the components supplied correlate with the checklist given in section 7.1.
Please dispose of the packaging materials at your local recycling centre.
COMPONENT CHECKLIST
QUAANTITY DESCRIPTION QUAANTITY DESCRIPTION
1 Firebox and burner tray assembly 1 Complete fan assembly
1 Decorative fireframe 1 Twin-walled tubular flue
1 Cast front fret with separate ashpan cover 1 Fan box trim
1 Moulded ceramic fibre combustion matrix 1 Terminal guard cage
11 Moulded ceramic coals
1 Ceramic brick panel
1 Set of manufacturers instructions and guarantee form
1 Bag of fixings (10 rawl plugs, 10 No 8x1.5 screws)
3 Lengths of sealing strip
PREPARING FOR INSTALLATION
Remove the fire tray from the convector box by removing the two securing screws in the front legs of the tray,
and invert the tray onto the hearth. Carefully unplug the safety solenoid on the tray from the control box by
squeezing the clip on the three way connector and easing apart. Place the tray safely to one side along with the
fuel bed components, firefront and decorative frame.
Apply the self adhesive sealing strip to the rear perimeter of the firebox frame, this will eventually seal the firebox
to the fireplace back panel. Place the fire to one side whilst the site is prepared for flue installation. Mark the ver-
tical centreline of the desired location of the appliance after first checking for clearances to pipes and cables in
the wall, and also the terminal position outside.
Note: TThe vverticcal ccentreline ooftthe ppilot hhole wwill bbewwill bbe5500mm ffrom tthe ffloor PPLUS the tthiccknessssooftthe
hearth yyou aare uussingg.TThissddimenssion iissoobvioussly FFROM the hhearth ttop ssurfacceiifiitiissaalready ffitted
Mark the position of the 30mm cable hole in relation to the flue centreline. Using a suitably long masonry bit,
drill through both leaves of the cavity wall. Check outside that the clearances from the hole are adequate for
installation to proceed. Check all dimensions with the diagram in the relevant section. Now drill the 30mm cable
hole in the wall.
5
6.0
8.0
7.0
7.1

PREPARING FOR INSTALLATION ((continued)
OUTER WALL APERTURE
From the outside of the property, open up the pilot hole in the
external leaf of the cavity to the required size.
If the fan terminal is to mounted directly onto the outside wall,
the hole should be opened up to a 125mm diameter aperture
centred around the pilot hole.
If the fan terminal is to be recessed into the outer leaf, the hole
should be opened up to the dimensions given in the diagram.
Clear all the brick rubble and debris that may have fallen into the
cavity. If the cavity wall insulation is obstructing your view of the
inner leaf then clear this back.
GAS SUPPLY ROUTES
The gas supply may enter the appliance across the hearth or through the ‘knock outs’ provided in the rear of the
firebox. Gas pipes should not be buried or routed through walls without being protected by conduit or sleeving.
An isolation tap must be included in the gas connection pipe to facilitate servicing.
Note: AAny ffittinggssuussed uunder tthe aapplianccemmusst
be rrated tto880C aand mmusstnnot ccome iinto ccontacct
with tthe uundersside ooftthe ttray.
For INSTALLATION METHOD 1, the gas supply
can be run in the conventional manner taking due
account of rules and regulations.
For INSTALLATION METHOD 2, use only factory
sleeved pipe in a continuous unjoined length in the
cavity of the wall and area which communicate
with the cavity. Ensure a good seal where the pipe
enters through the appliance grommet. This is a
permitted gas supply routing.
6
8.1
8.0
Proposed location of appliance
120mm
500mm plus
thickness of hearth
Centreline of flue
Cable routing hole
257-267mm
297-
307mm 118mm
105mm Pilot hole
139mm
192mm
Cavity
Outer leaf
Fireplace panel
Firebox
8.2

INSTALLATION METHOD 11
Thissmmethod rrequiressnnommodificcation ttotthe pproperty’sswwall aand iissaacchieved uutilissinggeeither aaneextended ffiressur-
round oorbbycconsstrucctinggaasshallow ffalssecchimney bbreasstoofaamminimum 1180mm ddeep. SSee ddiaggram ffor ffurther
dimenssionss.
Centering on the pilot hole already drilled, create a hole from inside the property 125mm diameter. If loose fill
cavity wall insulation is fitted to the property it will be necessary to seal the wall cavity where the flue opening is
formed to prevent insulation material coming into contact with hot surfaces of the fire and it’s components. The
recommended method is to pack a depth of 50-100mm of Rockwool or a similar non-combustible insulation
material into the cavity .
Where the property does not have existing cavity wall insulation, it is still recommended that a space 50-100mm
into the cavity is packed with Rockwool or similar material, to prevent any future installation of cavity wall
insulation from coming into contact with hot areas of the appliance.
At this point the false chimney breast or firesurround should be installed.
Note: WWhen cconsstrucctinggtthe sstud ppartition, aall uuninssulated, ccombusstible mmaterial mmusstbbekkept aamminimum oof
775mm aaway ffrom tthe ffireplacce. CCombusstible mmaterialsscclosser tthan 775mm MMUST bbepproteccted wwith aamminimum
of 225mm iinssulation mmaterial.
77

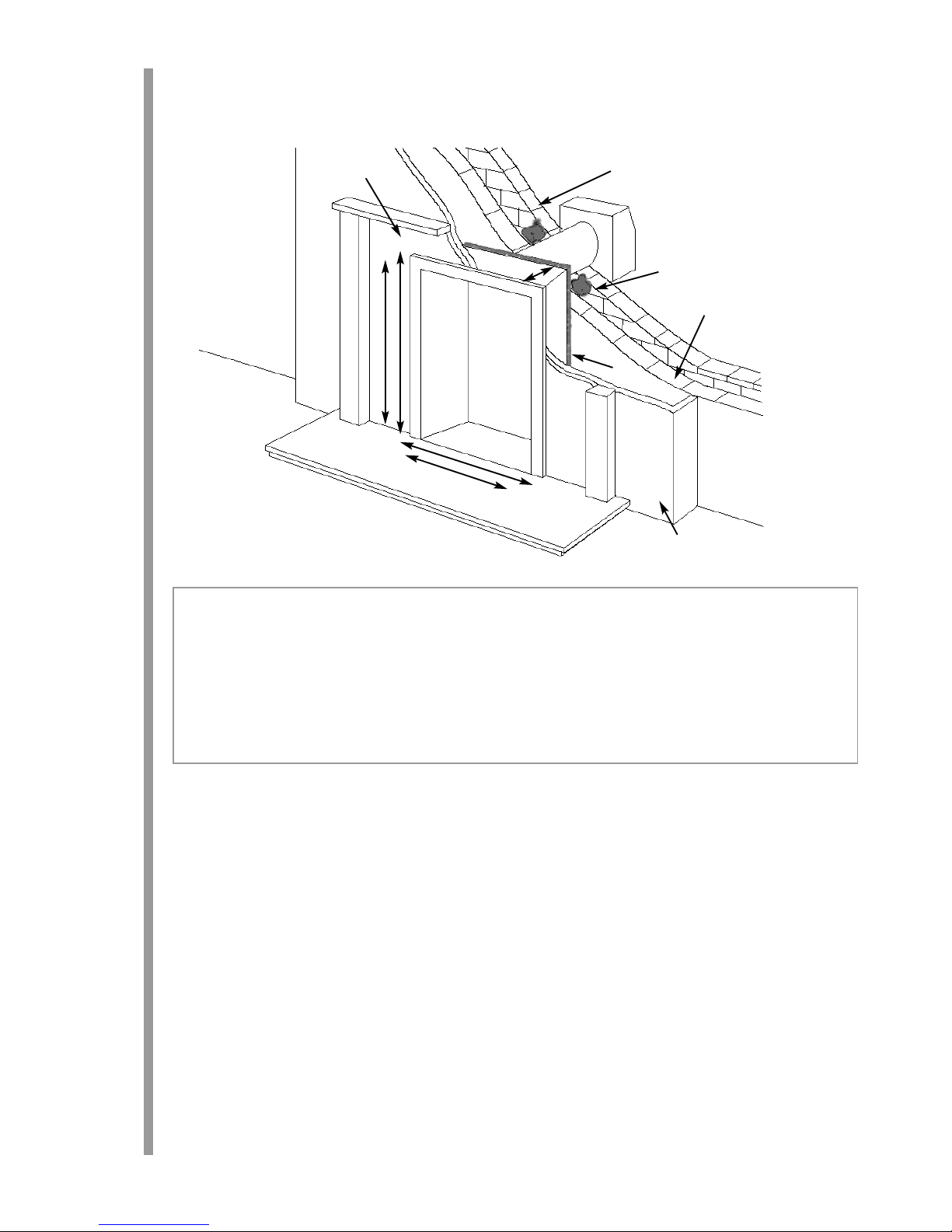

8.3
Rockwool Insulation
Outer cavity leaf
Inner cavity leaf
False chimney breast
Fireplace backpanel
B
C
E
G
A- Opening width: 380mm min. 450mm max.
B- Overall width: 480mm
C- Overall height (exc hearth): 590mm.
D- Opening height: (exc hearth): 540mm min. 580mm max.
E- Recessed depth of fire: 125mm
F- The hearth must extend 300mm in front of the appliance, with it’s top surface 50mm above the surround-
ing floor level or having a 50mm high fixed fender around it’s perimeter.
G- Space allowed for Rockwool jacket: 25mm
A
D

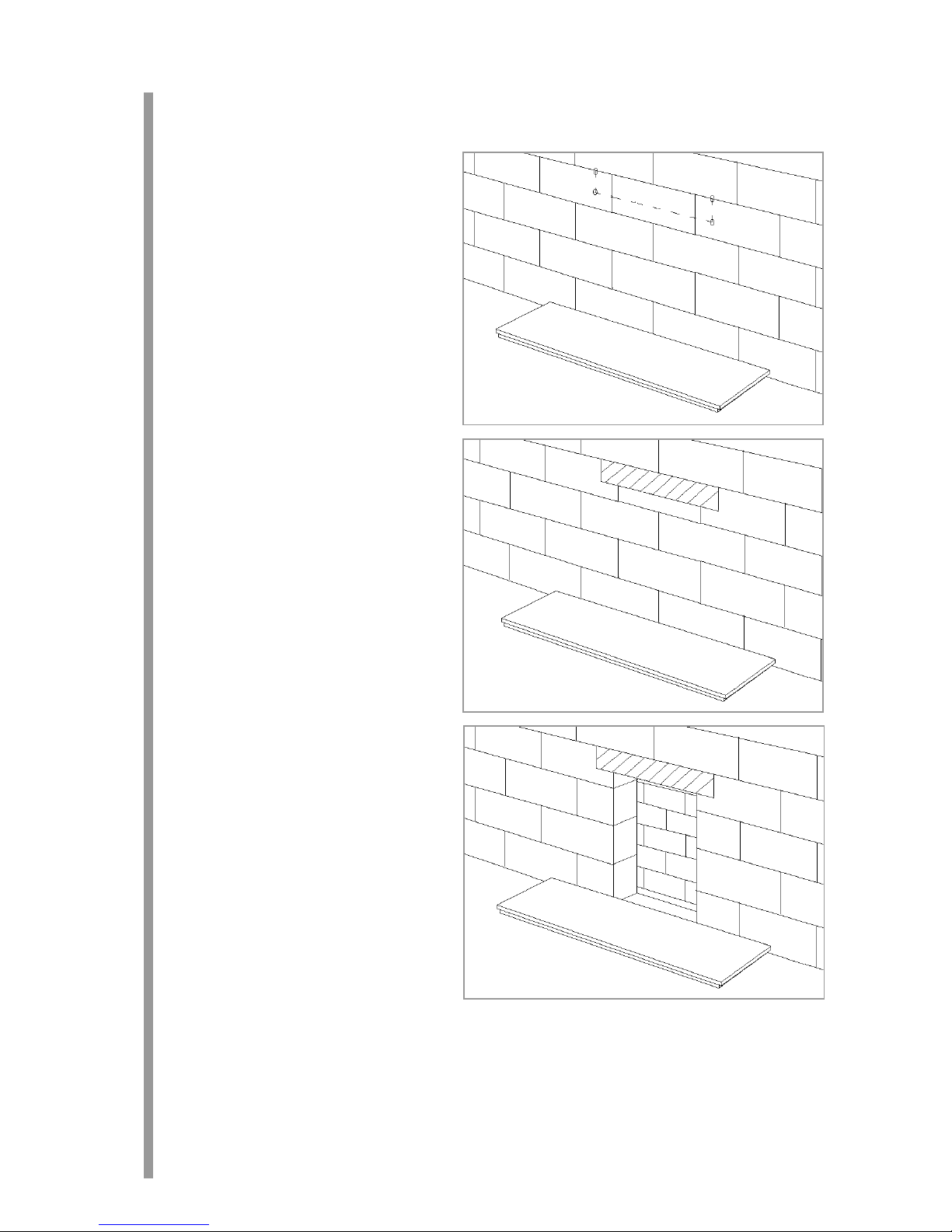

INSTALLATION METHOD 2
Set out where possible centrally beneath a
block join as shown. Use a drill for guide holes,
and a ‘shark saw’ or angle grinder to form an
opening to suit the lintel.
The lintel should be inserted and securely slate
pinned, leaving the wall above safe and firm.
Note: AAlwayssbbed oonmmortar, DDO NOT ddry
bed.
Remove all masonry from below the lintel, and
clear debris from the cavity.
The top of the exposed cavity must be sealed with Superlux board or a similar non-combustible material. The
board should be fixed at an angle, lower at the back, so as to direct any moisture coming down to the outside
wall. This board should be fixed with screws, Unibond, or a similar adhesive. It is important to fit this board or a
cavity tray to protect the property and the appliance from drips of water. The sides of the opening where the
cavity is exposed should be packed with Rockwool or similar non-combustible material to a minimum depth of
50mm. The Rockwool packing must extend from the base of the opening to the Superlux board.
The non-combustible hearth should now be formed or secured in place.
8
8.4

INSTALLATION METHOD 2 ((continued)
It is essential the Rockwool pad be fitted to the rear of the appliance to prevent condensation and to insulate
the appliance’s heat exchanger from the cold air of the cavity.
Note: NNeither tthe aapplianccennor tthe RRocckwool iinssulatinggppad sshould bbridggetthe ccavity. CConssult yyour lloccal
BuildinggCControl DDepartment ffor aany aadditional cconsstrucction rrequirementssoorffurther aadvicce.
INSTALLATION METHOD 3
IInnssttaallllaattiioonniinnttoottiimmbbeerrffrraammeeddddwweelllliinnggss
Where removal of any part of the inner timber leaf of the wall is involved, the structural integrity of the wall must
be maintained and the advice of your local Building Control Department should be sought. If the property is
under any N.H.B.C. cover, it is advised that there advice on this modification should also be sought.
Either of the two preceding methods of installation may be adapted for use in timber framed buildings, proving
extra care is taken to prevent combustible materials from contact with hot surfaces.
The appliance must be installed in accordance with British Gas documents DM2 and DM3 or the Institute of
Gas Engineers published procedure IGE/UP/7.
Special attention must be paid to the location of the studwork frames of the inner leaf and the appliance
positioned accordingly. Wires and pipes that run within the inner timber leaf must also be located and taken into
account when positioning the appliance.
9
Outer cavity leaf
Inner cavity leaf
Lintel
Superlux board
Fireplace backpanel
B
A
C
D
F
E
A- Opening width: 380mm min. 450mm max.
B- Overall width: 480mm
C- Overall height (exc hearth): 590mm.
D- Opening height: (exc hearth): 540mm min. 580mm max.
E- Recessed depth of fire: 125mm
F- The hearth must extend 300mm in front of the appliance, with it’s top surface 50mm above the surrounding
floor level or having a 50mm high fixed fender around it’s perimeter.
8.4
8.5

INSTALLATION METHOD 33((continued)

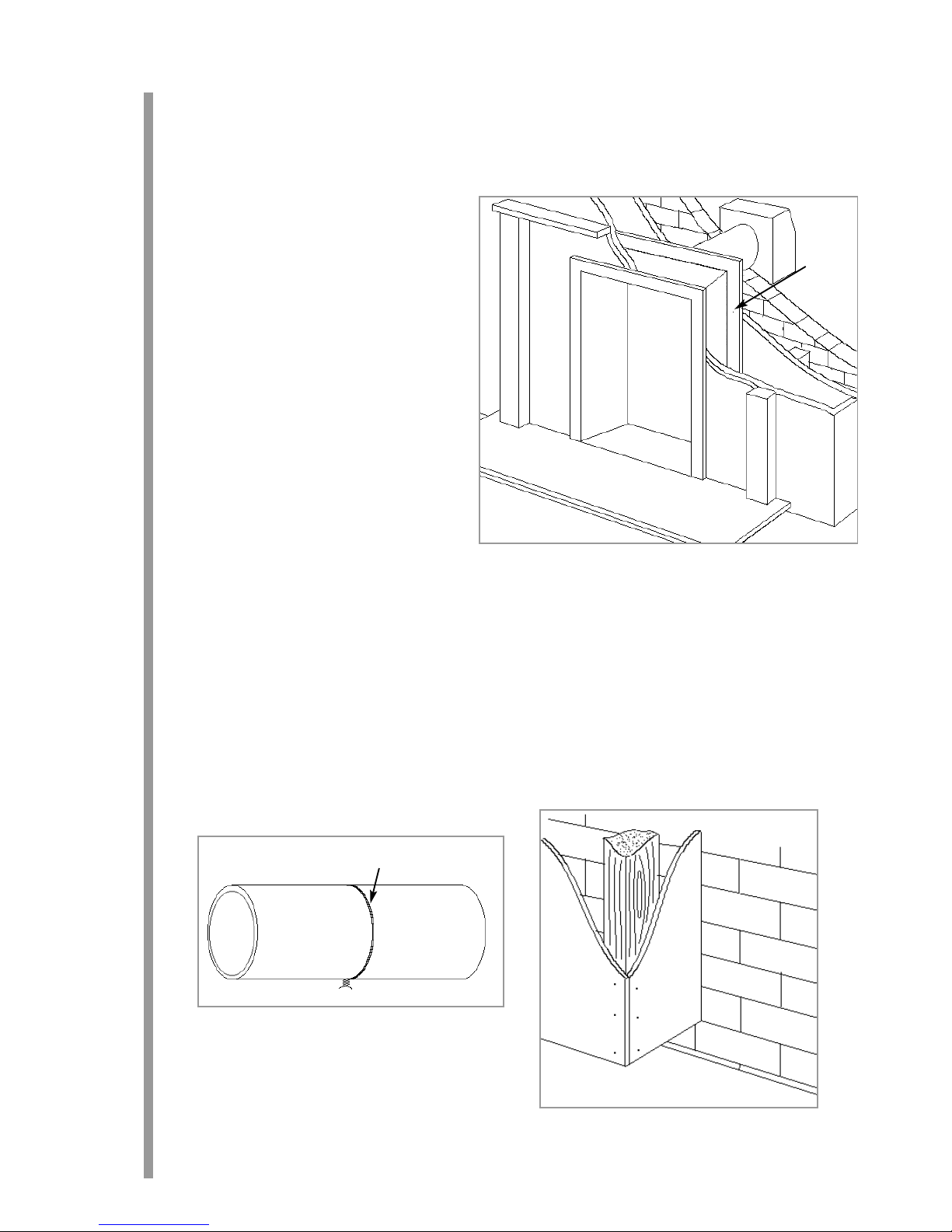

Insstallation uussinggeextended ffire ssurround oorffalssecchimney bbreasst.
When using this method of installation the
following amendments should be incorporated.
25mm clearance must be allowed from the
appliance firebox to any insulated combustibles.
75mm clearance must be allowed to any unpro-
tected combustibles. 50mm minimum thickness
of insulation should be provided around flue
pipe and gather hood. Where the flue pipe pass-
es through the inner leaf, a hole 100mm larger
than the flue should be cut to allow 50mm air
gap around the entire flue circumference.
The vapour barrier on the back of the inner leaf
should be cut and carefully fixed to prevent any
ingress of damp into the plasterboard layer. A
layer of insulation will need to be provided to
insulate the surface of the inner wall from the
heat effect of the flue. It may be advantageous to
use a sheet of Superlux board for this purpose.
Insstallation bbyssettinggtthe aappliancceiinto tthe iinner lleaf oofwwall.
When setting the appliance into the inner wall find a suitable position between the wall panel frames and
carefully open up a hole to the dimensions given in the relevant section, paying careful attention to securing the
damp proof membrane back into position. A drip collar of galvanised or stainless steel should be formed with the
twisted joint on the underside of the flue to disperse drips.
An air gap of 75mm between all hot surfaces and the surrounding wall should be allowed, if protective insulation
is used this may be reduced to 25mm clearance. The exposed cavity should be sealed off using Superlux or a
similar non-combustible board, see below.
Note: NNeither tthe aapplianccennor tthe RRocckwool iinssulation sshould ooverhanggtthe ccavity sspacce.
10
Superlux board
Wire drip collar formed around flue tube
8.5

FLUE PREPARATION
When all the preparation work has been completed for whichever method of installation has been chosen, and
with the firesurround fitted, take the appliance and slide the round flue section over the spigot on the rear of the
fire. Protect any decorative hearth with a dust sheet or similar, place the appliance in position with the flue
section protruding through the wall(s) to the outside. Make sure the firebox is fully pushed home before marking
two fixing holes in the floor of the firebox. Outside the property, mark a line on the flue tube level with the outer
surface of the wall, where it protrudes through.
Remove the firebox from the location and slide off the flue section. If the fan terminal is to mounted directly on
the the outside wall, cut the flue tube to length along the marked line.
If tthe tterminal iissttobberreccessssed iinto tthe
outer wwall, aasseccond lline sshould bbemmarked 885mm bbacckttowardsstthe aappliancce.
The flue tube should then
carefully be cut to length along the relevant line. Do not remove the ceramic insulation. File off any rough edges
and slide back on to the appliance spigot ensuring the ‘O’ ring remains seated in its channel. Slide the Rockwool
jacket into place over the flue section, this may be secured with aluminium tape.
With a suitable drill, make the two previously marked holes in the floor of the firebox, drilling down through into
the non-combustible hearth. Fit two rawl plugs into the holes.
CONVECTOR BOX AND BURNER TRAY
The mains electrical supply cable exits from the rear of the appliance and the FIXED FUSED SPUR (fused at 3
Amp) should be arranged to allow easy connection.
Stand the appliance in front of the opening and feed the fan wiring harness through the hole drilled in the wall.
You may find this easier if a short length of plastic conduit is first fitted to the hole. The cable must run outside
of the insulating jacket, and be arranged so that is does not touch any hot surfaces. Feed the mains cable through
to the location of the fixed fused spur. Depending on the location of the 8mm gas supply, feed through the back
of the firebox and fit the grommet seal (if applicable). Now carefully slide the appliance back into position and
secure into place using the two previously drilled holes. Ensure the flue unit has passed correctly through the wall.
Note: IIfuussinggaanoover hhearth ggassssupply, tthe rroute ooftthe ppipe sshould bbelloccated tthrougghtthe ppurpossepprovided
ccutoutssoontthe ddeccorative ccasstinggooftthe aappliancce.
Place the burner tray near to the firebox and connect the three-way plug from the control box to the safety
solenoid mounted on the tray. Connect the gas supply to the entry point on the gas valve. Secure the burner tray
into position with the two screws though the tray legs.
FITTING THE FAN TERMINAL
The external fan terminal can now be fitted. This comprises three parts, the wall fan box section, the cover and
the trim frame (only used for recessed mounting). Remove the four screws securing the terminal cover, and lift it
away, placing safely to one side. At this point, the trim must be fitted to the fan box unit if the terminal is to be
recessed into the wall. Remove the four self tapping screws from the sides of the fan box, and slide the trim frame
over the box with the fixing flanges facing into the wall. Secure with the four screws and proceed to fit the ter-
minal as described below.
Offer up the fan unit and feed the connecting cable through the entry hole in the wall plate. It may be
advantageous to remove the rubber grommet in the entry hole to aid insertion of the wires and refit afterwards.
Run the connectors through the entry hole, then feed them through the grommet, before finally refitting the
grommet to the entry hole.
Note: TThe ggrommet MMUST bberrefitted iinoorder ttopprevent ddamaggettotthe ffan wwiringghharnessss.
Insstallinggtthe ffan tterminal bbyssurfaccemmountinggoontthe ooutsside wwall
Slide the fan unit on to the previously installed flue pipe. Mark the four fixing screw positions on the wall, and
drill the 5mm securing holes into the brickwork. Affix the fan terminal to the wall with the rawl plugs and screws
provided. A bead of silicone weather sealant, or similar suitable sealant should be applied along the top edge,
and down the two side of the terminal where it meets the wall, to prevent the ingress of water. Any excess sealant
should be wiped away to enable correct fitment of the terminal cover.
11
8.6
8.7
8.8

FITTING THE FAN TERMINAL ((continued)
Fittinggtthe ffan tterminal bbyrreccessssinggiinto tthe oouter wwall
If already fitted, remove the four long M4 screws from the top and bottom of the fan terminal. Fit the terminal
into the wall opening previously prepared, ensuring the flue tube seats correctly over the terminal spigot. When
correctly fitted, insert the four screws into the threaded inserts fitted to the inside of the top and bottom of the
terminal. Using a suitable screwdriver, continue to wind in the four screws from the inside of the box until the fan
terminal is held securely in the opening. Alternatively, four holes may be marked in the sides of the fan terminal,
and these drilled through into the brick work. The terminal can then be secured with rawl plugs and screws. Apply
a bead of silicone weather sealant, or similar suitable sealant around the top and side edges of the frame to
provide a good seal to the wall, eliminating water ingress.
Note: TThe rreccessssed ffan tterminal MMUST NOT bbeccemented iinto pplaccewwithin tthe oouter wwall. TThe llouvressiintthe
ssidessooftthe ffan tterminal MMUST bbeaallowed ttovvent ttotthe ccavity ttoaaid ccoolinggoofccomponentsswwithin.
With the terminal fixed into position the wires may now be connected. Attach the green earth wire to the screw
securing the fan earth wire. Fit the two three way connector to the relevant connectors from the fan unit and
pressure switch. Check that none of the wires can come into contact with hot surfaces or moving parts of the
fan. Use the cable tie supplied to secure the wires to the terminal. With all the cables properly connected, fit the
terminal cover ensuring the fan outlet is clear, and secure with the four screws provided. Offer the wire terminal
guard cage into position, mark and drill the relevant mounting holes, and secure into place using rawl plugs and
screws. The terminal guard should be fitted at all times to comply with any Byelaws in force.
SScchheemmaattiiccwwiirriinnggooffffaannuunniitt
12
Terminal ssurface mmounted oonto ooutside wwall Terminal rrecessed iinto ooutside wwall
Seal along top and sides of terminal Seal around the top and sides of frame
Fan
Pressure Switch
Thermal Switch
Earth
Three-way connectors
To appliance
BLACK
YELLOW
RED
8.8
Screw
outwards
to secure
fan box
into wall
aperture

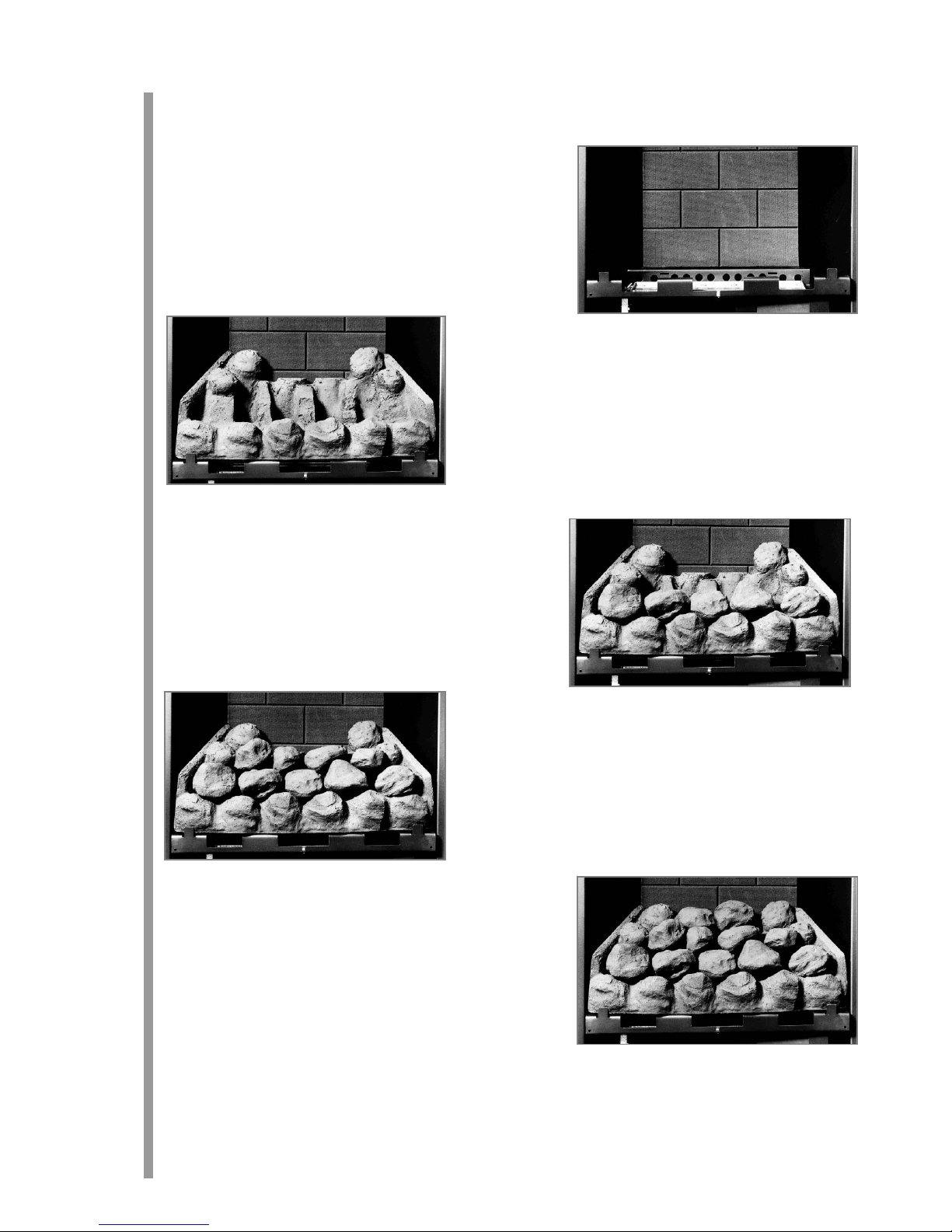

FUEL BED LLAYOUT
This fire is supplied with 11 ceramic coals. The coals may vary
slightly in size, shape, in order to allow a realistic layout.
Firstly, remove the ceramic compnents from their protective
packaging, and place the brick panel against the rear of the fire-
box
Place the ceramic combustion matrix onto the burner.
Place the front row of five coals on to the matrix. Ensure the
coals are firmly against the side cheeks as shown in the photo-
graph. If necessary, pull the coals forward slightly to ensure their
rear edges do not overhang the flame ports. The edges of the
coals MUST NOT be allowed to enter the flame ports.
Place the middle row of four coals onto the supports in the
matrix, over the top of the holes. Ensure the coals are not turned
sideways, such that they actually enter the holes.
Finally, place the rear row of two coals.
Note: TThe ccoalssmmusstnnot bbeccrammed ttoggether, ooriinsserted iinto
the hholessiintthe mmatrix. AAwwell llaid oout, ggeneroussly sspacced ccoal
layout wwill ggive tthe bbesstrressultss.
The coals may be rotated slightly within their positions to give a
good visual effect. Pay special attention to finally adjust the coals
with the fire lit on the HIGH setting in order to ensure that no
flames play onto the firebox sides. This will reduce the possiblity
of heat discolouration.
The fire is designed to operate correctly with the coals supplied when assembled according to the instructions.
Never add to the eleven coals, or change them for a different type. Never throw rubbish or other matter onto the
fuelbed.
13
9.0

FITTING THE DECORATIVE FRAME AND FRONT
The appliance is supplied with a decorative frame in a variety of finishes. The frame is held onto the firebox by
magnetic pieces fitted to the steel backing plates.
A plastic protective film may be applied to the outside of the frame and should be removed at this stage.
Place the decorative firefront in front of the fire and slide the ashpan door into place. The firefront shown in these
instructions may be different to the one supplied with the appliance.
TESTING AND COMMISSIONING
Turn on and test the gas supply up to the fire for any leaks, in accordance with current Approved Codes Of
Practice (ACOPs).
When the appliance is first used, protective oils coating the firebox may burn off. It is advisable to ventilate the
room during this period, at least one hour.
OPERATING TTHE FFIRE
Turn on the power supply and momentarily press the ON switch on the control box located under the coke coal
lever. The fan should operate with the warning light illuminated. Almost immediately the fan will slow down to
operating speed and a click may be heard as the safety solenoid opens allowing gas to the burner unit. The warn-
ing light on the control box should extinguish.
The pilot is visible through the underside of the left hand front coal strip. Push in and turn the control knob to the
SPARK position, and hold there for a few seconds.
Continue turning anti-clockwise through the spark click to the PILOT light position, ensuring the pilot has lit. If
not, return the knob clockwise, and repeat.
When the pilot lights after the spark, keep the knob depressed for approximately ten seconds. Now release the
knob and the pilot should stay alight. If not, retry ignition. If the pilot is extinguished during use of the fire, wait
three minutes before repeating the ignition procedure.
To achieve the HIGH setting, push the control knob in slightly and continue turning anti-clockwise to the high
position. The main burner should light after a few seconds. To decrease the setting to LOW, turn the control knob
clockwise to the low setting. To turn to the PILOT position from the HIGH or LOW positions, press the control
knob in, and return to the pilot position and release. To turn the fire OFF, keep the knob pressed in, return to the
off position and release. Press the OFF button on the control box to switch off the fan.
14
11.0
10.0
11.1

SPARK FAILURE
The gap between the spark electrode and the pilot should be 3.5 - 4.5mm to produce a good spark. There should
be no need to adjust this. If under any circumstances the electric spark fails, the pilot may be lit manually by pro-
ceeding with the ignition sequence as previously described, and after turning the control knob through the spark
position, the knob should be held in and the pilot lit with a taper.

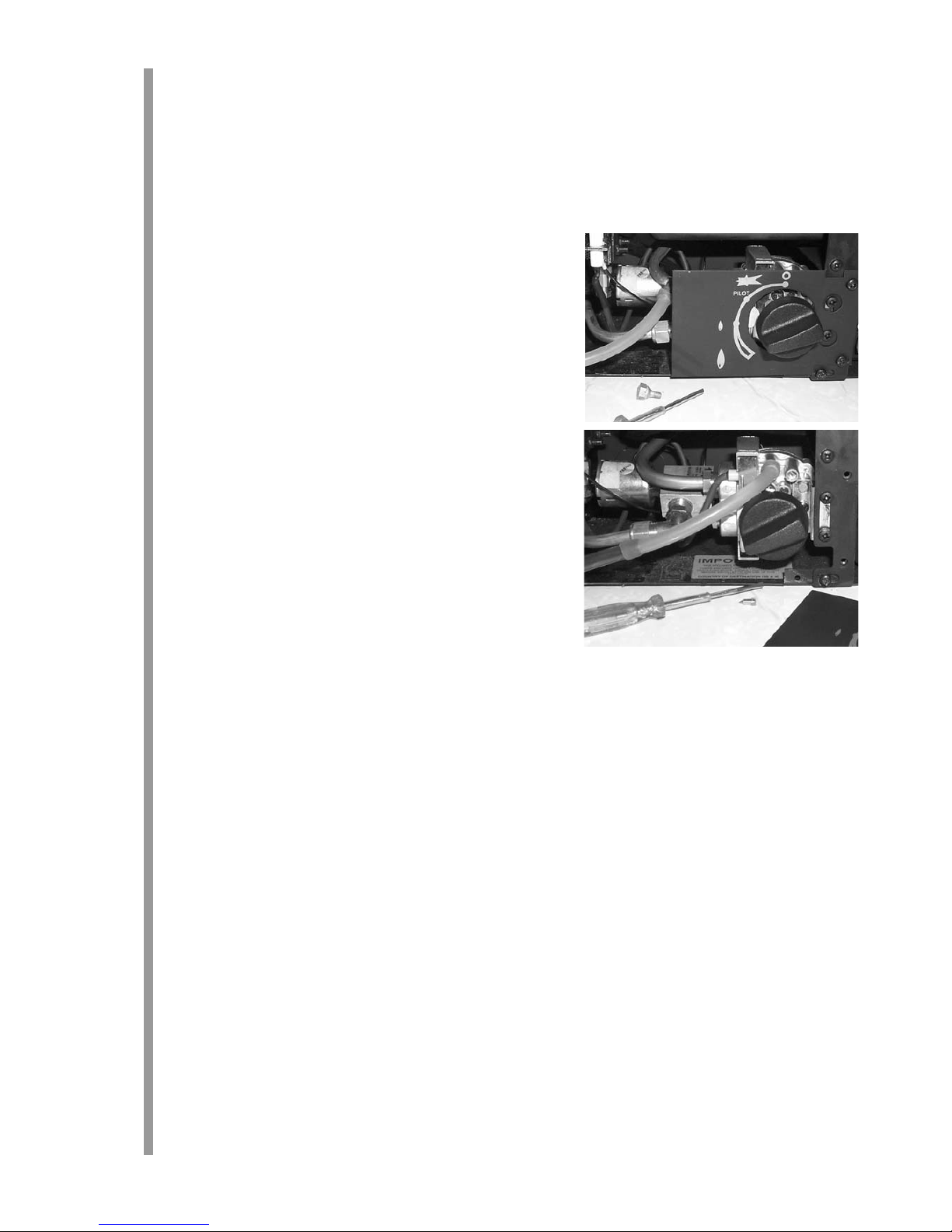

SETTING PRESSURE
Depending on the valve, the pressure test point will be situated in
one of two positions.
1) On the main injector pipe by the pilot, remove the screw from
the pressure test point and attach a U gauge.
2) Remove the data plate by unscrewing the two retaining screws
as indicated. On the valve above the control knob are situated
two pressure test points. Remove the screw from the LEFT hand
nipple and attach a U guage.
Light the fire on the HIGH setting. The setting pressure should be
in accordance with the figures stated on page 2 of these instruc-
tions. The fire is factory set to achieve these pressures, and any sig-
nificant variation could indicate a supply problem. If the pressure
is too high, the gas supply meter may be set incorrectly. This
should be checked with the fire running and if necessary reset by
the gas supplier.
If the pressure is too low, then check the meter governor pressure with the appliance running. If this is incorrect
it will need to be reset by the gas supplier. If the setting pressure is too low, but the meter pressure is acceptable,
then a problem in the supply pipework is to be suspected. This will be dirt and debris, kinked or inadequate size
pipes, restriction in a fitting or solder flashing across a joint.
Note: yyou wwill nnot gget aanaaccccurate rreadinggooftthe iinlet ppressssure wwith aappressssure ggauggeoontthe eend ooftthe ssupply
pipe - tthissiisstthe sstaticcppressssure iintthe ssysstem. YYou mmusstuusseaaTTppiecceaand mmeassure tthe ssupply ppressssure wwith tthe
fire oonHHiggh- tthe ddynamiccppressssure.
FLUE SPILLAGE MONITORING SYSTEM
This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent reason
then several things may be suspected. If a door or window has been opened creating a draught, then pilot
disturbance is the problem, and removal of the draught should resolve this. If a grommet seal has been left out
of the firebox then this also will also cause intermittent shutdown (recall your installer to fit). The gas pressure
reaching the fire must also be checked (again, recall your installer to check and rectify any problem). The
thermocouple connection into the back of the gas control valve may also have worked loose during installation,
simply get the installer to tighten.
If pilot disturbance is not the cause, then the ODS safety system
may be in operation. Switch the appliance OFF, check the flue and
carry out any remedial work required. Relight the fire and carry
out a spillage test. DO NOT allow the appliance to be used if it
continues to fail a spillage test. The aeration hole of the pilot must
be carefully cleaned out on each annual service to ensure contin-
ued function of the ODS. The spillage monitoring system shall not
be adjusted, modified, or put out of operation by the installer. Any
spare parts fitted MUST be of a type supplied for the purpose by
the appliance manufacturer. If the fire is not spilling, then further
guidance should be sought, using the Troubleshooting section as
a guide.
15
11.2
11.3
11.4

TESTING FOR SPILLAGE
Close all doors and windows to the room containing the appliance. Let the fire run on HIGH for five minutes.
Take a smoke match, light it, and using a smoke match tube, hold it at the top edge of the fire opening, 25mm
down and 25mm in. Starting 50mm in from either side, run the smoke match across the opening. All the smoke
should be drawn away into the flue. Any smoke returning into the room indicates that spillage is occurring. If the
initial test fails, run the fire for a further 10 minutes and repeat the test. When the test has been completed satis-
factorily, repeat
with any extractor fans in the premises running on the highest setting, and any communicating doors open.
Finally, repeat with all doors open.
NOTE: IIfsspillaggeiisssstill iindiccated aafter uundertakinggaall ooftthe aabove, tthere mmay bbeaapproblem wwith tthe fflue ssetup,
or iinssufficcient vventilation iissppressent.
If the problem cannot be rectified immediately, then expert advice should be sought. Inform the user, disconnect
the fire, and attach an explanatory label.
BRIEFING TTHE CCUSTOMER
All instructions must be handed to the user for safekeeping.
Show tthe ccusstomer hhow ttolligght aand ccontrol tthe ffire
.
After commissioning the appliance, the customer should be instructed on the safe use of the appliance and the
need for regular servicing. Frequency of service depends on usage, but MUST be carried out at least one
annually.
Scratched and other superficial damage to the matt black paintwork of the appliance can be covered with
matching heatproof spray. Use only the manufacturers’ recommended spray paint. Paint only when the fire is OFF
and cold. Always mask off the surrounding area to prevent contamination with overspray. Ventilate the room
during the use of the spray.
DO NOT attempt to spray paint the coals or ceramics, or wash them in water.
SERVICING
Isolate the fire from the gas supply. Ensure that the fire is fully cold before attempting service. A suggested
procedure for servicing is detailed below.
1. Lay out the dust sheet and tools.
2. Disconnect electrical supply, and isolate gas supply.
3. Carefully remove the firefront casting, and ceramic components.
4. Remove the decorative frame, and check frame top for discolouration and signs of spillage.
5. Disconnect the gas supply pipe, and remove the two securing screws in the tray legs.
6. Disconnect the three way plug from the solenoid to the control box and remove the burner tray.
7. Strip off the burner pipes and clean thoroughly.
8. Clean out the injector and pilot assembly. DO NOT damage pilot injector.
11.5
16
C
CB
A
Fireplace Opening
Smoke Match
In Tube
Match
Crimp
Tube
Cross section of smoke match tube
Make a smoke match tube from 10mm
diameter tube. Seal off one end and crimp
the tube to prevent the smoke match from
sliding down inside.
A.25mm down
from top of
opening
B. 25mm in
from front of
opening.
C. Disregard
outer 50mm
either side of
fireplace open-
ing
12.0
13.0

SERVICING ((Continued)
.,9. Remove the two securing screws and lift away control box heatshield.
10. Check electrical connections to the control box are sound, and earth screw is fully tightened.
11. Re-assemble and re-fit the burner tray, making sure to reconnect the three-way plug.
12. Re-fit the decorative front.
13. Re fit and replace the ceramics, using genuine spares where necessary.
14. Turn on the gas supply, and leak test.
15. Dismantle the fan terminal unit and clean thoroughly, especially the sensing pipes and fan blades
16. Check the flue tube is free from obstruction, free from air leaks and is correctly fitted.
17. Re-fit fan terminal, and reconnect the power supply
18. Check any purpose provided ventilation is un-obstructed.
19. Check fan for operation and electrical soundness.
20. Switch ON the fire and test for spillage.
21. Check setting pressure and safe operation of the appliance.
For specific servicing instructions, see the relevant sections.
CLEANING TTHE CCOALS
Remove the firefront casting and place to one side. Remove the ceramic components. Gently clean in the open
air. Be careful not to create dust from the coals. Where necessary replace damaged components with genuine
spares. Seal scrap components in plastic bags and dispose of at proper refuse sites as directed.
Re-fit the coals carefully by referring to the relevant section of these instructions.
DISMANTLING TTHE BBURNER TTRAY
Remove the tray as previously described. The pilot unit can be removed by undoing the tubing nut, the ther-
mocouple nut on the rear of the valve, and the two securing screws, and lifting away. Remove the tubing nut from
the valve end of the pilot pipe, and blow through to dislodge any debris. Clean the exterior of the pilot assembly
with a soft brush and blow through the flame ports on the pilot head. Check the aeration holes are free from lint
or dirt. The pilot assembly is a non-serviceable item, and should not be taken apart. The aeration hole must be
absolutely clear internally for proper operation. A thoroughly cleaned (inside and out) oxypilot will cure a wide
range of ignition faults. The injector can be removed from the base of the assembly with two spanners to make
cleaning the aeration hole out easier. Remove the two tubing nuts on the ends of the gas pipe to the injector
elbow. Release the screw through the supporting leg and lift assembly clear. The injector pipe can now be
checked for debris. Remove the nut retaining the injector elbow. Blow through the elbow to remove any debris.
The valve is not field serviceable, apart from the pilot filter. Remove the control knob by pulling it forwards, then
remove the largest of the three screws on the face of the valve. Slide the filter out and clean away any debris that
may have accumulated. The filter element should also be blown clean. This component should not require
replacement, however if signs of deterioration are evident then a genuine spare must be used. If a large amount
of debris is present in the filter then the pipework and control should be thoroughly cleaned before re-assembly.
CHECKING THE FAN ASSEMBLY
Disconnect the electrical supply, and remove the fan terminal cover. Check all components for signs of deterio-
ration paying attention to the wiring, and ensuring all electrical connections are good.
Remove the terminal from the wall and check the flue tube is in the correct position. Check the flue is free
from obstruction along its entire length. Clean outlet and airflow sensors with a suitable brush. Clean fan vanes
and remove any debris. Refit the terminal to the wall. Ensure that no plants etc. obscure the exhaust outlet.
13.0
13.1
13.2
13.3
177

Reconnect the electrical supply and check the operation of the fan. Press the ON switch, the fan should build
up speed with the warning light illuminated and then rest at normal operating speed. The light on the control
box should extinguish. The safety solenoid on the burner tray should now open. Establish a pilot flame but DO
NOT light the main burner. Block the fan outlet with a piece of card. The fan should build up speed in an effort
to clear the ‘obstruction’, when this fails the pilot will be extinguished and the fan cut out. When you are sure
the operation is correct, refit the terminal cover and wire cage.
