Focal Point EF11-36 PASADENA Assembly Instructions

©2015 Focal Point Fires plc.
INSTALLATION & USER INSTRUCTIONS
All instructions must be handed to the user for
safekeeping.
ODELS COVERED BY THESE INSTRUCTIONS
EF11-36
PASADENA
LI OUSIN
WALL OUNTED ELECTRIC FIRE
Please note: Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not
permitted to copy or adapt any of the content without
the prior written permission of Focal Point Fires plc.
1
Revision B- 03/15
GB IE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: [phone]
Fax: [phone]
www.focalpointfires.co.uk
Email: [email protected].uk
Questions or problems with your appliance?
Don’t take it back to the store
just give us a call on 01202 588601 we’re here to help
lines open between 9am and 5pm, onday to Friday
PASADENA LED ELECTRIC FIRE

I PORTANT - THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE
REFERENCE.
When using this electrical appliance, basic precautions should be followed to reduce the risk of fire, electric shock and injury to person,
including the following:
• This heater must be used on an AC supply only and the voltage marked on the heater’s rating label must correspond to the supply
voltage.
• DO NOT switch the appliance on until it is properly installed as described in this manual.
• The heater must not be located immediately above a socket outlet.
• Keep furniture, curtains and other fabric material away from the appliance.
• DO NOT leave the appliance unattended during use.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard.
• DO NOT operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.
• DO NOT run the mains cable under carpets, rugs etc.
• DO NOT cover or obstruct the heater in any way. Overheating will result if it is accidentally covered.
• Never immerse the product in water or any other liquids.
• DO NOT use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• DO NOT use the appliance outdoors.
• Before cleaning the appliance, ensure it is unplugged from the power and that it is completely cool.
• DO NOT clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the
appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.
• Do not lift the appliance by the decorative fascia.
• DO NOT insert or allow foreign objects to enter the inlet or outlet vents as this may result in electric shock, fire or damage to
the appliance.
• DO NOT install the fire using an extension cord.
• Unplug from the mains supply if the appliance is not to be used for long periods
• CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut out, this appliance must not be supplied
through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by the utility.
• CAUTION!: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children
and vulnerable people are present.
•WARNING: Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less
than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and
they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged
from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. The heater must not be used
if the glass panels are damaged.
©2015 Focal Point Fires plc.
I N S TA L L AT I O N & U S E R I N S T R U C T I O N S
2
GB IE
Section Contents Page No.
1.0 Important Notes 2
2.0 Installation Requirements 2
3.0 Appliance Data 2
4.0 Fixing Kit Checklist 3
5.0 Component Checklist 3
6.0 Site Requirements 4
7.0 Clearances to Combustibles 4
Section Contents Page No.
8.0 Installation Wall ounted 5
9.0 Installation Table Top 8
10.0 Operating the Appliance 10
11.0 Cleaning and aintenance 12
12.0 Troubleshooting Guide 13
13.0 Guarantee - Terms and Conditions 13
1.0 I PORTANT NOTES

The appliance is supplied with a pre-wired three pin plug (13 Amp fuse rated) and 1.8 metres of electrical cable. It is
therefore necessary for a suitable electrical socket to be located within this distance and be easily accessible. This appliance is
designed to be wall hung, using the wall fixtures/fixings provided. DO NOT recess any part of appliance into the wall. This
appliance is suitable for installation in static holiday/park homes.
Weight (kg): 15kg
Supply Voltage: 230V AC, 50Hz
Fuse Rating: 13 Amp
Heating Elements: 1500W
Lighting: LED
This fire is fitted with LED’s (Light Emitting Diode) in place of conventional bulbs. LED’s generate the same light levels as
conventional bulbs, but use a fraction of the energy consumed. LED’s are maintenance free and will not require replacing during
the life of the product.
2.0 INSTALLATION REQUIRE ENTS
3.0 APPLIANCE DATA
4.0 FIXING KIT CHECKLIST
1. 4 x 8mm Screw x 12 2. Large Wall Anchor x 5 3. 5 x 50mm Screw x 5
GB IE
5.0 CO PONENT CHECKLIST
1. Glass Fascia 2. Firebox 3. ounting Bracket
4. Table Top Support 5. Front Brace 6. Deflector
©2015 Focal Point Fires plc.
3

5.0 CO PONENT CHECKLIST - CONTINUED
4©2015 Focal Point Fires plc.
GB IE
7. Logs 8. Pebbles Dependent On odel 9. Remote Control
6.0 SITE REQUIRE ENTS
It should be noted that the appliance creates warm convected air currents. These currents move heat from the room
surroundings to, and up the wall surfaces adjacent to the heater.
Installing the heater next to these types of wall coverings or operating the heater where impurities in the air, (such as tobacco
smoke) exist, may slightly discolour wall finishing.
If the appliance is to be mounted on a dry lined or timber framed construction then the integrity and ability of the wall to
carry the weight of the appliance must be confirmed. It is important in these circumstances that any vapour barrier and/or
structural members of the house frame are not damaged.
If you are unsure of the ability of the wall to carry the weight and/or which type of wall fixing to use, you should take
professional advice and obtain the correct fixings. Alternatively, find a more suitable wall location.
DO NOT
• mount on a ceiling or floor
• recess any part of the appliance into the wall, or run the supply cable under carpets
• site any electrical equipment e.g. plasma screen TV sets etc, on the wall below the appliance.
• site in a position where curtains or drapes could cover the appliance, or other soft materials could cover e.g. below a coat
rack
• site behind an opening door where mechanical impact/damage could occur
• site where the supply cable would become a trip hazard
• sit, stand or forcefully pull on the appliance
• obstruct, cover or force items into the openings
• use the heater to dry clothes
• site/use in an outdoor location(s)
It is important that the following clearances are maintained from the appliance to combustible materials. These clearances are
dependent on the mounting location as defined below:
• The minimum distance from the top of the appliance to a ceiling is 300mm
• The minimum distance from the bottom of the appliance to the floor is 200mm
• The minimum distance to the sides of the appliance is 100mm
• The minimum distance to the front of the appliance is 500mm
7.0 CLEARANCES TO CO BUSTIBLE ATERIALS

5©2015 Focal Point Fires plc.
8.0 INSTALLATION WALL OUNTED GB IE
CAUTION: DO NOT CONNECT THE APPLIANCE TO THE
ELECTRICAL SUPPLY AT THIS TI E.
Focal Point Fires plc. assumes absolutely no responsibility for injuries and damages
that may occur due to improper installation or handling.
Remove any protective film coatings from the finished/decorative surfaces of the
appliance, if any. After having selected the final mounting position of the appliance
taking into account the integrity of the wall the firebox of the appliance may be
secured to the wall.
To ensure customer safety, be sure to design the installation so that the strength of
both the wall and any wall fixings used are sufficient. The appliance should not be
installed until all wet plastering and/or dry wall sanding and wall painting has been
completed. Do not block the ventilation holes of the appliance. The wall onto
which the appliance is installed must be flat. Install only on a vertical surface. Avoid
sloped surfaces. Installation onto anything other than a vertical wall may result in
fire, damage or injury.
If the appliance is to be mounted on the inner leaf of a conventional cavity brick
wall, or a solid wall, then the wall plugs and fixing screws provided may be used.
Depending on the condition of the wall it may be necessary to use additional fixings.
In this situation, any additional fixings and wallplugs should be of the same size and
type as the ones provided.
The wall where the appliance is to be
installed must be capable of
long-term support of the total load of
the appliance. easures should also
be taken to ensure sufficient strength
to withstand the force of
earthquakes, vibration and other
external forces. Plasterboard alone is
not considered to be a structural
material. It is not recommended to
rely on plasterboard fixings alone to
support the weight of the appliance.
WARNING

If the appliance is to be mounted on a dry lined wall or a timber framed construction wall then efforts should be made to fix in
at least two positions vertically, into one of the wooden studs, or supporting wooden members of the wall using two of the
fixing screws provided. If this is not achievable then the wall should be strengthened using appropriate building materials.
ounting Bracket
1. Unpack the unit and confirm that you have all the hardware and required parts.
2. Remove the ounting Bracket from the Firebox by unscrewing the two screws that secure the ounting Bracket to the top
of the Firebox, using a Phillips screwdriver. As shown above.

8.0 INSTALLATION WALL OUNTED - CONTINUED GB IE
6©2015 Focal Point Fires plc.
3. Find the optimal place to mount your Wall-mounted Fireplace. Consider the proper position relative to your room,
placement of furniture and windows.
4. Hold the ounting Bracket up to the wall to verify the correct location and ensure that the ounting Bracket is level. Use
a pencil to mark the four mounting holes on the wall at the desired mounting location, using the ounting Bracket as a
template.
5. With an electric drill (not included) on its low setting, drill 5/16 inch diameter holes to at least 1½ inch deep on the
marked points. NOTE: If installing the ounting Bracket to a wall stud, there is no need to drill the holes in the wood and
no need for the plastic wall anchors. It is recommended to install the mounting bracket to at least one wooden stud.
6. Tap 4 Large Wall Anchors (2) into the pre-drilled holes with a Hammer until they are flush with the wall.
7. Secure the ounting Bracket (3) to the wall by using four 5 x 50 mm Screws (3). As shown.

8.0 INSTALLATION WALL OUNTED - CONTINUED GB IE
7©2015 Focal Point Fires plc.
8. Hang the Firebox on the hooks at the bottom of the ounting Bracket , and push the top of the Firebox into the
ounting Bracket. As shown.
9. Ask a friend to hold the Electric Firebox into place and secure it to the ounting Bracket by refitting the two small screws
which were removed in step 2. As shown.
NOTE: We provided the optional pebbles for the
fuel bed holder. To change the fuel bed follow the
following steps below.
10. Remove the Log Set from the insert window
ledge at the front of the Firebox. As shown.
11. Arrange the pebbles on top of the fuel bed holder.

9.0 INSTALLATION TABLE TOP
8.0 INSTALLATION WALL OUNTED - CONTINUED GB IE
8©2015 Focal Point Fires plc.

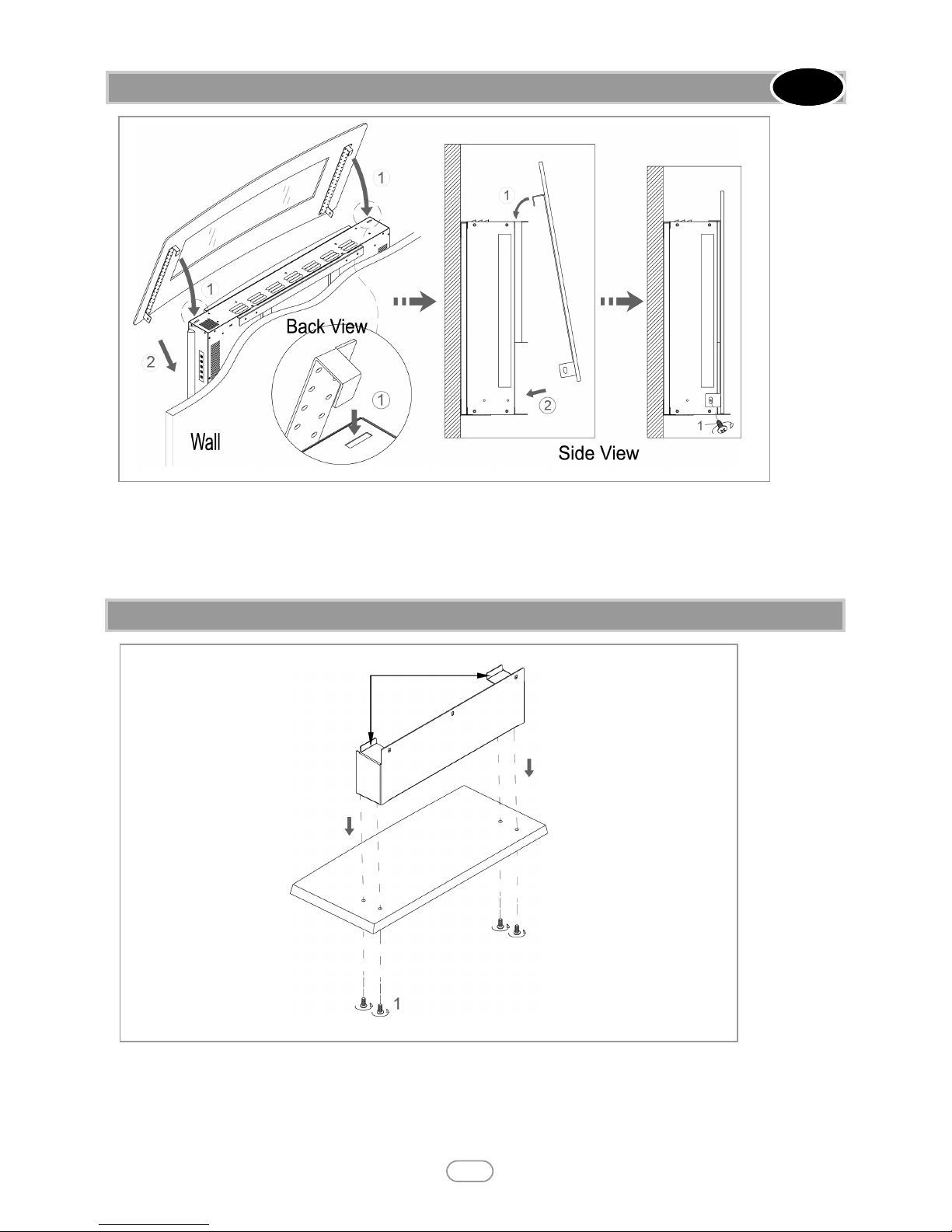

12. Lift the Glass Fascia into place, making sure the 2 hooks on the top back of the Glass Fascia fit securely into the slots on
the top of the Firebox. As shown.
NOTE: It is recommended that you use two people at this stage to prevent to the Glass Fascia or the Firebox.
13. Secure the Glass Fascia to the Firebox by fastening two 4 x 8 mm Screws (1) on both sides. As shown.
1. Unpack the unit and confirm that you have all the hardware and required parts.
2. Align and attach the Table Top Support with the Table Top Base by inserting four 4 screws (1) and fully tighten the
screws with a Phillips screwdriver.
The top hooks locate at the front
Table top support
Table top base

9.0 INSTALLATION TABLE TOP - CONTINUED GB IE
3. Fasten the Deflector to the Front Brace with two 4 x 8 mm Screws (1). As shown.
4. Slide the Front Brace assembly onto the Table Top Support and rest it onto the Table Top Base . As shown.
Front brace
Table top support
Table top base
Front brace
Deflector
9©2015 Focal Point Fires plc.
5. Ask for assistance to position the Firebox onto Table Top Support so that the top hooks of the Table Top Support
properly fit into the bottom slots and the back mounting holes overlap the threaded sockets on the Firebox. As shown
above.
6. Insert three 4 x 8 mm Screws (1) through the mounting holes on the Table Top Support and securely screw into the
Firebox by a Phillips screwdriver. As shown.
Firebox
Table top support
Firebox
Table top support

10
9.0 INSTALLATION - TABLE TOP - CONTINUED GB IE
©2015 Focal Point Fires plc.
7. Repeat steps 10 and 11 on the Installation wall mounted to change the log fuel bed to pebble.
8. Repeat steps 12 on the Wall ount configuration to install the Glass Fascia on the firebox.

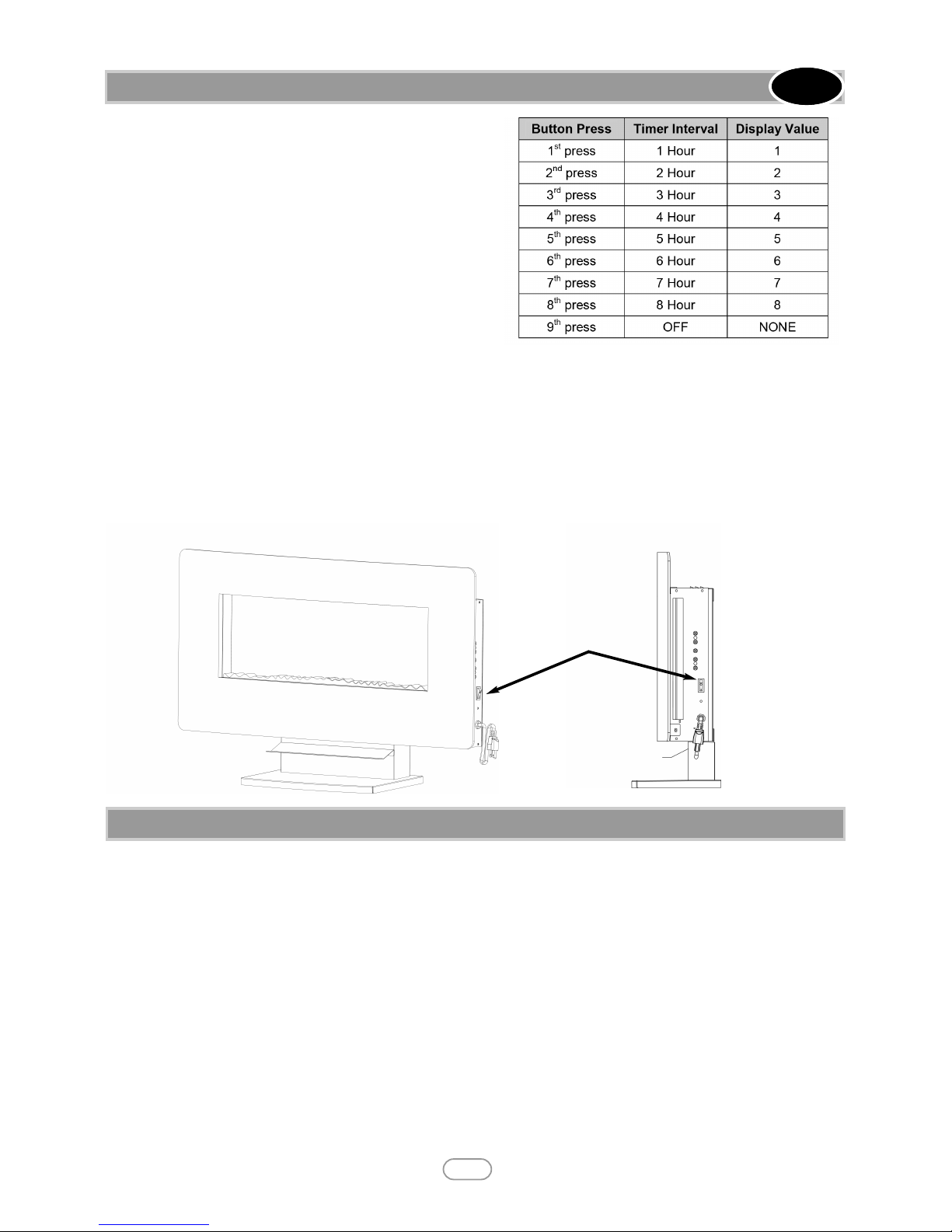

10.0 OPERATING THE APPLIANCE
On the top right side plate of the Electric Fireplace is the control panel. This panel
contains the buttons to properly operate the electric fireplace. The buttons on the
control panel on the side of the Electric Fireplace and the Remote Control function in
the same way. The remote control has an effective range of up to 13 feet.
1. ain Power Button
2. Flames Control Button
3. Timer Function Button
4. Side Light Control Button
5. Thermostat On/Off Button
6. Thermostat Control Button
1.
2.
3.5.
4.
6.

11 ©2015 Focal Point Fires plc.
Remote Control
The fire is supplied with an IR multifunction remote.
Before the remote will operate the plastic insulating sheet needs
to be removed.
Battery Replacement
Battery Requirements: CR2025
1. Locate and remove the battery bracket.
2. The battery has two sides, one with a button feature, and the
other is flat.
3. Insert the battery with the button side down into the battery
bracket, making sure the battery is firmly seated.
Using The ain Power Button
The main power button (1) is located on the control panel on the right side of the electric fireplace. Pressing the main power button (1)
once turns the power on.
Pressing the main power button (1) again will turn the power off.
If you find that none of the other buttons appear to work, check to make sure that the main power (1) is turned on.
Battery Disposal
Battery must be recycled or disposed of properly. Check with your Local Authority or Retailer for recycling advice in your area.
Using the Flames Control Button
Press the flames control button (2) to turn on the ember bed
and flame effect.
Pressing the flames control button (2) once turns flames on and
lights the ember bed.
Pressing the flames control button (2) again will cycle through
different colours of the ember bed. The colour rotation mode will
cycle through the 3 different colour settings continuously. When
using Remote Control, you need to press the button 7 to enter
the colour rotation mode. Reference the table for more detailed
information.
10.0 OPERATING THE APPLIANCE - CONTINUED GB IE
Using the Heater Control Button
The heater control button (5) turns the heater on and off. With the unit
ON, press the control panel heater button
(6) for 5 seconds and enter temperature adjustment mode.
Hold button (1) down for ten seconds to change from Fahrenheit to
Celsius.
Press the control panel heater button (6) to change to the desired
temperature. There are 10 temperature settings. Reference the table for
more detailed information.
After the temperature is selected will stay on for 10 seconds, then turn
off.
Adjusting the Ambient Side Lighting
Press the side light control button (4) to turn on the ambient lighting.
To change the colour of the lighting press the side light control button
(4) again. You can control the side lights colour as described in the table.
The colour rotation mode will cycle through the 3 different colour
settings continuously.

12
10.0 OPERATING THE APPLIANCE - CONTINUED GB IE
©2015 Focal Point Fires plc.
Using the Timer Control Button
Pressing the timer control button (5) will set the timer.
NOTE: If this product experiences exceptionally
high temperature, it may automatically stop heating. If this
occurs the product should be unplugged or isolated from the
main supply for a period of 30 seconds before the power is
then re-supplied.
Using the Timer Control Button
To turn off the heat mode, press and hold the control panel heater button for 10 seconds to enter heat lock out mode.
Ember bed lights will flash 6 times to signal the heat function is turned off and locked out.
When the heater button is pressed in lock out mode, the ember bed will flash 6 times until heating mode is turned on.
To turn on heating mode, press and hold the control panel heater button for 10 seconds, the ember bed will flash 6 times and the heat
function will be restored.
anual ON/OFF switch
There is a manual ON/OFF switch is located on the right hand side of the appliance. This allows the user to turn the appliance on or off.
anual ON/OFF Switch
ALWAYS DISCONNECT THE APPLIANCE FRO THE AINS SUPPLY OUTLET
SOCKET BEFORE UNDERTAKING ANY CLEANING OR AINTENANCE!
For general cleaning use a soft clean duster - never use harsh abrasive or cleaners. The glass viewing screen should be cleaned
carefully with a soft cloth.
If in doubt consult a qualified electrician. Refer to Section 3.0 Appliance Data for fuse specification. Excluding fuses, use only
genuine manufacturers spare parts available from your supplier.
Replacing the remote control battery:
When the battery becomes weak, the range of the remote control becomes shorter. Replace the battery with a new CR2025
lithium battery.
Note: Keep the lithium battery out of the reach of children.
11.0 CLEANING AND AINTENANCE

13 ©2015 Focal Point Fires plc.
12.0 TROUBLESHOOTING GUIDE
Fire is not switching on Ensure mains switch is on
Replace the fuse in the plug
Fire is not emitting any heat The fire is fitted with an energy saving thermostat. If the temperature in the room
is higher than the temperature selected on the fire, then the thermostat will stop
the heater from turning on. For example, if the room temperature is 22ºc or above
and the fires heater is set at 22ºc, then the heater will not be required until the
room temperature drops below 22ºc. If this is the case select a higher temperature
setting than the room’s temperature and the heater will begin to operate.
Fire shuts off after a period of time Check that the temperature is not set onto the lower settings. If the room is
warm enough the thermostat will stop the fire switching the heat on.
Check that the chimney/flue is blocked off.
Fire seems noisy There is a level of noise when the flame effect is in use, caused by a motor that
helps generate the effect. This noise will be heard when there is no other
background noise.
There is a higher level of noise associated with the heater motor; this is due to
the air flow required when heat has been selected.
Remote is not operating Check or replace batteries.
GB IE
The 3 year guarantee only covers products purchased on or after 1st February 2009. For all gas fires purchased the 3 year
guarantee commences from the date of purchase, provided that the following 3 terms and conditions are adhered to:
For all electric fires purchased the 3 year guarantee commences from the date of purchase, providing that you can supply the
proof of purchase. This does not cover consumable items such as pebbles, coals or light bulbs. Purchase(s) must be made
through an authorised stockist.
aking a claim
aking a claim is easy. If you wish to make a claim under our guarantee and all the terms and conditions for your product have
been met then please submit the following information for the attention of the 3G Service Department to the address below.
Alternatively, you can email or fax.
Focal Point Fires, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT.
Email: [e-mail],
Fax. [phone].
Details required:
1. Name, full address including postal code and contact telephone number.
2. A copy of your proof of purchase e.g. receipt, bank statement or sales order number
3. Original installers Gas Safe registration number (gas fires only).
4. Annual service receipt for every 12 months (gas fires only).
13.0 GUARANTEE - TER S AND CONDITIONS
F861275
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
As our policy is one of continuous improvement and development, we therefore hope that you will understand we must retain the right to amend details and/or specifications without prior notice.
