Focal CMS 50 - User manual

Français page 20
t h e focal g u a r a n t e e o n l y a p plies i f p a g e 40 i s
returned t o u s within 10 d a y s o f purchase.
CMS
User Manual
Due to constant technological advances, Focal reserves its right to modify specifications without notice. Images may not conform exactly to specific product.
Focal® is a trademark of Focal-JMlab® - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière
cedex - France - Tel. [phone] - Fax [phone] - www.focal-fr.com
The CMS loudspeakers constitute a professional monitoring system and we thank
you for choosing Focal. Those products have been designed to combine perfect
soundstage, high precision and extended frequency response, in a compact size,
suitable for near field monitoring.

CMS
User Manual 2
An example of this equipment has been tested and found to comply with the following Euro-
pean directives and international standards:
Electromagnetic compatibility
EN 55103
EN 61000
Electrical safety
EN 60065
Caution !
Risk of electric shock
Do not open
Do not expose to rain or moisture
Important safety information
Please read carefully the following instructions and safety information. Heed all warnings
and follow all instructions.
• Do not remove the back panel. There is no user serviceable parts inside; please refer to
qualified service personnel.
This equipment must be earthed.
• Protect the power cord from being walked on or pinched particularly at plugs, convenien-
ce receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Servicing is required when the unit has been damaged in any way, such as damaged
power cord or plug, spilled liquid or objects fallen into the unit, unit exposed to rain or
moisture, when it does not operate normally or has been dropped.
• Do not place naked flame sources, such as lighted candles on the apparatus.
• Use the apparatus only in moderate climates (not in tropical climates).
• Do not expose the apparatus to dripping or splashing.
• Do not place objects filled with liquids, such as vases, on the apparatus.

CMS
User Manual 3
CMS 50 and CMS 65 Packaging content
The loudspeaker is supplied with the following elements (apart from this manual):
• 1 power cord
• 4 rubber feet
• 2 adjustable spikes
• 1 rubber table stand
• 1 phase plug (tweeter)
• 1 protection grille for the tweeter with phase plug (we advise you to remove it before liste-
ning to the speakers.)
• 1 protection grille for the woofer (we advise you to remove it before listening to the spea-
kers.)
• 1 hook to remove the tweeter and woofer grilles
• 1 guarantee card
Please check that none of these items is missing, and remove all accessories from the box.
To remove the loudspeaker from its box without damage, open the end flaps fully and bend
them right back. Then remove the upper cushion and lift the loudspeaker out gently. Inspect
the speaker for signs of any possible damage. In the unlikely event of this having occurred,
please inform the carrier and supplier. It is a good practice to keep the packaging in case of
future transportation.
Preliminary recommendations
We would like to give a word of warning about the high sound pressure levels that can be
generated by these loudspeakers, especially in a 5.1 configuration. Because of their low levels
of distortion, and the minimal fatigue incurred by the user, it is not always obvious to realize
the actual sound pressure level while working. Please bear in mind that exposure to excessive
levels over a sustained period of time may lead to permanent hearing loss.
Warranty
These products are guaranteed against defects in components and workmanship only, for a
period of 2 years. During the warranty period, Focal will, at their discretion, either repair or
replace products which prove to be defective, provided that the product is returned, shipping
prepaid, to an authorized Focal service facility.
Defects caused by unauthorized modifications, accident, negligence or any misuse are not
covered by this warranty. For further information, please contact your dealer or the distributor
in your country.

CMS
User Manual 4
A
CMS 50
The CMS 50 is an active 2-way near field
professional monitoring loudspeaker
(2 internal amplifiers), composed of a 5”
(13cm) Focal woofer/midrange speaker with
a Polyglass cone loaded in a large laminar
port and of a Focal inverted dome tweeter
in aluminum/magnesium (fig. A).
B
CMS 65
The CMS 65 is an active 2-way near field
professional monitoring loudspeaker
(2 internal amplifiers), composed of a 6.5”
(16.5cm) Focal woofer/midrange speaker
with a Polyglass cone loaded in a large
laminar port and of a Focal inverted dome
tweeter in aluminum/magnesium (fig. B).
Installation
Mains voltage
After having unpacked the unit, first check that the operating voltage is correctly
set (see location on rear panel). If it is not, adjust the selector to the appropriate
position. Also check and if necessary replace the fuse, which rating depends on
the operating voltage
(please refer to technical specifications).
Your products must be earthed using the power cord supplied.

CMS
User Manual 5
Audio input connections
The audio signal input is to connect, up to your own choice, whether to the XLR inlet or RCA
inlet.
The XLR inlet permits the connection of a source with symmetrical signal and uses standard
wiring instructions:
Pin 1 = Ground (shield)
Pin 2 = In phase voltage (“hot”)
Pin 3= Out-of-phase voltage (“cold”).
The RCA inlet permits the connection of a source with asymmetrical signal. It’s common to
link the out-of-phase voltage (Pin 3) to the ground (Pin 1). This connection is generally made
at wire level.
Tweeter phase plug
The CMS speakers are delivered with grilles for woofer and tweeter. In order to optimize the
sound stage precision, we advise you to remove the grilles thanks to the hook included in the
packaging. Then, install the phase plug on the tweeter in the vertical position by gently push
on the suburbs of the phase plug (see below).

Positioning
The CMS loudspeakers are near field monitoring loudspeakers and should be positioned at
a distance between 1 and 3 meters from the listener, pointing towards the listening position.
They can be sitting on the console top, hung or even placed on appropriate stands. In any
way, it is recommended that the tweeter is at a height from the floor approximately equivalent
to that of the listener’s ears. If required, it can make sense to place the speakers upside down
so that the previous rule is better fulfilled.
The CMS loudspeakers could be placed vertically or horizontally depending on the environ-
ment, preferably pointing towards the listener (fig. C, D, E).
Once the position is defined, you have 2 kinds of feet (4 rubber feet and 2 adjustable spikes)
to optimize the loudspeaker positioning (fig. F, G). The adjustment of the spike height permits
to control the height of the soundstage. The gap and the right/left positioning of each louds-
peaker permit to control the width, the centering and the global coherence of the soundstage
(left/center/right), at the source of your recording precision.
Running in
As in all brand new loudspeaker, the drivers need some run-in period: the CMS transducers are
mechanical elements demanding a little time to settle and adapt to the climatic environment.
This period will vary, depending on the working conditions and may take up to a few weeks.
Avoid pushing the speakers very hard during their first hours of use, but to accelerate the run-in
process, it is good practice to operate the speakers at moderate levels for 20 hours or so, with
programs having significant low frequency content. Only once the transducers have come to
stabilize will you get the optimum performance.
CMS
User Manual 6

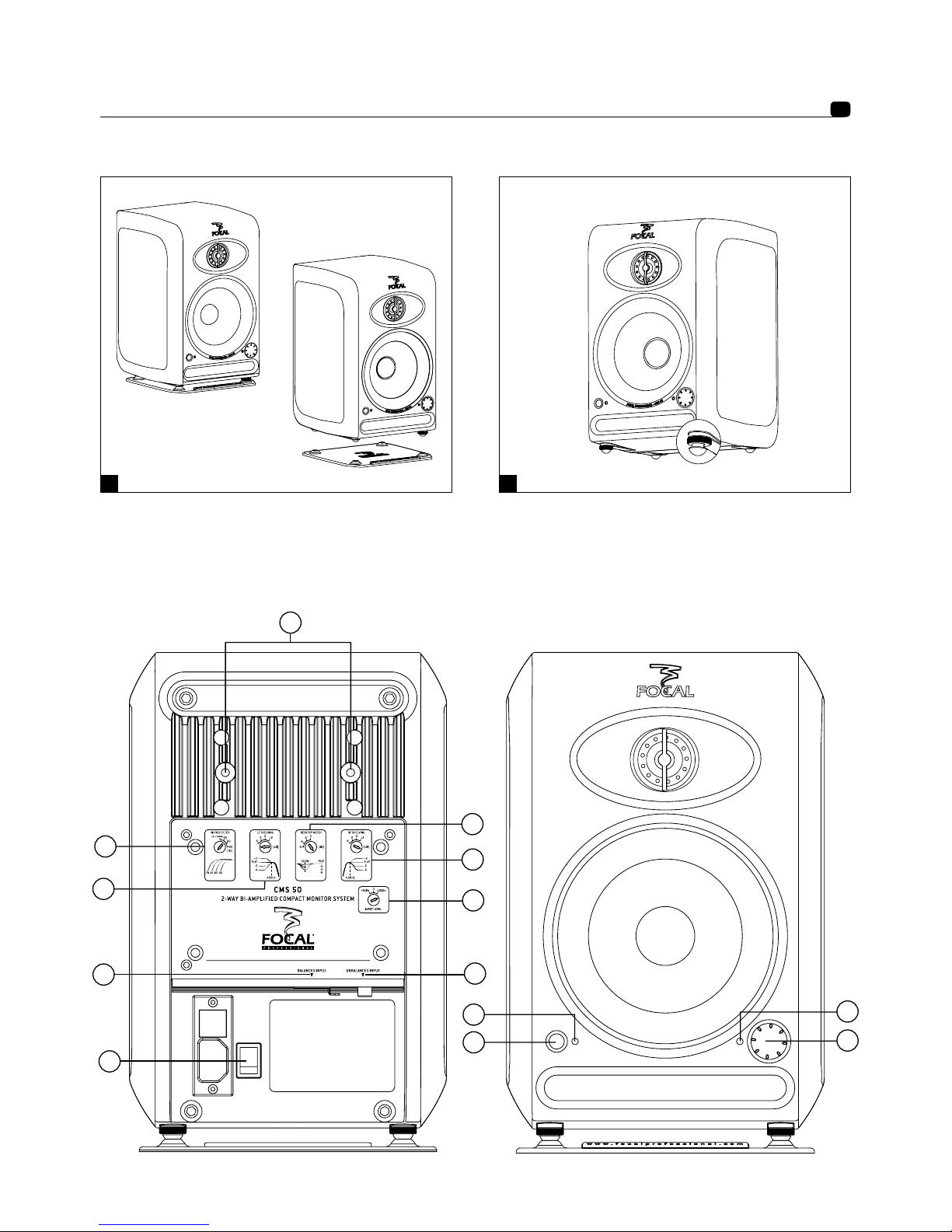

CMS 50 and CMS 65 controls
1 HI-PASS FILTER
The HI-PASS FILTER rotative switch permits to activate or not the 12dB/octave high-pass filter.
We advise you to set the rotative switch on FULL RANGE (deactivate the high-pass filter) in the
case of a use in stereo configuration (2.0). We advise you to use the positions 45, 60 or 90Hz
in the case of a use of the system with one or several subwoofers.
2 LF SHELVING
The LF SHELVING rotative switch permits to activate or not a correction of the sound level
under 450Hz. We advise you to set the LF SHELVING rotative switch on +2dB when the pre-
mises acoustics naturally softens that frequency range. We advise you to set the LF SHELVING
rotative switch on FLAT when the premises acoustics is neutral. We advise you to set the LF
SHELVING rotative switch on –2, -4, or –6dB when the loudspeakers are placed next to a wall
or an angle.

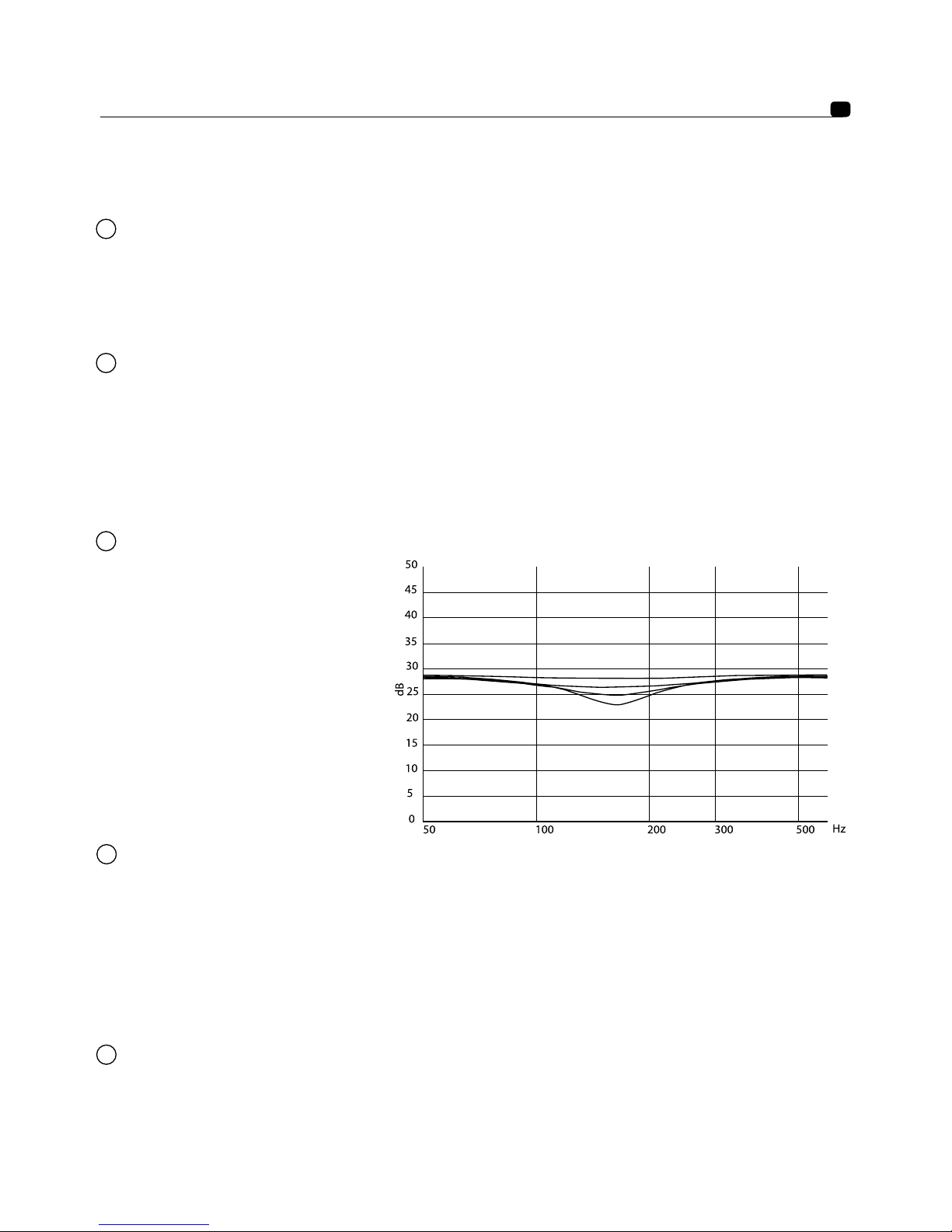

3 DESKTOP NOTCH
The DESKTOP NOTCH rotative
switch permits to activate or not
a correction of the sound level at
a central frequency of 160Hz for
a Q factor of 2. We advise you to
set the rotative switch on –2, -4 or
–6dB when the loudspeakers are
positioned on a table, a console
or any other support that creates
reflections.
CMS
User Manual 7
4 HF SHELVING
The HF SHELVING rotative switch permits to activate or not a correction of the sound level
from 4.5 kHz. We advise you to set it on:
• +2dB when the premises acoustics naturally softens this frequency range (mat environ-
ment).
• - FLAT when the premises acoustics is neutral.
• –2 or –4dB when the premises acoustics naturally increases this frequency range (brilliant
environment)
5 INPUT LEVEL
The INPUT LEVEL rotative switch function is to make the output sensitivity of the mixing conso-
le, or any other source, correspond to the input sensitivity of the loudspeakers. The available
sensitivities are +4dBu, 0, -10dBv. The +4dBu position corresponds to the professional stan-
dard. The -10dBv corresponds to the general public standard. The 0 position is an interme-
diate position.

6 FIXING POINTS
The fixing points are made to ensure the link between the loudspeaker and a fixing support
(stand, wall fixing, ceiling fixing, …). Please refer to page 11 to know the compatible fixations
(non-exhaustive list). The thread type is BSW 3/8”.
7 BALANCED INPUT
The XLR inlet permits the connection of a source of symmetrical signal and follows standard
wiring instructions.
Pin 1 = ground (shielding)
Pin 2 = In phase voltage (hot)
Pin 3 = Out-of-phase voltage (cold)
8 UNBALANCED INPUT
The RCA inlet permits the connection of a source of asymmetrical signal. It is common to link
the out-of-phase voltage (Pin 3) to the ground (Pin 1). This connection is generally made on
the wires.
9 ON/OFF Switch
The ON/OFF switch permits to put the internal amplifiers ON or OFF.
10 ON/STANDBY Switch
The ON/Standby switch permits to activate or to put the CMS loudspeaker in Mute. The LED is
green when the loudspeaker is activated. The LED is red when the loudspeaker is in Standby.
11 VOLUME
The level rotative switch permits to adjust the level of the CMS loudspeaker. In position 0
(complete counterclockwise rotation), the loudspeaker is in Standby. In position 1(complete
counterclockwise rotation + 1 notch), the softening is of –66dB. The last notch (complete
clockwise rotation), corresponds to 0dB.
12 LED
The LED is red when the loudspeaker is in standby. The LED is green when the loudspeaker
is activated.
13 CLIP INDICATOR
The clip indicator permits to control the audio signal quality. When the LED is lit up, the clip is
activated. It means that the signal is saturated and does not permit to work in good conditions.
You must avoid activating the clip. To do so, you must reduce the input signal level in the CMS
loudspeaker and/or reduce the loudspeaker sound level 11.
CMS
User Manual 8

CMS
User Manual 9
C
D
E

CMS
User Manual 10
1
3
5
4
78
6
2
9
10
12
11
13
F G
CMS 50

CMS
User Manual 11
6
3
5
4
8
9
10
12
11
13
1
7
2
CMS 65

CMS
User Manual 12
Fixing Accessories
Description Brand Reference CMS 50 CMS 65
Stand (950-1430mm / 37-3/8” - 56-5/16”) K&M 26740 x x
Table stand (micro stand 355-580mm / 14”-
22-13/16”)
K&M 23300 x x
Ceiling fixing
(0-45°adjustable/360°rotating/260mm (10-1/4”)
height)
K&M 24485 x
Wall fixing (rotating/distance from wall 105mm/
4-1/8”)
K&M 24180 x x
Wall fixing (adjustable/rotating) OMNIMOUNT 20.5 WA x x
Ceiling fixing (adjustable/rotating) OMNIMOUNT 20.5 CA x x
Wall fixing (adjustable/rotating) OMNIMOUNT 20.5 ST x x
Wall fixing (adjustable/rotating/important distance
from wall)
OMNIMOUNT 20.5 STX x
Structure fixing (to be used with all the OMNI-
MOUNT Ballshaft fixations 20.5)
OMNIMOUNT 20.5 C
CLAMP
x x

CMS
User Manual 13
System CMS 50
• Frequency response (+/- 3dB) 55Hz - 28kHz
• Maximum SPL 105dB SPL (peak @ 1 m)
Electronic section
• Input - Type/Impedance
- Connector
Balanced 20 kOhms / Unbalanced 47 kOhms
XLR / RCA
• LF amplifier stage
• HF amplifier stage
80W rms, classe AB
50W rms, classe AB
• Power supply - Mains voltage
- Connection
220-230V (1.6A fuse rating)
120V (3.15A fuse rating)
100V (4A fuse rating)
IEC inlet and detachable power cord
• User controls - Sensitivity
- Volume
- High-pass filter
- LF shelving (0 - 450 Hz)
- HF shelving (4,5 kHz - 20 kHz)
- Desktop notch at 160 Hz
(factor Q = 2)
- Power ON / OFF
- Standby / ON
Ajustable, +4dBu / 0 / -10dBV
Ajustable, -66 dB / 0dB
Ajustable, inactive / 45 / 60 / 90 Hz (12dB /oct.)
Ajustable, 0 / -4 / -2 / +2dB
Ajustable, 0 / -4 / -2 / +2dB
Ajustable, 0 / -2 / -4 / -6dB
Power ON / OFF switch, mains voltage selector
Standby / ON switch
• Indicators Power ON/OFF LED
Power ON/OFF LED
Audio clip LED
Transducers
• Woofer 5" Focal drive unit, Polyglass cone
• Tweeter Aluminium/Magnesium inverted dome Focal tweeter
• Shielding Integral by compensation magnet
Cabinet
• Construction Reinforced and damped die cast aluminum cabinet
• Finish Black powder coating
• Dimensions with 4 rubber spikes (HxWxD)
• Dimensions with rubber table stand (HxWxD)
289.5x190x201mm (11.4"x7.5"x7.9")
299.2x190x201mm (11.8"x7.5"x7.9")
• Weight 7,7kg (17 lb)

CMS
User Manual 14
System CMS 65
• Frequency response (+/- 3dB) 45Hz - 28kHz
• Maximum SPL 108dB SPL (peak @ 1 m)
Electronic section
• Input - Type/Impedance
- Connector
Balanced 20 kOhms / Unbalanced 47 kOhms
XLR / RCA
• LF amplifier stage
• HF amplifier stage
100W rms, classe AB
60W rms, classe AB
• Power supply - Mains voltage
- Connection
220-230 V (1.6 A fuse rating)
120 V (3.15 A fuse rating)
100 V (4 A fuse rating)
IEC inlet and detachable power cord
• User controls - Sensibility
- Volume
- High pass filter
- LF shelving (0 - 450 Hz)
- HF shelving (4,5 kHz - 20 kHz)
- Desktop notch 160 Hz
(factor Q = 2)
- Power ON / OFF
- Standby / ON
Ajustable, +4 dBu / 0 / -10dBV
Ajustable, -66 dB / 0dB
Ajustable, inactive / 45 / 60 / 90 Hz (12dB / oct.)
Ajustable, 0 / -4 / -2 / +2dB
Ajustable, 0 / -4 / -2 / +2dB
Ajustable, 0 / -2 / -4 / -6dB
Power ON / OFF switch, mains voltage selector
Standby / ON switch
• Indicators Power ON/OFF LED
Power ON/OFF LED
Audio clip LED
Transducers
• Woofer 6.5" Focal drive unit, Polyglass cone
• Tweeter Aluminium/Magnesium inverted dome Focal tweeter
• Shielding Integral by compensation magnet
Cabinet
• Construction Reinforced and damped die cast aluminum cabinet
• Finish Black powder coating
• Dimensions with 4 rubber spikes (HxWxD)
• Dimensions with rubber table stand (HxWxD)
358.5 x 241 x 231mm (14.1"x9.5"x9.1")
368.5 x 241 x 231mm (14.5"x9.5"x9.1")
•Weight 10.5kg (23.1 lb)

CMS SUB packaging content
The CMS SUB is supplied with the following elements (apart from this manual)
• 1 power cord
• 1 guarantee card
• 1 protection grille for the subwoofer (we advise you to remove it before listening to the CMS
SUB).
The CMS SUB is an active subwoofer (1 internal amplifier) designed for Professional monito-
ring systems. It uses a 11” drive unit equipped with a “Polyglass” cone, and loaded by a large
cross-section laminar port.
CMS SUB
User Manual 15
H
The CMS SUB may be used :
- for bass or sub-bass enhancement in stereo + sub setups (2.1 or 2.2). The rear panel of the
CMS SUB allows for the connection of a traditional stereo source (Left In / Right In).
- as a LFE channel (Low Frequency Effects) in a multi-channel installation (5.1, 5.2, 6.1…), via
a dedicated input of the rear panel.

CMS SUB
User Manual 16

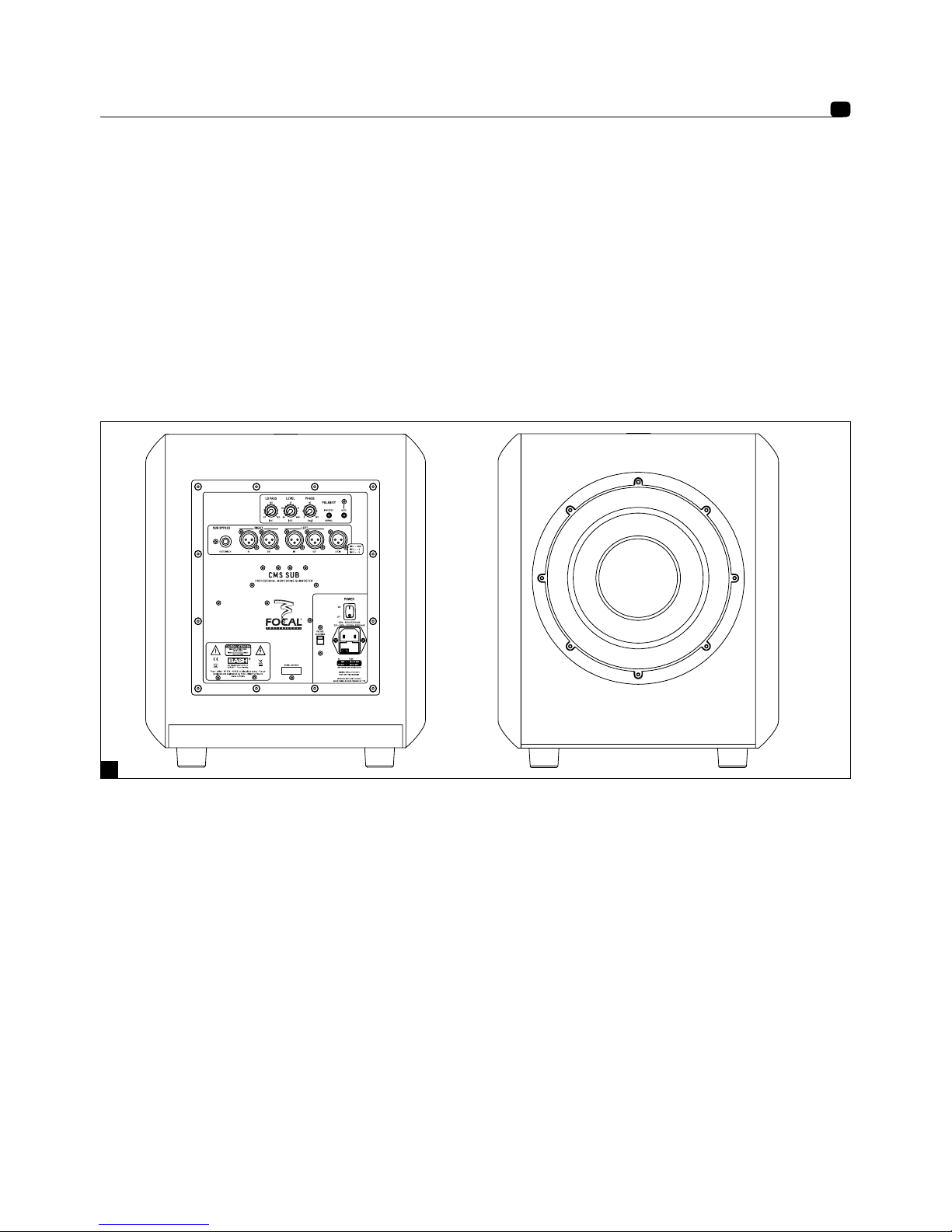

Audio connections: CMS SUB (fig. J)
Stereo + Sub setup (2.1 or 2.2):
Left IN: this input is intented to receive the signal coming from the left channel of your source
(mixing console, or other…).
Right IN: this input is intented to receive the signal coming from the right channel of your
source (mixing console, or other…).
Left OUT: this output is intended to connect to the left main loudspeaker of your system. The
signal supplied by this output is not internally processed. You have to engage the high pass
filter on the CMS monitors to ensure perfect coupling and to avoid overlapping.
Right OUT: this output is intended to connect to the right main loudspeaker of your system.
The signal supplied by this output is not internally processed. You have to engage the high
pass filter on the CMS monitors to ensure perfect coupling and to avoid overlapping.
Multichannel configuration:
LFE: this input is intended to feed your CMS SUB in a multichannel application (5.1, 5.2, 6.1,
…): this channel is dedicated to low frequencies only.
Optimal positioning of the CMS SUB may vary depending on the surface, the shape and
acoustic properties of the listening room.
You are advised to try various locations so to choose the one giving the best possible and most
level sound balance. As a rule of thumb the optimal location will often be in a corner of the
room.

CMS subwoofer controls
1 LEVEL
This adjustement allows to set the sound level of the subwoofer relative to that of the main
loudspeakers. It should also be optimised taking into account the actual location of the
subwoofer and its acoustic consequences: for example in an angle the 6 dB acoustic gain
should be compensated by an equivalent attenuation to maintain the overall balance of the
system.
2 MUTE
This switch will turn out the output signal of the subwoofer channel (making it silent does not
require to switch the power off).
3 LO PASS
This potentiometer adjusts the cut-off frequency of the low pass filter on the subwoofer chan-
nel, thus setting the upper frequency range to be reproduced by the CMS Sub. The goal is to
achieve the smoothest frequency response of the whole system: sub + monitors.
4 POLARITY
This switch inverts the signal polarity on the subwoofer channel (ie 180° phase shift).
5 PHASE
This potentiomer provides some fine ajustment of the phase on the subwoofer channel. Com-
bined with the polarity switch it can be used to compensate for the spacing between the sub
and the main speakers, so to get a coherent soundfield through a proper time alignment of
the different sources.
6 SUB BYPASS
This input allows for plugging in a control footswitch (not supplied) via a ¼” jack connector.
Turning it active will mute the subwoofer channel. This facility allows for instantaneous compa-
rison between the 2.1 configuration (with sub) and the traditional stereo setup
(without sub) with the same system.
7 POWER INDICATOR
Power "LED" indicator
CMS SUB
User Manual 17

CMS SUB
User Manual 18
15
3
6
2
4
7
(fig. J)

CMS SUB
User Manual 19
System CMS SUB
• Frequency response (+/- 3dB) 30Hz - 250Hz
• Maximum SPL 113dB SPL (peak @ 1 m)
Electronic section
• Input - Type/Impedance
- Connector
- Sensitivity
Left, Right, LFE
Electronically balanced / 10kOhms
Female 3 pins XLR
Variable
• Output (to satellites) - Connector Left, Right
Male 3 pins XLR in parallel on inputs
• Amplifier - 300 W rms, BASHtechnology
• Internal processing and functions - Subwoofer section Left + Right mono summation
LFE + lo-passed mono sum
24dB/octave variable lo-pass filter
Phase adjustment
Polarity
• User controls Sub level (sensitivity) adjustment
Lo-pass frequency adjustment
Phase adjustment
Polarity switch
Mute
External Mute (controlled by external footswitch)
• Indicators (LED’s) Power on
Mute
External Mute
• Power supply - Mains voltage
- Connection
230V (T1.6AL fuse rating) or 115V (T3.15AL fuse rating)
IEC inlet and detachable power cord
Transducers
• Subwoofer Polyglass, high excursion Focal, 270mm (11”) drive unit
Cabinet
• Construction 22mm MDF panels with internal braces
• Finish Dark grey vinyl
• Dimensions (HxWxD) 435,5mm x 366mm x 440mm (17.1” x 14.4”x 17.3”)
•Weight 23kg (50.7lb)

CMS
Manuel d’utilisation 20
po u r v a l i d a t i o n d e l a g a r a n t i e focal, merci d e
n o u s r e t o u r n e r l a p a g e 39 d a n s l e s 10 jours.
Dans un but d’évolution, Focal-JMlab se réserve le droit de modifier les spécifications techniques de ses produits préavis. Images non contractuelles.
Focal® est une marque de Focal-JMlab® - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière
cedex - France - Tel. [phone] - Fax [phone] - www.focal-fr.com
Les enceintes CMS constituent un système d’écoute de contrôle professionnel
et nous vous remercions d’avoir choisi Focal. Ces produits ont été conçus pour
allier image sonore impeccable, haute précision et réponse en fréquence éten-
due, dans un format compact adapté à des écoutes de proximité.
