FOGG Microb-Blaster Series User manual

THE FOGG MICROB-BLASTER®
AIR SANITIZER MANUAL

Fogg Company Microb-Blaster®Air Sanitizer
Page 2
TABLE OF CONTENTS
INTRODUCTION 3
Preface 3
Parts Ordering 4
SAFETY WARNINGS 5
Personnel Safety 5
Operations Safety 5
Maintenance Safety 6
Microb-Blaster®Air Sanitizer 4800 7
OPERATIONS 8
System Overviews 8
Microb-Blaster®Air Sanitizer 2400 8
Microb-Blaster®Air Sanitizer 4800 9
UVC Lamps 10
Air Infeed 10
Power Supply 10
CLEANING 11
Cleaning Notes 11
Lamp Cleaning 11
MAINTENANCE 12
Changing the Lamps 12
Microb-Blaster®Air Sanitizer 2400 12
Microb-Blaster®Air Sanitizer 4800 14
Changing the Air Filter 15
Microb-Blaster®Air Sanitizer 2400 and 4800 15
Changing the Power Supply Fuse 16
Microb-Blaster®Air Sanitizer 2400 and 4800 16
Service Parts List 17
Preventative Maintenance 17

Fogg Company Microb-Blaster®Air Sanitizer
Page 3
INTRODUCTION
Preface
This manual will only benefit all of us if you, and others responsible for the operation and maintenance of this
equipment, review this manual and keep it with the machine where it can be referenced for immediate use.
For safety and reliable operation, custom equipment like this Fogg machine requires a working understanding of
the adjustments and principles of operation by the personnel involved.
To order parts, the correct part number, serial number, and model number of the equipment will be required.
Throughout this manual, features and appearances may vary from your model. Due to CI (continuous
improvement), the pictures shown may not depict exactly your machine; however, the concepts are the same.
In this manual, reference is made to the following terms:
NOTE:
Notes are specific and important points which are informative and are included for further information about the
particular subject.
CAUTION!
Cautions are procedures, practices, or specific points of information which, if not carefully followed, may result in
damage to the machines or equipment or, may lead to minor personal injury.
WARNING! Warnings are procedures, practices, or specific points of information which, if not carefully followed,
may result in serious personal injury—even death—or, may result in severe damage to the machinery or
equipment. They are preceded by this exclamation diagram.
The information contained or disclosed by this document is considered proprietary by Fogg Company. This document, items, and information
contained or disclosed herein shall not be used, copied, or reproduced in whole or in part, nor shall the contents be revealed in any manner to
any person unless written permission is obtained from Fogg Company.
Refer to our website at www.foggfiller.com/patents for our patent and trademark lists. Below is a summary of our registered trademarks.
Fogg®, Microb-Blaster®and the starwheel symbol are registered trademarks of Fogg Company. All brand or product names are trademarks of
their respective companies. “ALL RIGHTS RESERVED”
Copyright © 2020 by Fogg Company Microb-Blaster Air Sanitizer Manual - 834-2588.docx

Fogg Company Microb-Blaster®Air Sanitizer
Page 4
Parts Ordering
Please refer to the machine model number and part number when ordering parts.
Our normal business hours are 8:00 a.m. to 5:00 p.m. USA Eastern Standard Time (EST), Monday through
Friday.
Fogg Company Telephone: [phone] (Front Desk)
3455 John F. Donnelly Dr. Facsimile: 616.786.0350
Holland, MI 49424 USA Parts Facsimile: 616.786.0610

Fogg Company Microb-Blaster®Air Sanitizer
Page 5
SAFETY WARNINGS
Read all Safety & Precaution statements throughout this manual.
Personnel Safety
Operations Safety
All powered equipment can and will be dangerous to you if not operated properly. Be certain you are familiar with
this machine and its functions before you operate it or perform any maintenance on it. Failure to follow safety
precautions could result in serious personal injuries, including the possibility of the loss of life, equipment damage,
or failure, and may void the warranty on your machine.
Personnel Responsibilities
The personnel responsible for the machine must be familiar with all safety devices installed on the machine as
well as their use. Do not allow unauthorized personnel to operate or perform maintenance on this machine. All
personnel involved with the machine must be instructed in the following:
•Safety procedures and accident prevention.
•Specific safety procedures concerning the machine.
•Locations and positions of the operating controls.
Personnel Safety
Do not stick your hand, arm, or any other part of your body into the machine while in operation.
Hazard Labels
Refer to all machine labels that have been placed on the machine to familiarize yourself with the potential hazards
on the machine.
Safety Guarding
Do not operate the Fogg Microb-Blaster®Air Sanitizer without all guards and covers in place.
WARNING! DO NOT OPERATE WITHOUT ALL guards and components in place and securely fastened.
Irreparable damage to your eyes and skin could result!

Fogg Company Microb-Blaster®Air Sanitizer
Page 6
Personnel Safety
(continued)
Maintenance Safety
Safety Glasses
Make certain UV-C light safety glasses are always worn when servicing this equipment. Anytime you are working
on or around the Fogg Microb-Blaster®Air Sanitizer, UV-C safety glasses MUST BE WORN! Always wear safety
glasses when performing maintenance on this machine.
Machine Cleanliness
After performing maintenance procedures, make certain all tools and equipment are removed from the machine
area before resuming operations. Do not leave maintenance tools (wrenches, screwdrivers, etc.) inside the
machine components or lying around the machine.
Power Supply
Prior to performing maintenance or cleaning the machine, unplug the machine to remove the electrical power
source.
UV-C Light Warnings
WARNING! When performing any servicing that requires the housings to be opened, such as changing the
lamps, MAKE CERTAIN power is shut-off, unplugged from wall, and allowed to cool.
WARNING! Exposure to UV-C light can cause “sunburn-like” skin irritation, and irreparable damage to the eyes.
Warning Labels
Obey them!

Fogg Company Microb-Blaster®Air Sanitizer
Page 7
Personnel Safety
(continued)

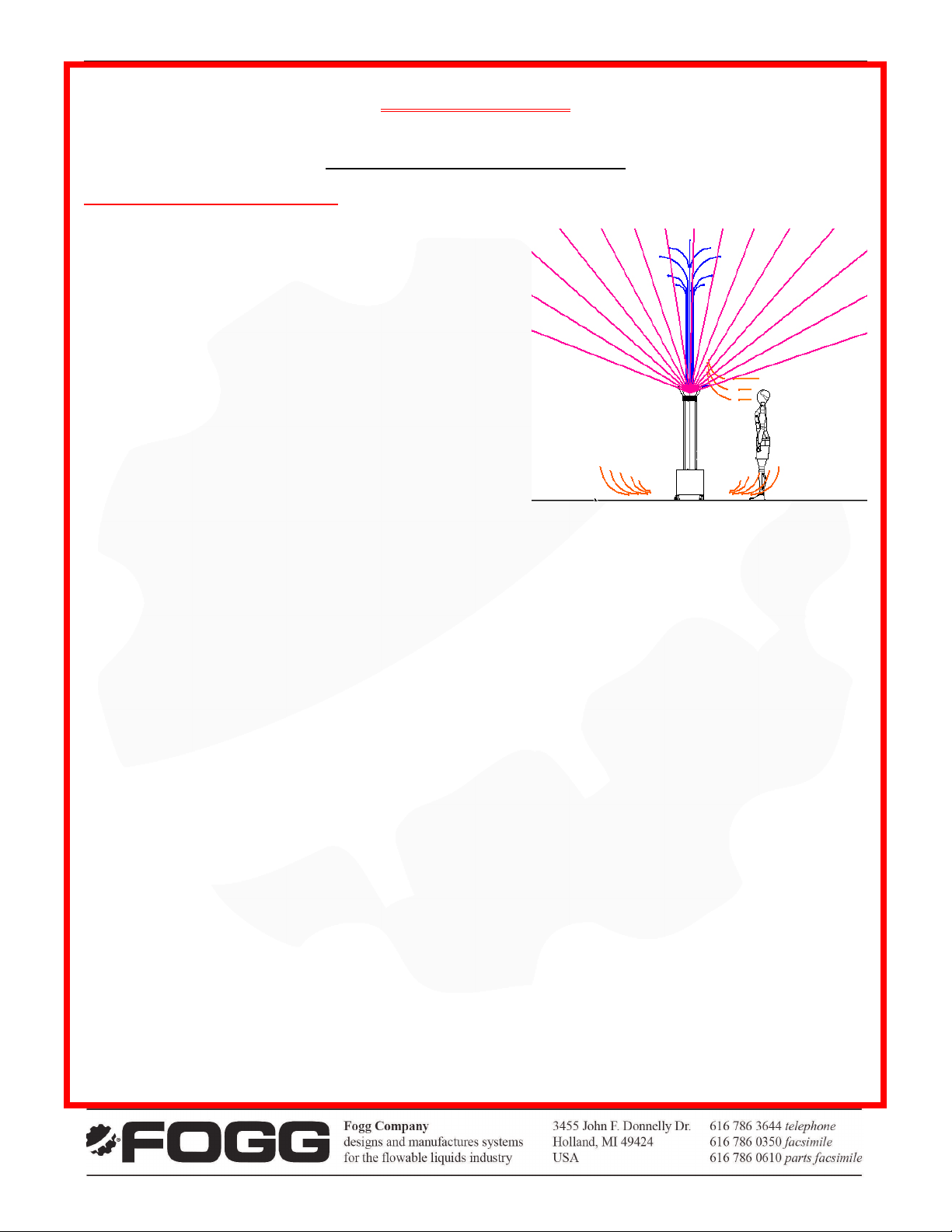

Microb-Blaster®Air Sanitizer 4800
UVC Direct Exposure Hazard Zone
CAUTION:
•Do not get on a ladder or chair to stand on and look
down into the unit.
•The unit should not be placed where personnel could
look down into it from an elevated position. For
example, it should not be placed on a first-floor level
that is open to floors above.
WARNING!
•Exposure to UV-C light can cause “sunburn-like” skin
irritation, and irreparable damage to the eyes.
•DO NOT PUT your hand(s) over the top of the unit into
the exposed UVC light. Sunburn-like exposure to your
skin will occur quickly!

Fogg Company Microb-Blaster®Air Sanitizer
Page 8
OPERATIONS
System Overviews
Microb-Blaster®Air Sanitizer 2400
Air Filter
Microb-Blaster® Air
Sanitizer 2400 Overview
Power Supply,
Fuse,
and
On/Off Switch
UVC Lamps

Fogg Company Microb-Blaster®Air Sanitizer
Page 9
System Overview
(continued)
Microb-Blaster®Air Sanitizer 4800
UVC Lamps
Power Supply,
Fuse,
and
On/Off Switch
Air Filter
Microb-Blaster®Air
Sanitizer 4800 Overview

Fogg Company Microb-Blaster®Air Sanitizer
Page 10
System Overview
(continued)
UVC Lamps
The Fogg UVC lamps are extremely powerful and should be treated with appropriate caution. Refer to the safety
section for precautions.
UV-C light can kill micro-organisms when they are exposed to it for enough time. The rate at which micro-
organisms are killed depends on the wavelength of the light, the intensity of the light, and the exposure time.
Depending on the application, the Fogg Microb-Blaster®Air Sanitizer has been designed to kill in a range of 90%
to 99.99% of all potentially harmful organisms.
Light Box
The heart of the Fogg Microb-Blaster® Air Sanitizer is the UV-C lamp chamber (the light box). This stainless-
steel structure is made up of the external shell and internal reflectors/lamp holders.
Lamp Life
The lamps have a Fogg-rated life of 9000 hours of operation. 9000 hours is the point at which the actual output of
UV-C light may start to drop below 90% of the original, and the risk of inadequate dosage exceeds allowable
tolerances.
Air Infeed
The Fogg Microb-Blaster®Air Sanitizer uses forced-air for both cooling the UV-C lamps and for feeding air into the
UV-C box.
Air Filtration
The air filter is located at the bottom of the machine, below the air intake fan. The filter prevents particles from
entering and contaminating the Microb-Blaster®Air Sanitizer system enclosure. Be sure to inspect the filter every
month, as noted in the PM section.
Changing the Air Filter
The Microb-Blaster®Air Sanitizer air filter simply slides in and out to make inspection and changing easier.
Power Supply
On the backside of the machine is an on/off switch, power cable, and power supply fuse. CAUTION: Do not
tamper with the three prongs or remove the grounding prong.

Fogg Company Microb-Blaster®Air Sanitizer
Page 11
CLEANING
Cleaning Notes
The Fogg Microb-Blaster® Air Purifier is a precision machine that must be
cared for and cleaned on a regular basis. The interior of the light chamber
should be blown-out with clean, compressed shop air on a weekly basis to
remove any accumulated dust and debris that could cause shadowing of the
UV-C lamps.
CAUTION: No Abrasive Pads! Do not use any abrasive pad or similar
Scotch-Brite® material on any parts of the machine. Unsightly scratching and
micro-scratching of the surfaces will result.
Plastic Cleaning
Use soft, white cloths and a specific plastic cleaner when cleaning the plastic.
Do NOT use paper towels. Micro-scratching and a damaged finish will result if
cleaners and materials other than those specified for plastic are used.
CAUTION: Do not use any type of caustic cleaner or solvent-type cleaner on
the polycarbonate doors of the machine, nor any type of Scotch-Brite®
material, or equivalent.
Stainless Steel Cleaning
Use soft, white cloths and a specific, high quality stainless-steel cleaner to
avoid scratching the mirror-like surface and to keep the unit looking clean.
Refer to "The Care and Cleaning of Stainless Steel" document for further
information.
Lamp Cleaning
Lamp Reflectors
The stainless-steel lamp reflectors must be kept clean to maintain their bright, polished surfaces to ensure proper
air sanitation.
Lamp Lamps
The lamps can be wiped down with a cloth soaked with tap water (use no chemicals), and then wiped dry.
Machine Enclosure
CAUTION: Do not spray the device with water or cleaner as these are not sealed units.

Fogg Company Microb-Blaster®Air Sanitizer
Page 12
MAINTENANCE
Changing the Lamps
Microb-Blaster®Air Sanitizer 2400
1. Disconnect the power and allow the unit to cool.
2. Open the top of the unit by unscrewing the four screws.
3. Remove the top cover.
4. Disconnect the Lamp:
a. Lift lamp slightly out of its pocket,
b. Firmly grasp the lamp,
c. Pull plug from the top of the lamp. DO NOT TWIST!!!
5. Lift the old lamps out.
6. Gently slide the new lamps into the pockets.
Location of Screws

Fogg Company Microb-Blaster®Air Sanitizer
Page 13

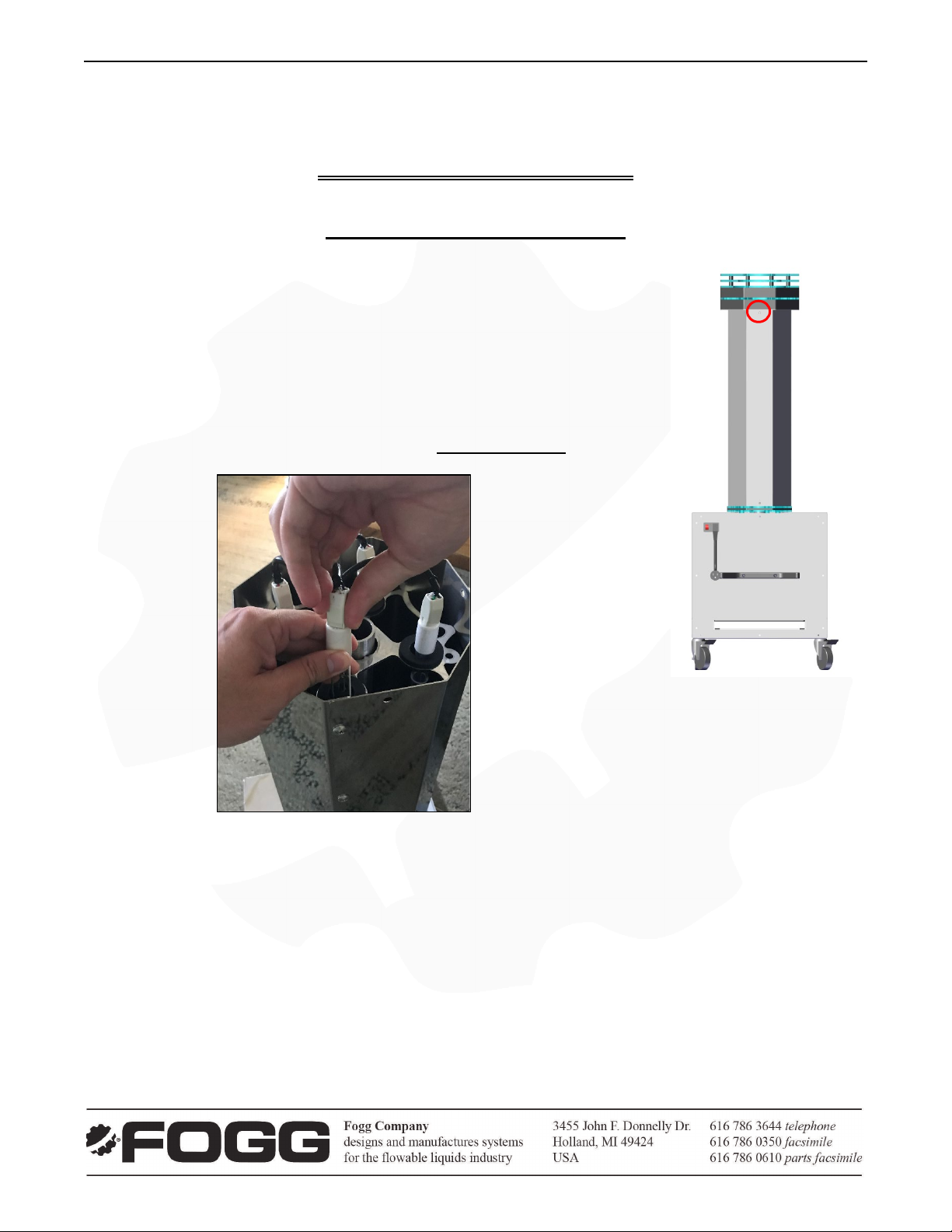

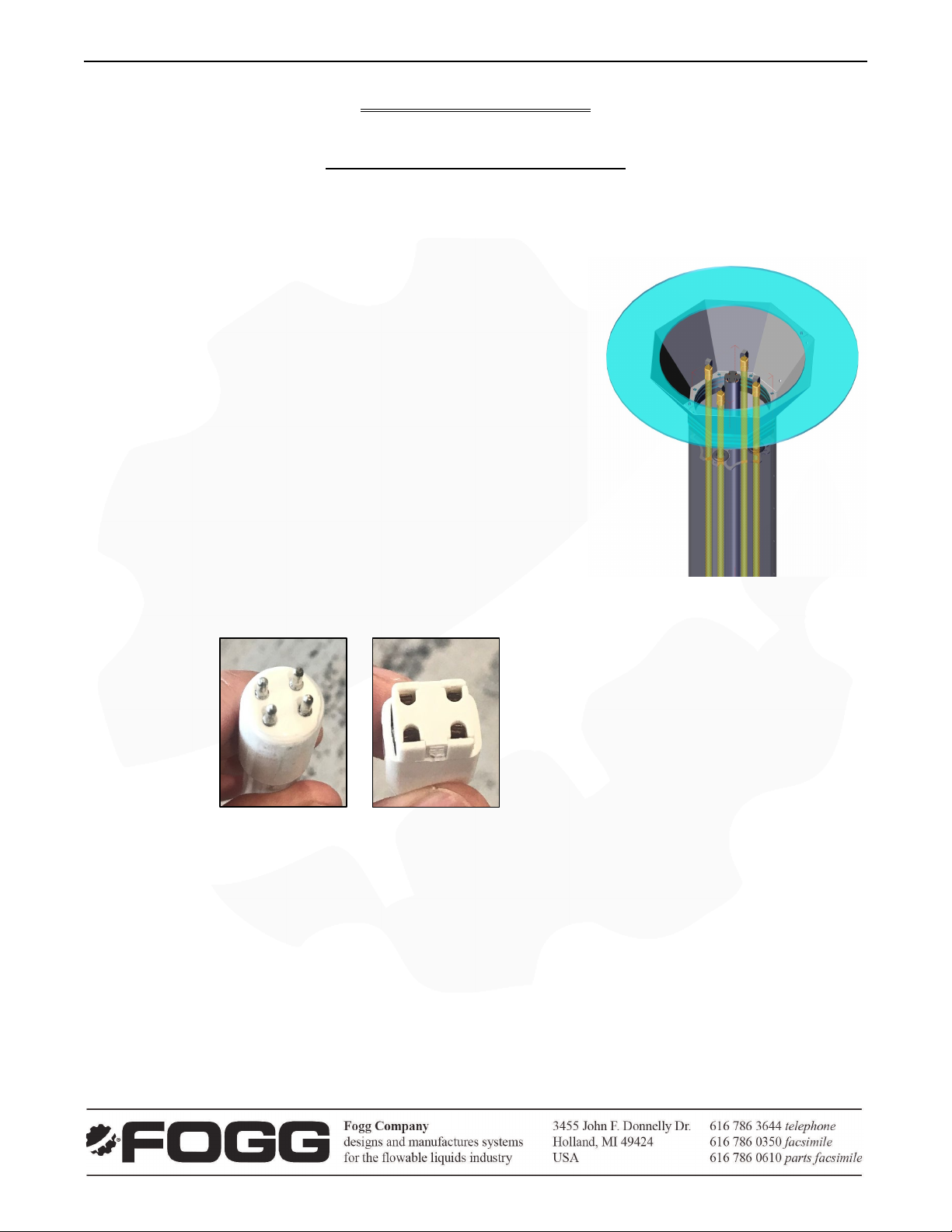

Changing the Lamps
(continued)
Microb-Blaster® Air Sanitizer 2400 (continued)
7. Gently connect the new lamps with the slightly rectangular connections. Note: if it doesn't connect
gently, rotate 90 degrees and try again.
8. Once the lamps have been replaced, reattach the cover and tighten
the 4 screws.
9. Plug the unit back in.
10. Turn on the power switch.
11. Visually inspect: Are all lamps lit after 30 seconds? If not, disconnect
the machine, remove top, and inspect the lamp connections.
Note: You can safely look into this machine when the top cap is on the
machine.
CAUTION! NEVER look directly into the machine with the top cap lifted off!
Top Lifted Off
Rectangular Lamp Plug Shape

Fogg Company Microb-Blaster®Air Sanitizer
Page 14
Changing the Lamps
(continued)
Microb-Blaster®Air Sanitizer 4800
The top of the machine is open. This allows for easy access to the lamps, weather by laying the machine on its
side to remove them, or to pull them straight up and out.
1. Lock two wheels.
2. Disconnect the power and allow the unit to cool.
3. Tilt the machine onto its side (Be careful! It's on casters!).
4. Disconnect the Lamp
a. Firmly grasp the lamp,
b. Lift lamp slightly out of its pocket,
c. Pull the plug from the top of the lamp.
DO NOT TWIST!
5. Pull the old lamps out.
6. Gently slide the new lamps into the pockets.
7. Gently connect the new lamps with the slightly rectangular
connections. Note: if it doesn't connect gently, rotate 90
degrees and try again.
8. Stand the unit back up. CAUTION: Do NOT turn the unit on while it is on its side.
9. Plug the unit back in.
10. Turn the unit back on.
Rectangular Lamp and Plug Shape
Location of Lamps

Fogg Company Microb-Blaster®Air Sanitizer
Page 15

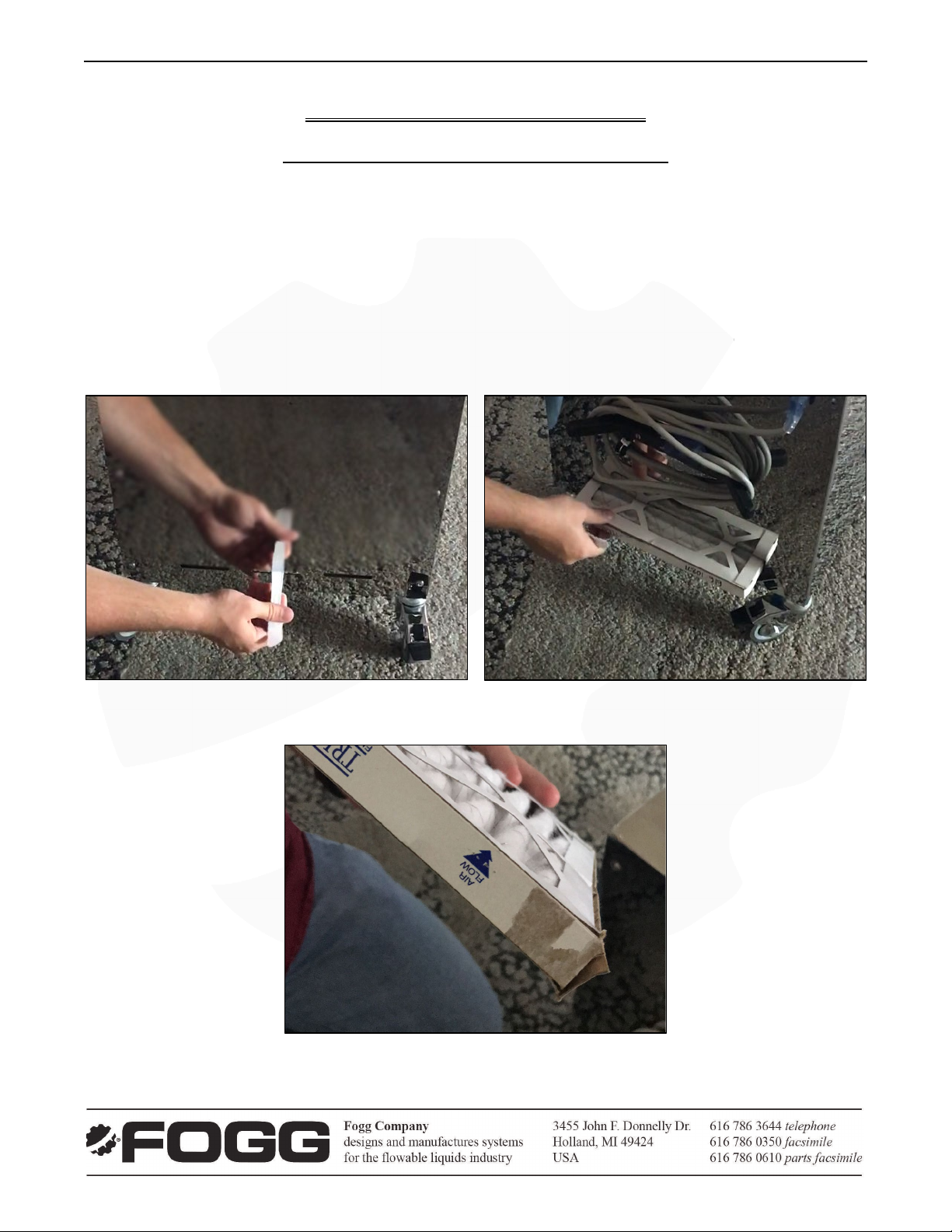

Changing the Air Filter
Microb-Blaster®Air Sanitizer 2400 and 4800
1. Lock two wheels.
2. On opposite side of big air filter opening, there are a few thin openings. Use a thin, firm object (like a
ruler) to press on the filter and push it out a couple inches so that it is grabbable from the other side.
3. Pull the filter out.
4. Orient the new air filter according to the air flow arrow. It should be pointing upwards
5. Gently slide the new filter into the spring-loaded filter retainer.
3
Press the Filter
Pull out the Filter
Air Flow Arrow

Fogg Company Microb-Blaster®Air Sanitizer
Page 16
Changing the Power Supply Fuse
Microb-Blaster®Air Sanitizer 2400 and 4800
Tucked between the On/Off switch and the power cord plug-in is a fuse insert. Unplug the cord from the wall and
from the machine, pry open the fuse insert from inside the power cord plug-in, and replace the fuse.
Fuse in the Insert
Fuse Location
Pry out the Fuse Insert

Fogg Company Microb-Blaster®Air Sanitizer
Page 17
Service Parts List
Preventative Maintenance
Monthly Maintenance
Air Filter: Inspect
Inspect the air filter at least monthly and change as necessary.
3-Month Maintenance
Air Filter: Change
Change the air filter at least every 3 months.
Yearly Maintenance
Lamps: Change
Change the lamps every year, at a minimum. Their effectiveness reduces after approximately 9000 hours of use
(one year), based on a 24/7 run schedule.
Item
Part Number
Lamps
616-10896
Ballasts
616-10910
Power Cord
616-10904
Switches
616-10819
Filters
616-10871
Filters (Set of 3)
834-9733-3
Filters (Set of 12)
834-9733-12
Casters
616-10810
Caution Sticker
834-2565
Power Supply Fuse
616-10935
Manual
834-2588
Quick-Start Guide
834-2587
