Read the manual carefully before usage

Thank you for purchasing this product. The product is a
unit of air purifier fitted with high efficiency filters. To get
familiarized with your new product, please read the manual
carefully and retain this booklet for future reference.
TABLE OF CONTENTS
Function and property 1
Tech-data 1
Safety rules 2
Component 2
Operation 3
Maintenance 6
..........................
.......................................
.....................................
.....................................
.......................................
...................................
Placement 5
Installation of the filter 5
Filter equipment 6
Failure & solutions 7
Diagram 7
......................................
........................
................................
.............................
........................................

OAP2702
60.
Rated air flow
3
/() mh
Model
Voltage
Power W()
Applicable area (
2
m)
Net weight kg()
Fresh Air Ionizer
HEPA filter with Vitamin C
Filter the air removing smoke and dust of 0.3 micron. The filtrating
rate is as high as 99 Give out health and fresh Vitamin C which can
beautify our skin preventing us from cold and flue
%. ,
,.
UV Lamp Sterilizer
UV light of 365nm capable of eliminating various kinds of bacteria.
Activated Carbon Filter
Absorb smoke, formaldehyde, ethanethiol, ammonia and many other
harmful and bad odor gases.
1
Dimension L W H()XX ()mm 360X X180 500
Function and Property
30
70-120
45
220-240V~ ; 50Hz
Tech-data
Negative charges ions effectively refresh the indoor air.
Photocatalyst Filter with Catechin
Be capable of decomposing quickly formaldehyde, benzene, tolue-
ne, xylene and many other harmful elements and bad odor gases,
killing virus and bacterium in the air.

Lifting handle
Power cable
Wind outlet
2
Please disconnect the power if the unit will not be used for a long time.
Do not place/insert foreign objects into inlet and outlet ducts to avoid damage.
Please unpack the filters before usage otherwise there will be no filtering
effect.
Front View
Back View

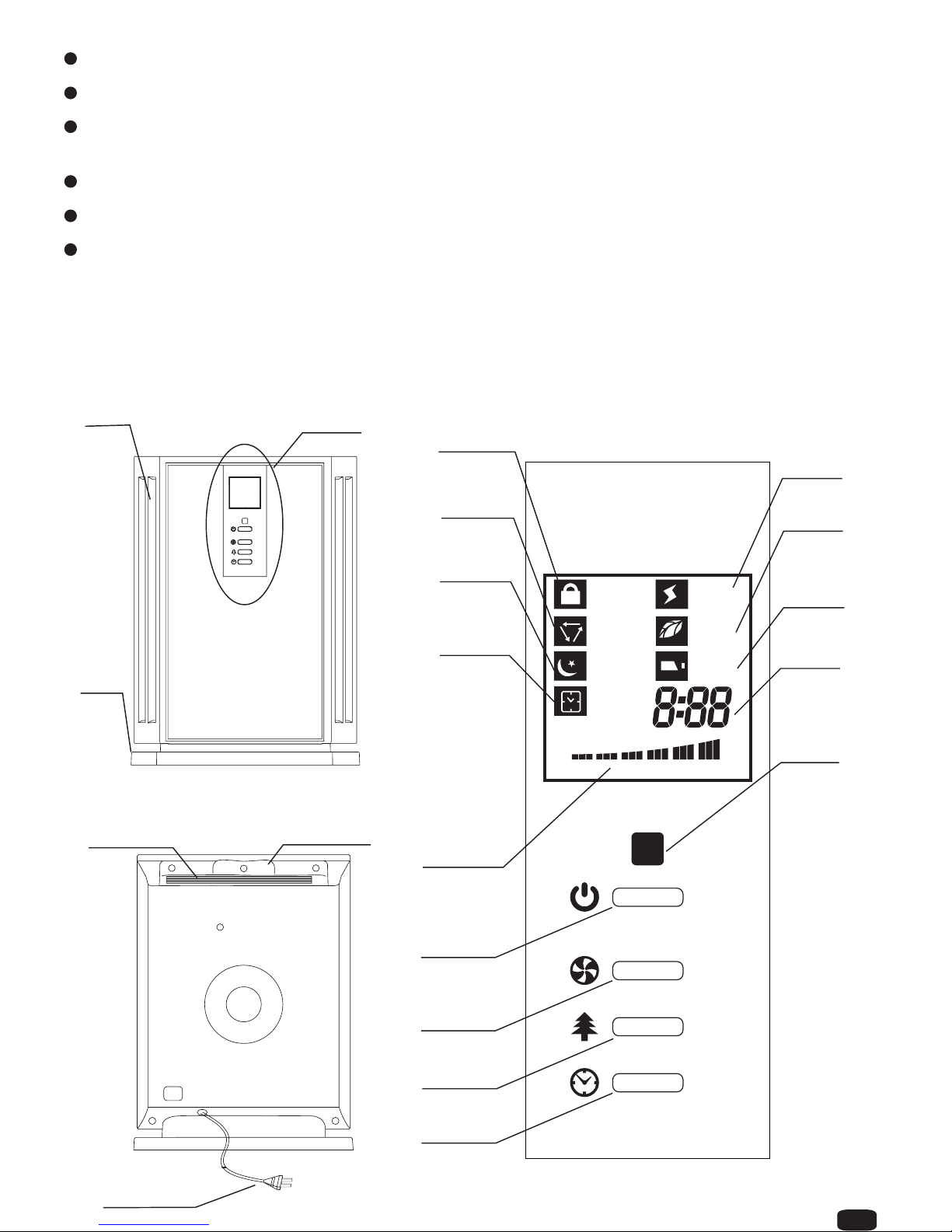

Diagram
Control panel
Wind inlet
Pedestal
On/Off
Indicator of
children lock
Indicator of
time setting
Indicator of
Ionizer function
Indicator of
UV light function
Fan Speed
mode
IR Receiver
window
Fan Speed
UV light and
Ionizer Function
Time Setting
LOCK
AUTO
SLEEP
TIMER
UV
ANION
POWER
Indicator
of power
Indicator
of timer
Indicator of
sleep mode
Indicator of
Auto function
Safety RulesSafety Rules
Satety Rules
Please do not cover the outlet duct with anyting.
Never use the product in any area which may have water splashing on the unit.
Please do not wash the unit with gasoline or pesticide or the plastic parts
may crack and cause electric shork.
Component

3
To make the best use of the air purifier, please place and adjust it properly
according to air pollution period and area.
To make the best use of the air purifier, please place and adjust it properly
according to air pollution period and area.
Operation of Remote Controller
1. Connect the power
Connect the power, the sign of power light on the LED screen. Unit is ready
for operation.
2. On/Off Button
Press the power button , the fan blows in low speed. The indicator of power
and low speed will light up. Press the button again, the LED screen is dark
with only the sign of power lighting.
3. Fan Speed Button
Press the button for selection of fan speed. The LED screen will indicate one
sign for low speed, two for medium and three for high.
4. UV light and Ionizer Button
Press the button for UV light and Ionizer, the indicator will be shown on the
control panel, indicating the selection preferred.
5. Time setting Button
To enable the timer function, press the button once to get the time flashing
as on the LED screen. With further press the time will increase in an
interval of 30 mins till 8 hours the longest. The unit will submit the setting in
3 seconds with the signs of clock and will then light up steadily.
Method of Operation
Operation
1. Child Lock Button
The Child Lock function enables the air purifier to be locked ,(which will also
lock the power button), and avoid any accidental operation by children or
unauthorized usage. To reset the unit to Open Lock Mode, the unit needs to
be switched off and switched on again. During locked mode, the lock indicator
will be shown on the display.
2. Auto Function Button
The Auto function button, which is on the remote control, when enabled, will
allow the UV light and Ionizer function to be switched on at a 30 minutes
intervals.

4
Notice
Transmitter
Power
Auto Function
UV light nd
Function
a
Ionizer
Fan Speed Sleep Mode
Timer
Time setting
Children lock
AUTO
3. Time Setting Button
Press the Time Setting Button, the flashing signs of clock and will
appear on the LED screen. Press the “+” or “-” for desired time setting,
the time will increase from 30 minutes to 8 hours, the longest. Once the
desired time has been set, press the time button to activate. The sign of
clock and will then light up steadily. If the time setting button is not
pressed, the time set will not be activated. To reset the time, you may
press the time setting button again.
4. Sleep Mode Button
The Sleep Mode Button will enable the unit to work in low speed mode
with the sleep indicator light displayed on the unit and the fan speed mode
indicator light dimmed.
5. The usage of the Power button, UV Light and Ionizer as well as the Fan
Speed Mode button on the remote control are the same as those on the
units control panel.
1. Please take off the isolating plate of the batteries before usage of
remote control.
2. Please direct the remote control to the IR receiver window on the unit.
3. Be sure to take out the batteries from the remote control if it is not in
use for a long time.

>10cm
>10cm
Keep it at least 10cm away from the
wall.
Do not place it near the window
where the curtain may cover the
Intake and out flow of the air.
Forbetterperformanceofair
purifying ,please place the machine
where the air circulation is good.
Place the air purifier near the
source of the polluted air for
more effective results.
Placement
1 Place the unit on its back lying
down and hold the handles of the
filter frame to release the frame
from the unit.
.2. Hold the handles of the filter
frame and pull the filter out following
the direction of the diagram below.
3. The filters need to
be unpacked from its existing package
before being used for the first time.
Please note down the beginning
operation date of the unit on the label
placed at the side of the filter.
IMPORTANT!
Frame
HEPA VitaminC filter+
Pre filter
Active carbon and
filterPhotocatalyst Catechin+
Installation of the Filter
4. For maintenance of the filters, new
filters can be replaced by pulling aside
the two sides of the filter frame to take
out the old worn filters.
5

Standard
equipments
Structure
Pre filter, HEPA filter with Vitamin C,
Activated carbon filter,
Photocatalyst filter with Catechin
UV light, Negative ionizer.
Removing formaldehyde
odour, VOC, bacteria, fin
dust and negative ions
generations.
!
ower ableP C Replacement
For replacement of damaged power cable, please contact service center.
6
Function
Maintenance
The sign indicates that any wrongful usage of the unit may lead to electric
shock, serious injuries and death.
This sign indicates that any wrongful usage of the unit may lead to injury
or damage to personal belongings.
Never clean the filters with water to avoid changes to the shape of th
filters.
e
1)
2)
3)
WARNING
!
NOTE
!
NOTE
Filter equipment
Filter Replacement
The standard lifespan of the filters is one year. However, it will also
depend on the duration of usage and the surroundings air pollution level.
The filters are recommended to be cleaned using a vacuum cleaner after
3 to 4 months of usage.
The filters are also recommended to be changed after being used for not
more than two years.
Please contact the authorized retailers for purchase of replacement
filters.

7
Failure & Solutions

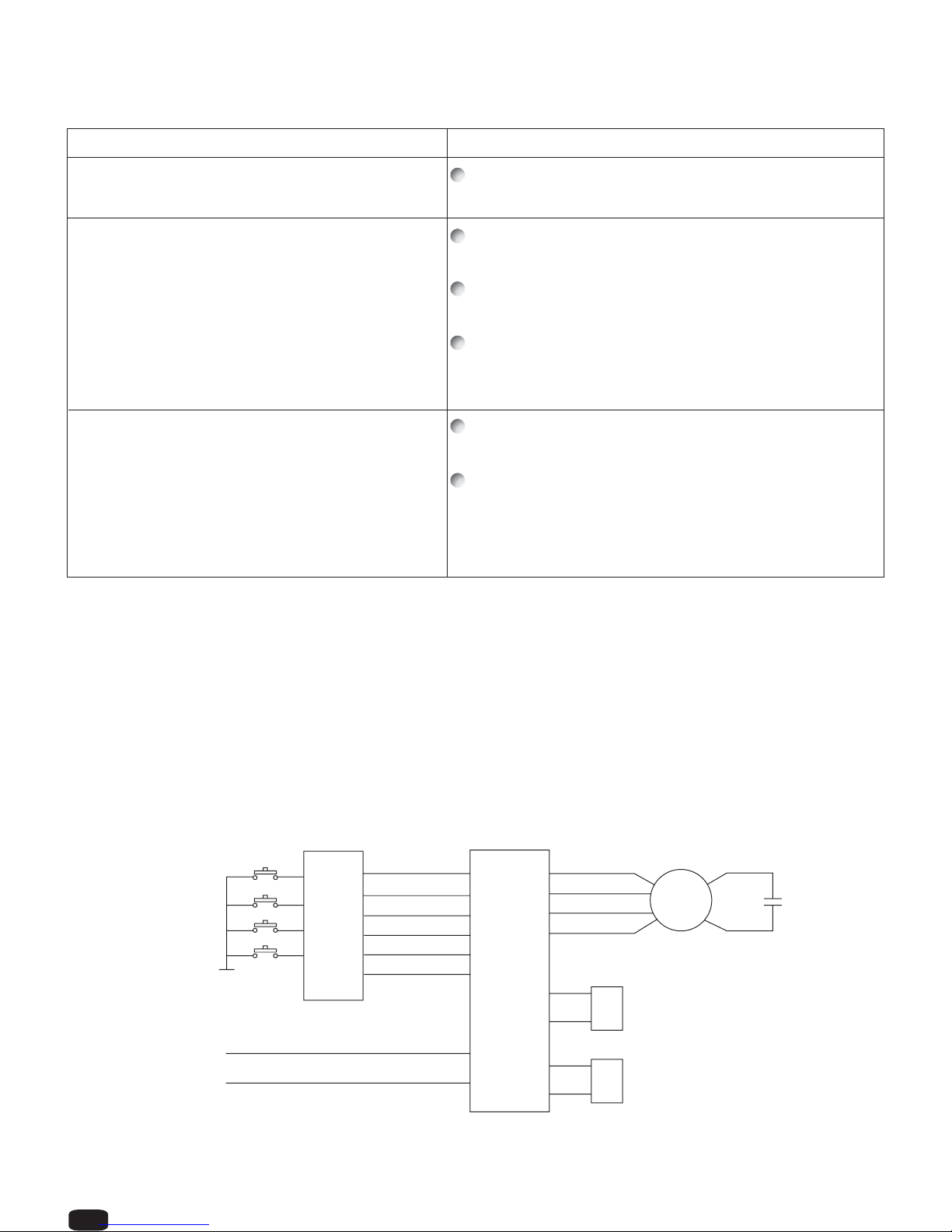

Diagram
D1
D2
M
~
D3
D4
N
L
Motor
Capacitor
Anion generator
UV light
Power
Fan Speed
UV light & Ionizer
Timer
Please refer to the following before contacting Customer Service Centre
for service / repair:
Unit not operational
Unable to remove odour
Unable to remove the dirt in the air
Loud operational noise level
Please check whether the power plug
is properly inserted into the socket.
Please check whether the batteries
are still usable.
The batteries are placed in the
correct poles.
The remote control must be directed/
aimed at the unit’s receiver panel
when it is to be used.
The air intake may be blocked.
Please clean both the air intake ducts.
If the filters are too dirty, please clean
each of the filters or replace with new
ones if the unit is still not functioning
properly.
Problem Checklist
Remote Control is not operational
Please send the air purifier to the service center for repair if the problems
cannot be solved or when water or foreign objects/particles get into the air
purifier and is affecting its operation.
