FONESTAR AMBIENT-20 User manual

AMBIENT-20, AMBIENT-20B
AMBIENT-20T, AMBIENT-20BT
AMBIENT-20A, AMBIENT-20BA
PAIR OF COMPACT Hi-Fi SPEAKERS
INSTRUCTION MANUAL
AMBIENT-BT20A_AMBIENT-BT20BA_MANUAL_(EN)_20170522_Maqu tación 1 22/5/17 10:32 Página 1

We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
- 2-
EN
AMBIENT-BT20A_AMBIENT-BT20BA_MANUAL_(EN)_20170522_Maqu tación 1 22/5/17 10:32 Página 2

SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
- 3-
EN
AMBIENT-BT20A_AMBIENT-BT20BA_MANUAL_(EN)_20170522_Maqu tación 1 22/5/17 10:32 Página 3

DESCRIPTION
The AMBIENT series is specially designed for PA applications and back ground music. Composed of
compact, powerful, resistant loudspeakers with an excellent finish, this new format is available in 3 versions
to cover all needs with high quality and performance: low impedance (AMBIENT-20, AMBIENT-20B),
100 V line (AMBIENT-20T, AMBIENT-20BT) and autoamplified (AMBIENT-20A, AMBIENT-20BA).
The loudspeakers include a wall bracket with adjustable arm and steel safety cable allowing an easy
installation and adjustment.
The new AMBIENT series answers the need for a solution in installations in public premises such as
restaurants, cafeterias, supermarkets, shopping centres, etc.
- Powerful, compact and wide frequency response.
- 3” PP speaker, 20.4 mm coil and shielded magnet.
- Reinforcement system in bass reflex.
- PP injection casing, resistant to impacts.
- Bracket with adjustable arm and steel safety cable.
- Class D, highly efficient, amplifier in each loudspeaker (AMBIENT-20A and AMBIENT-20BA).
CONTROLS AND FUNCTIONS
AMBIENT-20, AMBIENT-20B
1.- INPUT: aux line input, 2 x RCA connectors.
2.- VOL: audio signal volume control.
3.- BT: LED bluetooth status indicator.
4.- PAIR: bluetooth pairing button.
5.- SPEAKER OUTPUT: passive loudspeaker output, 6.3 mm
jack connector.
6.- On/off switch.
7.- Power supply cable.
AMBIENT-20T, AMBIENT-20BT
8.- INPUT: input for signal coming from active loudspeaker,
6.3 mm jack connector.
- 4-
EN
AMBIENT-BT20A_AMBIENT-BT20BA_MANUAL_(EN)_20170522_Maqu tación 1 22/5/17 10:32 Página 4

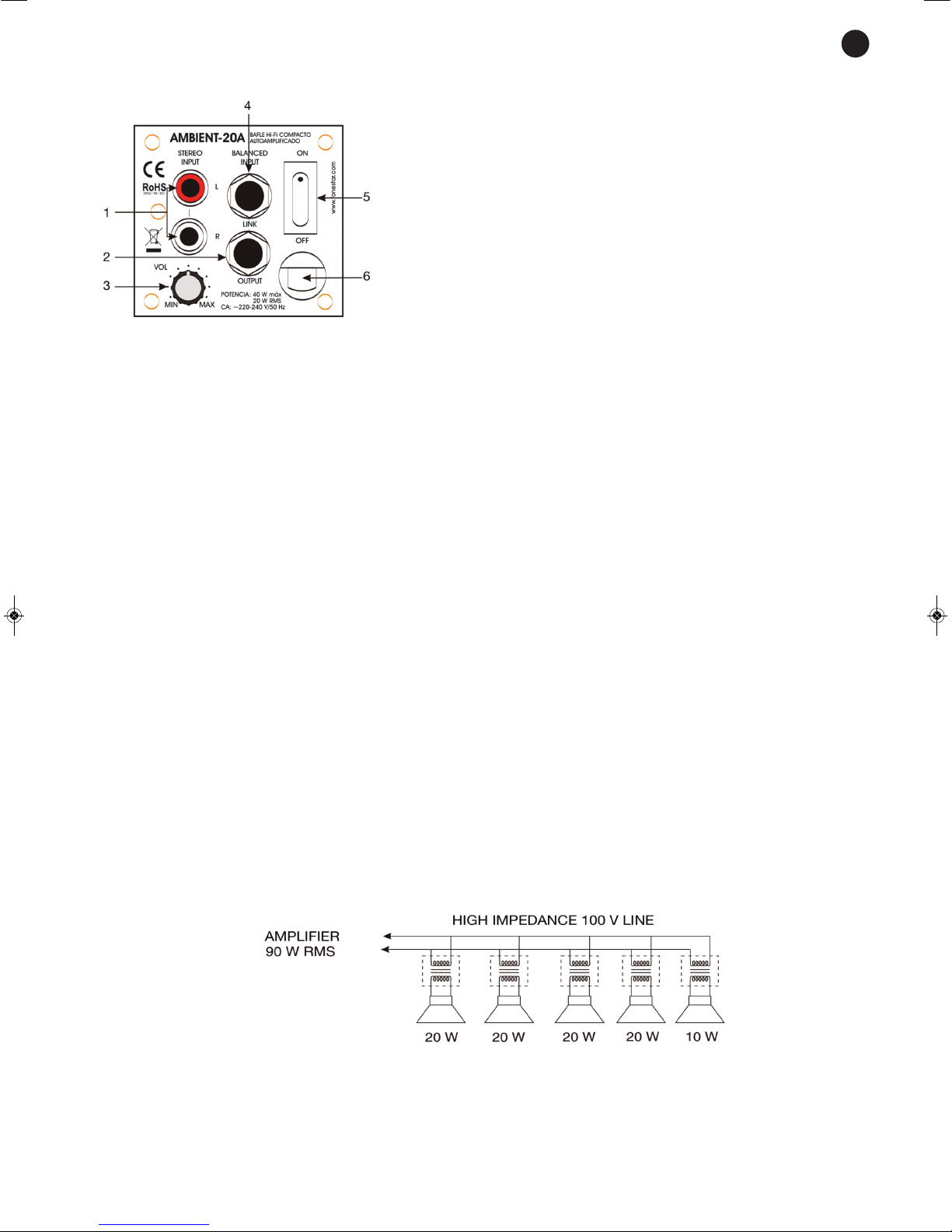

AMBIENT-20A, AMBIENT-20BA
1.- STEREO INPUT: Input connectors for the stereo signal, 2 x
RCA.
2. OUTPUT: Audio signal output connector, 6.3 mm mono jack.
3. VOL: audio signal volume control.
4. BALANCED INPUT: balanced audio signal input connector, 6.3
mm stereo jack.
5. ON-OFF: On/off switch.
6. Power supply cable.
CONNECTION
AMBIENT-20, AMBIENT-20B
LOW IMPEDANCE INSTALLATION
An installation with low impedance Hi-Fi loudspeakers is recommendable when the distance between
speakers amplifier is short (less than 30m) and the number of speakers is small (less than 8) and of the same
characteristics to avoid differences between them.
The total impedance needs to be correctly connected so that the power transfer and quality is perfect. The
speakers are connected in series or parallel so that the resulting impedance is adjusted to that of the amplifier
output terminals.
You must make sure that the total power accepted by the speakers is suitable. The amplifier output power
must not exceed the maximum power accepted by the speakers. If the amplifier power exceeds that of the
speakers excessively, these could be damaged.
AMBIENT-20T, AMBIENT-20BT
100V LINE INSTALLATION
The Hi-Fi loudspeakers with 100V line transformer are suitable for installation with FONESTAR amplifiers or
others with 100V line speaker output, allowing long line distances, easy installation and power distribution.
With 100V line the speakers are connected in parallel. The sum of the connected power in all the speakers
must be the same or lower than the total power of the amplifier.
EXAMPLE: 4 speakers connected to the 20W connection and 1 speaker connected to the 10 W connection
of the transformer:
4 x 20 + 1 x 10 = 90 W for a connection to 1 x 90 W RMS amplifier.
Various powers can be distributed to the speakers, with a 100V line, through the transformers to places
which need more or less audio power.
- 5-
EN
AMBIENT-BT20A_AMBIENT-BT20BA_MANUAL_(EN)_20170522_Maqu tación 1 22/5/17 10:32 Página 5

AMBIENT-20A, AMBIENT-20BA
- Before connecting the power supply, make sure that the controls are at their minimum and the POWER
switch is off.
- Connect a line level signal from an external audio source (MP3, CD, computer, etc…) to the input of each
auto-amplified loudspeaker. A stereo signal can be connected to the RCA connectors; the stereo signal is
mixed to create a pseudo stereo. A mono signal can be connected to the 6.3 mm stereo jack or RCA.
- Connect the pair of loudspeakers to the 230 V AC power supply.
- Switch on the loudspeakers with the power switch on the back panel.
- Adjust the volume to the desired level. If the sound is not clear or is distorted, lower the volume until the
sound is without distortions.
- When not in use, switch the system off with the POWER switch and disconnect it from the mains.
- 6-
EN
AMBIENT-BT20A_AMBIENT-BT20BA_MANUAL_(EN)_20170522_Maqu tación 1 22/5/17 10:32 Página 6

TECHNICAL SPECIFICATIONS
AMBIENT-20 AMBIENT-20B
CHARACTERISTICS Pair of compact hi-fi loudspeakers.
Shielded magnet speaker.
Bass reflex reinforcement system.
POWER 40 W maximum, 20 W RMS
SPEAKER 1 x 3” PP woofer, 20.4 mm coil with shielded magnet
RESPONSE 132-20 000 Hz
IMPEDANCE 6 W
SENSITIVITY 85 dB at 1 W/1 m
CONNECTORS Spring terminals
COLOUR Black White
DIMENSIONS 115 x 175 x 107 mm depth
WEIGHT 2 x 0.8 kg
ACCESSORIES Bracket with adjustable arm and steel safety cable
AMBIENT-20T AMBIENT-20BT
CHARACTERISTICS Pair of compact hi-fi loudspeakers with 100V line transformer.
Shielded magnet speaker.
Bass reflex reinforcement system.
POWER 40 W maximum, 20 W RMS
SPEAKER 1 x 3” PP woofer, 20.4 mm coil with shielded magnet
RESPONSE 132-20 000 Hz
IMPEDANCE High Z 100V line:
500 Ω (20 W)
1000 Ω (10 W)
2000 Ω (5 W)
SENSITIVITY 85 dB at 1 W/1 m
SWITCH W selector in high Z
CONNECTORS Crimp terminals
COLOUR Black White
DIMENSIONS 115 x 175 x 107 mm depth
WEIGHT 2 x 1.2 kg
ACCESSORIES Bracket with adjustable arm and steel safety cable
- 7-
EN
AMBIENT-BT20A_AMBIENT-BT20BA_MANUAL_(EN)_20170522_Maqu tación 1 22/5/17 10:32 Página 7

WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date
and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los
Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with no more
than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of the product being
sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts due to use,
breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and internal manipulation of the
device, the software or its components by unauthorized persons, and in general any use that is unrelated to the nature and
purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor
where the product was purchased in no more than 2 months after being conscious of the problem. It is only necessary to
contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections
or crossing out
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by the Spanish
law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
FONESTAR is a member of ECOEMBALA ES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling
and subsequent management of our packaging.
FONESTAR, S.A. - NIF: A28780443 - Poligono Trascueto - 39600 Revilla de Camargo, Cantabria (SPAIN)
www.fonestar. om
AMBIENT-20A AMBIENT-20BA
CHARACTERISTICS Pair of auto-amplified compact hi-fi loudspeakers.
Highly efficient class-D amplifier.
Each loudspeaker has its own amplifier.
Shielded magnet speaker.
Bass reflex reinforcement system
AMPLIFIER 40 W maximum, 20 W RMS
Class-D amplifier
Protection limiter/compressor
SPEAKER 1 x 3” PP woofer, 20.4 mm coil with shielded magnet
RESPONSE 132-20 000 Hz
INPUTS 1 auxiliary line, 2 x RCA 300 mV
1 balanced line, 6.3 mm stereo jack 775 mV
OUTPUTS 1 balanced line, 6.3 mm mono jack
INDICATOR Power
CONTROLS On/off and volume
COLOUR Black White
POWER SUPPLY 230 V AC
DIMENSIONS 115 x 175 x 107 mm depth
WEIGHT 2 x 1.3 kg
ACCESSORIES Bracket with adjustable arm and steel safety cable
AMBIENT-BT20A_AMBIENT-BT20BA_MANUAL_(EN)_20170522_Maqu tación 1 22/5/17 10:32 Página 8
