FONESTAR TFA-500 User manual

TFA-500
100 V LINE TRANSFORMER
FOR AMPLIFIERS
EN Instruction manual

EN
- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND T E ENVIRONMENT
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
T E ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).

EN
- 3-
SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
The symbol Ro S (Restriction of azardous Substances) shows that the product has been
designed and manufactured restricting the use of certain dangerous materials (Directive
2002/95/EC on the restriction of certain dangerous substances in electrical and electronic
appliances, and its transferal to the Spanish regulations, R.D.208/2005).
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
DESCRIPTION
The TFA-500 is a 100 V line transformer for amplifiers. It converts an amplifier or 4-8 Ω low impedance stereo
power amp output into a high impedance output for speakers 100 or 70 V line transformer.
Low impedance and 100 V line speakers can be connected at the same time.
It is perfect for P.A. applications and background music when a large number of speakers need to be
connected to just one amplifier.

EN
-4-
CONTROLS AND FUNCTIONS
FRONT PANEL
1.- INPUT 1: LED indicator that lights up when a signal is detected in INPUT 1.
2.- INPUT 2: LED indicator that lights up when a signal is detected in INPUT 2.
BACK PANEL
1.- OUTPUT 2: 100 and 70 V line high impedance speaker output terminals for channel 2. Only use one of
the output lines.
2.- OUTPUT 1: 100 and 70 V line high impedance speaker output terminals for channel 1. Only use one of
the output lines.
3.- STEREO/BRIDGE MONO: selector for choosing the operating mode. You can choose between stereo
mode (2 stereo input channels or 2 individual input channels, in INPUT 1 and INPUT 2) and mono bridge
mode (just 1 input channel, in INPUT 1).
4.- INPUT 2: INPUT 2 signal input connector. For connecting the output signal of one channel from the low
impedance amplifier.
5.- INPUT 1 BRIDGE MONO: INPUT 1 signal connector. For connecting the output signal of one channel
from the low impedance amplifier. Use this input if you are going to select bridge mode.

EN
-5-
CONNECTION
Note: to avoid damage, the power of the input signals connected to INPUT 1 and INPUT 2 must not
exceed the power supported: 500 W RMS per channel in stereo mode or 1000 W RMS in mono bridge
mode.

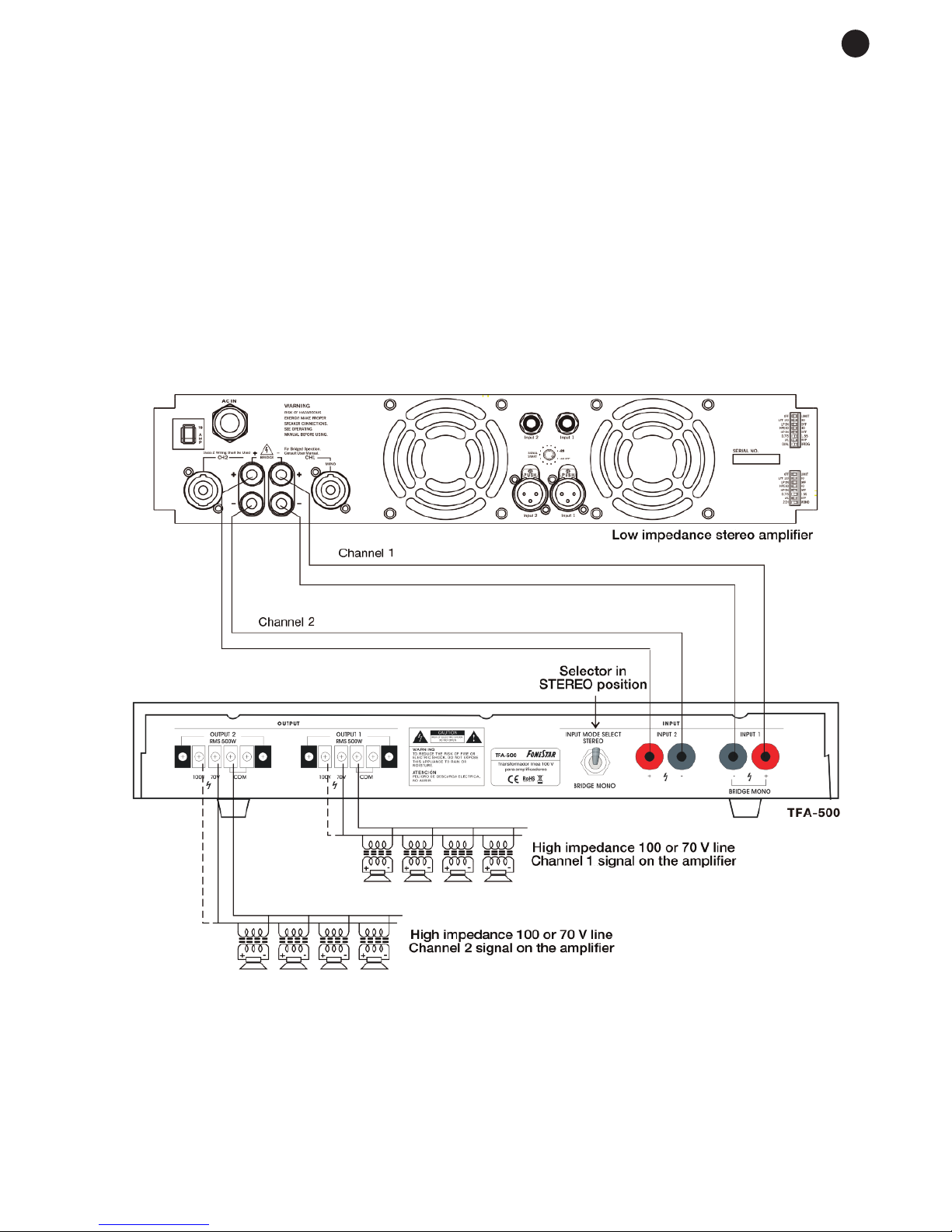

Stereo mode
In this application, a low impedance stereo amplifier is used together with the TF-500 to get two 100 or 70
V lines.
Place the STEREO/BRIDGE MONO selector in the STEREO position.
Connect both of the low impedance amplifier stereo output channels to INPUT 1 or INPUT 2.
Connect the speaker line to the speaker output. Use the 100 or 70 V line output in accordance with the type
of speakers you are going to connect. Use only one of the output lines.
All the speakers must be connected in parallel and the sum of the power of all the speakers must not exceed
the power supplied by the TFA-500.

EN
-6-

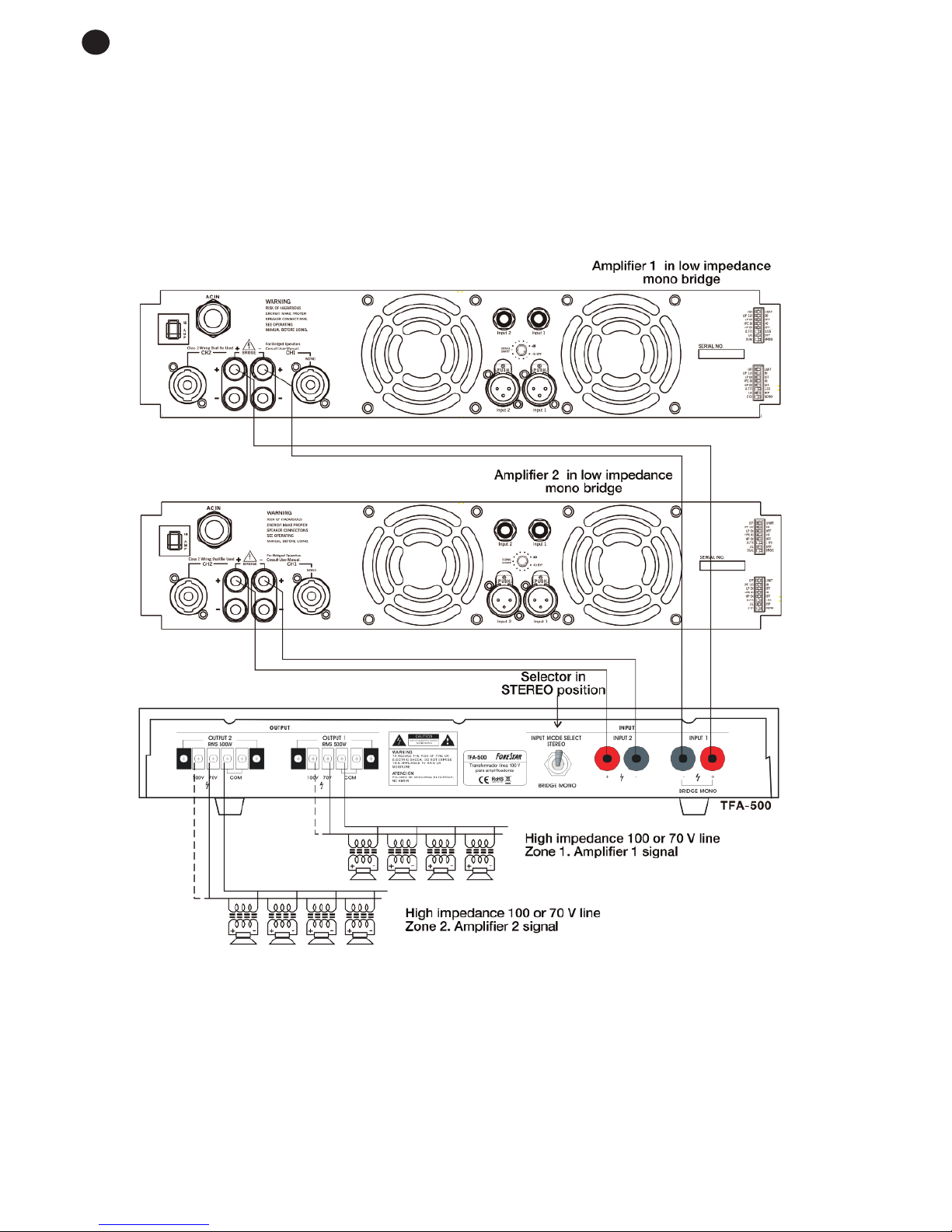

Two speaker zones
In this application, two amplifiers in low impedance mono bridge mode are used together with the TFA-500 to
get 2 independent 100 or 70 V lines.
Place the STEREO/BRIDGE MONO selector in the STEREO position.
Connect the mono output channel from each low impedance amplifier to the INPUT 1 and INPUT 2 inputs.
Connect the speaker line to the speaker output. Use the 100 or 70 V line output in accordance with the type of
speakers that you are going to connect. Only use one of the output lines.
All the speakers must be connected in parallel and the sum of the power of all the speakers must not exceed
the power supplied by the TFA-500.

EN
-7-
Mono bridge mode
In this application a low impedance amplifier is used in mono bridge mode together with the TF-500 to
achieve 2 x 100 or 70 V lines with the same signal.
Place the STEREO/BRIDGE MONO selector in the BRIDGE MONO position.
Connect the mono output channel from the low impedance amplifier to the INPUT.
Connect the speaker line to the speaker output. Use the 100 or 70 V line output in accordance with the type
of speakers that you are going to connect. Use just one of the output lines.
All the speakers must be connected in parallel and the sum of the power of all the speakers must not exceed
the power supplied by the TFA-500.

EN
-8-
Stereo mode, 8 Ω and 100 or 70 line
In this application, a low impedance stereo amplifier is used together with the TFA-500 to connect a pair of
low impedance (8 Ω) speakers and speakers with 100 or 70 V line transformer.

EN
-9-
SPECIFICATIONS
TFA-500
CHARACTERISTICS 100 V line transformer for amplifiers. Converts an amplifier or a
low impedance (4-8Ω) stereo powered amplifier output into a high
impedance output for speakers with 100 or 70 V line transformer.
Allows simultaneous connection of low impedance and 100 V line
speakers.
STEREO POWER 500 + 500 W RMS
BRIDGE MODE POWER 1000 W RMS
RESPONSE 20-20 000 z
DISTORTION < 0.1%
PROTECTION Temperature, over current and RF filter
INDICATORS Input signal
INPUTS 2 inputs, 4-8 Ω, screw terminals and banana plugs
SPEAKER OUTPUT 100 and 70 V lines, screw terminals, stereo or bridge mode
selectable
DIMENSIONS 483 x 72 x 236 mm depth. Approximately 1.5 x 19" U rack
WEIGHT 8.7 kg

DECLARATION OF CONFORMITY
The 100 V line transformer for amplifiers model TFA-500 complies with the European Community directives
2004/108/EC on Electromagnetic Compatibility and 2006/95/EC on Low Voltage.
Santander, 15th December 2009
Juan Vallejo
Technical Engineer, Sales Department
WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the
delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley
General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with
no more than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of
the product being sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts
due to use, breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and
internal manipulation of the device, the software or its components by unauthorized persons, and in general any
use that is unrelated to the nature and purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or
distributor where the product was purchased in no more than 2 months after being conscious of the problem. It
is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no
corrections or crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by
the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo
1/2007 16 Noviembre.
FONESTAR is a member of ECOEMBALAJES ESPAÑA, S.A. “ECOEMBES”, with number 03497
and all our products carry the symbol, backed by our membership and subscription to the above
mentioned organization with the recycling and subsequent management of our packaging.
FONESTAR S.A. - NIF A28780443 - Apartado 191 - 39080 - Santander, Cantabria, (Spain)
