FOR-A MFR-9SDI12G User manual

MFR-9SDI12G
MFR-9SDO12G
MFR-8SDIEX
MFR-8SDOEX
1st Edition
INSTALLATION
GUIDE

2
Upon Receipt
Unpacking
MFR-9SDI12G/9SDO12G/8SDIEX/8SDOEX cards and their accessories are fully inspected and
adjusted prior to shipment.
Check your received items against the packing lists below. Check to ensure no damage has
occurred during shipment. If damage has occurred, or items are missing, inform your supplier
immediately.
Packing List
ITEM
QTY
REMARKS
MFR-9SDI12G
MFR-9SDO12G
MFR-8SDIEX
MFR-8SDOEX
1
Installation Guide
1
This guide book

3
Before Starting
MFR-9SDI12G/8SDIEX are input cards for MFR-4000 units.
MFR-9SDO12G/8SDOEX are output cards for MFR-4000 units.
Available Slots and Number for MFR-4000 Input / Output Cards
Slot
Slot number
Installable cards
Installable number of
cards
Input slot
No.01-08 (INPUT1-8)
MFR-9SDI12G/8SDIEX
Up to 8 cards
Output slot
No.09-16 (OUTPUT1-8)
MFR-9SDO12G/8SDOEX
Up to 8 cards
Standard SDI Signal Routing
Matrix size varies depending on the number of installed MFR-9SDI12G and MFR-9SDO12G
cards as shown below. (72 x 72 to 9 x 9)
Number of cards: MFR-9SDO12G
8
7
6
5
4
3
2
1
Number of cards:
MFR-9SDI12G
8
72 x 72
72 x 63
72 x 54
72 x 45
72 x 36
72 x 27
72 x 18
72 x 9
7
63 x 72
63 x 63
63 x 54
63 x 45
63 x 36
63 x 27
63 x 18
63 x 9
6
54 x 72
54 x 63
54 x 54
54 x 45
54 x 36
54 x 27
54 x 18
54 x 9
5
45 x 72
45 x 63
45 x 54
45 x 45
45 x 36
45 x 27
45 x 18
45 x 9
4
36 x 72
36 x 63
36 x 54
36 x 45
36 x 36
36 x 27
36 x 18
36 x 9
3
27 x 72
27 x 63
27 x 54
27 x 45
27 x 36
27 x 27
27 x 18
27 x 9
2
18 x 72
18 x 63
18 x 54
18 x 45
18 x 36
18 x 27
18 x 18
18 x 9
1
9 x 72
9 x 63
9 x 54
9 x 45
9 x 36
9 x 27
9 x 18
9 x 9
Matrix size varies depending on the number of installed MFR-8SDIEX and MFR-8SDOEX
cards as shown below. (64 x 64 to 8 x 8)
Number of cards: MFR-8SDOEX
8
7
6
5
4
3
2
1
Number of cards:
MFR-8SDIEX
8
64 x 64
64 x 56
64 x 48
64 x 40
64 x 32
64 x 24
64 x 16
64 x 8
7
56 x 64
56 x 56
56 x 48
56 x 40
56 x 32
56 x 24
56 x 16
56 x 8
6
48 x 64
48 x 56
48 x 48
48 x 40
48 x 32
48 x 24
48 x 16
48 x 8
5
40 x 64
40 x 56
40 x 48
40 x 40
40 x 32
40 x 24
40 x 16
40 x 8
4
32 x 64
32 x 56
32 x 48
32 x 40
32 x 32
32 x 24
32 x 16
32 x 8
3
24 x 64
24 x 56
24 x 48
24 x 40
24 x 32
24 x 24
24 x 16
24 x 8
2
16 x 64
16 x 56
16 x 48
16 x 40
16 x 32
16 x 24
16 x 16
16 x 8
1
8 x 64
8 x 56
8 x 48
8 x 40
8 x 32
8 x 24
8 x 16
8 x 8

4
1. I/ O Card Installation / Replacement
IMPORTANT
Contact FOR-A agent or service center for I/O Card installation and replacement work since such work
should only be conducted by qualified technical personnel.

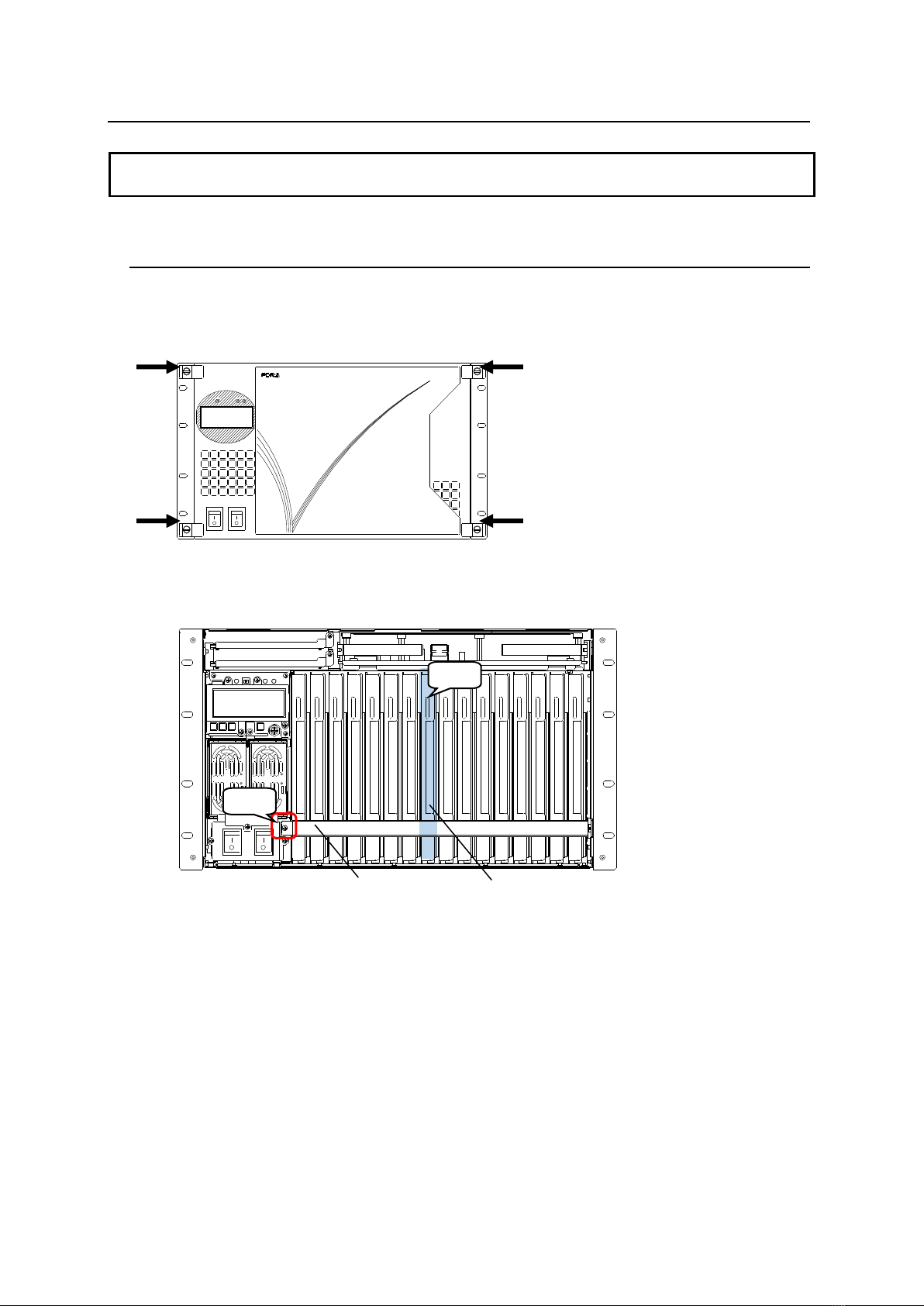

1-1. How to Install a New Card
The following procedure shows how to install an output card into OUTPUT1 slot.
1. Unfasten to remove four fixing screws along the front panel as shown and detach the front
panel.
MFR
POW ER CPU1 CPU2
POW ER 1
ON
OF F
POW ER 2
ON
OFF
ROUTING SWI TCHER
MFR-4000
2. Remove the screw on the left side of the card stopper (circled in red) and detach the stopper.
3. Detach the OUTPUT1 slot blank panel.
4. Insert a new card firmly into the OUTPUT1 slot.
* Confirm the slot number and direction before card insertion.6
5. Re-install the card stopper removed in Step 2.
6. Turn the OUTPUT1 slot ON using [SETTING > SLOT SHUTDOWN] menu in Menu display.
See MFR-4000 Operation Manual Sec. 4-2-2. “Turning ON/OFF an Input/ Output Card” for
details.
7. Verify that LEDs on the card installed into OUTPUT1 light up.
8. Re-install the front panel.
A new card installation is now complete.
OUTPUT1 slot
‚c‚b
‚`‚b ‚`‚b‚c‚b
2.
Card stopper
3.

5

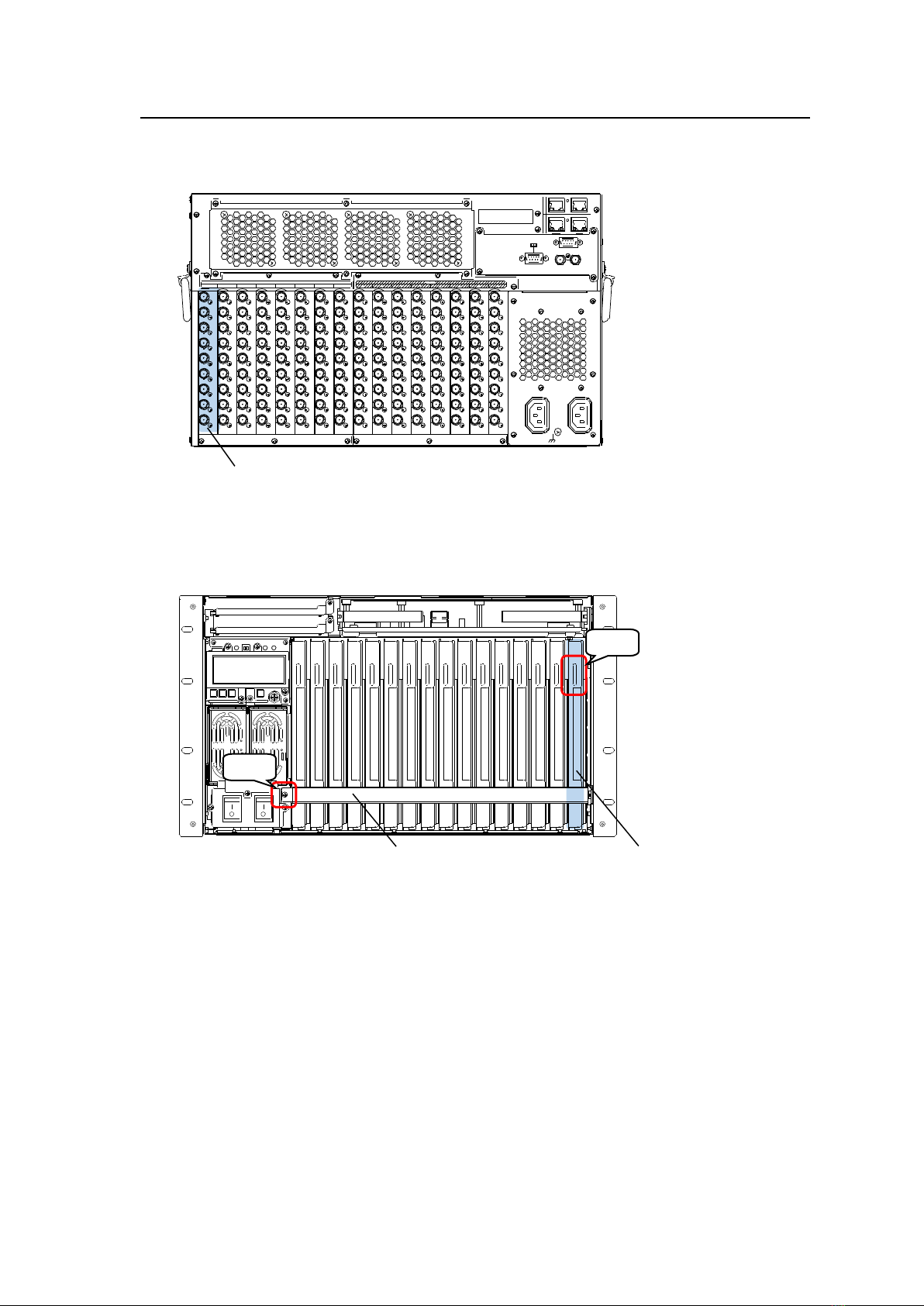

1-2. How to Replace a Card
The following procedure shows how to replace a card in INPUT1 to a new input card.
1. Detach all the BNC cables connected to the INPUT1 connector ports.
2. Unfasten to remove four fixing screws along the front panel and detach the front panel.
3. Shutdown the INPUT1 slot in [SETTING > SLOT SHUTDOWN] menu of Menu Display. See
MFR-4000 Operation Manual Sec. 4-2-2. “Turning ON/OFF an Input/ Output Card” for details.
4. Remove the screw on the left side of the card stopper and detach the stopper.
5. Grab the INPUT1 slot card handle and slowly remove (pull out) the card.
6. Insert a new card firmly into the INPUT1 slot.
* Confirm the slot number and direction before card insertion.
7. Re-install the card stopper removed in Step 4.
8. Turn the INPUT1 slot ON using [SETTING > SLOT SHUTDOWN] menu in Menu display.
See MFR-4000 Operation Manual Sec. 4-2-2. “Turning ON/OFF an Input/ Output Card” for
details.
9. Verify that LEDs on the card installed into INPUT1 light up.
10. Re-install the front panel.
The card replacement is now complete.
INPUT1 slot
CP U 2
CP U 1
ALARM
SER IA L
232C 422
REF IN
AC100-240V5 0/6 0Hz IN AC100-240V5 0/6 0Hz IN
12
OUTPUT
1 2 3 4 5 6 7 8
INPUT
1 2 3 4 5 6 7 8
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
111 11111
2 2 2 2 2 2 2 2
33333333
4 4 4 4 4 4 4 4
55555555
6 6 6 6 6 6 6 6
77777777
8 8 8 8 8 8 8 8
99999999
INPUT1 slot
‚c‚b
‚`‚b ‚`‚b‚c‚b
4.
Card stopper
5.
