Forenex FEB710-R39 User manual

-1-
FEB710-R39 User Manual
FEB710-R39/K39
ARM BOX PC
User Manual
(Preliminary)
Fanless ultra-compact
Dual Core Cortex A72+Quad core Cortex A53
ARM system for
Industrial/Advertising Applications
Version: V1.0
Document No: doc-FEB710-R39V10
PCB Bare Board: PB7968MV11

-2-
FEB710-R39 User Manual
Packing List
1 x FEB710-R39 series BoxPC.
1 x CD includes User Manual/APIs
2 x ANTENNA, 2.4/5Ghz, 2dBi, SMA(ST. PR), bendable, 110mm.
1 x Adaptor, DC-12V/1A.
Ordering Information
Part Number: FEB710x-R/K39yz-MN
• x: Operating Temperature Type
C Commercial (0°~ 70°C).
E: Commercial Extension (-20°~ 70°C).
• y: On Board DDR3 Memory Size
1 1GB of LPDDR3.
2 2GB of LPDDR3(default).
• Z: On Board eMMC Size
4 4GB of eMMC.
8 8GB of eMMC.
F 16GB of eMMC.
• MN : The Function Summary code
SS HDMI 2.0, Micro-SD Socket, USB 3.0 (Type-A), USB2.0 (Type-A),
GigE, 5G-wifi, Line-Out, MIC-In, IR Port, Debug Port, DC-IN12V.
S1 SS - Audio Codec - Usb-HUB.
S2 S1 + Audio Codec.
S3 S1 - GigEthernet.
PS SS + 802.3at (Mode A&B, PoE+).
P1 S1 + 802.3at (Mode A&B, PoE+).
Optional Accessories
ATL- 0865 IR Receiver Module.

-3-
FEB710-R39 User Manual
Revision histories
Rev. No.
Date
Owner
Substantial Changes
1.0
2019/09
Victor
First issue.

-4-
FEB710-R39 User Manual
Table of Contents
1. General Information ........................................................................................................... 6
1-1. Features ................................................................................................................................. 6
1-1-1. ARM based System ............................................................................................................... 6
1-1-2. Ultra compact, Ruggedized and Fanless ............................................................................... 6
1-1-3. The Operating Temperature ................................................................................................. 7
1-1-4. Storage Expansion................................................................................................................. 7
1-1-5. Networking Option ............................................................................................................... 7
1-1-6. Power over Ethernet option ................................................................................................. 7
1-1-7. Embedded OS ready.............................................................................................................. 7
1-2. Product Specifications............................................................................................................ 8
1-3. Outline Dimensions.............................................................................................................. 10
1-4. Peripherals Port layout diagram .......................................................................................... 11
1-4-1. Front Panel.......................................................................................................................... 11
1-4-2. Rear Panel ........................................................................................................................... 11
2. Peripherals Port Description............................................................................................. 12
2-1. DC Power Jack ...................................................................................................................... 12
2-2. Power switch........................................................................................................................ 12
2-3. Power LED Indicator............................................................................................................. 12
2-4. Gigabit Ethernet Port ........................................................................................................... 12
2-5. USB 2.0 Port ......................................................................................................................... 13
2-6. USB 3.0 Port ......................................................................................................................... 13
2-7. Micro SD/SDHC card Slot ..................................................................................................... 14
2-8. MIC with 3.5 mm Stereo Jack............................................................................................... 14
2-9. Line Out with 3.5mm Stereo Jack ........................................................................................ 14
2-10. IR receiver with 3.5mm Stereo Jack(Option) ....................................................................... 14

-5-
FEB710-R39 User Manual
2-11. HDMI®-2.0 port .................................................................................................................... 15
2-12. RS232 Debug Port ................................................................................................................ 16
2-13. GPIOs Port (Option) ............................................................................................................. 16
3. Software and Technical Supports ..................................................................................... 17
3-1. Android Programming Guide ............................................................................................... 17
3-1-1. ADB installation........................................................................................................... 17
3-1-2. To install APK software over the ADB function of PC :................................................ 20
3-1-3. GPIO installation.......................................................................................................... 20
3-2. Linux Programming Guide.................................................................................................... 21
3-2-1. GPIOs installation ........................................................................................................ 21

-6-
FEB710-R39 User Manual
1.General Information
Forenex's FEB710 Box-PC is an ultra-compact solution designed to take full advantage
of the lowest power, fanless system design and embed powerful graphic engines provide
optimized performance on supporting multi-format video decoders including
H.264/H.265/VP9up to4Kx2K, especially, H.264/H.265 decoders support 10bits coding, and
also supports H.264/MVC/VP8 encoders by 1080p@30fps, high-quality JPEG
encoder/decoder, and embedded 3D GPU makes FEB710 completely compatible with
OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1. Special 2D hardware engine will
maximize display performance and provide very smooth operation.
The FEB710 is very suitable for a variety of industrial transportation, selling
infotainment, self-ordering machine (HMI) and TV advertisement applications.
The heart of the FEB710-RK39 Box-PC is the Rockchip3399 ARM Cortex A72+A53
processor which provides all of the necessary interfaces for connecting peripherals such as:
-Networking: RJ45 Gigabit Ethernet port, SDIO Wi-Fi(WLAN) connectivity.
-Serial port: USB 3.0 Type-A, USB 2.0 Type-A, and Debug port.
-Display: HDMI® 1.4 port.
-Audio: Stereo Line-out Jack, MIC-in Jack.
-Expansion storage & GPIO: Micro SD slot, DIO port.
-Others: power LED
1-1. Features
1-1-1. ARM based System
With Arm Cortex®-A72 + Cortex®-A53 platform is a powerful Android/ Linux-based solution,
offering high performance processing optimized for the lowest power consumption.
1-1-2. Ultra compact, Ruggedized and Fanless
The FEB710-RK39 fanless system is 207.8mm (W) x 118.2 (D) x 25mm (H), ruggedized chassis
which is suitable to install in critical environment and to ensure maximum reliability.

-7-
FEB710-R39 User Manual
1-1-3. The Operating Temperature
Provide a wide range from 0°C up to 70°C, suitable for critical environment applications.
**Note: The Operating Temperature is a result of the test performed in experimental
chamber. It is highly suggested to execute a solid testing under actually application
environment.
1-1-4. Storage Expansion
The Micro SD/SDHC card slot enables the FEB710-RK39 to have a flexible storage up to 32GB
size.
**Note: More frequent and larger data access on eMMC memory makes the eMMC
lifespan shorter. Therefore, it is highly recommended to use a Micro SD card for large data
access.
1-1-5. Networking Option
The FEB710-RK39 equips with RJ-45 port that supports high-speed Gigabit Ethernet.
And a 2.4G/5Ghz, Wi-Fi (WLAN): IEEE 802.11a/b/g/n/ac 2x2 MIMO standard with SDIO
interface on board.
1-1-6. Power over Ethernet option
The optional 802.3at module (PoE+) is Powered Device (PD) controller and switching
regulator for high power IEEE 802.3at and 802.3af applications. The (Max.) power output is
25W and can be operated with an external adapter (12V) together.
1-1-7. Embedded OS ready
Android 7.1
Debian 9

-8-
FEB710-R39 User Manual
1-2. Product Specifications
Processor:
Rockchip3399 Arm Cortex®-A72 + Cortex®-A53
System Memory:
1GB/2GB(default) LPDDR3L-1600 SDRAM
Storage:
4GB/8GB(default)/16GB eMMC Flash memory
Graphics:
ARM Mali-T860MP4 (Embedded 3D GPU)
Supports completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11
Supports AFBC (ARM Frame Buffer Compression)
Video Decoder:
-H.264 /H.265, 10bit, up to 4Kx2K@60fps
-VP9, 8bit, up to 4Kx2K@60fps
-MPEG-4 /MPEG-2 /VP8 up to 1080p@60fps
Video Encoder:
-H.264 /MVC /VP8 encoders by 1080p@30fps
Supports HDMI® V2.0, Res. up to 4Kx2K @60fps, HDCP1.4 /2.2
LAN:
Realtek RTL8211E Gigabit Ethernet transceiver with RGMII support
WLAN:
2.4G/5Ghz, Wi-Fi module with SDIO interface on board. The wireless module
complies with IEEE 802.11a/b/g/n/ac 2x2 MIMO standard
Audio:
Realtek ALC5640 high performance, low power stereo codec
USB:
Original from processor, with 1 x USB3.0 and 1 X USB2.0

-9-
FEB710-R39 User Manual
Front Panel I/O:
1 x DC Power Jack
1 x Power LED
1 x Gigabit Ethernet Port (supports optional IEEE 802.3at, PoE+)
1 x Micro-SD Card Slot
1 x USB 2.0 Type A
1 x USB 3.0 Type A(Bunning Port)
1 x HDMI
Rear Panel I/O:
2 x Antenna holes for 5G/Wi-Fi
1 x Power Switch
1 x Debug Port
3 x 3.5mm, Audio Jack for Line-Out,MIC-In, IR Receiver(Option)
1 x GPIO Port(option)
Dimension (W x D x H):
207.8mm x 118.2mm x 25mm (8.2” x 4.7” x 1”)
Weight:
600mg
Operating Temperature:
0°C ~ 70°C (FEB710C-R39 series)
-20°C ~ 70°C (FEB710E-K39 series)
Operating Humidity:
0% ~ 90% @ 45°C (non-condensing)
Operating System:
Android 7.1
Debian 9

-10-
FEB710-R39 User Manual
1-3. Outline Dimensions

-11-
FEB710-R39 User Manual
1-4. Peripherals Port layout diagram
1-4-1. Front Panel
1-4-2. Rear Panel

-12-
FEB710-R39 User Manual
2.Peripherals Port Description

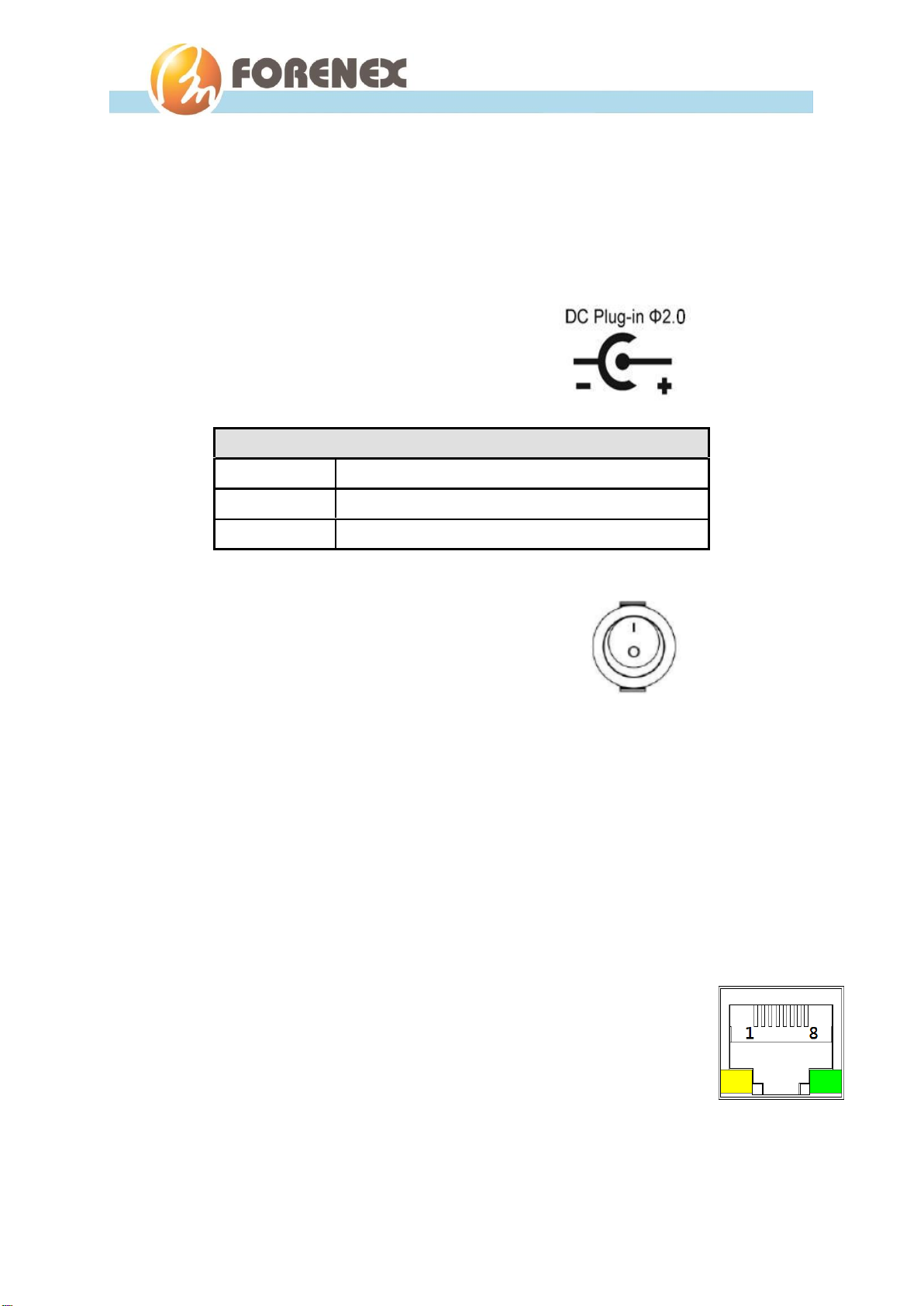

2-1. DC Power Jack
On front panel, carries external power input.
Pin Assignment:
2-2. Power switch
On rear panel.
2-3. Power LED Indicator
On front panel.
The green LED is lighting, indicates the system’s power was plugged.
2-4. Gigabit Ethernet Port
On front panel.
The integrated 8-pin Gigabit Ethernet port is using an 8 Position 8 Contact (8P8C)
receptacle connector (commonly referred to as RJ-45).
The Gigabit Ethernet port (RJ-45 port) has two individual LED
indicators located on the front side to show
-Active LED is blinking in green color means activity of data flow
IN or OUT of the device.
-Link LED is in Red color means devices is operating in speeds 10/100Mbps.
Link LED is in Green color means devices is operating in speeds 1000Mbps.
Connector: ( DC Power Jack )
Pin number
Description
Tip
DC12V ~ 24V
Sleeve
GND

-13-
FEB710-R39 User Manual
2-5. USB 2.0 Port
On Front panel.
The FEB710-RK39 provides a USB 2.0 port gives complete hot plug capability and
complies with USB UHCI, Rev. 2.0.

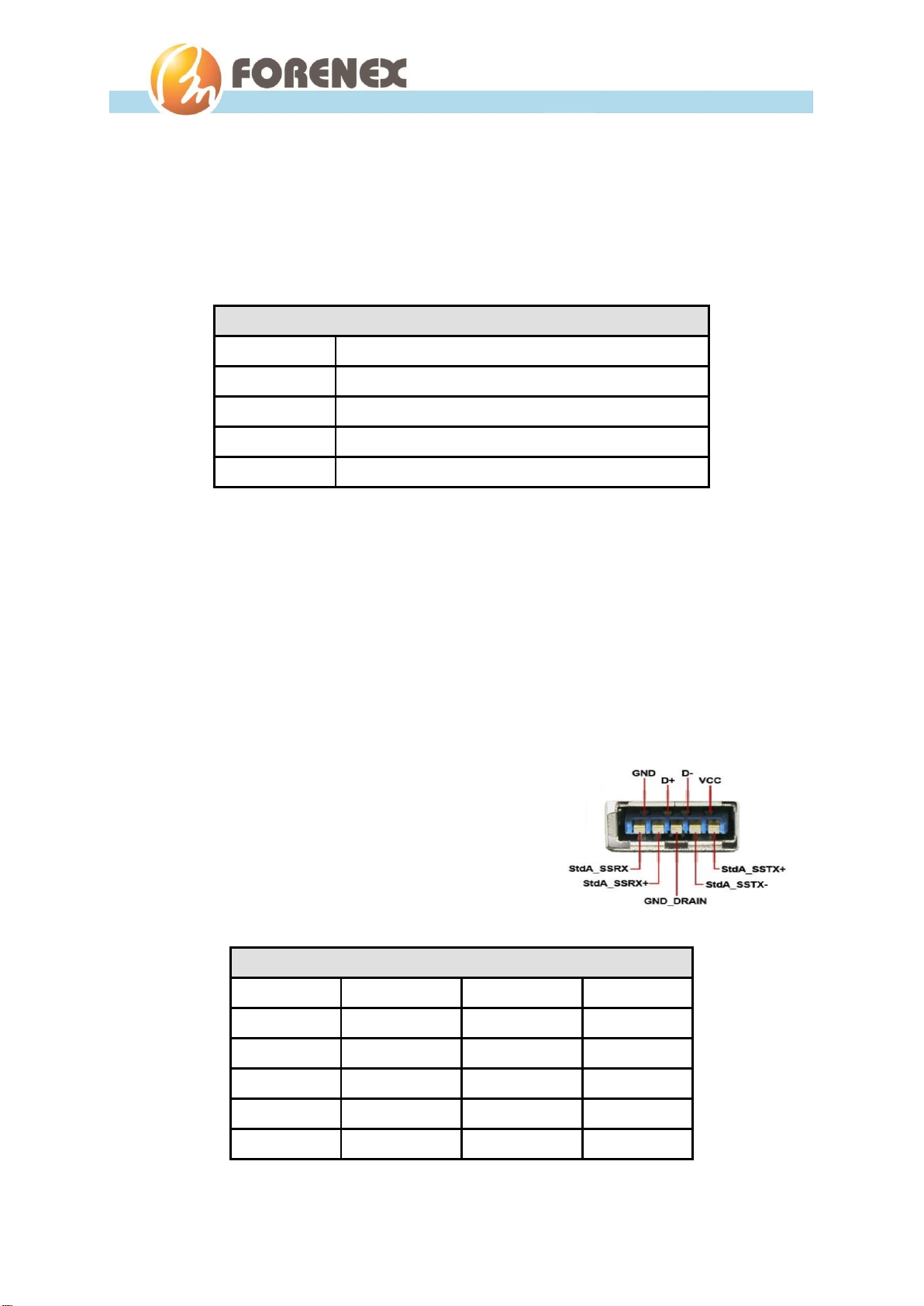

Pin Assignment:
2-6. USB 3.0 Port
On Front panel.
The dedicated USB port to in charge of updating the Image File while the FEB710
board being enter update mode.
Under Linux OS environment, the USB3.0 default as host. And gives complete hot
plug capability and complies with USB xHCI, Rev. 3.x(USB 3.1 Gen 1).
Under Android OS environment, the USB3.0 can be defined as host or device.
Pin Assignment:
Connector: ( USB Type A )
Pin number
Description
1
+5V/500mA
2
USB Data -
3
USB Data +
4
GND
Connector: (USB 3.0 Type A )
Pin number
Description
Pin number
Description
1
VBUS
6
SSRX+
2
D-
7
GND
3
D+
8
SSTX-
4
ID
9
SSTX+
5
GND

-14-
FEB710-R39 User Manual
2-7. Micro SD/SDHC card Slot
On Front panel.
Micro SD/SDHC card slot without spring and enable the SD storage up to 32GB
size.
Providing as an extra-storage device. Prevent more frequent and larger data access
on eMMC memory makes its lifespan shorter.
2-8. MIC with 3.5 mm Stereo Jack
On rear panel.
The Stereo Jack of MIC was preferred to use a TRS-MIC of balanced audio signals,
a MONO-MIC also acceptable.
2-9. Line Out with 3.5mm Stereo Jack
On rear panel.
2-10. IR receiver with 3.5mm Stereo Jack(Option)
On rear panel.

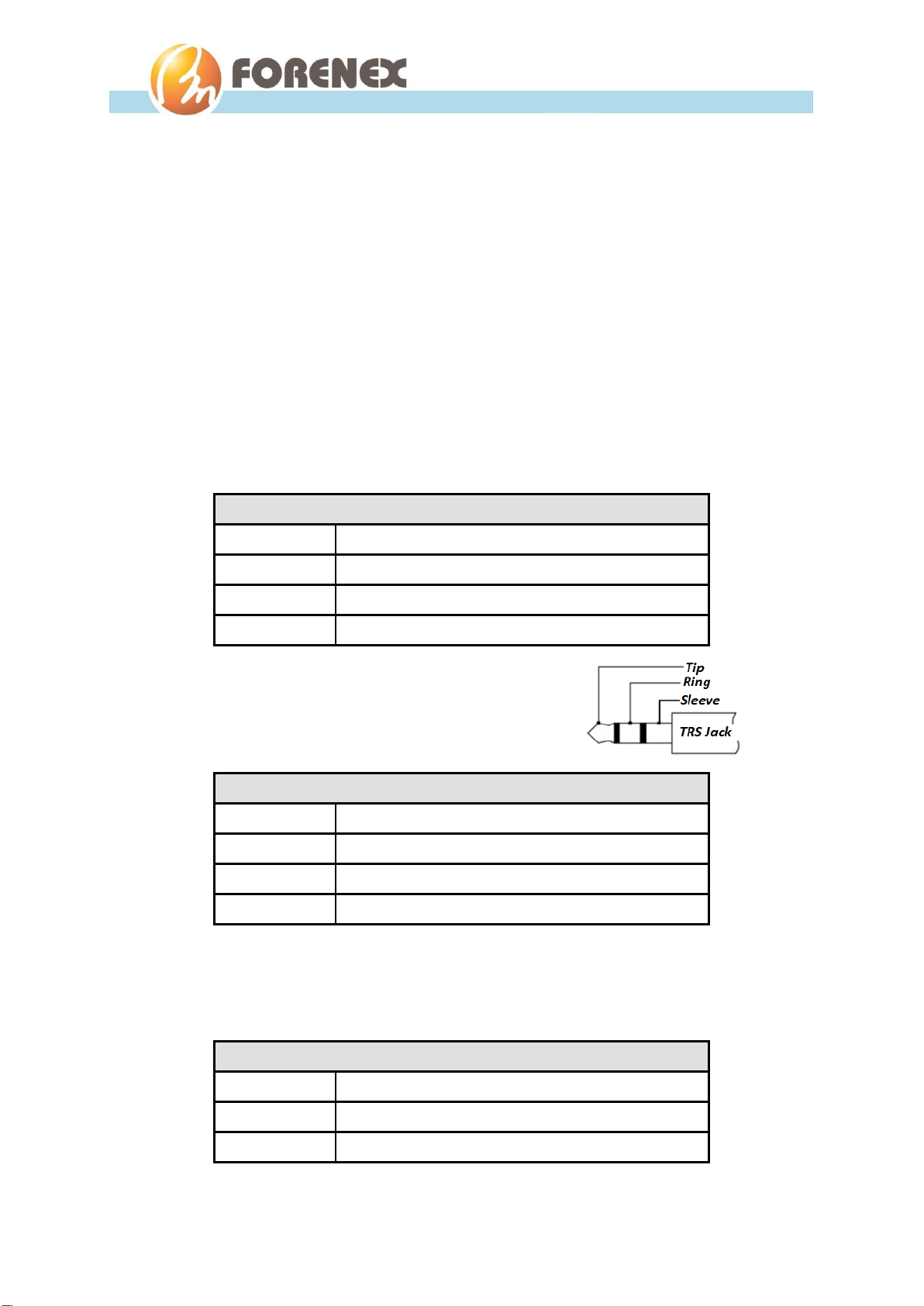

The pinout of TRS Connector
Pin number
Description
Tip
Left Channel/ (MONO MIC-IN)
Ring
Right Channel/ (MONO MIC-GND)
Sleeve
GND
The pinout of TRS Connector
Pin number
Description
Tip
Left channel
Ring
Right channel
Sleeve
GND
The pinout of TRS Connector
Pin number
Description
Tip
3.3V power for Ext. IR receiver
Ring
IR signal input

-15-
FEB710-R39 User Manual
2-11. HDMI®-2.0 port
On front panel.
The HDMI port uses an HDMI Type-A receptacle connector. It allows connecting
the digital video devices which utilize a high definition video signal without a
HDCP.
Support HDMI® V2.0, Res. up to 4Kx2K @60fps, HDCP1.4 /2.2
Pin Assignment:
Sleeve
GND
Connector: (19-pin HDMI Type A )
Pin number
Signal
Pin number
Signal
1
TMDA_Data2+
2
Data2_GND
3
TMDA_Data 2-
4
TMDA_Data1+
5
Data1_GND
6
TMDA_Data1-
7
TMDA_Data0+
8
Data0_GND
9
TMDA_Data0-
10
TMDA_CLK+
11
CLK_GND
12
TMDA_CLK-
13
NC
14
NC
15
DDC-SCL
16
DDC-SDA
17
CEC GND
18
Power 5V supply
19
Hot Plug Detect

-16-
FEB710-R39 User Manual
2-12. RS232 Debug Port
On rear panel.
Pin Assignment.
2-13. GPIOs Port (Option)
On rear panel.
Supports eight GPIOs without isolated
Pin Assignment.
Connector: ( DB-9/Male )
Pin number
Description
1
COM-GND
2
Console-RX (SIN), RS232 level
3
Console-TX (SOUT), RS232 level
4
NC
5
COM-GND
6
NC
7
NC
8
NC
9
NC
Connector: ( DB-9/Female )
Pin number
Signal
Pin number
Signal
1
3.3V_DI_0
6
3.3V_DO_2
2
3.3V_DO_0
7
3.3V_DI_3
3
3.3V_DI_1
8
3.3V_DO_3
4
3.3V_DO_1
9
GND
5
3.3V_DI_2

-17-
FEB710-R39 User Manual
3.Software and Technical Supports
3-1. Android Programming Guide
3-1-1. ADB installation
Originally, the USB3.0 was defaulted as host mode. Before use function ADB, the USB 3.0
Port have to be set to device mode by following steps.
Step1. Scroll to "Settings > About Tablet"
Step2. From “Settings” select "About tablet" to enter the dialog, and then click
"Build number" in the dialog as shown. Android will pop up a countdown message.
Keep clicking it until zero for Android to authorize the user to be a Developer.

-18-
FEB710-R39 User Manual
Step3. After finished above action, a new item "Developer Options" will appear
in the system block.
Step4. Get into the new item "Developer Options" and turn on the USB
debugging function.
Note: Please do not change the others that you do not understand what it does.

-19-
FEB710-R39 User Manual
Step5. Scroll to "Settings > USB"
●Then Scroll to "USB > ADB/HOST"
●Set USB3.0 as ADB

-20-
FEB710-R39 User Manual
3-1-2. To install APK software over the ADB function of PC :
1. Complete the connectivity between USB3.0 (Type A) port of FEB710-RK39 and
USB port of PC.
2. Enter the command string "adb install xxxxx.apk" from pc that will begin
user’s APK software installation.
3-1-3. GPIO installation
GPIOs definition
GPIOs control method
The GPIOs can be write/read value with the Linux command echo/cat by debug
port.
Position
PIN name
Linux node/Note
Direction
PIN 1
DIN2
/sys/class/gpio/gpio76/value
In
PIN 2
DOUT2
/sys/class/gpio/gpio69/value
Out
PIN 3
DIN0
/sys/class/gpio/gpio74/value
In
PIN 4
DOUT1
/sys/class/gpio/gpio68/value
Out
PIN 5
DIN1
/sys/class/gpio/gpio73/value
In
PIN 6
DOUT3
/sys/class/gpio/gpio67/value
Out
PIN 7
DIN3
/sys/class/gpio/gpio70/value
In
PIN 8
DOUT0
/sys/class/gpio/gpio66/value
Out
PIN 9
Ground
PIN 10
3.3V
