Rack Installation Instructions
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
02-40000-112634-20091026 7
http://docs.fortinet.com/ • Feedback
Rack Installation Instructions
The FortiManager-1000C comes with a sliding rail kit. Use the instructions below to install
the rails.
To install the sliding rail kit
1Locate the components for installing the rail kit assembly:
• Two sliding rail assemblies (1)
• Two chassis rail members (2)
• Two Velcro straps (3)
• Two cable management arm (CMA) attachment brackets (4)
Figure 1: Rail kit contents
2To install the rails in square-hole racks, do the following:
• Position the left and right rail end pieces of the rail module labeled FRONT facing
inward and orient each end piece to seat in the square holes on the front side of the
vertical rack flanges (5).
Caution: Only trained service technicians are authorized to remove the system cover and
access any of the components inside the system. Before you begin, review the safety
instructions that came with the system.
Note: The illustrations in this document are not intended to represent a specific server.
1
3
2
4

Rack Installation Instructions
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
802-40000-112634-20091026
http://docs.fortinet.com/ • Feedback

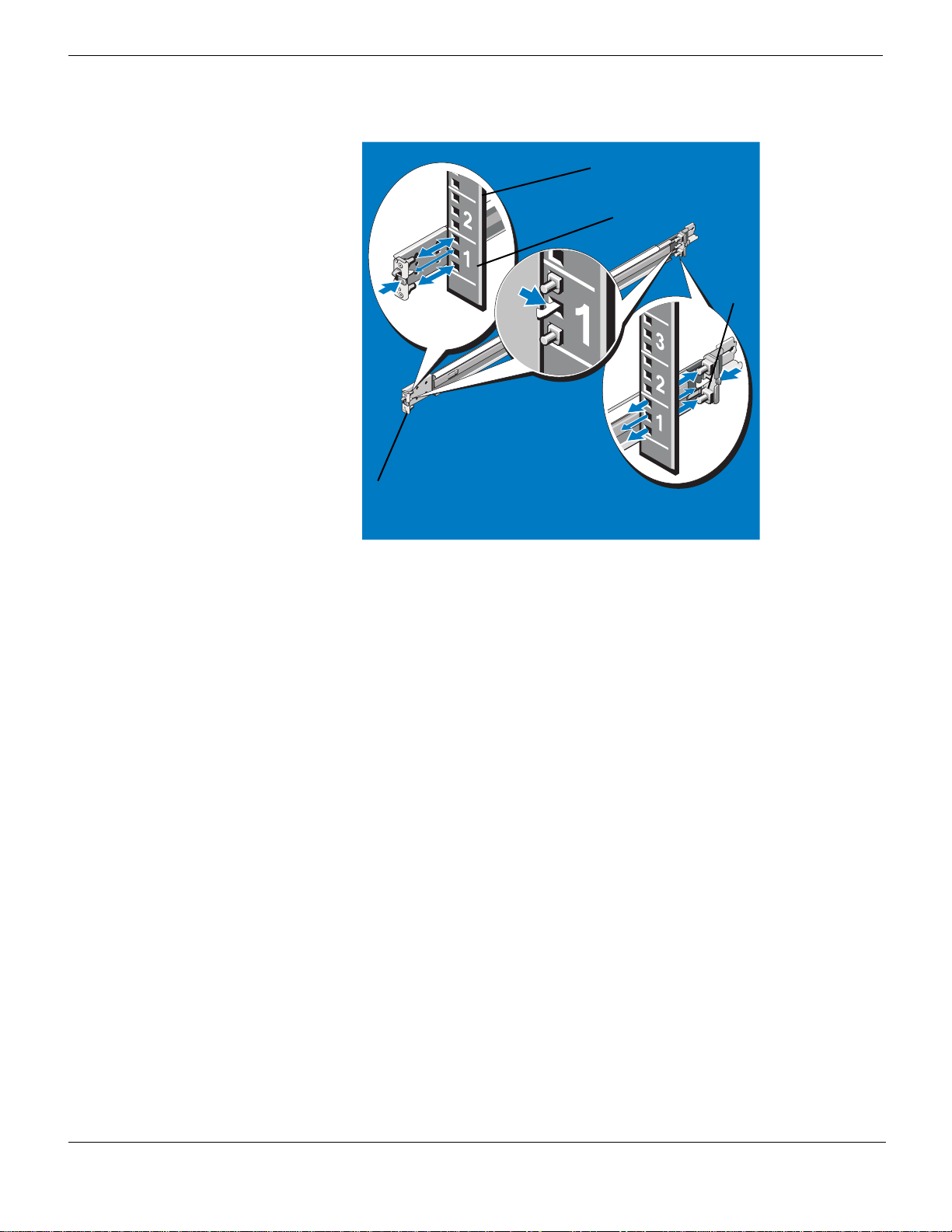

Figure 2: Installing and removing the rails (square-hole racks)
• Align each end piece to seat the pegs in the bottom hole of the first U and the top
hole of the first U (6).
• Engage the back end of the rail until it fully seats on the vertical rack flange and the
second “tooth” on the latch locks in place. Repeat these steps to position and seat
the front end piece on the vertical flange (7).
• To remove the rails, pull on the latch release button on the end piece midpoint and
unseat each rail (8).
3To install the rails in round-hole racks, do the following:
• Position the left and right rail end pieces of the rail module labeled FRONT facing
inward and orient each end piece to seat in the round holes on the front side of the
vertical rack flanges (9).
5
8
7
6

Rack Installation Instructions
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
02-40000-112634-20091026 9
http://docs.fortinet.com/ • Feedback
Figure 3: Installing and removing the rails (round-hole racks)
• Align each end piece to seat the pegs in the bottom hole of the first U and the top
hole of the first U (10).
• Engage the back end of the rail until it fully seats on the vertical rack flange and the
first “tooth” on the latch locks in place. Repeat these steps to position and seat the
front end piece on the vertical flange (11).
• To remove the rails, pull on the latch release button on the end piece midpoint and
unseat each rail (12).

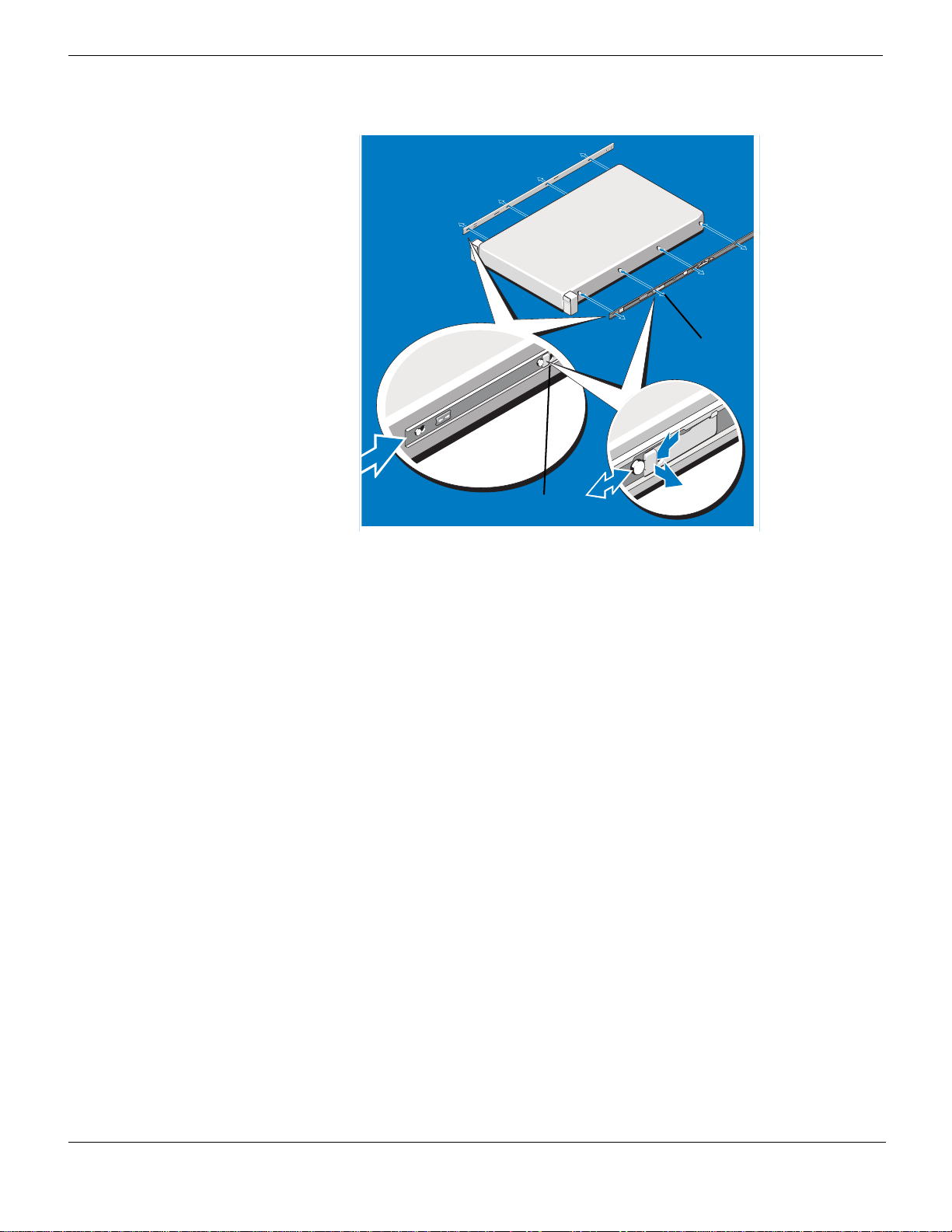

4To install and remove the chassis rail members, do the following:
• Place the system on a level surface and align the four keyhole slots on the chassis
rail members with the corresponding pins on the system (13).
9
10
11
12

Rack Installation Instructions
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
10 02-40000-112634-20091026
http://docs.fortinet.com/ • Feedback
Figure 4: Installing the chassis rail members.
• Slide the chassis rail members towards the back of the system until each one locks
into place. To remove the chassis rail members, lift the lock spring until it clears the
head of the pin (14).
• Slide the chassis rail member toward the front of the system until the pins slip
through the keyhole slots.
5To install the system in the rack, do the following:
• Ensure that the system is properly supported until the chassis rail members are
locked into the slide rails on both sides. Pull the sliding rails out of the rack until they
lock into place (15).
13
14

Rack Installation Instructions
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
02-40000-112634-20091026 11
http://docs.fortinet.com/ • Feedback
Figure 5: Installing the system in the rack.
• Align and insert the ends of the chassis rail members into the ends of the rails (16).
• Push the system inward until the chassis rail members lock into place. Push or pull
the blue tab located near the front of the system and slide the system into the rack
(17).

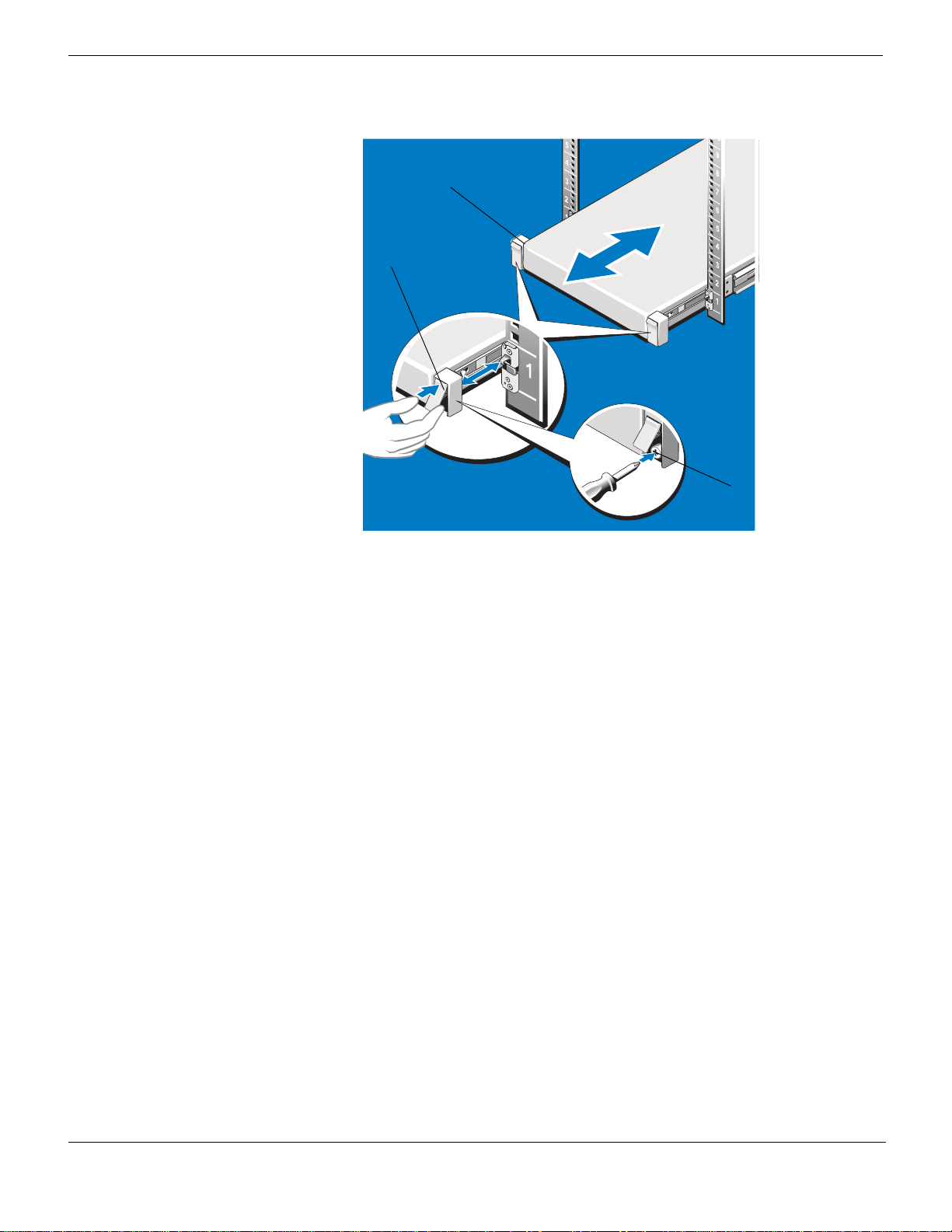

6To engage and release the slam latch, do the following:
• Facing the front, locate the slam latch on either side of the system (18).
17
15
16

Rack Installation Instructions
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
12 02-40000-112634-20091026
http://docs.fortinet.com/ • Feedback
Figure 6: Engaging and releasing the slam latch
• The latches engage automatically as the system is pushed into the rack and are
released by pulling up on the latches (19).
• To secure the system for shipment in the rack or for other unstable environments,
locate the hard-mount screw under each latch and tighten each screw with a #2
Phillips screwdriver (20).
7To install the CMA attachment brackets, do the following:
• Locate the CMA attachment bracket marked A and install it at the back of the slide
rail marked with a corresponding A (21).
• Align the holes on the bracket with the pins on the slide rail and push the bracket
forward until it locks into place. Repeat the same process for the CMA attachment
bracket marked B.
18
19
20

Rack Installation Instructions
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
02-40000-112634-20091026 13
http://docs.fortinet.com/ • Feedback
Figure 7: Installing the CMA attachment brackets.

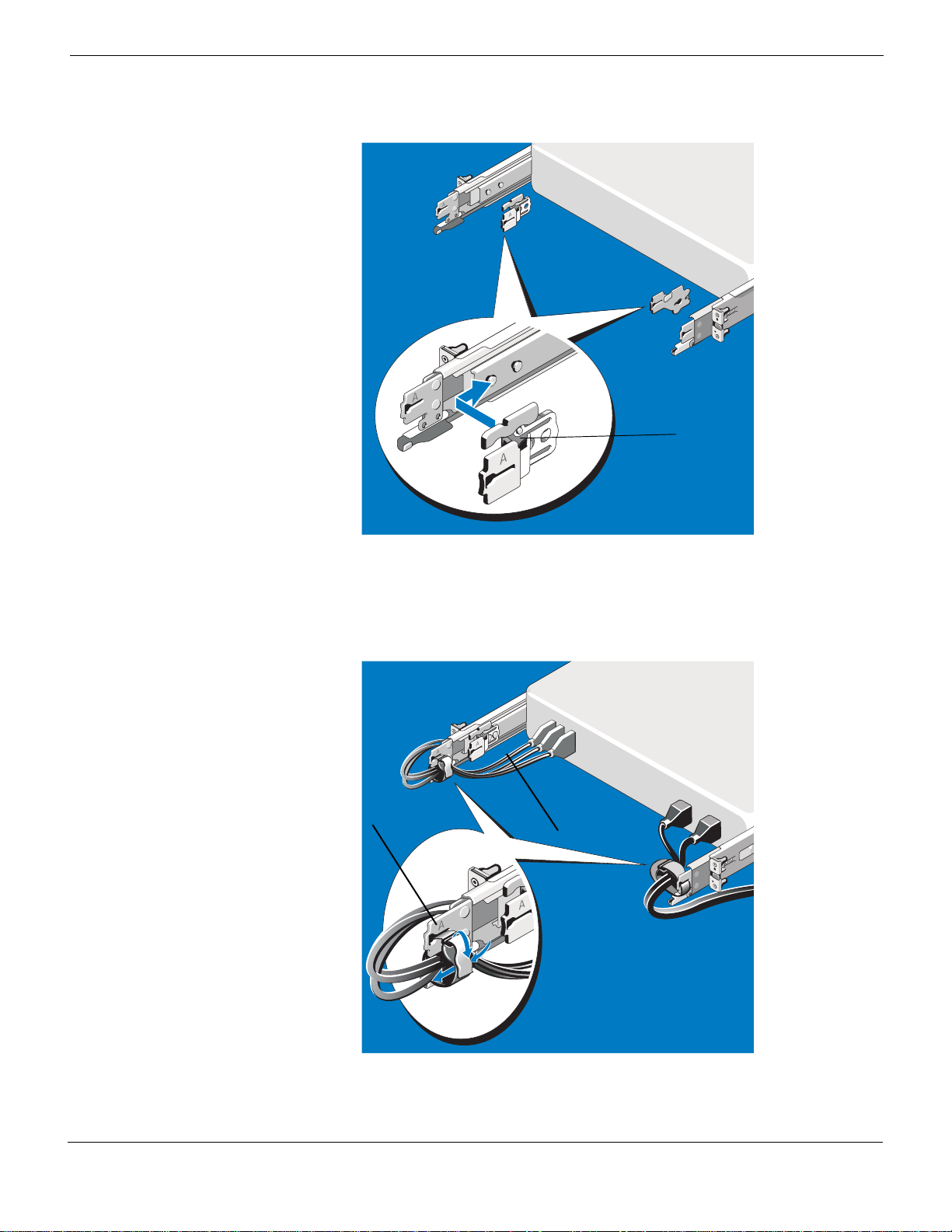

8To route the cables, do the following:
• Bundle the cables gently, pulling them clear of the system connectors to the left and
the right sides (22).
Figure 8: Routing the cables
• Thread the Velcro straps through the tooled slots on the outer or inner CMA
brackets on each side of the system to secure the cable bundles (23).
21
22
23

Cable Management Arm Installation Rack Installation Instructions
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
14 02-40000-112634-20091026
http://docs.fortinet.com/ • Feedback
Removing the system from the rack
To remove the system from the rack
1Pull the system out of the rack until the sliding rails lock into place (1).
Figure 9: Removing the system from the rack
2Locate the white tabs on the sides of the chassis rail members (2).
3Pull the tabs towards the front of the system to release the chassis rail members from
the rails. Continue pulling the system until the chassis rail members are completely
clear of the rails and place the system on a level surface (3).
Cable Management Arm Installation
The FortiManager-1000C comes with a Cable Management Arm. Use the instructions
below to install the Cable Management Arm.
1
2
3
Caution: Only trained service technicians are authorized to remove the system cover and
access any of the components inside the system. Before you begin, review the safety
instructions that came with the system.
Note: The illustrations in this document are not intended to represent a specific server.

Rack Installation Instructions Cable Management Arm Installation
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
02-40000-112634-20091026 15
http://docs.fortinet.com/ • Feedback
To install the cable management arm
1Locate the components for installing the Cable Management Arm (CMA) assembly:
• Cable Management Arm tray (1)
• Cable Management Arm (2)
• Nylon cable tie wraps (3)
Figure 10: Cable Management Arm kit contents
2To install or remove the Cable Management Arm Tray, do the following:
• Align and engage each side of the tray with the receiver brackets on the inner
edges of the rails and push forward until the tray clicks into place (4).
1
2
3
Note: To secure the CMA for shipment in the rack, loop the tie wraps around both baskets
and tray and cinch them firmly. For larger CMAs, the tie wraps can be threaded through the
inner and outer baskets and around the tray to secure them. Securing the CMA in this
manner will also secure your system in unstable environments.
Note: The CMA tray provides support and acts as a retainer for the CMA.

Cable Management Arm Installation Rack Installation Instructions
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
16 02-40000-112634-20091026
http://docs.fortinet.com/ • Feedback
Figure 11: Installing and removing the Cable Management Arm Tray
• To remove the tray, squeeze the latch-release buttons on both sides toward the
center and pull the tray out of the receiver brackets (5).
3To install and remove the CMA, do the following:
• At the back of the system, fit the latch on the front end of the CMA on the innermost
bracket of the slide assembly until the latch engages (6).
6
7
8
4
5
Note: You can attach the CMA to either the right or left mounting rail, depending on how
you intend to route cables from the system. Mounting the CMA on the side opposite of the
power supplies is recommended; otherwise, the CMA must be disconnected in order to
remove the outer power supply. You must remove the tray before removing the power
supplies.

Rack Installation Instructions Cable Management Arm Installation
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
02-40000-112634-20091026 17
http://docs.fortinet.com/ • Feedback
Figure 12: Installing and removing the Cable Management Arm
• Fit the other latch on the end of the outermost bracket until the latch engages (7).
• To remove the CMA, disengage both latches by pressing the CMA release buttons
at the top of the inner and outer latch housings (8).
4To move the CMA away from the CMA tray, do the following:
• The CMA can be pulled away from the system and extended away from the tray for
access and service (9).
6
7
8

Cable Management Arm Installation Rack Installation Instructions
FortiManager-1000C™ Version 4.0 Rack and Hardware Install Guide
18 02-40000-112634-20091026
http://docs.fortinet.com/ • Feedback
Figure 13: Moving the CMA away from the CMA tray
• At the hinged end, lift the CMA up and off of the tray to unseat it from the tray catch.
Once it is unseated from the tray, swing the CMA away from the system (10).
5To cable the system using the CMA, do the following:
• Using the tie wraps provided, bundle the cables together as they enter and exit the
baskets so they do not interfere with adjacent systems (11).
9
10
Note: You can also extend the CMA into the service position once it is cabled to access the
back of the system.
Caution: To avoid potential damage from protruding cables, secure any slack in the status
indicator cable before routing this cable through the CMA.
