Fortinet FortiVoice 200D User manual

FortiVoice™200D & 200D-T
QuickStart Guide

September 17, 2013
3rd Edition
Copyright© 2013 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate® and
FortiGuard® are registered trademarks of Fortinet, Inc., and other Fortinet names
herein may also be trademarks of Fortinet. All other product or company names may
be trademarks of their respective owners. Performance metrics contained herein were
attained in internal lab tests under ideal conditions, and performance may vary. Network
variables, different network environments and other conditions may affect performance
results. Nothing herein represents any binding commitment by Fortinet, and Fortinet
disclaims all warranties, whether express or implied, except to the extent Fortinet enters
a binding written contract, signed by Fortinet’s General Counsel, with a purchaser that
expressly warrants that the identified product will perform according to the performance
metrics herein. For absolute clarity, any such warranty will be limited to performance in
the same ideal conditions as in Fortinet’s internal lab tests. Fortinet disclaims in full any
guarantees. Fortinet reserves the right to change, modify, transfer, or otherwise revise
this publication without notice, and the most current version of the publication shall be
applicable.
Technical Documentation http://docs.fortinet.com
Knowledge Base http://kb.fortinet.com
Forums https://support.fortinet.com/forum
Customer Service & Support https://support.fortinet.com
Training Services http://training.fortinet.com
FortiGuard Threat Research and Response http://www.fortiguard.com
Document Feedback Email: [email protected]

Table of Contents
Package Contents 1
Connecting to FortiVoice 2
Configuring FortiVoice 3
Registering Your Product 4
Technical Specifications 5
LED Specifications 6
Safety Warnings 7
Compliance 9
Product License Agreement 11

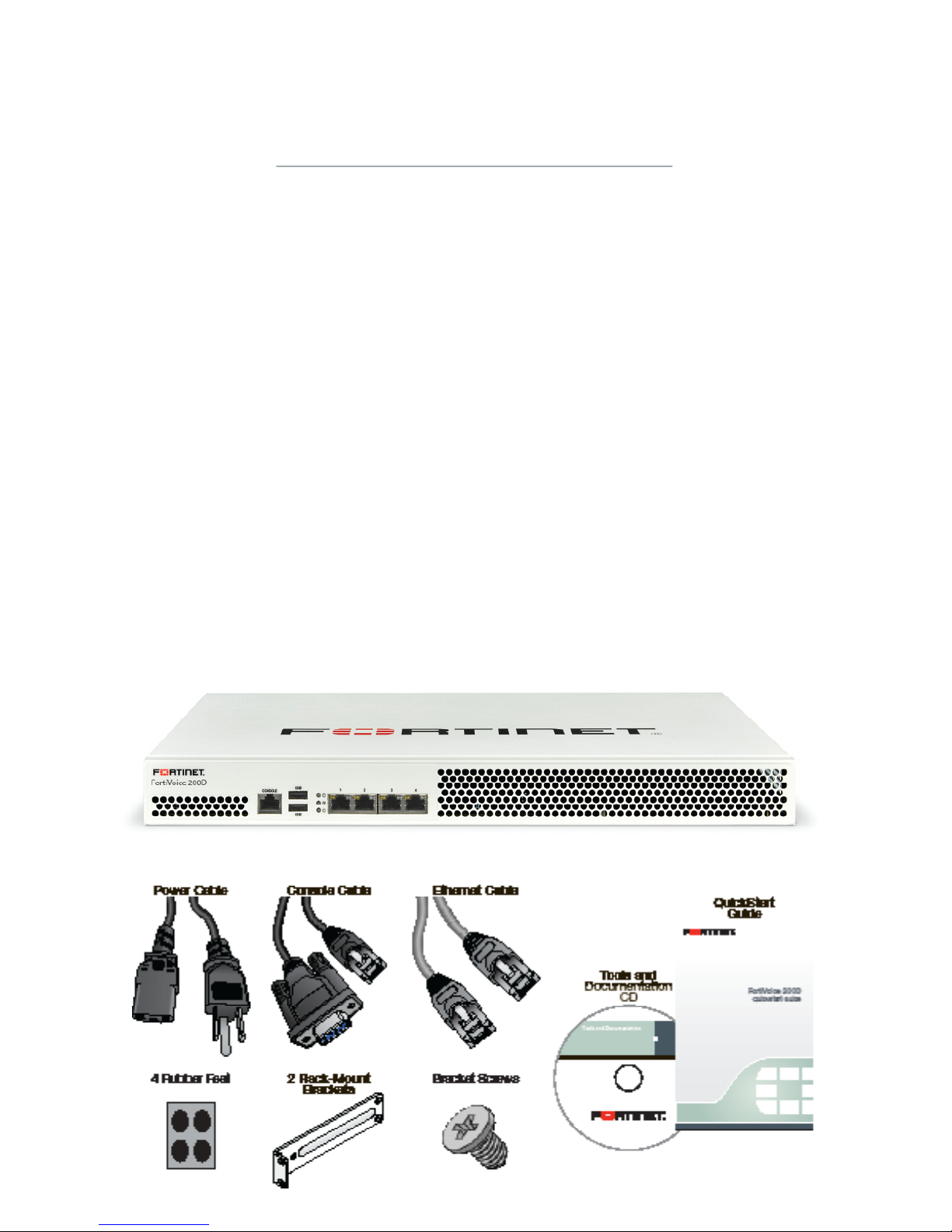

Package Contents
Thank you for choosing Fortinet FortiVoice phone system.
Your box should contain the following. Note that the picture only shows the 200D
model.
FortiVoice 200D (or 200D-T) PBX appliance
QuickStart Guide
Tools and Documentation CD
Power cable
Ethernet cable
Console cable
Bracket screws
4 Rubber feet
2 Rack-mount brackets
1 RJ11 cable (200D-T model only)
2 RJ11 Y-cable port splitters (200D-T model only)
1 RJ-45 PRI cable (200D-T model only)
Page 1

Connecting to FortiVoice
You can configure your FortiVoice appliance using either its web pages (the web UI)
or the command line interface (CLI). After connecting, follow the setup instructions
in the FortiVoice 200D and 200D-T Administration Guide.
To connect to the FortiVoice web UI
Browser requirements: Internet Explorer 8, Firefox 3.5, Safari 4, and Adobe Flash
Player 9 or greater.
1. Connect the FortiVoice appliance’s port1 to your computer using the provided
Ethernet cable.
2. On your computer, configure it to match the appliance’s default port1 subnet.
For example, on Windows 7, click the Start (Windows logo) menu to open it, then
click Control Panel. Click Networkand Sharing Center, Local Area Connection,
then the Properties button. Select Internet Protocol Version 4 (TCP/IPv4) then
click its Properties button. Select Use the following IP address, then change your
computer’s settings to:
• IP address: 192.168.1.2
• Subnet mask: 255.255.255.0
3. To access the FortiVoice web UI, start a browser and browse to
https://192.168.1.99/admin (remember to include the “s” in https:// and “/admin”
at the end of the URL).
4. Type admin in the Name field, leave the Password field blank, and click Login.
To connect to the FortiVoice CLI
1. Connect the FortiVoice console port to your computer using the console cable.
2. On the management computer, start a terminal emulation program (such as
PuTTY). Use these settings:
• Baud Rate: 9600
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow Control: None
3. Press Enter on your keyboard to connect to the CLI.
4. Type admin in the Name field, leave the Password field blank, then press Enter.
Page 2

After connecting to the FortiVoice appliance, run the quick start wizard to set up
the basic network and PBX settings.
For detailed instructions, see the FortiVoice Administration Guide.
Shutting down the FortiVoice appliance
Always properly shut down the FortiVoice appliance’s operating system before
turning off the power switch or unplugging it. This causes it to finish writing any
buffered data, and to correctly spin down and park the hard disks.
Do not unplug or switch off the FortiVoice appliance without first halting
the operating system. Failure to do so could cause data loss and hardware
problems.
To power off the appliance via the web UI
1. Connect to the web UI.
2. Go to System > Status.
3. In the System Command widget, click the Shut Down button.
You may be able to hear the appliance become more quiet when the appliance
halts its hardware and operating system, indicating that power can be safely
disconnected.
4. Disconnect the power cable from the power supply.
To power off the appliance via the CLI
1. Connect to the CLI.
2. Enter the following command:
execute shutdown
You may be able to hear the appliance become more quiet when the appliance
halts its hardware and operating system, indicating that power can be safely
disconnected.
3. Disconnect the power cable from the power supply.
Page 3
Configuring FortiVoice

Registering Your Product
Register
Register your Fortinet product in order to receive:
•TechnicalSupport•Softwareupdates
Enregistrer
Vous devez enregistrer le produit pour recevoir:
•Supporttechnique•Mises-à-jour
Registra
La reistrazione ti permette di usufruire di:
•SupportoTecnico•Nuovefunzionalita
Registrar
Debe registrar el producto para recibir:
•Apoyotécnico•Nuevasfuncionalidadesdelproducto
登録のお願い
本日、フォーティネット製品の登録をしてください。
登録すると次のメリットがあります。
• テクニカルサポート • 新機能の追加
请马上注册
您的飞塔产品
您在注册以后才能得到技术支持、新产品特点信息
Web: https://support.fortinet.com/
Toll free: 1 866 648 4638
Phone: [phone]
Fax: [phone]
Email: r[email protected]
Page 4

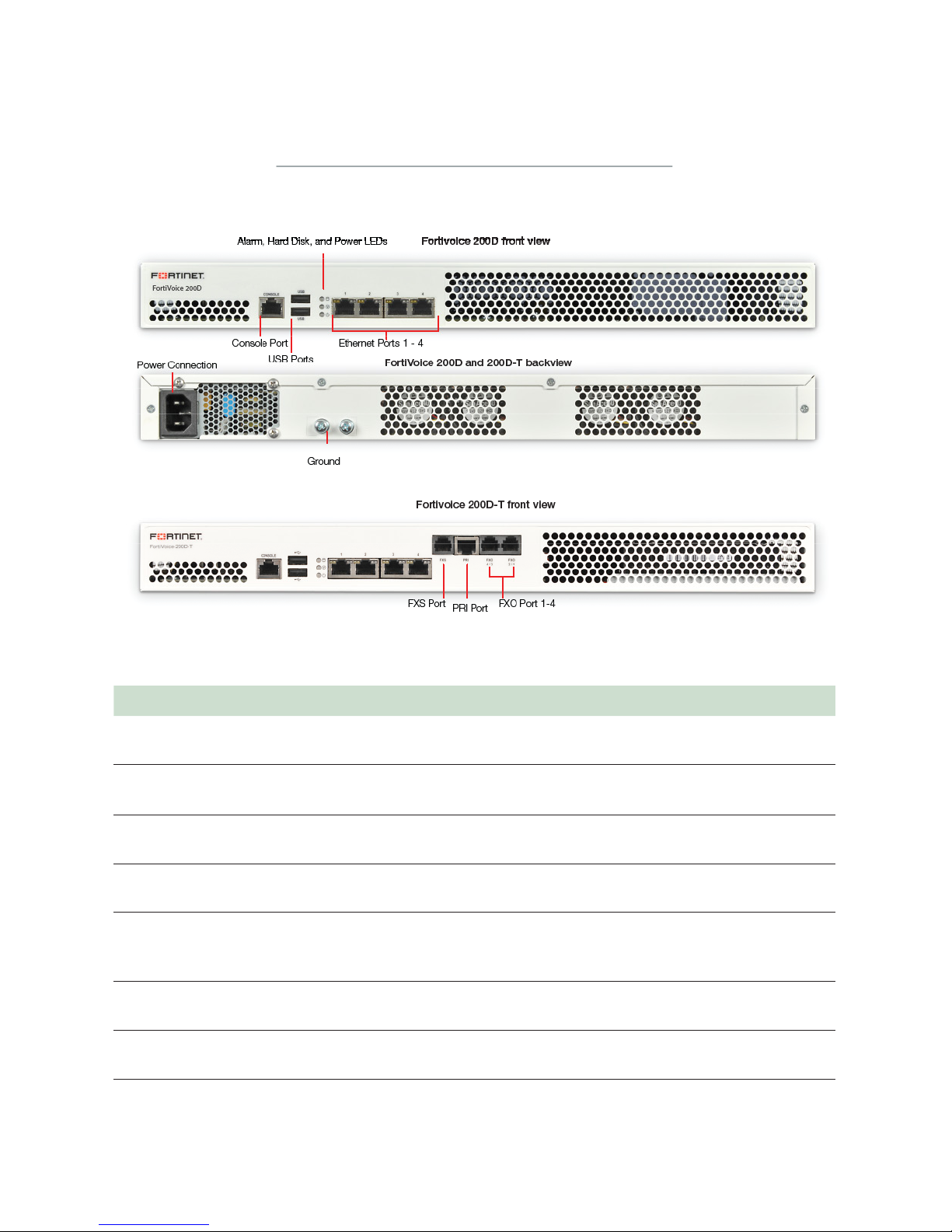

Interface Type Protocol Description
Ethernet Ports
1 - 4
RJ-45 Gigabit Ethernet Ethernet ports for connection to your network and
the Internet.
USB Ports
1 - 2
USB-A USB 2.0 Reserved for future use.
Console RJ-45 RS-232 serial Optional connection to the management
computer. Provides access to the CLI.
Power
Connection
100-240V AC, 60-50Hz, 4-2A
Traditional
Telephone
Lines (4)
FXO Connect to analog PSTN networks.
(200D-T model only)
Analog
Extension (1)
FXS Connect to an analog phone.
(200D-T model only)
Digital Line (1) PRI Connect to digital PSTN networks.
(200D-T model only)
Technical Specifications
Page 5

LED State Description
Hard Disk Drive
(Top LED)
Amber Activity on the hard disk drive.
Alarm
(MiddleLED)
Off System is normal.
Red System failure.
Power
(Bottom LED)
Green The appliance is on.
Ethernet Ports
Activity (Left LED)
Amber Port is active.
Flashing Amber Port is transmitting and receiving data.
Off No cable is connected to the port.
Ethernet Port
Speed (Right LED)
Green Port is connected at 1Gbps.
Amber Portisconnectedat100Mbps.
Off Portisconnectedat10Mbps.
LED Specifications
Page 6

Safety Warnings
Page 7
Safety warnings
Read and save the following safety instructions:
• Mechanical loading:Toavoidpersonalinjuryordamagetotheappliance,
Fortinet recommends that two or more people together install the appliance into
therack.Mountingoftheequipmentintherackshouldbesuchthatitdoesnot
causeunevenmechanicalloadingandtipping.Donotplaceheavyobjectsonthe
appliance.
• Grounding: Do not connect or disconnect cables during lightning activity
toavoiddamagetoyourFortinetproductorpersonalinjury.Ensureyour
Fortinet product is connected and properly grounded to a lightning and surge
protector. WAN or LAN connections that enter the premises from outside the
building should be connected to an surge protector. To prevent damage to
your equipment, Fortinet recommends using an electrostatic discharge (ESD)
workstation and/or wearing an anti-static wrist strap when working with the
appliance. Shielded Twisted Pair (STP) Ethernet cables should be used whenever
possible rather than Unshielded Twisted Pair (UTP).
• Battery and power cord: Use only the power cord and batteries indicated in
this manual. Use only the power cord and batteries indicated in this manual. Risk
of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to your local regulations.
FortiVoice 200D-T model only:
• Line cord: To reduce the risk of fire, use only No. 26 AWG or larger (e.g, 24
AWG) UL Listed or CAS Certified telecommunication line cord.
• Earthing terminal: This is a pluggable type A equipment installed in a restricted
accesslocation.Ithasaseparateprotectiveearthingterminal(M5typeand
10 mm size) provided on the back of the product in addition to the grounding
pin of the power supply cord. This separate protective earthing terminal must
be permanently connected to earth and the connection is to be installed by a
qualified service personnel.
• Disconnect TNV circuit connector before removing cover.
• When using your telephone equipment, basic safety precautions should
alwaysbefollowedtoreducetheriskofre,electricshockandinjurytopersons,
including the following:
a. Do not use this product near water for example, near a bathtub, washbowl,
kitchen sink or laundry tub, in a wet basement or near a swimming pool.
b. Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightning.
