Forza IRQR-01 User manual

Operating Instructions
Model IRQR-01
(Sophisticated Device for viewing latent IR image)

Declaration of Conformity
Responsible Party : Potenza Investment Holdings LLC
Address : 875 Prospect street, suite 206, La Joya, 9203, 7 USA
For Customers in the U.S.A.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may cause undesired operations.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experience radio/TV technician for help.
SAR Information Statement
The product is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy
for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of
age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6 W/kg.
Tests for SAR are conducted with the product transmitting at its highest certified power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of the product while operating can be well below the maximum value.
This is because the product is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the power output. Before a product model is available for sale to the public, it must be tested
and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure.
The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value
for this model product when tested for use worn on the body, as described in this user guide, use at the worn on the body is 0.157W/kg.
P.1
P.1

P.2
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 0mm is used
between the user's body and the handset, including the antenna.
Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that
do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.
For customers in EU:
"CE" mark indicates that this product complies with European requirements for safety, health, environment and customer protection. Device marked
with "CE" are intended for sale in Europe.
1.The suitable temperature for the product and accessories is 0~40℃, the charging temperature is 0~40℃.
2.The SAR limit of EU (CE) is 2.0 W/kg averaged over one gram of tissue. Device "FORZA" has been tested at 0.09 W/Kg.
3.This device is operated the frequency bands and the maximum output power (E.I.R.P): 2412 - 2472 MHZ : 15.68 dBm Max.
EU Regulatory Conformance
Hereby, Potenza Investment Holdings LLC declares that the device FORZA is in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
CE RED Certificate No.: AT18220WC100849
Please do not throw the equipment into domestic refuse. Please use the return and collection systems available in your country for proper and safe
disposal of this product.
Potenza Investment Holdings LLC reserves all rights of this document.
All trademarks mentioned in this manual are used for identification purposes only and are properties of their respective owners.
This manual provided you with instructions on how to use Forza. Potenza Investment Holdings LLC reserves the right to make changes without notice
(Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences
between the SAR levels of various product and at various positions, they all meet the government requirement for safe exposure. The FCC has granted
an Equipment Authorization for this model product with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this model product is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after
searching on FCC ID: 2AZYY-IRQR-01.Additional information on Specific Absorption Rates (SAR) can be found on the Cellular. Telecommunications
Industry Association (CTIA) website at https://www.ctia.org/ In the United States and Canada, the SAR limit is 1.6 watts/kg (W/kg) averaged over one
gram of tissue.The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in
measurements.

P.3
Before You Start
Safety notes for using FORZA
·Keep device out of reach of children and infants.
·Do not drop or allow device to hit solid objects.
·Do not attempt to disassemble device.
·To prevent device from being damaged by moisture, do not use or store it in humid environments, such as in the rain or near bodies of water.
·Do not use or store device in dusty places or on a beach to prevent dust or sand from entering, causing possible damage to it.
·Do not use or store device in a hot environment or under direct sunlight.
·Do not use or store device near a powerful magnetic field, for example near a magnet or transformer.
·Do not expose device to direct sunlight for a long period time.
·Turn device off, remove the battery and the memory card, and dry it within 24 hours if water accidentally comes into contact.
·When taking device from a cold place to a warmer environment, condensation may occur. Please wait for a reasonable period of time before
turning it on.
·When using device, remove the battery if it overheats. Wait until the unit cools down.
·Store device in a dry environment and place it on a flat surface when storing the camera for long periods of time.
·Device should be turned off before removing its battery and memory card.
·When cleaning the body of device, do not use abrasive, alcohol-based or organic cleaners.
·Only use soft and dry cleaning cloths to wipe the body of device.
Safety Notes for Battery
·If battery fluid leaks inside the device, remove the battery and chemical residue.
·If battery fluid comes into contact with skin, rinse the skin with clean water and seek immediate medical attention.
·Disposal of used batteries should be carried out in accordance with the local (national or regional) regulations.
·To prevent the battery from being damaged, do not drop the battery, allow it to hit solid objects or to be scratched by the objects.
·Do not let the battery come in contact with metal objects (including coins) to avoid short circuiting, discharging, excessive heat, or possible
leakage.
·Do not attempt to disassemble the battery.
·Do not expose the battery to water. Always keep the battery contacts dry.
·Do not heat the battery or throw it into a fire to avoid a possible explosion.
·Do not store the battery in a hot environment or in direct sunlight.
·Only use the battery with appropriate specifications.

P.4
Other Safety Notes
·When using the device on an airplane, observe the relevant rules specified by the airline.
·Due to the limitations of manufacturing technology, the LCD screen may have several dead or bright pixels. These pixels do not affect the
quality orperformance of the camera, photos or video.
·Do not expose the LCD screen to water. In a humid environment, only wipe it with a soft and dry clean cloth.
·If the LCD screen is damaged and the liquid crystal comes into contact with skin, wipe your skin with a dry cloth immediately, rinse it with
clean water and seek immediate medical attention.
·If you accidentally swallow liquid crystal, rinse your mouth immediately and seek medical attention.
·If liquid crystal comes into contact with your eyes, wash them with clean water at least for 15 minutes and seek immediate medical attention.
·If you accidentally swallow liquid crystal, rinse your mouth immediately and seek medical attention.

P.5
Contents
1. Introduction
2. Features
3. Quick Start
4. Getting to know FORZA
5. Functions
6. Web Operation
7. Troubleshooting
8. Specification
P.6
P.6
P.7
P.8-9
P.10-12
P.13
P.14
Page No.

P.6
Introduction
-Thank you for using Forza. Please read this manual carefully and keep it in a safe place for future reference.
-This manual has been written to help you operate FORZA to view and decode the latent IR image in QR code format.
-The Quick Start Guide takes you through the process of unpacking and setting up FORZA, taking and decoding the IR images and transferring
them to your computer.
Features
◎ Touch LCD screen
◎ QR code auto scanning and decoding
◎ Snapshots to IR image
◎ Wireless data transfer
◎ USB cable data transfer
◎ Storage
◎ Rechargeable (3.7V Lithium-ion battery)
1. Camera Lens
2. LCD Screen
3. USB slot
4. TF card slot
5. Power on/off button 4
3
5
1
2

P.7
Quick Start
Device Operation
·Power on the device by pressing on/off button.
·Locate the invisible QR code with the viewfinder on the screen.
·Auto scan and decode contents shown on the screen.
·Press icon on screen to select functions (save, delete, upload, etc.)
·Connect device to PC for data transfer.
·Connect to network (router or hotspot) for wireless transmission.
·Power off device by pressing on/off button or icon on the screen.
·The rectangular space in the center of the main screen allows user to view camera imaging and helps locate the optimum position of
decoding. Automatic scan and decode function will decode the QR code shown on the screen.
* For the first time use of device, remove the insulator (a plastic film) by unscrewing the battery
cover half-way. Please screw the battery cover back on firmly afterwards.

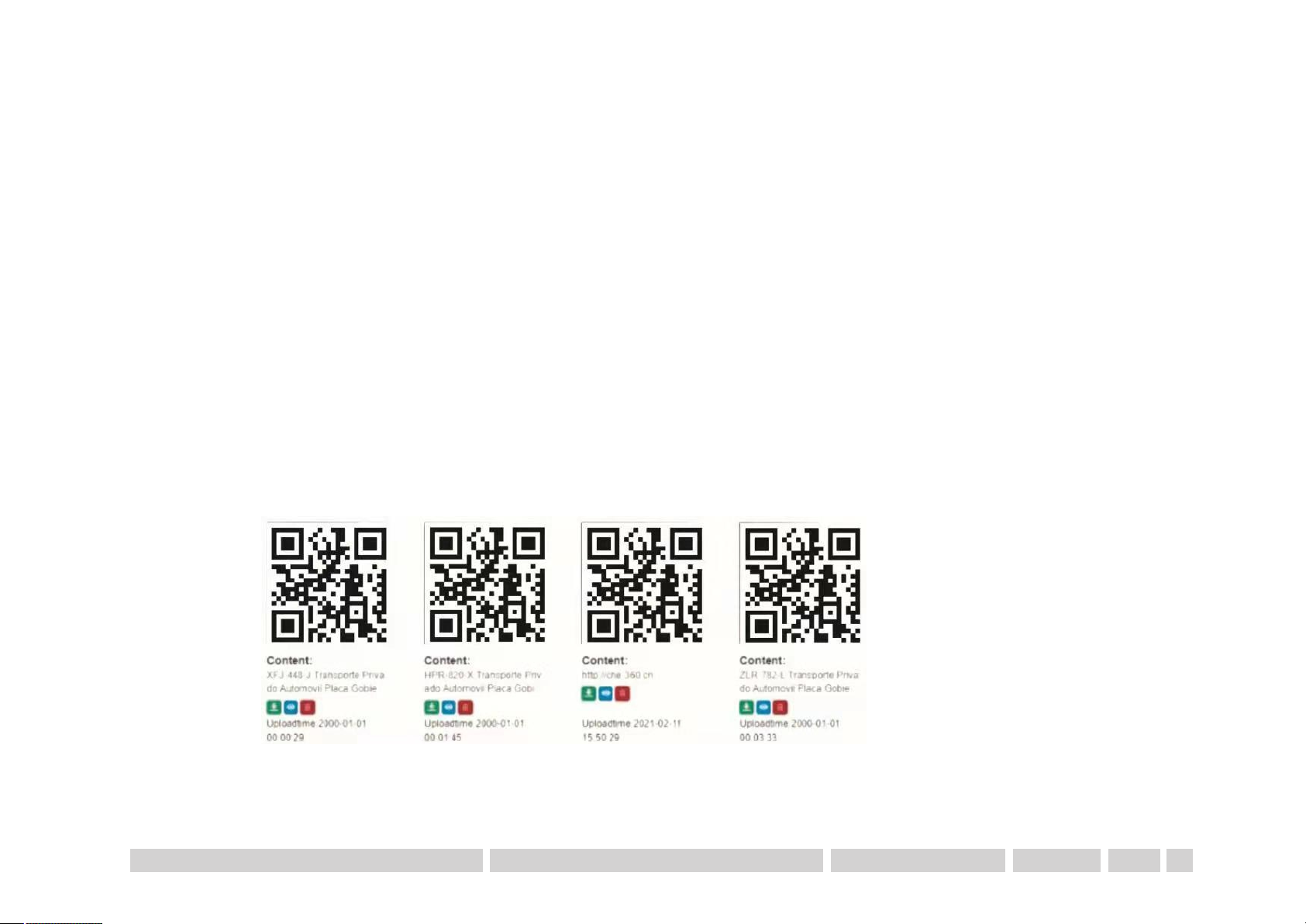

Web Operation
·Log on account with Device ID and password (web site www.Lazosdecoder.net).
·User create password for first time log-on.
·View and download decoded contents to your personal computing devices.

P.8
Getting to Know FORZA
BUTTON
OVERVIEW – MAIN SCREEN
ON/OFF BUTTON.
To turn device on or off, hold the on/off button for three seconds.
Screen power on Screen power off
* After device activation, it takes up to 3 seconds for the device to finish setting up. An image will appear with the ‘starting’ signal.
1
2
3
4
Camera Interface Viewfinder
FORZA
Starting .....
Thank you for using FORZA
Power off.....
Scanning .....
2021-05-10 22:53:00
8
7
6
5

P.9
CAMERA INTERFACE VIEWFINDER
A rectangular space in the center of the main screen that allows user to view camera imaging and help to locate the optimum position of decoding.
Automatic scan and decode function will decode the QR code shown on screen.
* Make sure the upper and lower ends of QR code lines up to the borders of Viewfinder.
SYMBOLS DESCRIPTION
Tap the symbols on the main screen to initiate its corresponding functions. (See 'Functions' below for instructions)
1. Power OFF
The off symbol serves a similar function as the on/off button except it offers additional convenience during usage. It powers off the device.
2. CUSTOM SETTING
The setting icon allows user to configure the device and select other preferences.
Device ID : Each device has an unique ID (not recommended to change unless necessary).
Sleep : This option allows user to set a sleep timer—the period of time it takes for the device to enter sleep mode.
(Device will turn offautomatically after 5 minutes).
Joined Network: Shows the connected network.
USB Storage: Use for data transfer via USB cable to another device.
Time setting: Change the time manually.
3. WI-FI CONNECTING
An internet connection via Wi-Fi is only necessary when uploading data to server in this chosen method.
4. CAMERA
Clicking the Camera symbol takes a snapshot on the main screen or returns to main screen from other functions.
5. SAVING
Clicking the Save symbol saves the snapshot and the code and its automatically decoded message into the storage album.
6. DELETE
Clicking the Delete symbol deletes the snapshot of the code and its decoded message.
7. UPLOAD
Clicking the Upload symbol uploads codes and decoded contents to online server, which can then be accessed through computer or other
devices via the internet.
8. STORAGE ALBUM
Clicking the Storage Album icon allows user to view decoded contents that have been successfully saved.

P.10
FUNCTIONS
DECODING QR CODE
1.Angle device to position the code within the borders of the camera viewfinder.
2.The code will be automatically decoded into a message that will appear on screen, where options
Save, Delete or Upload are is available.
3.Click Save symbol and Confirm symbol to approve action.
4.Saved decoded messages will be available for viewing at storage album.
Custom Setting
1.Go to Settings.
2.Choose preferred settings for Device ID, sleep time, joined network, time setting and USB cable
connecting.
3.Device ID is shown and can be changed with password (recommended not to change unless necessary ).
4.Select the sleep time for power saving. Device will turn off in 5 minutes after sleep time.
5.Type in network name and password for Wi-Fi connection instead of scanning if known.
6.Reset date and time on screen with yy/m/d/hr/min/sec.
7.Press Save or Cancel icons for the changes.
CONNECTING TO WI-FI network
1.Go to Wi-Fi.
2.Click Scan to search for available networks.
3.Once a preferred network is selected, enter its password.
4.P ress Save.
5.For power saving, the Wi-Fi function will be turned off for the new setting when saved. It will be
reactivated when the upload icon is pressed to transfer data.
Auto scanning and decoding
Storage Album
2021-05-10 22:53:00
Devi ce ID
Sleep
15s 30s 1min 2min 5 min 1 0min
Joined Netwo rk
SSID
Pass wo rd
Stor ag e co nn ec tion Chan ge P as sw or d
Con nec t Ch ang e Ch ang e
Cancel Save
2021 -05-1 0 22:53 :00
decoded messa ge :
Deco ded
2021-05-10 22:53:00
Use Ne twork
SSID :
Pass wo rd :
Cancel Save
Sca n 12
2021 -05-1 0 22:53 :00
Stor age
2 ABCDEFG
12345678910FAFL
1 ABCDEFG
12345678910FAFL
0 ABCDEFG
12345678910FAFL
<1>

P.11
TRANSFERRING DATA TO OTHER DEVICES
UPLOADING DATA TO SERVER
1.Connect to Wi-Fi.
2.Click Storage to view saved codes and contents.
3.Proceed to click Upload. A progress bar will appear to indicate the percentage of information uploaded to server.
4.When the data is uploaded, it will be saved in the storage album as well.
5.Data can either be uploaded to server after decoding instantly or saved in storage album and uploaded manually afterwards.
USB CABLE DATA TRANSFER
1.Connect the device to the computer using a micro USB cable.
2.Go to Settings.
3.Click Connect under USB Storage.
4.A removable drive is appeared on screen.
5.Obtain the QR code picture in BMP format.
6.Open 'List' file to obtain the decoded content.
7.Press Eject button to disconnect after transmission completed.
* Do not remove TF card during data transfer.
File 2021/6/21 10:48pm DAT
210621104853 2021/6/21 10:48pm BMP
210621000556 2021/6/21 10: 48 pm BMP
210625112333 2021/6/21 10:48 pm BMP
210625489922 2021/6/21 10: 48 pm BMP
210321456698 2021/6/21 10:48 pm BMP
210621245789 2021/6/21 10: 48 pm BMP
文件
文件
文件
文件
文件
文件
文件
[20]210621104853.bmp,0,110,MXV-533-Y Transporte Privado Automovil Placa
Gobierno de Mexico 2020 Vigencia:2022 31.-Lazos Int Lote:001/2020
[19]210821104843.bmp,0,110,RBH-522-E Vransporte Privado Automovil Placa
Gobierno do Mexico 2020 Vigercia:2022 31. -Lazos Int Lote:001/2020
[18]210621104835.bmp,0,110,HPR-820-X Viansporte Privado Autonovil Placa
Gobierno do Mexico 2020 Vigercia:2022 31. -Lazos Int Lote:001/2020
[17]210612140631.bmp,0,110, MTM-365-K Viansporte Privado Automovil Placa
Gobierno de Mexico 2020 Vigencia:2022 31.-Lazos Int Lote:001/2020
[16]210612140622.bmp.0,110,HPR-820-X Viansporte Privado Automovil Placa
Gobierno de Mexico 2020 Vigencia:2022 31. -Lazos Int Lote:001/2020
[15]210612140616.bmp,0,110,MZV-533-V Vrasporte Pwivado Automovil Placa
Gobierno de Mexico 2020 Vigencia:2022 31.-Lazos Int Lote:001/2020
[14]2106121470606.bmp,0,110,MTN-365-K Vransporte Privado Automovil Placa

P.12
Charging the Battery
1. Connect the camera using the supplied USB cable or any USB cable for 2A charging.
2. After the battery is stored for a long period of time, charge the battery prior to use.
3. When the camera is turned off, you can also connect the camera to your PC using a USB cable to charge the battery.
4. Charging indicator turns red while charging. It will turn green after charging is finished.
5. To have maximum battery life, charge the battery for at least 4 hours for the first time.
6. For shorter charging time, turn off device while charging.
* Before charging the battery, ensure that the battery is inserted properly and the device is off.
Battery
Rechargeable
Voltage
Capacity
Internal safety feature
Dimensions
Charging time
One piece of Lithium-ion battery (Nitecore NL1823 is recommended)
3.7V
2300 mAH (recommended)
Integrated high performance protected circuit
φ 18mm * L :70mm
4-5 hours (Approximately)
Changing the Battery
1. Unscrew the battery cover, which is connected to the body of device with an electric cable.
2. Remove the used battery from battery chamber.
3. Insert battery with correct position according to the mark of electric polar on battery cover.
(Positive polar face to the end of battery cover)
4. Screw the battery cover firmly back on.

P.13
WEB Operation
Login to website to view transferred data. www.LAZOSDECODER.NET
User LOGIN
Login to website with Device ID and password
Device ID : Refer to the Custom Setting page
Login : Set password with 6-16 digits (case-sensitive) in the first login
Login password is preset at “888888”, it is able to be changed after first login.
Features : View the upload data/photos, QR code in digital form and decoded content.

P.14
Troubleshooting
Problem
Device does not turn on
Unable to decode QR code
Device turns off suddenly during operation
Images cannot be saved
Device is hanging
Data cannot be uploaded
Removable driver does not appear after
connecting to computer
Possible causes
The battery has been depleted.
- FORZA shakes while scanning
- QR code is not aligning correctly
- The battery has been depleted
- The TF card is full
- System busy
- Poor Wi-Fi connection
- TF card defect
Solution
- Recharge the battery
- Change an new battery
- Hold with steady hands.
- Make sure the QR code image is seen on the viewfinder,
align upper and lower end of QR code to the borders of
viewfinder.
- Recharge the battery
- Use another TF card or delete unnecessary files.
- Restart with on/off button
- Reconnect the Wi-Fi network
- Replace new TF card

Product name
Model number
Dimension
Weight
Power supply
Charging
Data transfer
Working temperature
FORZA
IRQR-01
156.2 x 98.2 x 35.3 mm
248 grams
3.7V Lithium ion battery (with circuit protection)
Input 5V / 2A micro USB cable (recommended)
Micro USB cable
0 - 40 Deg C
USB cable
Device pouch
TF card
Screen protector
Cleaning cloth
User manual
1
1
1
1
1
1
Accessories include Quantity
Specification
www.Lazosdecoder.net
