User Manual
2-year
warranty*
Uninterruptible Power Supply System
FTP-230KSM/FTP-240KSM

1
Please comply with all warnings and operating instructions in this manual. This equipment should only be in-
stalled, serviced, and maintained by qualified personnel. Do not operate this unit before reading through all
safety information and operating instructions carefully.
Table of contents
1. Introduction
1.1. Transportation and storage
1.2. Preliminary steps
1.3. Initial setup
1.4. Connection warnings
1.5. Important safety instructions
1.6. Standards
2. Installation and operation
2.1. Unpacking and inspection
2.2. UPS–floor-anchoring
2.3. Wiring terminal view
2.4. Operation principle
2.5. Single UPS installation
2.6. UPS installation for parallel system
2.7. ForzaTracker monitoring software
3. Advanced operation
3.1. Initial setup
3.2. LED indicators and LCD panel
3.3. Main menu screen
3.4. Audible alarm
3.5. Single UPS operation
3.6. Parallel operation
3.7. Fault codes
3.8. Warning codes
4. Troubleshooting
5. Storage and maintenance
5.1. Storage
5.2. Maintenance
6. Technical specifications
1. Introduction
Thank you for purchasing the ZEUS three-phase online UPS system, FTP-230KSM/FTP-240KSM, from Forza. To enjoy
all the features and benefits of this unit, please read and follow all installation and operation instructions thoroughly
before unpacking, installing or operating this device. After you have read this manual, keep it in a safe place for future
reference.
1-1. Transportation
• Transport the UPS system only in the original package to protect it against shock and impact.
• The UPS must be stored in a dry, well-ventilated area.
• Ambient temperature should not exceed 40°C.
1-2. Preliminary steps
• Water condensation may occur if the UPS is unpacked in a very cold environment and then moved to a warmer
location.
• The UPS must be thoroughly dry before being installed. Failure to do so may increase the risk of electric shock.
• Do not install the UPS system near water or in moist environments.
• To reduce the risk of overheating, do not cover the cooling vents in the UPS housing.
• Avoid exposing the UPS to direct sunlight or installing the unit near heat-emitting appliances, such as electric heaters
or furnaces.
1-3. Initial setup
• Do not connect appliances or equipment that may overload the UPS system (such as big motor-type equipment) to
the UPS output sockets or terminal.
• Place cables in such a way that no one can step on or trip over them.
• Do not block air vents in the housing of UPS. The UPS must be installed in a location with good ventilation. Ensure
enough space on each side for ventilation.
• The UPS is provided with an earthed terminal. Equipotential earth bonding to the external UPS battery cabinets must
be provided if such configuration is used.
• The UPS can be installed only by qualified maintenance personnel.
• These UPS units are extremely heavy. Caution should be taken in moving and positioning equipment.
• An appropriate disconnect device as short-circuit backup protection should be provided in the building wiring
installation.
• An integral emergency switching device which prevents further supply to the load by the UPS in any mode of operation
should be provided in the building wiring installation.
• Connect the earth before connecting the unit to the building wiring terminal.
• Installation and wiring must be performed in accordance with local electrical regulations and laws.

2 3
1-4. Connection warnings
• In accordance with the safety standard, installation has to be provided with a «Backfeed Protection» system, as for
example a contactor, which will prevent the appearance of voltage or dangerous energy in the input during a mains
fault. There is no standard backfeed protection inside of the UPS. However, there are relays on the Input to cut offline
voltage while the neutral remains connected to UPS.
• Warning labels should be placed on all primary power switches installed in places away from the unit to alert the
electrical maintenance personnel of the presence of a UPS in the circuit. The label will bear the following or an
equivalent text:
• The power input for this unit must be three-phase rated in accordance with the equipment nameplate. It also must be
suitably grounded.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
2. Installation and operation
The Forza Zeus three-phase UPS system is available in the version and capacity as shown below:
2.1. Unpacking and inspection
Remove the UPS from its package and make sure that all the following items are included:
• One UPS
• One user manual
• One monitoring software CD
• One USB cable
• One parallel cable
• One current sharing cable
• Jumper wires (used for single utility power system)
• Warranty certificate
Carefully inspect the UPS to check for any damages that may have occurred during shipping. Should any evidence of
damage be found or if some parts are missing, do not turn the UPS on; you must immediately notify the carrier or dealer
where you purchased the unit.
• This UPS should be connected with TN grounding/earthing system.
• The use of this unit with life-support equipment where power supply loss can reasonably be expected to cause the
failure of the medical equipment or to significantly affect its safety or effectiveness is not recommended. Do not use
this unit in the presence of a flammable mixture with air, oxygen or nitrous oxide.
• Connect grounding terminal of the UPS to a grounding electrode conductor.
1-5. Important safety instructions
• Do not disconnect the earth conductor cable on the UPS or the building wiring terminals under any circumstances.
• The UPS system features its own, internal current source (batteries). The UPS output sockets, or output terminals
block may be electrically live even if the UPS system is not connected to the building wiring outlet.
• In the event of an emergency, press the OFF button and disconnect the power cord from the AC mains to properly
disable the UPS.
• Do not allow any kind of liquid or foreign object to enter this UPS unit. Do not place beverages or any other containers
with liquid on or nearby the unit.
• The UPS can be operated by any individuals with no previous experience
1-6. Standards
UPS
L1
L2
L3
N
Main
Input
UPS
L1
L2
L3
N
Main
Input
L1
L2
L3
N
Bypass
Input
Input relay
Input Rly
Input relay diagram
Before working on this circuit
- Isolate the Uninterruptible Power Supply (UPS)
- Then check for Hazardous Voltage between all terminals including the
protected earth.
Risk of Voltage Backfeed
WARNING
HIGH LEAKAGE CURRENT EARTH
CONNECTION IS ESSENTIAL BEFORE
CONNECTING THE POWER SUPPLY
Input relay diagram for dual-input model
There can be no derivation in the line that goes from the «Backfeed Protection» to the UPS,
as the standard safety would be infringed
* Safety
UL 1778, CSA C22.2 No.107.3-14
* EMI
Conducted emission. FCC Part 15, Subpart B Class A
Radiated emission. FCC Part 15, Subpart B Class A
Model Capacity
FTP-230KSM 30000VA/30000W
FTP-240KLM 40000VA/40000W

4 5
2-2. UPS–floor-anchoring
NOTICE: The L-shaped floor anchoring brackets that secured the enclosure to the pallet during shipment may be used
for a stand-alone UPS enclosure to enhance stability.
1. RS-232 communication port (only for firmware updates)
2. USB communication port
3. Emergency power off function connector (EPO connector)
Note: Keep the EPO connector closed for UPS normal operation. To activate
the EPO function, please remove the jumper
4. Current sharing port (for parallel connection)
5. Parallel port (for parallel connection)
6. Intelligent slot
7. External battery connector
8. Line input circuit breaker/switch
9. Maintenance bypass switch
10. Input/output terminals (refer to diagram for details)
11. Line input terminal
12. Output terminal
13. Input grounding terminal
14. Output grounding terminal
15. Bypass input circuit breaker/switch
16. Bypass input terminal
17. Output circuit-breaker
2-3. Wiring terminal view
Front view / Door removed Rear view
Wiring diagram – Detail
-Internal connections
2-4. Operation principle
The operating principle of the UPS is shown as below.
2-5. Single UPS installation
Installation and wiring must be performed by qualified personnel, and in accordance with the local electrical regulations
and codes. Also, you must observe the following instructions:
1) Make sure the mains wire and breakers in the building are enough for the rated capacity of the UPS to avoid the
hazards of electric shock or fire.
Note: Do not use a wall receptacle as the input power source for the UPS, as its rated current is less than the UPS
maximum input current. Failure to do so may result in a broken or burned-out receptacle.

6 7
2) For safety considerations, turn off the mains switch in the building before installation.
3) Turn off all the devices before connecting them to the UPS.
4) Wiring sizes should be installed in accordance with the following table:
CAUTION - To reduce the risk of fire, AC input terminals of each UPS should be connected to a branch circuit
breaker with maximum overcurrent protection in accordance with the National Electric Code, ANSI/NFPA 70 as listed
in the table below.
Note: The color selection of wires should be made according to the local electrical codes and regulations.
Note: Use 90ºC copper wire.
5) Remove the terminal block cover on the rear panel of UPS. Proceed to connect the wires according to the following
terminal block diagrams: (Make sure to attach the earth wire first when connecting the wires. When removing the
wiring, make sure to remove the earth wire last).
Note: For single utility power system, connect Input to the AC power source and use jumper wires to connect Input
and Bypass Input (the dashed line of terminal block wiring diagram).
NOTE 1: Make sure that the wires are connected tightly to the terminals.
NOTE 2: If necessary, you may add an output breaker with leakage current protection between the output terminal
and the load.
6) Put the terminal block cover back at the rear panel of the UPS.
Warning
• Make sure the UPS is off before the installation. The UPS should not be turned on during wiring connection.
• Do not try to connect the internal batteries of the UPS to an external battery bank without confirming the correct
voltages first.
Warning: (only for external battery banks)
• Make sure a DC breaker or other protective device between UPS and the external battery pack is installed for added
safety. If not, please install it carefully. Switch off the battery breaker before installation.
NOTE: The battery pack breaker must also be set to OFF before installing the battery pack.
• Pay special attention to the rated battery voltage marked on the rear panel. If you want to change the numbers of the
battery in a chain, make sure you modify the UPS setting accordingly. Connection with the wrong battery voltage may
cause irreversible damage of the UPS.
• Pay special attention to the polarity marking on external battery terminal block. Connection with the wrong battery
voltage may cause irreversible damage of the UPS.
• Make sure the protective grounding/earthing wiring is adequate. The current specification, color, position, connection
and conductance reliability of the wire should be verified.
• Make sure the utility input and output wiring are rated correctly. The current spec, color, position, connection and
conductance reliability of the wire should be verified. Make sure the L/N side is correct, not reverse or short-circuited.
• The overcurrent protection for the external battery circuit is to be provided by others.
• The overcurrent protection for the external battery circuit shall be suitable for branch circuit and the current ratings
shall not exceed 180 A for 40K and 160 A for 30K.
2-6. UPS Installation for Parallel System
If the UPS is only available for single operation, you may skip this section to the next.
1) Install and wired the UPS according to the section 2-5.
2) Connect the output wires of each UPS to an output breaker.
3) Connect all output breakers to a main breaker. The latter is the one that will be connected directly to the loads.
4) Either common battery packs or independent battery packs for each UPS are allowed.
5) Refer to the following wiring diagram for input, output and bypass input:
Model 30K(L) 40K(L)
Wiring 2/0 AWG 3/0 AWG
Torque force AC: 60.0 lb-in
DC: 132.8 lb-in
AC input protection device 150A 200A
Terminal block wiring diagram for the 30K/40K
Battery connection wiring

8 9
6) Refer to the following communication wiring diagrams for current sharing cable and parallel cable connections
Diagram 1: Two UPS units in parallel
Diagram 2: Three UPS units in parallel
2-7. ForzaTracker monitoring software
ForzaTracker is a new generation of UPS monitoring software, which provides user-friendly interface to monitor and
control your Uninterruptible Power System. This unique software provides safe auto-shutdown for multi-computer
systems during power failures. With this software, users can monitor and control any UPS on the same LAN no matter
how far the unit is located.
Installation procedure:
1. Go to the website: https://www.forzaups.com/downloads/
2. Choose the type of operation system and follow the instructions on the website to download the software.
3. When downloading all required files from the internet, enter the serial No: 5242-87f6-64re-di8d-986u to install the
software (include the hyphens).
4. When your computer restarts, the management software will appear as a green plug icon located in the system tray,
near the clock.
5. To access the Forza Tracker management software as an administrator, you must enter the password: 111296.

10 11
3. Advanced operation
3-1. Initial setup
1) Before operating the unit, make sure that the two strings of batteries are properly wired with the positive, GND, and
negative terminals connected in this order, and that the breaker of the battery pack is in its “ON” position when using
an external battery bank.
2) Press the POWER button to set up the power supply for the UPS. The UPS will enter into the power on mode.
After the initialization is complete, the UPS will enter into the “No output mode”.
3-2. LED Indicators and LCD panel
LED indicators:
There are 4 LEDs on front panel that indicate the operating status of the UPS:
Note: means the LED is illuminated and means the LED is off.
3-3. Main menu screen
After initialization, the LCD will display the main screen. There are five sub-menus: Control, value, setting, information
and data log. Touch any sub-menu icon to enter into the sub-screen.
3-3-1. Main screen
• Upon powering on, the LCD will start initialization approximately few seconds as shown below.
Menu tree
LED indicators
LCD panel
LED
MODE Bypass Line Battery Fault
UPS on
Standby mode
Bypass mode
Line mode
Battery mode
CVCF mode
Battery test
ECO mode
Fault

12 13
Touch the icon to return to the main interface regardless of whether any of the submenu screens are active.
After initialization, the main screen will be displayed as shown below. On the bottom, there are five icons representing
five sub-menus: CONTROL, VALUE, SETTING, INFO, DATALOG.
Note:
Other countries equivalency:
L1 > R > A input X1 > R > A output
L2 > S > B input X2 > S > B output
L3 > T > C input X3 > T > C output
Gstands for Ground or Earth
Nstands for Neutral
UPS On/Off
It will display Turn on UPS? when the unit is off. It will display Turn off UPS? when the unit is on. Touch YES to turn
the UPS on or off. Then, the screen will return to the main interface.
Touch Back to return to the main screen immediately or No to cancel this operation and restore the main menu interface.
Battery test
When the UPS is not on test mode, Battery Test will appear on the screen. Touch Yes to start battery test. Then
Battery testing..… will come up during the process. After a few seconds, the battery test result will be shown on the
screen. Touch Back to return to the main screen immediately or No to cancel this operation and restore the main menu
interface.
Cancel battery test will be displayed when the UPS is in test mode.
Screen 1.0 «Control» interface and sub-menus
TURN ON UPS
Battery Test
TURN OFF UPS
Cancel Battery Test
3-3-2. Control screen
Touch the icon to enter the control sub-menu.

14 15
3-3-3. Value screen
Touch the icon to enter the Value page. Touch the icon or to browse through the information.
Touch the icon to return to main screen. Touch the icon to go back to the previous menu.
Audio mute
When audio is enabled, Mute all appears on the screen. Select Yes to mute the unit. If Mute all is active, the icon
will appear on the top left corner of the main screen. Touch Back to return to the CONTROL screen immediately or No
to cancel this operation and restore the control interface.
Cancel mute appears on the screen when the UPS is muted. Select Yes to enable audio or No to keep the unit
silenced. Select Back if you want to return to the CONTROL screen.
Charger On/Off
Turn on Charger? will be displayed when the charger is off.
Turn off Charger? will be displayed when the charger is on.
Touch YES to turn the charger on or off. The screen will return to the main interface in this case.
Select Back to return to the CONTROL screen immediately or No to cancel this operation and restore the control
interface.
• LINE VOL: The real-time value of L1, L2 and L3 phase voltage, L1-L2, L2-L3 voltage and input frequency.
• INVERTER VOL: The real-time value of L1, L2 and L3 inverter voltage, L1-L2, L2-L3 voltage and frequency.
• BYPASS VOL: The real-time value of L1, L2 and L3 bypass voltage, L1-L2, L2-L3 and L3-L1 voltage and frequency.
• OUTPUT VOL: The real-time value of L1, L2 and L3 output voltage, L1-L2, L2-L3 voltage and frequency.
• OUTPUT W: X1, X2 and X3 output power in watts.
• OUTPUT VA X1, X2 and X3 output power in VA.
• OUTPUT W (%): X1, X2 and X3 output power percentage in watts.
• OUTPUT VA (%): X1, X2 and X3 output power percentage in VA.
• Total watt and VA: Total output load in watts and VA.
• BATT Voltage/Bus Voltage/Charging Current/Discharging Current: The real-time value of DC related information.
• Input temperature: Temperature of the L1, L2 and L3 phases.
• Output temperature: Temperature of the X1, X2 and X3 phases.
Mute all
TURN ON CHARGER
Cancel mute all
TURN OFF CHARGER
Value screen - Page 1
Value screen - Page 2

16 17
Value screen - Page 3
• INPUT W: L1, L2 and L3 input power in watts.
• INPUT VA: L1, L2 and L3 input power in VA.
• INPUT W (%): L1, L2 and L3 input power percentage in watts.
• INPUT VA (%): L1, L2 and L3 input power percentage in VA.
• Input current: The real-time value of input current in L1, L2 and L3 phases.
• Output current: The real-time value of output current in X1, X2 and X3 phases.
3-3-4. Setting screen
This sub-menu is used to set the parameters of the UPS. Touch the icon to enter the Setting menu page. There
are 2 options:
Basic and Advanced. Touch the icon to return to the main screen. Touch the icon to go back to the previous menu.
NOTE: Not all settings are available in every operation mode. If the setting is not available in the current mode, the LCD
will keep its original value displayed instead of changing that parameter.
• GENERAL: It is used to set up basic information of the UPS. It’s not related to any function parameter.
• ADVANCE: A password is required to access the ADVANCE settings. Two types of credentials are granted: User and
Technician.
• SAVE SETTING: Select save the setting(s) when done. Click this tab to save your configuration, regardless of whether
the UPS is connected to battery power or not. However, the UPS must be shut down in order for the changers to take
effect.
UPS operation mode
Setting item
Standby
mode
Bypass
mode Line mode Battery mode
Battery test
mode Fault mode Converter mode
ECO
mode
Authorization
No
password User Technician
GENERAL
Date/Time YYYYYYYYY
Language YYYYYYYYY
Input source Y Y Y
Contact YYYYYYYYY
Phone YYYYYYYYY
Mail YYYYYYYYY
Audio alarm YYYYYYYYY
ADVANCE
Output voltage Y Y Y Y
Output frequency Y Y Y Y
CVCF mode Y Y Y Y
Bypass forbid YYYYY YY Y Y
Bypass mode YYYYY YY Y Y
Bypass voltage
Range Y Y Y Y
Bypass frequency
Range Y Y Y Y
ECO mode Y Y Y Y
ECO voltage
range Y Y Y Y
ECO frequency range Y Y Y Y
Battery
Warning voltage YYYYY YY Y Y
Shutdown voltage YYYYY YY Y Y
Age alert YYYYY YY Y Y
Capacity in Ah YYYYY YY Y Y
Auto-restart YYYYY YY Y Y
System shutdown time YYYYYYYY Y Y
System restore time YYYYYYYY Y Y
Password setting YYYYYYYY Y Y
Default user password YYYYYYYY Y
Model name YYYYYYYY Y
Serial number YYYYYYYY Y
Manufacturer YYYYYYYY Y
Max charging current YYYYY YY Y
Battery number YYYYY YY Y
Charge voltage YYYYY YY Y
Charger number YYYYY YY Y
Float voltage YYYYY YY Y
UPS type Y Y
System install date YYYYYYYY Y
Battery install date YYYYYYYY Y
Voltage calibration Y Y Y
Current calibration Y Y Y Y
Clean data log YYYYYYYY Y
Reset parameters Y Y Y
Reset calibration Y Y Y
Reset EEPROM Y Y Y
Touch calibration YYYYYYYY Y
UPS selftest Y Y
Save setting Y Y Y Y Y
Y” means that this setting item can be set in this operation mode.
Permission list:

18 19
• Date/Time: Sets the date and time. The format is YYYY-MM-DD HH:MM:SS. The calendar day will be automatically
changed when the year, month and date are set.
• Language: Sets the LCD language. English and Spanish are available.
• Input Source: Select the input source. There are two options: Line (utility) and generator. Line is the default setting.
This setting value will appear on the main page. When Generator is selected, the acceptable input frequency will be
fixed at the 40~75Hz range. This setting value will appear on the status bar.
• Service Contact: The name of contact person is entered in this field. The maximum length is 18 characters.
• Service Phone: Sets the service phone number. Only 0~9, + and – are accepted. The maximum length is 14 characters.
• Service Mail: The service email accounts are entered here. Up to two accounts are allowed, with a maximum length
is 36 characters.
A password (4 digits) is required to access the ADVANCE page.
ADVANCE →User
Enter the default password 0000 to access the Advance User →setting menu page.
If the password is correct, the setting screen will be opened. But if the password is wrong, then the system will ask you
to enter the passkey again.
There are three sub-menus under Advance →User setting: ELECTRICAL, BATTERY and MISCELLANEOUS.
• Audio Alarm: There are two events available to mute. You may choose Enable or Disable the alarm when a related
event occurs.
Enable: If selected, the alarm will be muted when a related event occurs.
Disable: If selected, the alarm of the UPS will go off when a related event occurs.
- All mute: When enable is selected, all the faults and warnings will be muted. The icon will be displayed on the
top right corner of the main screen.
- Mute mode: UPS status alarm enable/disable mode. If Mute mode is selected, then the icon will be displayed
on the top right corner of the main screen.
GENERAL ADVANCE
General screen - Page 1 Advanced- Password page
Password error page Advance Setting Menu Page
General screen - Page 2

20 21
• Output voltage: Select the output rated voltage.
- There are two options, 120V and 127V. 120VAC is the default setting.
• Output frequency: Select the output rated frequency.
- 50Hz: The output frequency is set at 50Hz.
- 60Hz: The output frequency is set at 60Hz.
• CVCF Mode (constant voltage and constant frequency function)
- Enable: CVCF function is enabled. The output frequency will be fixed at 50Hz or 60Hz according to the setting of
the OP Freq. The input frequency could range from 40Hz to 70Hz.
- Disable: CVCF function is disabled. The output frequency will synchronize with the bypass frequency within 45~55Hz
for a 50Hz system or within 55~65Hz for a 60Hz system. Disable is the default setting.
• Bypass Forbid:
- Enable: Bypass forbid is enabled. When selected, operation in Bypass mode is not allowed under any circumstances.
- Disable: Bypass forbid is disabled. When selected, the UPS will run in Bypass mode depending on the Bypass at
UPS off setting. This is the default setting.
• Bypass at UPS off: Select the bypass status when manually turning off the UPS. This setting is only available when
Bypass forbid is set to Disable.
- Enable: Bypass enabled. When selected, the bypass mode is active.
- Disable: Bypass disabled. When selected, there will be no output through bypass when manually turning off the
UPS.
• Bypass Voltage Range: Sets the bypass voltage range.
- L: Low voltage point for bypass. The setting range is 96V ~ 110V. 96V is the default setting.
- H: High voltage point for bypass. The setting range is 130V ~ 146V. 146V is the default setting.
• Bypass FRE Range: Sets the bypass frequency range.
The acceptable bypass frequency ranges from 46Hz to 54Hz when the UPS is a 50Hz system, and from 56Hz to 64Hz
when UPS is a 60Hz system.
• ECO mode: Enable/Disable the ECO mode. The default setting is Disable.
• ECO Voltage Range: Sets the ECO voltage range.
- L: Low voltage point for ECO mode. This setting ranges from Rated output voltage – 5V to Rated output voltage -
11V.– 5V is the default setting.
- H: High voltage point for ECO mode. This setting ranges from Rated output voltage + 5V to Rated output voltage
+11. + 5V is the default setting.
• ECO FRE Range: Sets the ECO frequency range. The setting ranges from 46Hz to 54Hz when the UPS is a 50Hz
system, and from 56Hz to 64Hz when UPS is a 60Hz system.
• Battery Warning Voltage:
- HIGH: High battery warning voltage. The setting range is 14.0V ~ 15.0V. 14.4V is the default setting.
- LOW: Low battery warning voltage. The setting range is 10.1V ~ 14.0V. 11.4V is the default setting. This parameter
is related to the Shutdown Voltage setting. This setting should be higher than the Shutdown Voltage value.
• Shutdown Voltage: If the battery voltage goes below this point in battery mode, the UPS will automatically shut
down. The setting range is 10.0V ~ 12.0V. 10.7V is the default setting (when using external battery banks).
• Battery Parameter:
- Battery AH: It is the battery capacity value. 10Ah is the default setting.

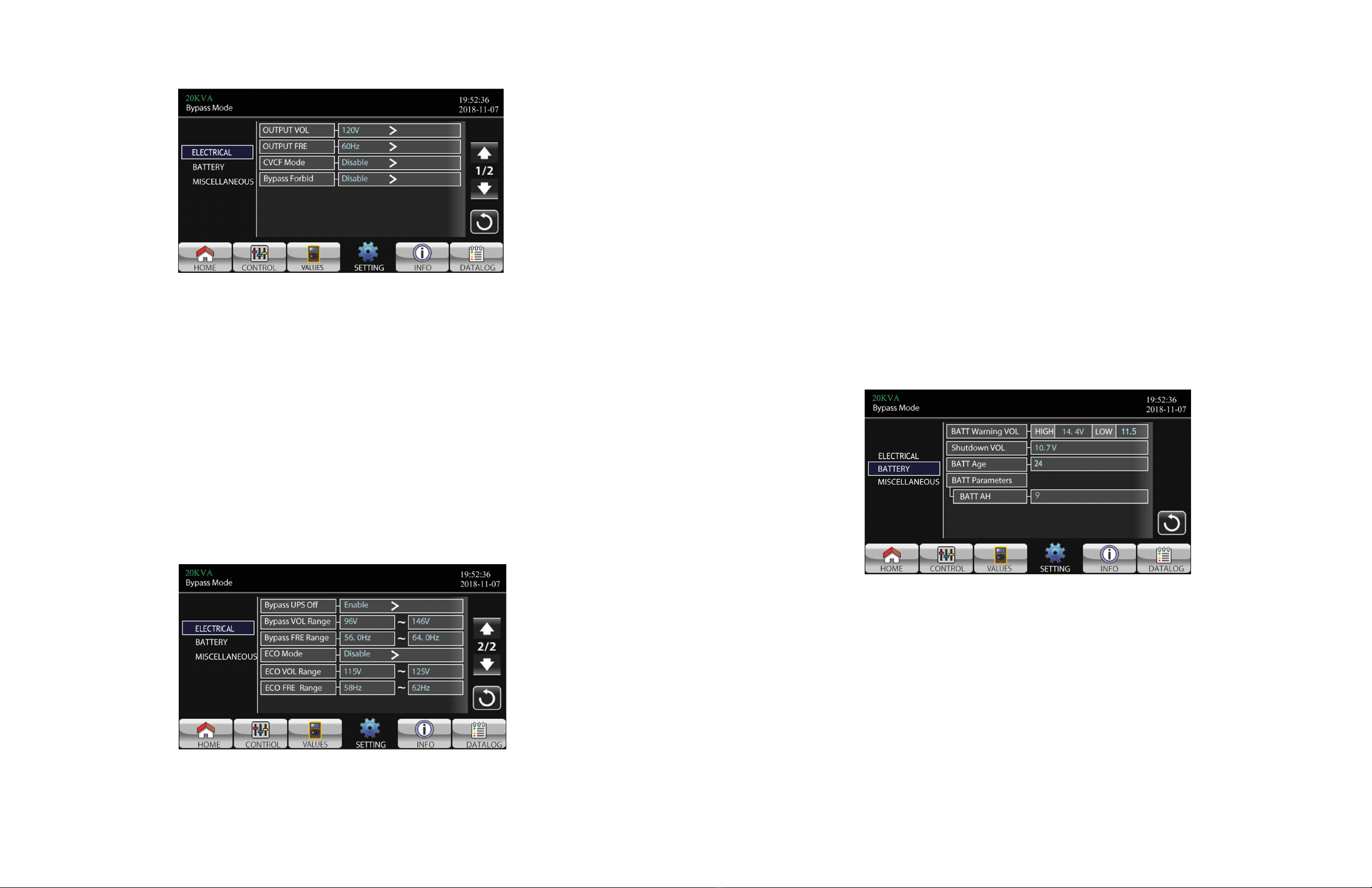

ELECTRICAL
BATTERY
Electrical Setting - Page 1
Battery setting page
Electrical setting-- Page 2

22 23
• Auto restart
- Enable: If this option is selected, when the UPS shuts down due to low battery, the UPS will return to line mode
once utility power is restored.
- Disable: If this option is selected, when the UPS shuts down, the UPS will not automatically turn on once utility
power is restored. It will turn on once the battery voltage returns to its adequate level.
• Shutdown Delay Min: The UPS will shut down after a programmed number of minutes. The countdown will start after
the dialogue box is confirmed.
• Restore Delay Min: The UPS will automatically restart after a programmed number of minutes if a shutdown occurs.
• New Password: Set up a new password to enter the ADVANCE →User menu.
A password is required to access the Advance > Technician > Setting menu page. Contact your local dealer to get
the technician password.
CAUTION: This setting menu is only intended for a qualified technician. Otherwise, misoperation will cause damage to
the UPS. There are nine sub-menus under the AdvanceTechnician setting: SYS PARAMETER, INSTALL INFO, VOL
CALI, CURR CALI, INITIAL, ELECTRICAL, BATT, MISCELLANEOUS and UPS SELFTEST.
MISCELLANEOUS
ADVANCED →Technician
Miscellaneous setting page
Advance: Technician Setting Menu - Page 1 Advance: Technician Setting Menu - Page 2
• Model Name: Identifies the UPS model.
• Serial Number: Displays the serial number.
• Manufacturer: Displays the UPS manufacturer.
• Charger Number: The number of charging boards installed in the UPS.
NOTE: The UPS must be restarted after you are done with the settings.
- Single-charger configuration: When selected, four options become available for “Max Charge CURR”.
- Two-charger configuration: When selected, two options become available for “Max Charge CURR”.
- Three-charger configuration: When selected, three options become available for “Max Charge CURR”.
• Max Charge CURR: The maximum of battery charging current. This parameter setting is related to the Charger
Number setting. If UPS is 30K or 40K, the selectable charge current is listed below.
- Single-charger configuration: The available options are 2A, 4A, 6A 8A. 8A is the default setting.
- Two charger configuration: The available options are 8A, 16A. 8A is the default setting.
- Three-charger configurations: The available options are 8A, 16A, 24A. 4A is the default setting.
• BATT Number: This is the total number of installed batteries. (The UPS should be restarted after being set.) The
setting range is 8 ~ 10. 10 is the default setting.
• Float VOL: The setting point of the battery float voltage. 13.6V is the default setting.
• UPS Type: There are two options, HV and LV. Only a qualified technician is allowed to make this change.
NOTE: It is required to restart the UPS after you are done with the settings.
SYS PARAMETER
SYS PARAMETER - Page 1
SYS PARAMETER - Page 2

24 25
• SYS Install Date: Sets the date of the UPS installation.
• BAT Install Date: Sets the date of the battery installation.
• Bus VOL: BUS voltage calibration. Increment of each click is 0.1%, with either the Up or Down key . Press the Up
key to increase 0.1% and press the Down key to decrease 0.1%. Press OK to confirm the changes.
• BATT VOL: Battery voltage calibration. Increment of each click is 0.1%, with either the Up or Down key . Press the
Up key to increase 0.1% and press the Down key to decrease 0.1%. Press OK to confirm the changes.
• Line VOL: Line voltage calibration. Increments per click is 0.1%, with either the Up or Down key . Press the Up key
to increase 0.1% and press the Down key to decrease 0.1%. Press OK to confirm the changes.
• Output VOL: Output voltage calibration. Increments per click is 0.1%, with either the Up or Down key . Press the
Up key to increase 0.1% and press the Down key to decrease 0.1%. Press OK to confirm the changes
• Inverter VOL: Inverter voltage calibration. Increments per click is 0.1%, with either the Up or Down key. Press the
Up key to increase 0.1% and press the Down key to decrease 0.1%. Press OK to confirm the changes.
• Bypass VOL: Bypass voltage calibration. Increments per click is 0.1%, with either the Up or Down key . Press the
Up key to increase 0.1% and press the Down key to decrease 0.1%. Press OK to confirm the changes.

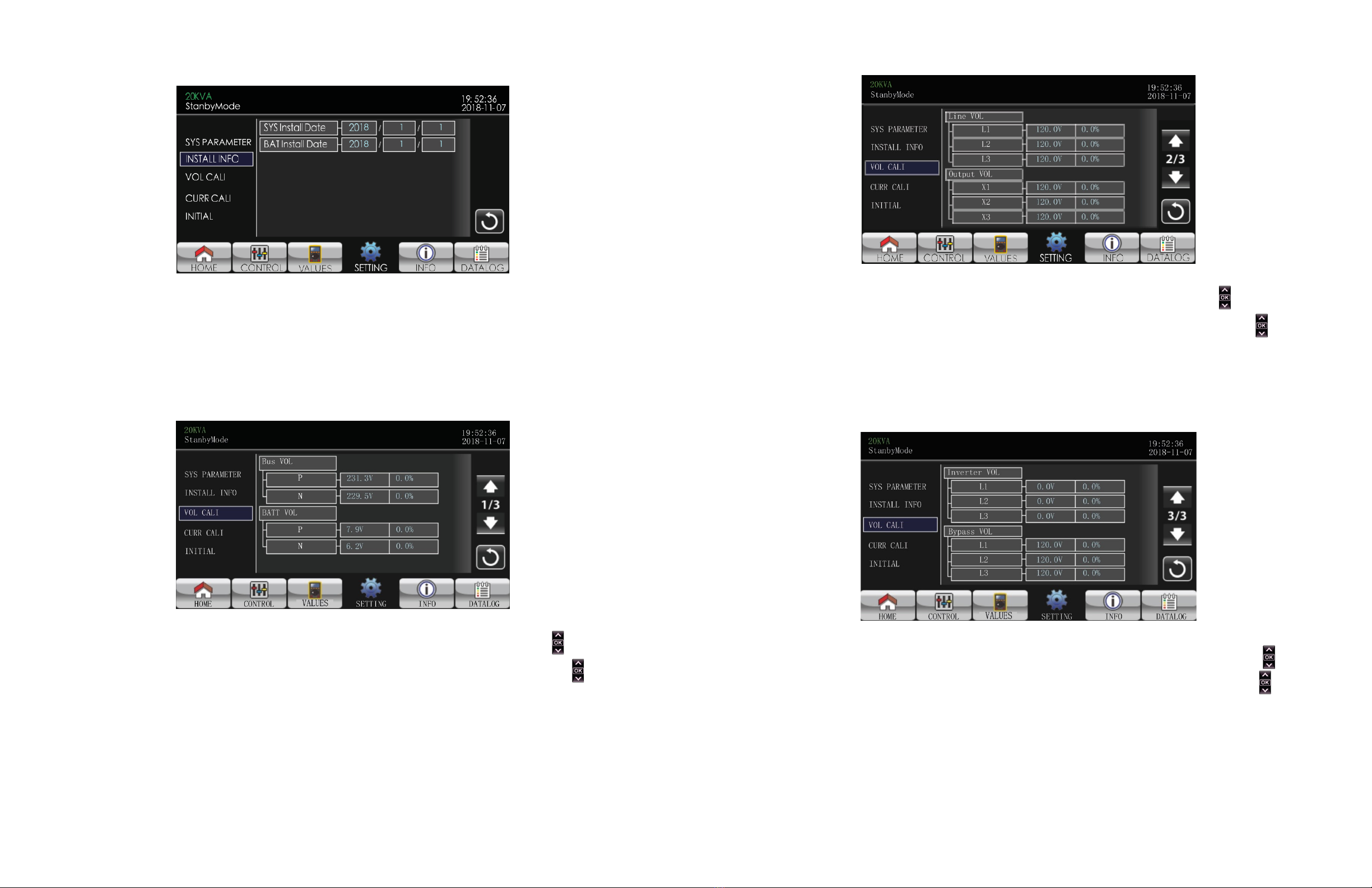

INSTALL INFO
VOL CALI
INSTALL INFO Page
VOL CALI - Page 1
VOL CALI - Page 2
VOL CALI - Page 3

26 27
• Output CURR: Output current calibration. Increments per click is 0.1%, with either the Up or Down key. Press the
Up key to increase 0.1% and press the Down key to decrease 0.1%. Press OK to confirm the changes.
• PARAMETERS: When you press this option, a confirmation window will be displayed as shown in the image above.
Touch YES to restore the default values. Touch Back or No to cancel this operation and return to the INITIAL menu
page.
• DATA LOG: When you press this option, a confirmation window will be displayed as shown in the image above. Touch
YES to clear the DATALOG page. Touch Back or No to cancel this operation and return to the INITIAL menu page.
• CALI: When you press this option, a confirmation window will be displayed as shown in the image above. Touch YES
to restore the default calibration value. Touch Back or No to cancel this operation and return to the INITIAL menu
page.
CURR CALI
INITIAL
CURR CALI Page INITIAL PARAMETERS Page
INITIAL menu page INITIAL CALI pageINITIAL DATALOG page

28 29
• EEPROM: When you press this option, a confirmation window will be displayed as shown in the image above. Touch
YES to clear all EEPROM values. Touch Back or No to cancel this operation and return to the INITIAL menu page.
• TOUCH CALI: When you press this option, a confirmation window will be displayed as shown in the image above.
Touch screen to recalibrate. Click on the +symbol with your mouse once the blue screen is displayed.
INITIAL EEPROM page
INITIAL TOUCH screen
• Output voltage: Select the output rated voltage.
- There are two options, 120V and 127V. 120VAC is the default setting.
• Output rated FRE: Select the output rated frequency.
- 50Hz: The output frequency is set at 50Hz.
- 60Hz: The output frequency is set at 60Hz.
• CVCF Mode (constant voltage and constant frequency function)
- Enable: CVCF function is enabled. The output frequency will be fixed at 50Hz or 60Hz according to the setting of
Output Freq. The input frequency could range from 40Hz to 70Hz.
- Disable: CVCF function is disabled. The output frequency will synchronize with the bypass frequency within 45~55
Hz for 50Hz system or within 55~65 Hz for 60Hz system. Disable is the default setting.
• Bypass Forbid:
- Enable: Bypass forbid is enabled. When selected, operation in Bypass mode is not allowed under any circumstances.
- Disable: Bypass forbid is disabled. The UPS will run in Bypass mode. This is the default setting.
ELECTRICAL
Electrical setting - Page 1
Electrical setting - Page 2

30 31
• Bypass at UPS off: Select the bypass status when manually turning off the UPS. This setting is only available when
Bypass forbid is set to Disable.
- Enable: Bypass enabled. When selected, the bypass mode is active.
- Disable: Bypass disabled. When selected, there will be no output through bypass when manually turning off the
UPS.
• Bypass Voltage Range: Sets the bypass voltage range.
- L: Low voltage point for bypass. The setting range is 96V ~ 110V. 96V is the default setting.
- H: High voltage point for bypass. The setting range is 130V ~ 146V. 146V is the default setting.
• Bypass FRE Range: Sets the bypass frequency range.
The acceptable bypass frequency ranges from 46Hz to 54Hz when the UPS is a 50Hz system, and from 56Hz to 64Hz
when UPS is a 60Hz system.
• ECO mode: Enable/Disable the ECO mode. The default setting is Disable.
• ECO Voltage Range: Sets the ECO voltage range.
- L: Low voltage point for ECO mode. This setting ranges from Rated output voltage – 5V to Rated output voltage -
11V. – 5V is the default setting.
- H: High voltage point for ECO mode. This setting ranges from Rated output voltage + 5V to Rated output voltage
+11. + 5V is the default setting.
• ECO FRE Range: Sets the ECO frequency range. The setting ranges from 48Hz to 52Hz when the UPS is a 50Hz
system, and from 58Hz to 62Hz when UPS is a 60Hz system.
• Battery Warning Voltage:
- HIGH: High battery warning voltage. The setting range is 14.0V ~ 15.0V. 14.4V is the default setting.
- LOW: Low battery warning voltage. The setting range is 10.1V ~ 14.0V. 11.4V is the default setting. This parameter
is related to the Shutdown Voltage setting. This setting value should be higher than the Shutdown Voltage setting.
• Shutdown Voltage: If the battery voltage is lower than this point in battery mode, the UPS will automatically shut
down. The setting range is 10.0V ~ 12.0V. 10.7V is the default value (only applies when using external battery banks).
• Battery Parameter:
- Battery AH: It´s the battery capacity setting.10Ah is the default value.
BATTERY
Battery setting page
• Auto restart
- Enable: If this option is selected, when the UPS shuts down due to low battery, the UPS will return to line mode once
utility power is restored.
- Disable: If this option is selected, when the UPS shuts down, the UPS will not automatically turn on once utility
power is restored. Instead, it will turn on once the battery voltage returns to its adequate level.
• Shutdown Delay Min: The UPS will shut down after a programmed number of minutes. The countdown will start once
the dialogue box is confirmed.
• Restore Delay Min: The UPS will automatically restart after a programmed number of minutes if a shutdown occurs.
• New Password: Set up a new password to enter the ADVANCE User menu.
• Default User Password:
- YES: If Yes is selected, the User password will be restored to its default value.
- NO: Select No to cancel this operation.
This function is effective only when the UPS type is set to HV All loads, and utility power must be disconnected before
executing this function.
After changing the UPS type to “HV”, restart the UPS. After the UPS is restarted, go to the Advance screen and enter
the Technician password. The UPS SELFTEST parameter will be displayed on the screen. All tested items will appear
as unknown. Simply click the UPS SELFTEST button. If the UPS is operating correctly, then Normal will be displayed
in all columns. Otherwise, Unknown will appear instead on the columns.
MISCELLANEOUS
UPS SELFTEST
Miscellaneous setting page

32 33
Basic information
• MCU Version: Shows the firmware version for the display panel.
• DSP Version: Shows de firmware version for the power module.
• Serial NO.: The serial number of the UPS.
• Manufacturer: The information about the manufacturer.
• Service Contact: The name of contact person is entered under Basic Setting.
• Service Phone: The contact numbers are listed under Basic Setting.
• Service Mail: The service email accounts are entered under Basic Setting.
• SYS Install Date: The date of the system installation.
• BAT Install Date: The date of the battery installation.
• PAR State: Parallel status information of the UPS.
• PAR ID: The UPS ID number in parallel state.
• Input Source: The information about the input source.
• All Mute: Enables/disables the mute all option in the UPS.
• Mute Mode: Enables/disables the alarm when a related event occurs.
Rated information
• Output Voltage: It shows the output rated voltage.
• Output FRE: It shows the output rated frequency.
• CVCF Mode: Enables/Disables the CVCF mode.
• Bypass Forbid: Enables/Disables the bypass function.
• Bypass UPS Off: Enables/Disables the auto bypass function when the UPS is off.
• Auto-restart: Enables/Disables the automatic start-up feature of the UPS
• ECO Mode: Enables/Disables the ECO function.
Parameter Information
• Line Voltage Range: The acceptable line input voltage range.
• Line FRE Range: The acceptable line input frequency range.
• Bypass Voltage Range: The acceptable input voltage range for bypass mode.
• Bypass FRE Range: The acceptable input frequency range for bypass mode.
• ECO Voltage Range: The acceptable input voltage range for ECO mode.
• ECO FRE Range: The acceptable input frequency range for ECO mode.
Touch the icon to open the information page. Touch the or icon to browse the information. Touch the icon
to return to main screen. Touch the icon to go back to the previous menu.
3-3-5. Information screen
Basic Information Page 1
Basic Information - Page 2
Rated information page
Parameter Information - Page 1

34 35
• BATT Mode Work Time: The maximum discharge time in battery mode.
• BATT Warning Voltage:
- HIGH: High battery warning voltage.
- LOW: Low battery warning voltage.
• Shutdown Voltage: If battery voltage goes below this point, the UPS will automatically shut down.
• Battery age: It shows the length of time the battery has been used.
• Battery AH: It shows the amount of current the battery can supply per hour.
• Battery Number: It shows the number of batteries being used.
• Charger Number: The charger configuration type.
• Max Charge CURR: The value of the maximum charging current.
• Float VOL: The value of the battery float voltage.
• UPS Type: The information about the designation of the system.
• Shutdown Delay: The UPS will shut down after a set number of minutes. The countdown will start once the dialogue
box is confirmed.
• Restore Delay: The UPS will automatically restart after a set number of minutes if a shutdown occurs.
Parameter Information - Page 2
Parameter Information -- Page 3
Touch the icon to open the data log page. Data log is used to record the warning and fault information of the UPS.
The record contains date and time, code, type, and description. Touch the or icon to move up or down the
page if there is more than one in the data log. Touch the icon to return to main screen. Press the icon to go back
to the main menu. Please refer to Sections 3-7 and 3-8 for warning and fault code list.
3-3-6. Data Log screen
3-4. Audible alarm
Data Log page
Description Buzzer status Muted
UPS status
Yes
Bypass mode Beeps once every 2 minutes
Battery mode Beeps once every 4 seconds
Fault mode Beeps continuously
Warning
Overload Beeps twice every second No
Others Beeps once every second
Fault
All Beeps continuously Yes

36 37
3-5. Single UPS operation
1. Turn on the UPS with utility power (in AC mode)
1) After making sure the power mains connection is done correctly, set the breaker of the battery pack to its ON
position. Then set the line input breaker to its ON position. At this point, the fan will start running while the UPS is
being initialized. In just a few seconds, the UPS will supply power to the loads via the Bypass mode.
NOTE: When UPS is in Bypass mode, the output voltage will be supplied directly from the mains after you switch
on the input breaker. In Bypass mode, the load is not protected by the UPS. To protect your valuable devices, you
should turn on the UPS. Refer to the next step.
2) Touch CONTROL and select the UPS on/off icon. When Turn on UPS? appears on the screen, select Yes. Refer to
the On/Off UPS screen.
3) After a few seconds, the UPS will enter into the AC mode. In case of abnormal utility power, the UPS will transfer to
battery operation to provide uninterrupted power to the outlets.
NOTE: In battery mode, the UPS will shut down automatically when the remaining charge is low. Once the utility
power is restored, the UPS will restart automatically in AC mode.
2. Turn on the UPS without utility power (in Battery mode)
1) Make sure that the two strings of batteries are properly wired with the positive, GND, and negative terminals connected
in this order, and that the breaker of the battery pack is inits ON position (applies when using external battery banks).
2) Press the POWER button to set up the power supply for the UPS. The unit will enter into the power on mode.
Once the initialization is complete, the UPS will enter into the “No Output mode”.
3) After a few seconds, the UPS will be turned on and begin operating in Battery mode.
3. Connect devices to the UPS
Once powered on, proceed to connect devices to the UPS.
1) Turn on the UPS first and then start switching “on” one load at a time, only after all of them have been plugged into
the unit. The total load level will be displayed on the LCD panel.
2) Should you need to connect inductive loads, such as a monitor or a laser printer to the UPS, the start-up power
should be used for calculating the capacity of the UPS, as energy consumption increases during initial power on. Any
load over 150% of its capacity will have a runtime less than 60ms.
3) If the UPS is overloaded, the buzzer will beep twice every second.
4) In the event of an overload, all unnecessary loads must be removed one by one, to lower the total loads connected
to the UPS to less than 80% of its nominal power capacity to prevent an overload condition.
5) If the overload time exceeds the time specified in AC mode, the UPS will automatically transfer to Bypass mode. After
the overload is removed, the UPS will return to AC mode. If the overload time exceeds the time specified in Battery
mode, the UPS will transfer to fault status. At this time, if bypass is enabled, the UPS will supply power to the loads
using the bypass mode. If the bypass function is disabled or the input power is not within the bypass acceptable
range, the output power will be immediately cut off.
4. Charge the batteries
1) Once the UPS is connected to utility power and turned on in AC mode, the unit will charge the batteries automatically,
except when running in Battery mode, while the battery self-test is in progress, during an overloaded or under high
voltage conditions.
2) It is recommended to charge the batteries at least 10 hours before use to ensure proper backup time.
5. Battery mode operation
1) When the UPS is in Battery mode, the buzzer will beep according to the battery capacity.
a. If the battery capacity is more than 25%, the buzzer will beep once every 4 seconds.
b. If the battery voltage drops to the alarm triggering level, the buzzer will beep once every second to indicate that it
has reached its lowest capacity, and that the UPS will soon shut down.
c. Prepare the shutdown procedure to preserve your data or devices. Otherwise, there is the risk of data loss or load
failure if battery runtime is exceeded.
2) In Battery mode, go to SETTING →Basic →Audio Mute to enable the Mute Mode and silence the buzzer.
3) The backup time varies depending upon environment conditions and load types. If using an external battery bank,
the backup time will depend on the capacity of the batteries.
4) When the backup time is set at 16.5 hours (LCD panel default value), the UPS will shut down automatically to
protectthe battery after the discharging period of 16.5 hours is completed. This battery discharge protection can be
enabled or disabled using the LCD panel control.
6.Test the batteries
1) To check the battery status when the UPS is running in AC mode/CVCF mode, press Control followed by Battery
test to initiate the self-diagnostic tool. Refer to Battery Test screen.
2) Battery self-test can also be programmed through the monitoring software.
7.Turn off the UPS with utility power supply in AC mode
1) To power off the UPS, touch CONTROL followed by the Turn off UPS icon. Refer to the UPS on/off screen.
NOTE 1: If the UPS has been set to enable the bypass output, it will bypass voltage from utility power to the output
terminal even though the UPS (inverter) has been turned off.
NOTE 2: After turning off the UPS, please beware that the UPS is operating in Bypass mode and there is a risk of
power loss for connected devices.
2) In Bypass mode, output voltage of the UPS is still present. In order to cut off the output, switch off the line input
breaker. A few seconds later, there will be no display shown on the LCD panel to indicate that the UPS has been shut
down completely.
8.Turn off the UPS without utility power supply in Battery mode
1) To power off the UPS, touch CONTROL followed by the Turn off UPS icon. Refer to the UPS on/off screen.
2) Then UPS will cut off power to output terminals.
9.Mute the buzzer
1) Touch SETTING and then select BASIC on the menu. There are two events available to mute. Refer to the SETTING
screen.
2) Some warning alarms cannot be muted unless the error that triggered them is fixed. Refer to section 3-4 for details.
10. Operation in warning status
1) When the Fault LED flashes and the buzzer beeps once every second, it means that the UPS is experiencing operation
issues. Fault codes are available in the DATA LOG menu. Refer to the Section 3-3-6 for details.
2) Some warning alarms cannot be muted unless the error that triggered them is fixed. Refer to section 3-4 for details.
