FOSSIBOT F2400 User manual
User Manual
Company official website: https://www.fossibot.com
PRECAUTIONS FOR USE
6.Please directly plug in the wall socket to charge the product, do not use exten-
sion cords or cable taps, otherwise there is a risk of damage to the extension
cords and cable taps or even a fire; If the extension socket is plugged in to
charge this product, please do not connect other electrical appliances to this
socket, otherwise the household energy meter may trip.
7.When the product is not in use or idle, please turn it off and unplug the power
cable. If it needs to be idle for a long time, please consume the product from a
fully charged state to an uncharged state, then recharge it to about 50% of the
battery level and store it. In order to prolong the life of the product, please take
three months as a cycle, operate and keep it in this way.
Thank you for purchasing Fossibot F2400 portable power station. Please
carefully read the user manual before operating the product.
This user manual is required for product warranty. Please keep this user
manual together with the purchase certificate such as the invoice.
Due to the transportation requirements of international customs for battery
products, F2400 is charged to about 30% before delivery. Please fully
charge the product after unpacking for use.
This product should be charged directly from the wall socket. Do not use
extension cords and cable taps.When using two or more sockets to charge,
do not use devices other than this product on the same socket.
8. lf the product reaches scrap conditions, please discard or recycle the product
in accordance with local laws.
5.Please use our original accessories, and Fossibot will not guarantee the
defective products caused by the use of non-original accessories.
4.Please store or use this product out of the reach of children, otherwise the
product may be dropped or collided and may cause bodily injury to children.
3.Be careful not to drop or drop the product from a high place, so as not to
damage the product.
2.This product must not be disassembled or modified. Improper operation may
cause product malfunction or even fire.
1.Please avoid long-term storage and use of this product in environments with
high temperature and humidity or direct sunlight to avoid shortened battery life
and other failures.The product should not be close to the fire source, otherwise
it may cause a major fire or accident.
Contents
Packing List 01
Product Introduction 01
Button Function Introduction 02
Introduction of Display Interface 05
Troubleshooting table 11
UPS Mode 06
Connection of Solar Panels 07
Car Charging 08
Use of the Fan Cover 09
Product Specifications 10
Battery Specifications 10
Warranty 12
1
OUTLET TYPE: AC OUTPUT
100V~120V
50/60Hz
220V~240V
50Hz
220V
50Hz
230V
50Hz
220V
60Hz
US/JP CN UK EU KR
1

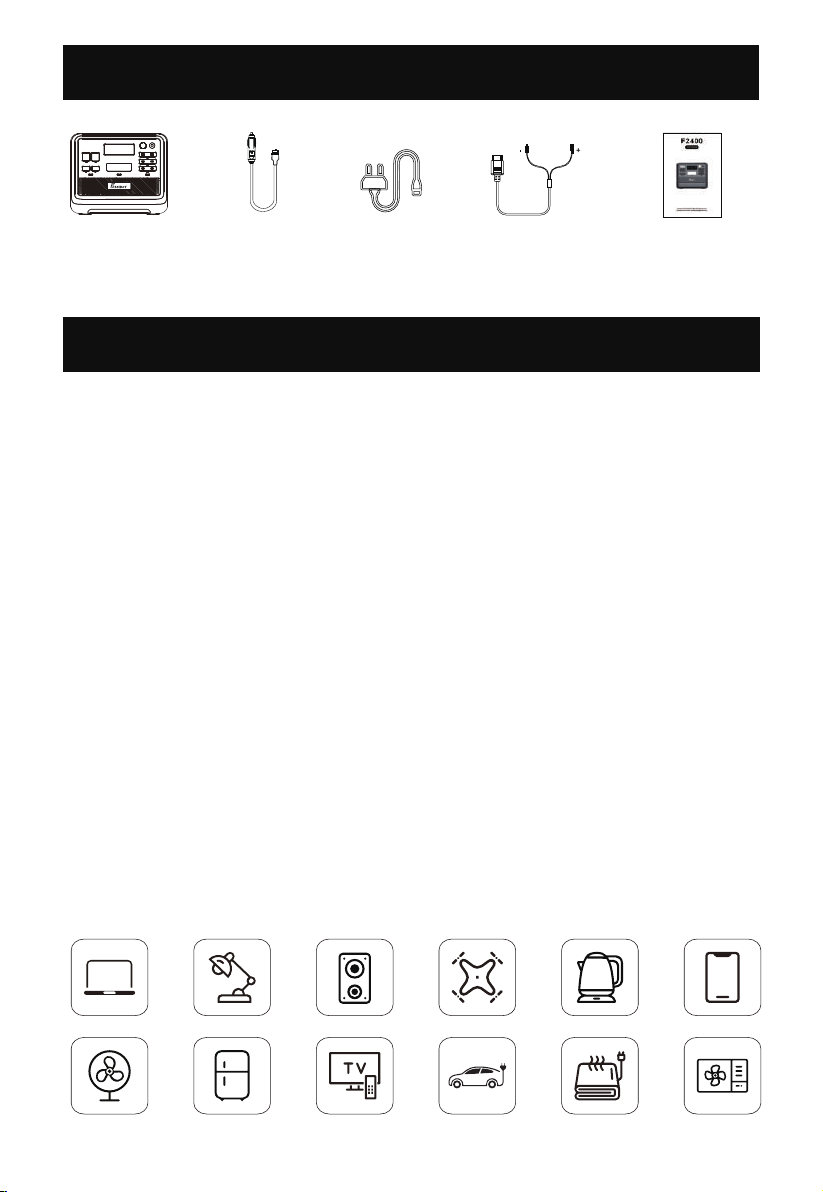

Packing list
Portable
Power Station
AC Cable User Manual
Product Introduction
Car Charging
Cable
Anderson to MC4
This product is a 2048Wh large-capacity 2400W high-power portable
power station supplied with 2-hour high-speed charging, using a lithium
iron phosphate battery with extremely high safety performance.
lt can be used as a backup power supply in the event of a sudden-
power failure or a disaster, or used for camping and living power in a
camper, and can also provide power for various power tools regardless
of the occasion.
2400W high power, sine wave AC output, can be used for high-pow-
er household appliances such as dryers, microwave ovens, refrigera-
tors, induction cookers and electric ovens; it can also be used for other
electronic devices such as personal computers.
0-100% charging can be completed within 2 hours through the
110 0W ultra-fast charging of the household power socket, and the input
voltage frequency can be auto switched to 50Hz/60Hz, or the input
voltage frequency can be manually switched to 50Hz/60Hz. In addition,
this product also supports solar panel charging, and the maximum
input power cannot exceed 500w, allowing you to charge outdoors or
at home when there is a power outage.
-
2
Power ON/OFF Button
1

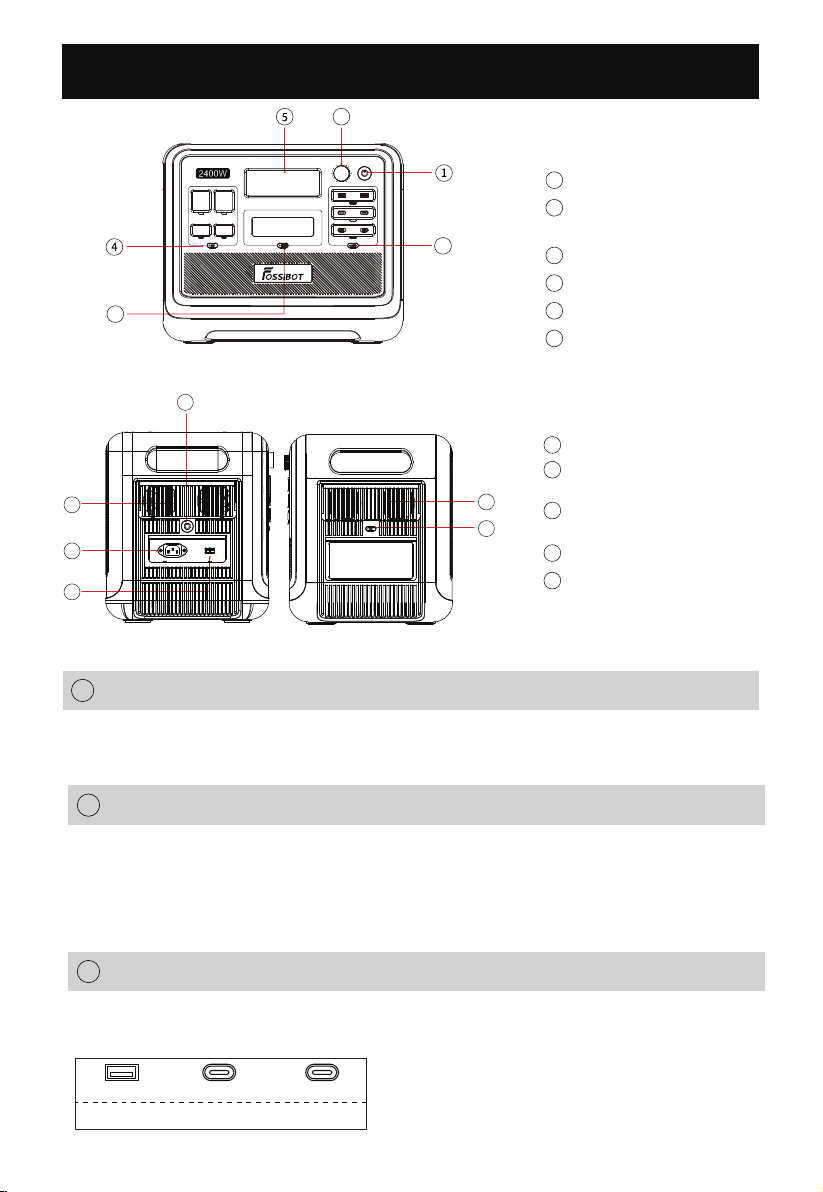

Button Function Introduction
6
Input
Regulator
3
0
0
W
5
0
0
W
9
0
0
W
1
1
0
0
W
POWER
12V/10A 12V/25A
12V/3A12V/3A
PD 20W
PD 20W
PD 20W
PD 100W
QC 3.0 QC 3.0
DC ON/OFF LIGHT ON/OFF USB ON/OFF
PORTABLEPOWER STATION
700W
8
7
11
7
9
10
Power ON/OFF Button
1
3
LED Light Button
(Switch to different mode)
USB ON/OFF Button
2
DC ON/OFF Button
4
LCD Screen
5
Input Power Knob
6
Anderson Input Port
( For Solar Panel)
9
AC input
10
Overload Protection Button
11
Cooling Air Duct
7
AC Switch
(Manually Switch to 50/60Hz)
8
Light Button
2
Instructions: Press and hold the power button for 3s to wake up the system,
turn on the LCD display, and press and hold again for 3s to turn off.
USB ON/OFF Button
3
QC 3.0 PD-20W PD-100W
TYPE-C X 1USB-A X 2 TYPE-C X 3
Instructions: Short press the USB button to turn on the USB output port, and
short press it again to turn it off.
Instructions: Short press the Light button, the LED light is on;short press
again, the LED light enters the SOS mode, short press in turn, enter the
strobe mode, and finally the LED light turns off (LED in any mode, long press
the LIGHT button for ≥ 1 second , directly turn off the LED light).
2
3
3
Input Power Knob
6
Cooling Suction/Exhaust Port
7
Display the product's battery level and usage status tips.
LCD Screen
5
DC ON/OFF Button
4
DC output Cigarette port
AC Switch (AC output port, the sum of electrical load power should be <2400W)
8
12V/10A 12V/25A
When the product is connected to the AC mains for charging, the power can
be adjusted according to the actual input voltage.The clockwise rotation
increases the input power, and the counter clockwise rotation decreases the
input power. It is worth noting that charging this product at low power is
beneficial for extending battery life.
When the product reaches the temperature threshold set by the system, the
cooling fan will automatically run, accompanied by a certain fan noise (fan
noise below 60dB is normal). Do not block the cooling suction/exhaust port
during use of this product, and do not place any object within the range of
30CM.
Tap the AC button to enable the AC output function.
Notices:
1. Since there may be differences in the AC output frequency in different regions,
please check the AC voltage and frequency of the device before use.
2. Press and hold the AC button for 2 seconds to enter the frequency switching mode,
the 50Hz or 60Hz icon will flash on the display. Short press the AC button again to
select 50Hz or 60Hz; when the icon stops flashing and displays 50Hz or 60Hz, it
indicates the switch is successful.
3. Short press the AC button 10 times in quick succession in China, United Kingdom,
Europe and Korea regulations to switch the AC output voltage to 220V or 230V.
Instructions: Short press the DC button to turn on the DC output port, and short
press it again to turn it off.
4
Anderson Port
9
Connect the solar panel using the Anderson to MC4 cable.
1.The input of the solar panel can be up to 500W and the maximum voltage
is 50V.
AC Input
10
Please follow the sequence below to restore the AC input function:
1) Turn off the power button and unplug all ports.
2) After confirming that there is no abnormality in each part, turn on the power button.
3) Press the overload protection button, connect the AC Cable to restore the AC input.
When the power supply current is unstable due to lightning or other reasons,
and there is a large current input at the AC Input, in order to protect the
product, the overload protection function (safety circuit breaker) will activate
and cut off the AC input port.
2. lf the equipment is damaged by exceeding the maximum voltage, it is
outside the scope of warranty.
1100W fast charging with a household socket can perform a 100% charge
within 2 hours.
※The charging of this product can directly use the socket on the wall, etc. Please do
not use extension cords and cable taps to connect several devices at the same time.
※Using a cable tap to charge several devices at the same time will cause a large
current to flow, causing cable breakage and fire risk.
※Do not use the same socket to connect other devices while charging this product.
In general, when the same wiring in the family exceeds 1500W, the safety circuit
breaker will start.
Overload Protection Button
11
5

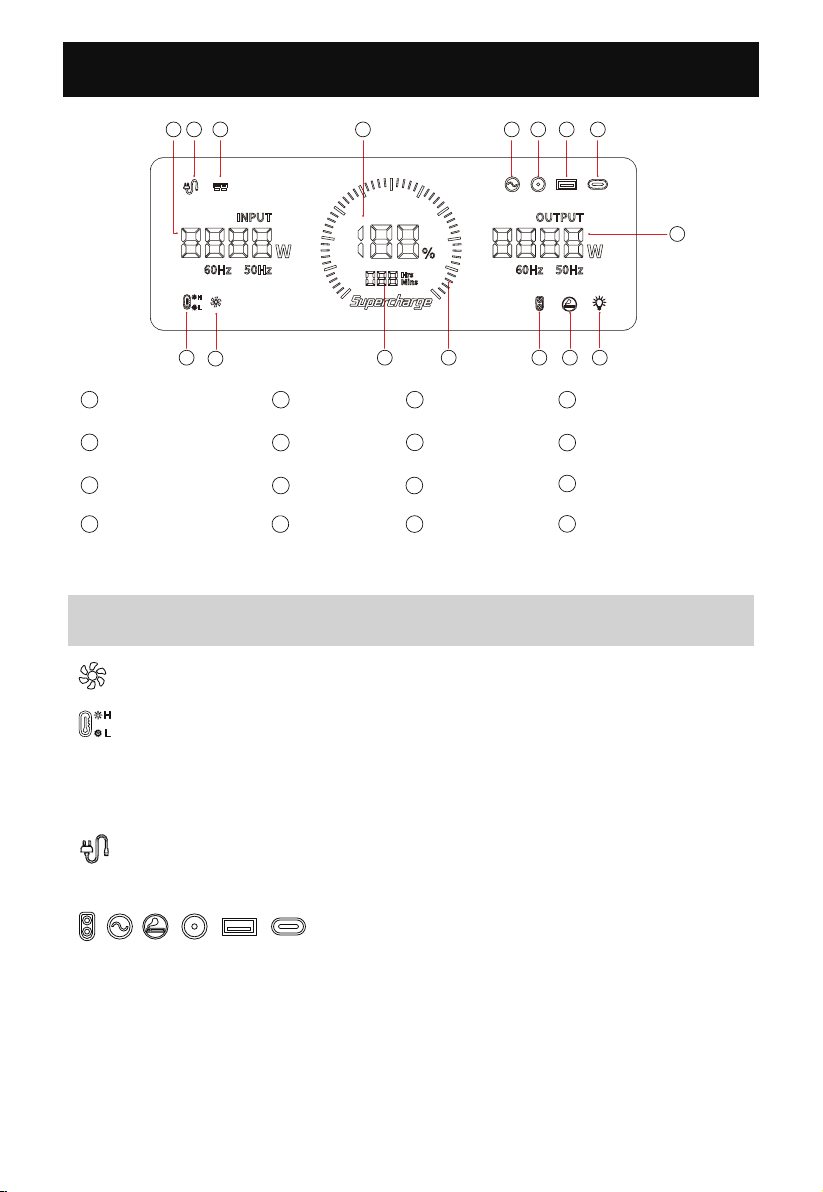

Screen Display Description
6
5 8 9101311 12 4
7141 1516
2
3
Introduction of Display Interface
3 High/Low
Temperature Protection
11 Connected to the
AC Mains
15 XT60 (12V) Output
16 Battery Progress Bar
2Fan Status 10 USB Output 14 Cigar Lighter (12V) Output
6Output Power
in Total
7LED Light
4Battery Level
Percentage
12 Anderson Port
8AC Output
1Remain Using/
Recharging Time
9PD Output 13 DC (12V) Output
5Input Power
in Total
When this icon lights up, please ensure that the vent is not blocked.
When this icon flashes, it means that the temperature is too high or too
low, and the product may turn on the smart protection program and stop
working. (Need to wait for the product to return to the normal tempera-
ture range to continue working)
lf the icon blinks, it indicates that the AC mains connection is abnormal.
Check the charging port.
When this icon flashes, it means abnormal, please check the load.
The Screen Displays Precautions
6
As shown in the figure below, connect the product between the socket and
the electrical appliance, and the power of the product is in the ON state.
When you turn on a powered device, the powered device uses the main AC
power directly.
ln this state, when the main power supply is cut off, it will automatically switch
to the product's internal battery power supply.
UPS Connection Diagram
This product has a bypass mode, which can output directly from AC mains
without going through the battery.
In the UPS state, when the AC input power of the commercial power is cut off
due to a power failure, it can automatically switch to the product battery power
supply within about 8 milliseconds to ensure the AC output.
UPS Feature
※In the UPS mode of U. S. and JPN standard, the maximum power of AC output is
below 1100W, and the AC output exceeds 1100W, and the " " AC output icon
flashes to indicate overload.
※In the UPS mode of CN, UK, EU and KR standard, the maximum power of AC
output is below 2400W, and the AC output exceeds 2400W, and the " " AC output
icon flashes to indicate overload.
UPS Mode
7
Connection of Solar Panels
The company's products can be connected to solar panels and can be
charged through the solar panels.
The power of the solar panel is 500W, and can fully charge the product within
4 hours. (The input of the solar panel can be maximum 500W, maximum
voltage 50V)
※The charging power of the solar panel is determined according to the
weather and other conditions.
※The solar panel voltage exceeding 50V will damage the equipment and
may be out of warranty.
By solar panels
Portable Power Station Charging Area
Option one:
By solar panels
Portable Power Station Charging Area
Option two:
8

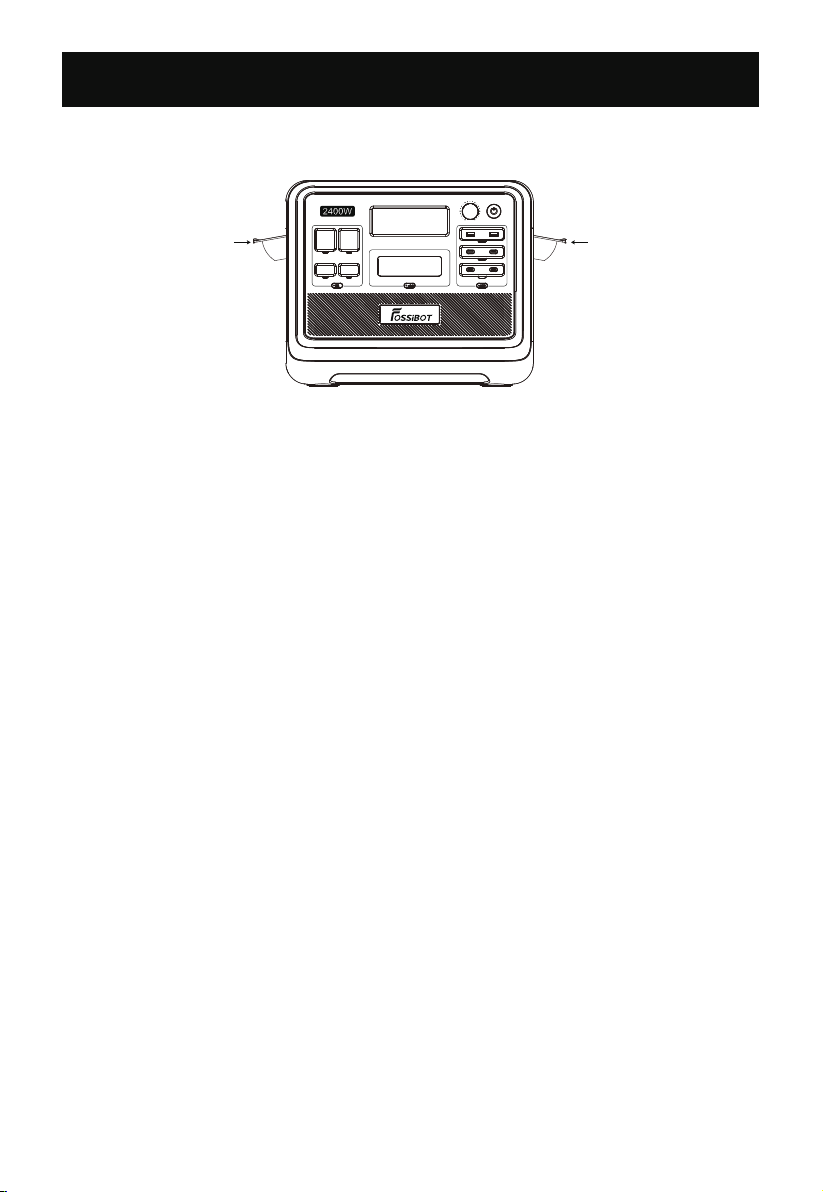

Car Charging
This product uses the ACC charging cable, which can be used for mobile
charging by the cigarette lighter (Accessory: hereinafter referred to as ACC)
in the car.
Before using the product, whether it is charging or discharging, you must
open the fan covers on both sides at the same time to prevent the product
from being over heated and damaging the product.
Connect the ACC charging cable to the cigarette lighter in the car and the
Anderson interface on the side of the product, turn on the engine of the car,
and the LED display of this product will display the input power.
Portable Power Station
Car Charging Cable
AC Input Anderson Port
9
Use of Fan Covers
Before operating the product, whether it is charging or discharging you must
open the fan covers on both sides at the same time to prevent the product
from over heating and causing the product to stop working or enter a protec-
tion state.
Left fan cover Right fan cover
Input
Regulator
3
0
0
W
5
0
0
W
9
0
0
W
1
1
0
0
W
POWER
12V/10A 12V/25A
12V/3A12V/3A
PD 20W
PD 20W
PD 20W
PD 100W
QC 3.0 QC 3.0
DC ON/OFF LIGHT ON/OFF USB ON/OFF
PORTABLEPOWER STATION
700W
10
Product Specifications
F2400 Portable Power Station
Battery Specifications
3500 Times
℃
11
Troubleshooting
Shining
Symbol
Stop using it for 1 hour until the
power supply returns to normal
temperature.
12
Warranty
Product Model
User Name
Address
Phone Number
Email
Sales Contact
Purchasing Date
Please fill in all of the above items.
Warranty
This product comes with a 24-month warranty from the date of purchase
Product specifications and features are sometimes changed without prior notice.
Please refer to our updated guideline on our website below.
Even within the scope of the warranty, there are times when an equivalent product can be
exchanged. Shipping and maintenance costs for products not covered by the warranty shall
be borne by the customer.
If there is a quality problem within the scope of normal use, we provide warranty.
After purchasing our company's products, please keep this product together with invoices and
other items, and please provide information according to our company's reliance request when
maintenance services are required.
Warranty service may not be provided if the warranty card is damaged, altered, etc.,
and it is considered to be incorrect, or if the warranty card is not stamped by the store where it
was sold.
Damage caused by use beyond the normal use range is not covered by the warranty service.
The content of the warranty scope is subject to the content recognized by the company.
Manufacturer: Shenzhen Qichang Intelligent Technology Co., Ltd.
Address: Room 510, 5th Floor, Building 7, Yunli Smart Park, Bantian Street, Longgang District,
Shenzhen,GD CN
Warnung
1 Bitte trocken und von Feuer entfernt halten.
2 Nicht zerlegen, durchstoßen, an offenliegenden
Anschlüssen irreguläre Vorgänge ausführen oder das Produkt
heftig anstoßen.
3 Bitte entsorgen Sie das Produkt entsprechend der örtlichen
Gesetze und Richtlinien.
4 Achten Sie beim Tragen auf Ihre Sicherheit und stoßen Sie
nicht Ihre Füße.
5 Kinder und geistig behinderte Personen sollten es nur unter
Aufsicht verwenden.
Generator für den Außenbereich
Bedienungsanleitung
Haftungsausschluss
Bitte lesen Sie vor der Verwendung die Bedienungsanleitung
dieses Produkts, um eine korrekte Verwendung zu gewährleisten,
nachdem Sie diese vollständig verstanden haben. Bitte bewahren
Sie die Bedienungsanleitung nach dem Lesen zur zukünftigen
Referenz sorgfältig auf. Wenn Sie dieses Produkt nicht ordnungs-
gemäß verwenden, können Sie sich selbst oder andere Personen
schwer verletzen, das Produkt beschädigen sowie Sachschäden
verursachen.
Sobald Sie dieses Produkt benutzen, wird davon ausgegangen,
dass Sie alle Bedingungen dieser Bedienungsanleitung verstan-
den, genehmigt und akzeptiert haben. Der Nutzer verpflichtet sich
für seine Handlungen und alle sich daraus ergebenden Folgen
verantwortlich zu sein.
Unser Unternehmen ist nicht verantwortlich für jegliche Verluste
aufgrund der unsachgemäßen Verwendung des Produkts entgegen
der Bedienungsanleitung. In Übereinstimmung mit den Gesetzen
und Vorschriften hat unser Unternehmen das endgültige Recht,
dieses Dokument und alle zugehörigen Produktdokumente auszu-
legen.
Verpackungsinhalt 1
Achtung 1
Spezifikationen 2
Inhaltsverzeichnis
Produkteinführung 3
Einführung in die Produktsymbole 6
Auflademethode 7
Stromerzeugereinführung 8
Verwendung von Lüfterabdeckungen 9
Fragen & Anworten
Wartung
10
12
Verpackungsinhalt
a. Seien Sie besonders vorsichtig, wenn Sie das Produkt in der Nähe
von Kindern verwenden.
c. Wenn Sie das Gerät nicht benutzen, schalten Sie es bitte aus.
d. NICHT das Produkt zerlegen, da dies zu unvorhersehbarem Brand,
Stromschlag usw. führen kann.
e. KEINEN beschädigte Stecker oder Kabel mit diesem Produkt
verwenden, da dies zuunvorhersehbare Risiken führen kann.
f. Achten Sie während der Verwendung des Produkts darauf, dass der
Lufteinlass/-auslass nicht blockiert wird.
g. Bitte stellen Sie das Produkt in einer belüfteten und trockenen
Umgebung auf, vermeiden Sie Regen, Feuchtigkeit sowie andere
nasse Umgebungen.
h. NICHT dieses Produkt in einer Umgebung mit hohen Temperaturen
verwenden.
i. Bitte laden Sie das Produkt alle drei Monate auf.
b. Die Verwendung von Zubehör, das von nicht durch den Hersteller
lizenzierten Herstellern empfohlen oder verkauft wird, birgt die
Gefahr eines Stromschlags.
Bitte lesen Sie vor der Verwendung des Produkts die Bedienungsanl
-eitung sorgfältig durch!
Achtung
Tragbarer Stromerzeuger AC-Ladekabel Bedienungsanleitung
Anderson zu
MC4-Kabel Zigarettenanzünder
zu Anderson-Kabel
Other manuals for F2400
1
Table of contents
Languages:
Other FOSSIBOT Power Supply manuals
